Properties of Quadrilaterals 3.2

Properties of Quadrilaterals 3.2. Homework. Any four sided polygon is a quadrilateral. Angles sum to be 360  We’ll study special quadrilaterals in this section: Trapezoid Isosceles Trapezoid Parallelogram Rhombus Rectangle Square Kite. Opposite sides of a parallelogram are parallel

bryony
Télécharger la présentation

Properties of Quadrilaterals 3.2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Properties of Quadrilaterals 3.2

  2. Homework Any four sided polygon is a quadrilateral. Angles sum to be 360 We’ll study special quadrilaterals in this section: Trapezoid Isosceles Trapezoid Parallelogram Rhombus Rectangle Square Kite

  3. Opposite sides of a parallelogram are parallel Opposite sides are congruent Opposite angles of parallelograms are congruent. Diagonals of a parallelogram bisect each other Consecutive angles of a parallelogram are supplementary Alternate interior angles are congruent Homework Properties of Parallelograms

  4. || || Homework

  5. Homework

  6. Homework

  7. Alternate interior Homework

  8. Homework Find a and b so that the quadrilateral is a parallelogram State the property. a. mMJK b. mJML c. mJKL d. mKJL e. a f. b 100 80 80 30 21 7

  9. Homework Find d so that the quadrilateral is a parallelogram. State the property. • mPLM • b. mLMN • c. d = 108 72 11

  10. Homework Find x and y so that the quadrilateral is a parallelogram State the property. a. x b. y y = 21 x = 12

  11. Homework Find x and y so that the quadrilateral is a parallelogram. State the property. a. x b. y x = 7 y = 4

  12. Homework Find the value of x that makes the figure a parallelogram. State the property. a. x x = 46

  13. Homework Find the valuesso that the figure is a parallelogram State the property. a. x b. y c. a d. b y = 15 a = 7 x = 25 b = 7 g. w h. z e. x f. y z = 4½ w = 4 y = 65 x = 8

  14. 6.13 Homework Find x, y, w, and z so that the quadrilateral is a parallelogram. State the property . a. mMNP b. mNRP c. mRNP d. mRMN e. mMQN f. mMQR g. x h. y i. w j. z 71 33 38 109 97 83 6.45 3.525 8

  15. Assignment Geometry: Properties of a Parallelogram

  16. A rhombus is a parallelogram (this means it has ALL of the characteristics of a parallelogram) In addition: A rhombus has four congruent sides The diagonals of a rhombus are perpendicular The diagonals bisect opposite angles Homework Properties of a Rhombus (Rhombi)

  17. Homework Rhombus

  18. a. f. c. d. e. b. JM m KJL m KNL m KJM NM JN Homework Find the indicated measure in rhombus JKLM KM = 8 and JL = 6. State the property. 4 90° 3 5 53° 37 106°

  19. A rectangle is a parallelogram (this means it has ALL the characteristics of a parallelogram) IN ADDITION: Four right angles The diagonals of a rectangle are congruentandthey bisect each other Homework Properties of Rectangles

  20. Homework Rectangles

  21. Homework In rectangle JKLM shown below, JL and MK are diagonals. If JL = 2x + 5 and MK = 4x – 11, what is x? x = 8 If mMNL = 140 answer the following? d. mMJK e. mNLK f. mNLM • mJNK • b. mMNJ • c. mLNK g. mLJK h. mLJM 90° 20° 140° 70° 70° 40° 20° 40°

  22. (2z) + 11) Homework In rectangle ABCD shown below, find the value of x, y, and z.State the property. a. x b. y c. z z = 12.5 y = 9 x = 5

  23. Homework WXYZ is a rectangle. Find each measure if m1 = 35. State the property. a.m1 b. m2 c. m3 d. m4 e. m5 f. m6 g. m7 h. m8 i. m9 j. m10 k. m11 l. m12 55° 55° 35° 35° 55° 35° 35° 55° 70° 110° 110° 70°

  24. Homework Quadrilateral JKMN is a rectangle. Find each measure. State the property. 36 a. If NQ = 5x +3 & QM =4x +6, find NK. b. If NQ =2x +3 & QK 5x -9, find JQ. c. If NM =2x +14 & JK =x2 -1, find JK. d. If mNJM =2x +3 & mKJM =x +6, find x. e. If mNKM =x2 +4 & mKNM =x +30, find mJKN. f. If mJKN =16x & mNKM = 14x, find x. 11 8 or 24 27 37 3

  25. in. c =  1737 Homework Television screens are rectangles and are measured by their diagonals. Find the length of the diagonal. a² + b² = c² 21² + 36² = c² 1737 = c² c  41.6773

  26. A square is a parallelogram, a rectangle, and a rhombus (It has ALL those characteristics!!!) Has four congruent sides Has four right angles The diagonals of a square: bisect each other are congruent are perpendicular. bisect opposite angles Homework Properties of Squares

  27. Homework

  28. A B 10 in. c =  200 C D Homework Parallelogram ABCD is a square.Find x and y. a² + b² = c² 10² + 10² = c² 200 = c² c  14.14 • x • b. y x = 45 y  14.14

  29. Assignment Geometry: Rectangles, Rhombus & Squares

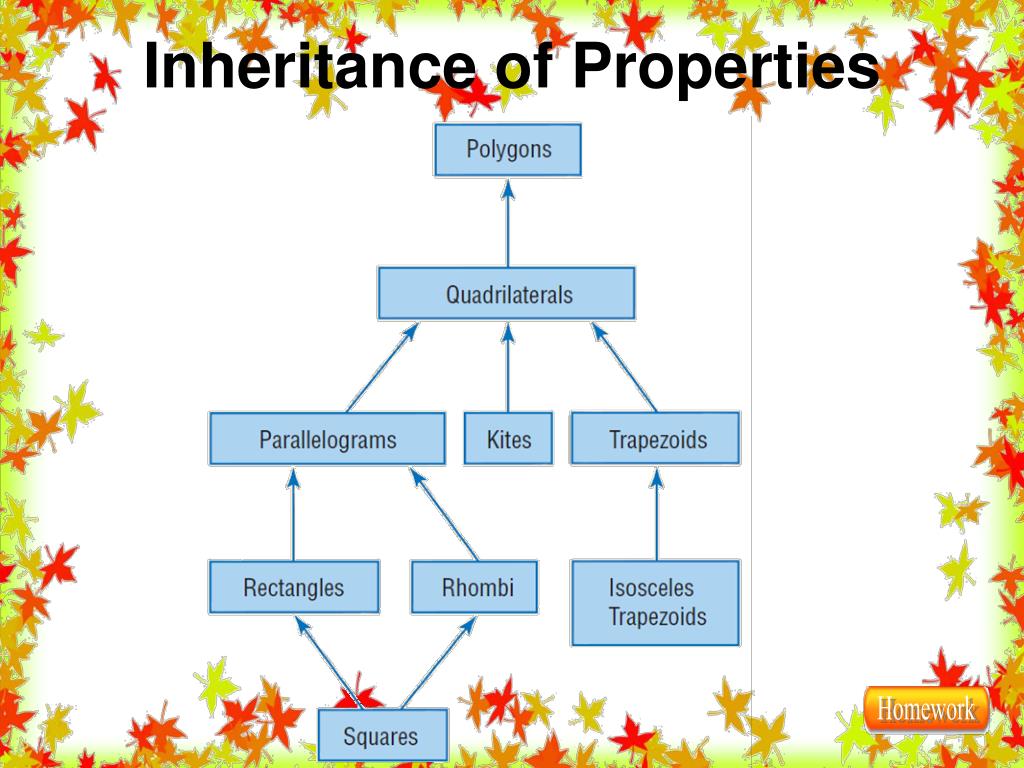

  30. Homework Inheritanceof Properties

  31. Kites Trapezoids Homework Isosceles Trapezoid

  32. Homework

  33. 2 pair of consecutive congruent sides Opposite sides are NOT congruent Angles are congruent as marked (also mK  mT) Diagonals are perpendicular Notice only ONE diagonal is bisected Homework Properties of a Kite:A quadrilateral with NO parallel sides.

  34. Homework Kites

  35. x + 4 14 y + 16 2x + 12 Homework Find the value of x and y. Find the lengths of the sides. • x • b. y 10 16 c. IT d. KE 14 32

  36. Homework Find the value of x and y in the kite below. a² + b² = c² 24² + (SO)² = 27² 576 + (SO)² = 729 (SO)² = 153 SO =  153 SO  12.4 12.4 • x b. y 4x + 3 = 15 2x + 5y = 12.4 6 + 5y = 12.4 4x = 12 x = 3 5y = 6.4 y = 1.28

  37. 2 6 5 4 3 1 52 7 27 Homework In kite ABCD, find the measures of the numbered angles. a.m1 b. m2 c. m3 d. m4 e. m5 f. m6 g. m7 90° 52° 38° 27° 63° 38° 63°

  38. Homework Trapezoid

  39. Homework Isosceles Trapezoid

  40. Homework Properties of a Trapezoid • A trapezoid has one and only one pair of parallel sides. • The median of a trapezoid is parallel to the bases, and the length of the median equals one-half the sum of the lengths of the bases. Base Median Base

  41. 6 65 18 Homework For isosceles trapezoid XYZW, Find the length of the median, mX and mZ. • Median • b. mZ • c. mX 12 115° 65°

  42. Homework In trapezoid QRST, A and B are midpoints of the legs. Find AB, mQ, and mS. a. AB b. mQ c. mS 135° 60° 16

  43. Homework PQRS is an isosceles trapezoid; find x. 2a2 – 54 = a2 + 27 a2 = 81 a = 9 or a = –9

  44. 17x 22.5x + 9 30x + 12 Homework XY is the midsegment of trapezoid ABCD; find x. x = 3

  45. Homework 1. Opposite sides parallel. 2. Opposite sides congruent. 3. Opposite angles are congruent. 4. Consecutive angles are supplementary. 5. Diagonals bisect each other. 1. Has 4 right angles. 2. Diagonals are congruent. 3. All properties of parallelogram. 1. Has 4 Congruent sides 2. Diagonals bisect opposite angles. 3. Diagonals are perpendicular. 4. All properties of parallelograms. 1. 4 congruent sides and 4 congruent (right) angles 2. All properties of parallelogram, rectangle, and rhombus QUADRILATERALS 1. One pair of parallel sides 2. Leg angles supplementary 3. Midsegment = ½ (b1 + b2) 1. 2 pairs of consecutive sides congruent 2. 1 pair of opposite angles congruent 3. Diagonals perpendicular 4. Small diagonal bisected 5. Non-congruent angles are bisected • 1. 2 pairs of congruent base angles • 2. Diagonals are congruent • 3. One pair of parallel sides • 4. Leg angles supplementary • 5. Midsegment = ½ (b1 + b2)

  46. Homework Quadrilateral Characteristics Summary Convex Quadrilaterals 4 sided polygon 4 interior angles sum to 360 4 exterior angles sum to 360 Parallelograms Trapezoids Bases Parallel Legs are not Parallel Leg angles are supplementary Median is parallel to basesMedian = ½ (base + base) Opposite sides parallel and congruent Opposite angles congruent Consecutive angles supplementary Diagonals bisect each other Rectangles Rhombi IsoscelesTrapezoids All sides congruent Diagonals perpendicular Diagonals bisect opposite angles Angles all 90° Diagonals congruent Legs are congruent Base angle pairs congruent Diagonals are congruent Squares Diagonals divide into 4 congruent triangles

  47. Homework In parallelogram PNWL, NW = 12, PM = 9, and mWLP = 144°. Find each measure. 1.PW2.mPNW 18 144°

  48. Homework QRST is a parallelogram. Find each measure. a.TQb.mT 71° 28

  49. Assignment Geometry: Trapezoids & Kites

  50. Assignment Geometry: 3.2A and 3.2B Section 9 - 41
