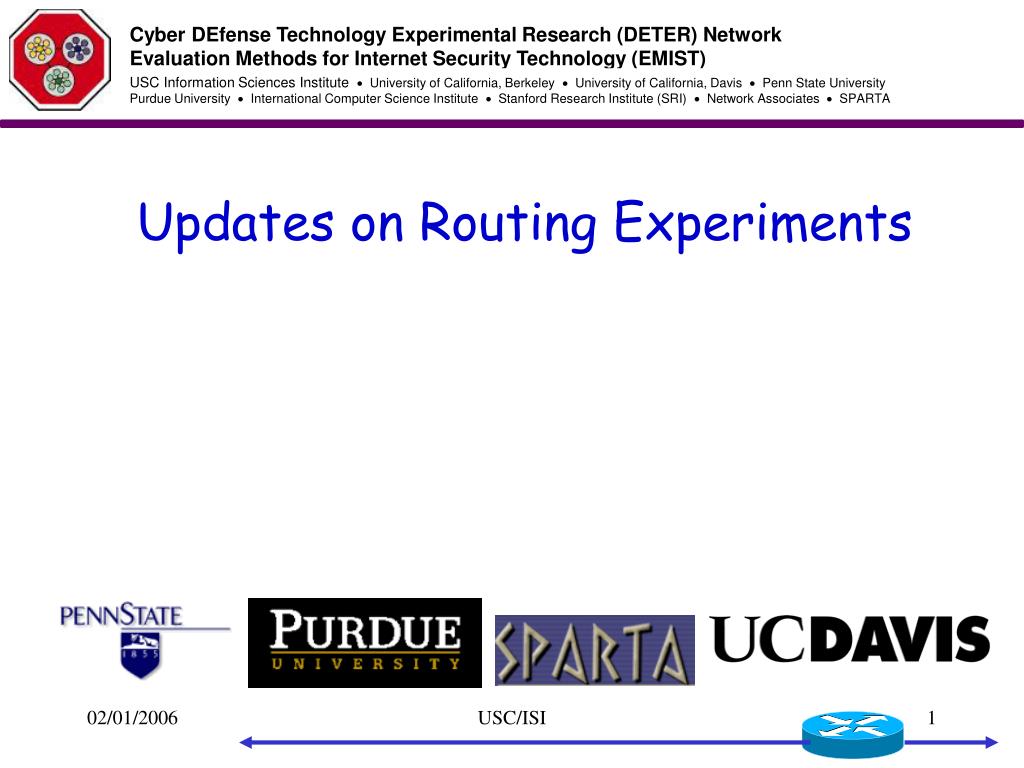

  1. Cyber DEfense Technology Experimental Research (DETER) Network Evaluation Methods for Internet Security Technology (EMIST) USC Information Sciences Institute  University of California, Berkeley  University of California, Davis  Penn State University Purdue University  International Computer Science Institute  Stanford Research Institute (SRI)  Network Associates  SPARTA Updates on Routing Experiments USC/ISI

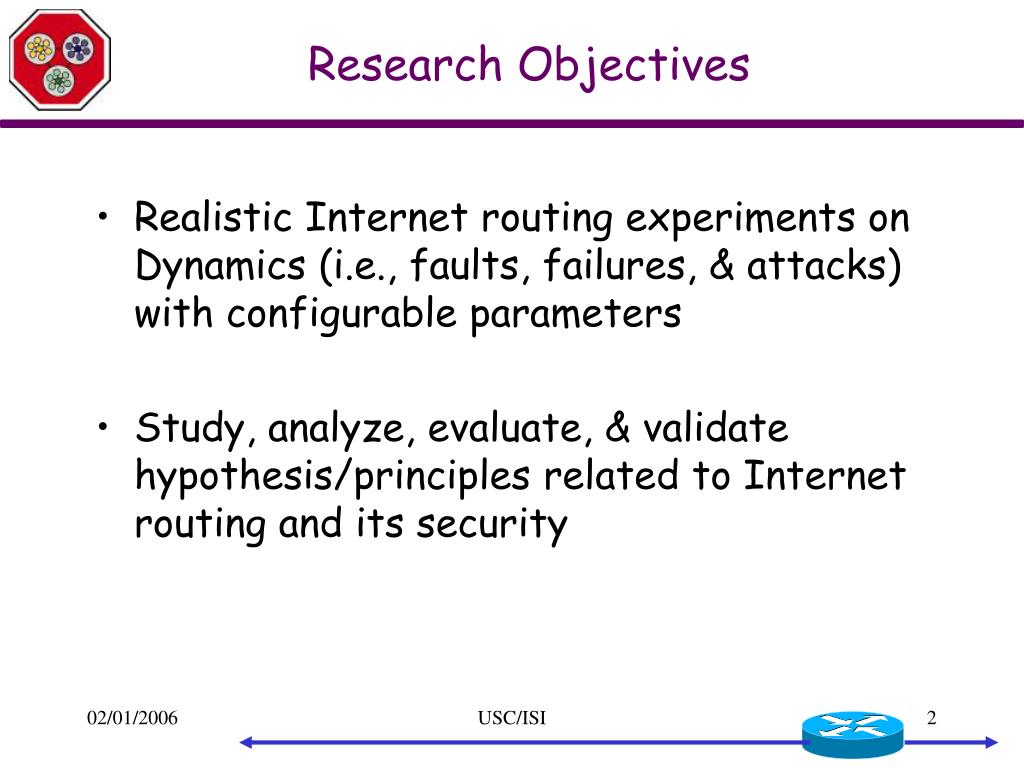

  2. Research Objectives • Realistic Internet routing experiments on Dynamics (i.e., faults, failures, & attacks) with configurable parameters • Study, analyze, evaluate, & validate hypothesis/principles related to Internet routing and its security USC/ISI

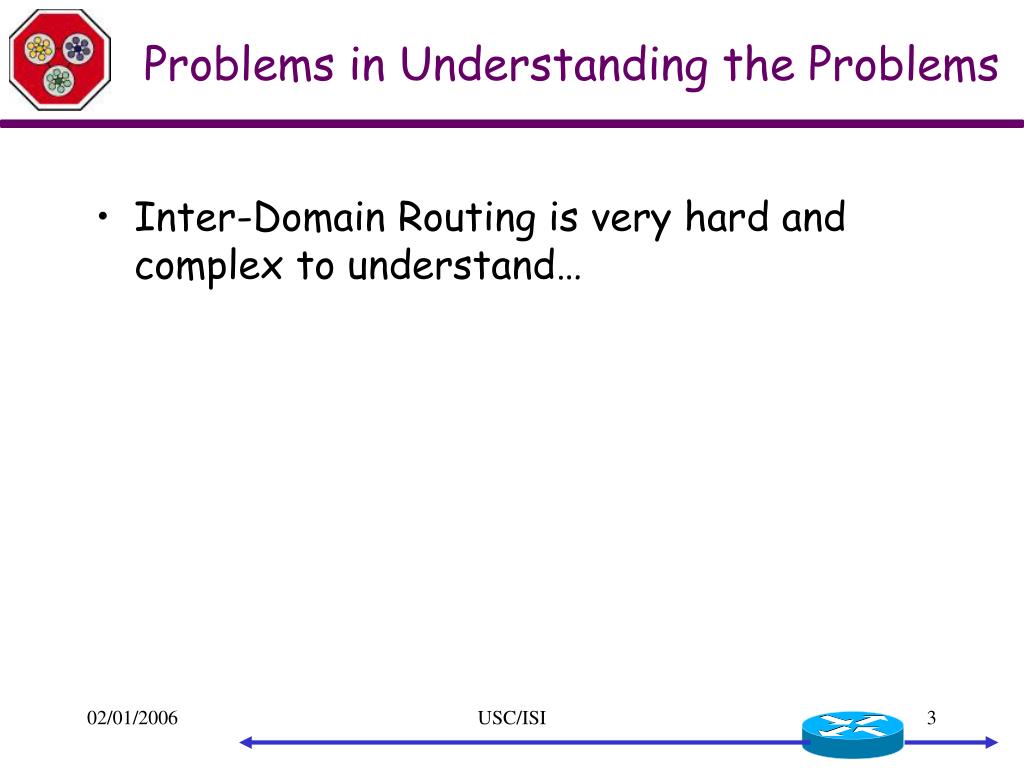

  3. Problems in Understanding the Problems • Inter-Domain Routing is very hard and complex to understand… USC/ISI

  4. The “Internet”as February 1, 2006 http://bgp.potaroo.net/cidr/ • 21319 Autonomous Systems • 177300 IP Address Prefixes announced USC/ISI

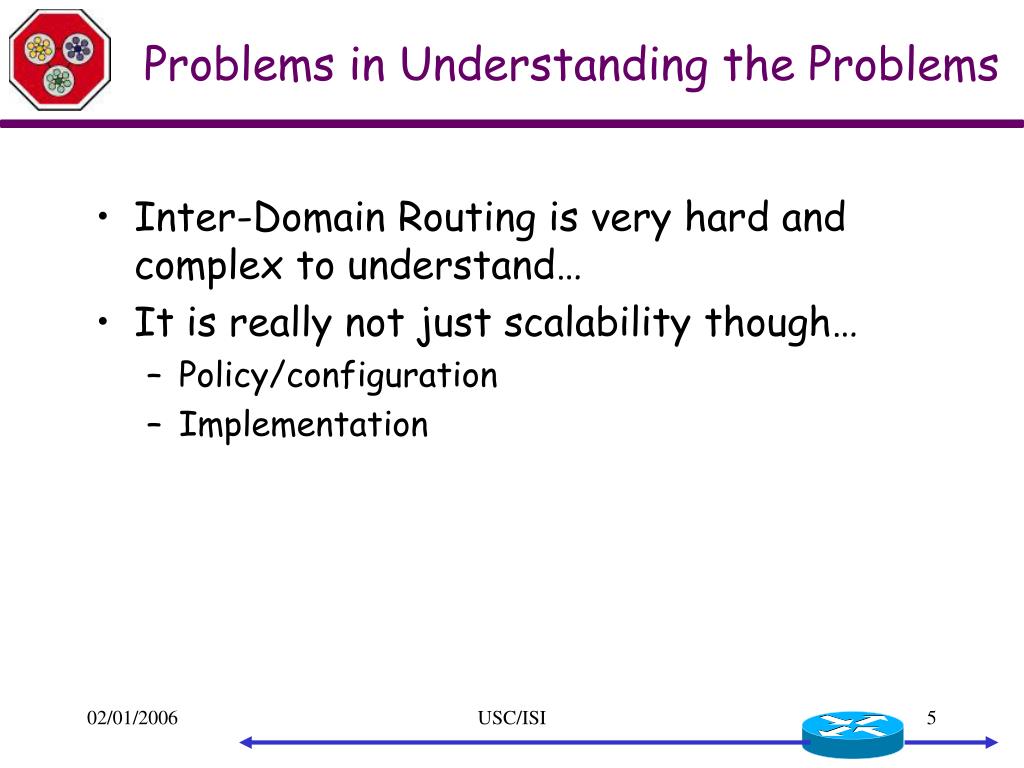

  5. Problems in Understanding the Problems • Inter-Domain Routing is very hard and complex to understand… • It is really not just scalability though… • Policy/configuration • Implementation USC/ISI

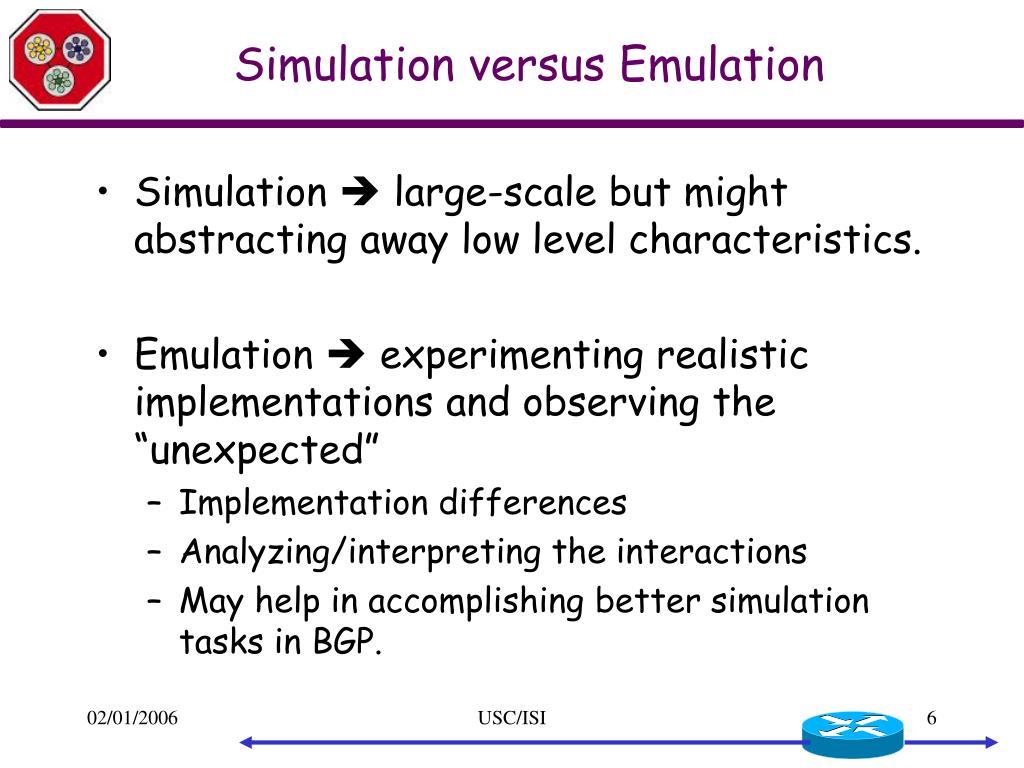

  6. Simulation versus Emulation • Simulation  large-scale but might abstracting away low level characteristics. • Emulation  experimenting realistic implementations and observing the “unexpected” • Implementation differences • Analyzing/interpreting the interactions • May help in accomplishing better simulation tasks in BGP. USC/ISI

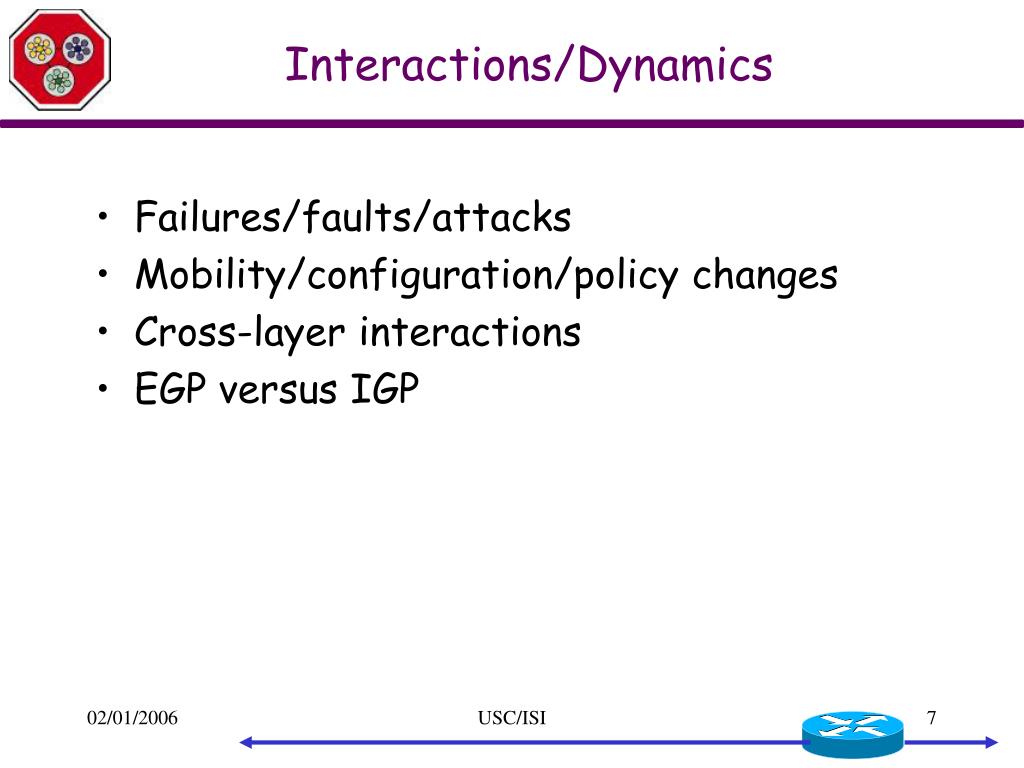

  7. Interactions/Dynamics • Failures/faults/attacks • Mobility/configuration/policy changes • Cross-layer interactions • EGP versus IGP USC/ISI

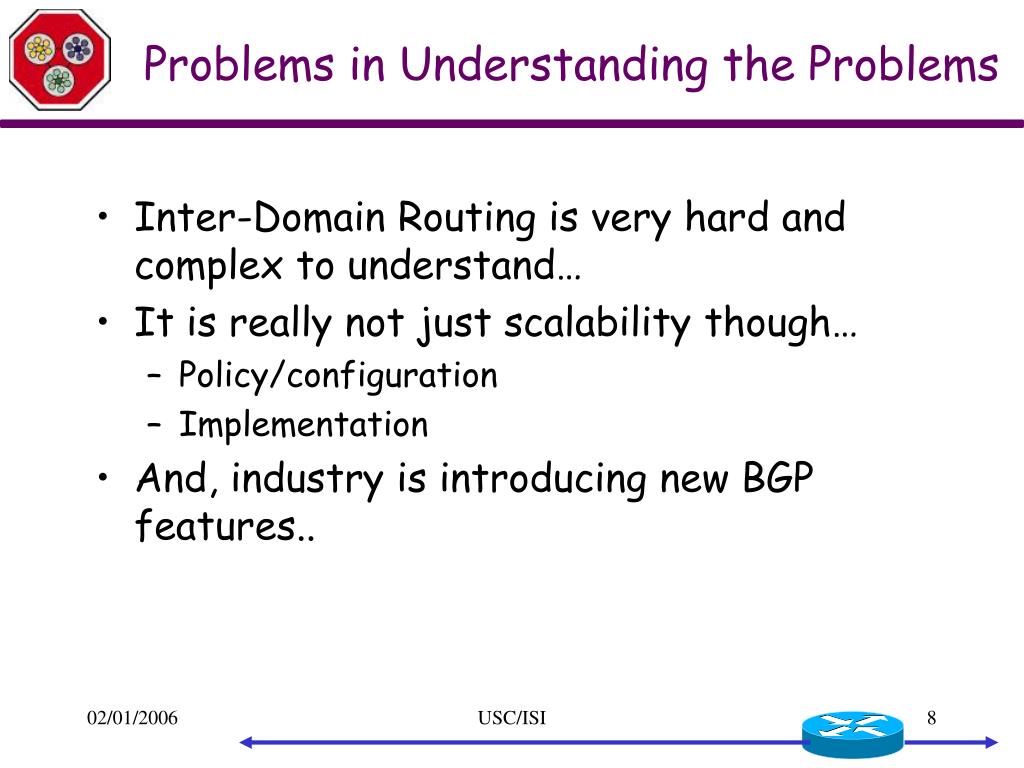

  8. Problems in Understanding the Problems • Inter-Domain Routing is very hard and complex to understand… • It is really not just scalability though… • Policy/configuration • Implementation • And, industry is introducing new BGP features.. USC/ISI

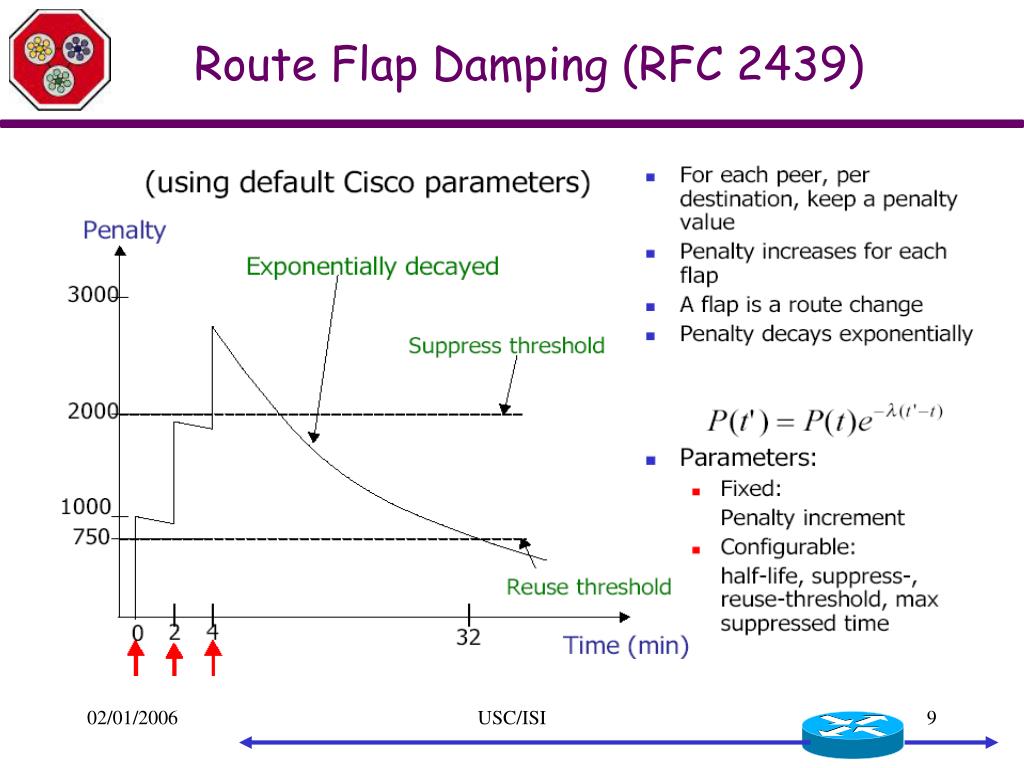

  9. Route Flap Damping (RFC 2439) USC/ISI

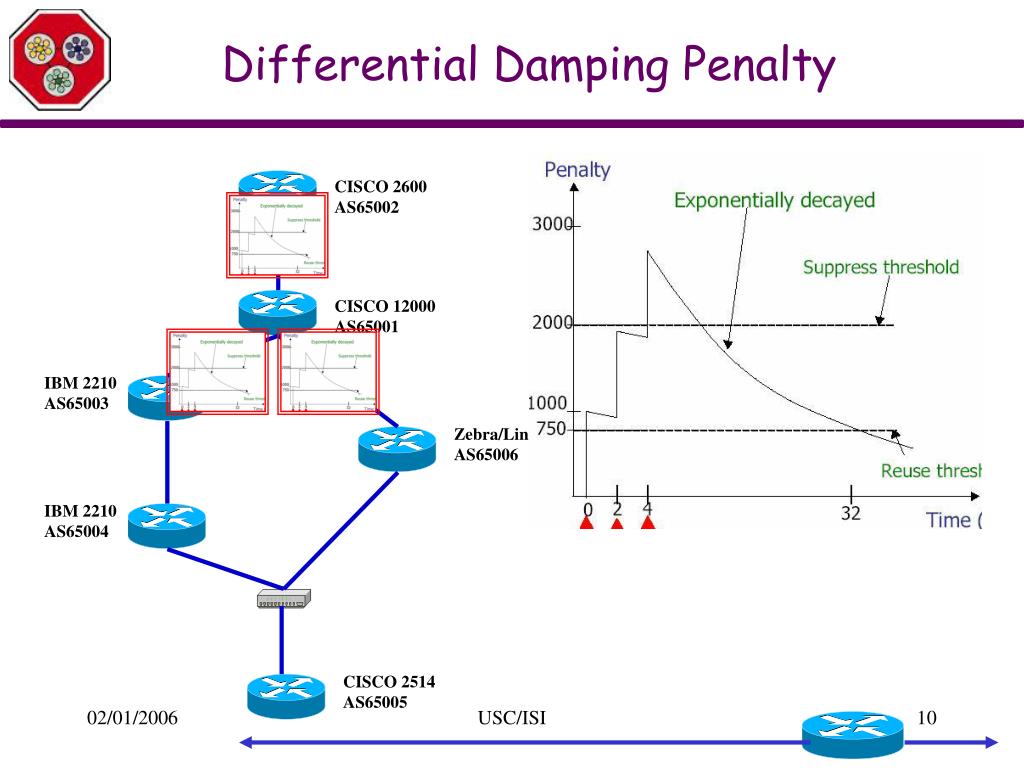

  10. Differential Damping Penalty CISCO 2600 AS65002 CISCO 12000 AS65001 IBM 2210 AS65003 Zebra/Linux AS65006 IBM 2210 AS65004 CISCO 2514 AS65005 USC/ISI

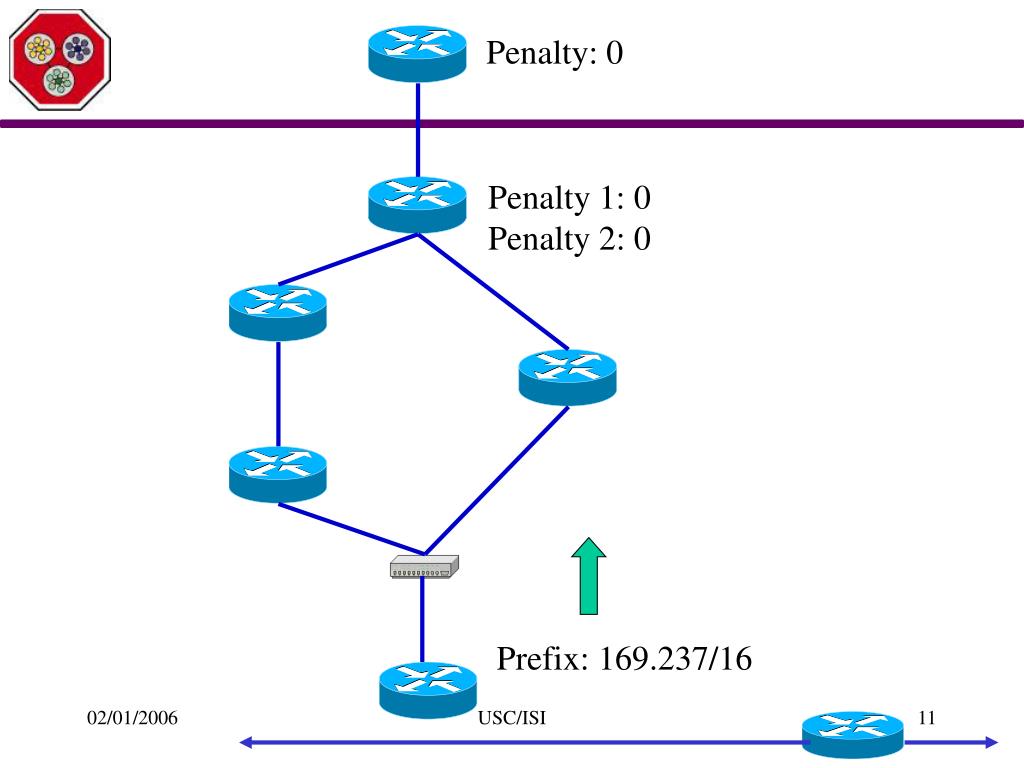

  11. Penalty: 0 Penalty 1: 0 Penalty 2: 0 Prefix: 169.237/16 USC/ISI

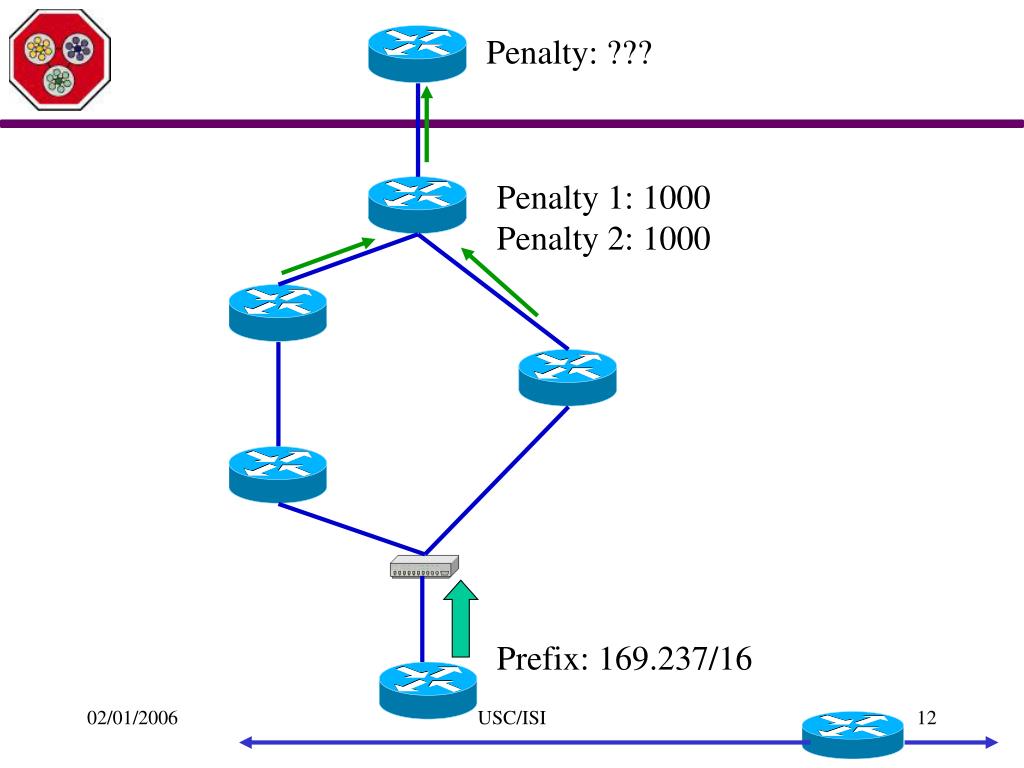

  12. Penalty: ??? Penalty 1: 1000 Penalty 2: 1000 Prefix: 169.237/16 USC/ISI

  13. Penalty: 1000  2000 initial difference Penalty 1: 1000 Penalty 2: 1000 artificial delay X Prefix: 169.237/16 USC/ISI

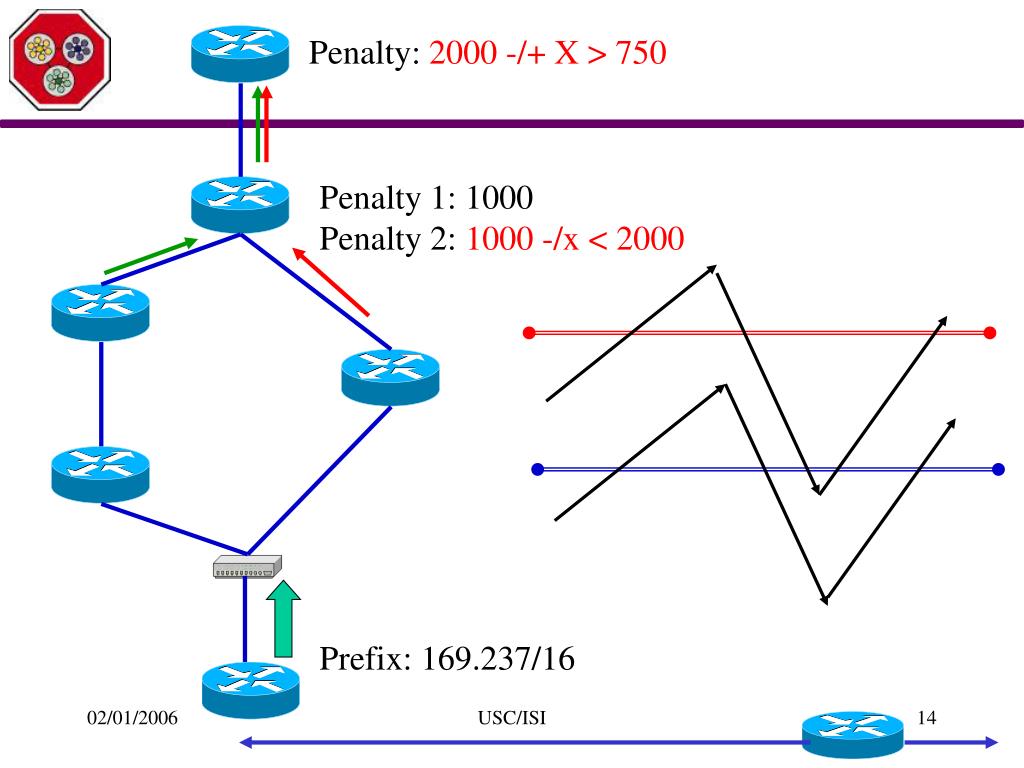

  14. Penalty: 2000 -/+ X > 750 Penalty 1: 1000 Penalty 2: 1000 -/x < 2000 Prefix: 169.237/16 USC/ISI

  15. Outbound Route Filter (ORF) Internet draft, under implementation in Cisco “defines a BGP-based mechanism that allows a BGP speaker to send to its BGP peer a set of Outbound Route Filters (ORFs). The peer would then apply these filters, in addition to its locally configured outbound filters (if any), to constrain/filter its outbound routing updates to the speaker. ” If the peer damps a path, sends ORF to the downstream peer. So, the peer won’t receive further updates until the path is reused. USC/ISI

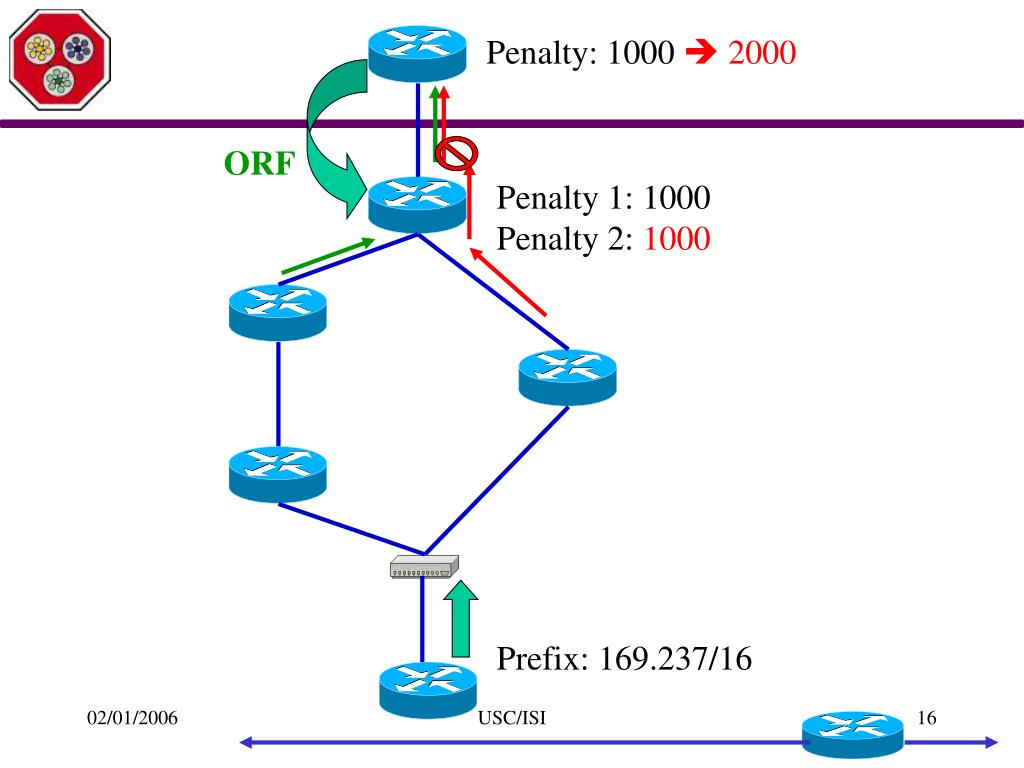

  16. Penalty: 1000  2000 ORF Penalty 1: 1000 Penalty 2: 1000 Prefix: 169.237/16 USC/ISI

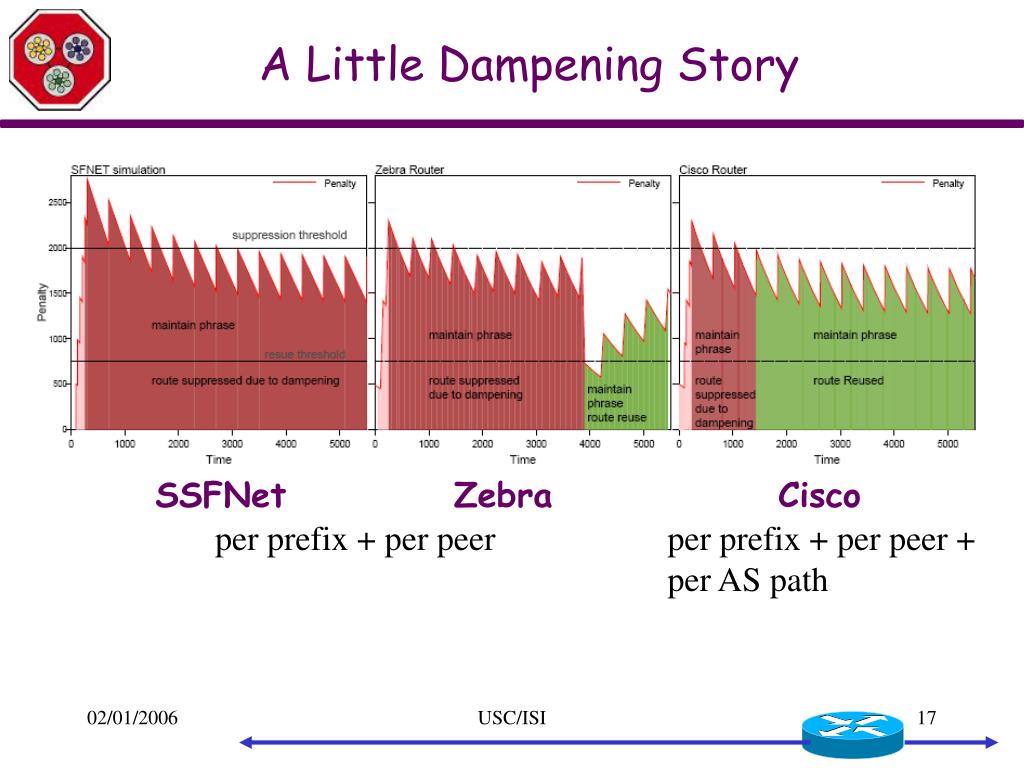

  17. A Little Dampening Story SSFNet Zebra Cisco per prefix + per peer per prefix + per peer + per AS path USC/ISI

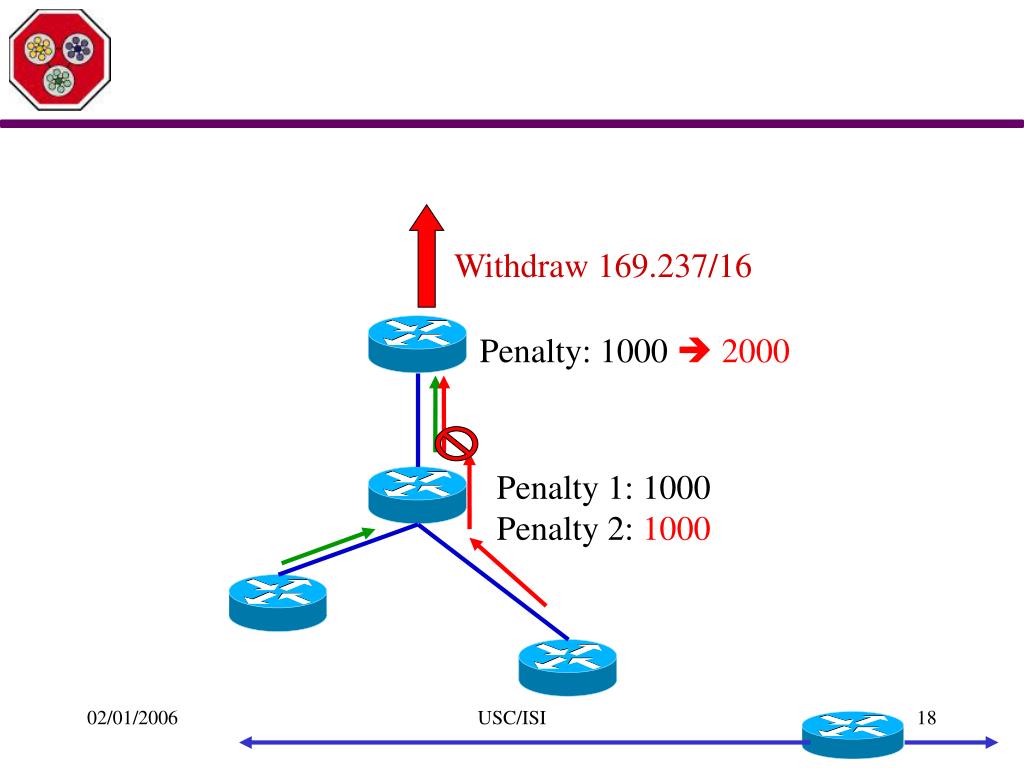

  18. Withdraw 169.237/16 Penalty: 1000  2000 Penalty 1: 1000 Penalty 2: 1000 USC/ISI

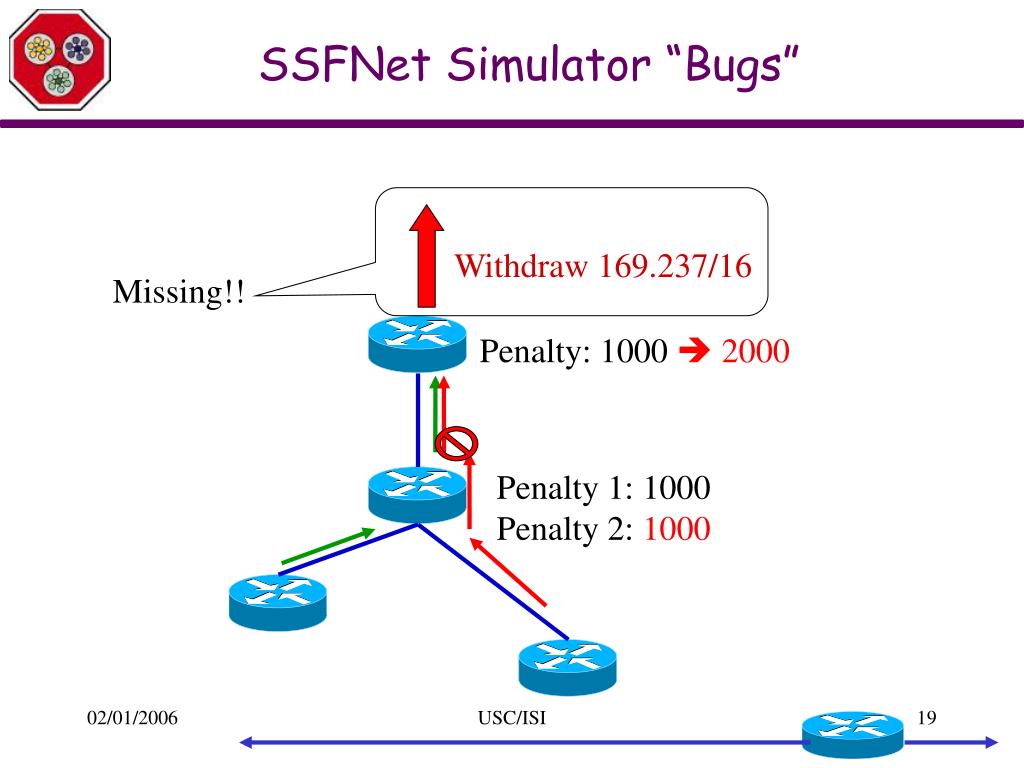

  19. SSFNet Simulator “Bugs” Withdraw 169.237/16 Missing!! Penalty: 1000  2000 Penalty 1: 1000 Penalty 2: 1000 USC/ISI

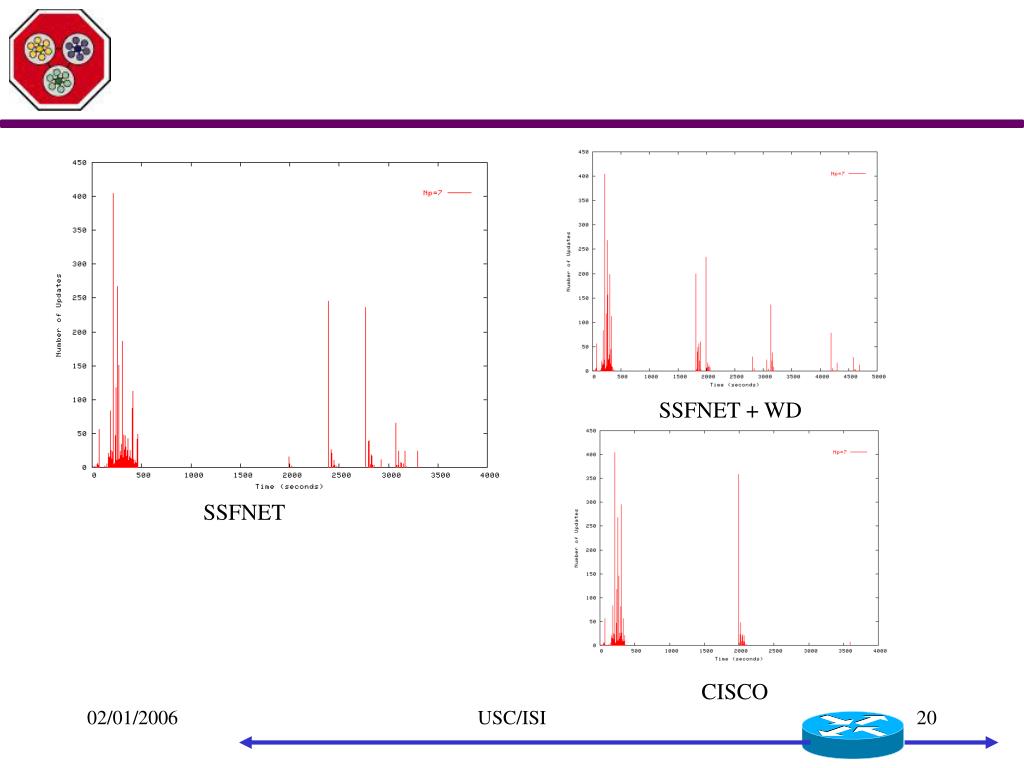

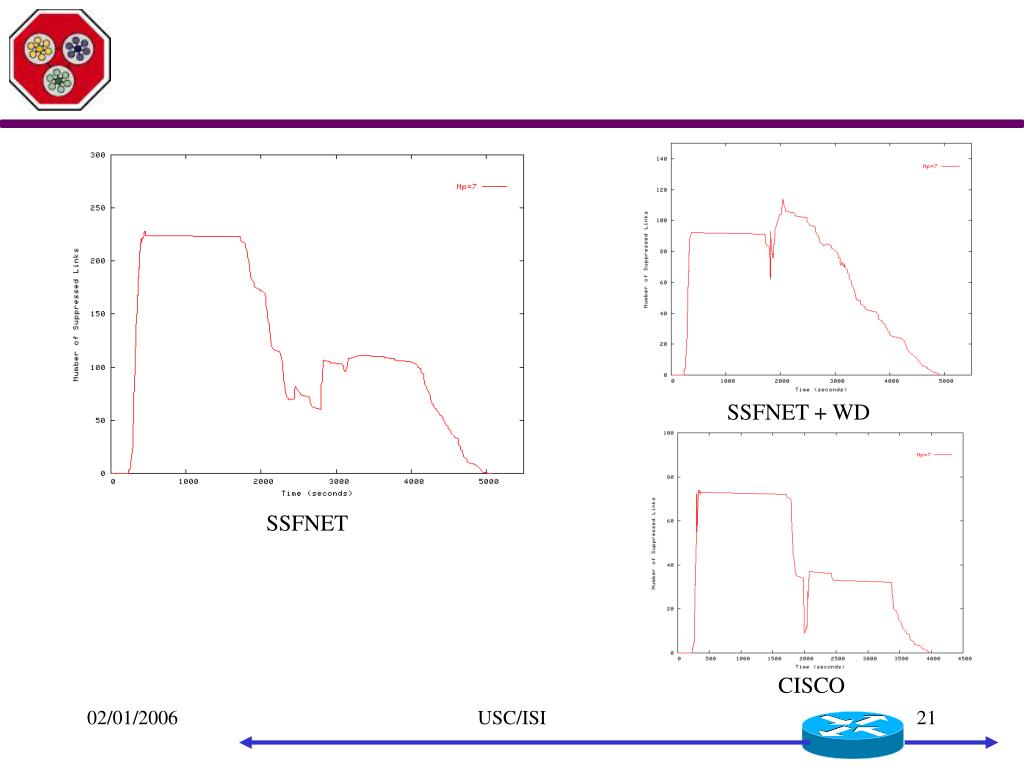

  20. SSFNET + WD SSFNET CISCO USC/ISI

  21. SSFNET + WD SSFNET CISCO USC/ISI

  22. ICDCS’2005 Best Paper Award SSFNET + WD SSFNET CISCO USC/ISI

  23. Problems or Issues • Damping implementation • MRAI timer • The Single Router AS Assumption • Route Withdraw • ORF USC/ISI

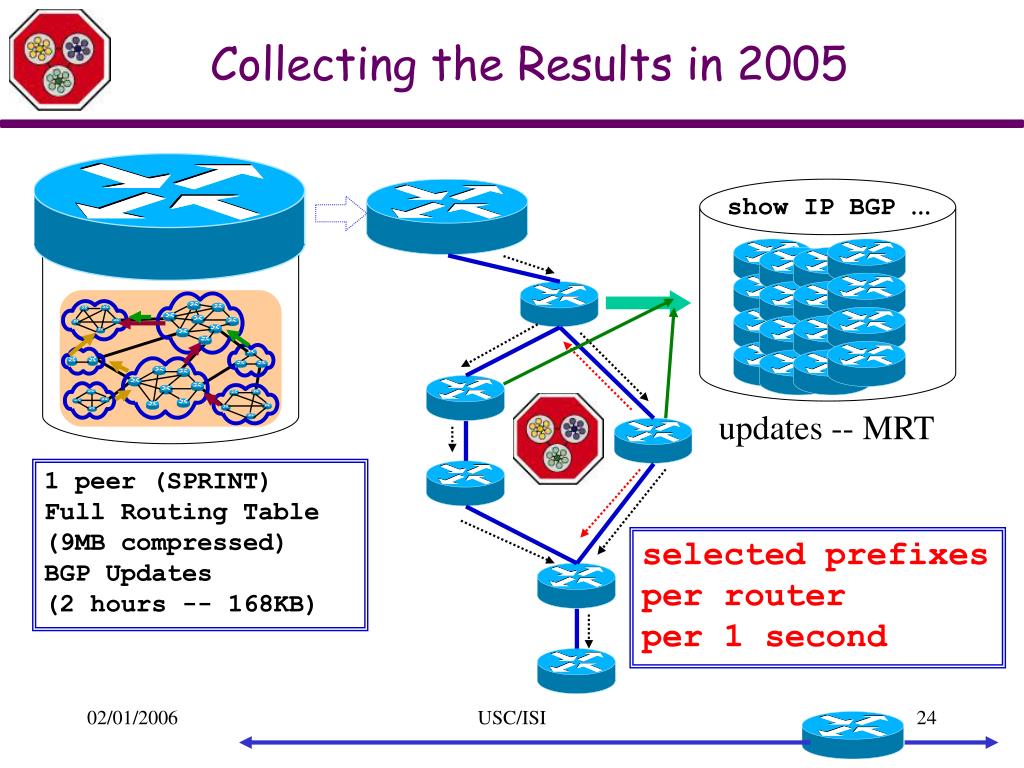

  24. Collecting the Results in 2005 show IP BGP … updates -- MRT 1 peer (SPRINT) Full Routing Table (9MB compressed) BGP Updates (2 hours -- 168KB) selected prefixes per router per 1 second USC/ISI

  25. AS-117 AS-112 AS-121 AS-113 AS-101 AS-114 USC/ISI

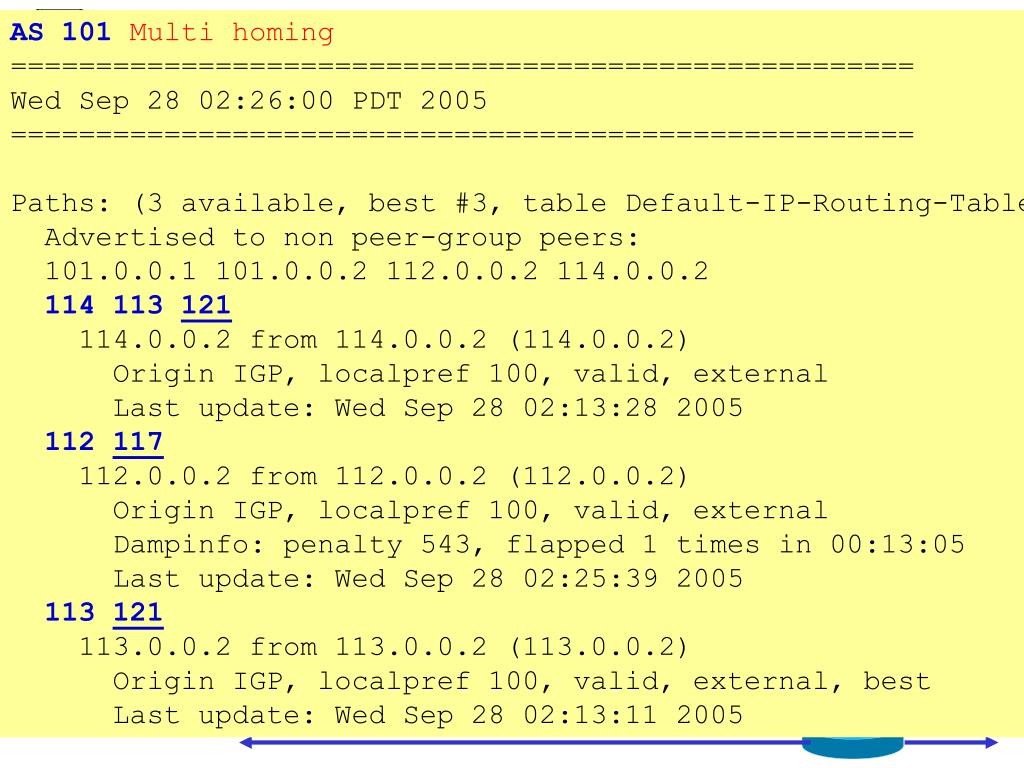

  26. AS 101Multi homing =====================================================Wed Sep 28 02:26:00 PDT 2005=====================================================Paths: (3 available, best #3, table Default-IP-Routing-Table)  Advertised to non peer-group peers:  101.0.0.1 101.0.0.2 112.0.0.2 114.0.0.2114 113 121    114.0.0.2 from 114.0.0.2 (114.0.0.2)      Origin IGP, localpref 100, valid, external      Last update: Wed Sep 28 02:13:28 2005112 117    112.0.0.2 from 112.0.0.2 (112.0.0.2)      Origin IGP, localpref 100, valid, external      Dampinfo: penalty 543, flapped 1 times in 00:13:05      Last update: Wed Sep 28 02:25:39 2005113 121    113.0.0.2 from 113.0.0.2 (113.0.0.2)      Origin IGP, localpref 100, valid, external, best      Last update: Wed Sep 28 02:13:11 2005 USC/ISI

  27. 117 112 101 113 121 114 AS-117 announced AS-121 withdrawn OASC USC/ISI

  28. Creation and Evolution of BGP modeling DETER All BGP information are available SSFNet: Current Understand of The BGP Model Conflicts  Anomalies USC/ISI

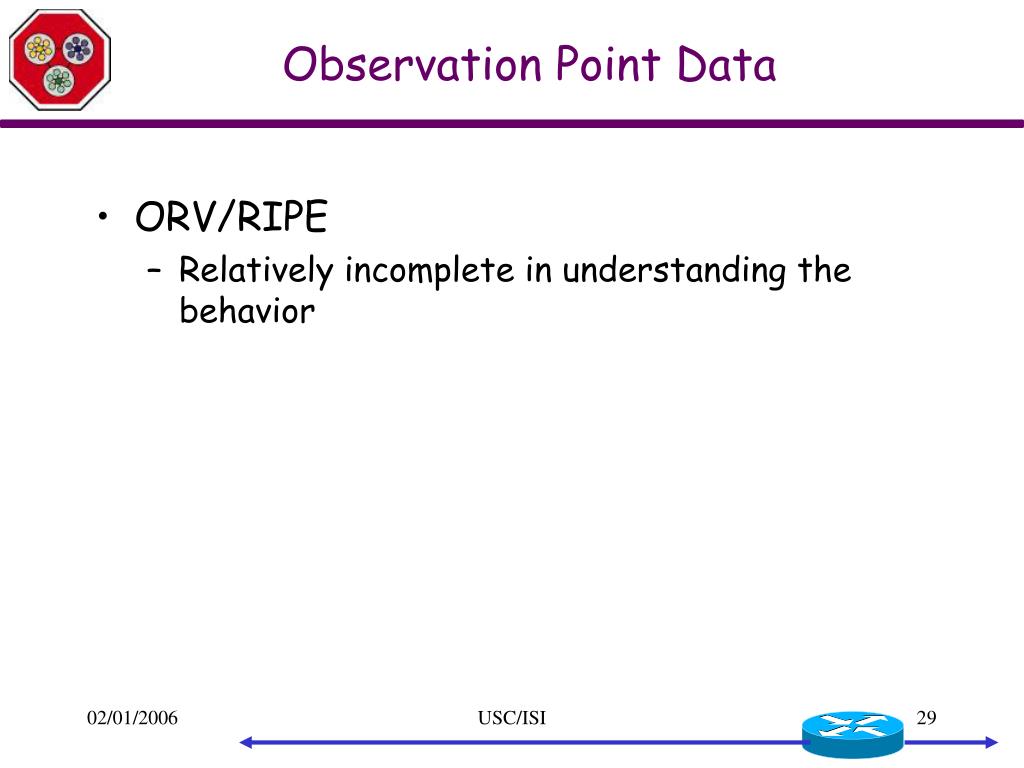

  29. Observation Point Data • ORV/RIPE • Relatively incomplete in understanding the behavior USC/ISI

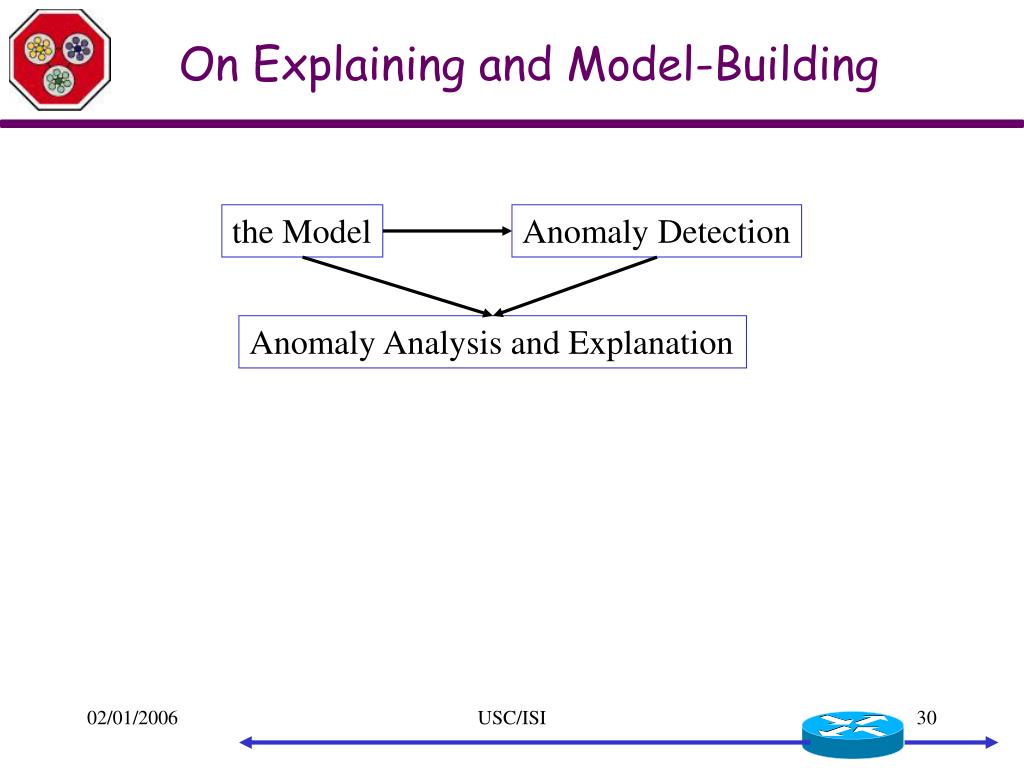

  30. On Explaining and Model-Building the Model Anomaly Detection Anomaly Analysis and Explanation USC/ISI

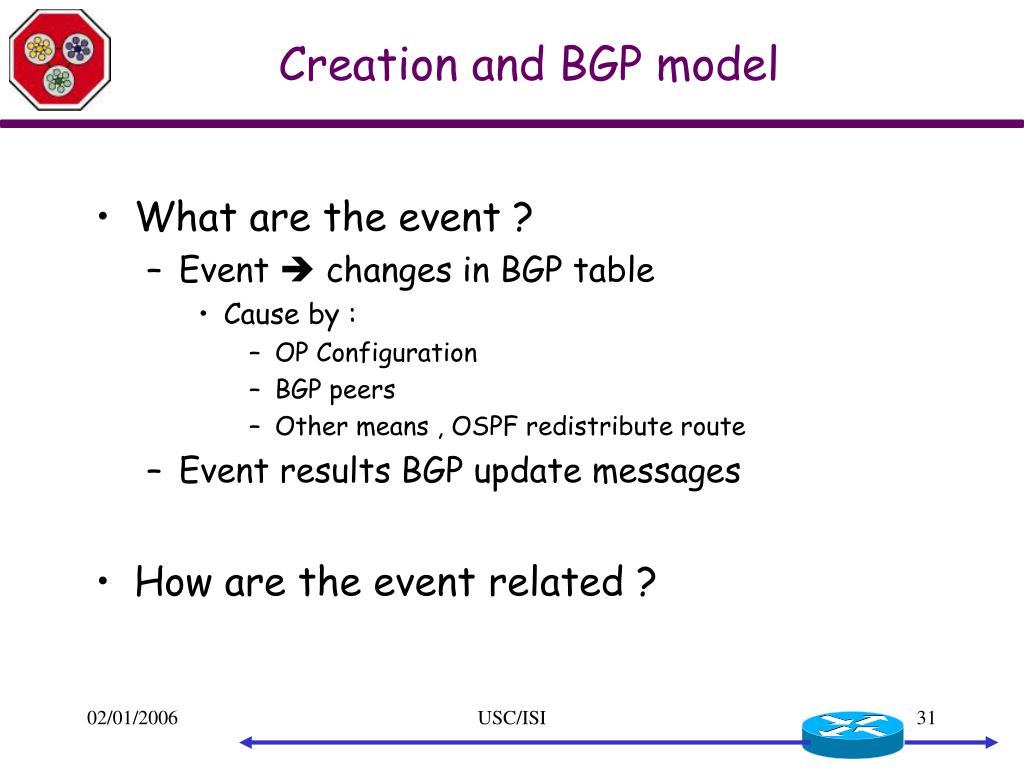

  31. Creation and BGP model • What are the event ? • Event  changes in BGP table • Cause by : • OP Configuration • BGP peers • Other means , OSPF redistribute route • Event results BGP update messages • How are the event related ? USC/ISI

  32. BGP Behavior Update Update BGP Y Redistribute Policy / local pref Operator OSPF N Done USC/ISI

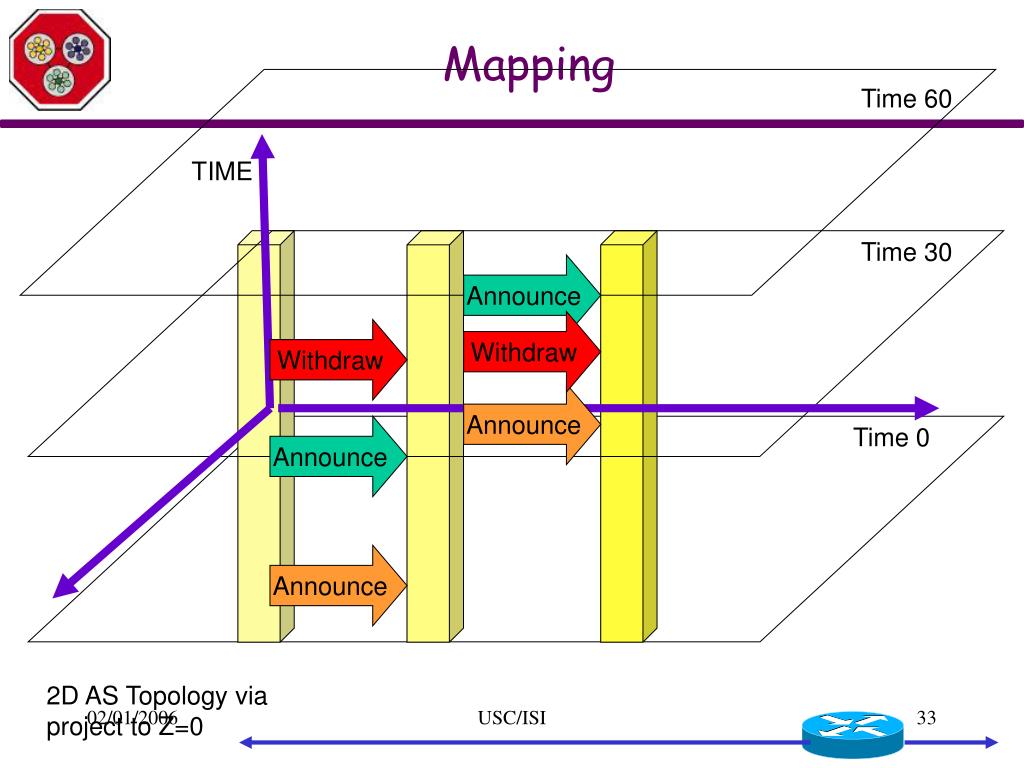

  33. Mapping Announce Announce Announce Announce Time 60 TIME Time 30 Withdraw Withdraw Time 0 2D AS Topology via project to Z=0 USC/ISI

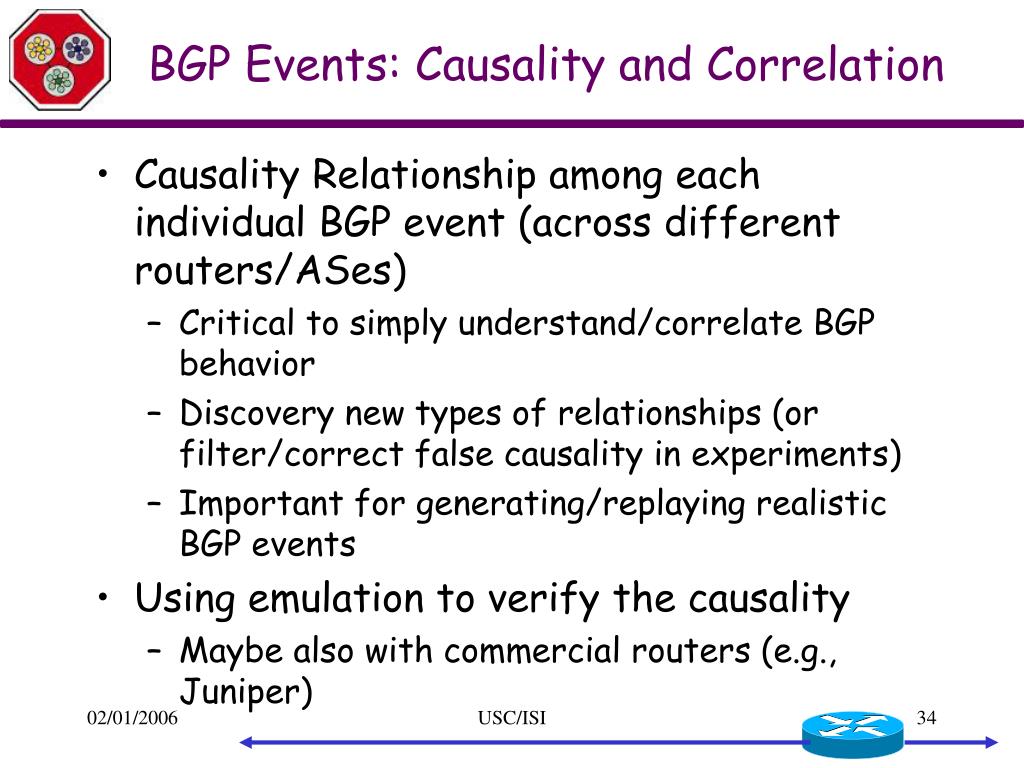

  34. BGP Events: Causality and Correlation • Causality Relationship among each individual BGP event (across different routers/ASes) • Critical to simply understand/correlate BGP behavior • Discovery new types of relationships (or filter/correct false causality in experiments) • Important for generating/replaying realistic BGP events • Using emulation to verify the causality • Maybe also with commercial routers (e.g., Juniper) USC/ISI

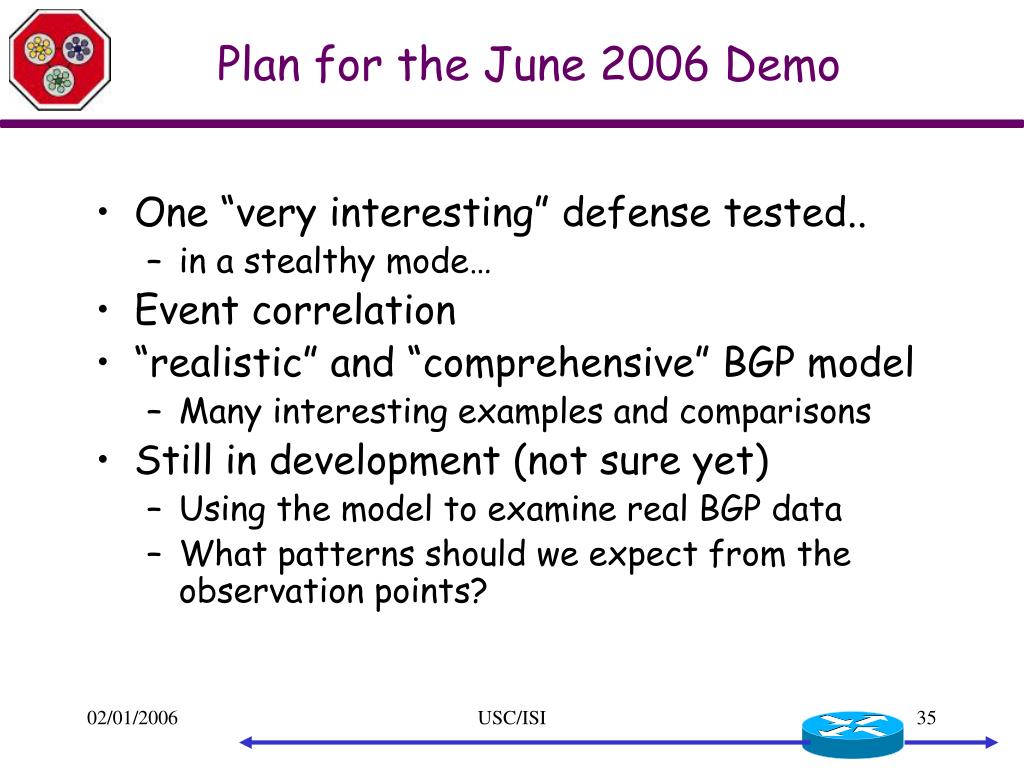

  35. Plan for the June 2006 Demo • One “very interesting” defense tested.. • in a stealthy mode… • Event correlation • “realistic” and “comprehensive” BGP model • Many interesting examples and comparisons • Still in development (not sure yet) • Using the model to examine real BGP data • What patterns should we expect from the observation points? USC/ISI
