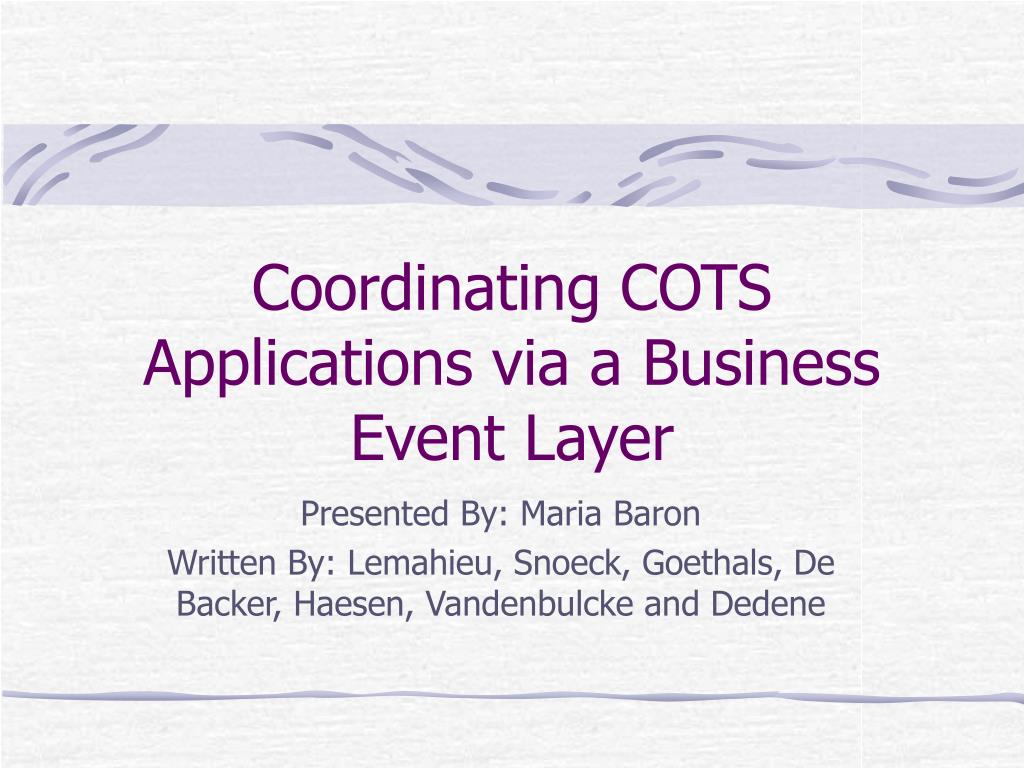

  1. Coordinating COTS Applications via a Business Event Layer Presented By: Maria Baron Written By: Lemahieu, Snoeck, Goethals, De Backer, Haesen, Vandenbulcke and Dedene

  2. COTS • Commercial off-the-shelf components • Typically chosen for domain specific features • Each application covers a particular functional domain • How are COTS components/applications integrated with other applications? • Typical integration based on one to one message exchange • Problems? • Abstraction level is too low to efficiently design an integration architecture

  3. BECO • Authors propose business event-based coordination • Based on concept of business events • Higher level units of coordination that enforce consistent processing in all participating applications • Can be layered on top of existing technologies • Still utilize one to one messaging at its lowest level

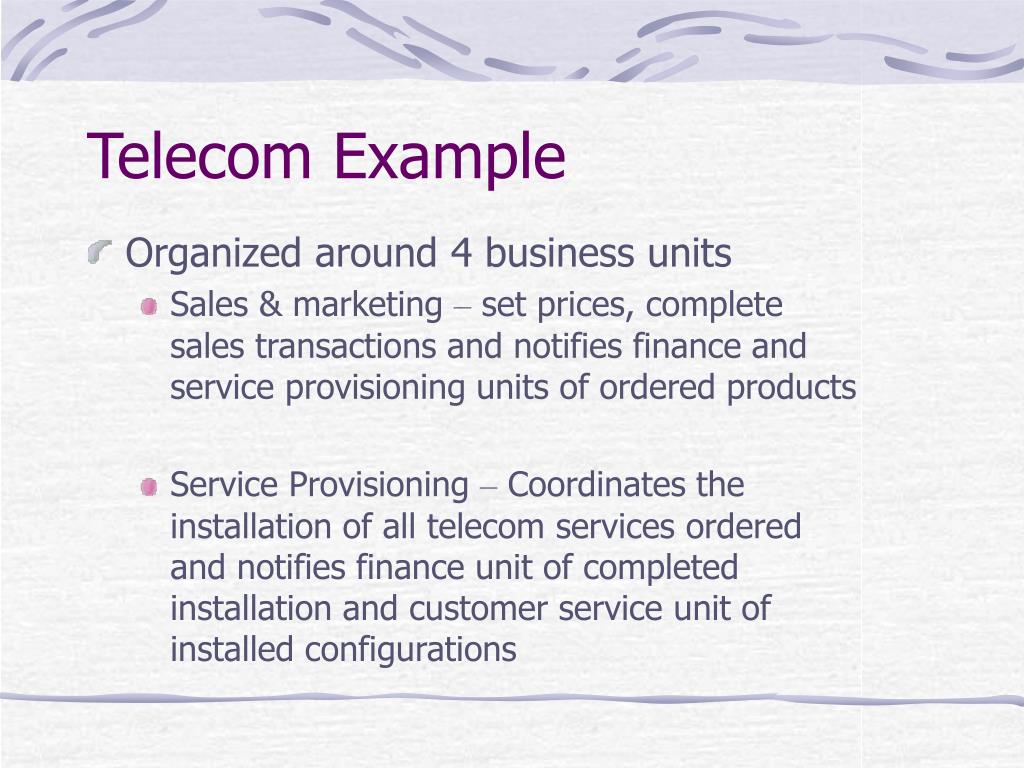

  4. Telecom Example • Organized around 4 business units • Sales & marketing – set prices, complete sales transactions and notifies finance and service provisioning units of ordered products • Service Provisioning – Coordinates the installation of all telecom services ordered and notifies finance unit of completed installation and customer service unit of installed configurations

  5. Example continued • Organized around 4 business units • Finance – handles invoicing • Customer Service – responsible for all after-sales service

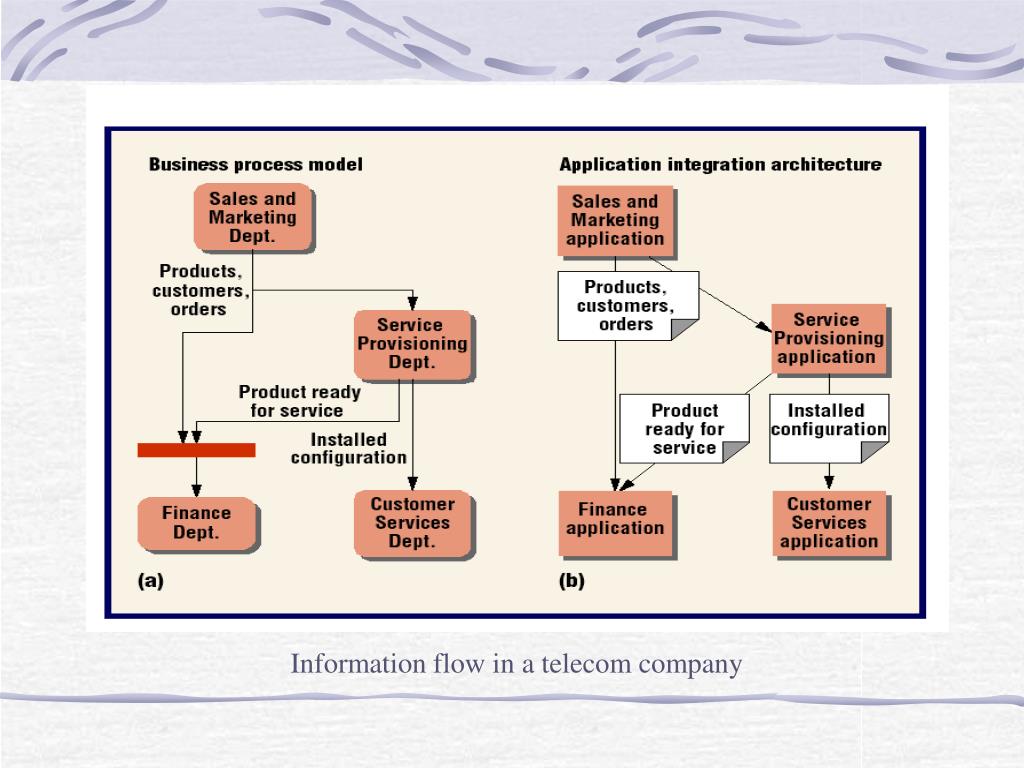

  6. Information flow in a telecom company

  7. Example cont. • Each business unit relies on COTS software from different providers • Each handles its own functionality well, but the lack of integration and coordination between the standalone products is problematic

  8. Potential Issues - Example • People data storage – person may exist in each functional domain’s data • Data will be scattered and all applications must be notified • How to notify each of the apps? • Requires integrated coordinated processing of actions among all COTS applications

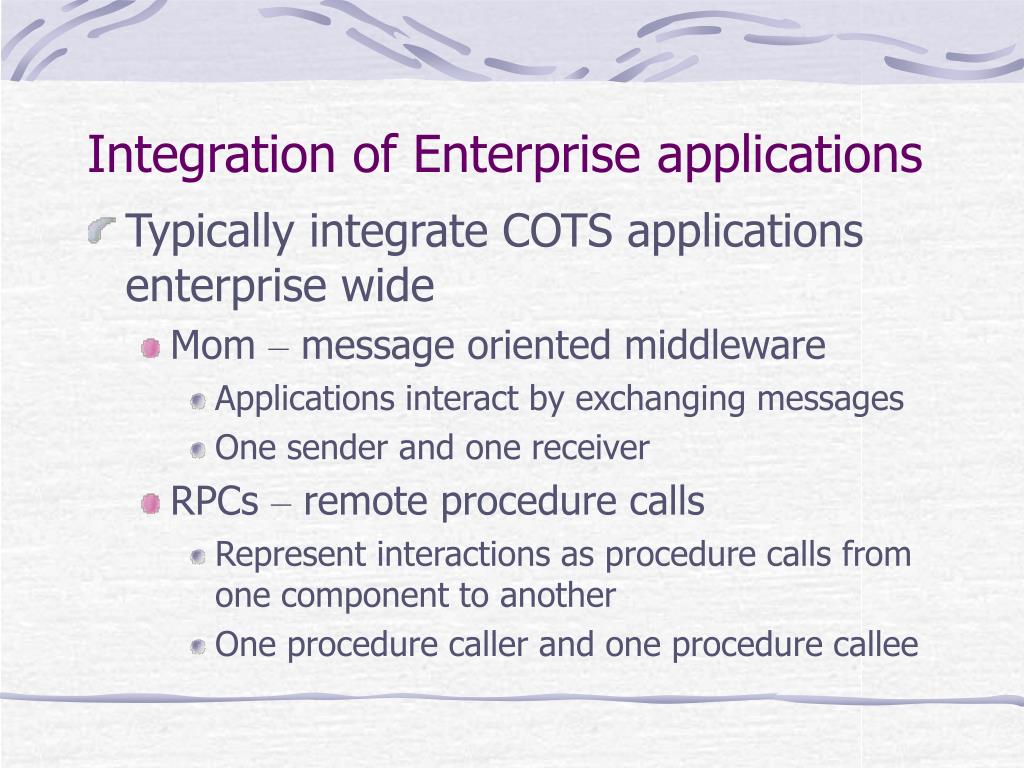

  9. Integration of Enterprise applications • Typically integrate COTS applications enterprise wide • Mom – message oriented middleware • Applications interact by exchanging messages • One sender and one receiver • RPCs – remote procedure calls • Represent interactions as procedure calls from one component to another • One procedure caller and one procedure callee

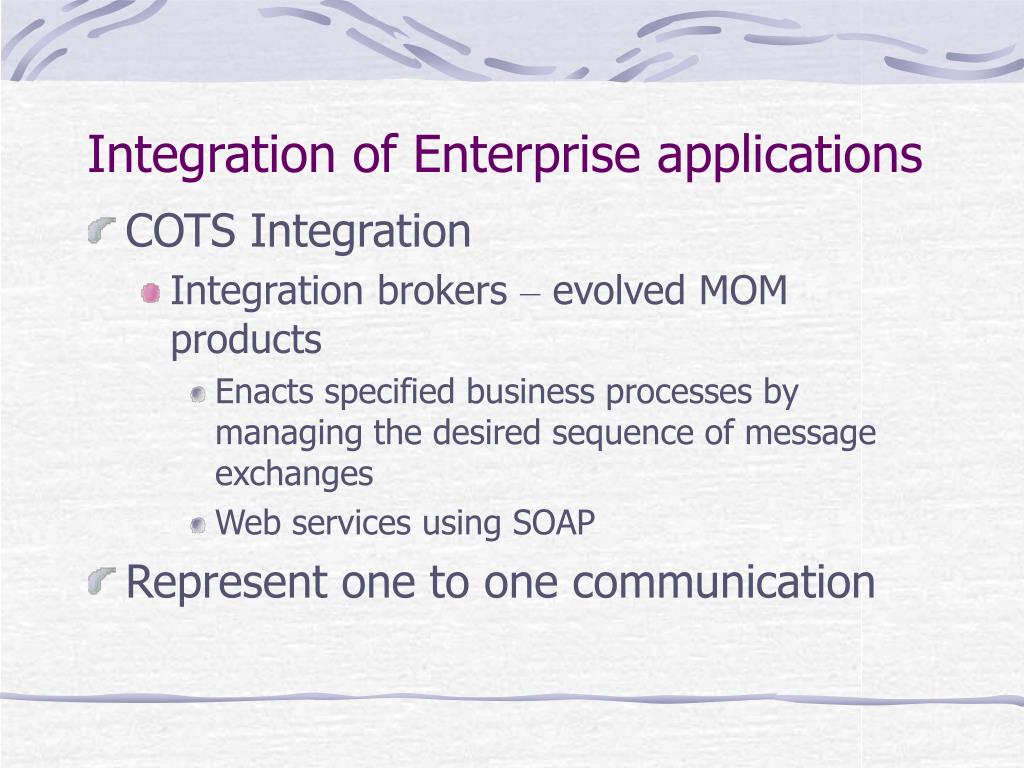

  10. Integration of Enterprise applications • COTS Integration • Integration brokers – evolved MOM products • Enacts specified business processes by managing the desired sequence of message exchanges • Web services using SOAP • Represent one to one communication

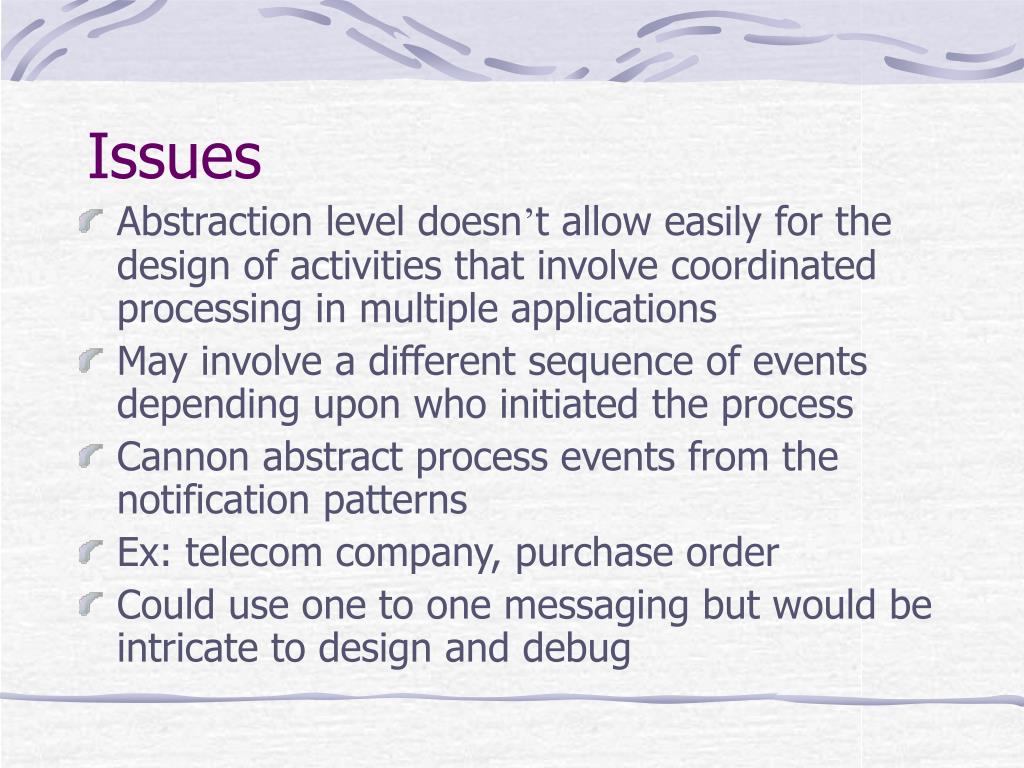

  11. Issues • Abstraction level doesn’t allow easily for the design of activities that involve coordinated processing in multiple applications • May involve a different sequence of events depending upon who initiated the process • Cannon abstract process events from the notification patterns • Ex: telecom company, purchase order • Could use one to one messaging but would be intricate to design and debug

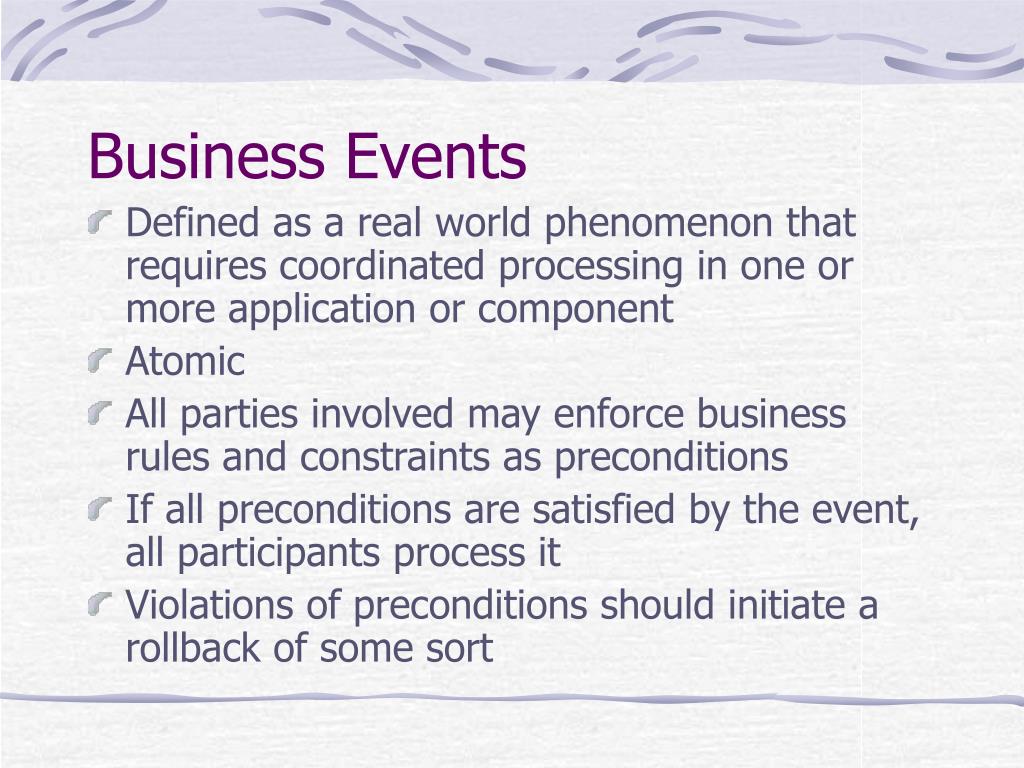

  12. Business Events • Defined as a real world phenomenon that requires coordinated processing in one or more application or component • Atomic • All parties involved may enforce business rules and constraints as preconditions • If all preconditions are satisfied by the event, all participants process it • Violations of preconditions should initiate a rollback of some sort

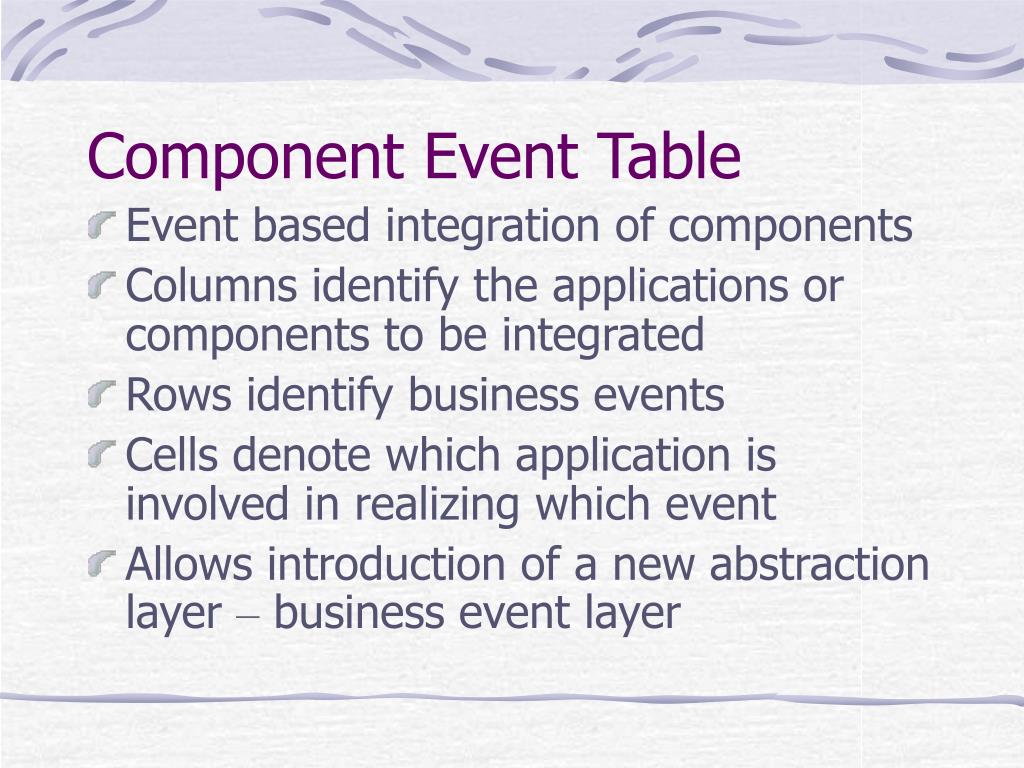

  13. Component Event Table • Event based integration of components • Columns identify the applications or components to be integrated • Rows identify business events • Cells denote which application is involved in realizing which event • Allows introduction of a new abstraction layer – business event layer

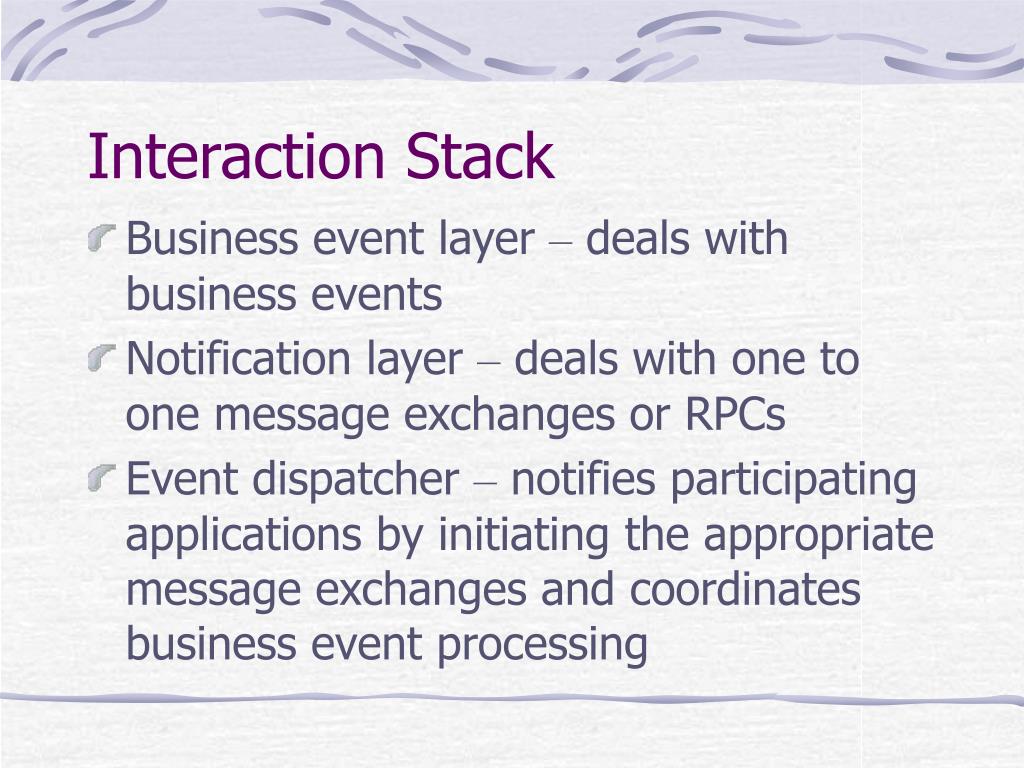

  14. Interaction Stack • Business event layer – deals with business events • Notification layer – deals with one to one message exchanges or RPCs • Event dispatcher – notifies participating applications by initiating the appropriate message exchanges and coordinates business event processing

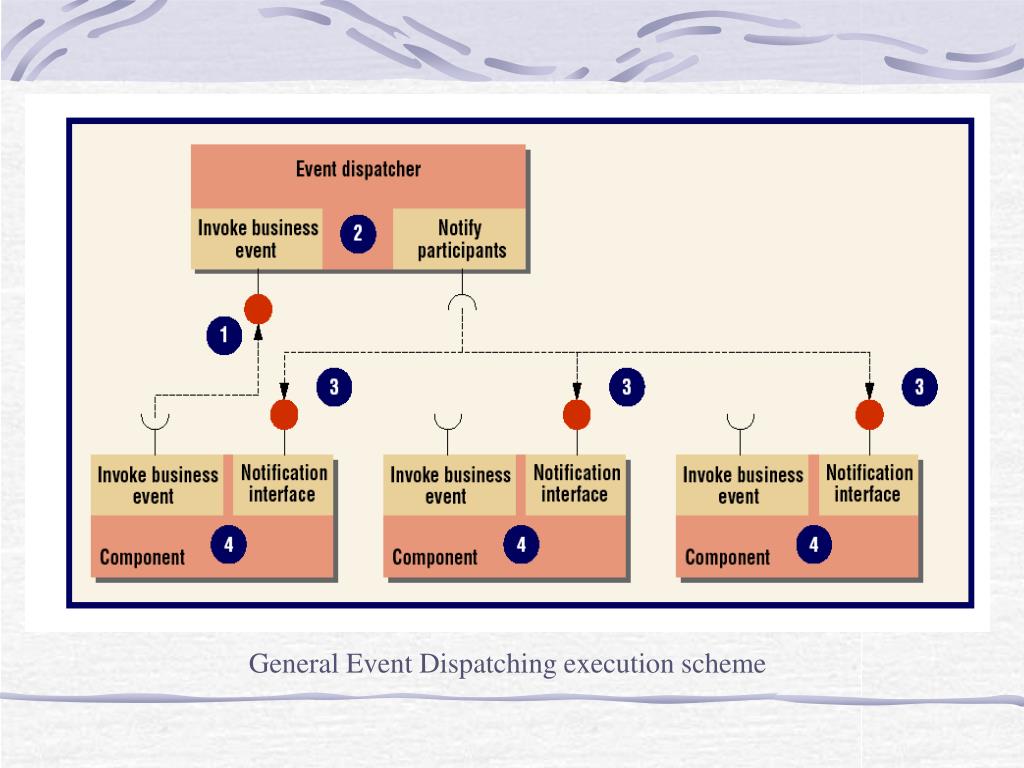

  15. General Event Dispatching execution scheme

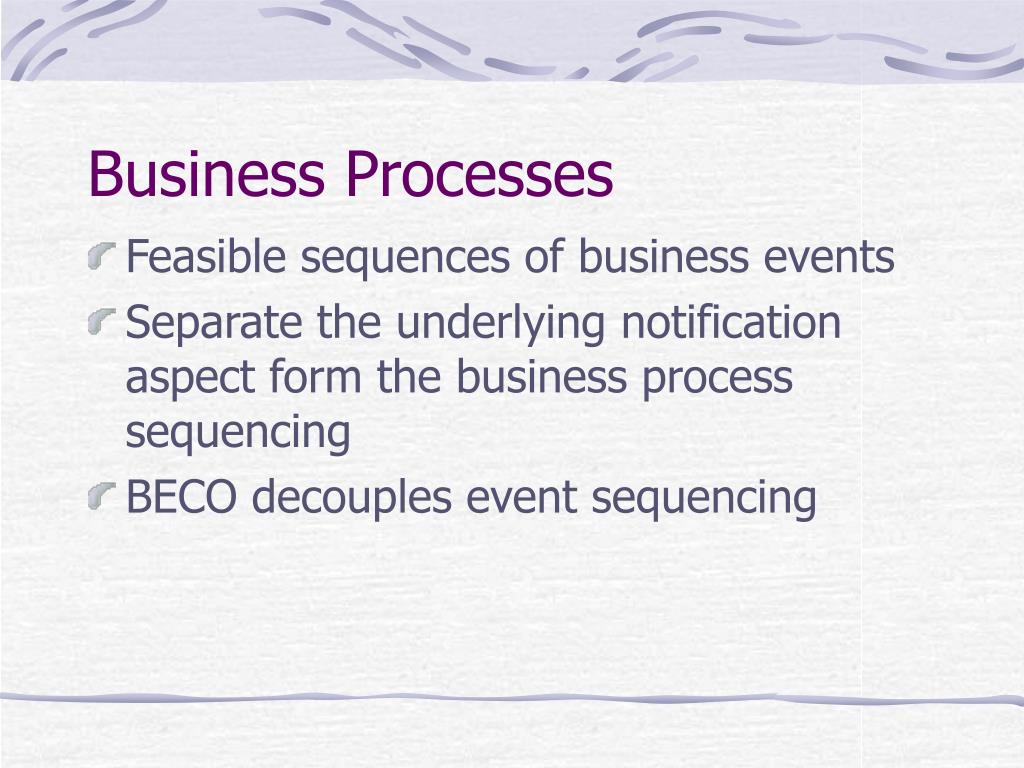

  16. Business Processes • Feasible sequences of business events • Separate the underlying notification aspect form the business process sequencing • BECO decouples event sequencing

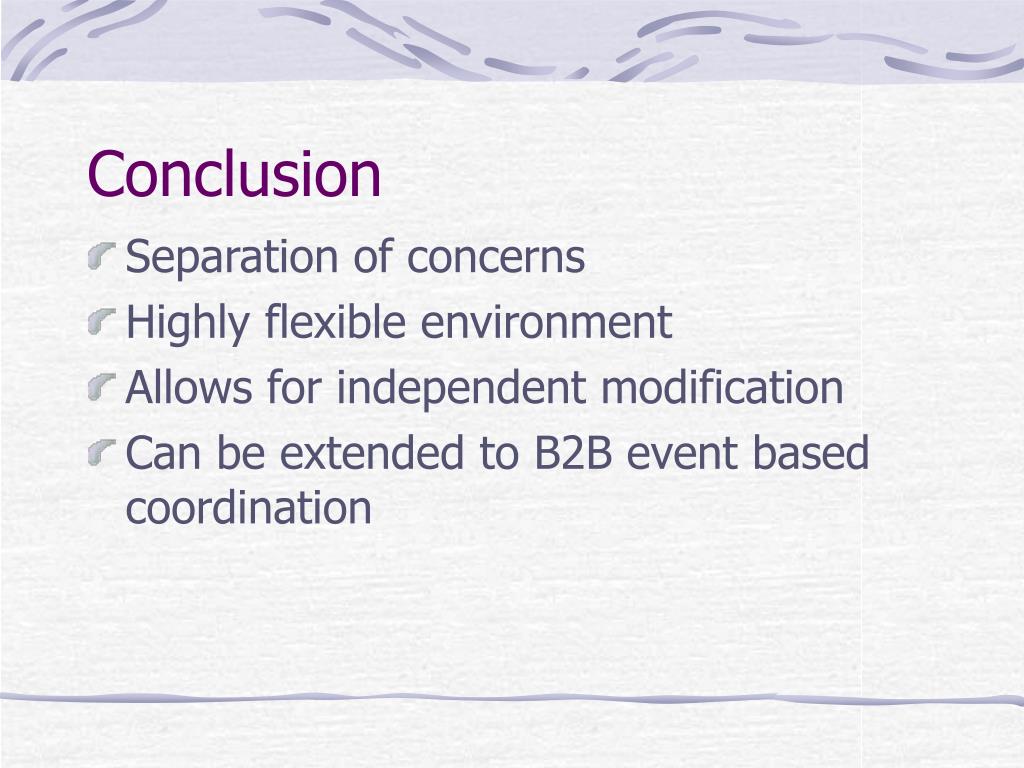

  17. Conclusion • Separation of concerns • Highly flexible environment • Allows for independent modification • Can be extended to B2B event based coordination

  18. Questions???????????
