  1. Loading .... Prepared by: Andre-Paul C. Ampong

  2. Elementary Surveying Area of a traverse

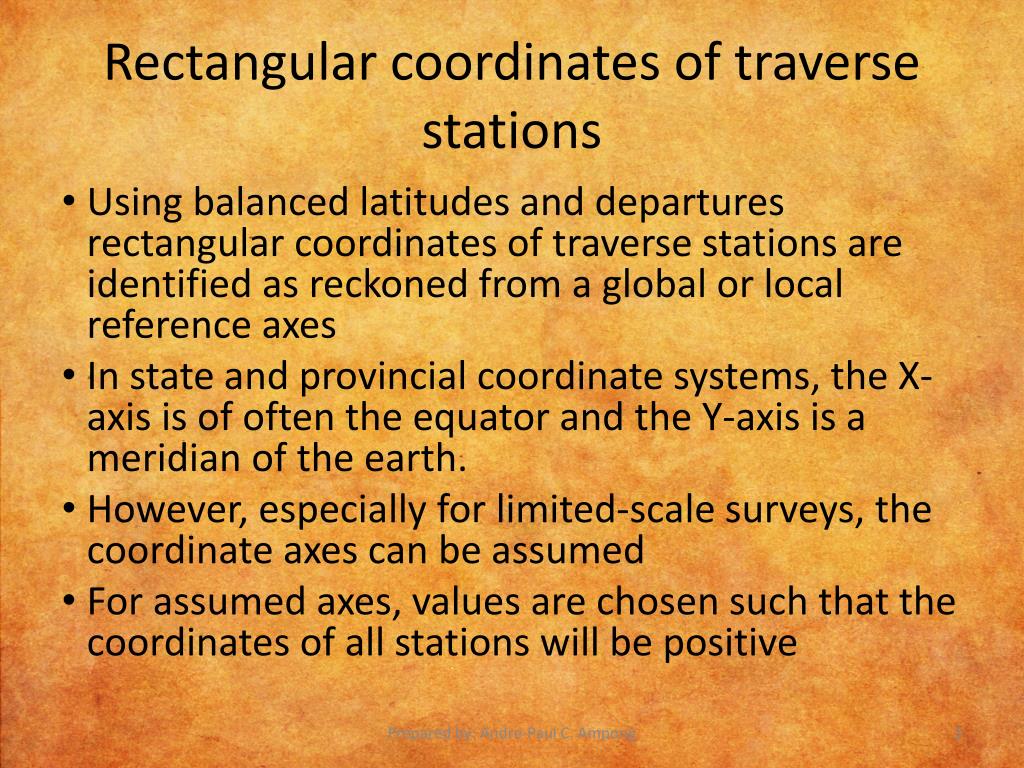

  3. Rectangular coordinates of traverse stations • Using balanced latitudes and departures rectangular coordinates of traverse stations are identified as reckoned from a global or local reference axes • In state and provincial coordinate systems, the X-axis is of often the equator and the Y-axis is a meridian of the earth. • However, especially for limited-scale surveys, the coordinate axes can be assumed • For assumed axes, values are chosen such that the coordinates of all stations will be positive Prepared by: Andre-Paul C. Ampong

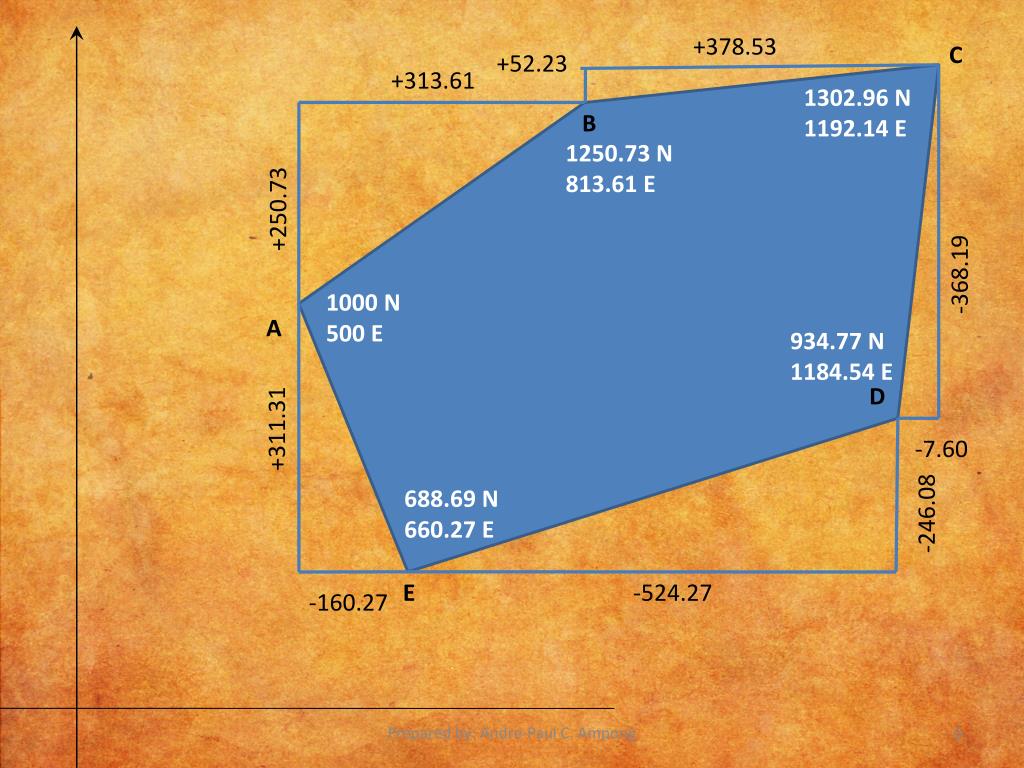

  4. +378.53 C +52.23 +313.61 B +250.73 -368.19 1000 N 500 E A D +311.31 -7.60 -246.08 E -524.27 -160.27 Prepared by: Andre-Paul C. Ampong

  5. Area by coordinates method Prepared by: Andre-Paul C. Ampong

  6. +378.53 C +52.23 +313.61 1302.96 N 1192.14 E B 1250.73 N 813.61 E +250.73 -368.19 1000 N 500 E A 934.77 N 1184.54 E D +311.31 -7.60 688.69 N 660.27 E -246.08 E -524.27 -160.27 Prepared by: Andre-Paul C. Ampong

  7. 1192.14 C +52.23 813.61 1302.96 N 1192.14 E B 1250.73 N 813.61 E +250.73 500 1000 N 500 E A 934.77 N 1184.54 E D +311.31 688.69 N 660.27 E 660.27 E Prepared by: Andre-Paul C. Ampong

  8. 1192.14 C +52.13 813.61 1302.96 N 1192.14 E B 1250.73 N 813.61 E +250.73 -368.19 500 1000 N 500 E A 934.77 N 1184.54 E 1184.54 D +311.31 688.69 N 660.27 E -246.08 660.27 660.27 E Prepared by: Andre-Paul C. Ampong

  9. Prepared by: Andre-Paul C. Ampong

  10. Prepared by: Andre-Paul C. Ampong

  11. Area by double meridian distance (DMD) method D’ D B’ B MD MERIDIAN DISTANCE C A A’ Prepared by: Andre-Paul C. Ampong

  12. 313.61 378.53 +52.23 313.61 +250.73 -368.19 7.60 +311.31 -246.08 160.27 524.27 Prepared by: Andre-Paul C. Ampong

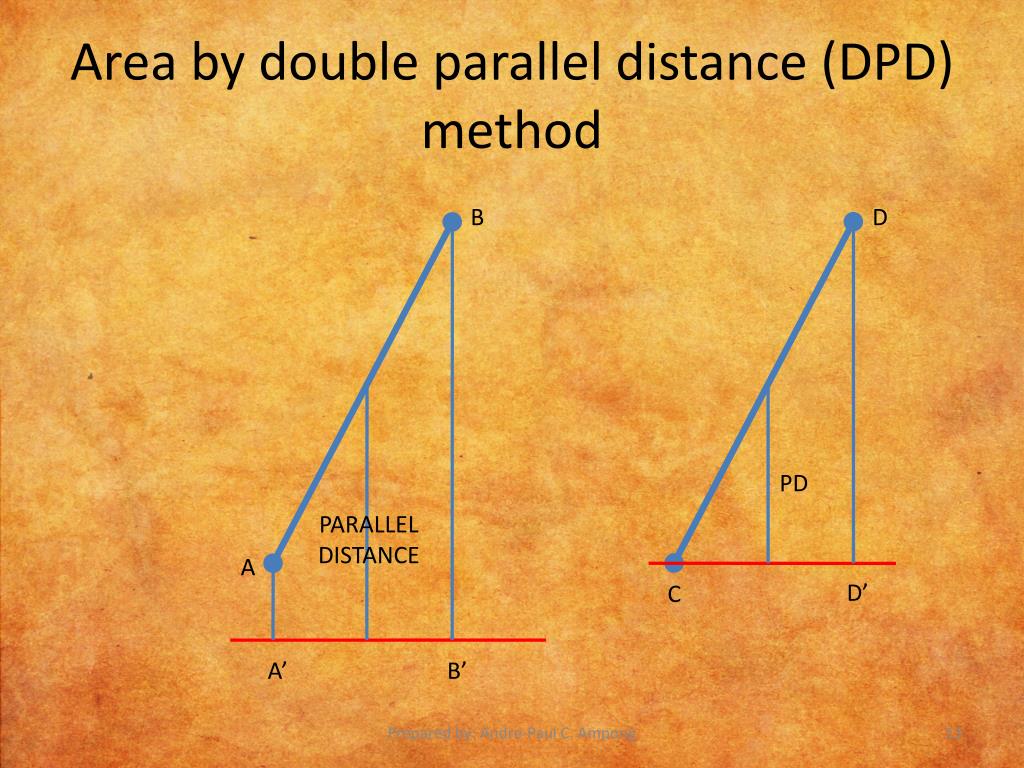

  13. Area by double parallel distance (DPD) method D B PD PARALLEL DISTANCE A D’ C A’ B’ Prepared by: Andre-Paul C. Ampong

  14. +378.53 52.23 +313.61 250.73 368.19 -7.60 311.31 246.08 246.08 -160.27 -524.27 Prepared by: Andre-Paul C. Ampong

  15. Slides may be downloaded from: mindthreshold.wordpress.com Prepared by: Andre-Paul C. Ampong
