1 / 11

June 2003

GECP-Lighting. Customer Presentation. June 2003. June 2003. GECP-Lighting. Lamp life: up to 6,000 hours or 6 years using 2.7 hours per day Lasts up to 6 times longer than a normal light bulb Voltage : 220-240 volts, 50/60Hz

cael
Télécharger la présentation

June 2003

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GECP-Lighting Customer Presentation June 2003 June 2003

  2. GECP-Lighting • Lamp life: up to 6,000 hours or 6 years using 2.7 hours per day • Lasts up to 6 times longer than a normal light bulb • Voltage : 220-240 volts, 50/60Hz • No interference with 50-100Hz computer monitors, TV screen or fluorescent lamps etc. • Wattage : 9/11/15/20/23 watt • 80 % energy saving compared to a soft light bulb • Low heat radiation: reduces heat radiation below one-fourth • Colour Temperature: warm white , cool white & day light • Environmental friendly, no liquid mercury content • Colour rendering : CRI 80 • Base : E14 , E27 , B22 • Packing Quantities: - box pack holding 1 lamp in outer box of 10 - blister pack holding 1 lamp in outer box of 6 • Availability: July, 2003 June 2003

  3. GECP-Lighting Life up to 6000 hours High lumen output throughout life Customer benefit Lower Spec but reliable choice from GE June 2003

  4. DBX 9W 3K 220-240V 50/60Hz TBX 15W 220-24 V 3-6 K E27 base TBX 23W 220-24 V 3-6 K E27 base TBX 20W 220-24 V 3-6 K E27 base 141 mm DBX 11W 6K 220-240 V 50/60Hz DBX 9W 6K 220-240 V 50/60Hz DBX 11W 3K 220-240 V 50/60Hz 45 mm Technical Drawings GECP-Lighting June 2003

  5. GECP-Lighting Blister Versions POS -Fam Box Versions June 2003

  6. GECP-Lighting Packaging Configuration table June 2003

  7. Images GECP-Lighting Quad E14, 9W 220-240 V Hex E27, 15W 220-240 V Quad B22, 11W 220-240 V Quad B22, 9W 220-240 V Hex E27, 20W 220-240 V Hex E27, 23W 220-240 V June 2003

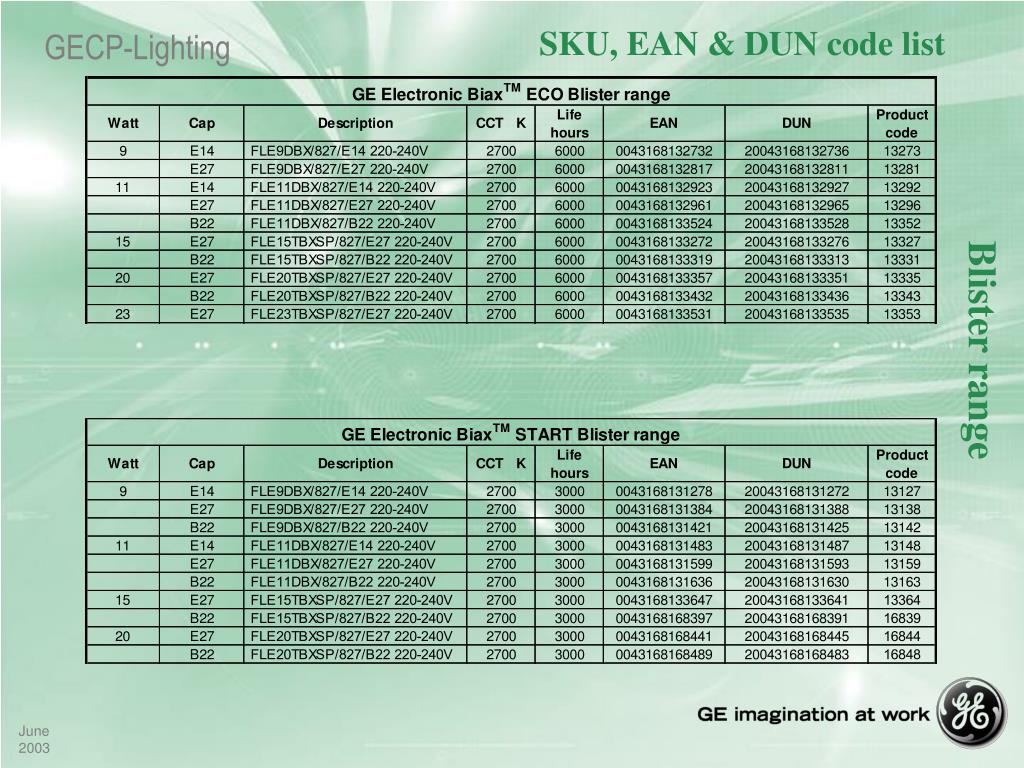

  8. SKU, EAN & DUN code list GECP-Lighting Blister range June 2003

  9. SKU, EAN & DUN code list GECP-Lighting ECO box range June 2003

  10. SKU, EAN & DUN code list GECP-Lighting START box range June 2003

  11. SKU, EAN & DUN code list GECP-Lighting Tungsram range June 2003
