  1. Meso Machining Norman Salmon Engineering Program Manager Lawrence Berkeley National Lab njsalmon@lbl.gov

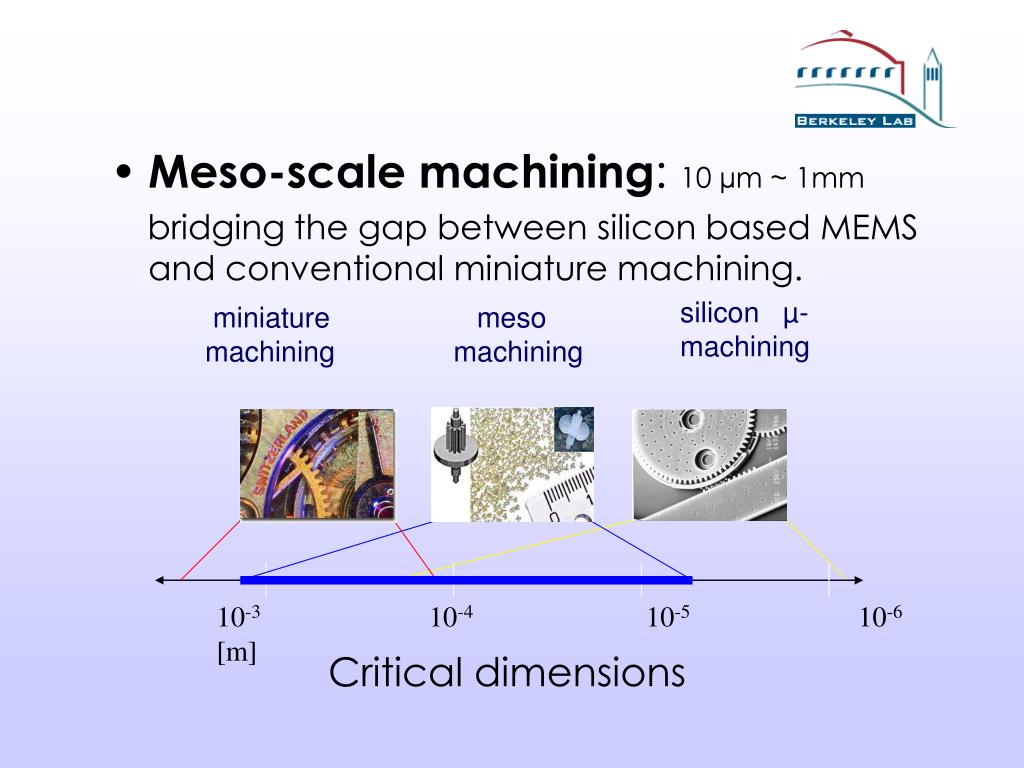

  2. silicon µ-machining miniature machining meso machining • Meso-scale machining: 10 µm ~ 1mm bridging the gap between silicon based MEMS and conventional miniature machining. 10-3 10-4 10-510-6 [m] Critical dimensions

  3. Micro Milling, Drilling and Turning Micro Stepper Motor Laminates - Produced Using 100 Micron Diameter Rotary Cutting Tools - Tech Transfer Grant for Empire Magnetics FY2002 100 Micron Diameter Micro Electrodes Produced for Alexander Zholents 2002 AFRD LDRD Holes as small as 40 Microns can be drilled in Stainless Steel - Shown is a 70 Micron Drill compared with a Human Hair

  4. Micro Engine Components 1mm Micro Rotor Micro Turbine 1mm 1mm

  5. Electroplated RF Electrode 125 micron

  6. Meso-Machining Examples FIB Milling 37µm cutting tool 10µm gears on silicon 25µm channel on diamond 39µm channel on graphite

  7. Micro Tooling • tooling design • tooling application • materials • Diamond tools cut by FIB • New workpiece materials • analysis of cutting performance • Force sensing (MEMS) • Acoustic emissions 10 micron End Mill 25 micron End Mill

  8. Long Term Vision Micro Turning Micro EDM Micro Milling Laser Cutting and Welding LBL - MESO Machining Lab AFM Nano- Machining LIGA Micro Molding & Casting FIB Micro Wire EDM

  9. Micro Manipulation Stage for Lift-Out Specimen Preparation with FIB

  10. 120mm y z x Nano-Manipulator for the Molecular Foundry

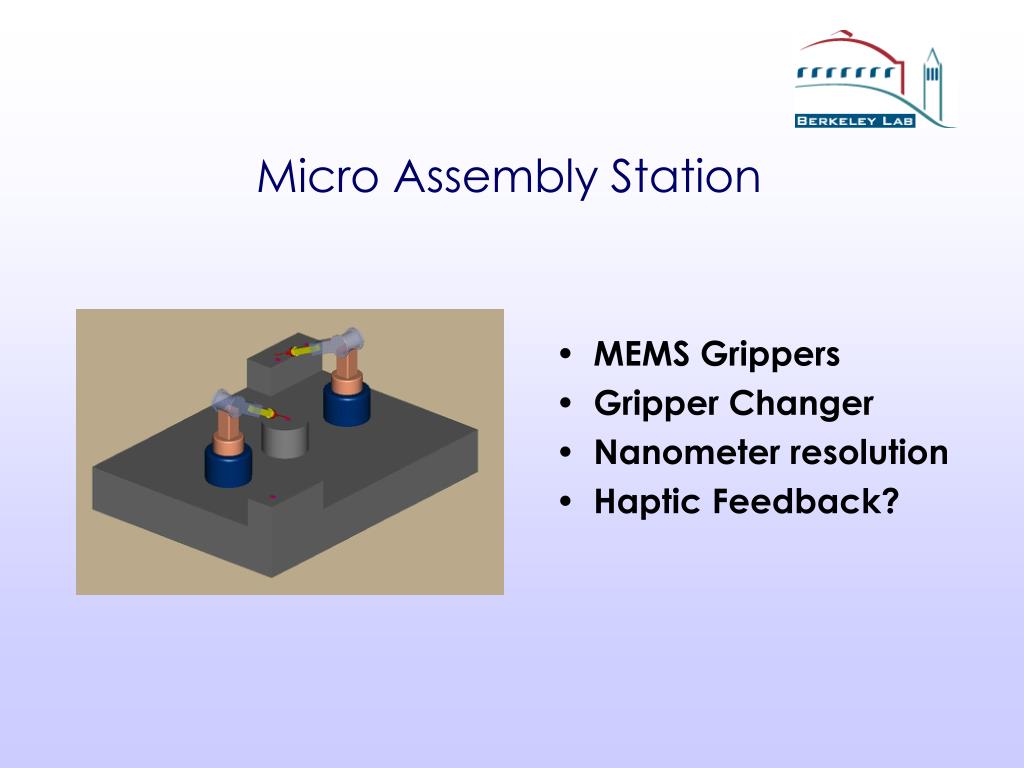

  11. Micro Assembly Station • MEMS Grippers • Gripper Changer • Nanometer resolution • Haptic Feedback?

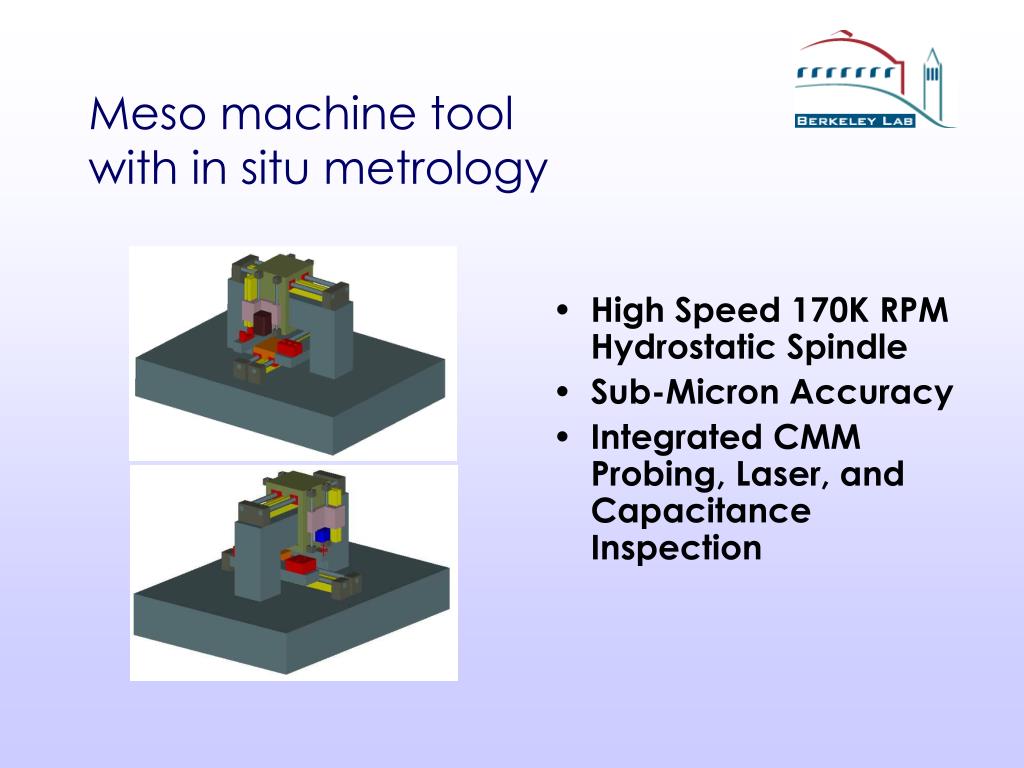

  12. Meso machine tool with in situ metrology • High Speed 170K RPM Hydrostatic Spindle • Sub-Micron Accuracy • Integrated CMM Probing, Laser, and Capacitance Inspection

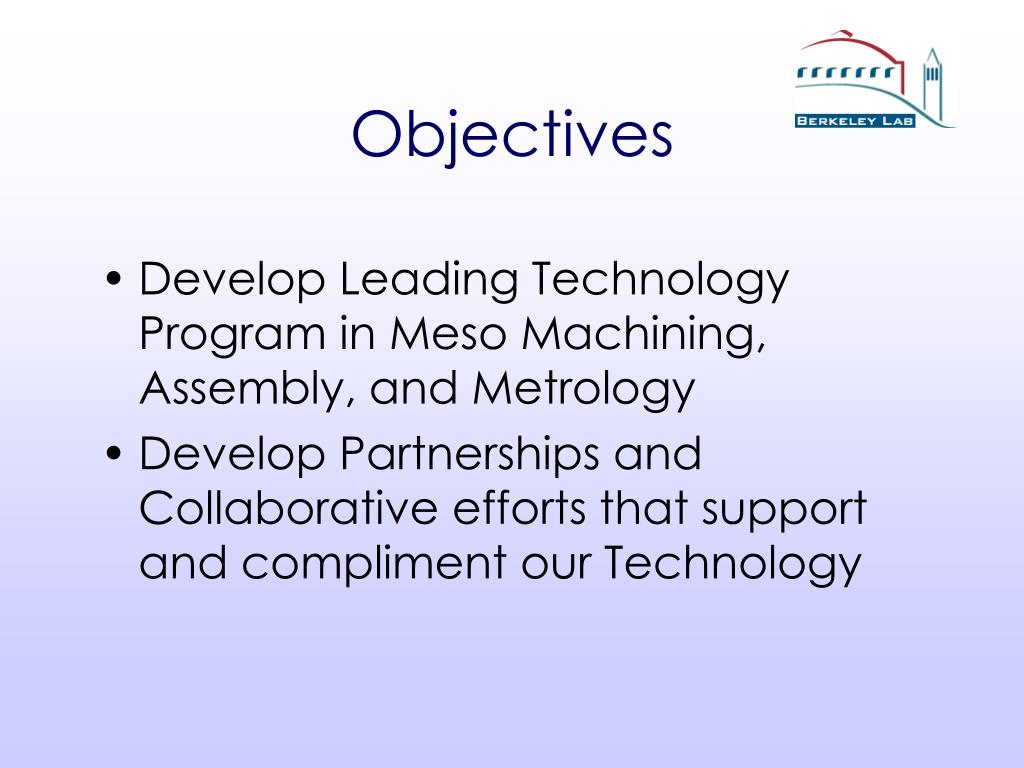

  13. Objectives • Develop Leading Technology Program in Meso Machining, Assembly, and Metrology • Develop Partnerships and Collaborative efforts that support and compliment our Technology
