Dynamic Support of Processor Extensions in Cross Development Tools

1. Dynamic Support of Processor Extensions in Cross Development Tools Vladimir RubanovInstitute for System Programming of RAS SYRCoSE 2007, 31 May 2007

2. Extensible Embedded System (1) • System Components: • Processor Core • Processor Extensions = Accelerators (new FUs or co-processors) • Memory Subsystem: • The only program memory. • Core’s data memories. • Shared data memory. • Accelerators' local data memories. • Uniform instruction set for application developer.

3. Extensible Embedded System (2)

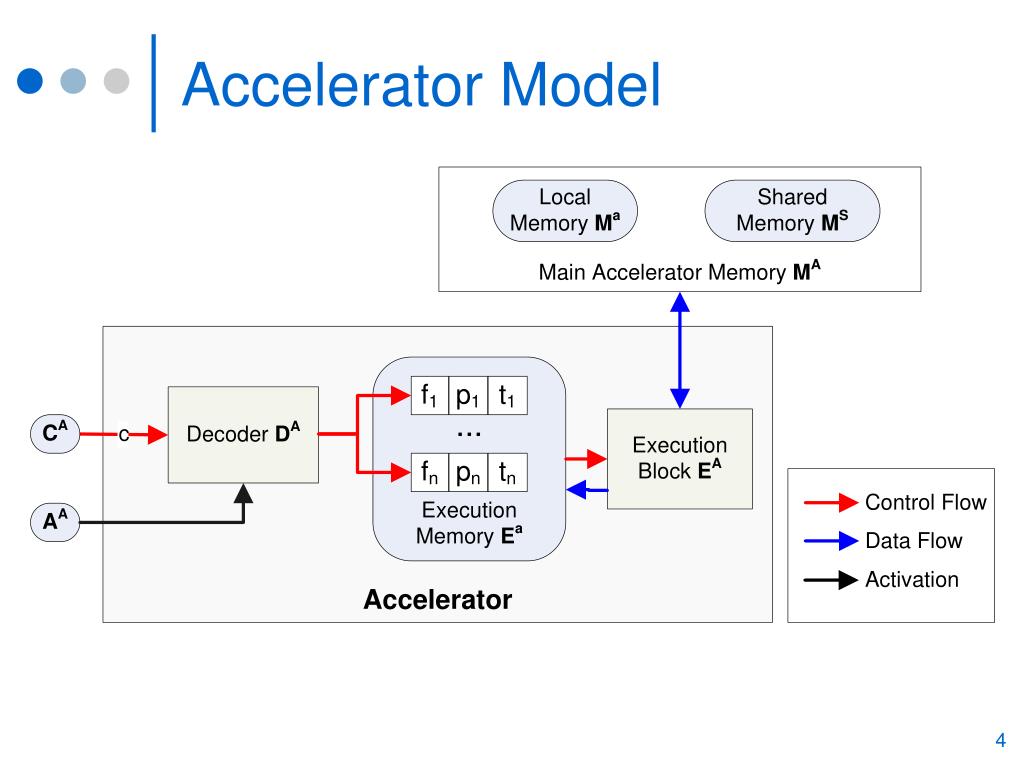

4. Accelerator Model

5. System Design Process • Stage 1: Core Design • Stage 2: Accelerators Design • Stage 3: SoC System Design (combining the core and selected extensions)

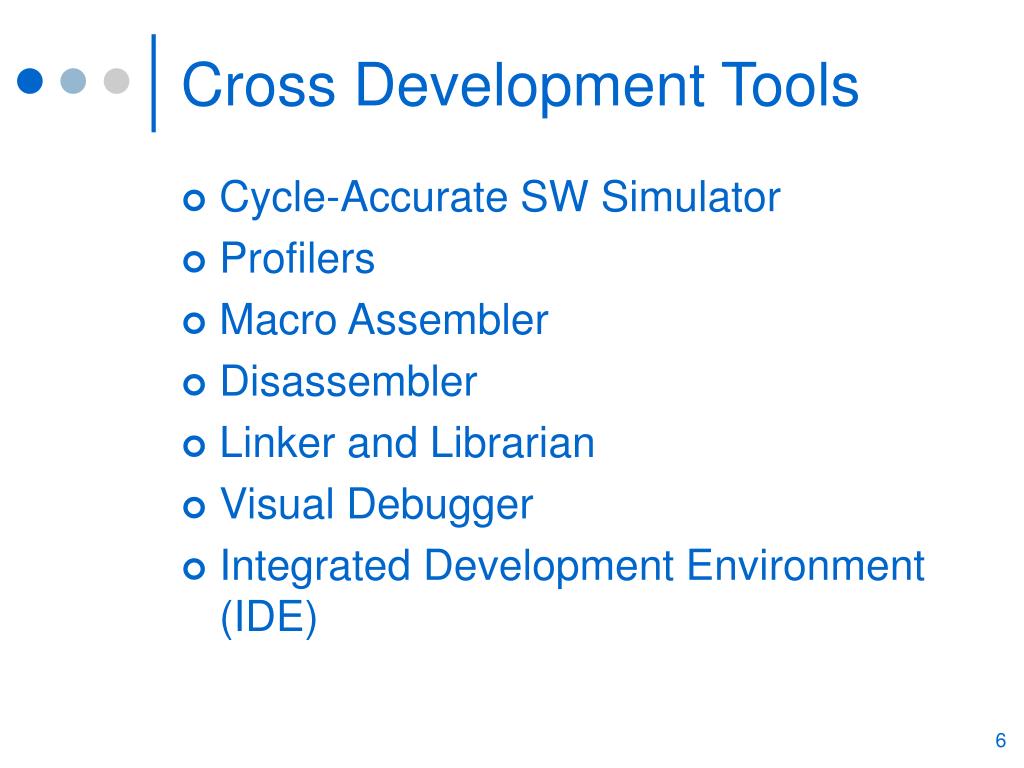

6. Cross Development Tools • Cycle-Accurate SW Simulator • Profilers • Macro Assembler • Disassembler • Linker and Librarian • Visual Debugger • Integrated Development Environment (IDE)

7. Cross Development Workflow

8. Cross Development Tools Role • At the Design Stage: • Design space exploration and prototyping by simulator based profiling. • Early development of optimized software. • HDL verification. • At the Deployment Stage: • Development of various production software.

9. Formal Accelerator Description • Special language (ISE) for describing: • Accelerator’s Memory Structure • Accelerator’s Resources • Accelerator’s Instruction Set: • assembly syntax; • binary coding; • cycle-accurate behavior andresource usage.

10. Memory Structure DECLARE_MEMORY(INT(16, 3), 4096) LDM; DECLARE_MEMORY(INT(64, 3), 2048) TM; MEMORY(LDM, "Acc LDM"); MEMORY(TM, "Acc TM"); DECLARE_REGISTERS_FILE(INT(16), 4) grn; REGFILE_BEGIN(grn, "General Registers") REGISTER(0, "GR0"); REGISTER(1, "GR1"); REGISTER(2, "GR2"); REGISTER(3, "GR3"); REGFILE_END()

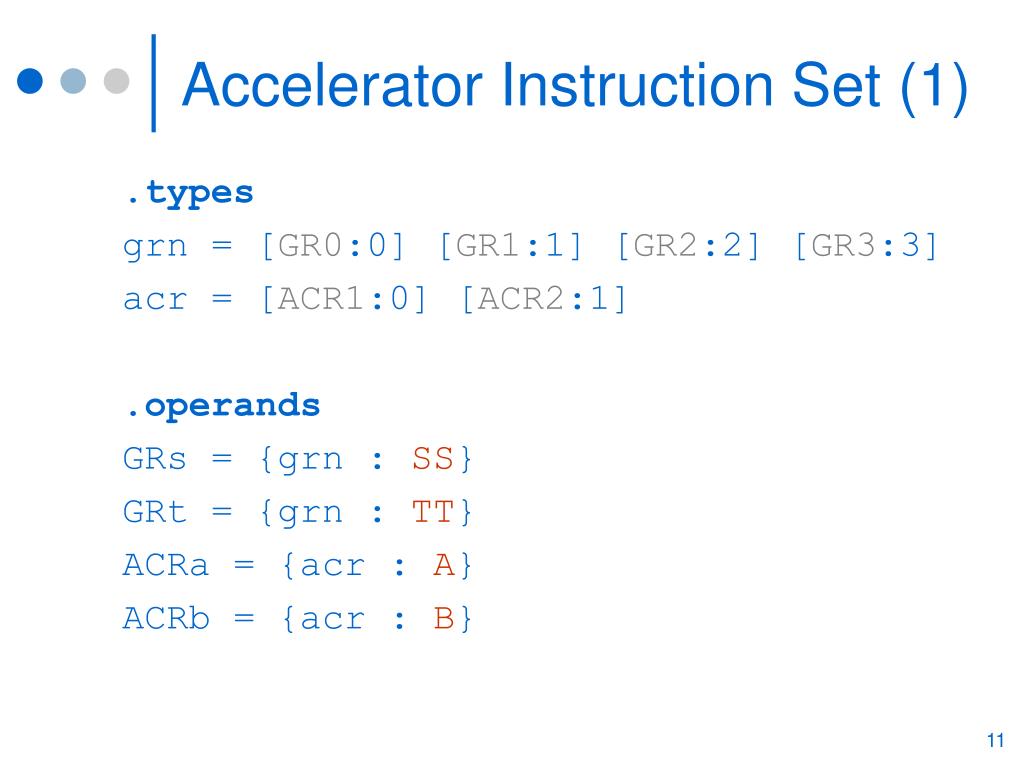

11. Accelerator Instruction Set (1) .types grn = [GR0:0] [GR1:1] [GR2:2] [GR3:3] acr = [ACR1:0] [ACR2:1] .operands GRs = {grn : SS} GRt = {grn : TT} ACRa = {acr : A} ACRb = {acr : B}

12. Accelerator Instruction Set (2) .instructions ALU01 { ADD GRs, GRt // syntax 0110-00SS-0111-T0-T1 // coding constraints { GRs<>GRt : “GRs and GRt must be different” } properties { wgrn:GRs, rgrn:GRs, rgrn:GRt } }

13. Accelerator Instruction Set (3) ALU01 { … behavior { GRs := GRs + GRt; // GRs ≡ grn[#GRs] } }

14. Accelerator Instruction Set (4) void ALU01 (OPCODE opcode) { UINT<2> GRs_ind = (opcode >> 8) && 3; UINT<2> GRt_ind = ((opcode >> 3) && 1) || ((opcode >> 1) && 1); grn[GRs_ind] = grn[GRs_ind] + grn[GRt_ind]; FinishCycle(); }

15. Accelerator Instruction Set (5) MAC01 { MAC ACRa, GRs, GRt … behavior { // the first cycle mulres := GRs * GRt; FinishCycle(); // the second cycle ACRa := ACRa + mulres; } }

16. Inter-Instruction Conflicts .inter-constraints [@e2_write_acr = read_acr] % error: “Write After Read conflict for accumulator” [@p_write && memory_access] % warning: “1 cycle stall: memory access immediately after pointer update”

17. Cross Tools Reconfiguration (1) • Accelerator ISE description is created either visually or in plain text. • Accelerator description is compiled into a shared library module (.dll on Windows, .so on Linux). • Such modules are specified in the cross system configuration. • API is used by Core Simulator to execute accelerator instructions as fibers (explicitly controlled threads). • API is used by Assembler, Disassembler, Debugger and IDE to extract necessary meta-information about the accelerators.

18. Cross Tools Reconfiguration (2) Visual ISE Editor ISE Specification Automatic generation AcceleratorCross Module (.dll or .so) On-the-fly reconfiguration The Cross Tools

19. MetaDSP: General Layout

20. MetaDSP: Instruction Set Tree

21. MetaDSP: Instruction Properties

22. Results • Generalized model of extensible embedded systems. • A formalism for specifying particular accelerators in ISE language. • Tools for visual editing, analysis and verification of ISE specifications. • Framework for generating executable accelerator modules with meta-information. • Reconfigurable cross development tool chain dynamically extensible by the accelerator modules plugged-in.

23. MetaDSP Framework • The results have been used in MetaDSP – a framework for fast construction and modification of cross development tools for embedded systems. • Proved in 5 commercial projects for different extensible processor families: • RISC 32/16 bit DSPs • ARM-like RISC • VLIW DSP • Used in customer’s development teams in Sweden, Taiwan, China, USA

24. Implemented Accelerators • Fast Fourier Transform (FFT). • Echo cancellation algorithms. • Complex (imaginary) arithmetic operations. • Image processing operations(JPEG accelerator). • Digital voice filtering operations (FIR, IIR). • Voice coding/decoding (AMR). • MP3 music decoding.

25. Assembler • Parameterized macros support. • Conditional assembly(if, switch, repeat,etc.). • Multi-dimensional arrays. • Constant expression calculation. • Inter-instruction conflicts detection. • Automatic NOP insert. • C debugging info in Dwarf2 format.

26. Linker • Memory holes optimization (both at variable and module levels). • Visual interface to control memory layout with advanced features (fixed/floating address, alignment).

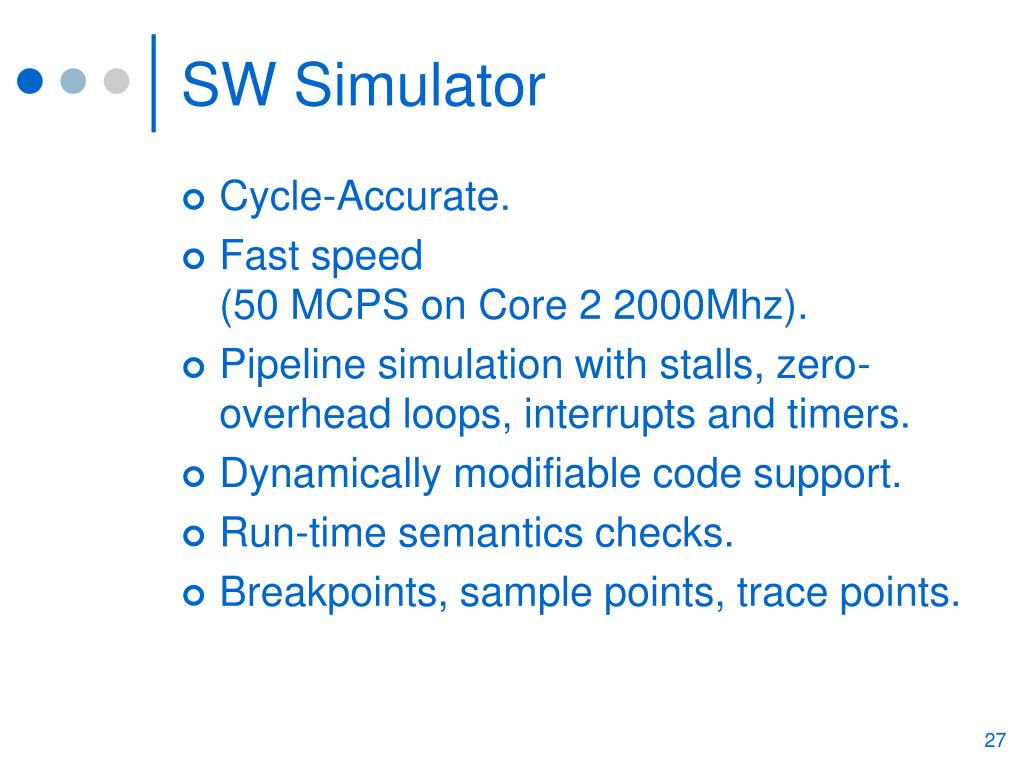

27. SW Simulator • Cycle-Accurate. • Fast speed(50 MCPS on Core 2 2000Mhz). • Pipeline simulation with stalls, zero-overhead loops, interrupts and timers. • Dynamically modifiable code support. • Run-time semantics checks. • Breakpoints, sample points, trace points.

28. Debugger and IDE • MixedC/Asm/Disasm source level debugging • Projects support • Full C expressions in Watch window • Call Stackwith frame switch • Various display formats for register and memory contents • Code helper in editor • Syntax highlighting in editor • Breakpoints / Samplepoints / Tracepoints/ Watchpoints • Source Browser • RTOS debugging support • Various profilers (linear, call graph, instruction tree, RTOS load, RTOS sequence)

32. Contacts • Vladimir Rubanovvrub@ispras.ru • http://ispras.ru/groups/igroup/igroup.html
