Chapter 2: DATA WAREHOUSING

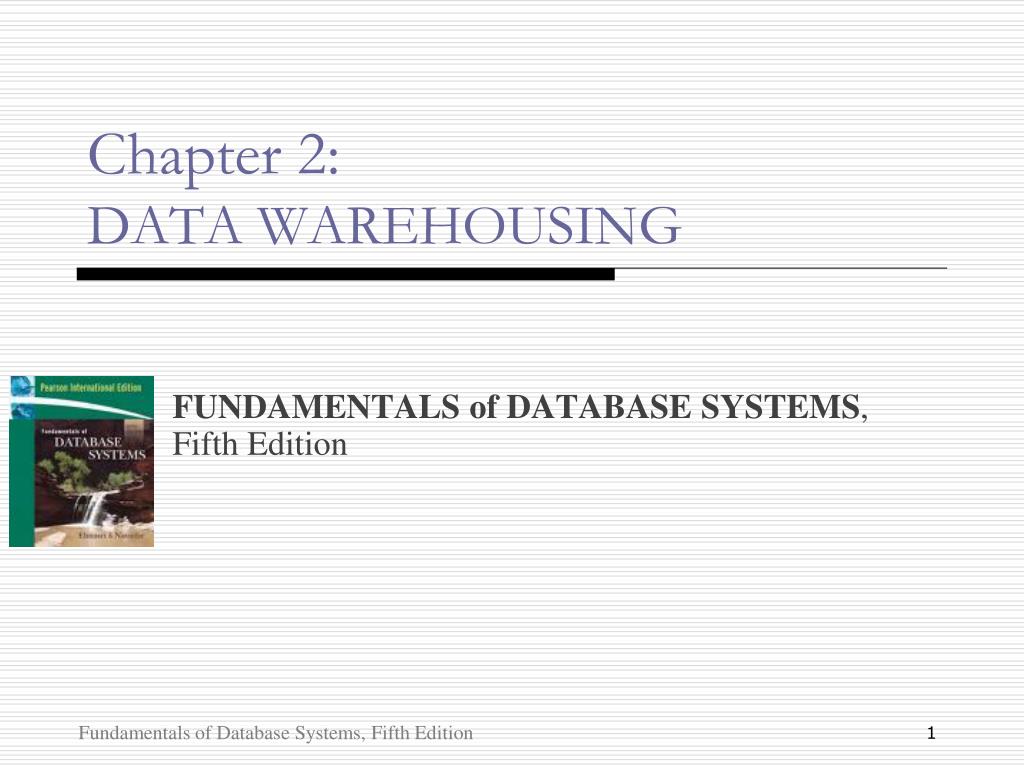

1. Chapter 2:DATA WAREHOUSING FUNDAMENTALS of DATABASE SYSTEMS, Fifth Edition

2. Who are my customers and what products are they buying? Which customers are most likely to go to the competition ? Introduction What product promotions have the biggest impact on revenue? What impact will new products/services have on revenue and margins? Fundamentals of Database Systems, Fifth Edition

3. Introduction (cont.) • There is a great need for tools that provide decision makers with information to make decisions quickly and reliably based on historical data. • The above functionality is achieved by • data warehousing • it characterized by subject-oriented, integrated, nonvolatile, time-variant collection of data in support of management's decisions.

4. Introduction (cont.) • online analytical processing (OLAP) • A term used to describe the analysis of complex data from the data warehouse. • and data mining. • The process of knowledge discovery Fundamentals of Database Systems, Fifth Edition

5. Characteristics of Data Warehouses- Subject oriented • Organized around major subjects, such as product, sales. • Focusing on the modelling and analysis of data for decision makers, not on daily operations or transaction processing. • Provide a simple and concise view around particular subject issues by excluding data that are not useful in the decision process.

6. Characteristics of Data Warehouses- integrated • Constructed by integrating multiple, heterogeneous data sources. • Data cleaning and data integration techniques are applied.

7. Characteristics of Data Warehouses- Time Variant • Data warehouse data : provide information from a historical perspective (e.g., past 5-10 years) • Every data in the data warehouse contains an element of time.

8. Characteristics of Data Warehouses- Non Volatile • Operational update of data doesn’t occur in the data warehouse environment. • Doesn't require transaction processing, recovery, and concurrency control mechanism. • Require only two operations in data accessing • Initial loading of data and quering.

9. Data Warehouse vs. operational databases 9

10. OLTP vs. OLAP

11. What is a Data Warehouse?A Practitioners Viewpoint • “A data warehouse is simply a single, complete, and consistent store of data obtained from a variety of sources and made available to end users in a way they can understand and use it in a business context.” Barry Devlin, IBM Consultant

12. What is a Data Warehouse? Clean Integrate Transform Load Refresh client Data warehouse Query and analysis tools Data source in Chicago Data source in New York Data source in Taranto client

13. 3-D data cube

14. Example of Querying a Cube 1000 Q1 Q2 Time Dimension Q3 Grapes Cherries Q4 Melons Apples ProductsDimension Sales Units Ave Units Sales Dollars Net Price Measures Dimension

15. From table and spreadsheet to data cubes • A data warehouse is based on a multidimensional data model which views data in the form of data cube. • A data cube, such as sales, allows data to be modeled and viewed in multiple dimensions. • Dimension tables contains descriptions about the subject of the business. • such as item (item_name, brand, type) or time (day, week, month, quarter, year)

16. From table and spreadsheet to data cubes (cont.) • Fact table contain a factual or quantitative data • Fact table also contains measures (such as dollars_sold) and keys to each of the related dimension tables.

17. 4-D Data cube

18. Cube: a lattice of cuboids 0-D (apex) cuboids 1-D cuboids 2-D cuboids 3-D cuboids 4-D (base) cuboids

19. Conceptual Modeling of Data Warehouses • Modeling data warehouses: dimensions & measures • Star schema: a fact table in the middle connected to a set of dimension tables. • Snowflake schema: a refinement of star schema where some dimensional hierarchy is normalized into a set of smaller dimension table, forming a shape similar to snowflake.

20. Conceptual Modeling of Data Warehouses (cont.) • Fact constellations: multiple fact tables share dimension tables, viewed as a collection of stars, therefore called galaxy schema or fact constellation

21. Example of Star Schema Measures

22. Example of Snowflake Schema Measures

23. Example of Fact Constellation Measures

24. Cube definition syntax in DMQL

25. Defining star schema in DMQL

26. Defining snowflake in DMQL

27. Defining fact constellation in DMQL

28. Measure of Data Cube: three categories • Distributive: if the result derived by applying the function to n aggregated values is the same as that derived by applying the function on all the data without portioning. • E.g., count(), min()

29. Measure of Data Cube: three categories (cont.) • Algebraic: if it can be computed by an algebraic function with M arguments ( where M is abounded integer), each of which is obtained by applying a distributive aggregated function • E.g., avg() • Holistic: if there is no constant bound on the storage size needed to describe a sub aggregate • Mode(), rank()

30. Typical OLAP operations • Roll up ( drill-up) summarize data. • By climbing up hierarchy • Drill down ( roll down): reverse of roll-up • From higher level summary to lower level summary or detailed data. • Slice and dice: project and select

31. Typical OLAP operations (cont.) • Pivot ( rotate) • Reorient the cub, visualization, 3D to series of 2D planes • Other operations: • Drill across: involving ( across) more than one fact table • Drill through: through the bottom level of the cube to its back-end relational tables (using sql)

32. Design of Data Warehouse: A Business Analysis Framework • Four views regarding the design of data warehouse • Top down view: allow selection of the relevant information necessary for the data warehouse • Data source view: exposes the information being captured, stored, and managed by operational systems • Data warehouse view: consists of the fact table and dimension table

33. Design of Data Warehouse: A Business Analysis Framework (cont.) • Business query view: see perspectives of data in the warehouse from the view of end-user

34. Data Warehouse Design Process • Top-down, bottom-up approaches or combination of both • Top-down: starts with overall design and planning • Bottom-up: starts with experiments and prototypes • From software engineering point of view • Waterfall: structure and systematic analysis at each step before proceeding to next.

35. Data Warehouse Design Process (cont.) • Spiral : rapid generation of increasingly function systems, quick turn around.

36. Data Warehouse Design Process (cont.) • Typical data warehouse design process: • Choose a business process to model. E.g., orders, invoice, etc • Choose the grain (atomic level of data) of the business process • Choose the dimension that will apply to each fact table record • Choose measure that will populate each fact table record

37. Three Data Warehouse Models • Enterprise warehouse • Collect all of the organization about subjects spanning the entire organization • Data Mart: • A subset of corporate- wide data that is of value to specific group of users. • Virtual warehouse • Set of views over operational databases

38. Data Warehouse Back-End Tools and Utilities • Data extraction • Data cleaning • Data transformation • Load • refresh
