  1. Section 4 d Breaking and making bonds

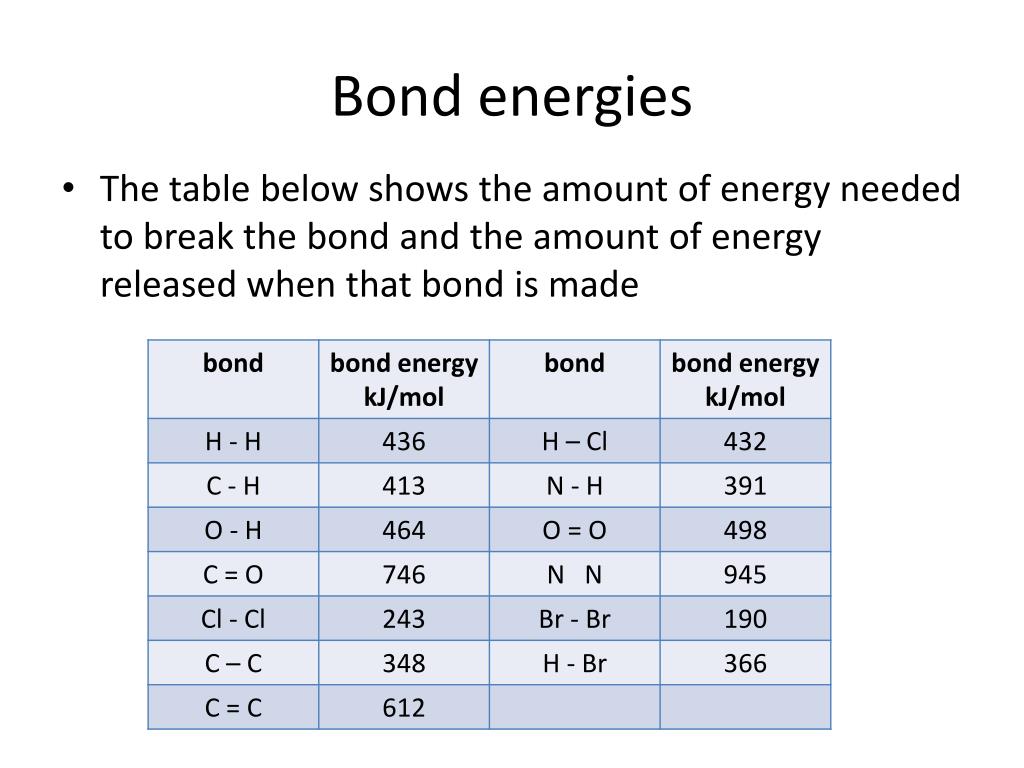

  2. Bond energies • The table below shows the amount of energy needed to break the bond and the amount of energy released when that bond is made

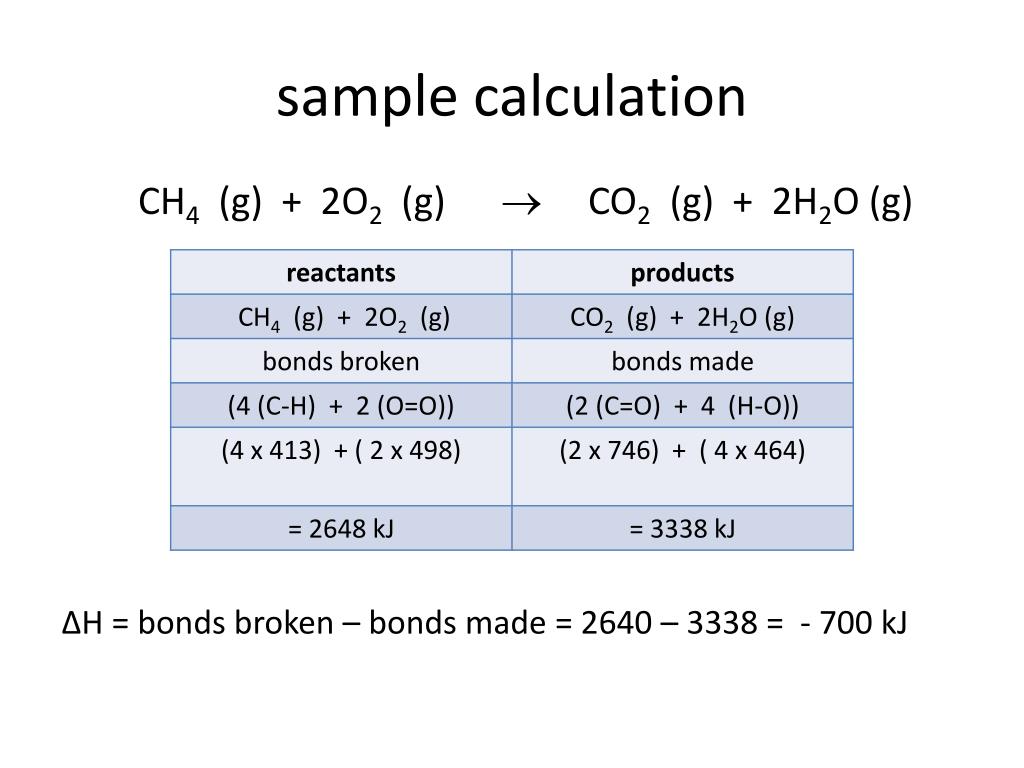

  3. sample calculation CH4(g) + 2O2 (g)  CO2 (g) + 2H2O (g) ΔH = bonds broken – bonds made = 2640 – 3338 = - 700 kJ

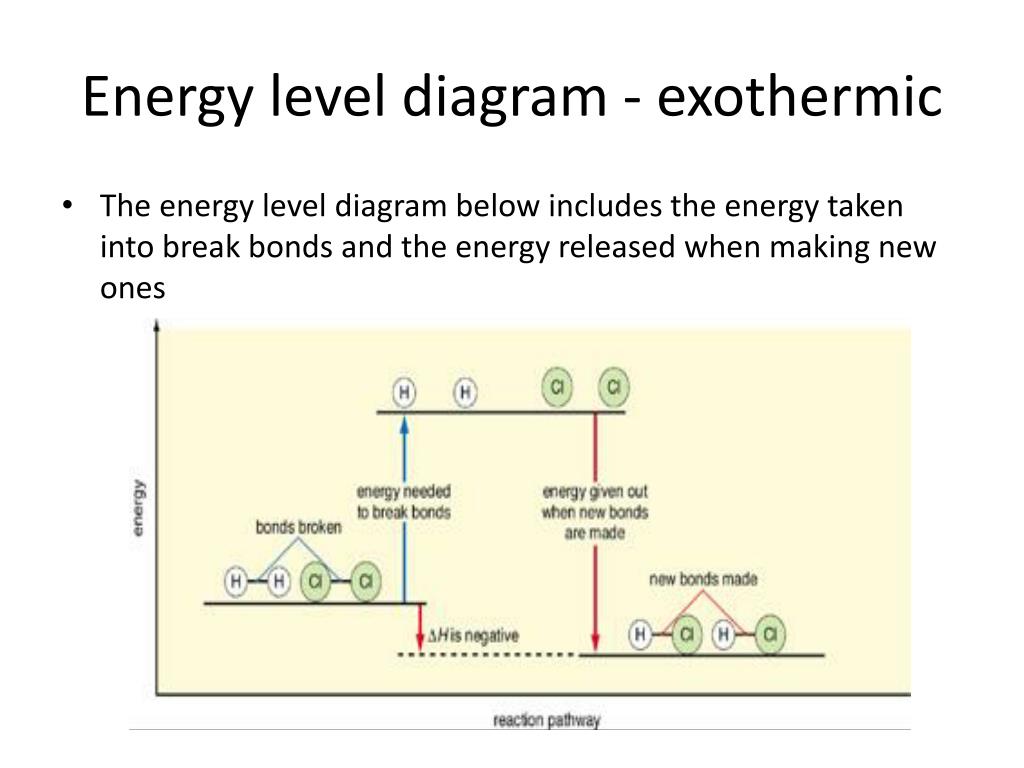

  4. Energy level diagram - exothermic • The energy level diagram below includes the energy taken into break bonds and the energy released when making new ones

  5. Same energy level diagram
