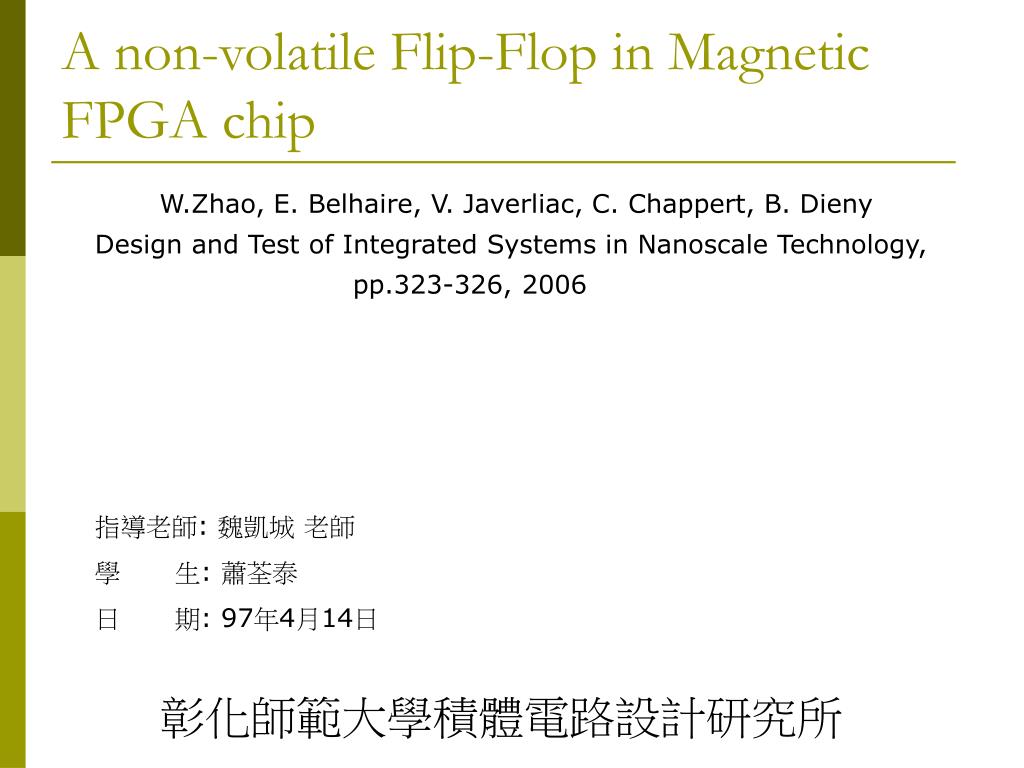

  1. A non-volatile Flip-Flop in Magnetic FPGA chip W.Zhao, E. Belhaire, V. Javerliac, C. Chappert, B. Dieny Design and Test of Integrated Systems in Nanoscale Technology, pp.323-326, 2006 指導老師: 魏凱城 老師 學 生: 蕭荃泰 日 期: 97年4月14日 彰化師範大學積體電路設計研究所

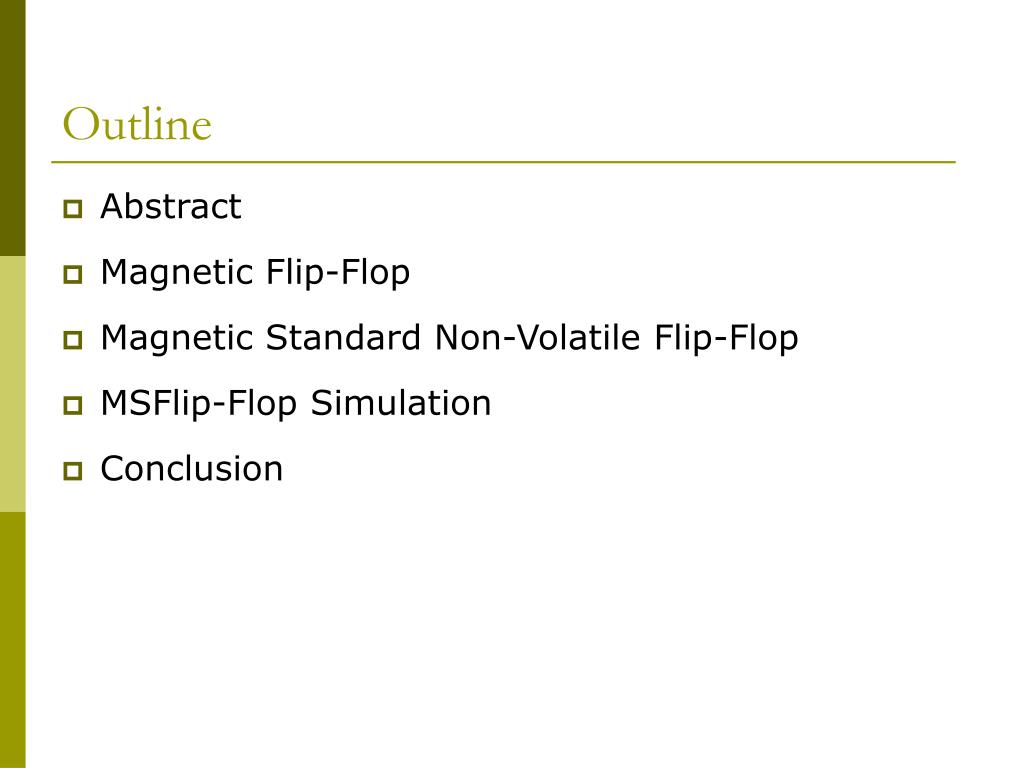

  2. Outline • Abstract • Magnetic Flip-Flop • Magnetic Standard Non-Volatile Flip-Flop • MSFlip-Flop Simulation • Conclusion

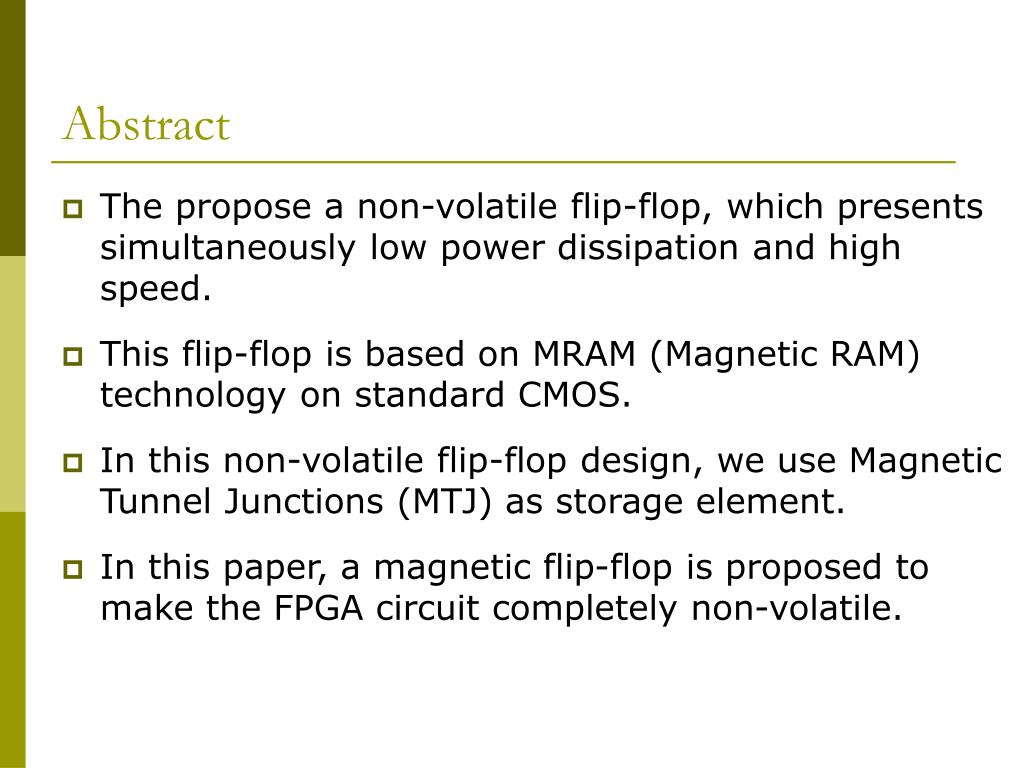

  3. Abstract • The propose a non-volatile flip-flop, which presents simultaneously low power dissipation and high speed. • This flip-flop is based on MRAM (Magnetic RAM) technology on standard CMOS. • In this non-volatile flip-flop design, we use Magnetic Tunnel Junctions (MTJ) as storage element. • In this paper, a magnetic flip-flop is proposed to make the FPGA circuit completely non-volatile.

  4. Magnetic Flip-Flop • Magnetic tunnel junction (MTJ) structure consisting of two ferromagnetic metals separated by a thin insulating layer. Fig1. the position of MTJs

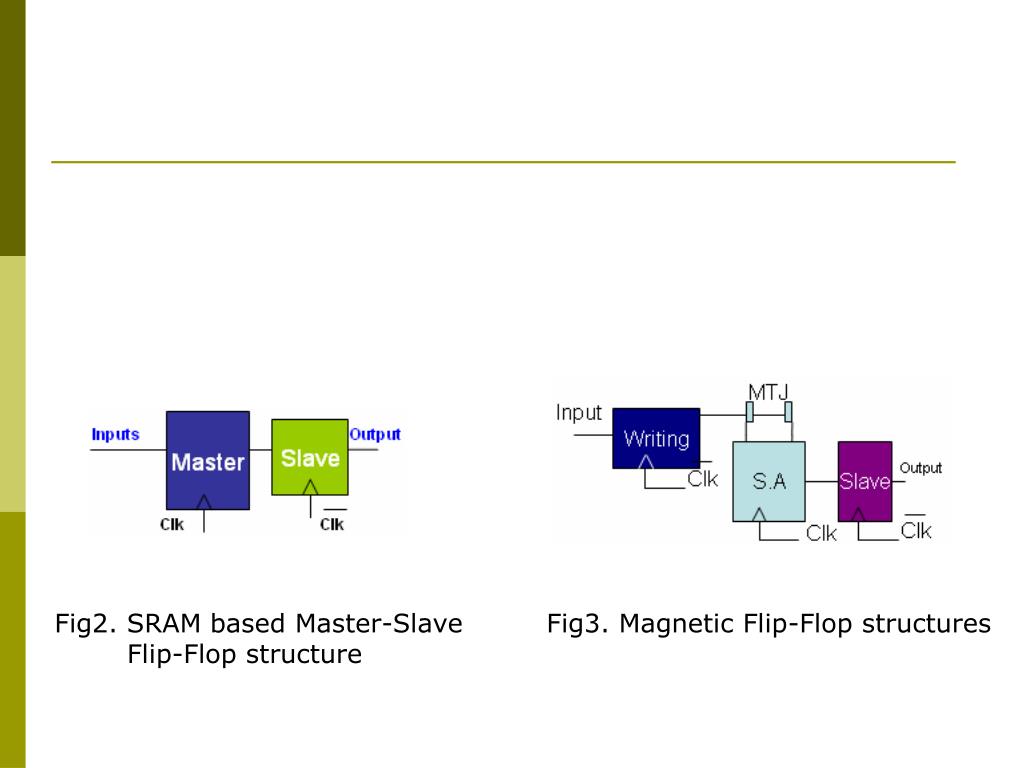

  5. Fig2. SRAM based Master-Slave Flip-Flop structure Fig3. Magnetic Flip-Flop structures

  6. Fig4. schema of SRAM based sense amplifier

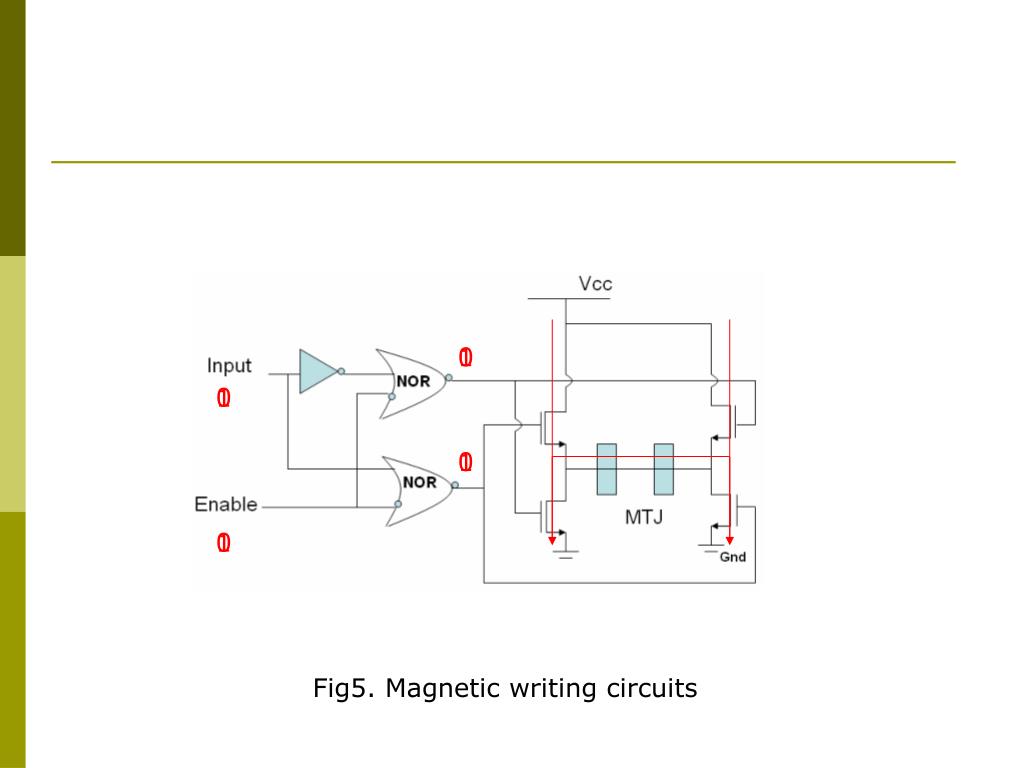

  7. 0 1 0 1 1 0 0 1 Fig5. Magnetic writing circuits

  8. The simulation of magnetic Flip-Flop

  9. Magnetic Standard Non-Volatile Flip-Flop (b) (a) Fig6. (a) Magnetic Standard mixed Flip-Flop schema (b) Magnetic Standard mixed Flip-Flop symbol

  10. MSFlip-Flop Simulation • In the magnetic-standard flip-flop simulation, the low frequency control signal “NW” is 10 KHz, the clock frequency is 500MHz and the input frequency is 250MHz. • 130nm technologies have been used for the CMOS part, and a completesimulation model has been developed by CEA for the magnetic part.

  11. Fig7. The simulation results of magnetic standard non-volatile Flip-Flop. The last Data saved in MTJ is ‘1’

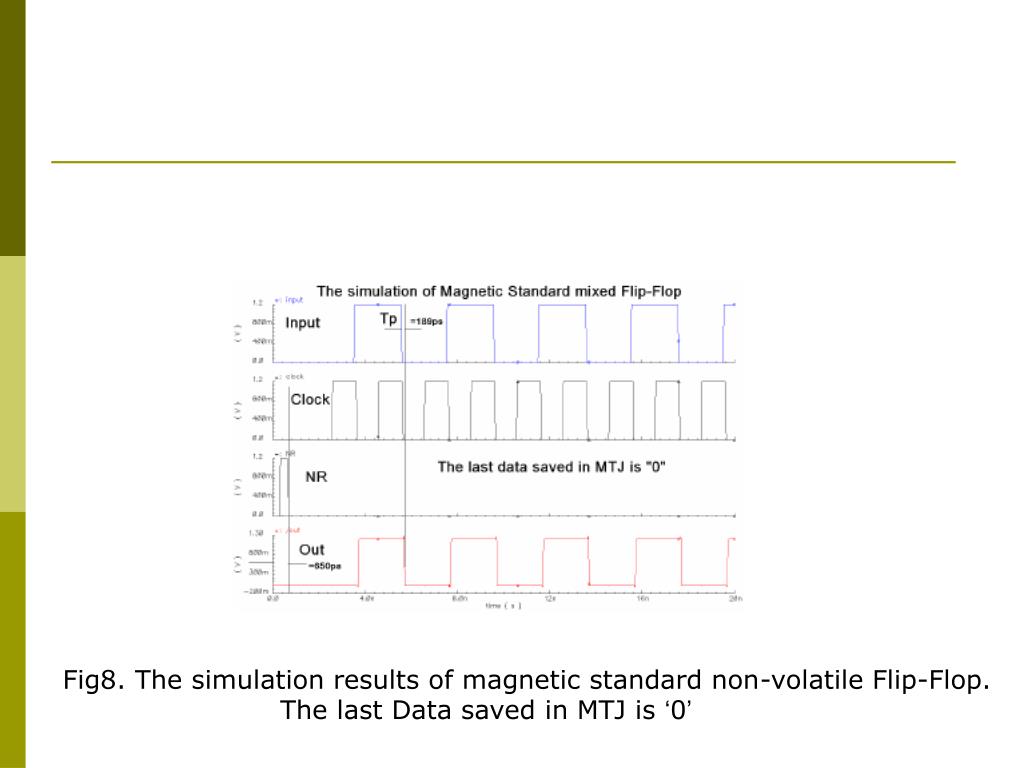

  12. Fig8. The simulation results of magnetic standard non-volatile Flip-Flop. The last Data saved in MTJ is ‘0’

  13. The flip-flop keeps the non-volatility of 1/X times (X is the ratio of processing frequency and the low, user defined frequency)

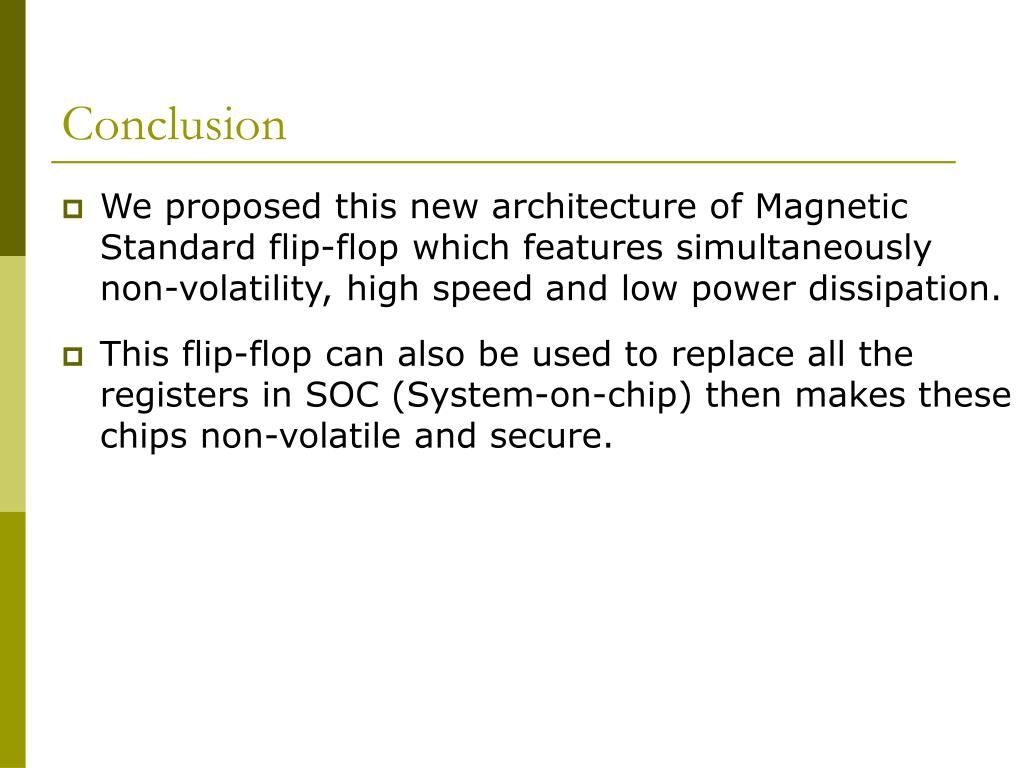

  14. Conclusion • We proposed this new architecture of Magnetic Standard flip-flop which features simultaneously non-volatility, high speed and low power dissipation. • This flip-flop can also be used to replace all the registers in SOC (System-on-chip) then makes these chips non-volatile and secure.
