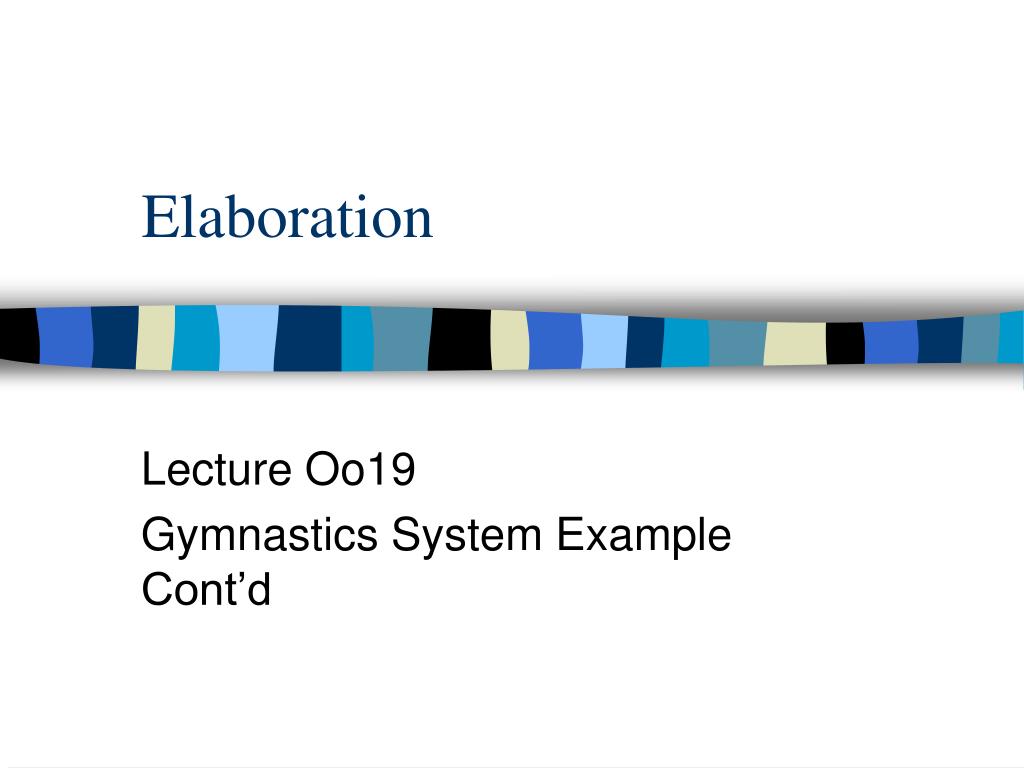

  1. Elaboration Lecture Oo19 Gymnastics System Example Cont’d

  2. References • The Booch Method Guide, for Rose 2.0 • Fowler & Scott, UML Distilled Applying the Standard Object Modeling Language, AWL, 1997, Chapt 2 • Larman, C., Applying UML and Patterns: An Introduction to Object Oriented Analysis and Design, PH, 1998

  3. Teaching Points • Architectural Design • Planning

  4. Review • What are the products of architectural design? • What is a three-tier architecture?

  5. The logical extension of three-tier architecture You can decompose a three-tier into multiple services Multi-tiered Architectures

  6. Multi-tiered Architectures

  7. Context/Problem A common, unified interface to a disparate set of interfaces - such as a package is required Solution Define a single class that unifies the interface and give it responsibility for collaborating with the package The Façade Pattern

  8. Compiler Example:

  9. Façade: General Structure

  10. The Gymnastics System

  11. What if we change user interfaces? What if we change DBMS? (how can we make the architecture less vulnerable to change) The Gymnastics System

  12. The essence of a plan is to set up a series of iterations (executable releases) for construction and to assign use cases to iterations A plan allocates each use case to an iteration (executable release) and identifies a start date for each iteration Planning

  13. Allocate Use Cases: By level of user priority By architectural Risk address risk early By level of effort uses cases with schedule risk early roughly equal releases you may split large use cases Executable Release Plan

  14. Classes to be implemented Inputs you may have to provide drivers Output you may have to provide stubs ASIDE: A good rule of thumb is that you will produce as much test harness as production code Other planning data

  15. Executable release: Scoring Report Goal: Verification and successful use of navigational paths and score derivation logic for the scores of a competition. Start Date: 26 Aug 98 Effort: 12 developer-weeks Classes to be implemented: Competition, Event, Trial, RawScore, Team Use Cases to be Implemented: Scoring Inputs: Dummy database (validated in advance) with a meet, a competition, all events for that competition, all competing teams and gymnasts for the competition, and all trials and raw scores. Outputs: The data needed to build the report on Figure 4-3, “Output of the Gymnastics System,” on page 25 of requirement spec. A DB utility dump of the raw input for comparison.

  16. Teaching Points • Architectural Design • Planning
