Network Security ( An Overview)

1. Network Security ( An Overview)

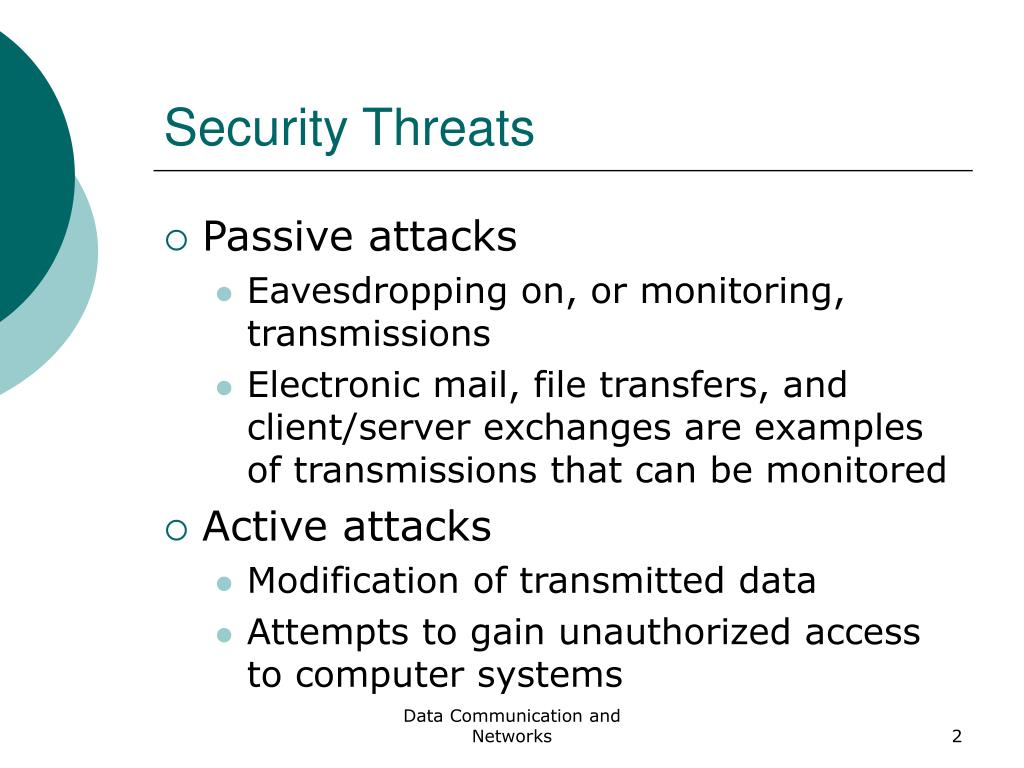

2. Security Threats • Passive attacks • Eavesdropping on, or monitoring, transmissions • Electronic mail, file transfers, and client/server exchanges are examples of transmissions that can be monitored • Active attacks • Modification of transmitted data • Attempts to gain unauthorized access to computer systems Data Communication and Networks

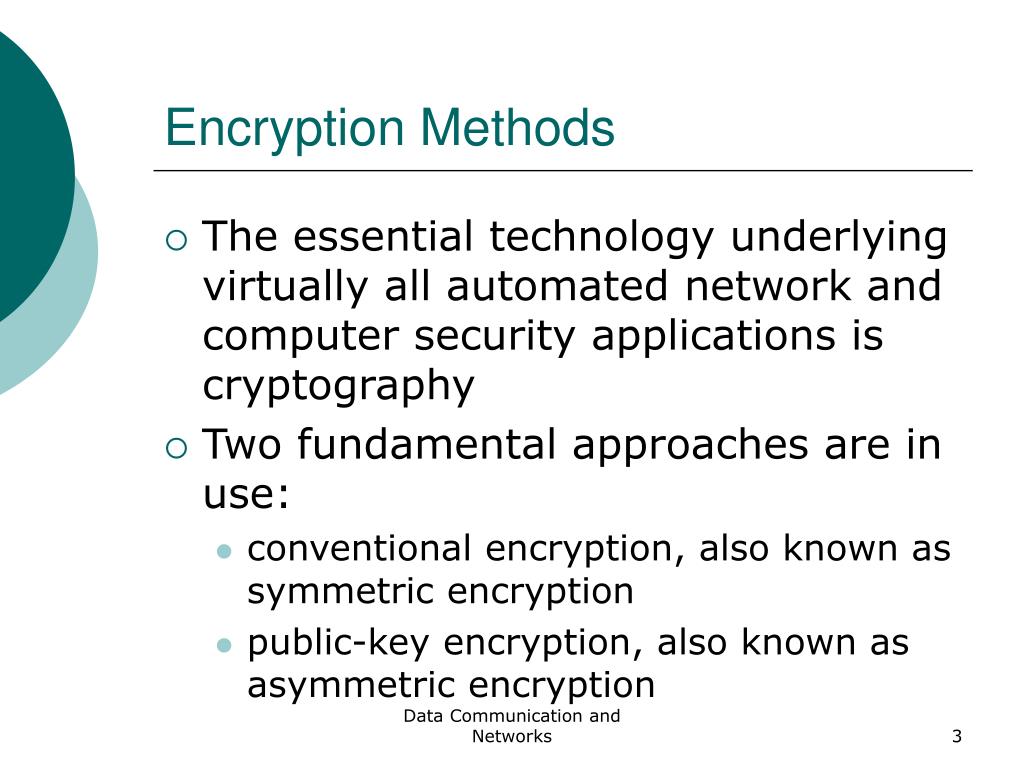

3. Encryption Methods • The essential technology underlying virtually all automated network and computer security applications is cryptography • Two fundamental approaches are in use: • conventional encryption, also known as symmetric encryption • public-key encryption, also known as asymmetric encryption Data Communication and Networks

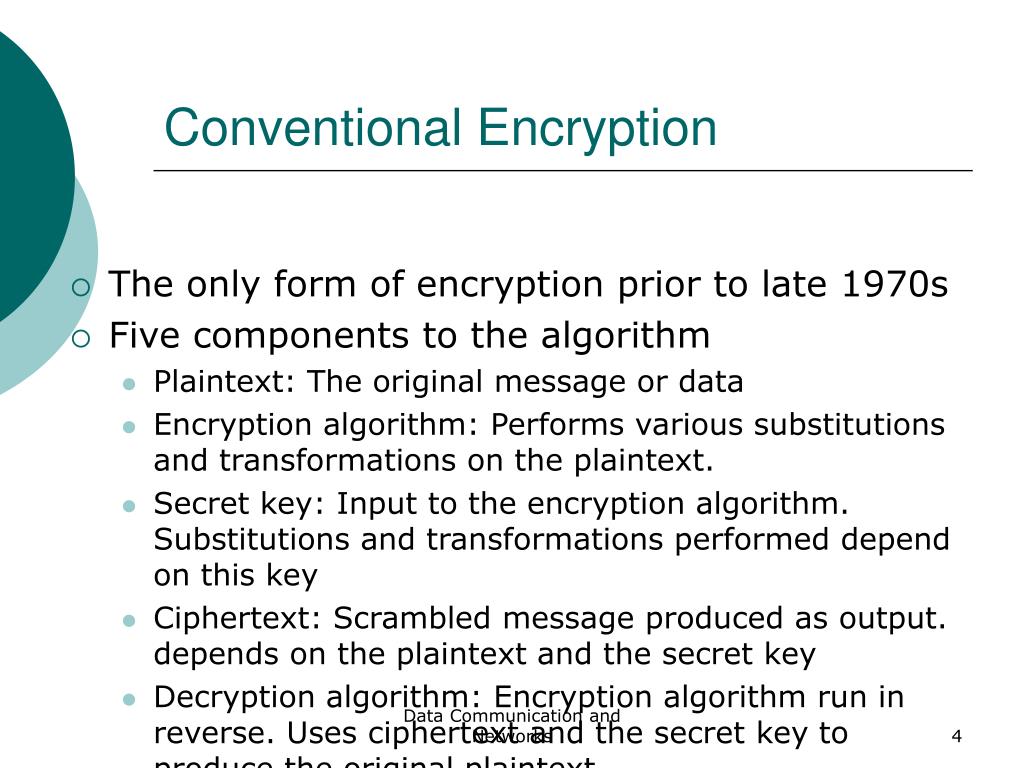

4. Conventional Encryption • The only form of encryption prior to late 1970s • Five components to the algorithm • Plaintext: The original message or data • Encryption algorithm: Performs various substitutions and transformations on the plaintext. • Secret key: Input to the encryption algorithm. Substitutions and transformations performed depend on this key • Ciphertext: Scrambled message produced as output. depends on the plaintext and the secret key • Decryption algorithm: Encryption algorithm run in reverse. Uses ciphertext and the secret key to produce the original plaintext. Data Communication and Networks

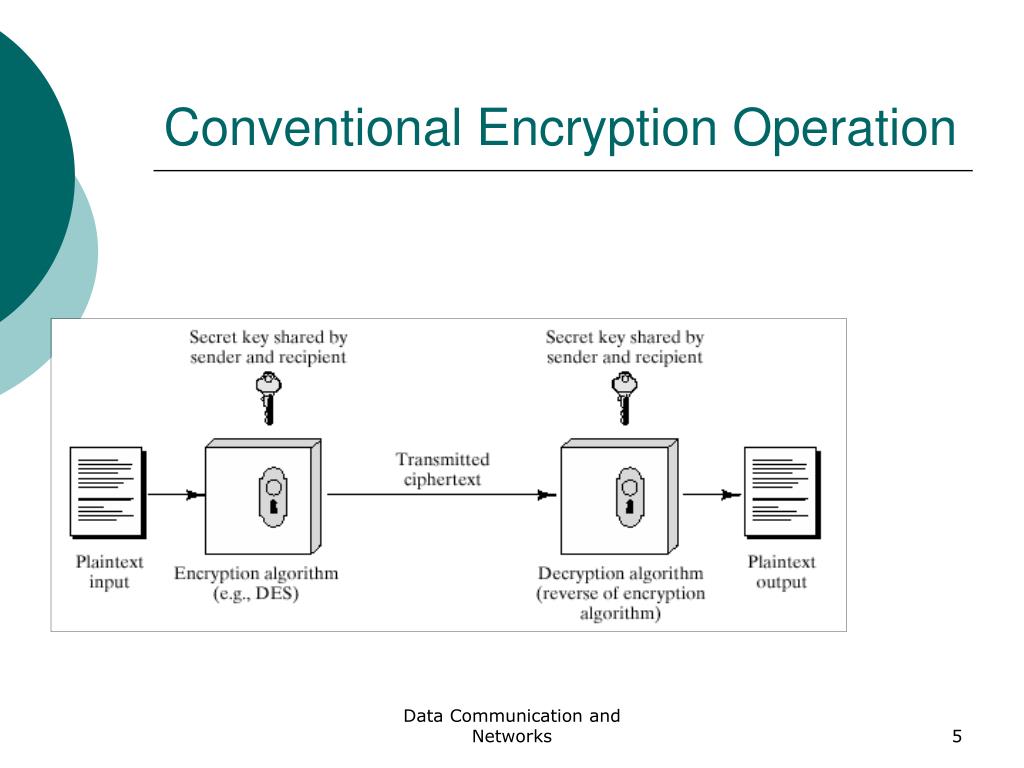

5. Conventional Encryption Operation Data Communication and Networks

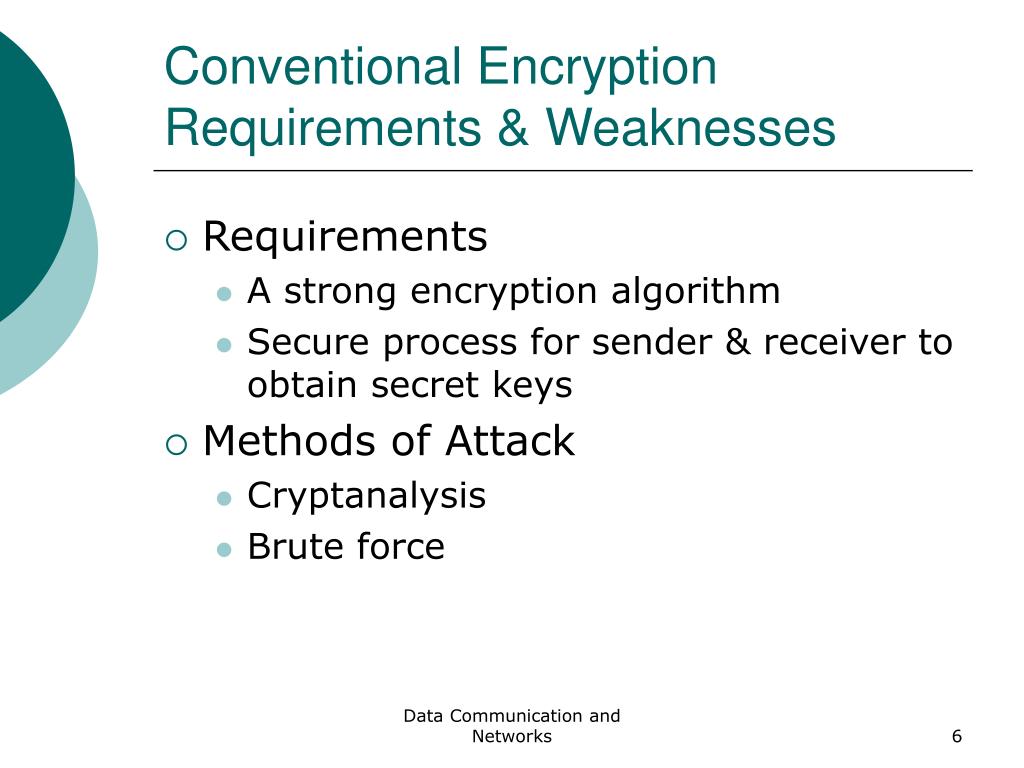

6. Conventional Encryption Requirements & Weaknesses • Requirements • A strong encryption algorithm • Secure process for sender & receiver to obtain secret keys • Methods of Attack • Cryptanalysis • Brute force Data Communication and Networks

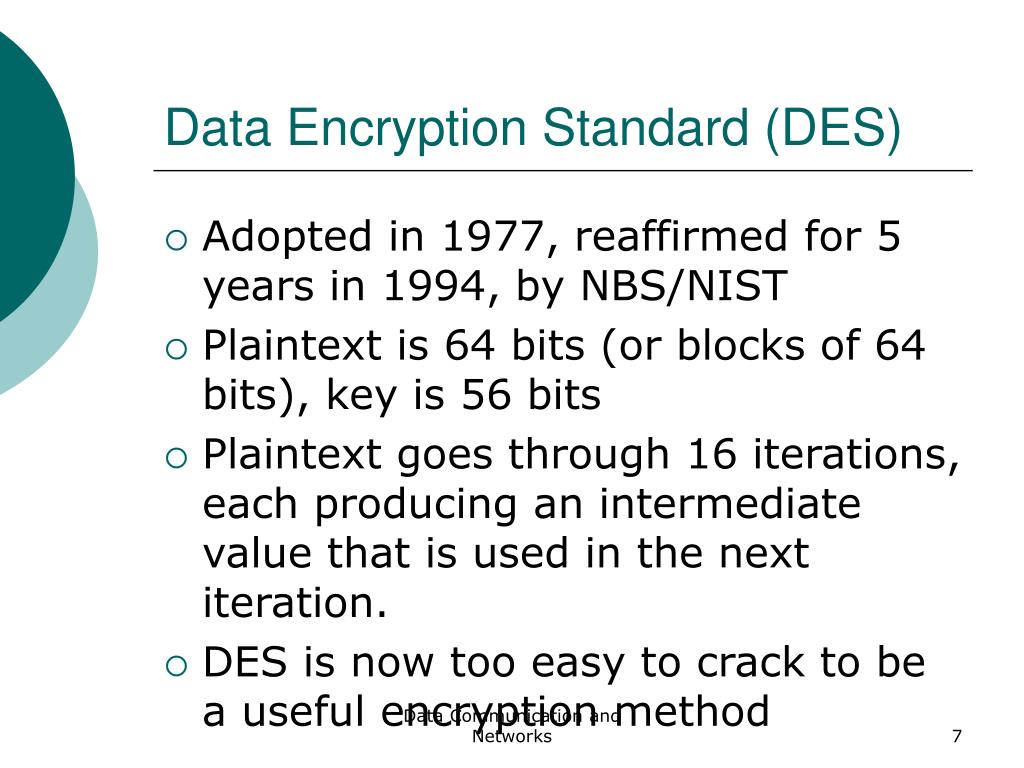

7. Data Encryption Standard (DES) • Adopted in 1977, reaffirmed for 5 years in 1994, by NBS/NIST • Plaintext is 64 bits (or blocks of 64 bits), key is 56 bits • Plaintext goes through 16 iterations, each producing an intermediate value that is used in the next iteration. • DES is now too easy to crack to be a useful encryption method Data Communication and Networks

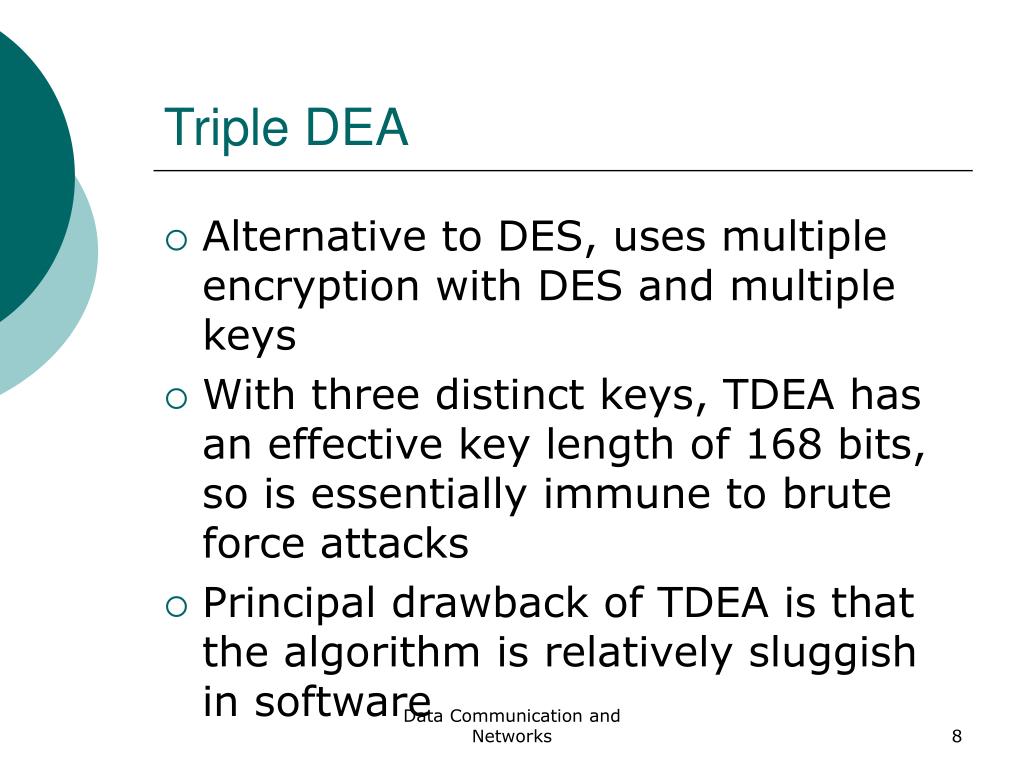

8. Triple DEA • Alternative to DES, uses multiple encryption with DES and multiple keys • With three distinct keys, TDEA has an effective key length of 168 bits, so is essentially immune to brute force attacks • Principal drawback of TDEA is that the algorithm is relatively sluggish in software Data Communication and Networks

9. Public-Key Encryption • Based on mathematical functions rather than on simple operations on bit patterns • Asymmetric, involving the use of two separate keys • Misconceptions about public key encryption • it is more secure from cryptanalysis • it is a general-purpose technique that has made conventional encryption obsolete Data Communication and Networks

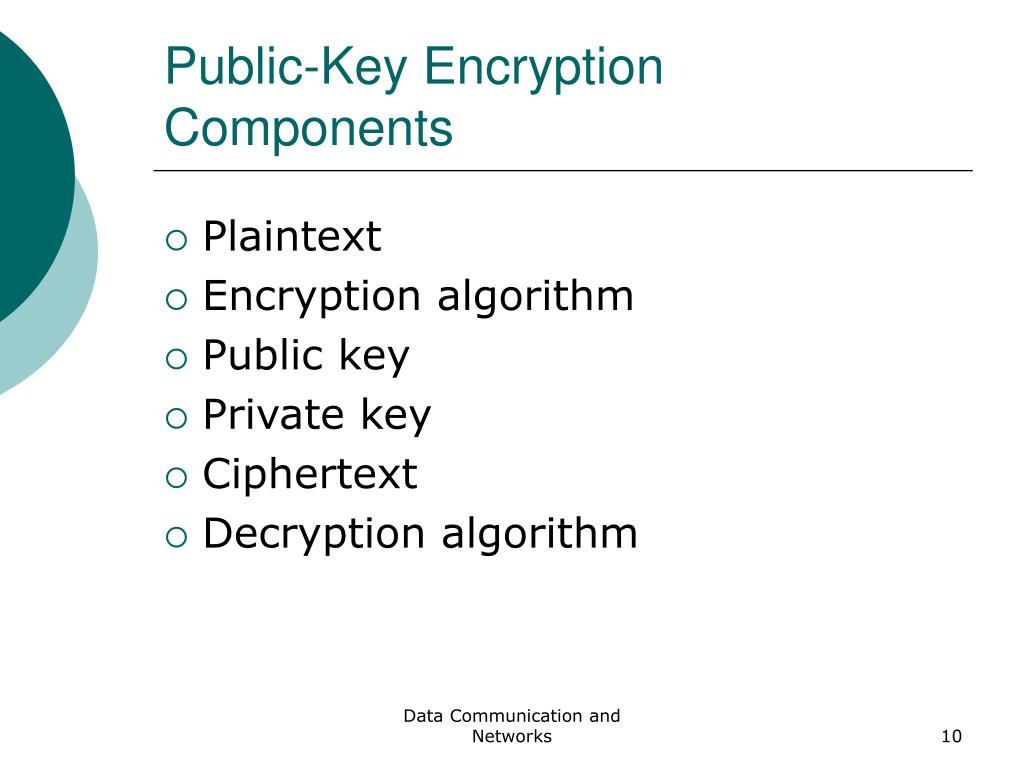

10. Public-Key Encryption Components • Plaintext • Encryption algorithm • Public key • Private key • Ciphertext • Decryption algorithm Data Communication and Networks

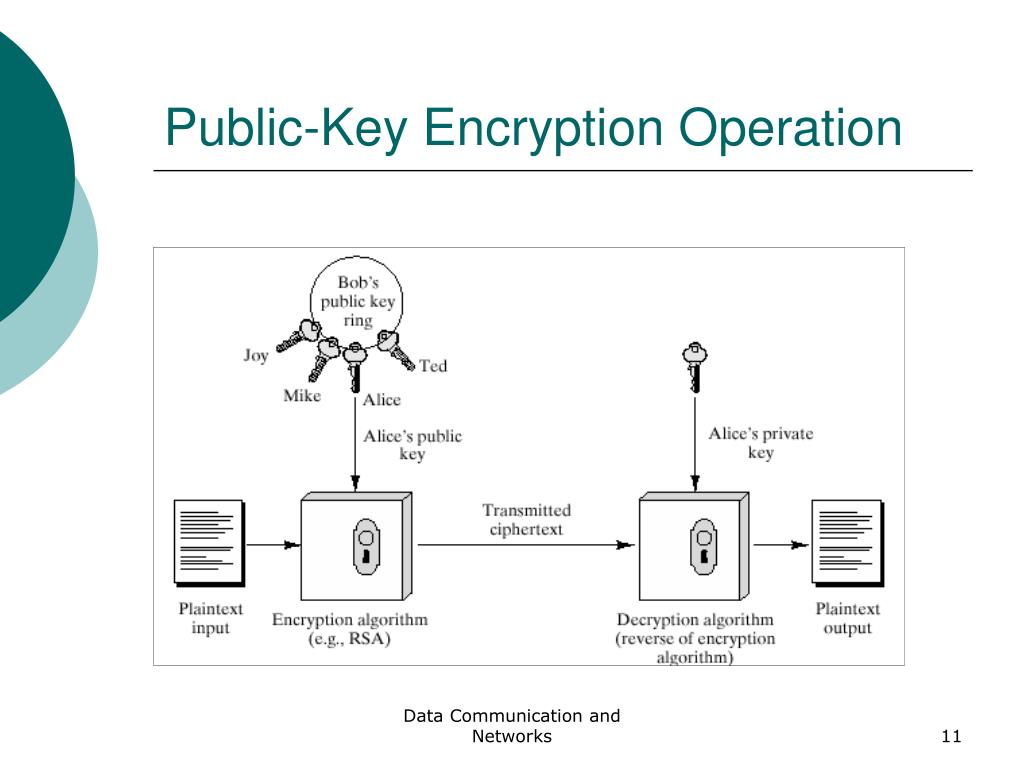

11. Public-Key Encryption Operation Data Communication and Networks

12. Public-Key Signature Operation Data Communication and Networks

13. Characteristics of Public-Key • Infeasible to determine the decryption key given knowledge of the cryptographic algorithm and the encryption key. • Either of the two related keys can be used for encryption, with the other used for decryption. • Slow, but provides tremendous flexibility to perform a number of security-related functions • Most widely used algorithm is RSA Data Communication and Networks

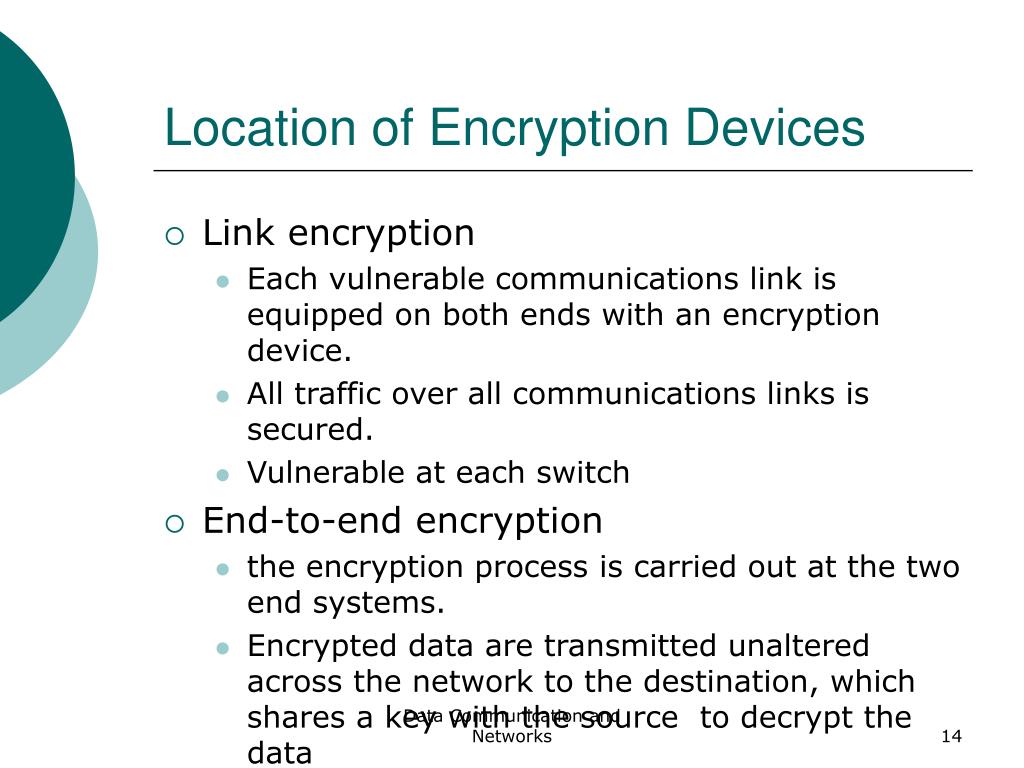

14. Location of Encryption Devices • Link encryption • Each vulnerable communications link is equipped on both ends with an encryption device. • All traffic over all communications links is secured. • Vulnerable at each switch • End-to-end encryption • the encryption process is carried out at the two end systems. • Encrypted data are transmitted unaltered across the network to the destination, which shares a key with the source to decrypt the data • Packet headers cannot be secured Data Communication and Networks

15. Conventional EncryptionKey Distribution • Both parties must have the secret key • Key is changed frequently • Requires either manual delivery of keys, or a third-party encrypted channel • Most effective method is a Key Distribution Center (e.g. Kerberos) Data Communication and Networks

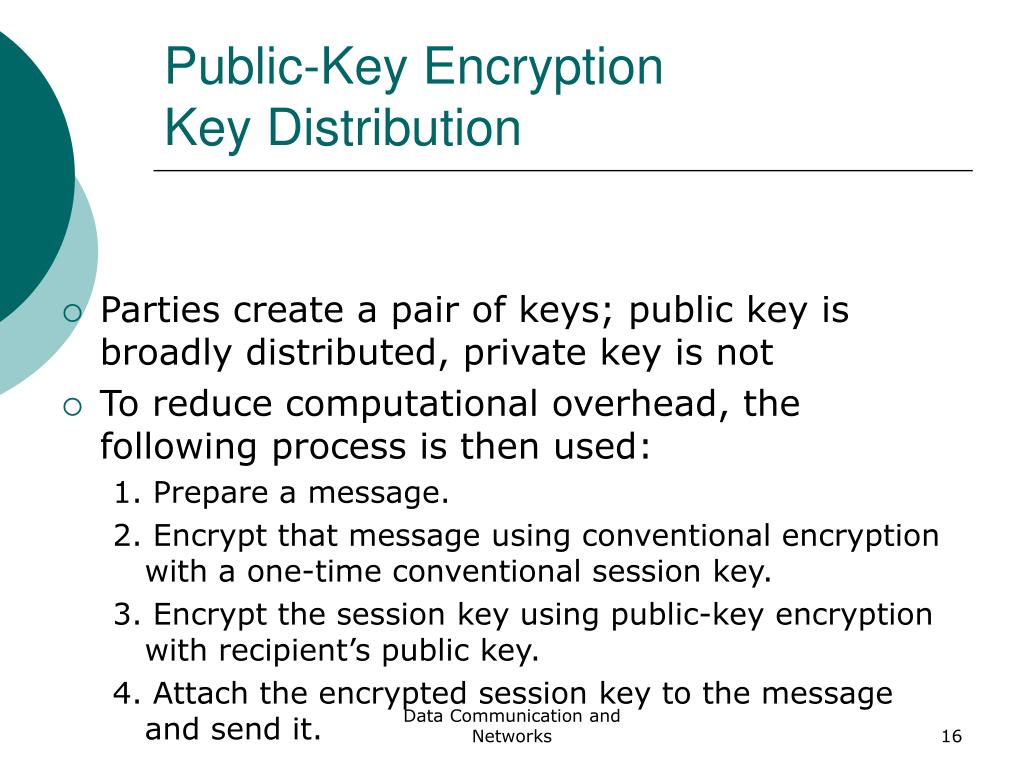

16. Public-Key EncryptionKey Distribution • Parties create a pair of keys; public key is broadly distributed, private key is not • To reduce computational overhead, the following process is then used: 1. Prepare a message. 2. Encrypt that message using conventional encryption with a one-time conventional session key. 3. Encrypt the session key using public-key encryption with recipient’s public key. 4. Attach the encrypted session key to the message and send it. Data Communication and Networks

17. Digital Signature Process Data Communication and Networks

18. Public Key Certificates 1. A public key is generated by the user and submitted to Agency X for certification. 2. X determines by some procedure, such as a face-to-face meeting, that this is authentically the user’s public key. 3. X appends a timestamp to the public key, generates the hash code of the result, and encrypts that result with X’s private key forming the signature. 4. The signature is attached to the public key. Data Communication and Networks

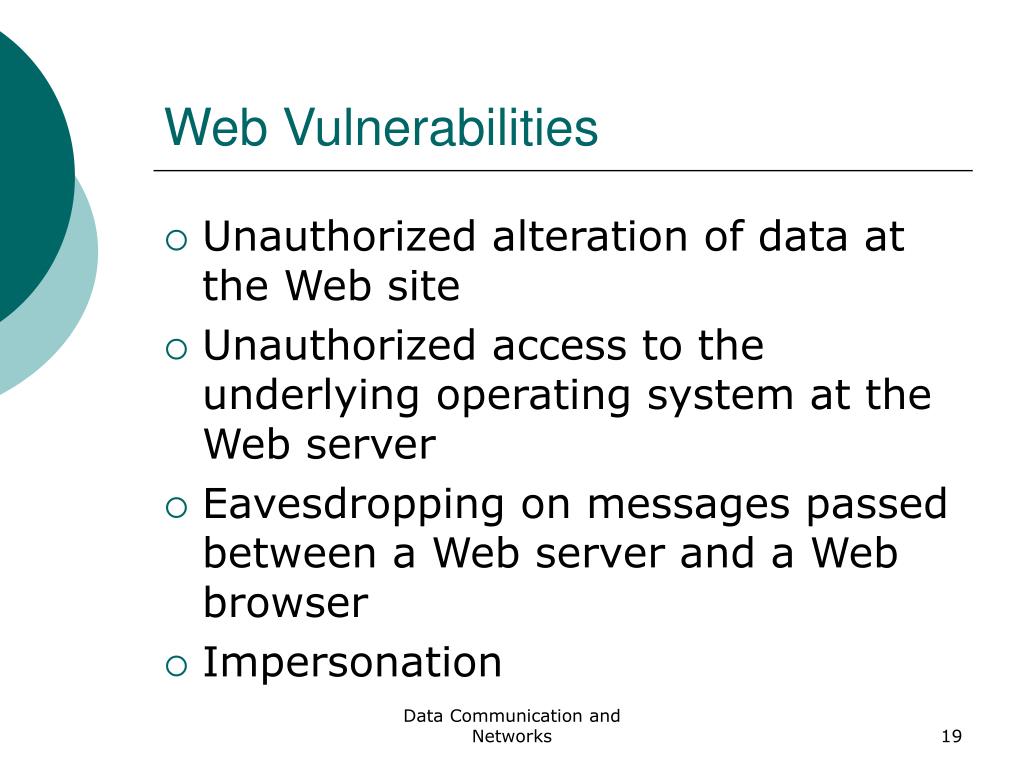

19. Web Vulnerabilities • Unauthorized alteration of data at the Web site • Unauthorized access to the underlying operating system at the Web server • Eavesdropping on messages passed between a Web server and a Web browser • Impersonation Data Communication and Networks

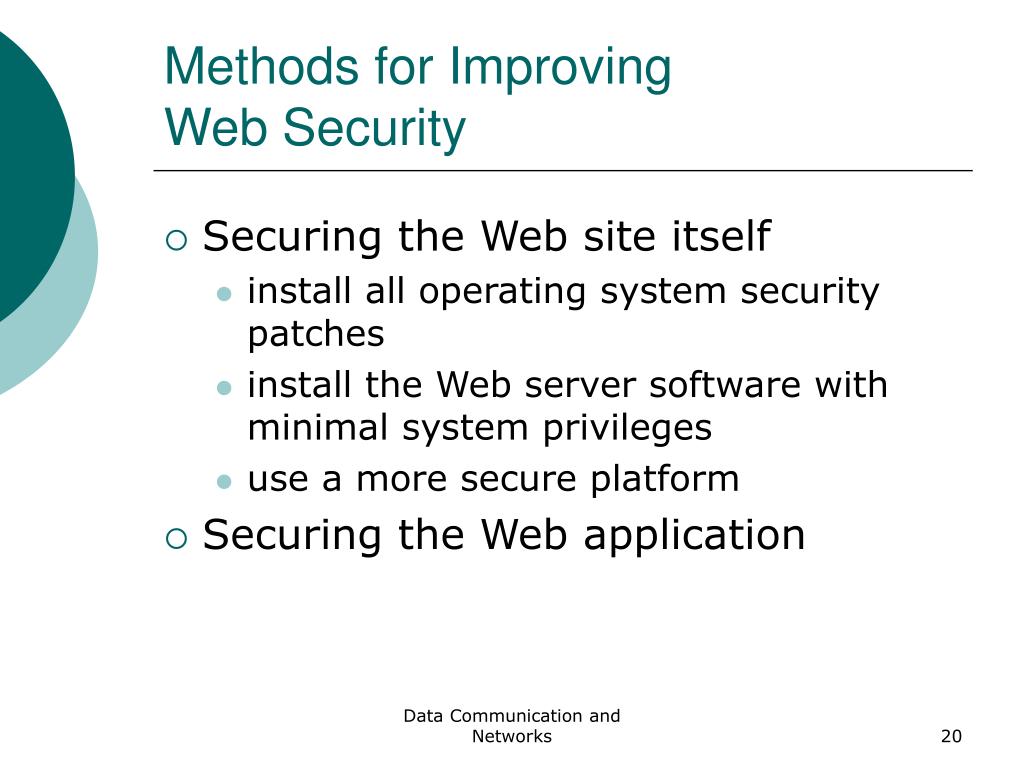

20. Methods for Improving Web Security • Securing the Web site itself • install all operating system security patches • install the Web server software with minimal system privileges • use a more secure platform • Securing the Web application Data Communication and Networks

21. Web Application Security • Secure HyperText Transfer Protocol (SHTTP) • Secure Sockets Layer (SSL) • Web server packages should incorporate both of these protocols Data Communication and Networks

22. Virtual Private Networks (VPNs) • The use of encryption and authentication in the lower protocol layers to provide a secure connection through an otherwise insecure network, typically the Internet. • Generally cheaper than real private networks using private lines but rely on having the same encryption and authentication system at both ends. • The encryption may be performed by firewall software or possibly by routers. Data Communication and Networks

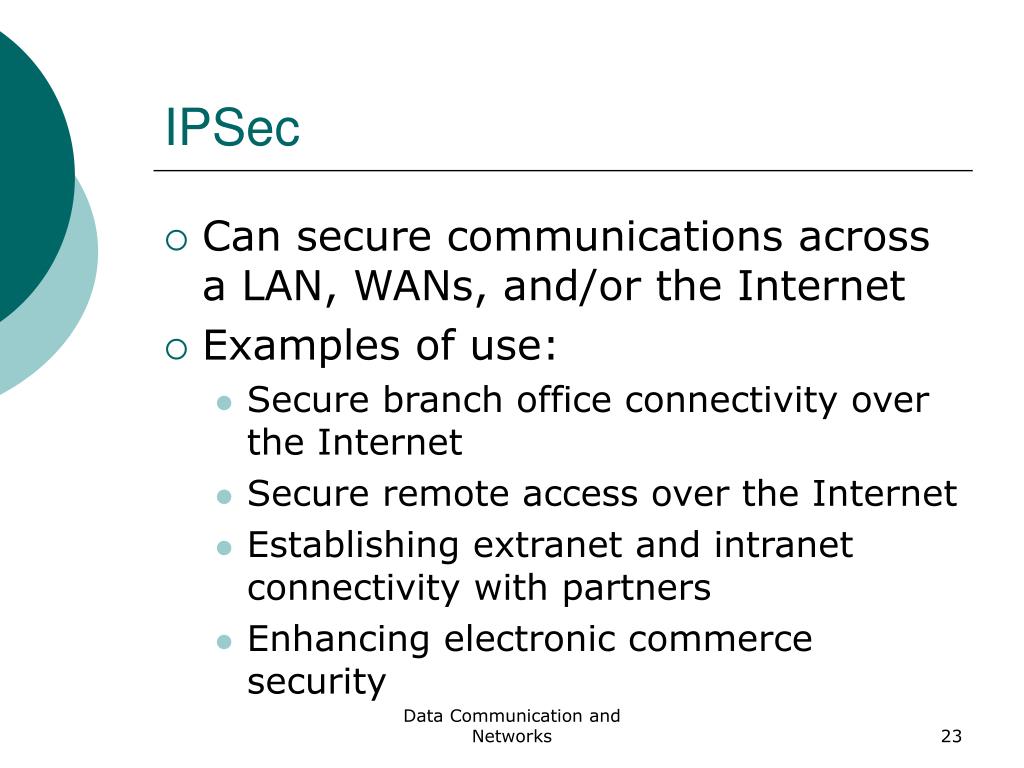

23. IPSec • Can secure communications across a LAN, WANs, and/or the Internet • Examples of use: • Secure branch office connectivity over the Internet • Secure remote access over the Internet • Establishing extranet and intranet connectivity with partners • Enhancing electronic commerce security Data Communication and Networks

24. Benefits of IPSec • When implemented in a firewall or router, provides strong security for all traffic crossing the perimeter • IPSec in a firewall is resistant to bypass • Runs below the transport layer (TCP, UDP) and so is transparent to applications • Can be transparent to end users • Can provide security for individual users if needed Data Communication and Networks

25. IPSec Functions • IPSec provides three main facilities • authentication-only function referred to as Authentication Header (AH) • combined authentication/encryption function called Encapsulating Security Payload (ESP) • a key exchange function • For VPNs, both authentication and encryption are generally desired Data Communication and Networks

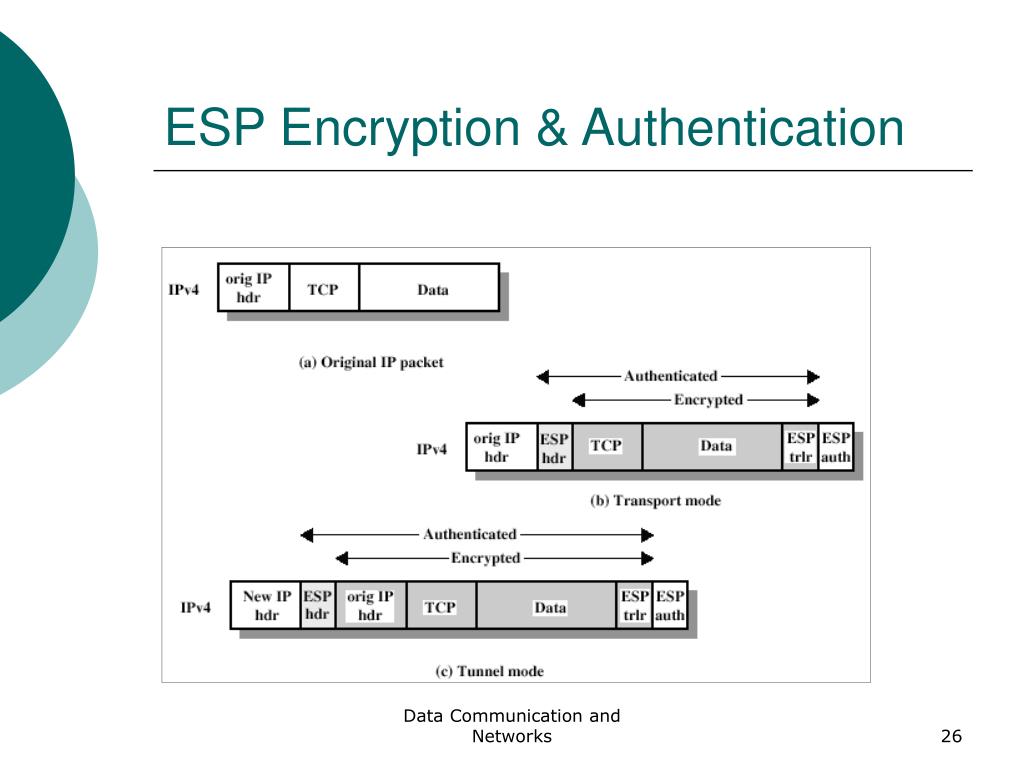

26. ESP Encryption & Authentication Data Communication and Networks

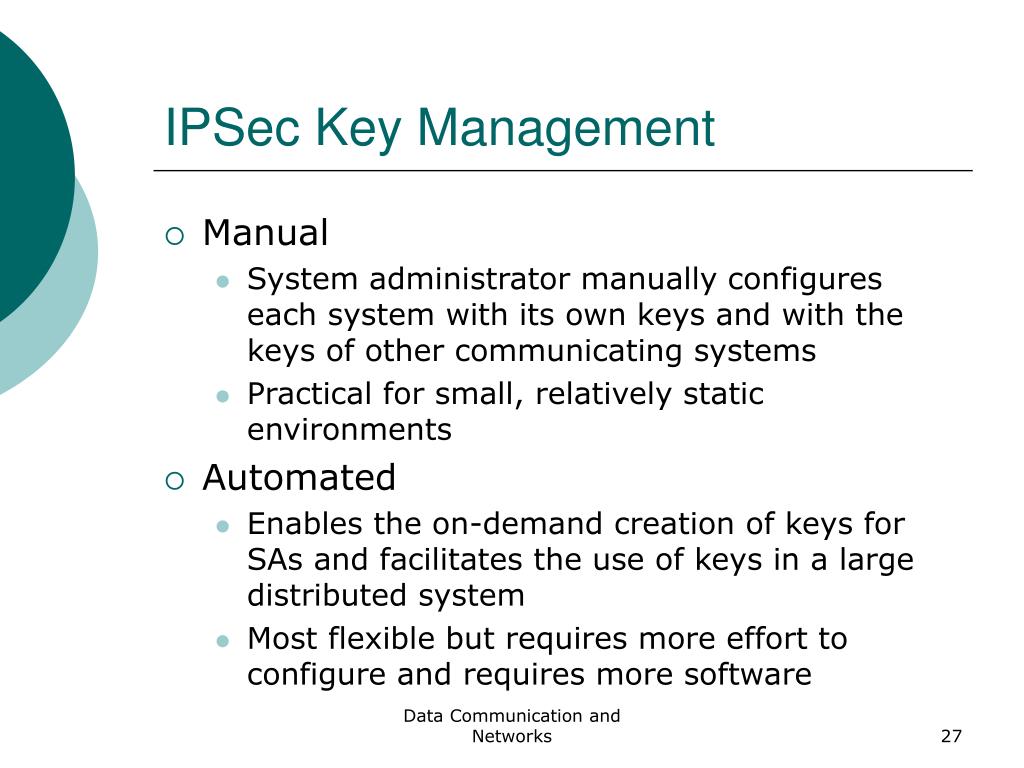

27. IPSec Key Management • Manual • System administrator manually configures each system with its own keys and with the keys of other communicating systems • Practical for small, relatively static environments • Automated • Enables the on-demand creation of keys for SAs and facilitates the use of keys in a large distributed system • Most flexible but requires more effort to configure and requires more software Data Communication and Networks

28. Cryptography Data Communication and Networks

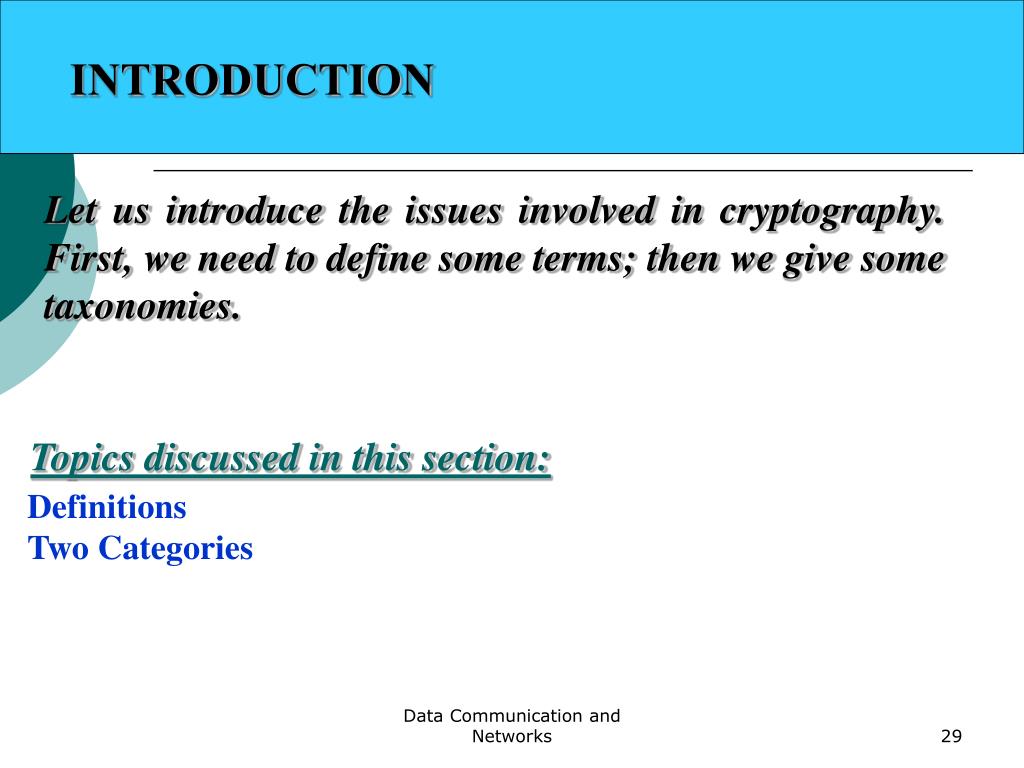

29. INTRODUCTION Let us introduce the issues involved in cryptography. First, we need to define some terms; then we give some taxonomies. Topics discussed in this section: DefinitionsTwo Categories Data Communication and Networks

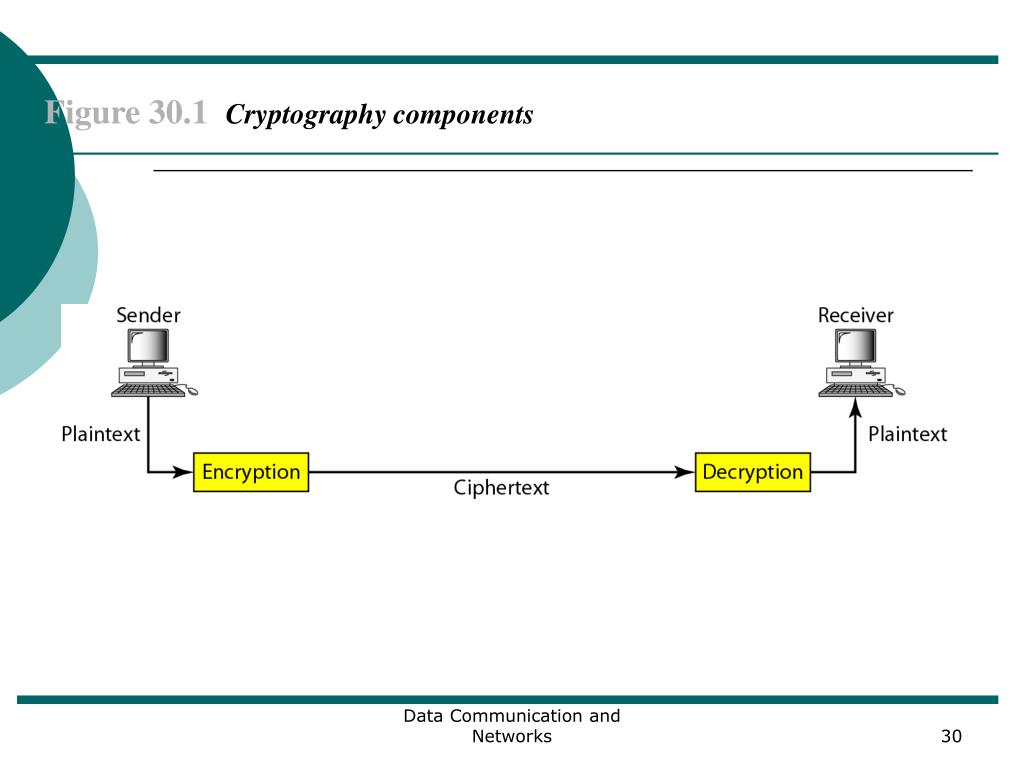

30. Figure 30.1 Cryptography components Data Communication and Networks

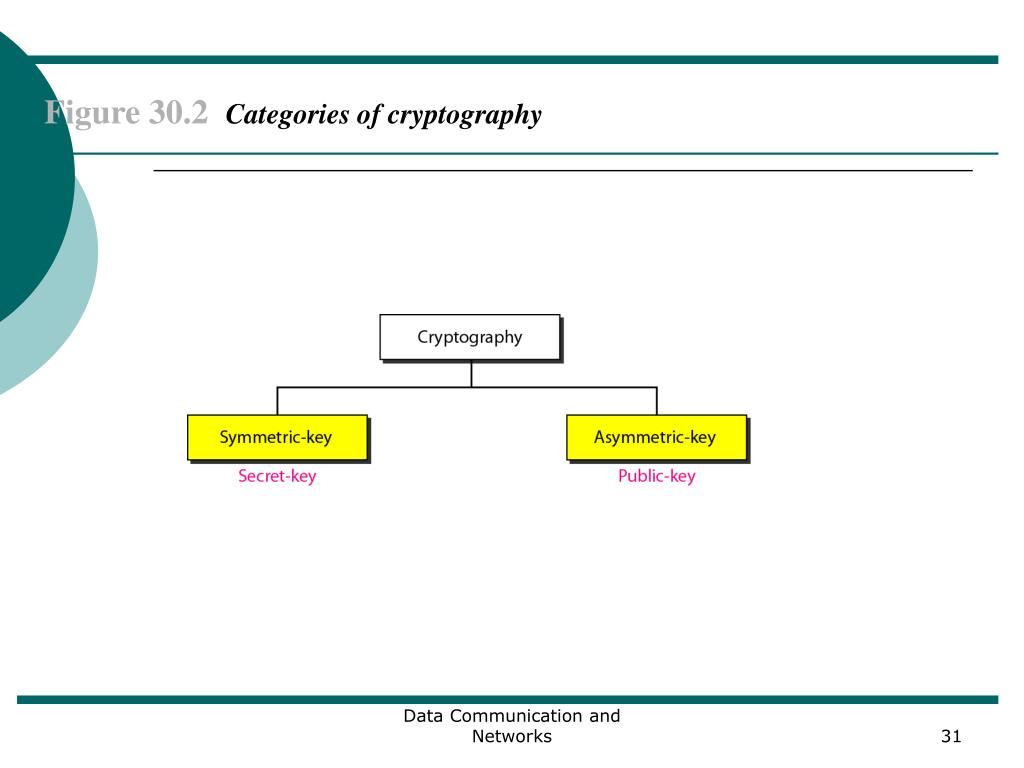

31. Figure 30.2 Categories of cryptography Data Communication and Networks

32. Figure 30.3 Symmetric-key cryptography Data Communication and Networks

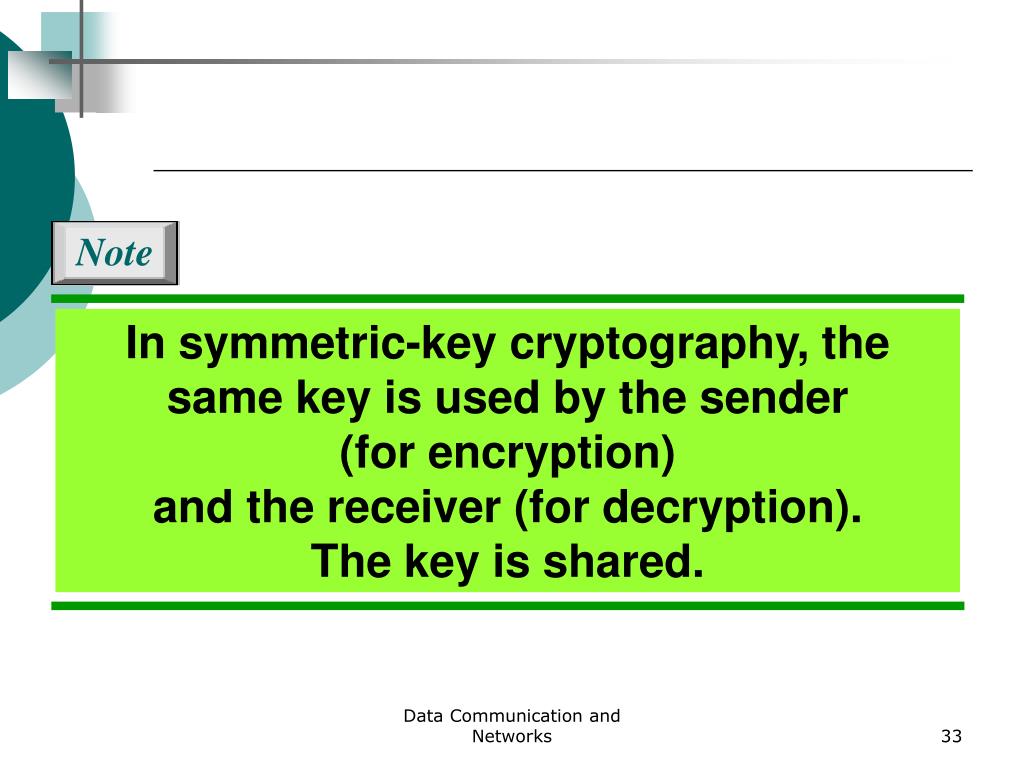

33. Note In symmetric-key cryptography, the same key is used by the sender (for encryption) and the receiver (for decryption). The key is shared. Data Communication and Networks

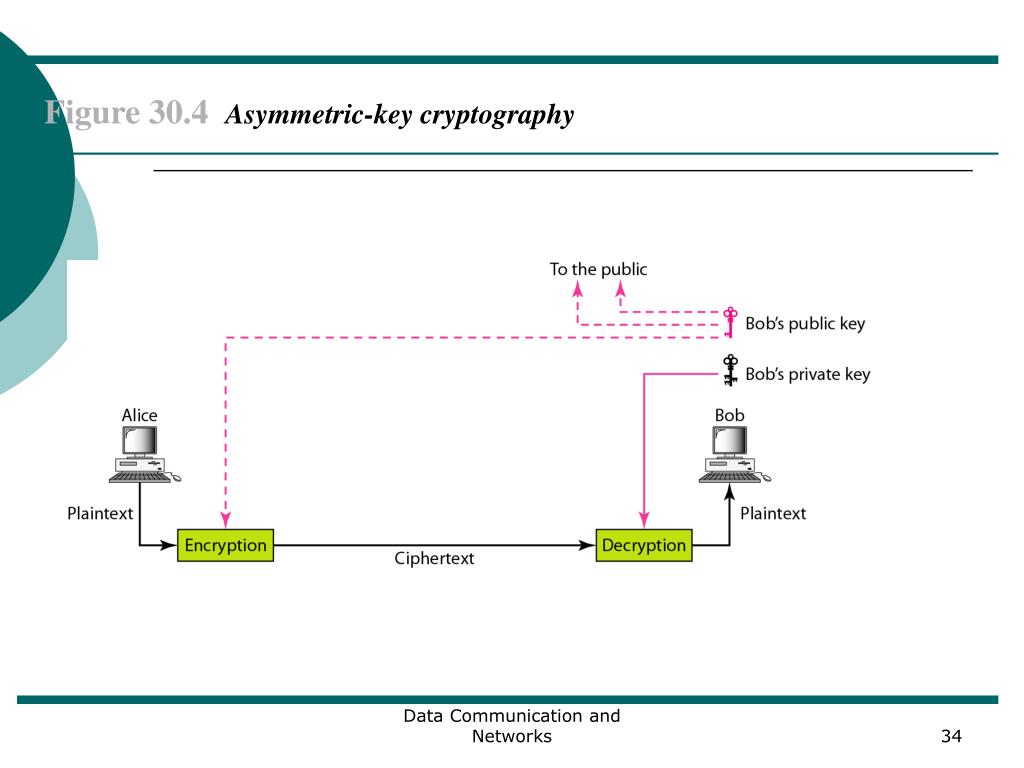

34. Figure 30.4 Asymmetric-key cryptography Data Communication and Networks

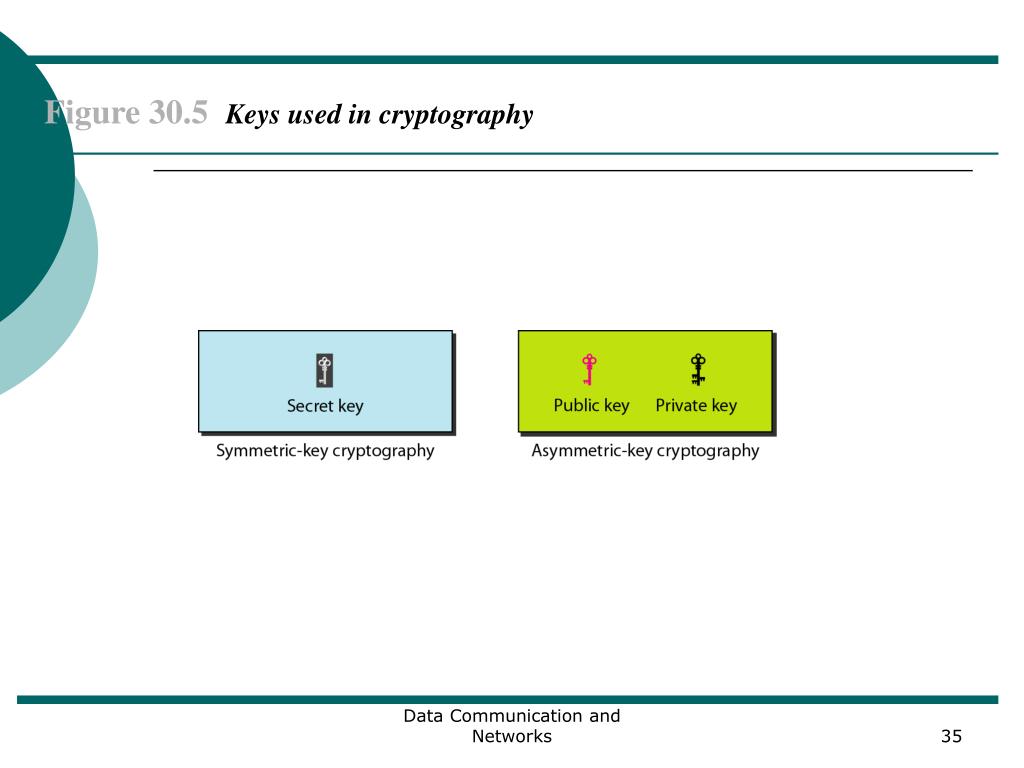

35. Figure 30.5 Keys used in cryptography Data Communication and Networks

36. Figure 30.6 Comparison between two categories of cryptography Data Communication and Networks

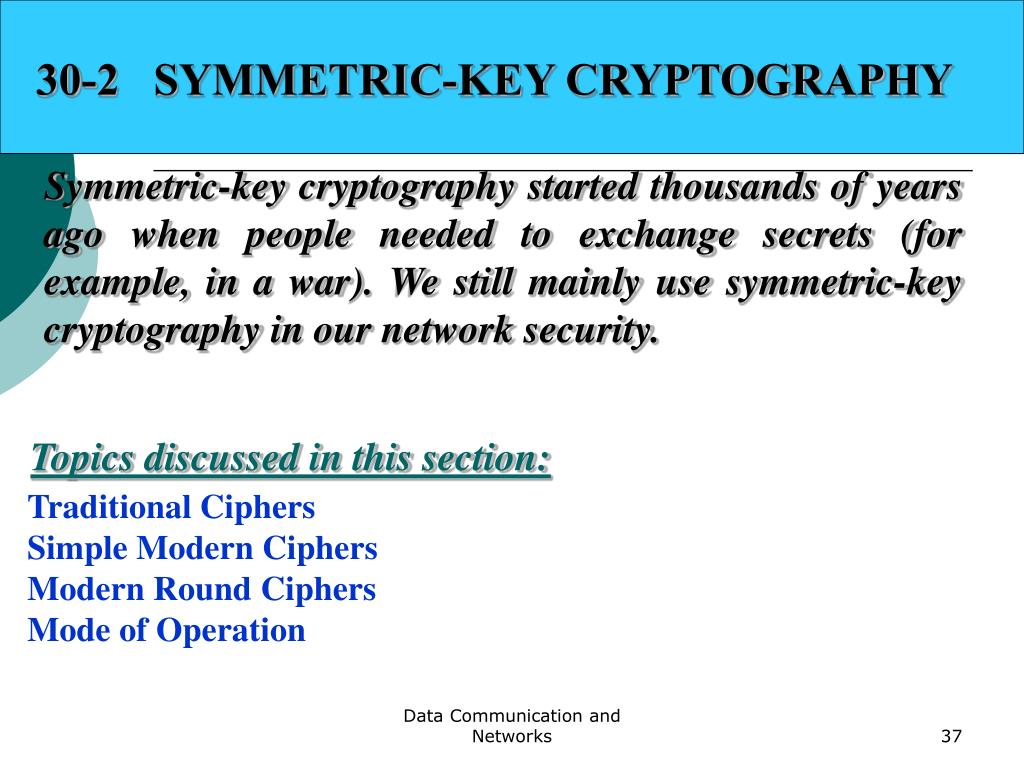

37. 30-2 SYMMETRIC-KEY CRYPTOGRAPHY Symmetric-key cryptography started thousands of years ago when people needed to exchange secrets (for example, in a war). We still mainly use symmetric-key cryptography in our network security. Topics discussed in this section: Traditional CiphersSimple Modern CiphersModern Round CiphersMode of Operation Data Communication and Networks

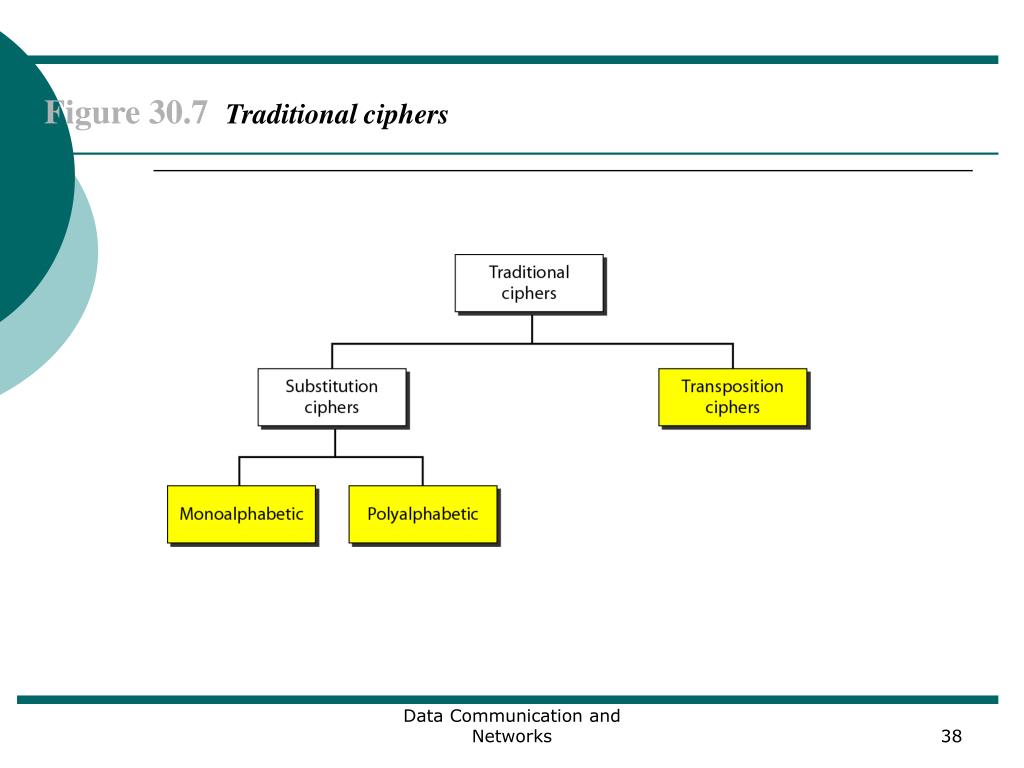

38. Figure 30.7 Traditional ciphers Data Communication and Networks

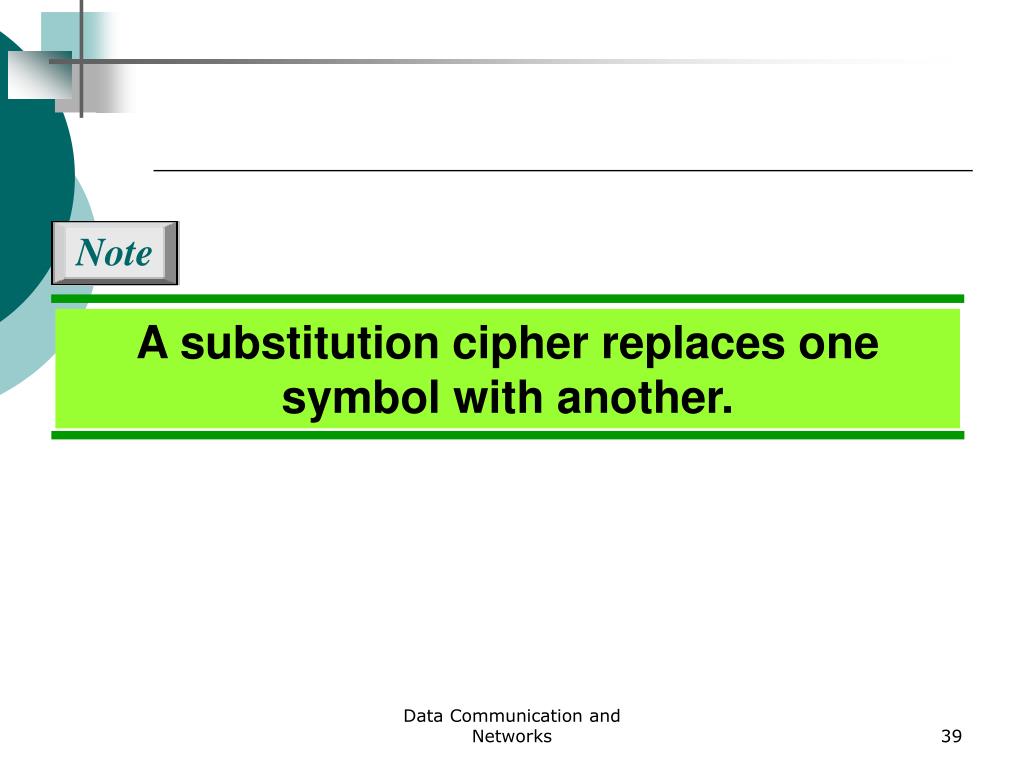

39. Note A substitution cipher replaces one symbol with another. Data Communication and Networks

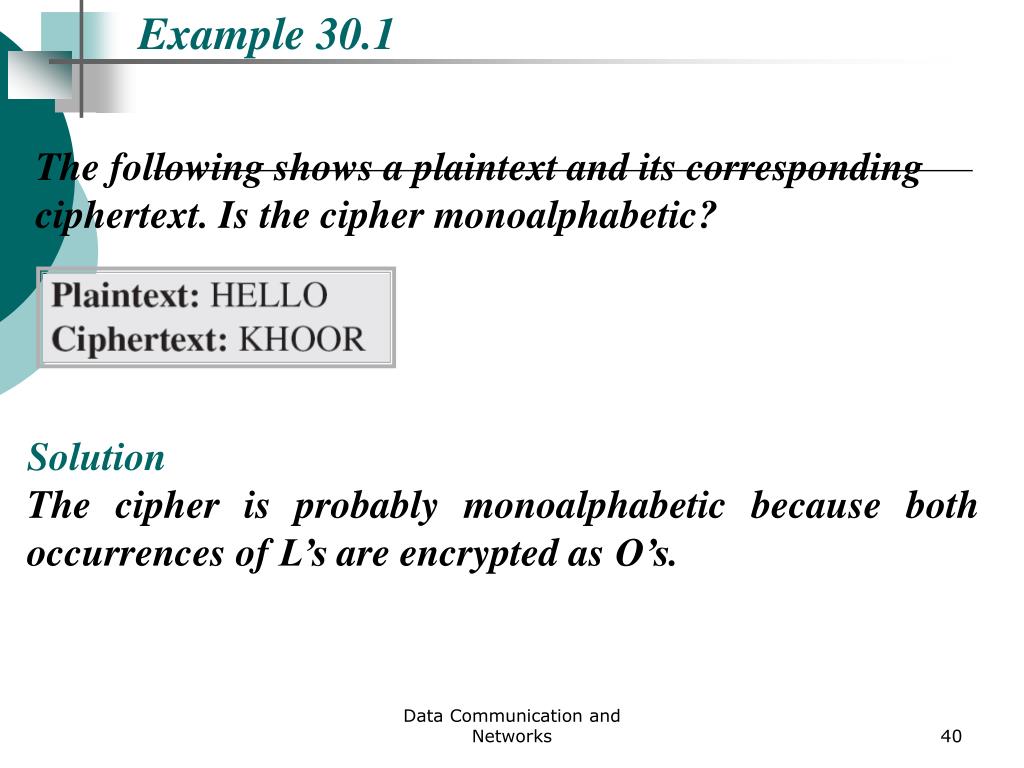

40. Example 30.1 The following shows a plaintext and its corresponding ciphertext. Is the cipher monoalphabetic? Solution The cipher is probably monoalphabetic because both occurrences of L’s are encrypted as O’s. Data Communication and Networks

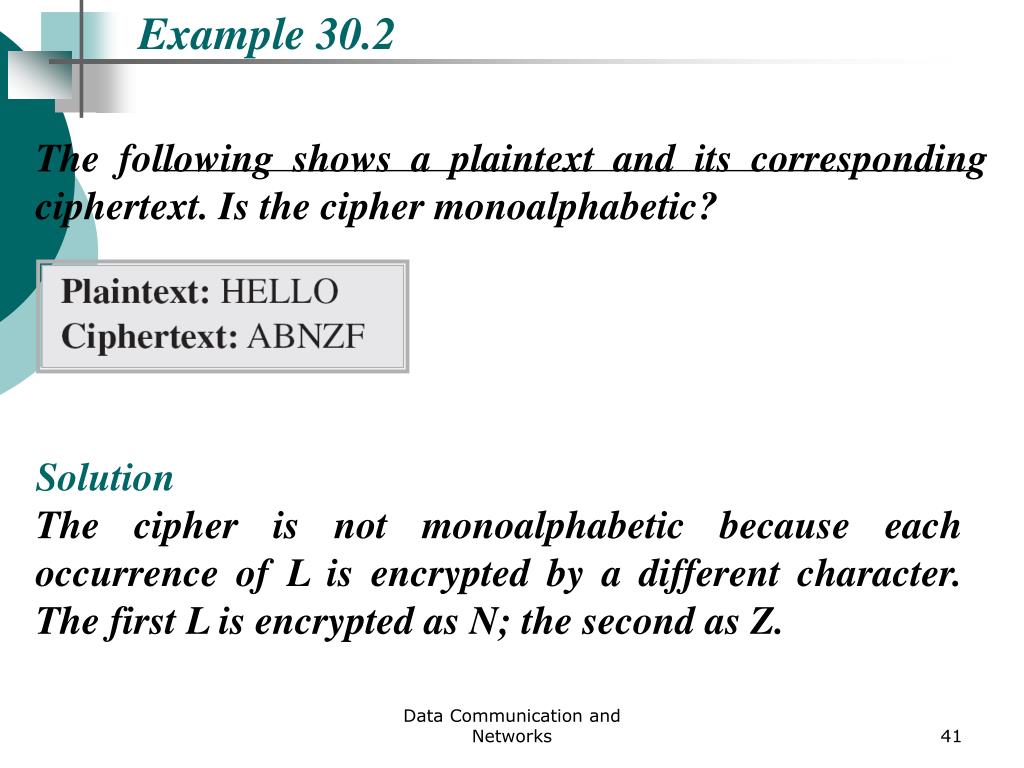

41. Example 30.2 The following shows a plaintext and its corresponding ciphertext. Is the cipher monoalphabetic? Solution The cipher is not monoalphabetic because each occurrence of L is encrypted by a different character. The first L is encrypted as N; the second as Z. Data Communication and Networks

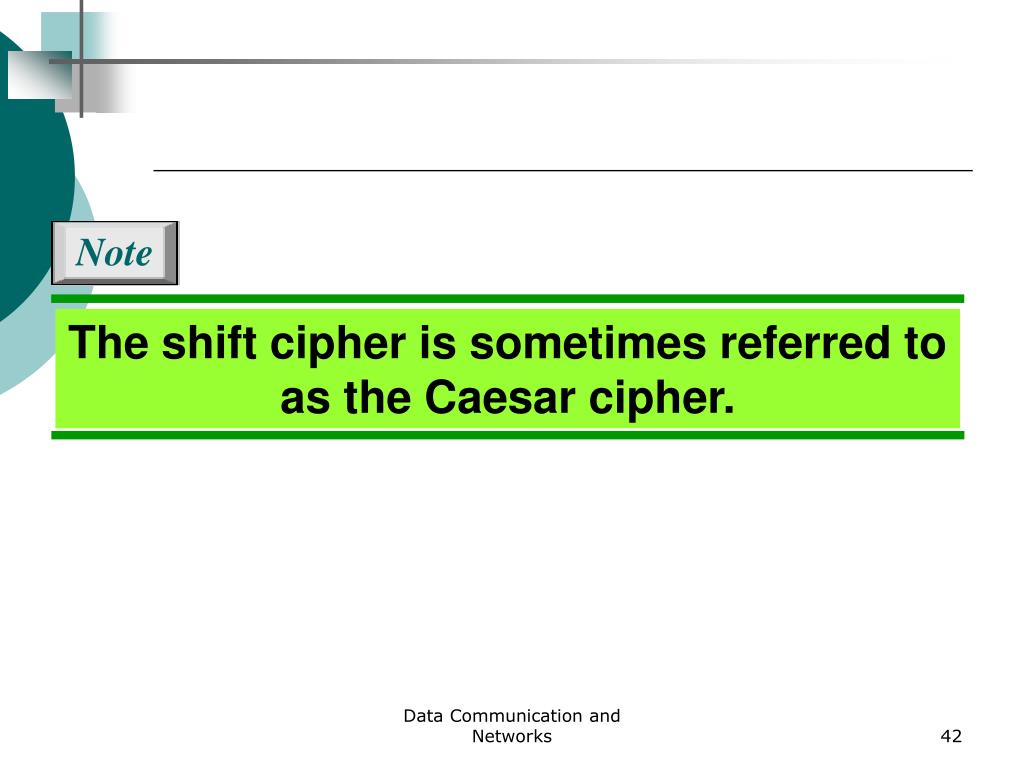

42. Note The shift cipher is sometimes referred to as the Caesar cipher. Data Communication and Networks

43. Example 30.3 Use the shift cipher with key = 15 to encrypt the message “HELLO.” Solution We encrypt one character at a time. Each character is shifted 15 characters down. Letter H is encrypted to W. Letter E is encrypted to T. The first L is encrypted to A. The second L is also encrypted to A. And O is encrypted to D. The cipher text is WTAAD. Data Communication and Networks

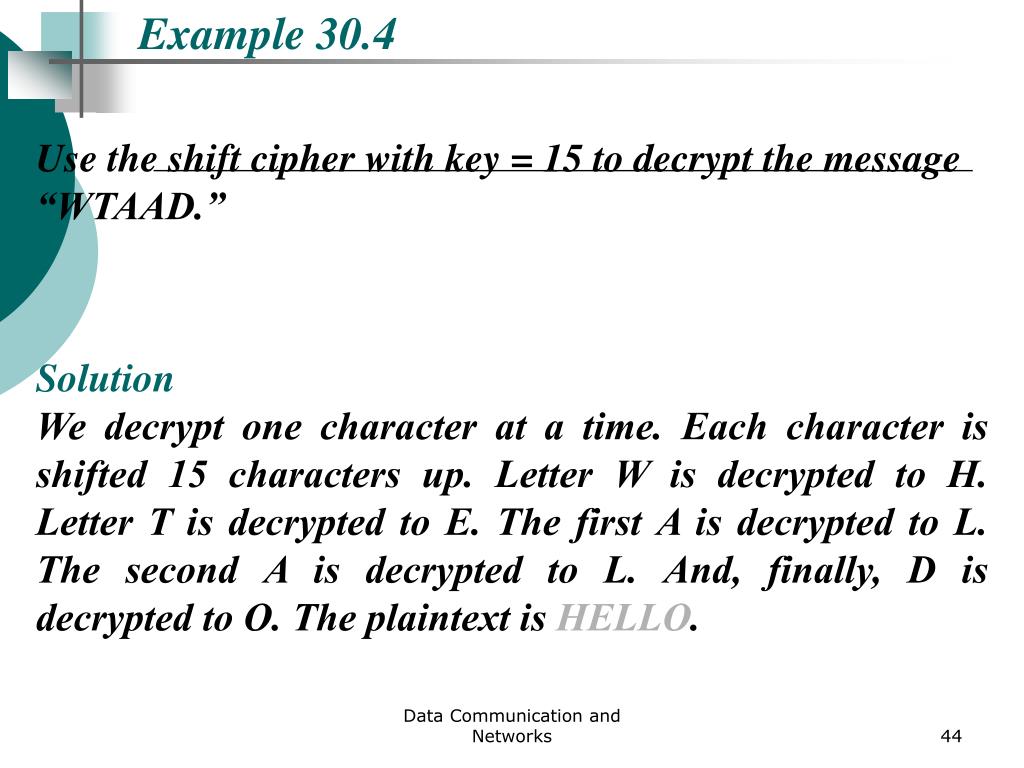

44. Example 30.4 Use the shift cipher with key = 15 to decrypt the message “WTAAD.” Solution We decrypt one character at a time. Each character is shifted 15 characters up. Letter W is decrypted to H. Letter T is decrypted to E. The first A is decrypted to L. The second A is decrypted to L. And, finally, D is decrypted to O. The plaintext is HELLO. Data Communication and Networks

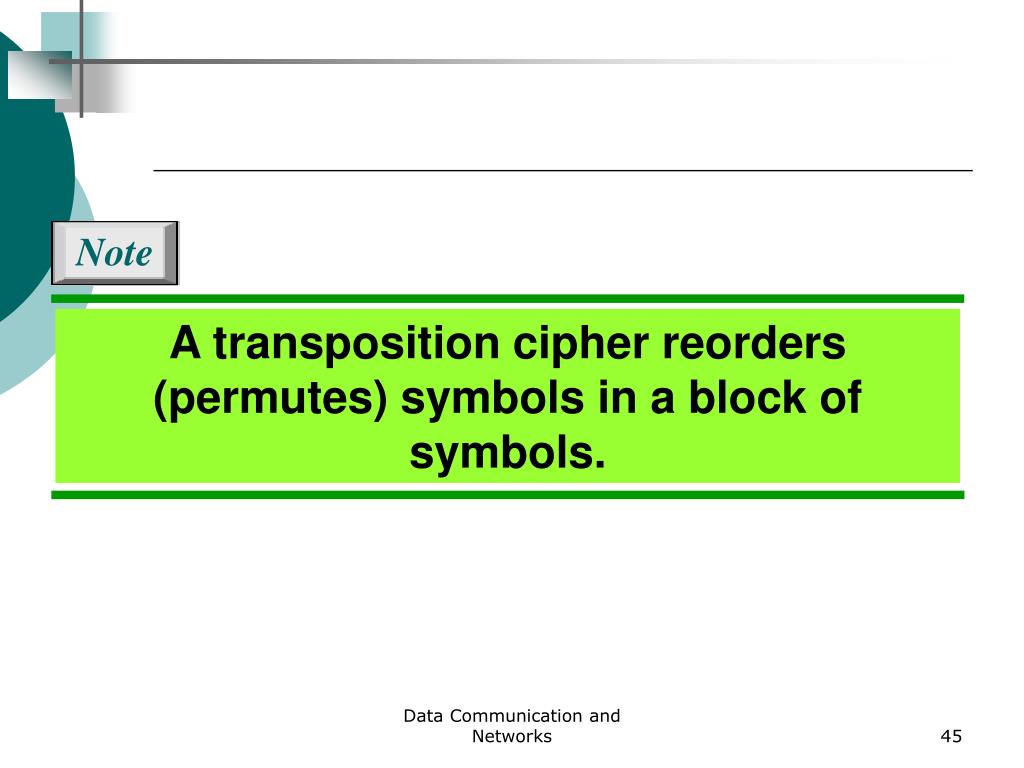

45. Note A transposition cipher reorders (permutes) symbols in a block of symbols. Data Communication and Networks

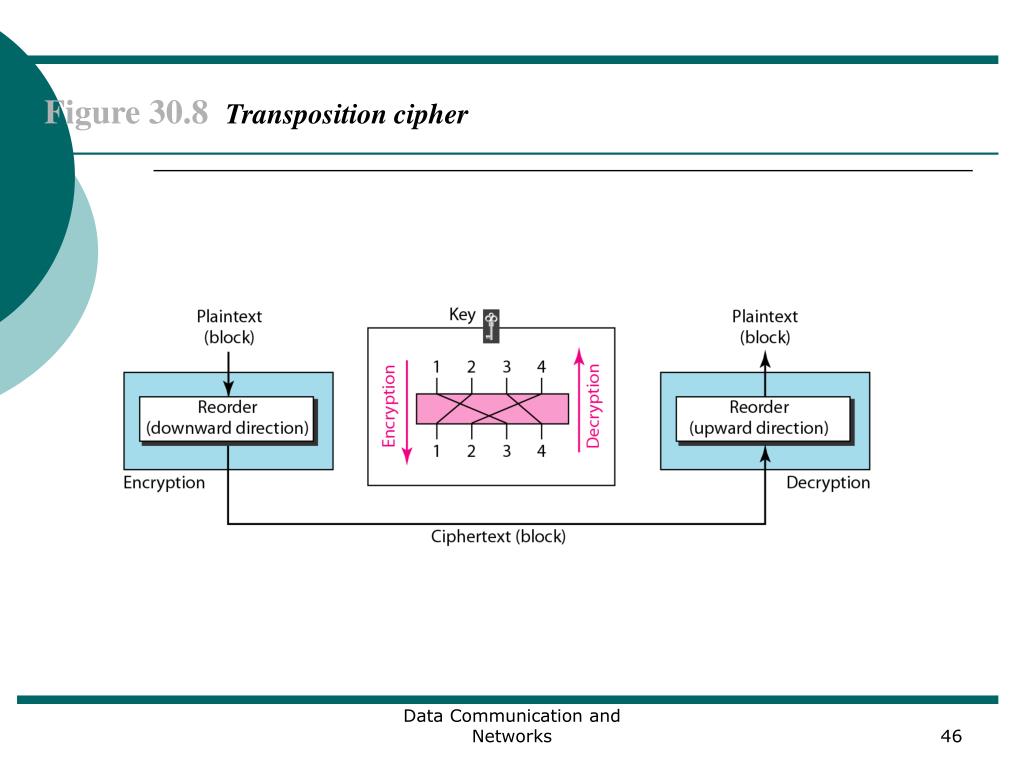

46. Figure 30.8 Transposition cipher Data Communication and Networks

47. Example 30.5 Encrypt the message “HELLO MY DEAR,” using the key shown in Figure 30.8. Solution We first remove the spaces in the message. We then divide the text into blocks of four characters. We add a bogus character Z at the end of the third block. The result is HELL OMYD EARZ. We create a three-block ciphertext ELHLMDOYAZER. Data Communication and Networks

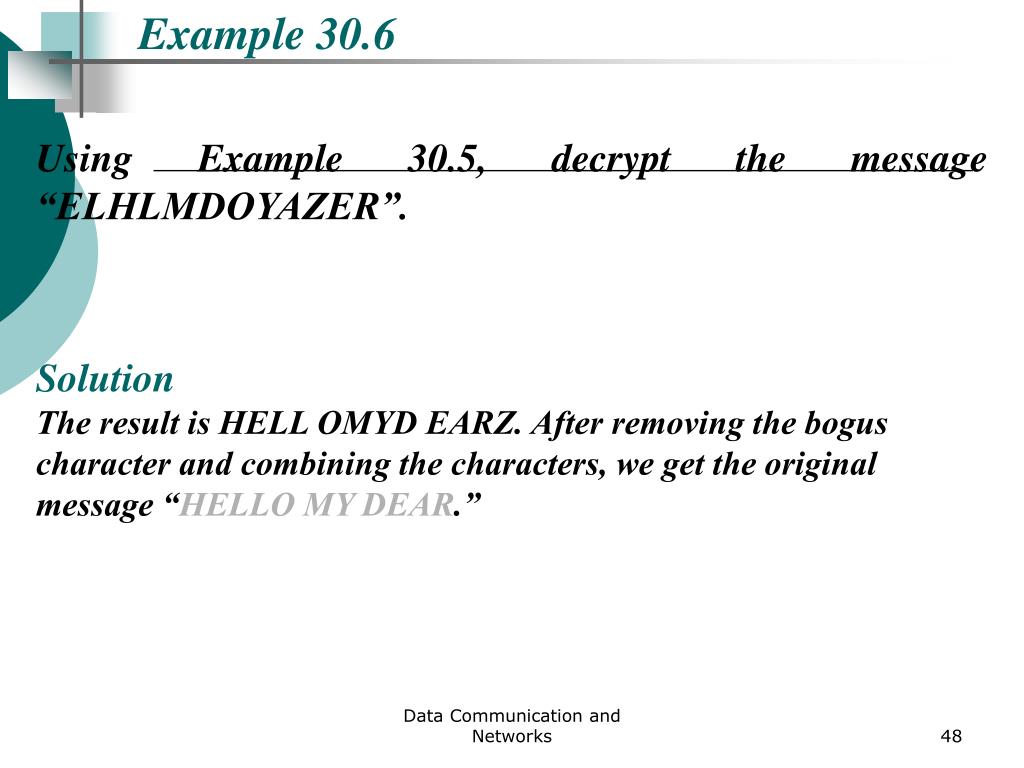

48. Example 30.6 Using Example 30.5, decrypt the message “ELHLMDOYAZER”. Solution The result is HELL OMYD EARZ. After removing the bogus character and combining the characters, we get the original message “HELLO MY DEAR.” Data Communication and Networks
