Analysis of the nonlinear behavior of bio-based polymers reinforced with flax fibers

Damage. Visco-elastic. Visco- plastic. L. Rozite and R. Joffe Luleå University of Technology, S-97187 Luleå, SWEDEN. www.ltu.se roberts.joffe@ltu.se.

candice-howell
Télécharger la présentation

Analysis of the nonlinear behavior of bio-based polymers reinforced with flax fibers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

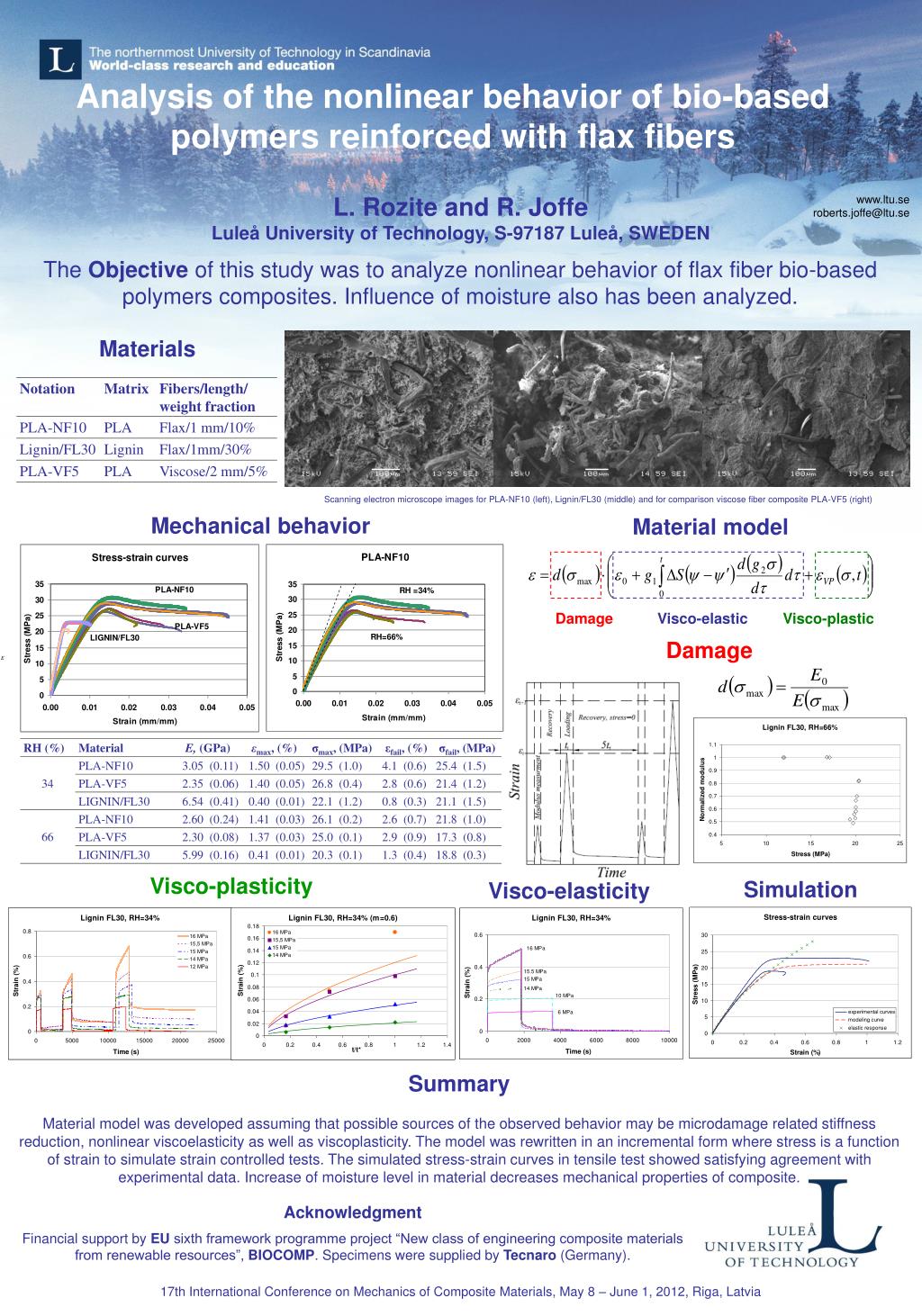

  1. Damage Visco-elastic Visco-plastic L. Rozite and R. JoffeLuleå University of Technology, S-97187 Luleå, SWEDEN www.ltu.seroberts.joffe@ltu.se The Objective ofthis study was to analyze nonlinear behavior of flax fiber bio-based polymers composites. Influence of moisture also has been analyzed. Materials Analysis of the nonlinear behavior of bio-based polymers reinforced with flax fibers Scanning electron microscope images for PLA-NF10 (left), Lignin/FL30 (middle) and for comparison viscose fiber composite PLA-VF5 (right) Mechanical behavior Material model Damage Visco-plasticity Simulation Visco-elasticity SummaryMaterial model was developed assuming that possible sources of the observed behavior may be microdamage related stiffness reduction, nonlinear viscoelasticity as well as viscoplasticity. The model was rewritten in an incremental form where stress is a function of strain to simulate strain controlled tests. The simulated stress-strain curves in tensile test showed satisfying agreement with experimental data. Increase of moisture level in material decreases mechanical properties of composite. AcknowledgmentFinancial support by EU sixth framework programme project “New class of engineering composite materials from renewable resources”, BIOCOMP. Specimens were supplied by Tecnaro (Germany). 17th International Conference on Mechanics of Composite Materials, May 8 – June 1, 2012, Riga, Latvia
