  1. Multi-Modal Text Entry and Selection on a Mobile Device David Dearman1, Amy Karlson2, Brian Meyers2 and Ben Bederson3 1University of Toronto 2Microsoft Research 3University of Maryland

  2. Text Entry on Mobile Devices • Many mobile applications offer rich text features that are selectable through UI components • Word completion and correction • Descriptive formatting (e.g., font, format, colour) • Structure formatting (e.g., bullets, indentation) • Selecting these features typically requires the user to touch the display or use a directional pad • Slows text input because the user has to interleave selection and typing

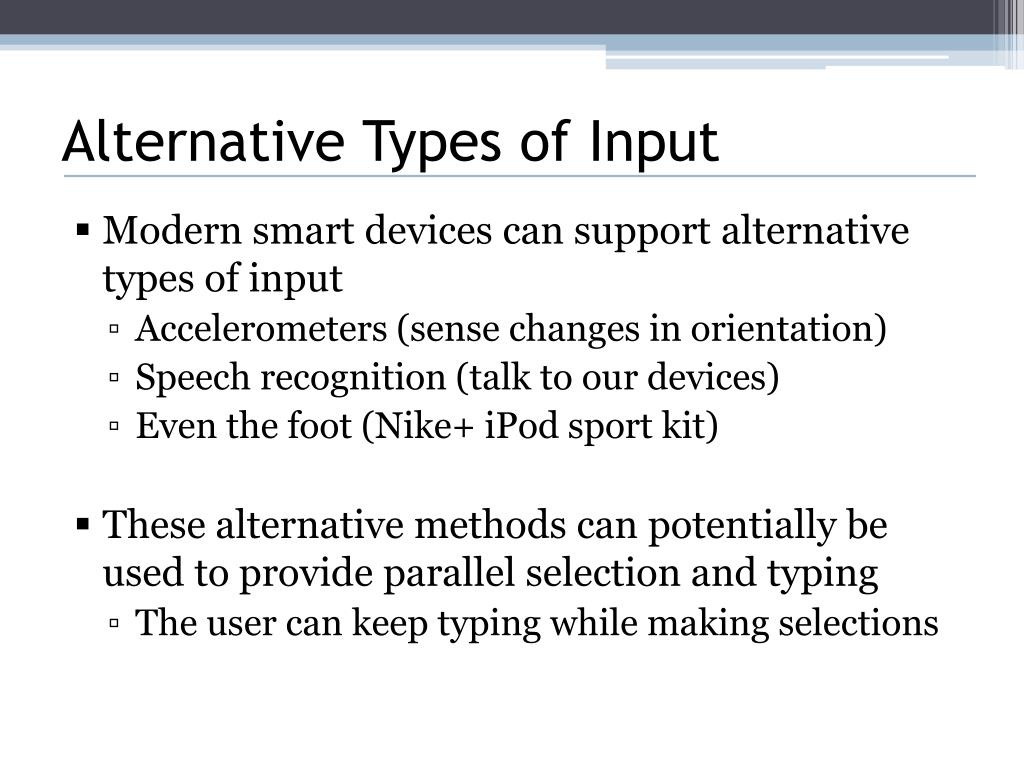

  3. Alternative Types of Input • Modern smart devices can support alternative types of input • Accelerometers (sense changes in orientation) • Speech recognition (talk to our devices) • Even the foot (Nike+ iPod sport kit) • These alternative methods can potentially be used to provide parallel selection and typing • The user can keep typing while making selections

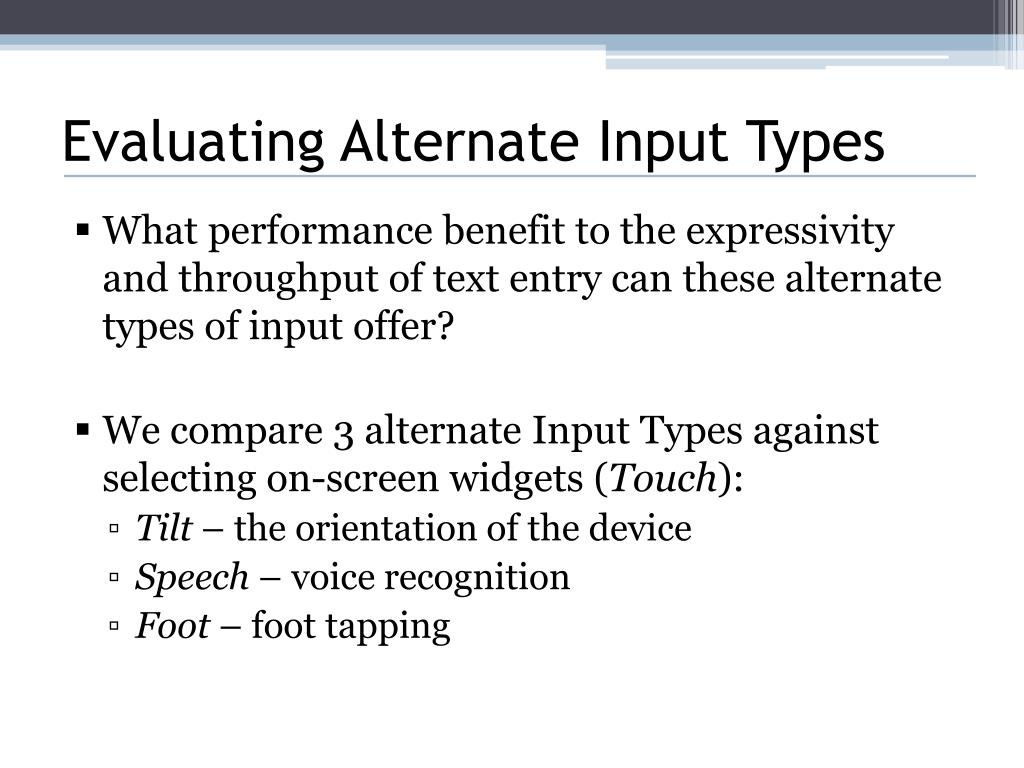

  4. Evaluating Alternate Input Types • What performance benefit to the expressivity and throughput of text entry can these alternate types of input offer? • We compare 3 alternate Input Types against selecting on-screen widgets (Touch): • Tilt – the orientation of the device • Speech – voice recognition • Foot – foot tapping

  5. Two Experiments • Experiment 1: Target Selection • Stimulus response task • Evaluate the selection speed and accuracy of the Input Types in isolations • Experiment 2: Text Formatting • Text entry and formatting task • Evaluate the selection speed and accuracy of the Input Types during text entry • Identify influences affecting the flow and throughput of text entry

  6. Expressivity Limits • Tilt, Touch, Speech and Foot vary greatly in the granularity of expression they support • Voicesupports a large unconstrained space • Hand tilt is a much smaller input space [Rahman et al. 09] • We limit the selections to 4 options to ensure parity across the alternative methods of input • Placement of targets differs across Input Type • Placement corresponds to the physical action required to perform the selection

  7. Target Selection (Task) • Participants were required to select the red target as quickly and accurately as possible Touch & Voice Foot Tilt

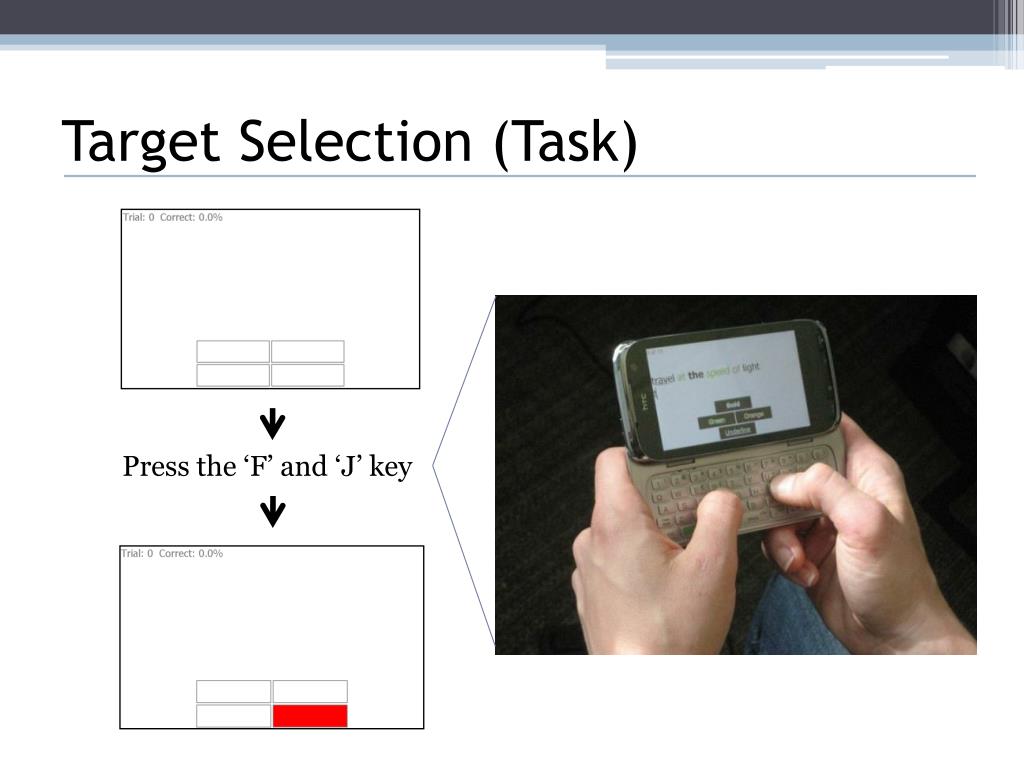

  8. Target Selection (Task) Press the ‘F’ and ‘J’ key

  9. Text Formatting (Task) • Participants were required to reproduce the text and visual format; and correct their errors • Text from MacKenzie’s phrase list [MacKenzie 03] • Three different format positions {Start, Middle, End} Touch & Voice Foot Tilt

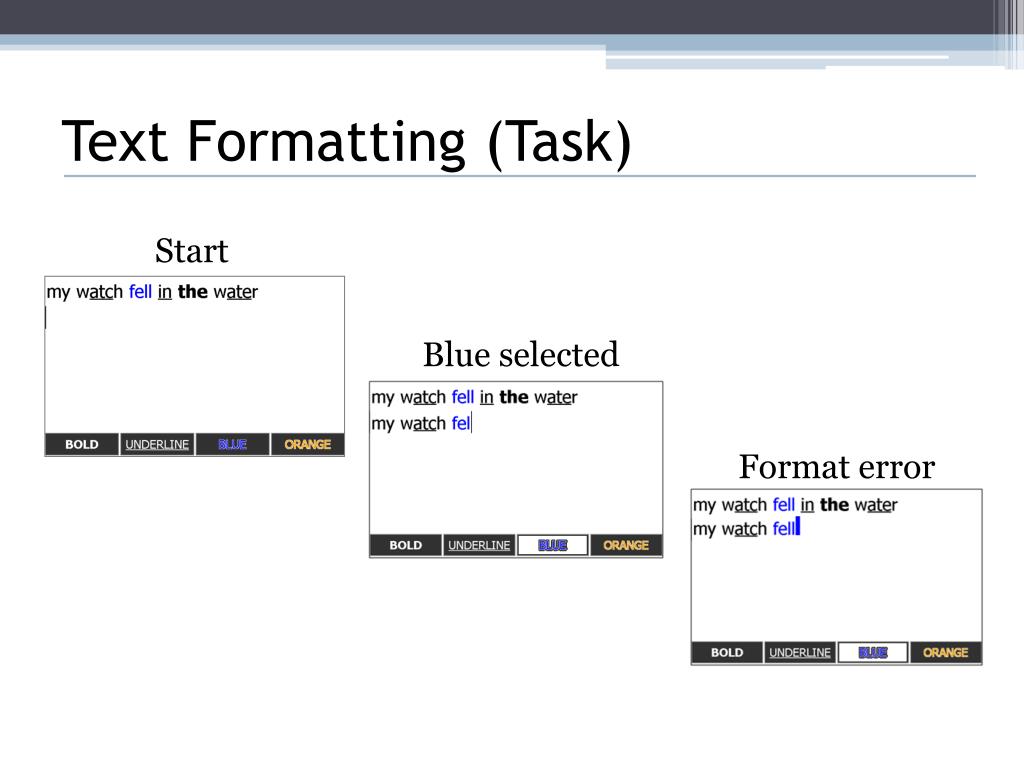

  10. Text Formatting (Task) Start Blue selected Format error

  11. Implementation • Experimental software implemented on an HTC Touch Pro 2 running Windows Mobile 6.1

  12. Implementation (Foot) • Selection is performed using two X-keys 3 switch foot pedals wirelessly connected to the handheld • A selection occurs when the heel or ball of the foot lifts off the respective switch

  13. Implementation (Speech) • Wizard of Oz implementation • Participant says the label to select • Wizard listens to the command and pressed the corresponding button on a keyboard • Keyboard is connected to a desktop that is wirelessly relaying selection to the handheld

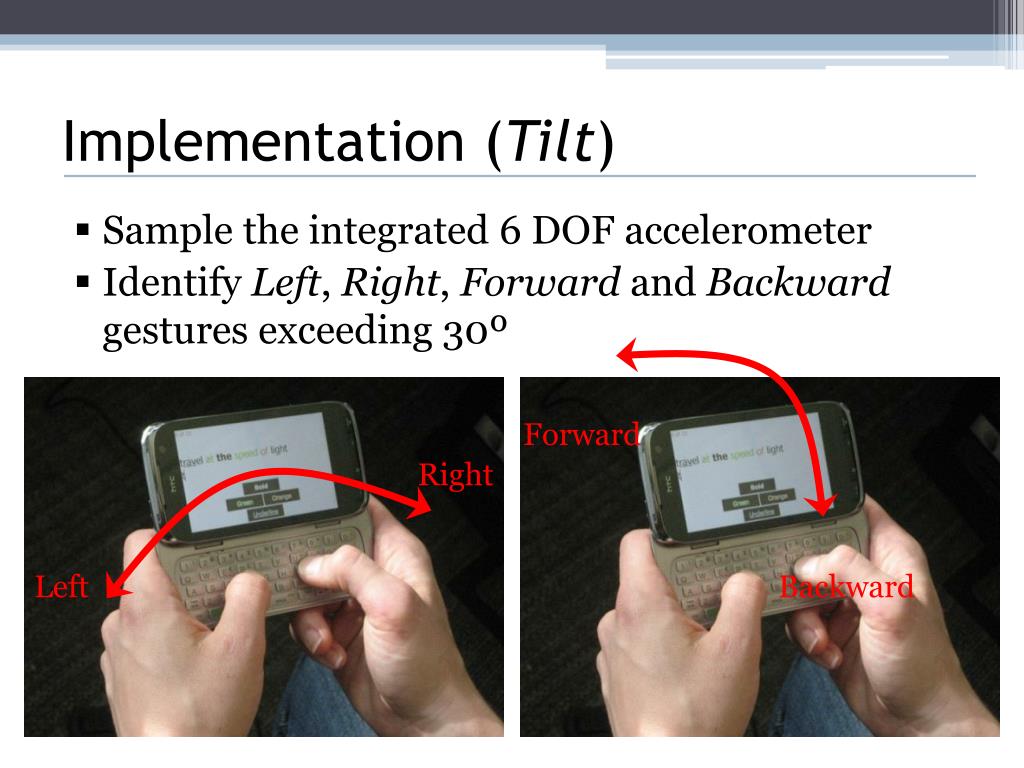

  14. Implementation (Tilt) • Sample the integrated 6 DOF accelerometer • Identify Left, Right, Forward and Backward gestures exceeding 30º Forward Right Left Backward

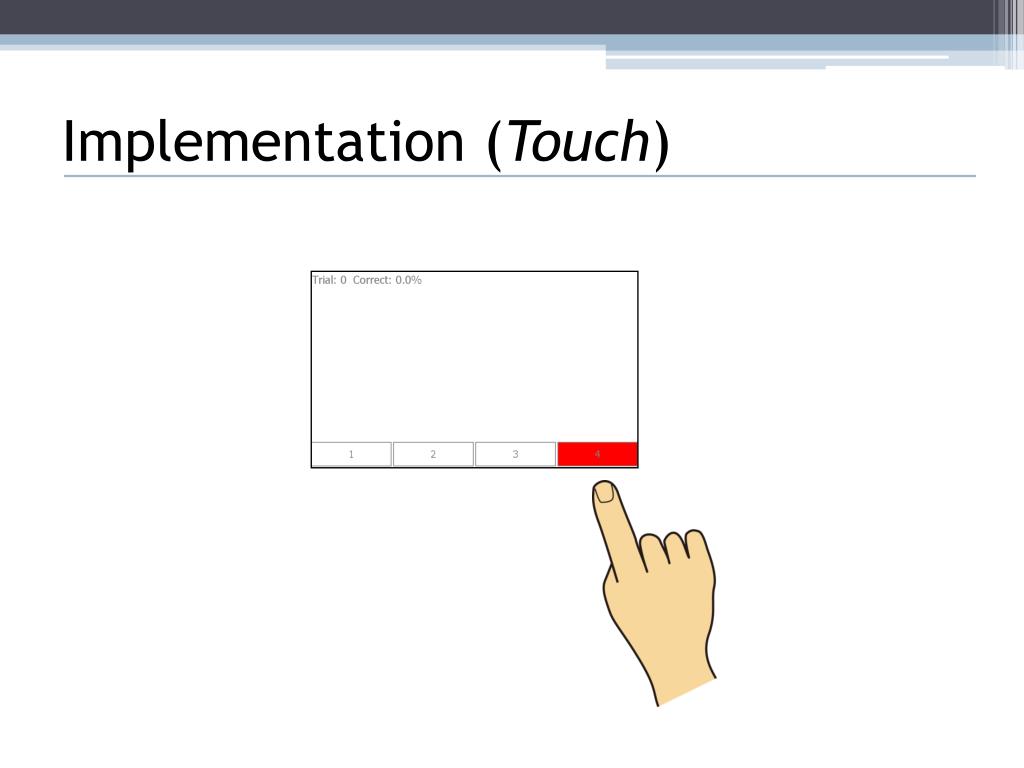

  15. Implementation (Touch)

  16. Participants • 24 participants • 11 female and 13 males • Median age of 26 • All owned a mobile device that has a physical or on-screen QWERTY keyboard • All enter text on their mobile device daily

  17. Experimental Design & Procedure • Target Selection experiment was conducted before the Text Formatting experiment • Input Types were counterbalanced within each • Target Selection (4 x 4 design) • Input Type {Touch, Tilt, Foot, Speech} • Target Position {1, 2, 3, 4} • 6 blocks of trials (first is training) • 20 trials per block • Overall: 400 trials

  18. Experimental Design & Procedure • Text Formatting (4 x 3 x 4 design) • Input Type {Touch, Tilt, Foot, Speech} • Format Position {Start, Middle, End} • Target Position {1, 2, 3, 4} • 5 blocks of trials (first is training) • 48 trials per block • Overall: 768 trials and 3,111 characters of text

  19. Results: Target Selection (Time) • Tilt resulted in the fastest selection time • Speech resulted in the slowest selection time

  20. Results: Target Selection (Error) • Overall error rate of 2.47% • The error rate for Touch and Speech is lower than Tilt and Foot

  21. Results: Text Formatting • Selection Time (ms) • The time between typing a character and selecting a subsequent text format • Resumption Time (ms) • The time between selecting a text format and typing the following character

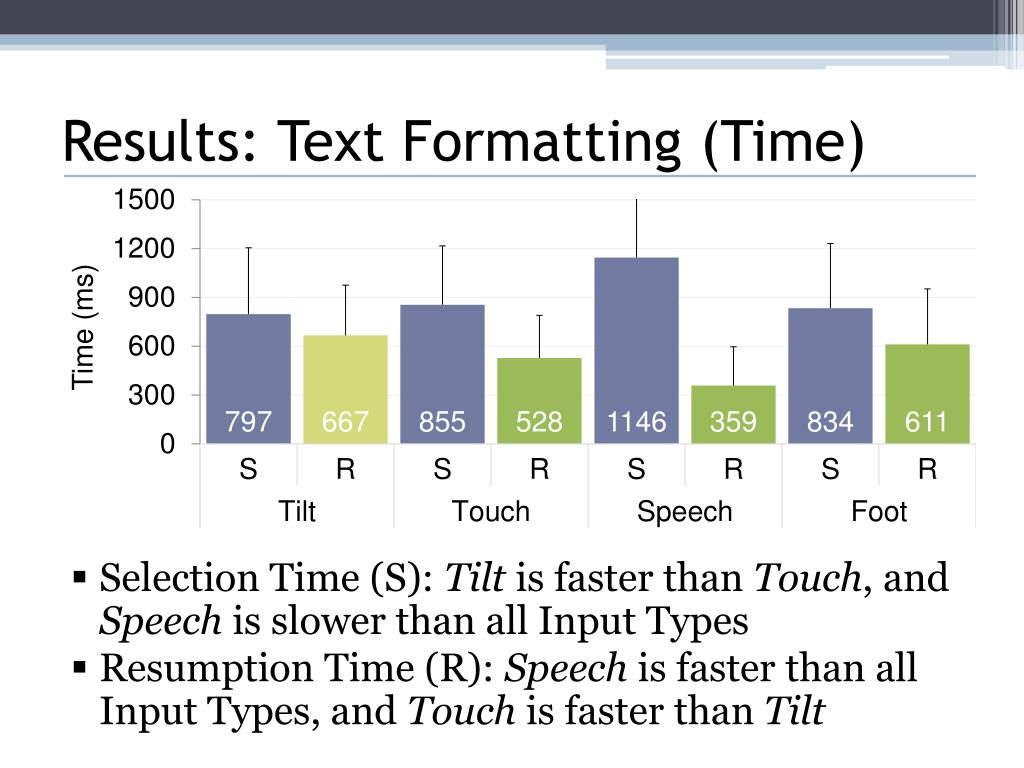

  22. Results: Text Formatting (Time) • Selection Time (S): Tilt is faster than Touch, and Speech is slower than all Input Types • Resumption Time (R): Speech is faster than all Input Types, and Touch is faster than Tilt

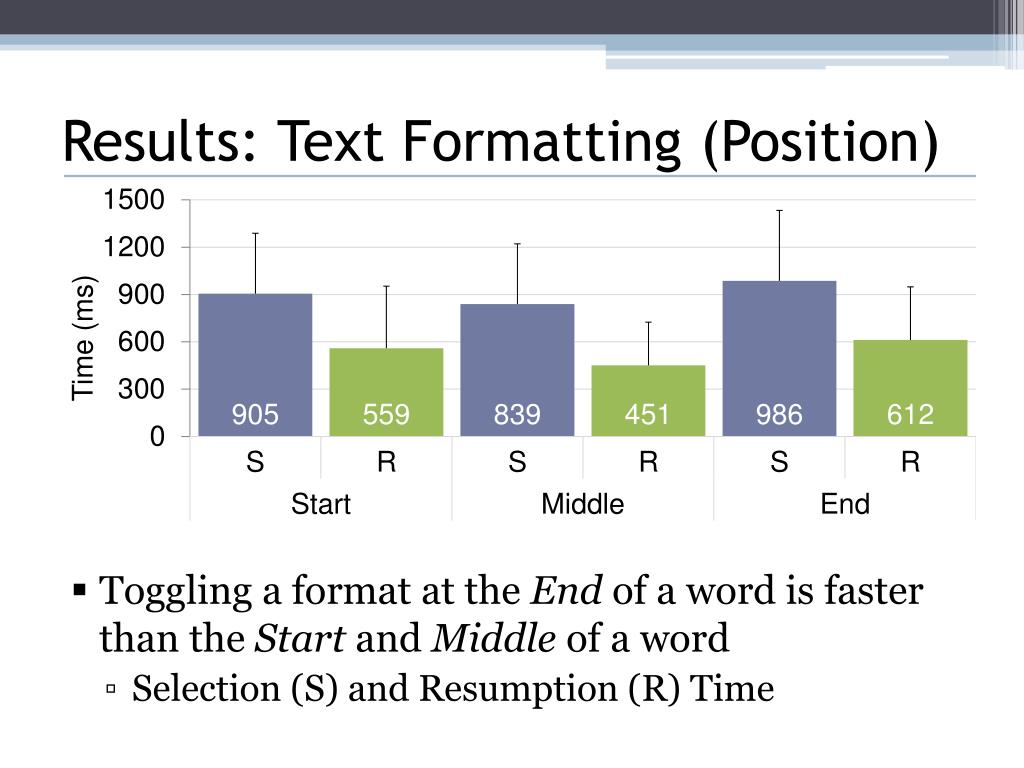

  23. Results: Text Formatting (Position) • Toggling a format at the End of a word is faster than the Start and Middle of a word • Selection (S) and Resumption (R) Time

  24. Results: Text Formatting (Errors) • Error rate of 14.9% (overall) • Touch resulted is the least number of format selection errors

  25. Results: Text Throughput • Average of 1.36 characters per second • 2.56 CPS for mini-QWERTY [Clarkson et al. 05] • The characters per second throughput for Touch is greater than Tilt and Foot

  26. Results: Corrections • Use of the backspace button and the corrected error rate is lowest with Tilt and Touch • Suggests participants had difficulty coordinating selection and typing with Speech and Foot

  27. Discussion • A fast selection time does not necessarily imply a high character per second text throughput • Tilt and Foot resulted in the fastest target selection times, but a slower characters per second throughput than Speech and Touch • The accumulated time to correct the errors for Tilt and Touch significantly impacted their throughput

  28. Discussion • The sequential ordering of text entry and selection was a benefit to Touch • “I would find myself typing the word that was supposed to be green ... before saying green” • However, we believe it is possible to improve parallel input • Format could be activated at any point in a word • Format characters when the utterance was started rather than when it was recognized

  29. Discussion • Making a selection at the End of a word allows for faster selection and resumption time

  30. Conclusion • Tilt resulted in the fastest selection time, but participants had difficulty coordinating parallel entry and selection making it highly erroneous • Touch resulted in the greatest characters per second text throughput because it allowed for sequential text entry and selection David Dearman dearman@dgp.toronto.edu

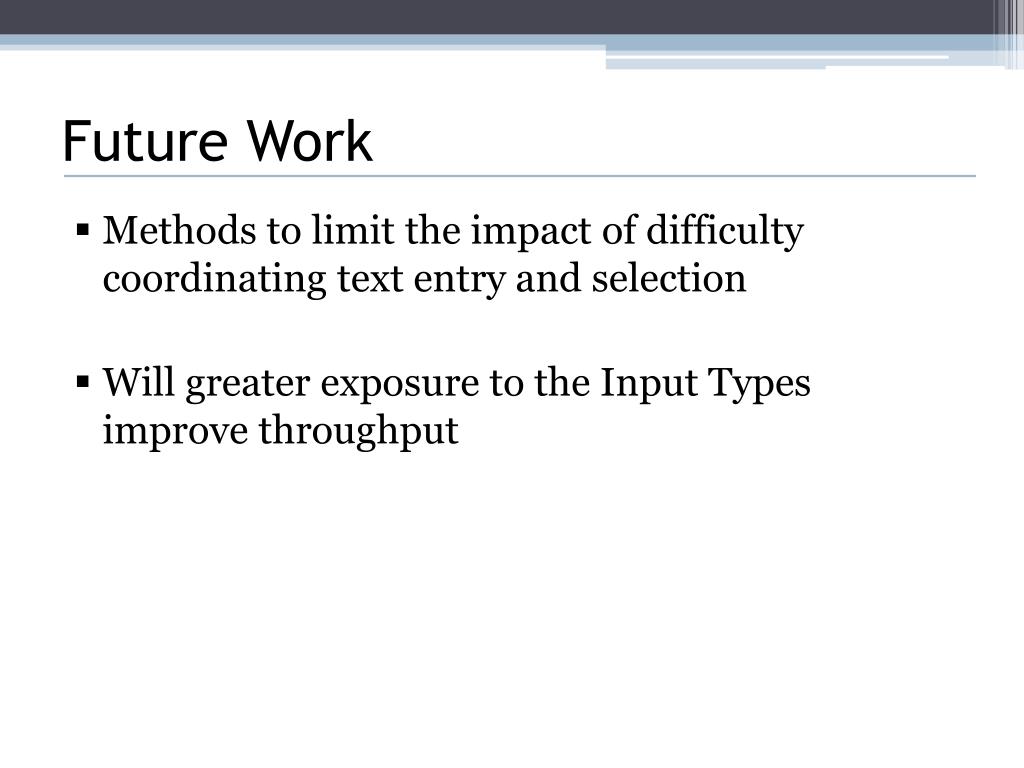

  31. Future Work • Methods to limit the impact of difficulty coordinating text entry and selection • Will greater exposure to the Input Types improve throughput
