Social Engineering Techniques

1. Social Engineering Techniques Will Vandevanter, Senior Security Consultant Danielle Sermer, Business Development Manager

2. Agenda Rapid7 Company Overview and Learning Objectives 1 Social Engineering Techniques 2 Summary and Q&A 3

3. Rapid7 Corporate Profile Company • Headquarters: Boston, MA • Founded 2000, Commercial Launch 2004 • 110+ Employees • Funded by Bain Capital (Aug. 08) - $9M • Acquired Metasploit in Oct. 09 Solutions • Unified Vulnerability Management Products • Penetration Testing Products • Professional Services Customers • 1,000+ Customers • SMB, Enterprise • Community of 65,000+ Partners • MSSPs • Security Consultants • Technology Partners • Resellers Organizations use Rapid7 to Detect Risk, Mitigate Threats and Ensure Compliance #1 Fastest growing company for Vuln. Mgmt #1 Fastest growing software company in Mass. #7 Fastest growing security company in U.S. #15 Fastest growing software company in U.S.

4. Social Engineering Techniques

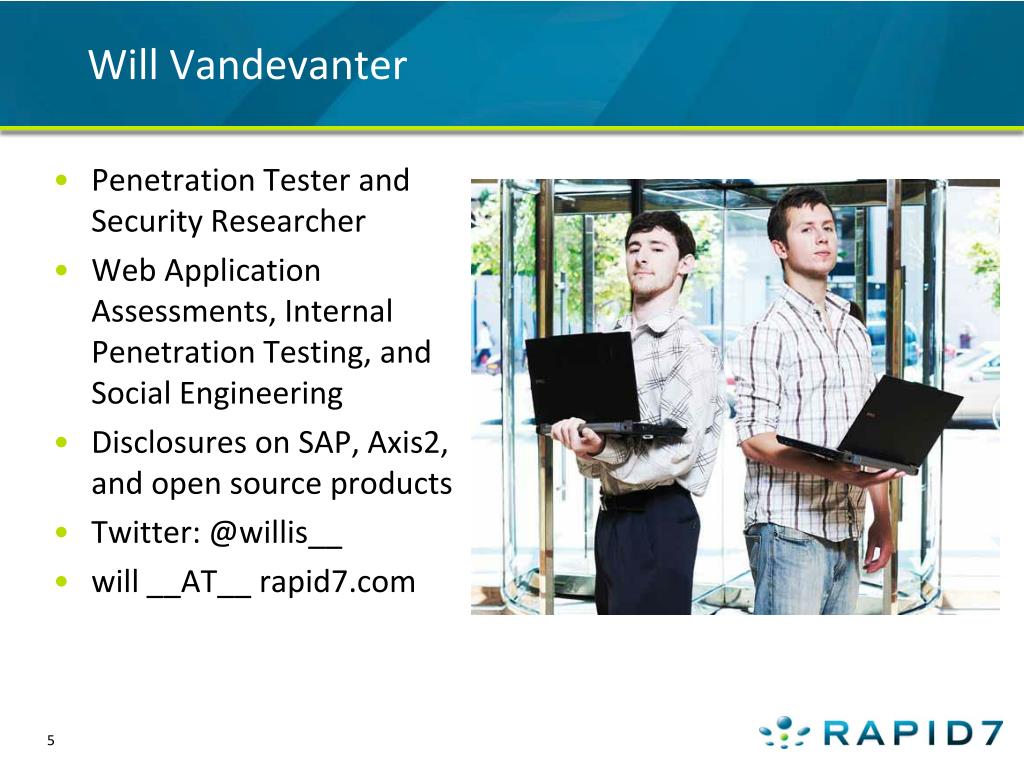

5. Will Vandevanter • Penetration Tester and Security Researcher • Web Application Assessments, Internal Penetration Testing, and Social Engineering • Disclosures on SAP, Axis2, and open source products • Twitter: @willis__ • will __AT__ rapid7.com

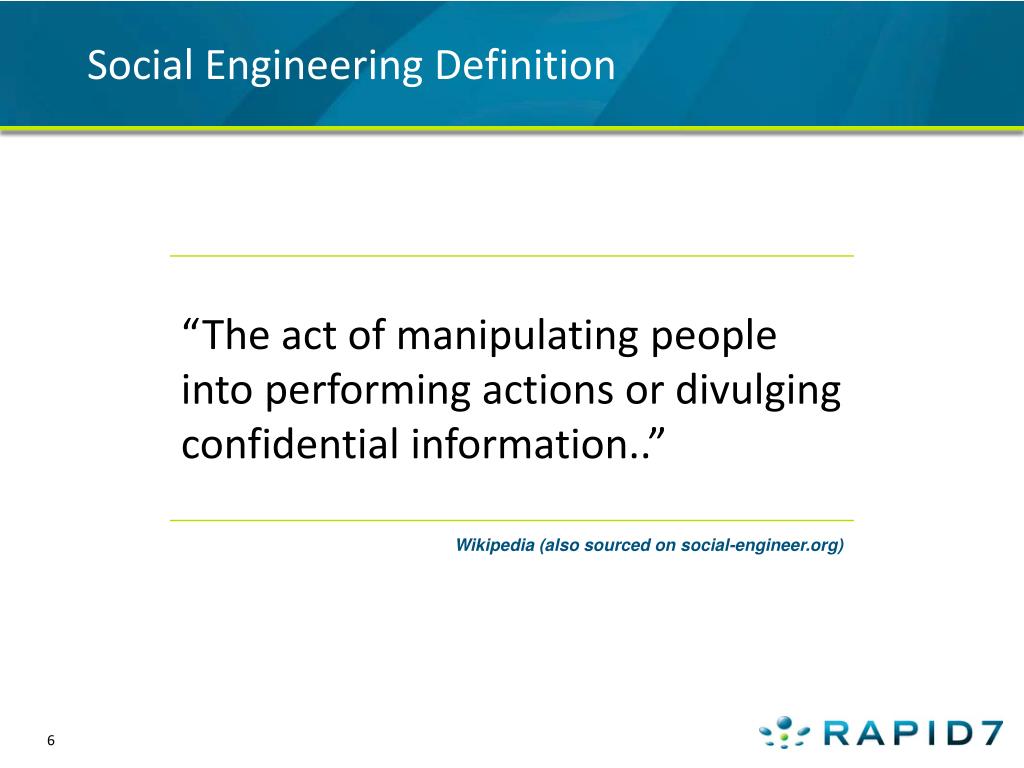

6. Social Engineering Definition Wikipedia (also sourced on social-engineer.org)

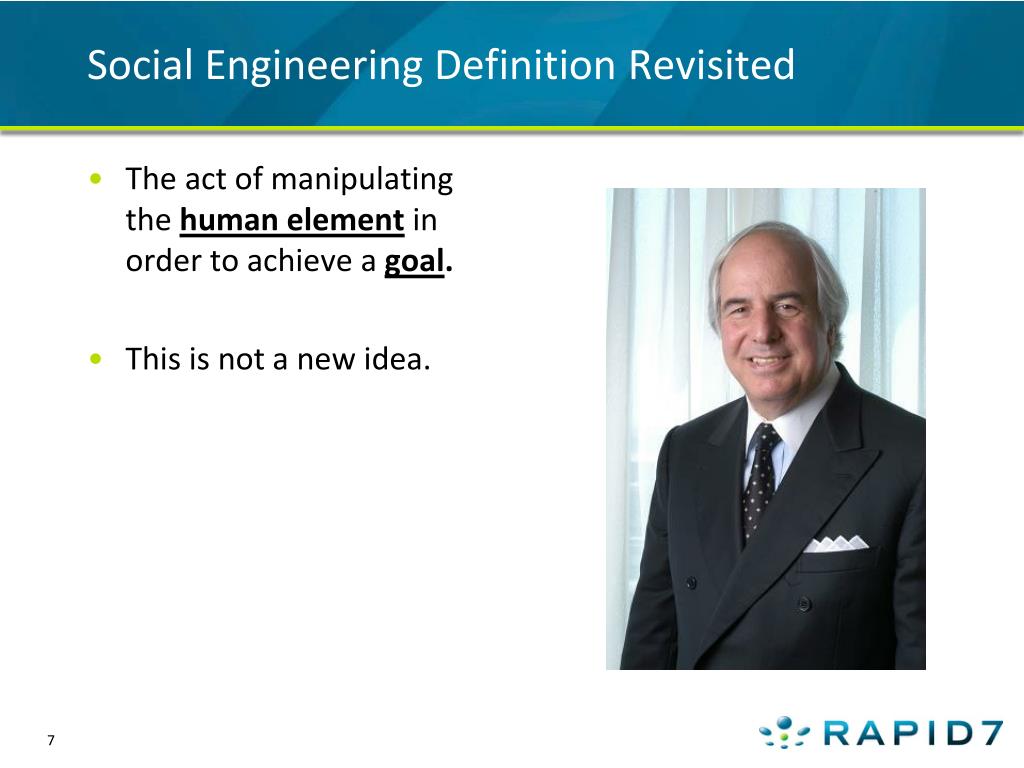

7. Social Engineering Definition Revisited • The act of manipulating the human element in order to achieve a goal. • This is not a new idea.

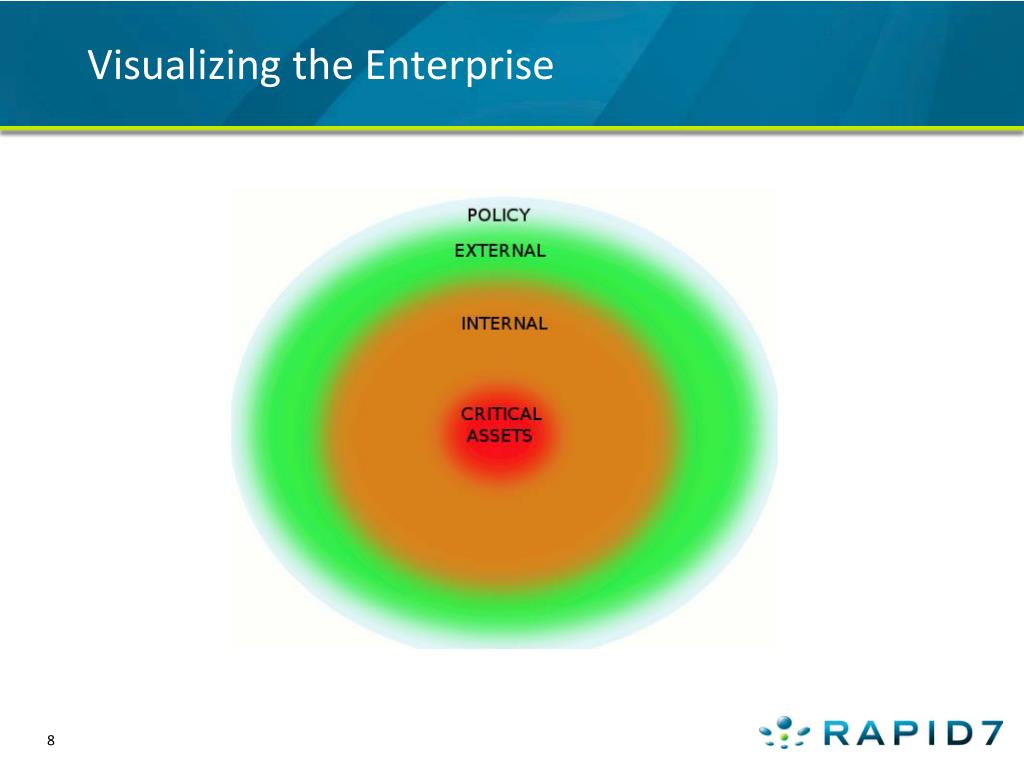

8. Visualizing the Enterprise

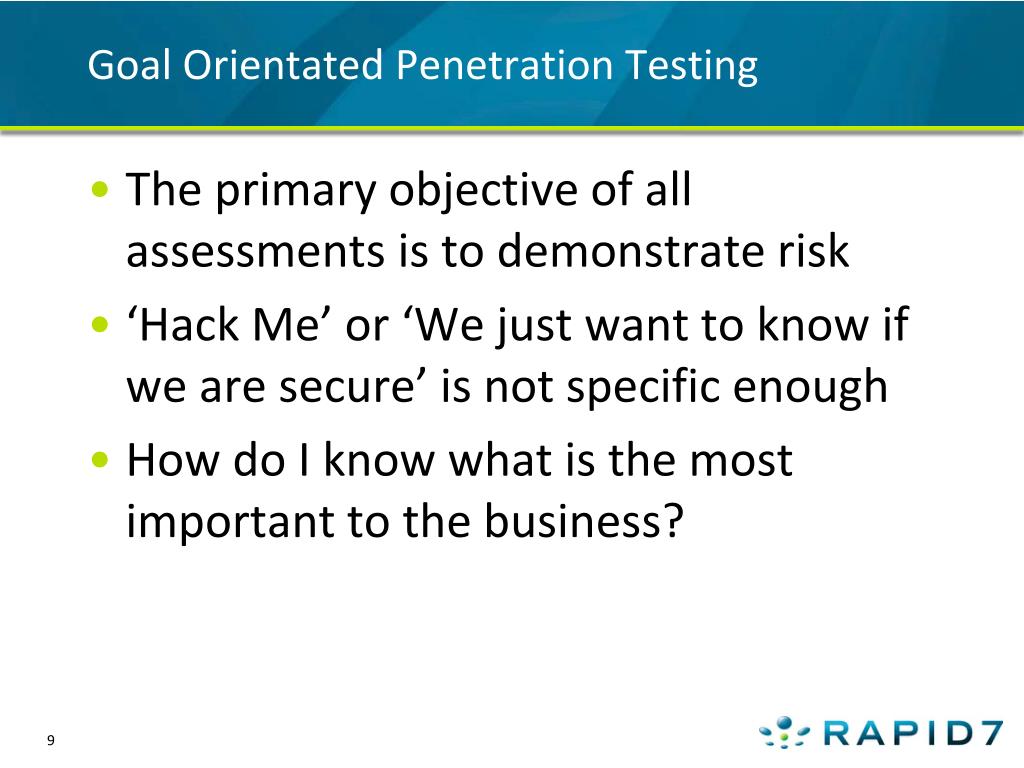

9. Goal Orientated Penetration Testing • The primary objective of all assessments is to demonstrate risk • ‘Hack Me’ or ‘We just want to know if we are secure’ is not specific enough • How do I know what is the most important to the business?

10. How We Use Social Engineering • To achieve the goals for the assessment • To test policies and technologies

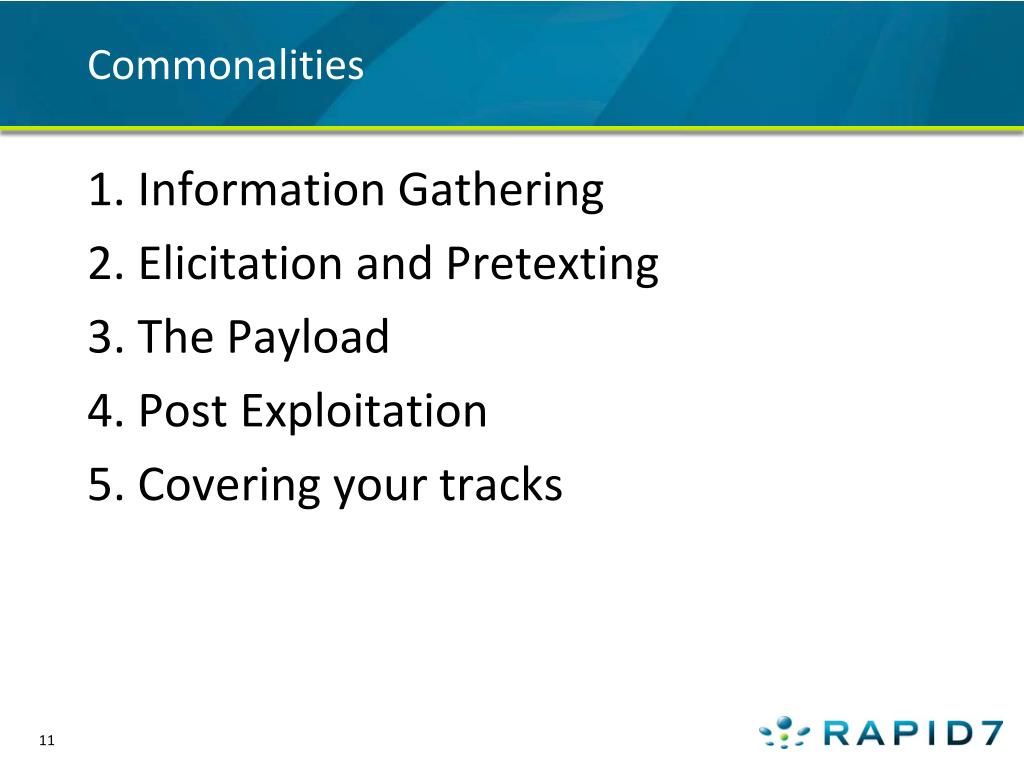

11. Commonalities 1. Information Gathering 2. Elicitation and Pretexting 3. The Payload 4. Post Exploitation 5. Covering your tracks

12. Electronic Social Engineering

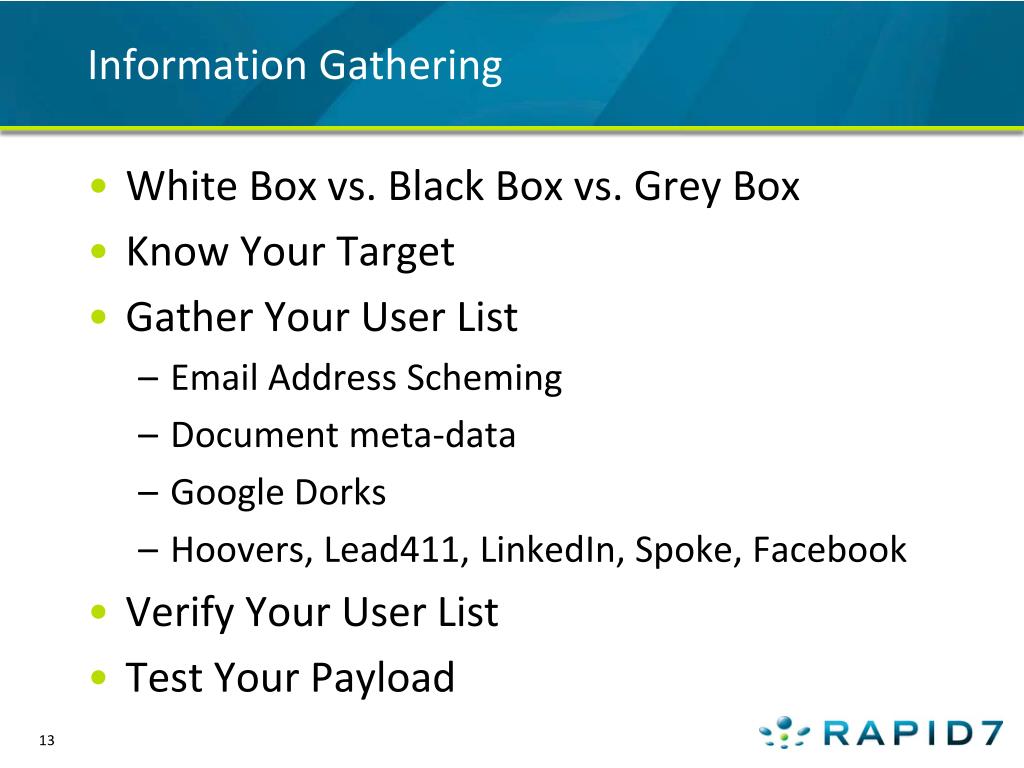

13. Information Gathering • White Box vs. Black Box vs. Grey Box • Know Your Target • Gather Your User List • Email Address Scheming • Document meta-data • Google Dorks • Hoovers, Lead411, LinkedIn, Spoke, Facebook • Verify Your User List • Test Your Payload

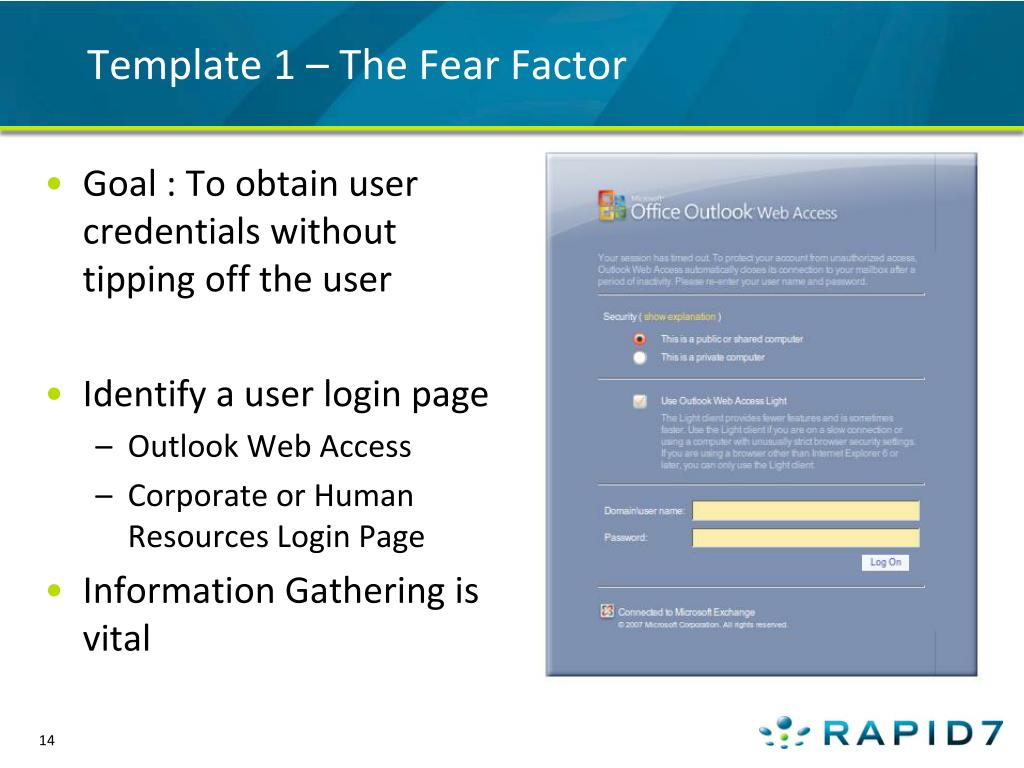

14. Template 1 – The Fear Factor • Goal : To obtain user credentials without tipping off the user • Identify a user login page • Outlook Web Access • Corporate or Human Resources Login Page • Information Gathering is vital

15. Pretexting

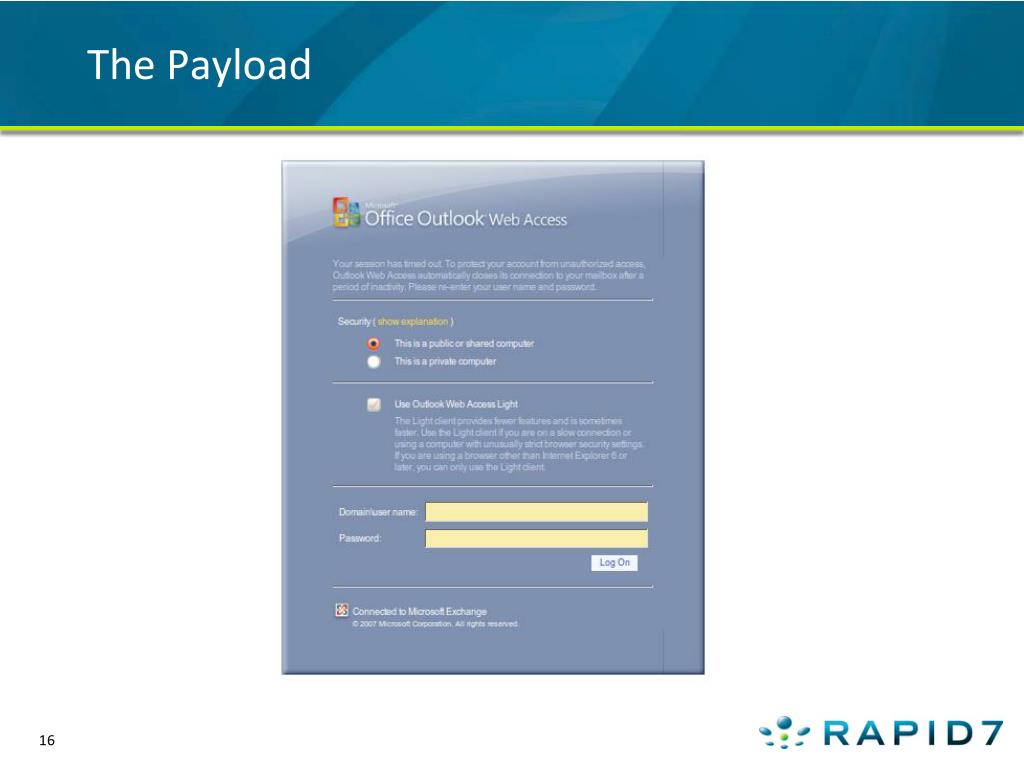

16. The Payload

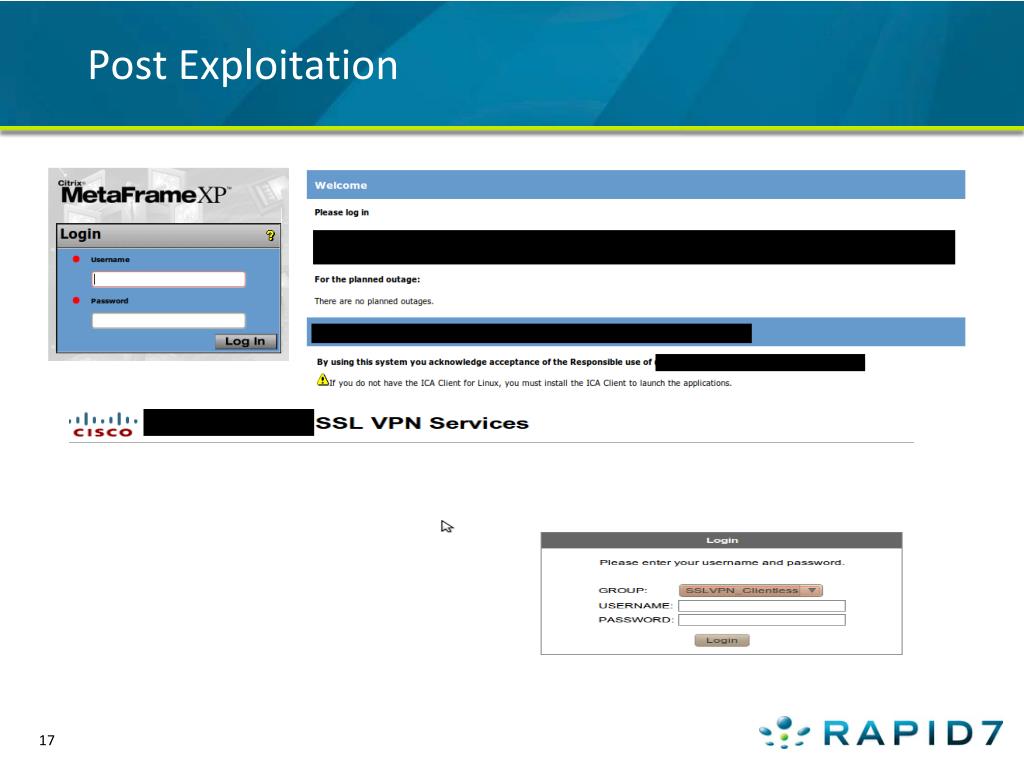

17. Post Exploitation

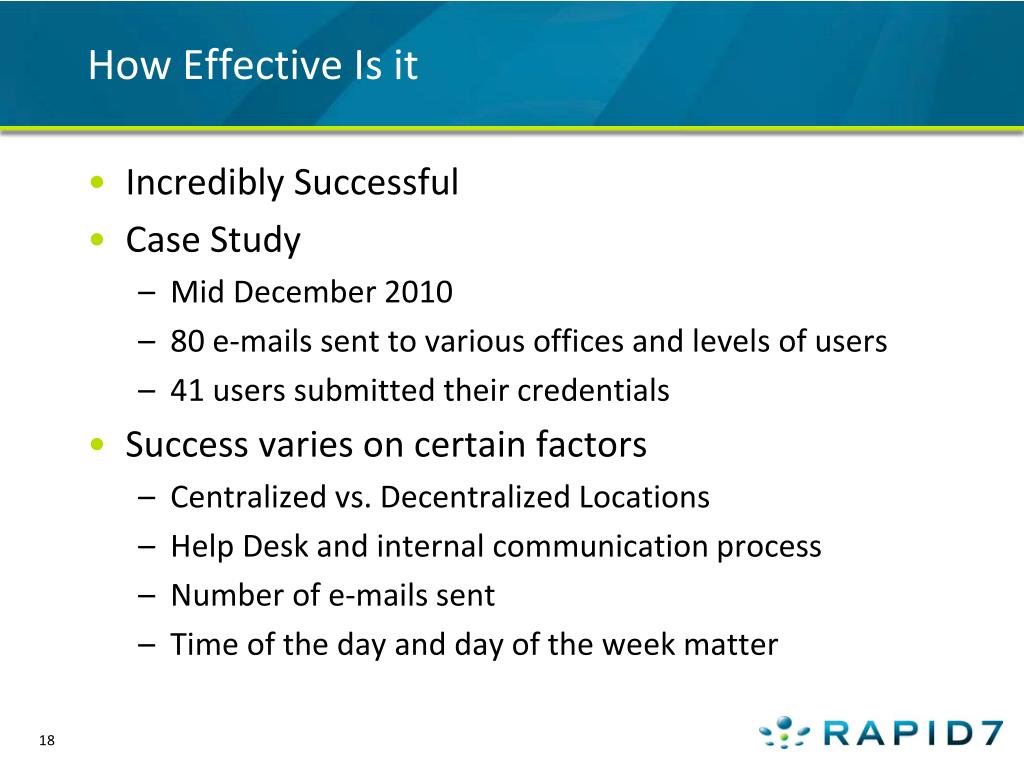

18. How Effective Is it • Incredibly Successful • Case Study • Mid December 2010 • 80 e-mails sent to various offices and levels of users • 41 users submitted their credentials • Success varies on certain factors • Centralized vs. Decentralized Locations • Help Desk and internal communication process • Number of e-mails sent • Time of the day and day of the week matter

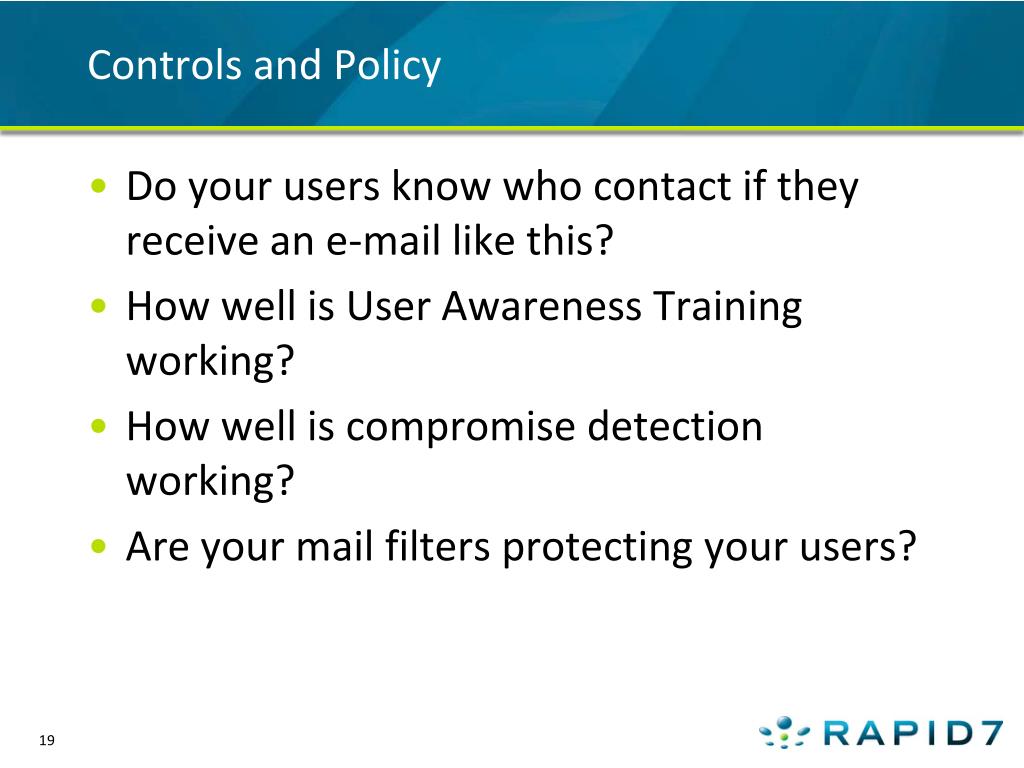

19. Controls and Policy • Do your users know who contact if they receive an e-mail like this? • How well is User Awareness Training working? • How well is compromise detection working? • Are your mail filters protecting your users?

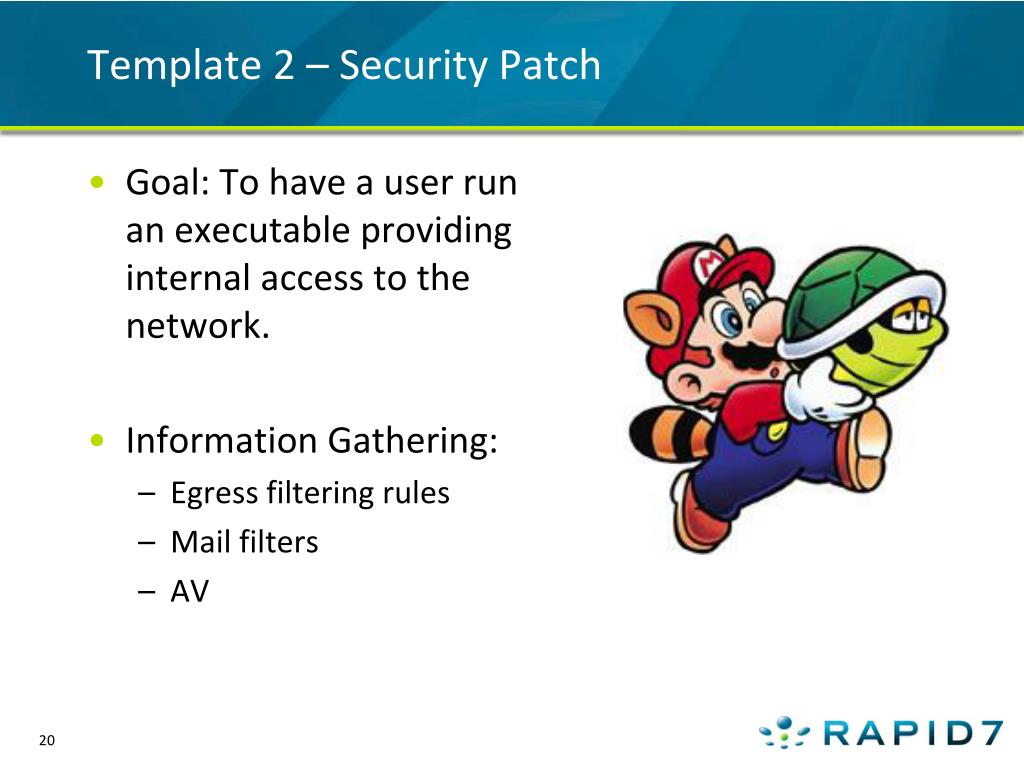

20. Template 2 – Security Patch • Goal: To have a user run an executable providing internal access to the network. • Information Gathering: • Egress filtering rules • Mail filters • AV

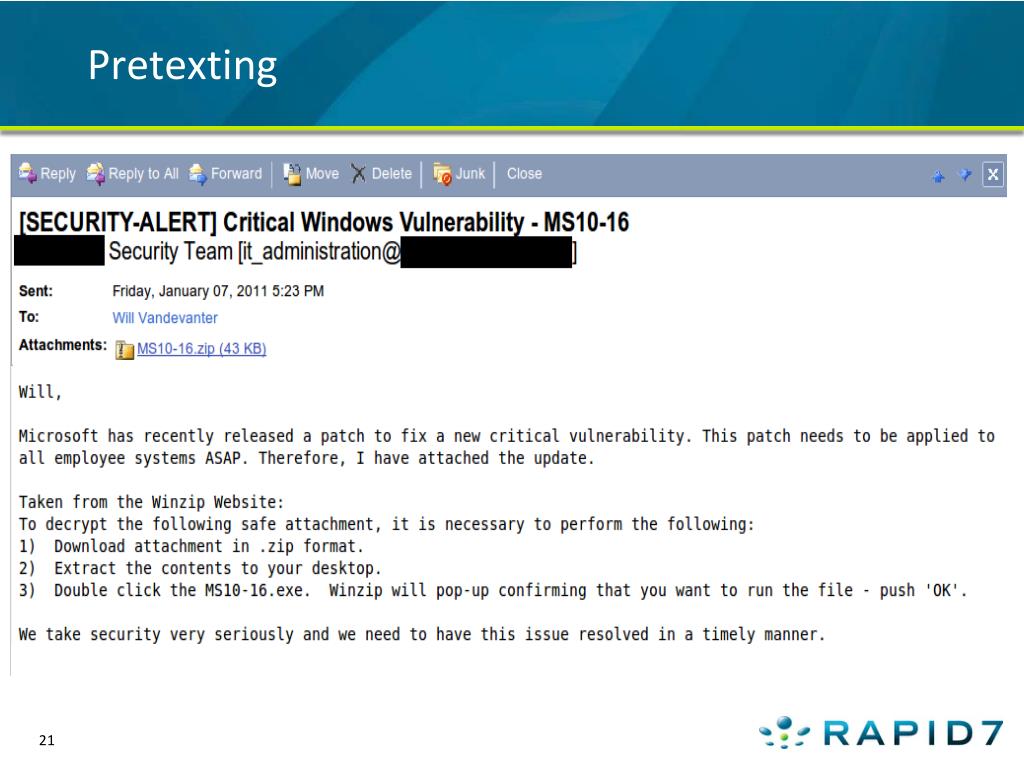

21. Pretexting

22. The Payload • Meterpreter Executable • Internal Pivot

23. Post Exploitation

24. How Effective Is It? • Highly Dependent on a high number of factors • Atleast 5-10% of users will run it • Case Study • July 2010 • ~70 users targeted • 12 Connect backs made • Success Varies on Many Factors • Egress Filtering • Mail Server Filters • Server and endpoint AV

25. Controls and Policy • Do your users know who contact if they receive an e-mail like this? • How well is User Awareness Training working? • How well is compromise detection working? • Are your mail filters protecting your users? • Technical Controls

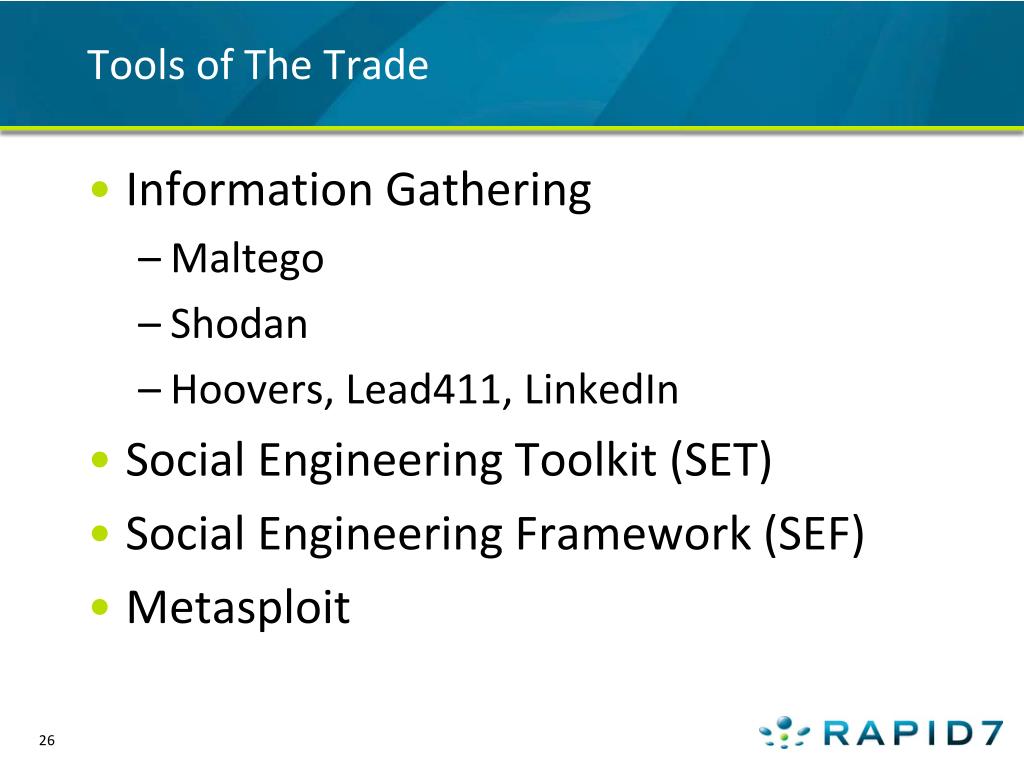

26. Tools of The Trade • Information Gathering • Maltego • Shodan • Hoovers, Lead411, LinkedIn • Social Engineering Toolkit (SET) • Social Engineering Framework (SEF) • Metasploit

27. Physical Social Engineering

28. Information Gathering -Sun Tzu

29. Information Gathering • White Box vs. Black Box vs. Grey Box • Know Your Target • Pretexting is highly important

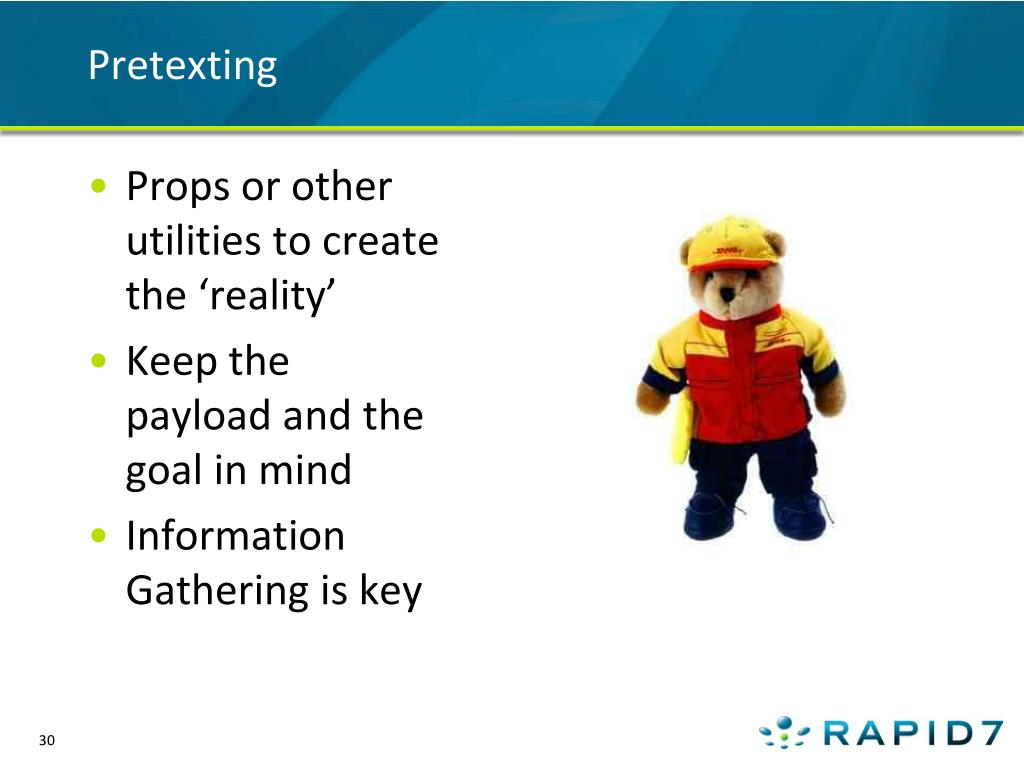

30. Pretexting • Props or other utilities to create the ‘reality’ • Keep the payload and the goal in mind • Information Gathering is key

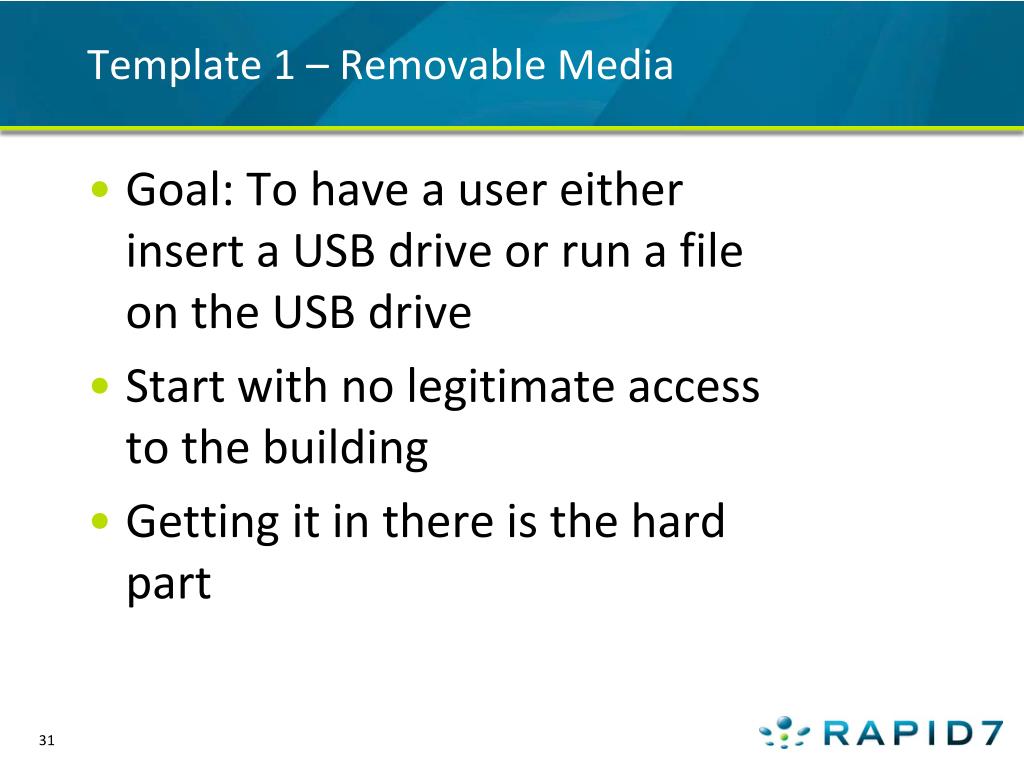

31. Template 1 – Removable Media • Goal: To have a user either insert a USB drive or run a file on the USB drive • Start with no legitimate access to the building • Getting it in there is the hard part

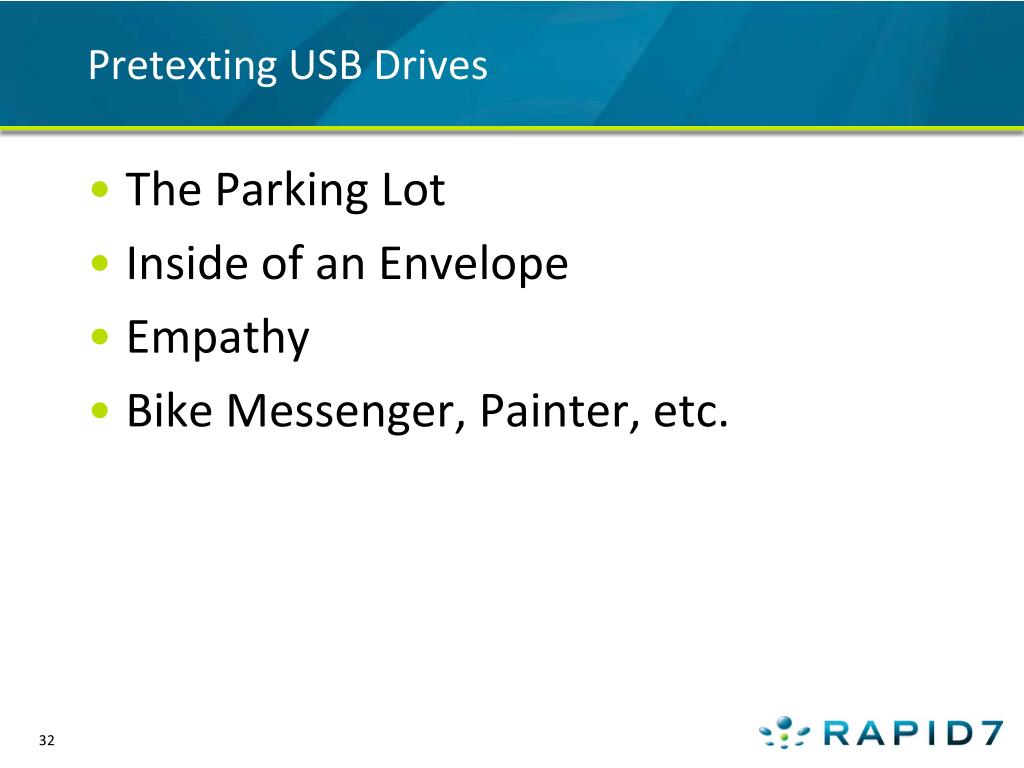

32. Pretexting USB Drives • The Parking Lot • Inside of an Envelope • Empathy • Bike Messenger, Painter, etc.

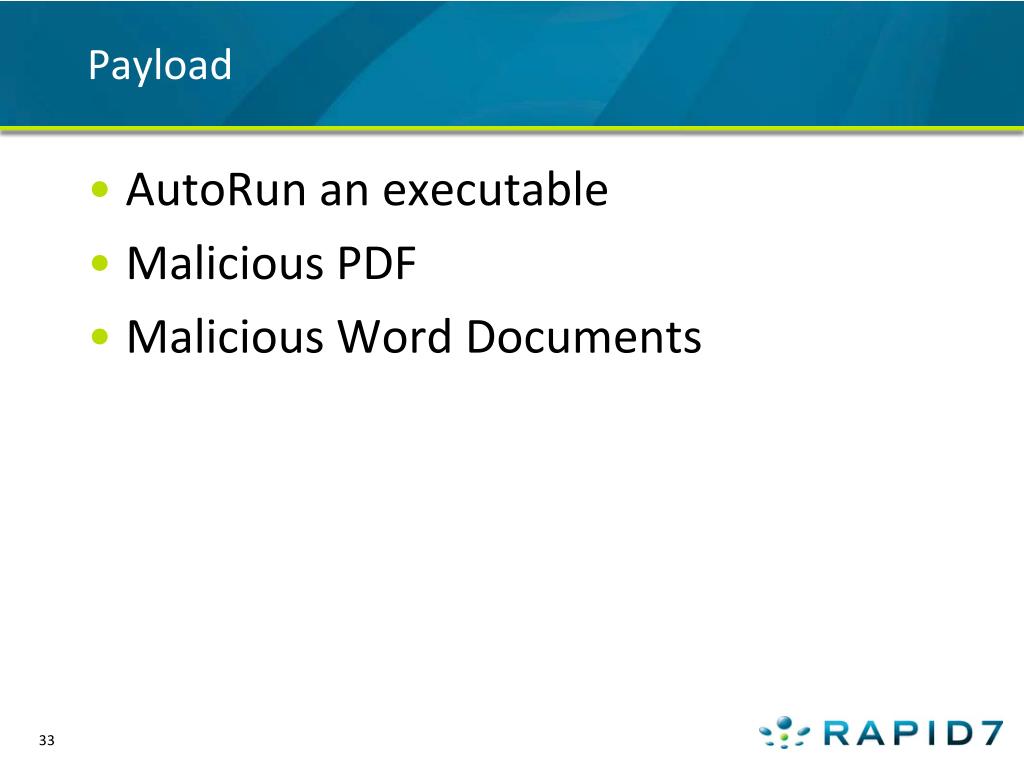

33. Payload • AutoRun an executable • Malicious PDF • Malicious Word Documents

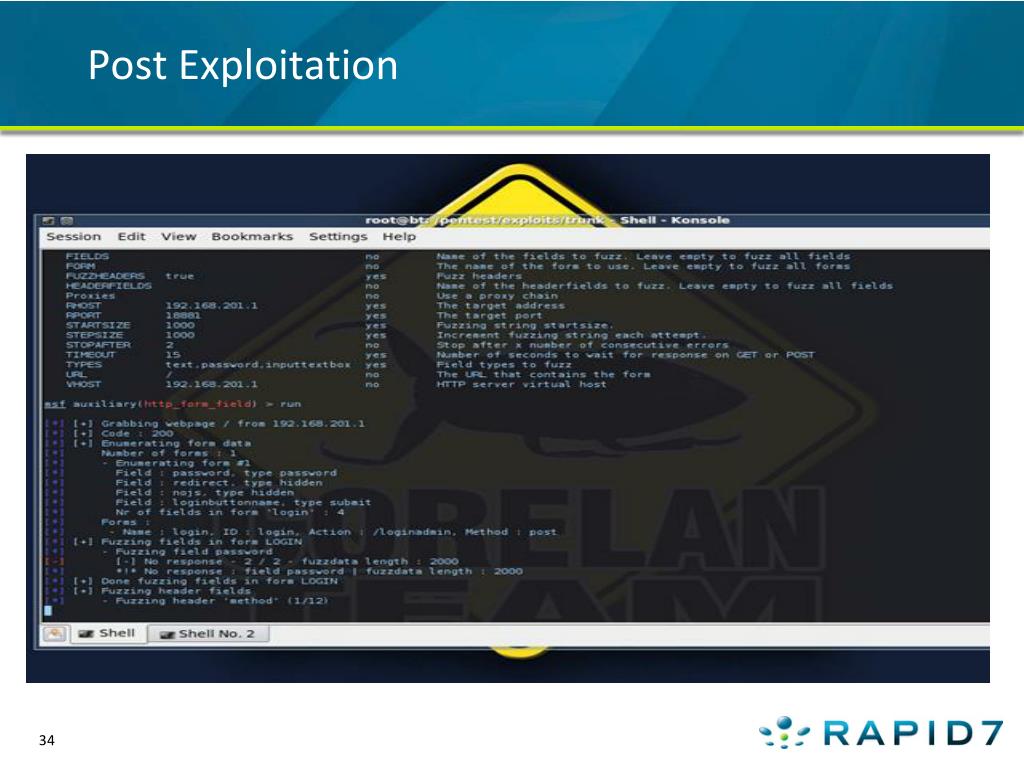

34. Post Exploitation

35. Controls and Policies • What are the restrictions on portable media? • Was I able to bypass a control to gain access to the building? • Technical Controls

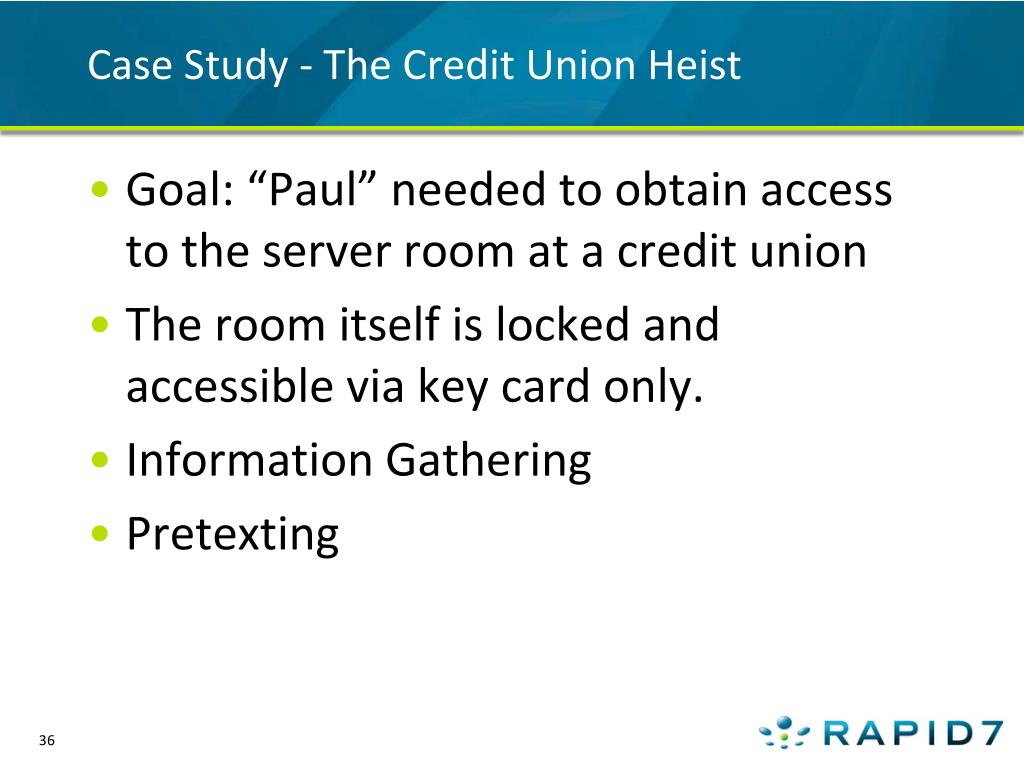

36. Case Study - The Credit Union Heist • Goal: “Paul” needed to obtain access to the server room at a credit union • The room itself is locked and accessible via key card only. • Information Gathering • Pretexting

37. Gadgets • RFID card reader and spoofer • Pocket Router • SpoofApp • Lock Picking Tools • Uniforms

38. Closing Thoughts • Protecting against Social Engineering is extremely difficult • User Awareness training has it’s place • Regularly test your users • Metrics are absolutely critical to success • During an assessment much of it can be about luck

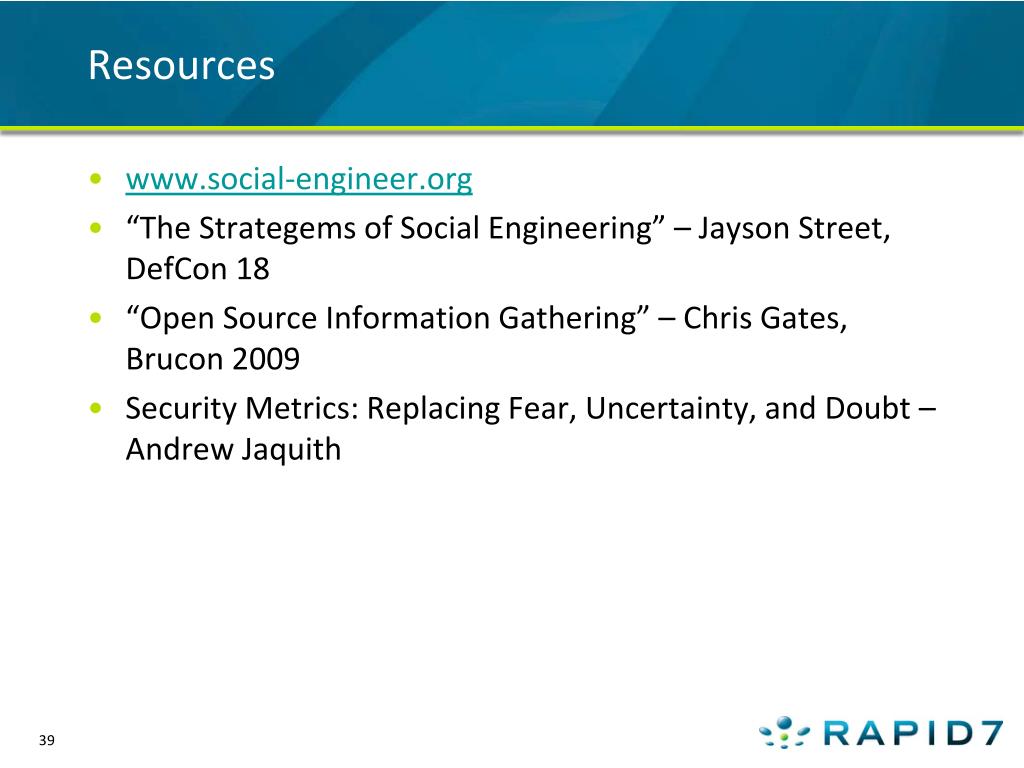

39. Resources • www.social-engineer.org • “The Strategems of Social Engineering” – Jayson Street, DefCon 18 • “Open Source Information Gathering” – Chris Gates, Brucon 2009 • Security Metrics: Replacing Fear, Uncertainty, and Doubt – Andrew Jaquith

40. Questions or Comments
