  1. Congestion Control in Overlay Networks R. Srikant University of Illinois

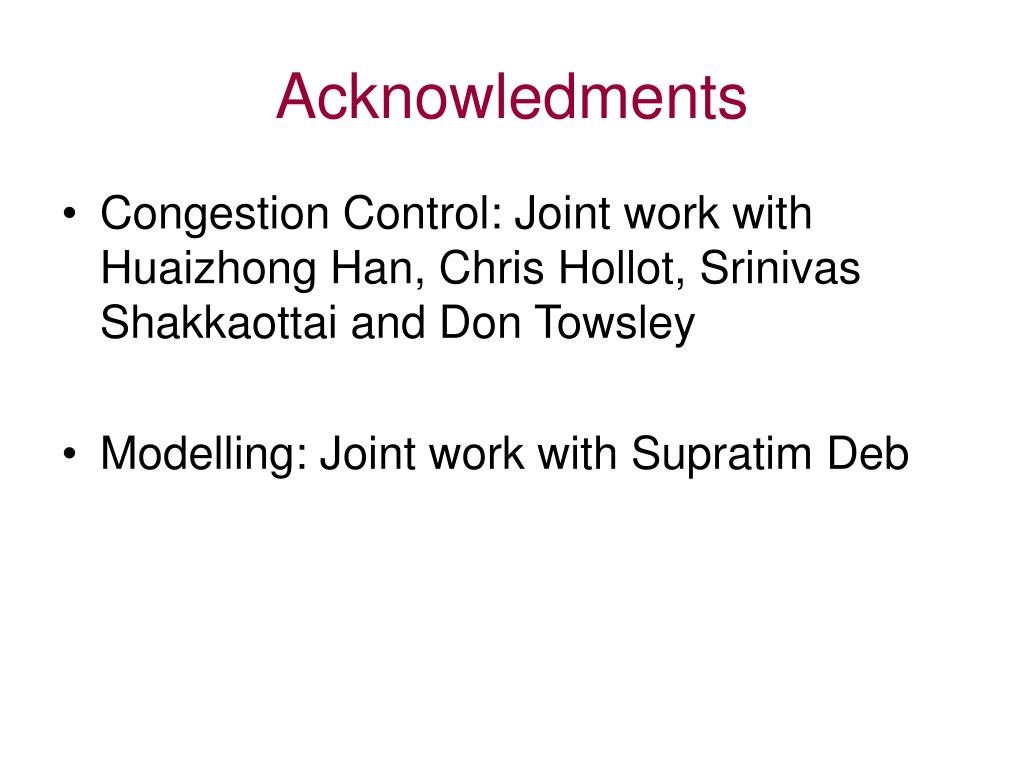

  2. Acknowledments • Congestion Control: Joint work with Huaizhong Han, Chris Hollot, Srinivas Shakkaottai and Don Towsley • Modelling: Joint work with Supratim Deb

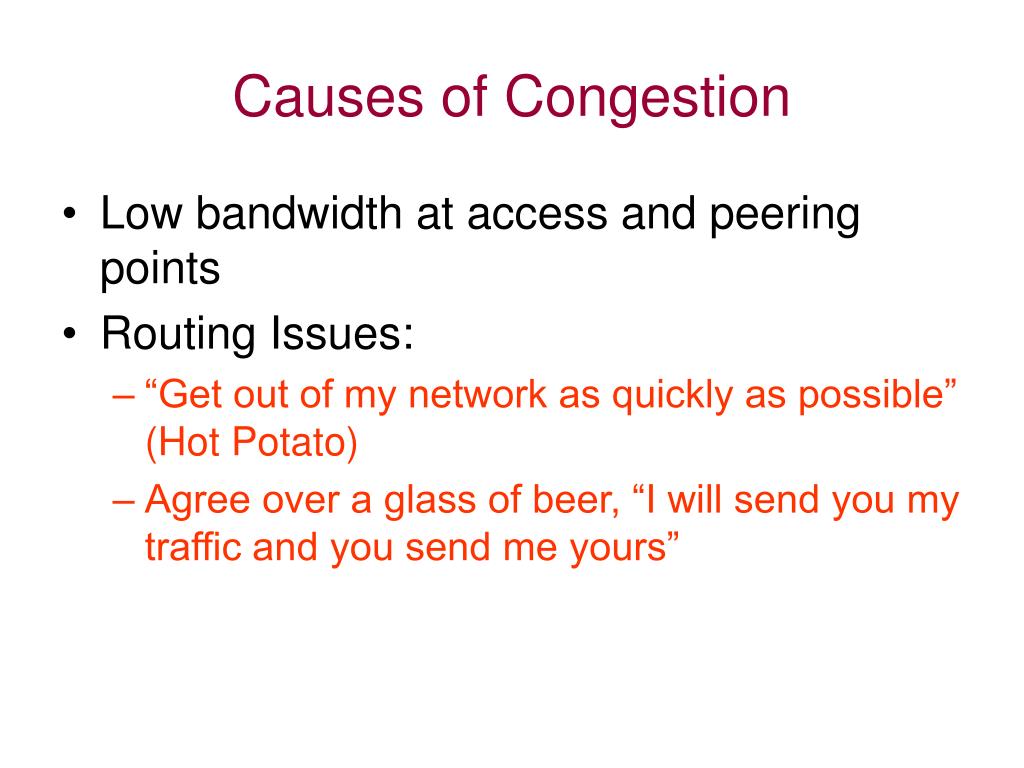

  3. Causes of Congestion • Low bandwidth at access and peering points • Routing Issues: • “Get out of my network as quickly as possible” (Hot Potato) • Agree over a glass of beer, “I will send you my traffic and you send me yours”

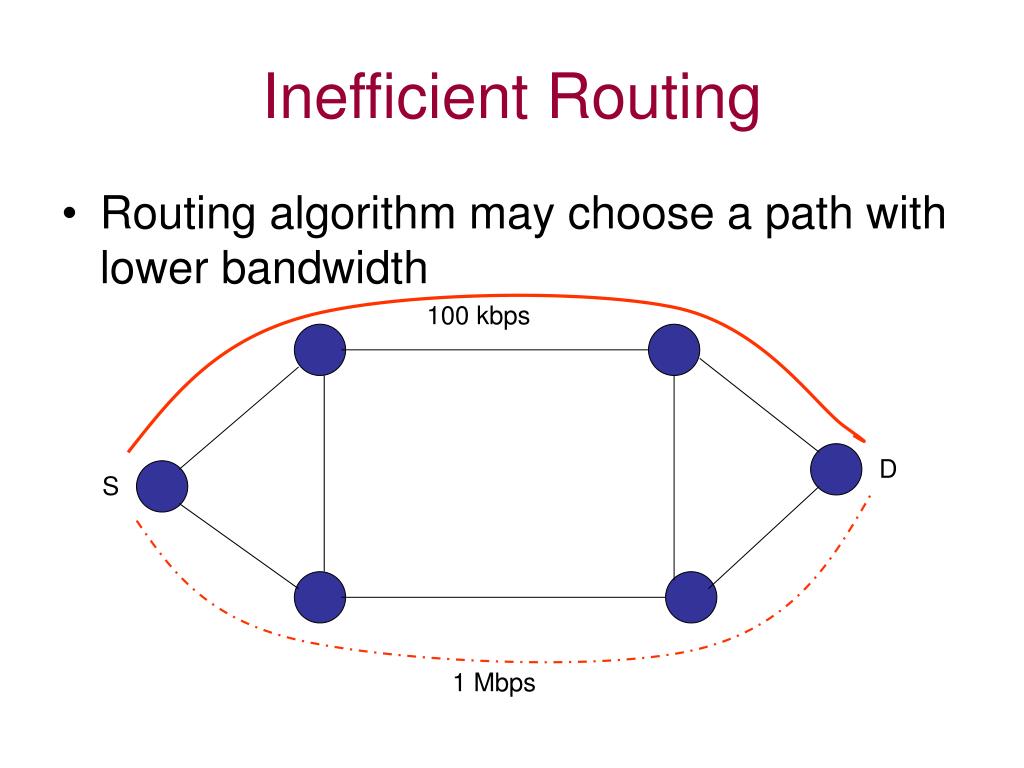

  4. Inefficient Routing • Routing algorithm may choose a path with lower bandwidth 100 kbps D S 1 Mbps

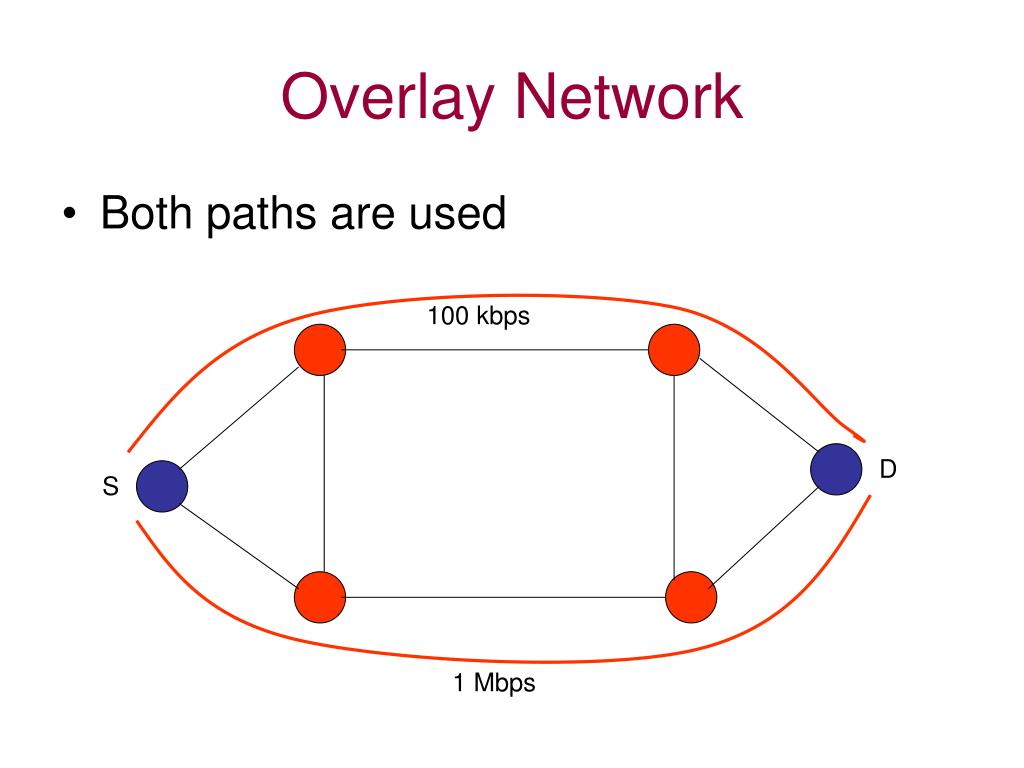

  5. Overlay Network • Both paths are used 100 kbps D S 1 Mbps

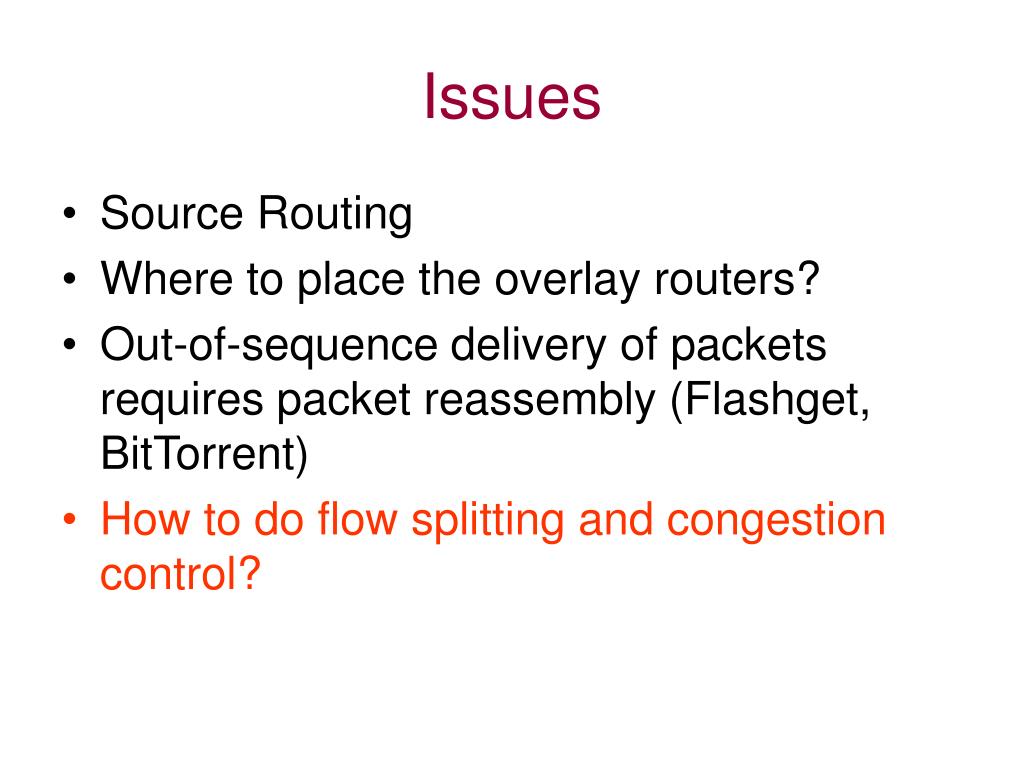

  6. Issues • Source Routing • Where to place the overlay routers? • Out-of-sequence delivery of packets requires packet reassembly (Flashget, BitTorrent) • How to do flow splitting and congestion control?

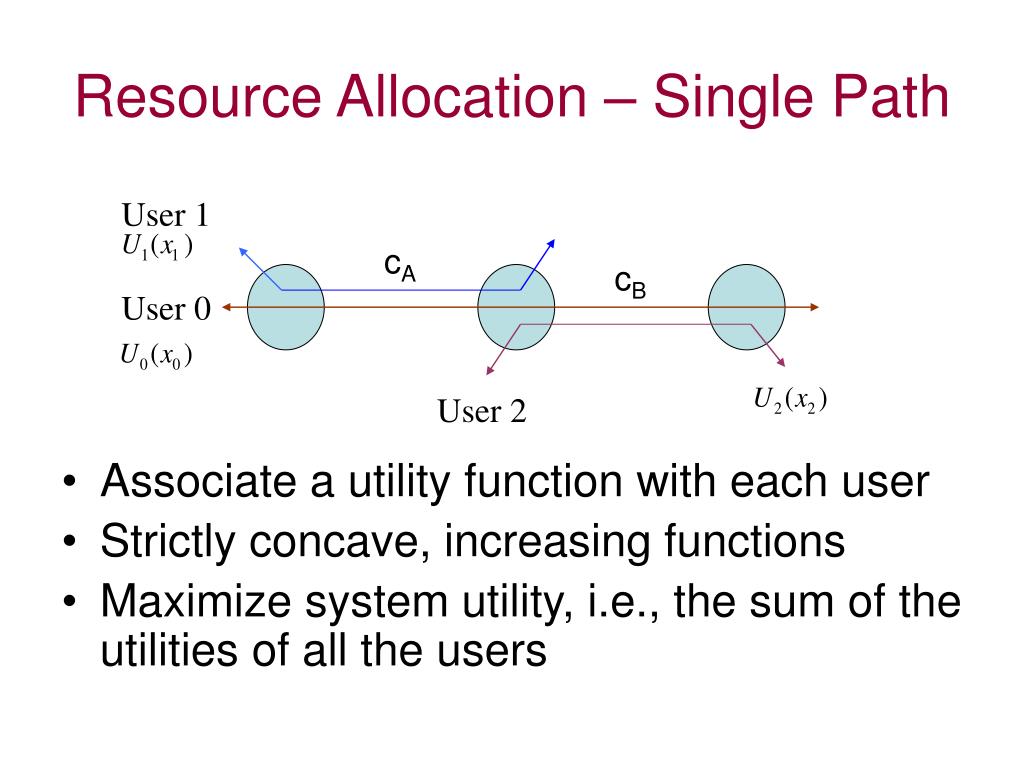

  7. Resource Allocation – Single Path • Associate a utility function with each user • Strictly concave, increasing functions • Maximize system utility, i.e., the sum of the utilities of all the users User 1 cA cB User 0 User 2

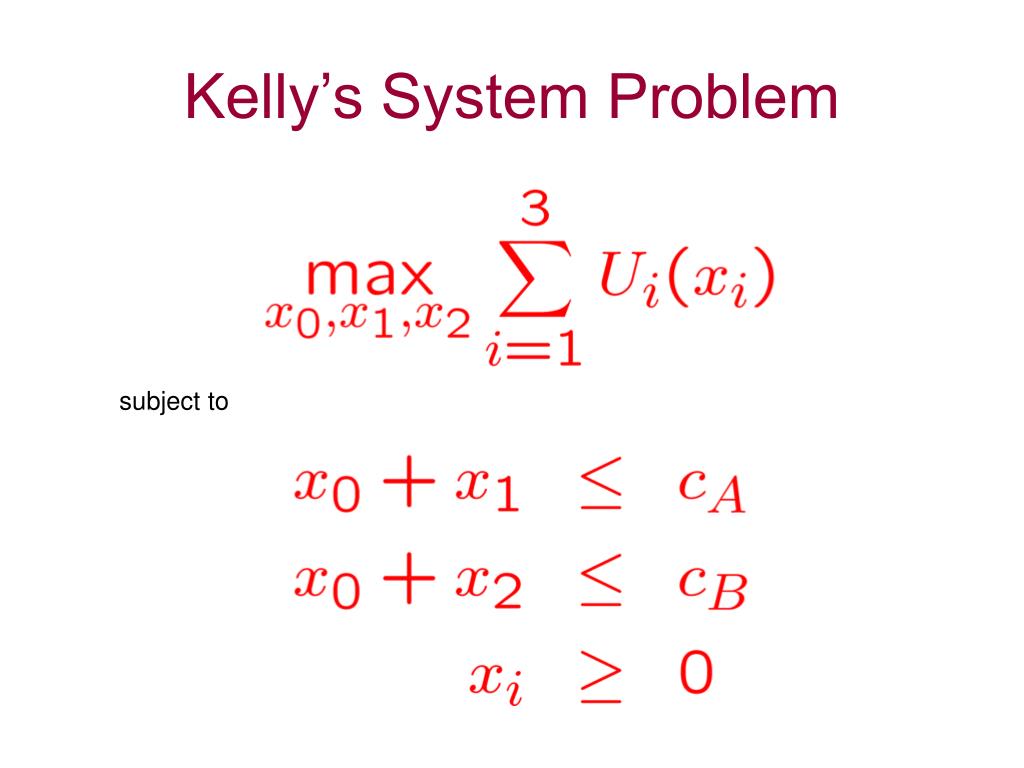

  8. Kelly’s System Problem subject to

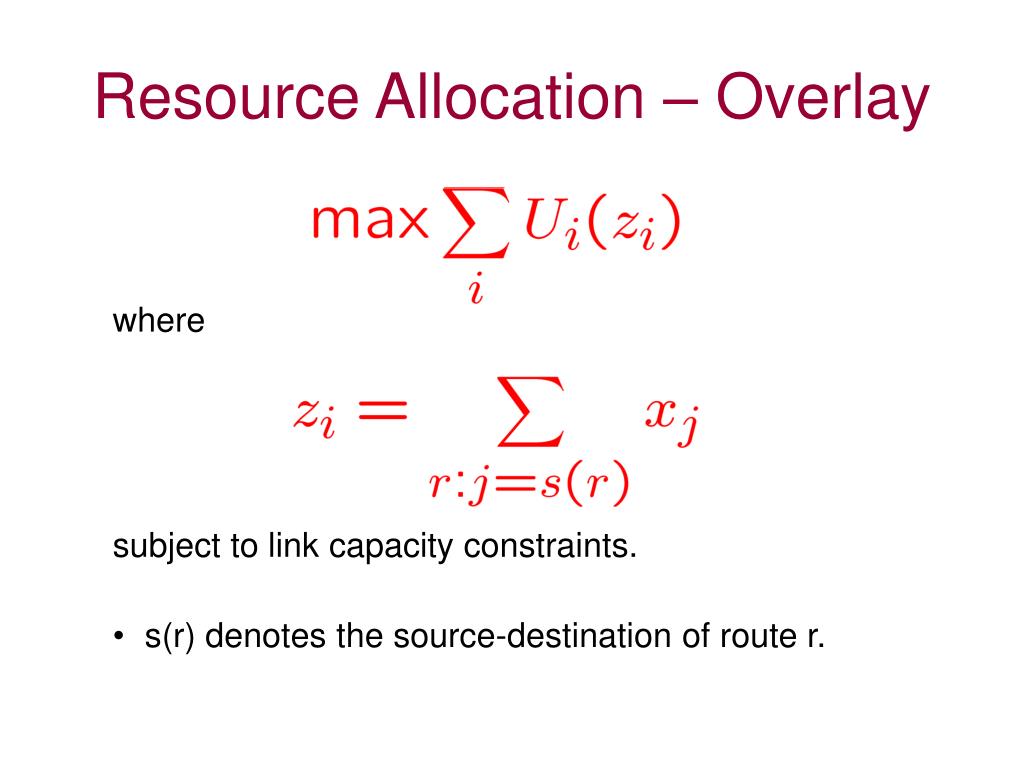

  9. Resource Allocation – Overlay where subject to link capacity constraints. • s(r) denotes the source-destination of route r.

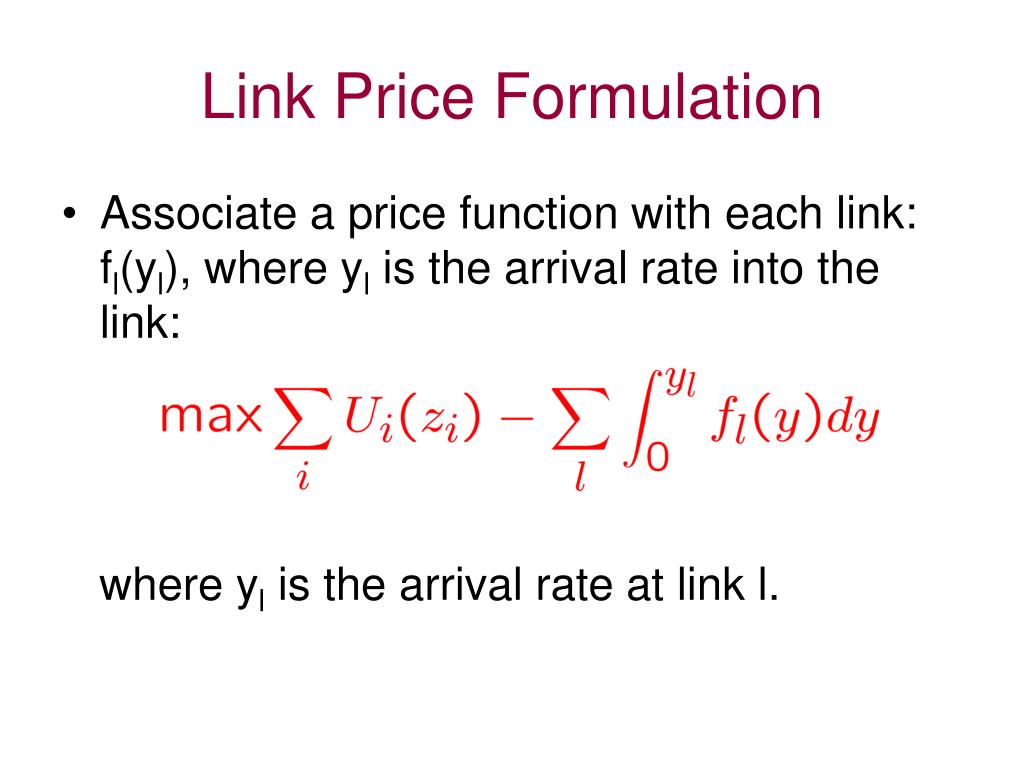

  10. Link Price Formulation • Associate a price function with each link: fl(yl), where yl is the arrival rate into the link: where yl is the arrival rate at link l.

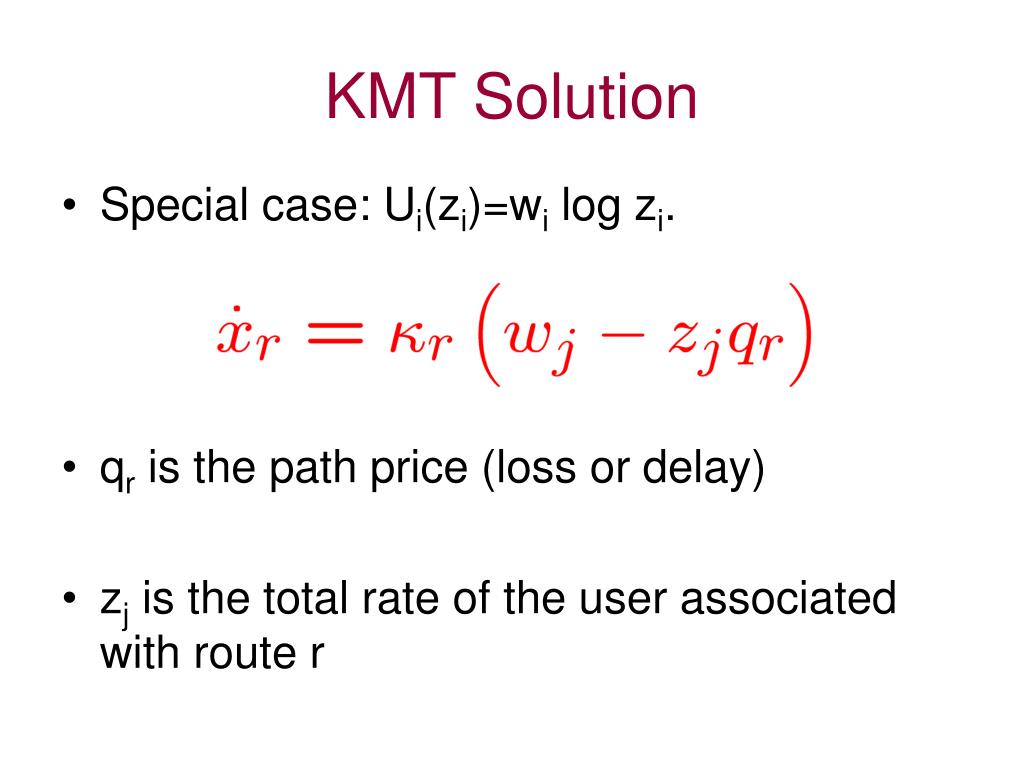

  11. KMT Solution • Special case: Ui(zi)=wi log zi. • qr is the path price (loss or delay) • zj is the total rate of the user associated with route r

  12. RTT and Implementation • The rate at which acks are received, xr(t-Tr)qr, is only available with a delay (RTT) • Not easy to separate qr: requires memory of xr from one RTT ago

  13. Overlay TCP • Generalization of Vinnicombe’s scalable TCP: • The loss or mark rate xr(t-Tr)qr is available • The sum of the current rates zj is also available

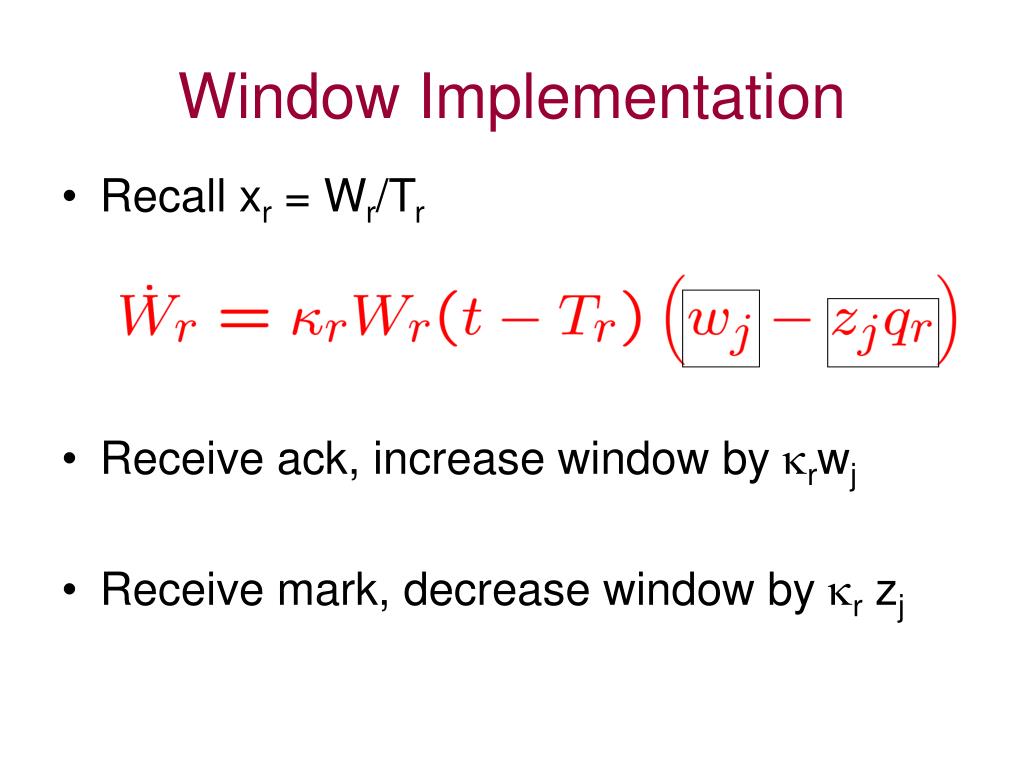

  14. Window Implementation • Recall xr = Wr/Tr • Receive ack, increase window by rwj • Receive mark, decrease window by r zj

  15. Network Block Diagram R(s) y (link rates) x (source rates) Links Sources RT(-s) q (path prices) p (link prices) What happens here in overlay networks?

  16. Sources • There is coupling among the routes in the multipath case Multi-path users q x Single-path users

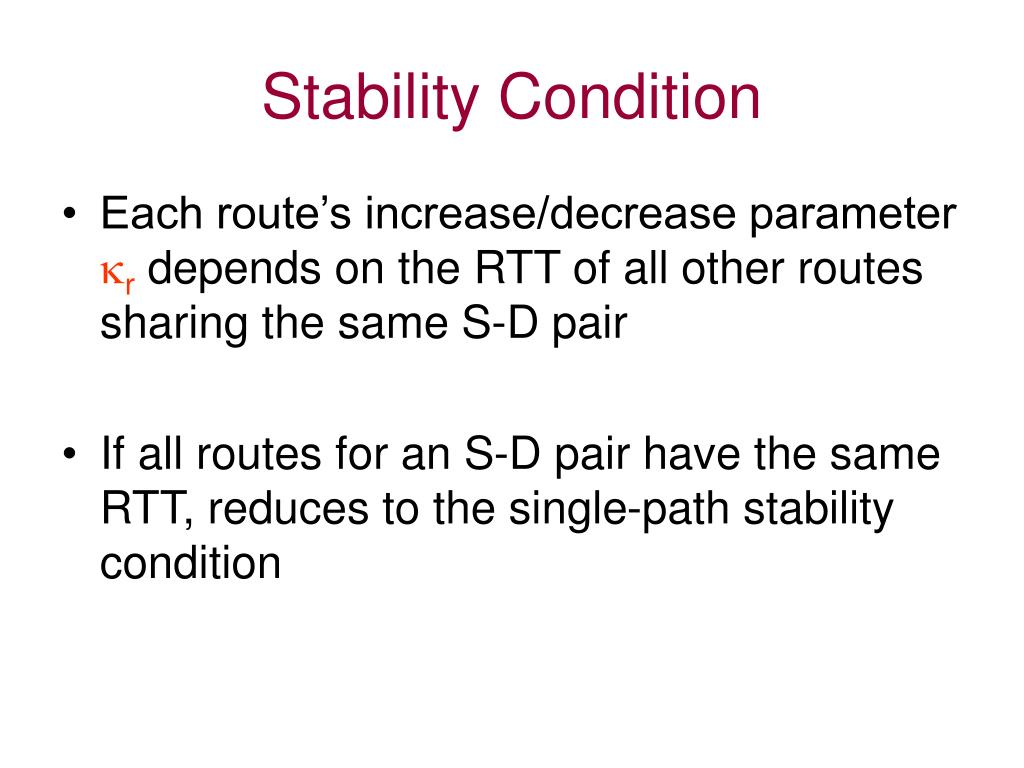

  17. Stability Condition • Each route’s increase/decrease parameter r depends on the RTT of all other routes sharing the same S-D pair • If all routes for an S-D pair have the same RTT, reduces to the single-path stability condition

  18. Single-path case condition is not sufficient

  19. Simulations

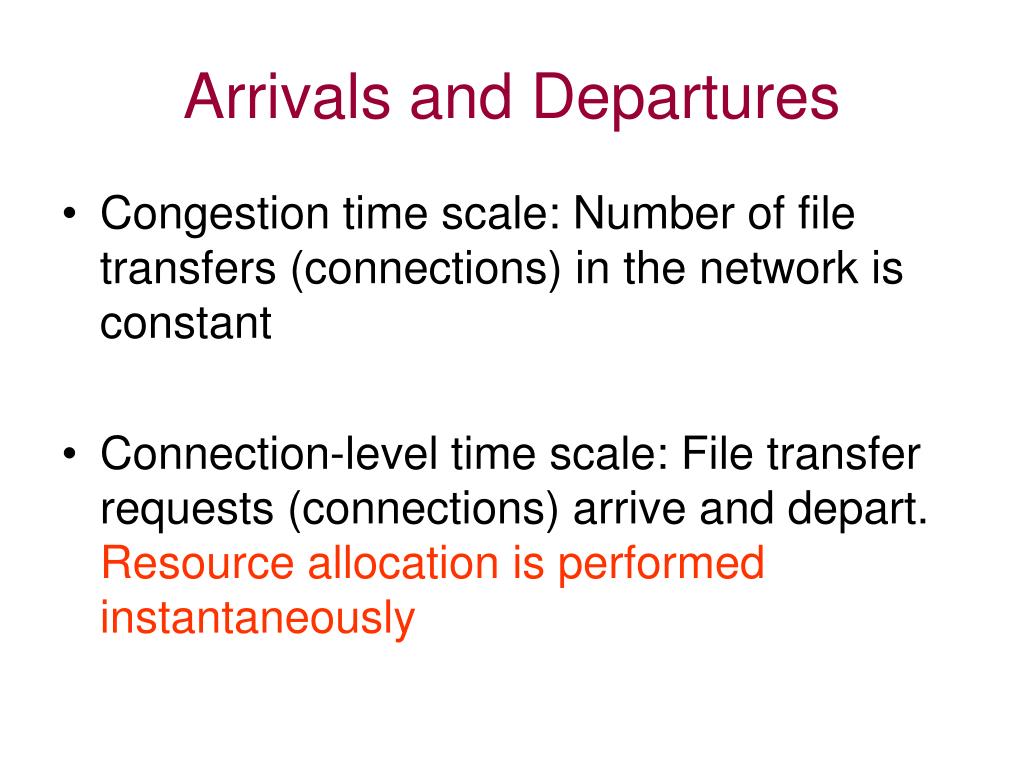

  20. Arrivals and Departures • Congestion time scale: Number of file transfers (connections) in the network is constant • Connection-level time scale: File transfer requests (connections) arrive and depart. Resource allocation is performed instantaneously

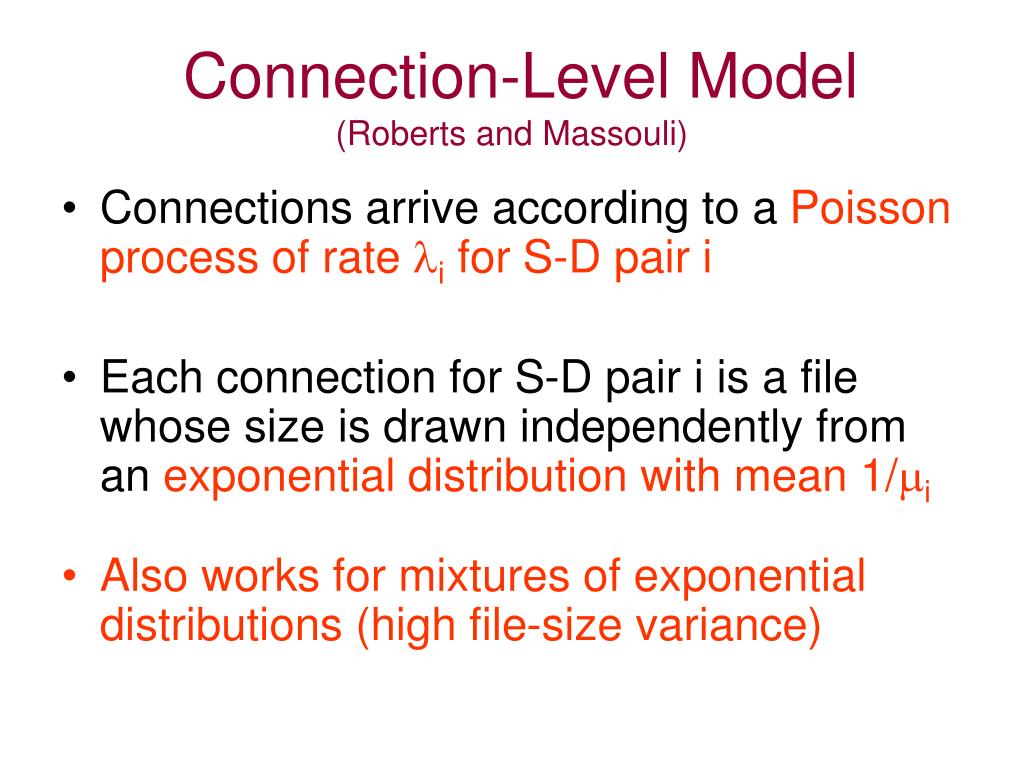

  21. Connection-Level Model(Roberts and Massouli) • Connections arrive according to a Poisson process of rate i for S-D pair i • Each connection for S-D pair i is a file whose size is drawn independently from an exponential distribution with mean 1/i • Also works for mixtures of exponential distributions (high file-size variance)

  22. Connection-level stability • Both links have capacity=1 Load=0.5 Load=0.8 A B Load=0.5

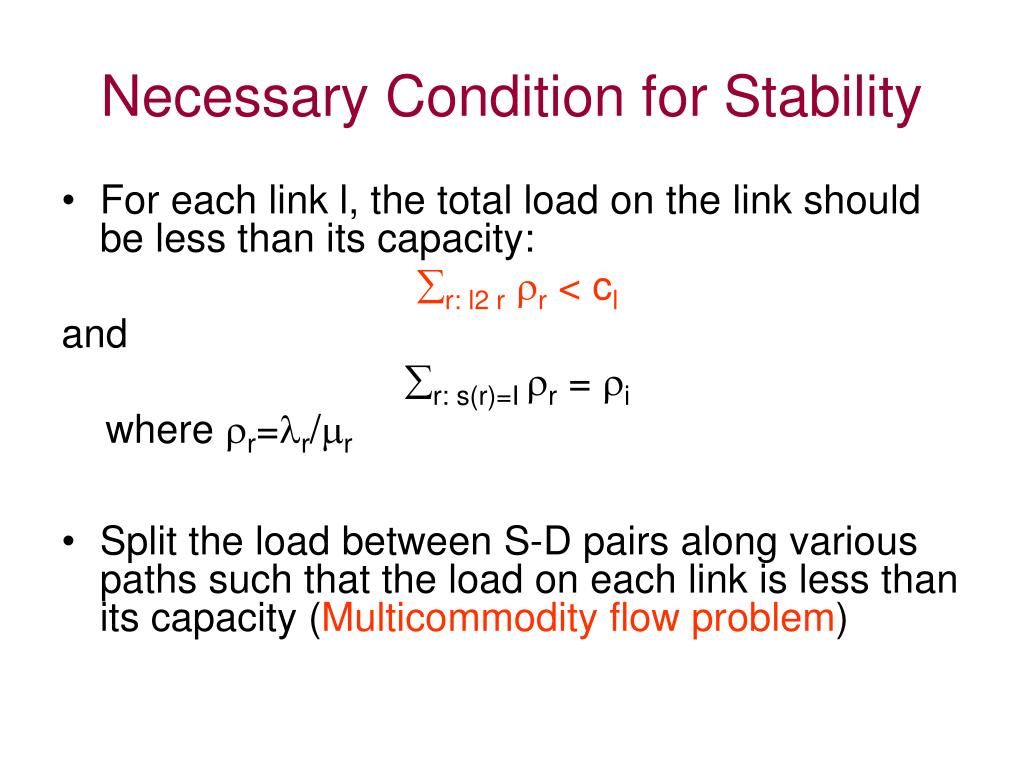

  23. Necessary Condition for Stability • For each link l, the total load on the link should be less than its capacity: r: l2 rr < cl and r: s(r)=I r = i where r=r/r • Split the load between S-D pairs along various paths such that the load on each link is less than its capacity (Multicommodity flow problem)

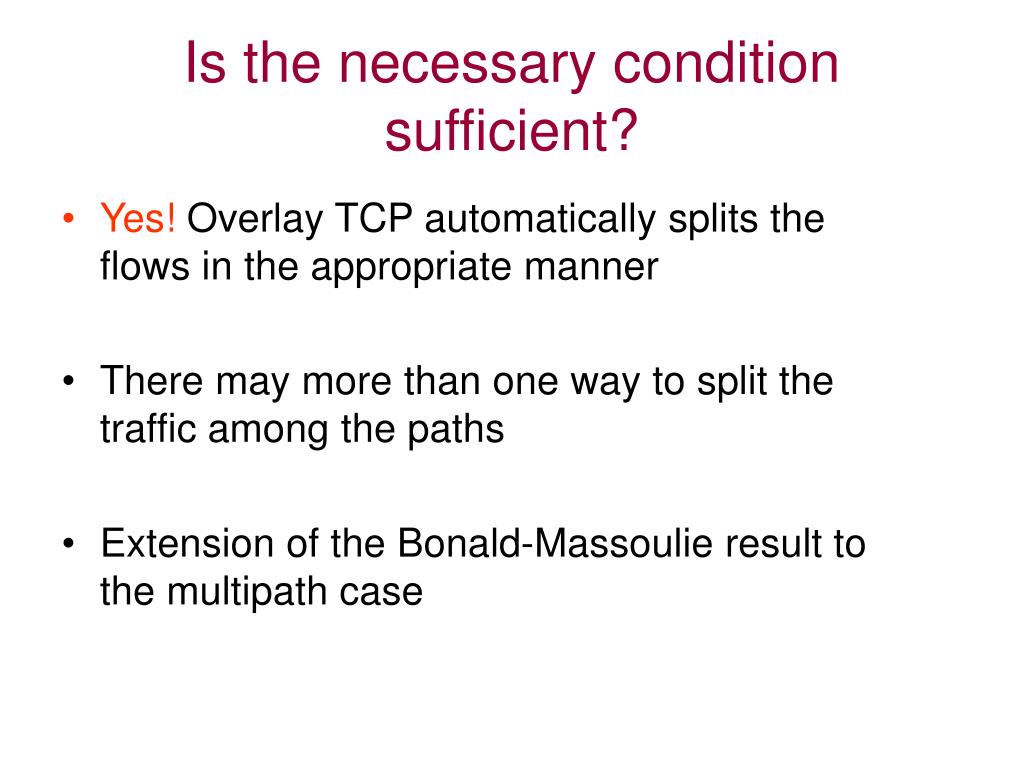

  24. Is the necessary condition sufficient? • Yes! Overlay TCP automatically splits the flows in the appropriate manner • There may more than one way to split the traffic among the paths • Extension of the Bonald-Massoulie result to the multipath case

  25. Modeling • Are deterministic models valid? • Not all sources respond to congestion signals (non-adaptive real-time sources) • Most file transfers are too short; stability analysis doesn’t make sense • The congestion feedback process is probabilistic • Inability to precisely model window flow control • The real network has a lot of randomness

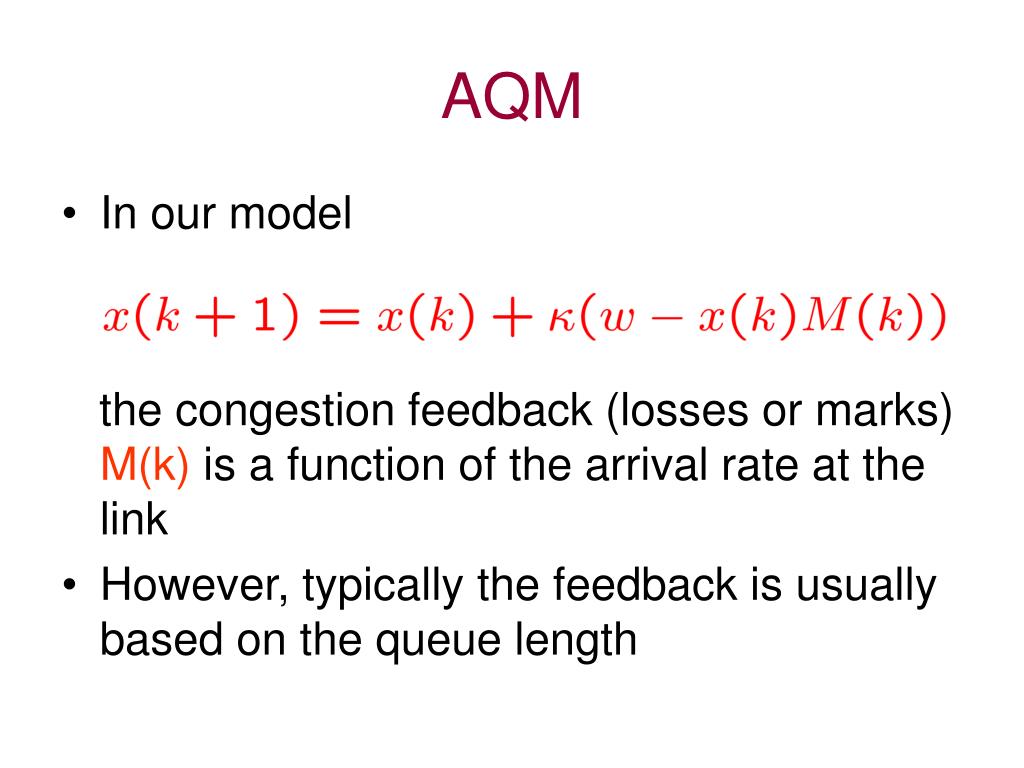

  26. AQM • In our model the congestion feedback (losses or marks) M(k) is a function of the arrival rate at the link • However, typically the feedback is usually based on the queue length

  27. Queue-based vs Rate-based Model • Give very different results regarding stability • Can construct examples where one model is stable for large RTT and the other is stable for small RTT! • Question: Which model is appropriate to describe the Internet? • Are there parameter choices under which a queue-based system produces a rate-based limit?

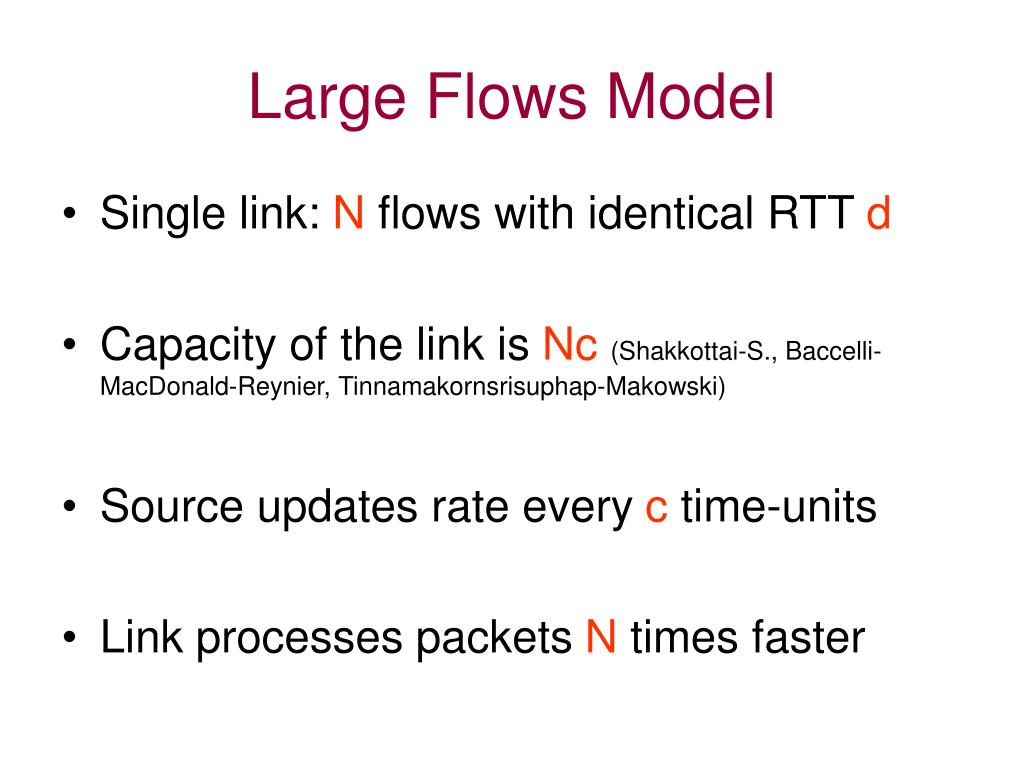

  28. Large Flows Model • Single link: N flows with identical RTT d • Capacity of the link is Nc (Shakkottai-S., Baccelli-MacDonald-Reynier, Tinnamakornsrisuphap-Makowski) • Source updates rate every c time-units • Link processes packets N times faster

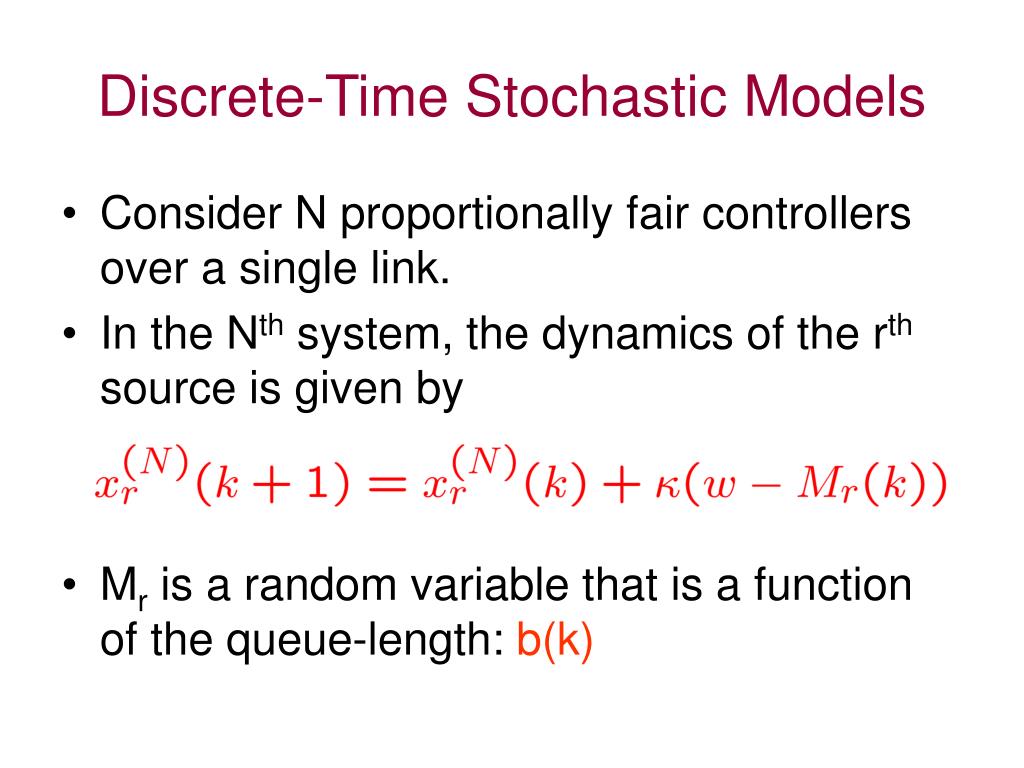

  29. Discrete-Time Stochastic Models • Consider N proportionally fair controllers over a single link. • In the Nth system, the dynamics of the rth source is given by • Mr is a random variable that is a function of the queue-length: b(k)

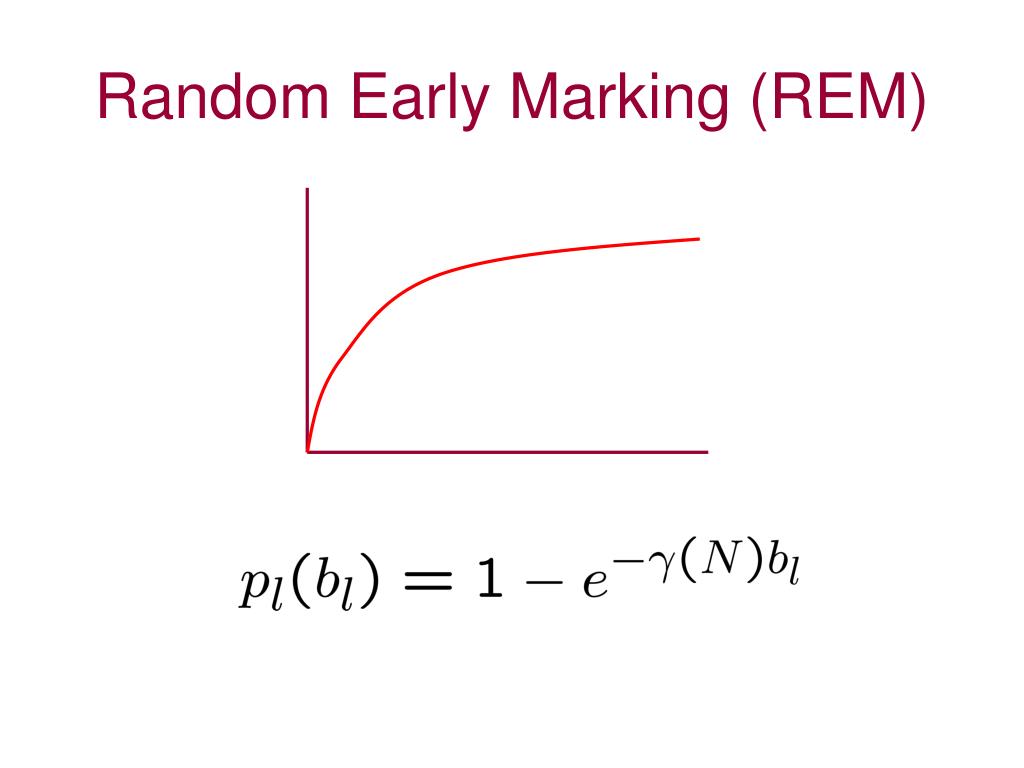

  30. Random Early Marking (REM)

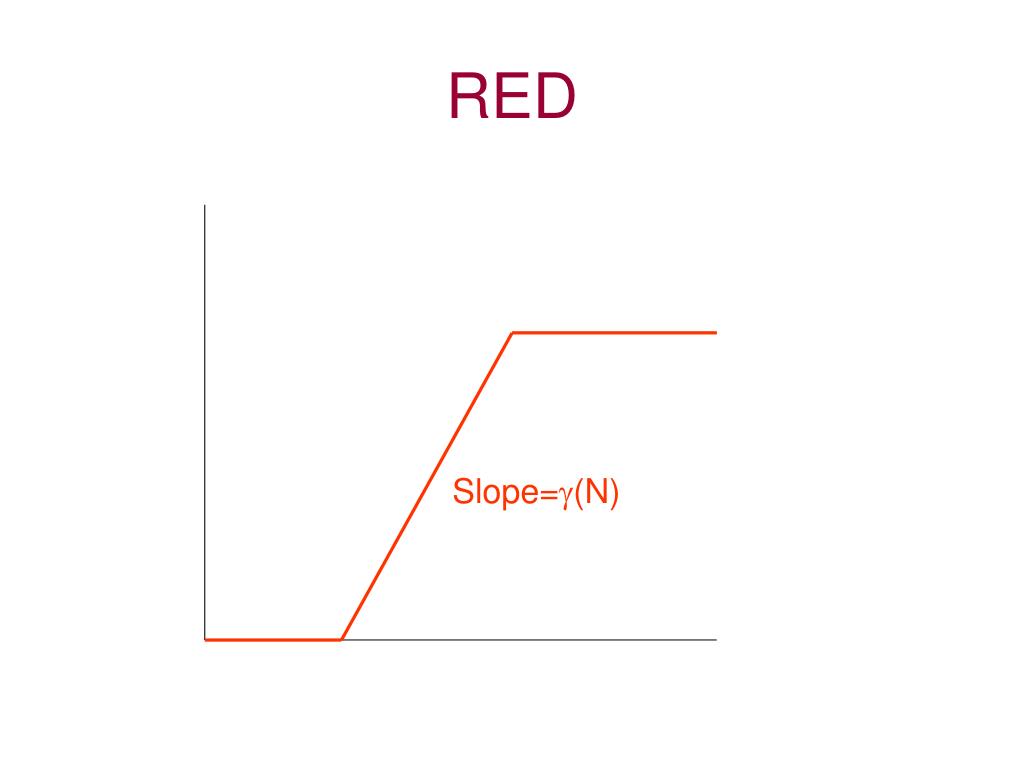

  31. RED Slope=(N)

  32. Model at the Link • Each source generates packets according to Poisson(xr/N) in each link time slot • Each packet is marked or dropped independently according to REM or RED • Number of marked packets in each link time slot is Poisson(xr f(br)/N)

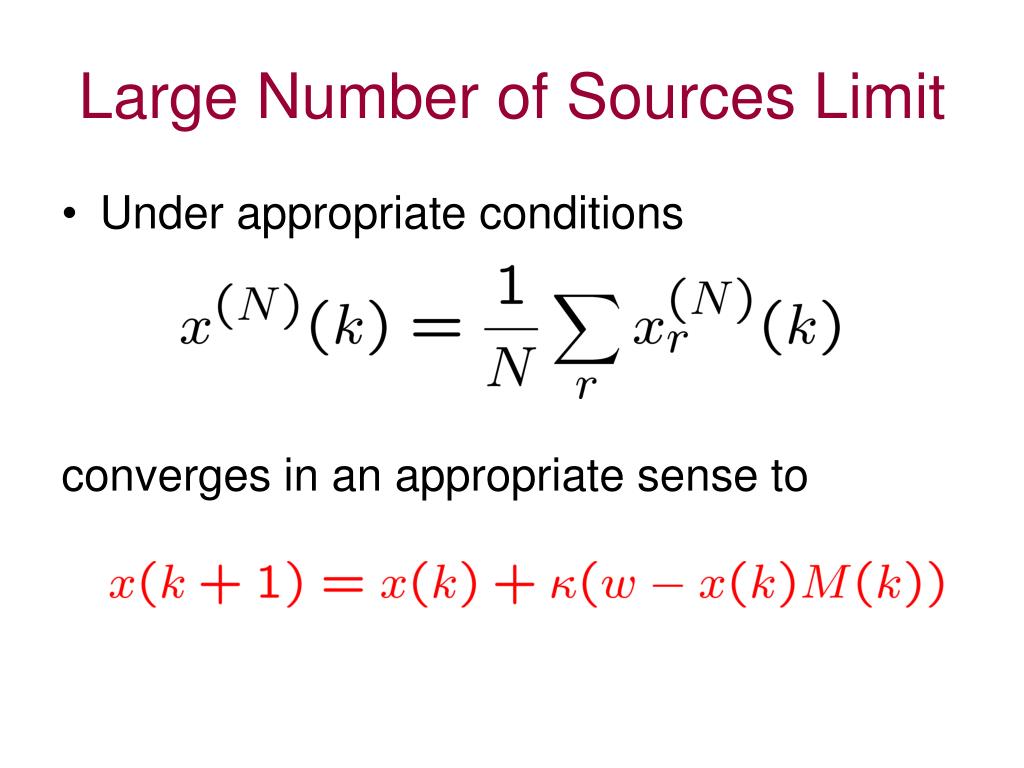

  33. Large Number of Sources Limit • Under appropriate conditions converges in an appropriate sense to

  34. Main Result • If f(b)=1-exp(- b), then M(k) is a function of the rate • If f(b)=1-exp(- b/N), then M(k) is a function of the (scaled) queue length • Why? b=O(1) in the first case and is O(N) in the second case

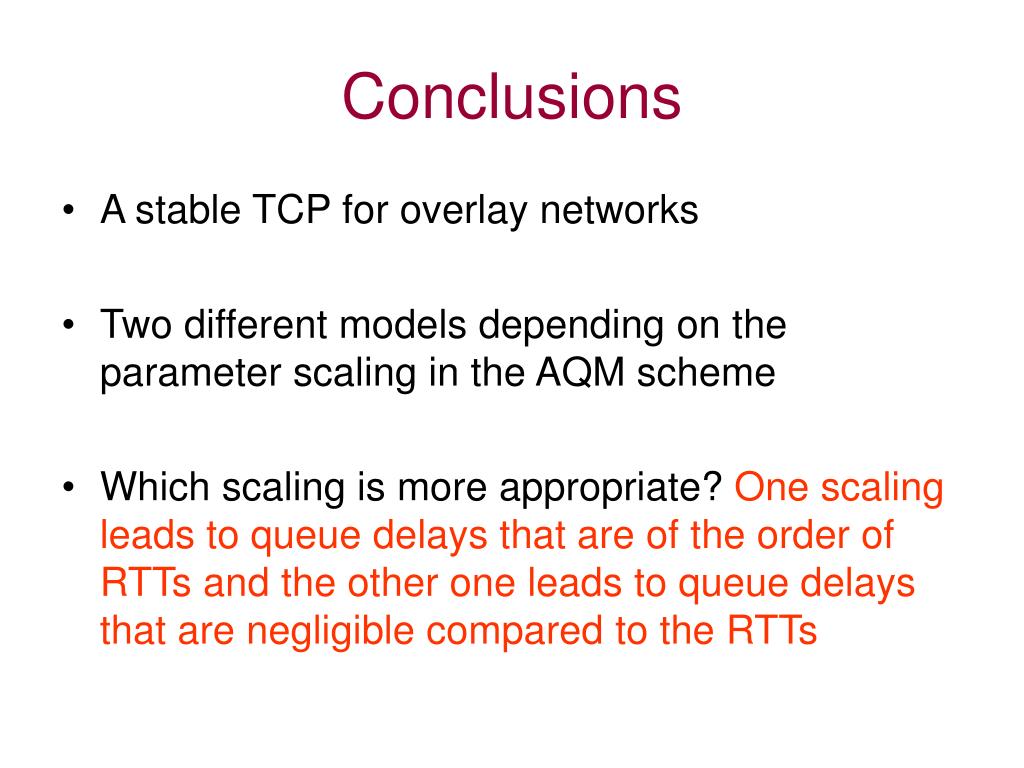

  35. Conclusions • A stable TCP for overlay networks • Two different models depending on the parameter scaling in the AQM scheme • Which scaling is more appropriate? One scaling leads to queue delays that are of the order of RTTs and the other one leads to queue delays that are negligible compared to the RTTs

  36. Questions? • How often do routing problems lead to congestion? • Are overlay networks feasible? • Should queueing delays be small compared to RTT?
