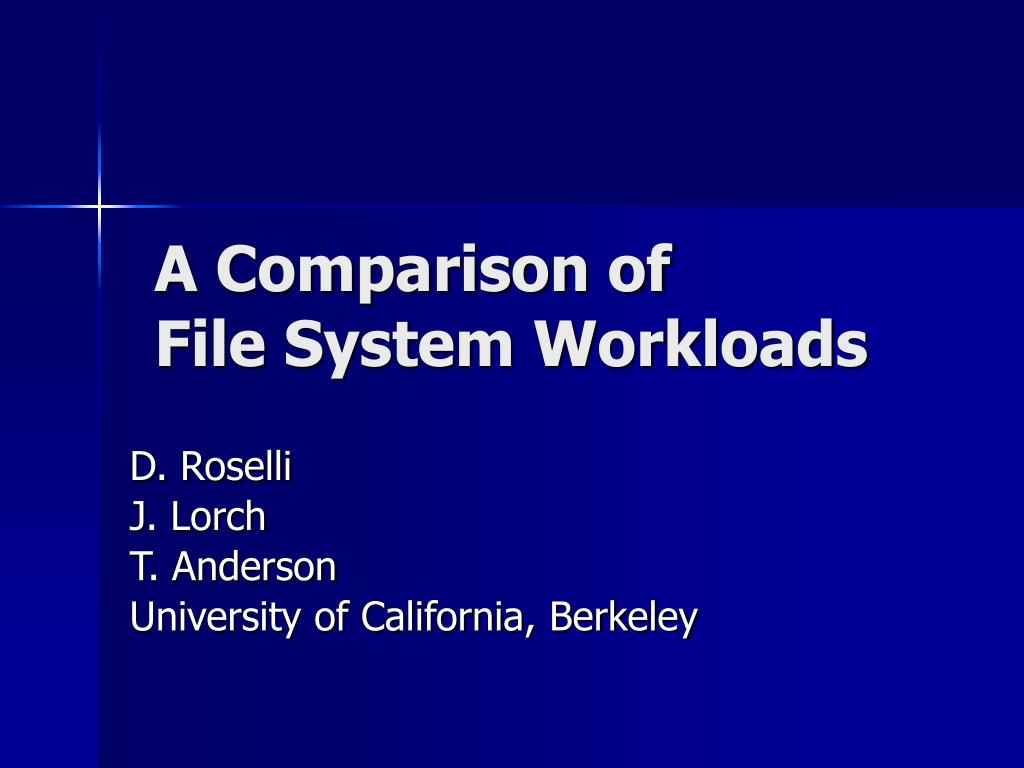

  1. A Comparison ofFile System Workloads D. Roselli J. Lorch T. Anderson University of California, Berkeley

  2. Motivation • Wanted to find common file usage patterns • Focused on how workload and file system parameters affect disk behavior • Cache sizes • Memory mapping • Delayed write policy • File layout policies

  3. Trace collection • Three Unix environments: • 20 workstations used for undergraduate classes • 13 workstations usedby faculty, graduate students and staff working on research projects • One web server • One set of eight desktops running Windows NT

  4. Trace collection issues • Modified Unix kernel in order to record full pathnames of all files being accessed • Auditing subsystem of HP-UX only recorded file names as specified by the user • Often relative to current directory

  5. Estmating block lifetimes (I) • A previous study measured block lifetimes as delete time minus create time • This delete-based method • Did not take into account the lifetimes of blocks that were not deleted during measurement interval • Underestimated block lifetimes

  6. Estimating block lifetimes (II) • Create-based method partitions trace into two parts • First part is used to collect information on block creation times • Proceed as in delete-based method for blocks that were deleted during total observation period • Assume that other blocks have lived for at lest the duration of the second part of the trace

  7. Example D2 X Time Trace starts Create Block B First part of trace ends Trace ends If block B was never deleted while trace was collected, its lifetime must be greater than D2

  8. Conclusions (I) • Different systems show • Different I/O loads • Different block lifetimes and lifetime distributions

  9. Conclusions (II) • Block overwrites • Cause the most significant fraction of deleted blocks • Show substantial locality • A small write buffer is sufficient for nearly all workloads • Ideal write delay vary with workload • Standard 30 second delay • Slightly longer delays

  10. Conclusions (III) • Even small caches can sharply reduce disk read traffic • Very large caches will not cause disk traffic to be dominated by writes • A small number of memory mapped files are shared among many active processes • Should keep file in memory as long as it is memory-mapped by any process
