Web Services Transactions

Vassil Peytchev, Epic. Web Services Transactions. WS Overview. What are Web Services? SOAP XML transactions WSDL description of services Why Web Services transactions? Improve ease of implementation Common transaction infrastructure Built-in security Extensibility

cecil
Télécharger la présentation

Web Services Transactions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vassil Peytchev, Epic Web Services Transactions

  2. WS Overview What are Web Services? SOAP XML transactions WSDL description of services Why Web Services transactions? Improve ease of implementation Common transaction infrastructure Built-in security Extensibility Long term benefits, long term plans

  3. 2006 – 2007 use of WS PIX/PDQ HL7 V3 XDS Stored Query White Paper on WS Roadmap? Versions of standards SOAP 1.1 (possibly SOAP 1.2 binding as an option) WSDL 1.1 WS-I Basic Profile 1.1 WS-I SOAP Binding 1.0 WS-Addressing

  4. How to incorporate WS transactions in the ITI framework Add the WS requirements to the individual transactions Add the WS requirements as separate transactions Provide WS requirements in an Appendix. Mix and match

  5. Current approaches ATNA specifies the syslog transport mechanism by referring to the RFCs Transactions in XDS include the SOAP envelope and describe protocol binding HL7 V2.x transactions don’t specify an underlying protocol (assume HL7 MLLP)

  6. Specific Approaches: PDQ/PIX PDQ/PIX – reuse the HL7 WS profile Basic Profile – very simple SOAP envelope Addressing profile – adds end-point information Security profile – future use (currently security is handled through ATNA) Include the SOAP requirements within the transaction description Wrapper in V3 – is it stable enough? Add WSDL in an Appendix

  7. Example – Basic Profile <?xml version="1.0" encoding="utf-8"?><soap:Envelope xmlns:soap="..." xmlns:hl7="..." ...> <soap:Body> <PRPA_IN101201 xmlns="urn:hl7-org:v3"> ... </PRPA_IN101201> </soap:Body></soap:Envelope>

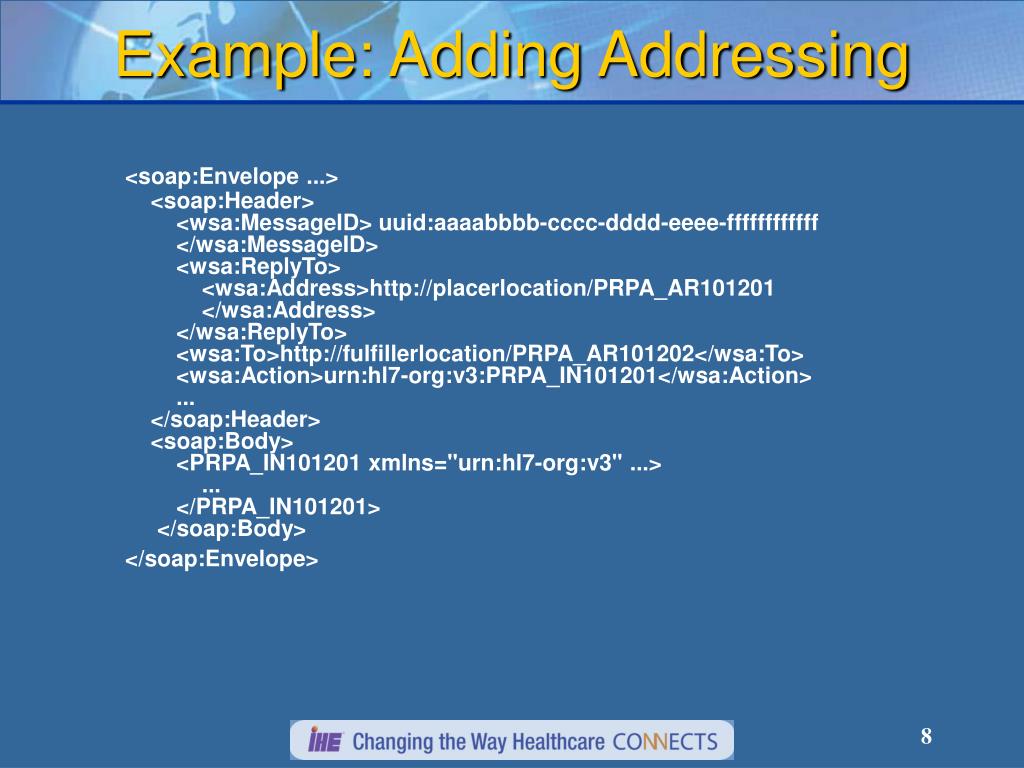

  8. Example: Adding Addressing <soap:Envelope ...> <soap:Header> <wsa:MessageID> uuid:aaaabbbb-cccc-dddd-eeee-ffffffffffff </wsa:MessageID> <wsa:ReplyTo> <wsa:Address>http://placerlocation/PRPA_AR101201 </wsa:Address> </wsa:ReplyTo> <wsa:To>http://fulfillerlocation/PRPA_AR101202</wsa:To> <wsa:Action>urn:hl7-org:v3:PRPA_IN101201</wsa:Action> ... </soap:Header> <soap:Body> <PRPA_IN101201 xmlns="urn:hl7-org:v3" ...> ... </PRPA_IN101201> </soap:Body></soap:Envelope>

  9. Specific Approaches: XDS Stored Query Starting point: WSDL for ebXML registry services v 3.0 Constrain to only XDS Stored Query Constrain to satisfy WS-I Basic Profile Add WS-Addressing constraints Bring in line with the PDQ/PIX approach Keep the SOAP requirements as part of the transaction Add constrained WSDL to an Appendix
