  1. Oracle Acme PacketEnterprise solutions Rene Houtman Peter Broeckx

  2. Acme Packet -> Oracle • Acme Packet part of Oracle Communications • Separate Worldwide Business Unit

  3. Question 1 • Which brand is Oracle’s ? • JD Edwards • Siebel • PeopleSoft • Java • Sun • All of the above

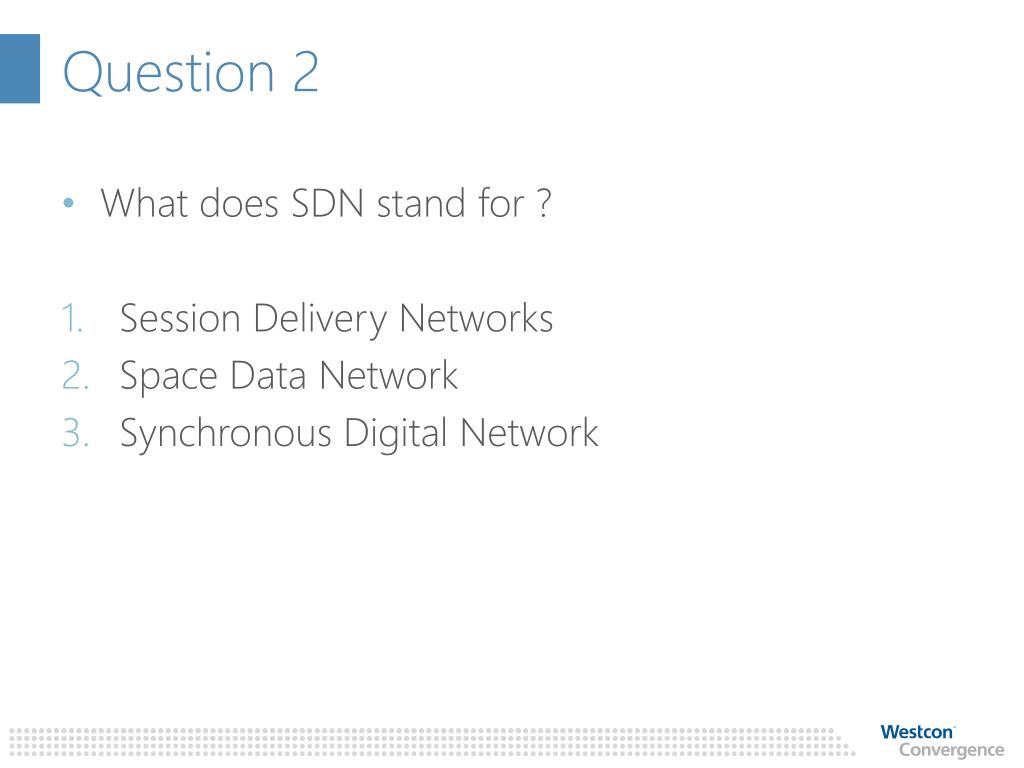

  4. Question 2 • What does SDN stand for ? • Session Delivery Networks • Space Data Network • Synchronous Digital Network

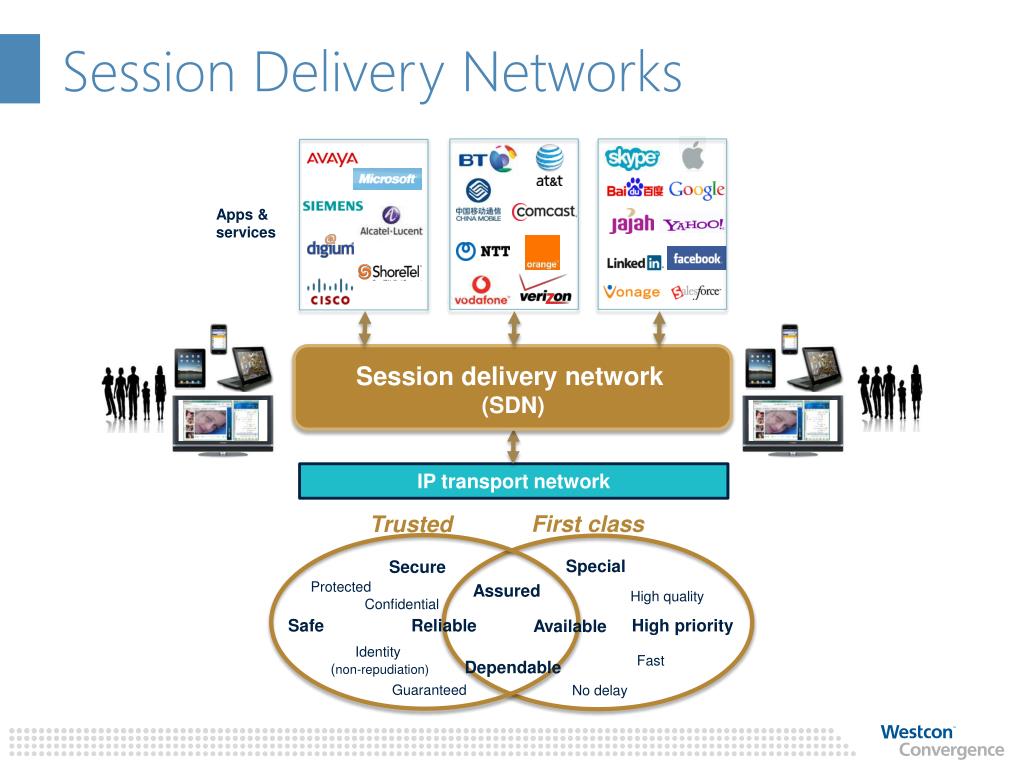

  5. Session Delivery Networks Apps & services Session delivery network (SDN) First class Trusted IP transport network Special Secure Protected Assured High quality Confidential Safe Reliable High priority Available Identity (non-repudiation) Fast Dependable Guaranteed No delay 5

  6. Enterprise Solutions • Enterprise Session Border Controllers • Application Session Controller • Session Recorders • Communications Monitoring and Management

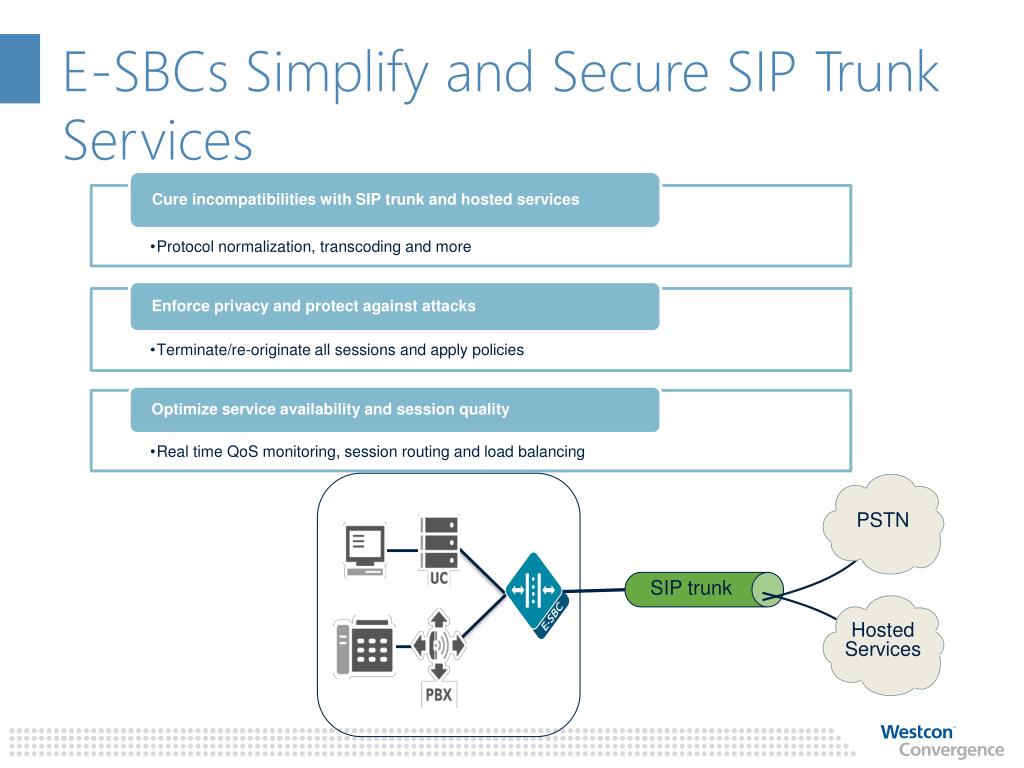

  7. E-SBCs Simplify and Secure SIP Trunk Services PSTN SIP trunk Hosted Services

  8. Secure Access to Cloud Services • Protects IT assets, secures network borders, ensures user confidentiality and privacy • Seamless interoperability with hosted services • Stateful routing and QoS control optimize hosted service availability and performance Enterprise • Cloud Services • Audio conferencing • Video conferencing • Unified communications Internet SIP trunk

  9. E-SBCs Deliver Secure Remote Communications • Encryption and rich authentication features protect privacy and integrity • Transparent NAT/firewall traversal simplify deployment • E.g. Personal Profile Manager support delivers full feature access to Avaya UC services End-to-end security Internet Remote worker Enterprise

  10. Complete E-SBC Product Line Low Capacity Small-med. business Branch / remote office Up to 1,250 users* Mid-Range Medium-large enterprise Small-med contact center Up to 40,000 users* High Capacity Large enterprise Med-large contact center Up to 400,000 users* 4K-80K AP-6300 500-16K Sessions AP-4500 150-8K AP-3820 25-250 AP-VME

  11. Question 3 • Acme Packet SBC Microsoft certified ? • Yes • No

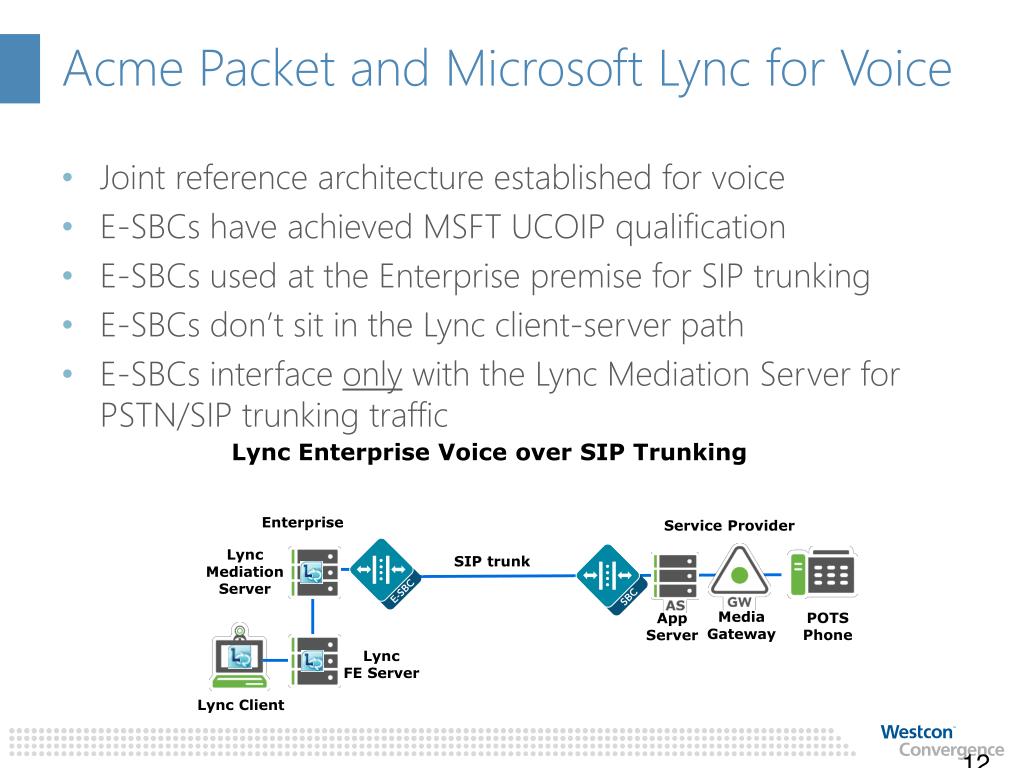

  12. Acme Packet and Microsoft Lyncfor Voice • Joint reference architecture established for voice • E-SBCs have achieved MSFT UCOIP qualification • E-SBCs used at the Enterprise premise for SIP trunking • E-SBCs don’t sit in the Lync client-server path • E-SBCs interface only with the Lync Mediation Server for PSTN/SIP trunking traffic Lync Enterprise Voice over SIP Trunking Enterprise Service Provider Lync Mediation Server SIP trunk Media Gateway POTS Phone App Server Lync FE Server Lync Client

  13. Acme Packet and Microsoft Lync for Video • Interest among customers for integrating existing video systems with MS Lync • E-SBCs interface with Mediation Server for voice but mediation server doesn’t support video • Microsoft video qualification program • Separate track from voice qualification • Three categories defined - endpoints, MCUs and GW (no SBC category as in voice program) • Only Radvision Scopia qualified so far under GW category • To qualify for GW, we need to plug feature gaps • TURN and ICE (MSFT specific) • SIP-H.323 GW • Video transcoding

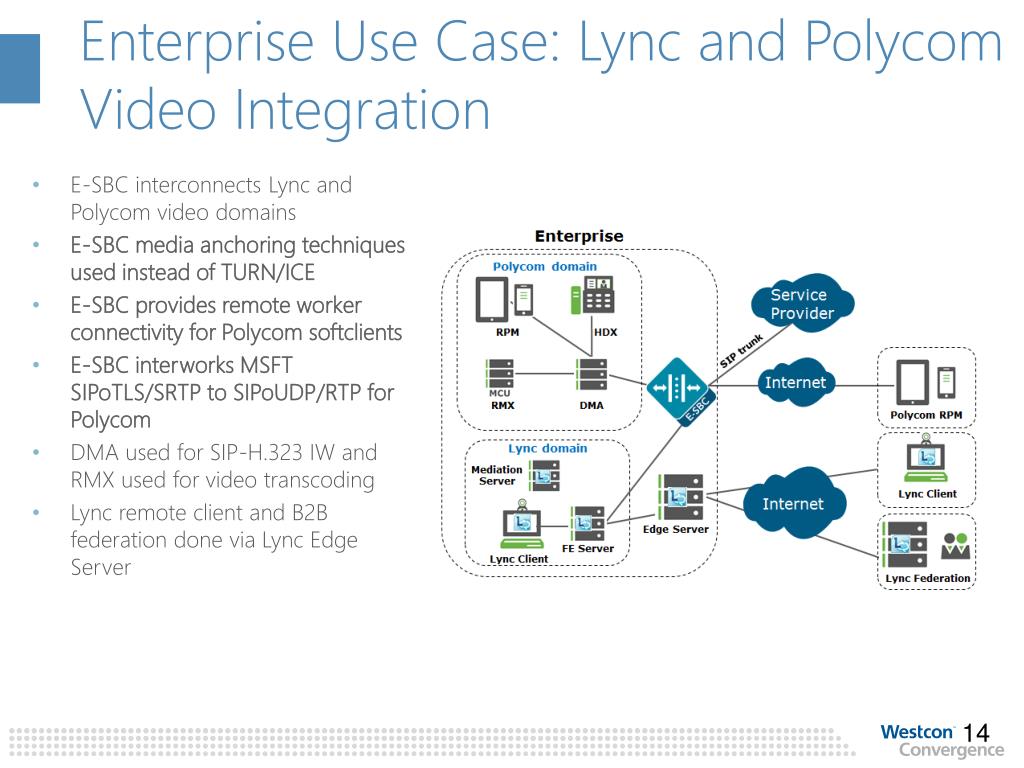

  14. Enterprise Use Case: Lync and PolycomVideo Integration • E-SBC interconnects Lync and Polycom video domains • E-SBC media anchoring techniques used instead of TURN/ICE • E-SBC provides remote worker connectivity for Polycom softclients • E-SBC interworks MSFT SIPoTLS/SRTP to SIPoUDP/RTP for Polycom • DMA used for SIP-H.323 IW and RMX used for video transcoding • Lync remote client and B2B federation done via Lync Edge Server

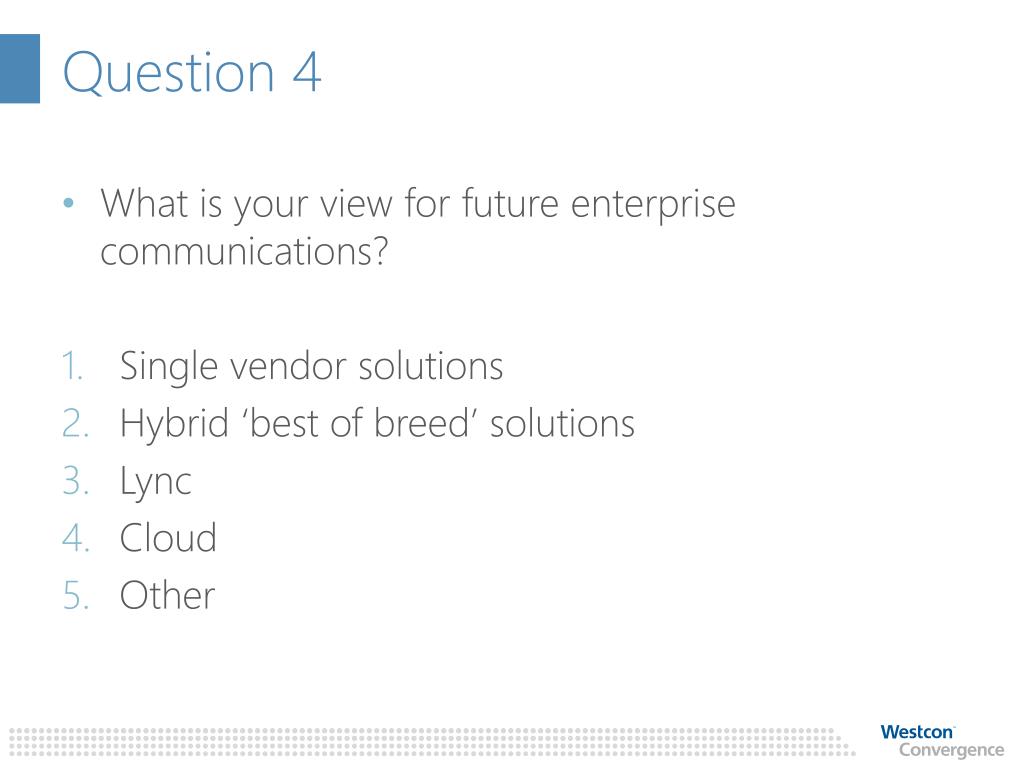

  15. Question 4 • What is your view for future enterprise communications? • Single vendor solutions • Hybrid ‘best of breed’ solutions • Lync • Cloud • Other

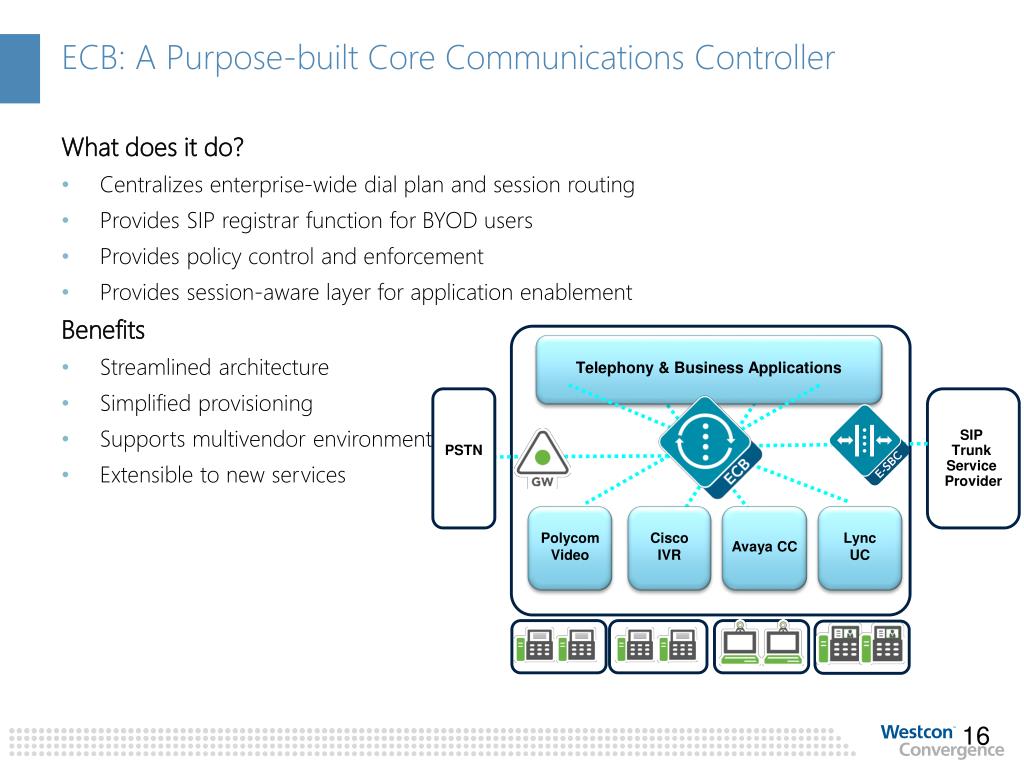

  16. ECB: A Purpose-built Core Communications Controller What does it do? • Centralizes enterprise-wide dial plan and session routing • Provides SIP registrar function for BYOD users • Provides policy control and enforcement • Provides session-aware layer for application enablement Benefits • Streamlined architecture • Simplified provisioning • Supports multivendor environment • Extensible to new services Telephony & Business Applications PSTN SIP Trunk Service Provider Polycom Video Cisco IVR Avaya CC Lync UC

  17. Enterprise Communications Broker • ECB is the optimal solution for • Centralizing enterprise-wide dial plans and routing • Consolidating users, devices, apps & services • Creating an open & extensible communications core Apps & Services Devices Users

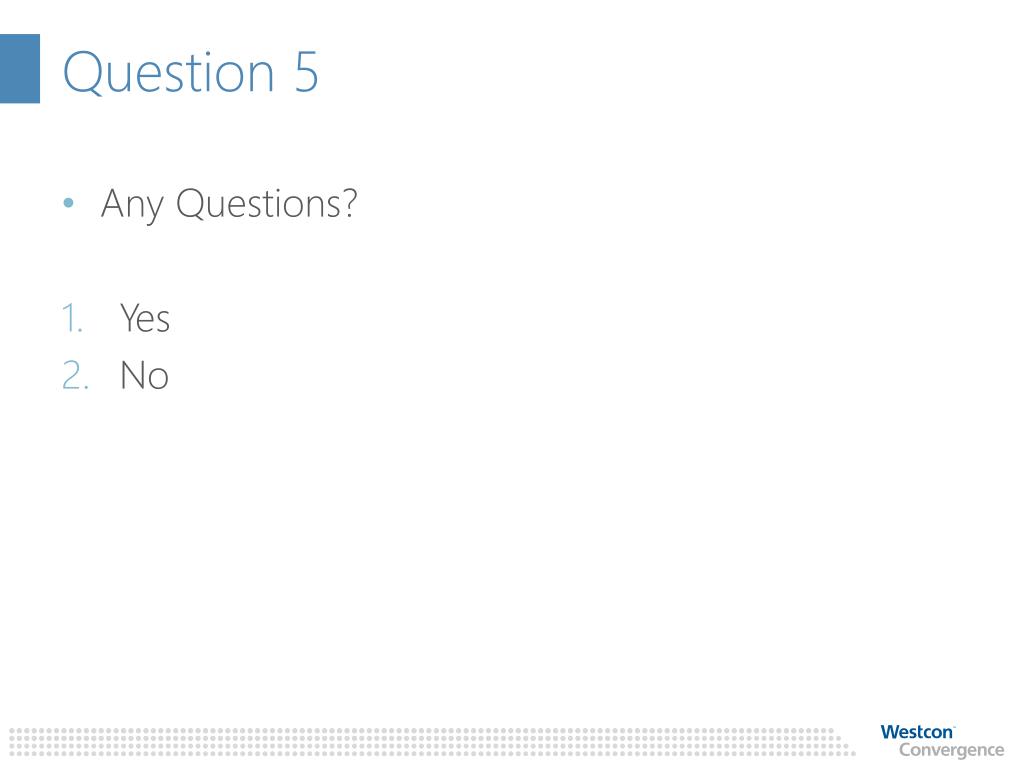

  18. Question 5 • Any Questions? • Yes • No

  19. Thank you!
