  1. ***** SWTJC STEM ***** Program Structure • Structure refers to how the internal parts of programs are put together. • Software is “structured” by design rules that have been adopted and used. • Design rules make structured programs . . . • Easy to write and read • Easy to debug (find  mistakes and errors) • Easy to understand • Easy to modify • Easy to reuse Chapter 5 cg 49

  2. ***** SWTJC STEM ***** Program Structure cont. • Program Structure (cont.) • No one wants an expensive, flashy sports car that stalls in traffic because of poor design. • No one wants a program with a trendy, colorful Windows interface that suddenly crashes with the infamous “blue screen of death”. Chapter 5 cg 49

  3. ***** SWTJC STEM ***** Flow of control is the order in which program statements execute within a method. Flow of Control Three Control Structures • Sequence • Allows you to create a step-by-step process. • Selection (Decision Making) • Allows you to choose which action to take . • Repetition (Loops) • Allows you to execute an action many times. These three structures constitute all that is needed to program any algorithm! Chapter 5 cg 50

  4. Entry Point Step 1 Step 2 Step 3 Step 4 Exit Point ***** SWTJC STEM ***** Flow of ControlSequence Structure Unless otherwise directed, programs proceed in a step by step manner. Note there is one entry point and one exit point. Chapter 5 cg 51

  5. Entry Point Step 1 Step 2 Step 3 Step 4 Exit Point ***** SWTJC STEM ***** Sequence StructureWith a Method Execution Entry Point Step 1 Step 2 Method Step 3 Step 4 Exit Point At step 2 the method is invoked. After completion, execution returns to the next step (step 3 in this case). Chapter 5 cg 51

  6. ***** SWTJC STEM ***** Flow of ControlSelection Construct Choices • One-way selection - Use simple if. • Two-way selection - Use if - else. • Multi-way selection - Use either: • Differing conditions - Useif - else if - else if - .... - else. • Same variable or expression with multiple choices - Useswitch. Chapter 5 cg 52

  7. ***** SWTJC STEM ***** Flow of ControlWith a Selection Structure • Selection structure is handled using aselection statement. • In Java, there are four selection statement constructs: • ifcondition. . . • if condition . . . else • if condition . . . else if . . . else if . . .else • switch . . . case 1condition . . . case 2 condition . . . default • In each case, the condition is based on a Boolean expression that evaluates to either true or false. • Boolean expressions contain Boolean variables, literals (true and false), Boolean relational operators, and logical operators. Chapter 5 cg 52-53

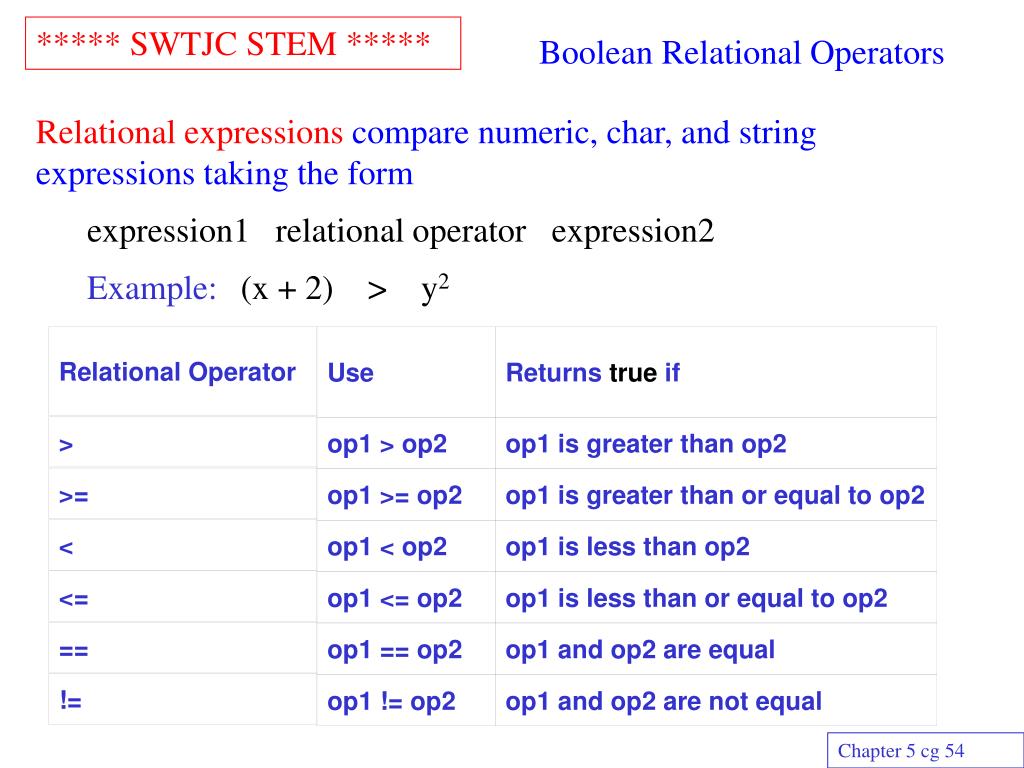

  8. Relational Operator Use Returns true if > op1 > op2 op1 is greater than op2 >= op1 >= op2 op1 is greater than or equal to op2 < op1 < op2 op1 is less than op2 <= op1 <= op2 op1 is less than or equal to op2 == op1 == op2 op1 and op2 are equal != op1 != op2 op1 and op2 are not equal ***** SWTJC STEM ***** • Relational expressions compare numeric, char, and string expressions taking the form • expression1 relational operator expression2 • Example:(x + 2) > y2 Boolean Relational Operators Chapter 5 cg 54

  9. ***** SWTJC STEM ***** Boolean Relational Examples • Note that the relational operator for equality is double equal sign==as distinguished from the assignment operator that is a single equal sign=. • Boolean variables hold Boolean values; i.e.,trueorfalse. • Examples: • boolean lightsOn = true;Declares a Boolean variable lightsOn and assigns it the valuetrue. • int i = 10, j = 5;boolean bValue = (i > j);Boolean expression (i > j)evaluates totrue(iis greater thanj)thena true value is assigned to bValue. Chapter 5 cg 54

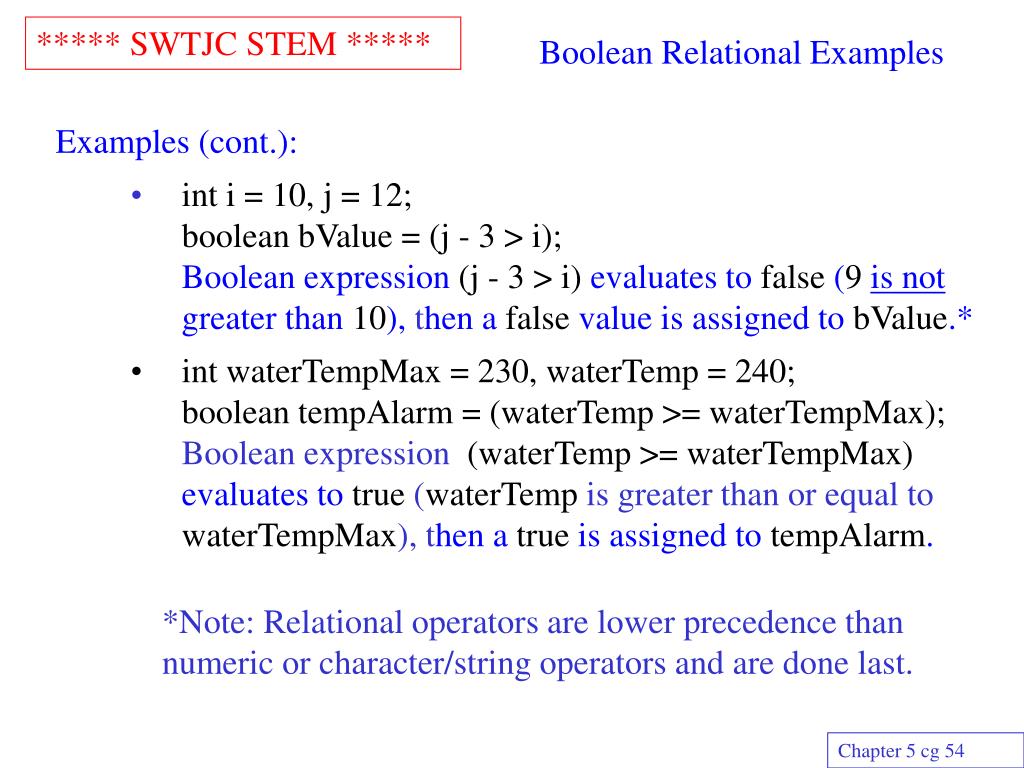

  10. ***** SWTJC STEM ***** • Examples (cont.): • int i = 10, j = 12; boolean bValue = (j - 3 > i);Boolean expression (j - 3 > i)evaluates tofalse(9is notgreater than10),thena false value is assigned to bValue.* • int waterTempMax = 230, waterTemp = 240;boolean tempAlarm = (waterTemp >= waterTempMax);Boolean expression (waterTemp >= waterTempMax)evaluates totrue (waterTemp is greater than or equal to waterTempMax),then atrueis assigned totempAlarm. Boolean Relational Examples *Note: Relational operators are lower precedence than numeric or character/string operators and are done last. Chapter 5 cg 54

  11. ***** SWTJC STEM ***** One-Way Selection Entry Point Inone-way selection, the simpleifstatement appears as if ( relational expression ) executable statement; “Statement” is executed only if “Decision” istrue. Otherwise,execution skips “Statement” and passes to the “Exit Point”. false Decision true Statement Exit Point Chapter 5 cg 55

  12. ***** SWTJC STEM ***** One-Way Selection Example Entry Point false Age<21? Consider this example: “If a person is a minor (under 21 years of age), print the message ‘Youth is a wonderful thing. Enjoy it!’. In any case, print the message, ‘Age is a state of mind.’.” true “Youth is . . .” “Age is . . .” Exit Point Chapter 5 cg 55

  13. ***** SWTJC STEM ***** The Java code from AgeOneWay.java is . . . final int MINOR = 21; int age = 18; if ( age < MINOR) System.out.println(“Youth is a wonderful thing. Enjoy it!”); System.out.println("Age is a state of mind."); . . . One-Way Selection Code Iftrue • Note that the executable part of the ifstatement is indented to indicate it is governed by the ifstatement. • The indentation is strictly for human readability! Only the first executable line after the if is governed by the if. See the red bracket above. Chapter 5 cg 55

  14. Decision ***** SWTJC STEM ***** Two-Way Selection In two-way selection, the if-elsestatement permits execution of different statements for true andfalse. It appears as if ( relational expression ) executable statement - true; else executable statement-false; “Step 2T” is executed only if “Decision” istrue, while “Step 2F” is executed only if “Decision” is false. Entry Point Step 1 false true Step 2T Step 2F Exit Point Chapter 5 cg 56

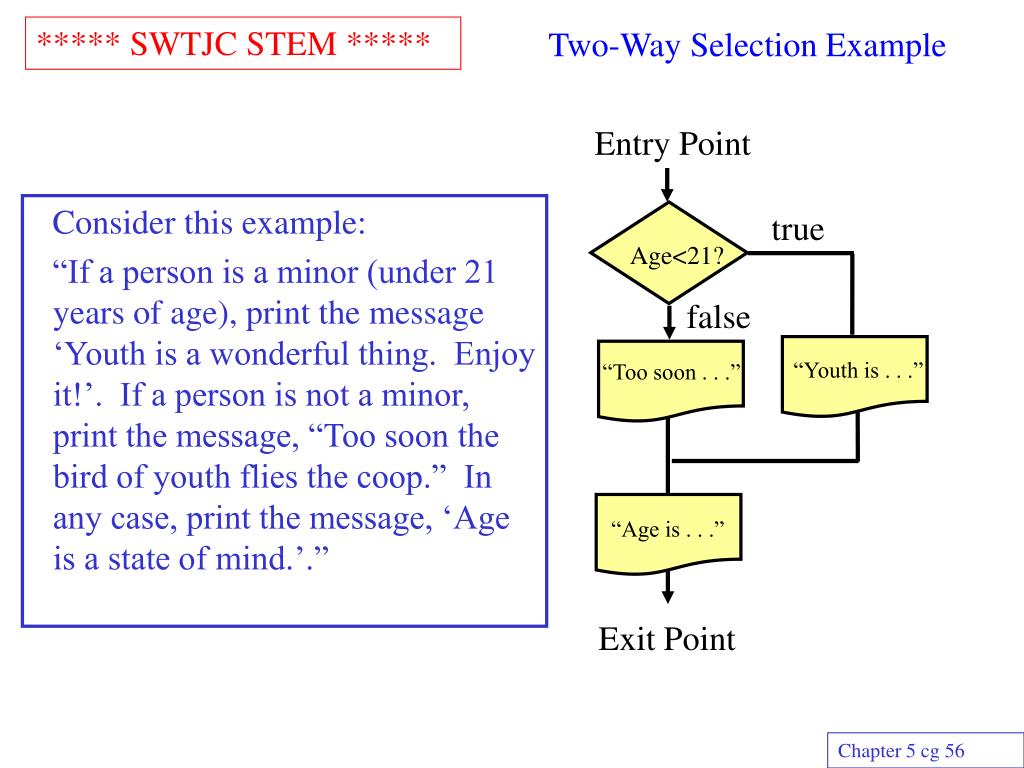

  15. ***** SWTJC STEM ***** Entry Point Two-Way Selection Example Consider this example: “If a person is a minor (under 21 years of age), print the message ‘Youth is a wonderful thing. Enjoy it!’. If a person is not a minor, print the message, “Too soon the bird of youth flies the coop.” In any case, print the message, ‘Age is a state of mind.’.” true Age<21? false “Youth is . . .” “Too soon . . .” “Age is . . .” Exit Point Chapter 5 cg 56

  16. ***** SWTJC STEM ***** From AgeTwoWay.java, . . . final int MINOR = 21; int age = 18; if ( age < MINOR) System.out.println(“Youth is a wonderful thing. Enjoy it!”); else System.out.println(“Too soon the bird of youth flies the coop!”); System.out.println("Age is a state of mind."); . . . Two-Way SelectionCode If true If false Note that the executable part of the ifandelsestatements are single lines and indented for readability to indicate they are governed by the ifstatement. Chapter 5 cg 56

  17. Decision ***** SWTJC STEM ***** When more than one statement appears in an if-else structure use braces { } to define a block. It appears as if ( relational expression ) { executable statement 2t; executable statement 3t; . . . } else { executable statement 2f; executable statement 3f; . . . } Entry Point Multi-statement Selection Step 1 true false ex.st 2f ex.st 2t ex.st 3t ex.st 3f Exit Point Chapter 5 cg 56

  18. ***** SWTJC STEM ***** Multi-Statement Example Entry Point Consider this problem: “A segment of code is used to increment a variable named num. However, when num reaches 100, instead of incrementing it is reset to zero. An appropriate message is output for each situation.” true num<100? false num = 0 num = num +1 “num is reset” “num is . . .” Exit Point Chapter 5 cg 56

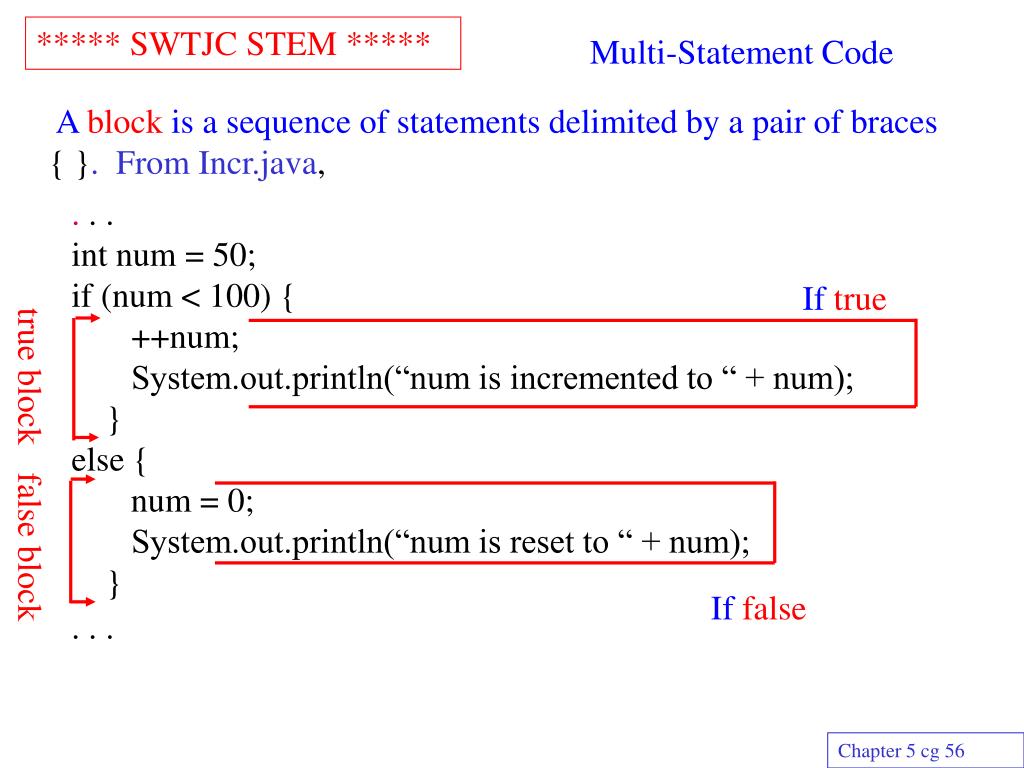

  19. ***** SWTJC STEM ***** Ablockis a sequence of statements delimited by a pair of braces{ }. From Incr.java, Multi-Statement Code . . . int num = 50; if (num < 100) { ++num; System.out.println(“num is incremented to “ + num); } else { num = 0; System.out.println(“num is reset to “ + num); } . . . If true true block false block If false Chapter 5 cg 56

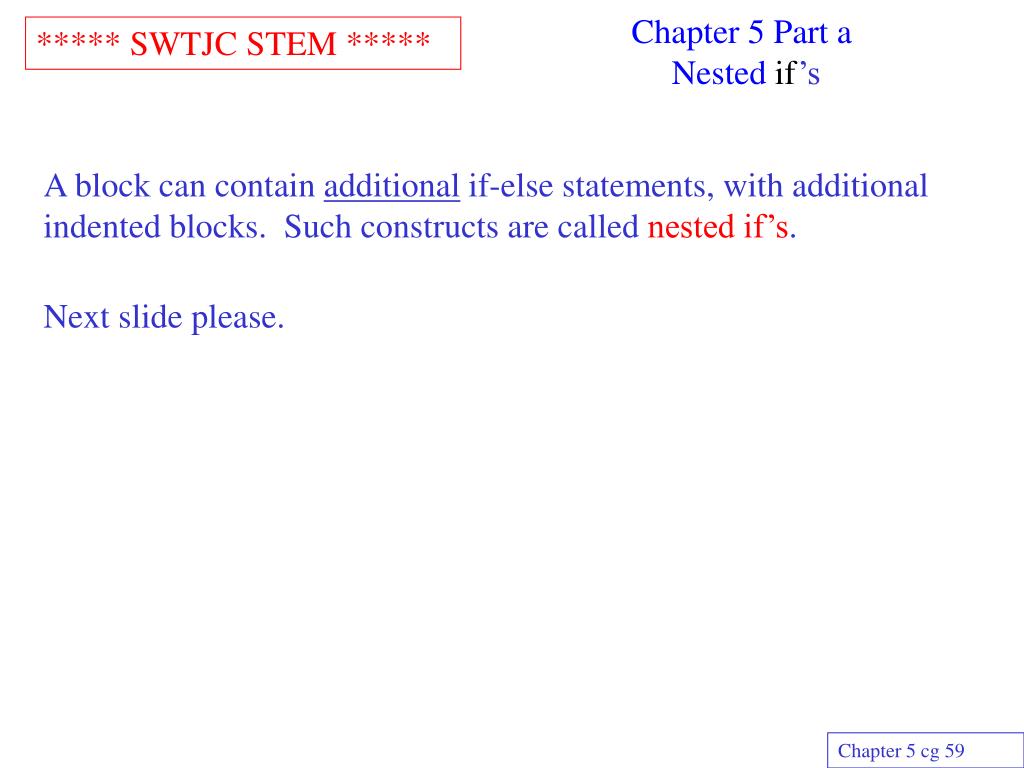

  20. ***** SWTJC STEM ***** Chapter 5 Part a Nested if’s • A block can contain additional if-else statements, with additional indented blocks. Such constructs are called nested if’s. • Next slide please. Chapter 5 cg 59

  21. ***** SWTJC STEM ***** • Consider the problem: • “If the temperature is 80 degrees or greater and the humidity is greater than 60%, most people find it uncomfortably warm. If the temperature is greater than 80 degrees and the humidity is 60% or less, most people find it warm, but not uncomfortable. Temperatures below 80, regardless of humidity, are comfortable. Create a program segment that represents this situation.” Nested if’s Entry Point true T<80? false Comfortable true H≤60? false Warm but Uncomfortable Warm and uncomfortable Nested if Exit Point Chapter 5 cg 59

  22. Nested if ***** SWTJC STEM ***** • From AgeOneWay.java, • . . . • if (temperature < 80) { • return “T = “ + Int.toString( temperature) + • “, H= “ + Int.toString(humidity) + • “: It's comfortable."; • } • else { • if (humidity <= 60) • { • return “T = “ + Int.toString( temperature) + • “, H= “ + Int.toString(humidity) + “: It's warm, but comfortable."; • } • else { • return “T = “ + Int.toString( temperature) + • “, H= “ + Int.toString(humidity) + • “: It's warm and uncomfortable!"; • } • } Nested if’s Chapter 5 cg 59

  23. ***** SWTJC STEM ***** Comfort Object (UML) Comfort ---------------------------------------------------- temperature: int humidity: int ---------------------------------------------------- setTemperature (int value): void getTemperature( ): int setHumidity (double int): void getHumidity( ): int isComfortable: boolean toString( ): String Class Attributes Methods Unified Modeling Language (UML) Diagram. Chapter 5 cg 59

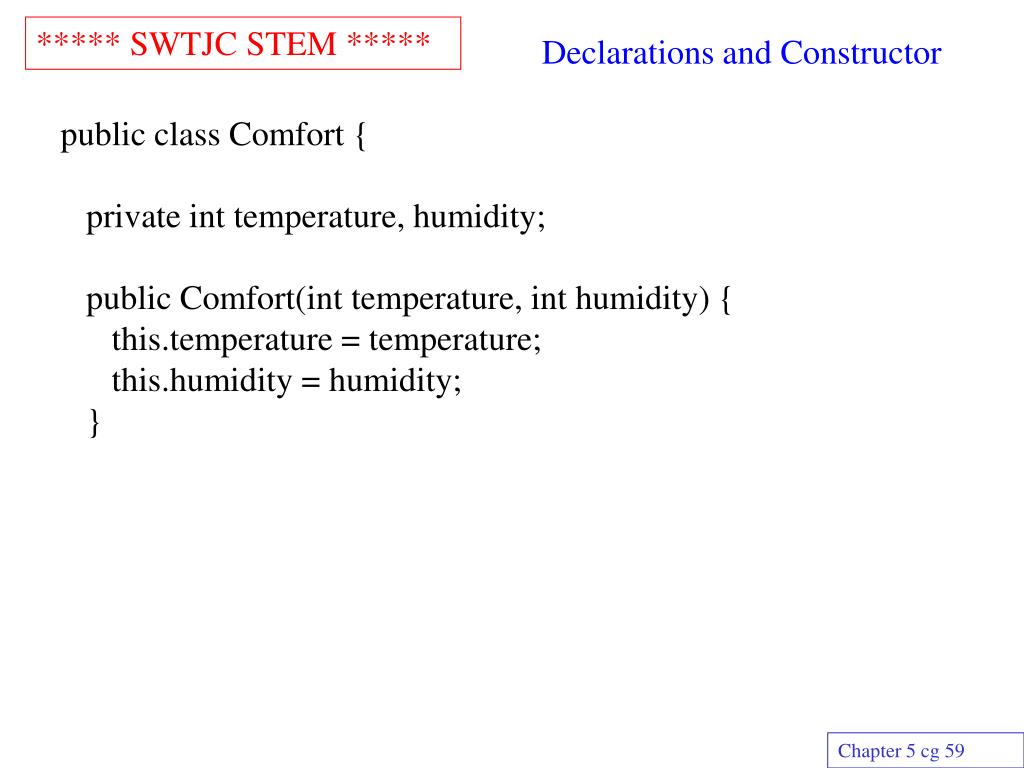

  24. ***** SWTJC STEM ***** • public class Comfort { • private int temperature, humidity; • public Comfort(int temperature, int humidity) { • this.temperature = temperature; • this.humidity = humidity; • } Declarations and Constructor Chapter 5 cg 59

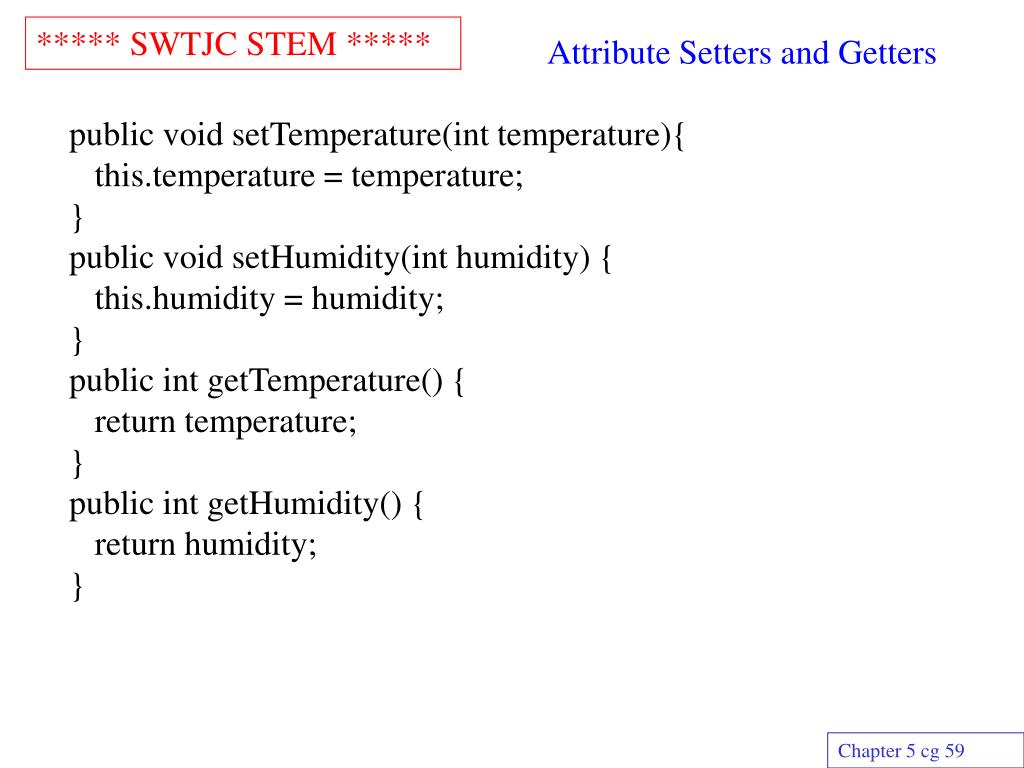

  25. ***** SWTJC STEM ***** • public void setTemperature(int temperature){ • this.temperature = temperature; • } • public void setHumidity(int humidity) { • this.humidity = humidity; • } • public int getTemperature() { • return temperature; • } • public int getHumidity() { • return humidity; • } Attribute Setters and Getters Chapter 5 cg 59

  26. ***** SWTJC STEM ***** • public boolean isComforatble( ) { • if (temperature < 80) { • return true; • } • else { • if (humidity <= 60) { • return true; • } • else { • return false; • } • } • } isComfortable Check true T<80? false Comfortable true H≤60? false Warm but Uncomfortable Warm and uncomfortable Chapter 5 cg 59

  27. ***** SWTJC STEM ***** • public String toString () { • if (temperature < 80) { • return "T = " + Integer.toString(temperature) + • ", H = " + Integer.toString(humidity) + • ": It's comfortable."; • } • else { • if (humidity <= 60) { • return "T = " + Integer.toString(temperature) + • ", H = " + Integer.toString(humidity) + • ": It's warm, but comfortable."; • } • else { • return "T = " + Integer.toString(temperature) + • ", H = " + Integer.toString(humidity) + • ": It's warm and uncomfortable!"; • } • } • } toString Method Chapter 5 cg 59
