Presentation Transcript


  1. Science Says……How Olympians Have Changed • http://www.cbc.ca/sochi2014/sciencesays/video/the-science-of-stretching-and-warming-up

  2. Learning goals: • By the end of class, I will be able to: • Write the formula AND name the chemical formula for ionic compounds • Recognize multivalent elements on the periodic table • Write the formula AND name multivalent compounds

  3. RECAP: What do we know about ionic compounds??? • Ionic compounds exist between a metal and non-mental • The overall charge of an ionic compound is 0. • To name ionic compound, write the metal first and the non-metal second, change the ending of the non-metal to “ide”

  4. Review Naming & Writing Univalent Ionic Compounds • MgS • NaCl • Al2O3 • Calcium sulphide • Zinc phosphide • Calcium iodide • Potassium fluoride

  5. Challenge #1 – Complete with a Partner • Are the following ionic compounds possible? Explain why or why not. • (a) Ca2P3 • (b) LiI • (c) NaBr

  6. Crisscross Rule for Writing Formulas Step 1: Write the symbols of each element (remember to write the symbol for the metal first) Step 2: Write the ion charge above each corresponding symbol. Remember that the ion charge is based on the number of electrons gained (negative) OR lost (positive) to become an ion. Step 3: Crisscross the ion charges, erase the signs of each ion charge, and write them as subscripts

  7. Examples of Writing Formulas • Write the correct formula for a compound of aluminum and sulphur • (a) 3+ 2- Al S = Al2S3

  8. Examples of Writing Formulas • Write the correct formula for a compound of barium and oxygen • (b) 2+ 2- Ba O = Ba2O2 Note: If you need the same number of each ion, you can reduce the formula to one of each ion, as shown here. = BaO

  9. Challenge #2 – Complete with a Partner • What do you do if an ion has two or more possible charges? • Give examples to support your answer.

  10. Multivalent Elements • A metal that can form an ion in more than one way • Which elements in the periodic table have more than one ionic charge? • the name of an ion of a multivalent metal ALWAYS contains a Roman numeral that indicates the ion charge • ONLY multivalent metals have Roman numerals!!! Eg: Copper 1+ is named copper (I) Copper 2+ is named copper (II)

  11. Multivalent Compounds • The roman numeral indicates the ionic charge of the multivalent metal Eg: Copper (II) chloride 2+ 1- Copper (II) chlorine CuCl2

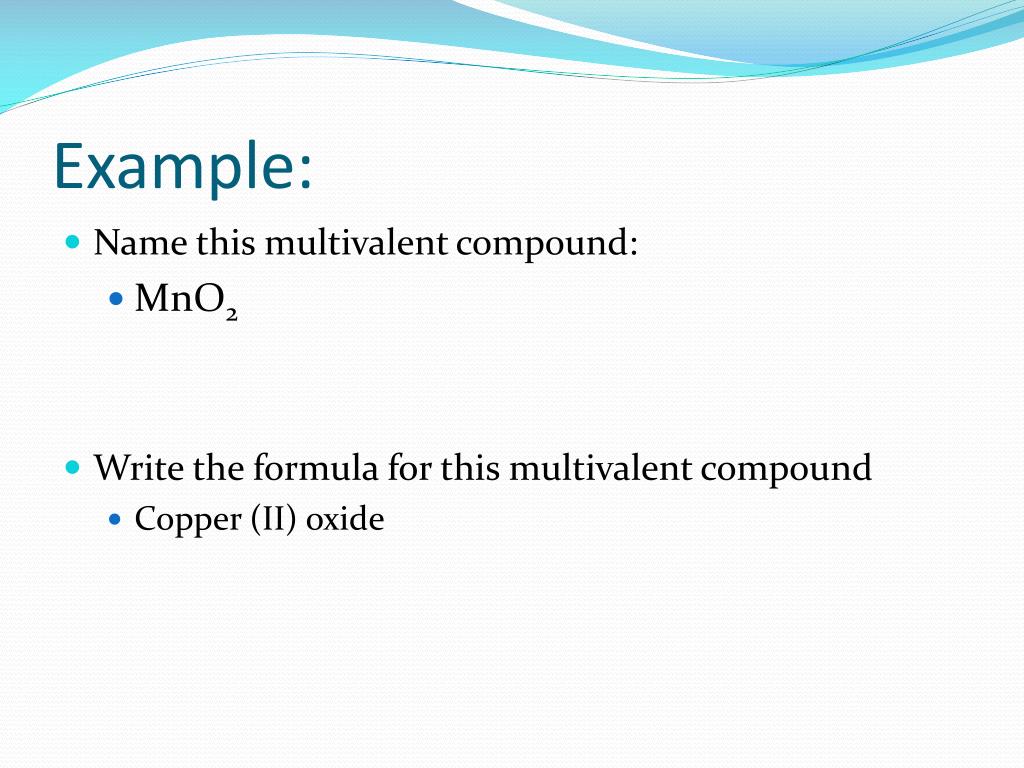

  12. Example: • Name this multivalent compound: • MnO2 • Write the formula for this multivalent compound • Copper (II) oxide

  13. Practice Naming & Writing Multivalent Ionic Compounds Platinum(IV) oxide Iron(III) sulfide Copper(I) oxide • TiF4 • Cr3P2 Sn3N4

  14. Stump your partner • On a sheet of paper, write down the chemical formula or name of 10 compounds • 5 should be ionic compounds • 5 should be multivalent ionic compounds • Switch papers with a partner and see if you can name or write the formula for their compounds!

  15. Magnesium Oxide • Aluminum Oxide Potassium Chloride Sodium Bromide • Lithium Oxide • Nickel (II) Phosphide • Zinc Oxide • Mercury (I) Oxide Cobalt (II) Oxide Iridium Nitride •  Li2O •  CaBr2 •  Ni3N2 KI • SnBr4 •  Al2S3 •  Cd3N2 •  Fe203 • CuCl • AuF
