Jefferson Method Example

Populations 56, 35, 26, 15, 6 Total population p = 138 House size h = 200 Standard divisor s = p/h = .69. Jefferson Method Example. Total: 197. ← must fill 3 seats. 10. 9 p 5. 8. p 5 bumped by 1 when s reaches 0.667. .667. ← s →. .690. What happens to p 5 as we lower s?. 23.

chadwick-stokes
Télécharger la présentation

Jefferson Method Example

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

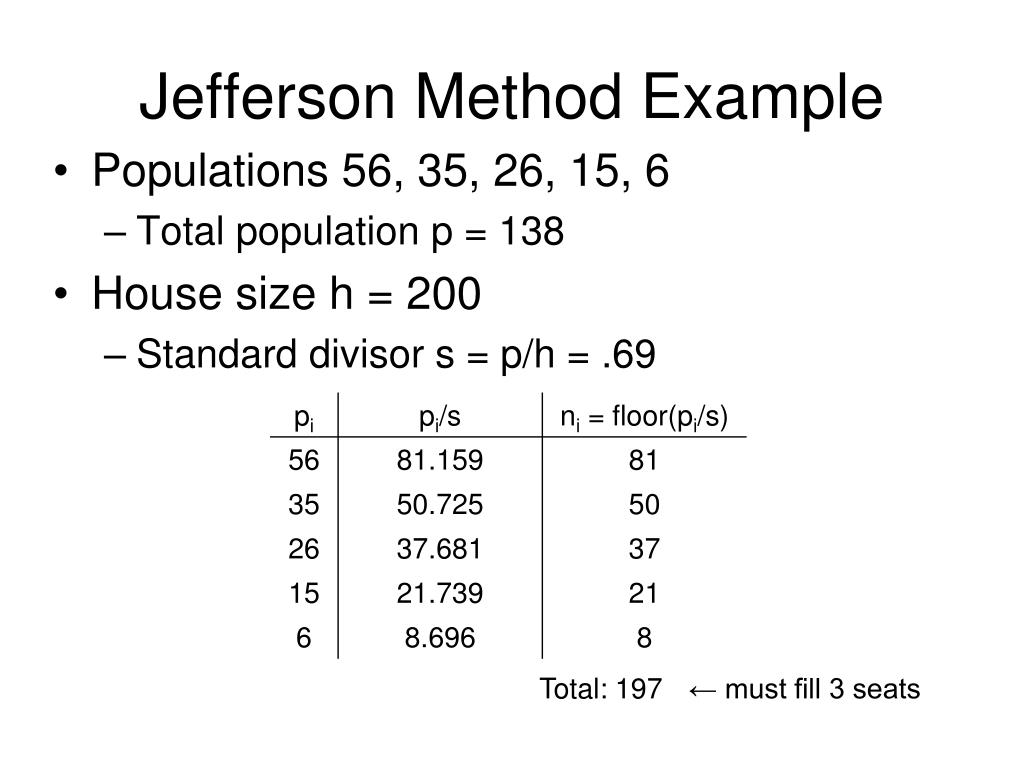

  1. Populations 56, 35, 26, 15, 6 Total population p = 138 House size h = 200 Standard divisor s = p/h = .69 Jefferson Method Example Total: 197 ← must fill 3 seats

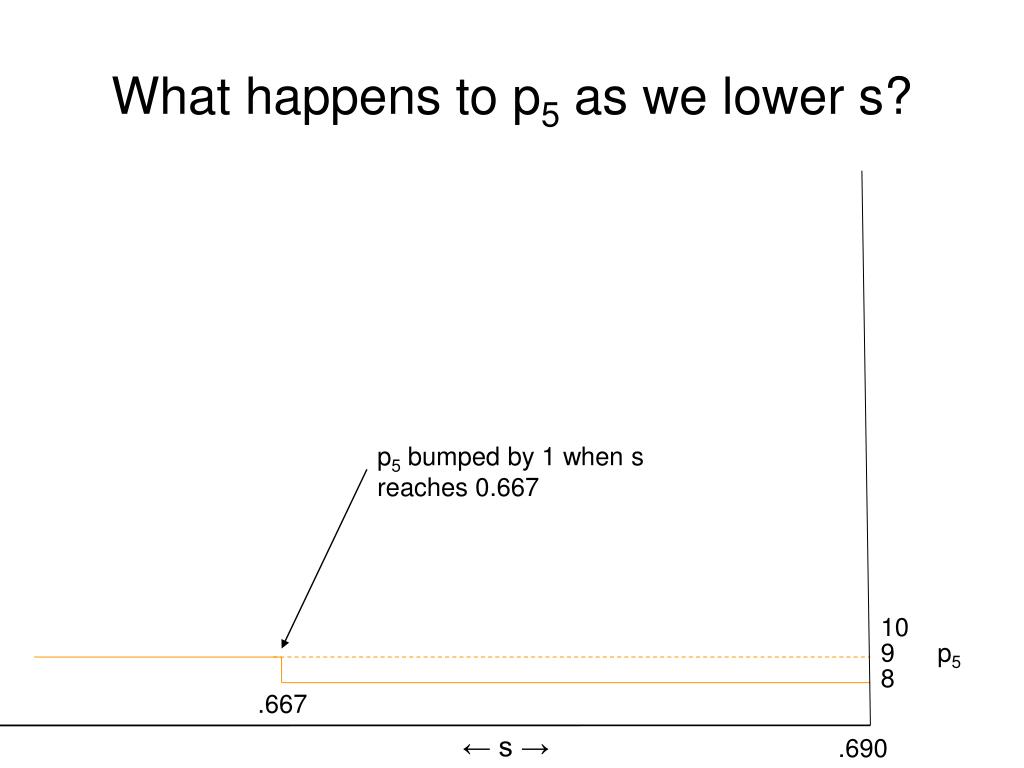

  2. 10 9 p5 8 p5 bumped by 1 when s reaches 0.667 .667 ← s → .690 What happens to p5 as we lower s?

  3. 23 10 22 p4 9 p5 21 8 p4 bumped up at these two s values .652 .682 .667 What happens to p4 as we lower s? ← s → .690

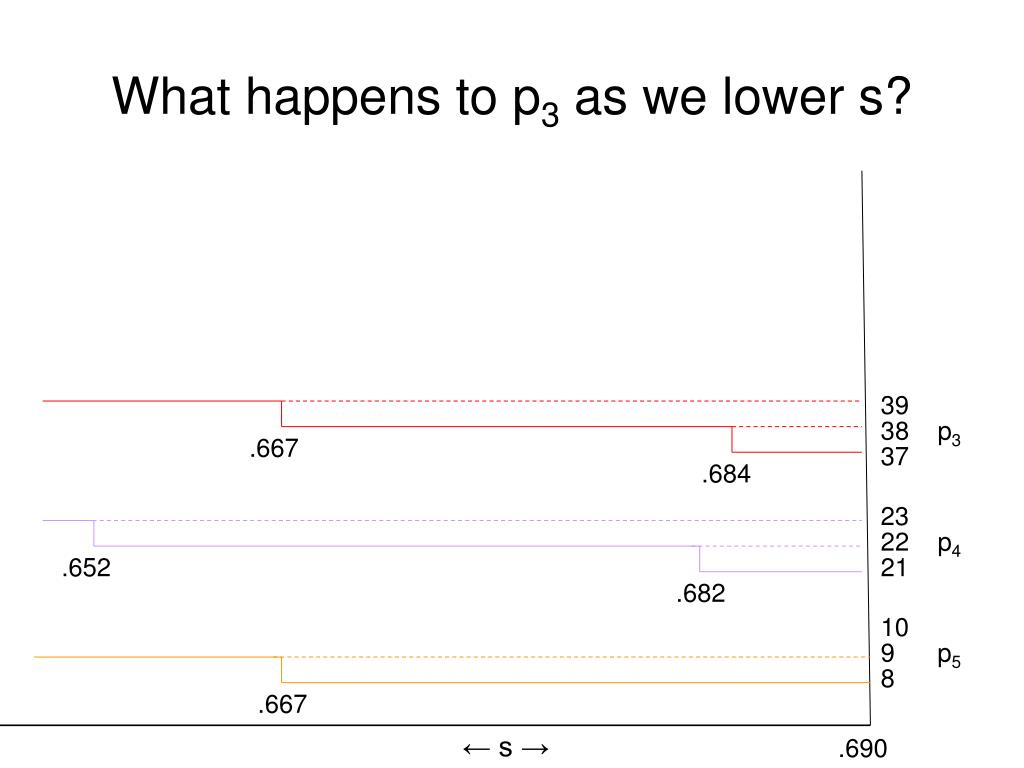

  4. 39 23 10 9 p5 38 p3 22 p4 21 8 37 .667 .684 .652 .682 .667 What happens to p3 as we lower s? ← s → .690

  5. 10 52 23 39 9 p5 22 p4 51 p2 38 p3 8 21 37 50 .673 .667 .684 .652 .682 .667 What happens to p2 as we lower s? .686 ← s → .690

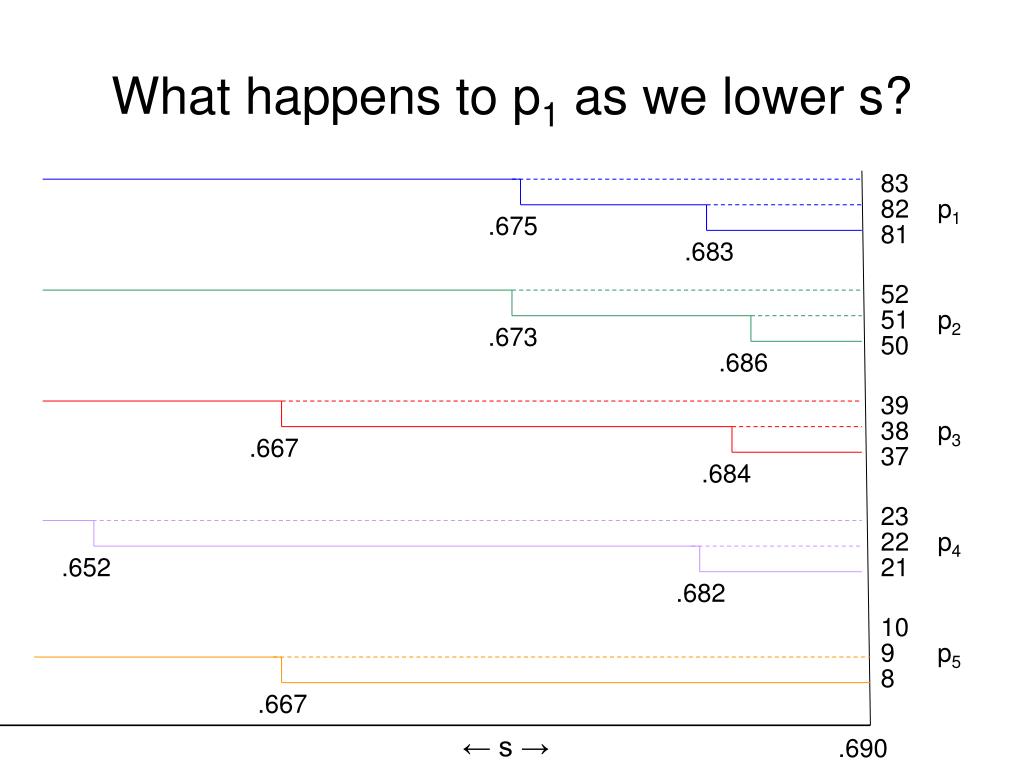

  6. .675 10 39 52 23 83 51 p2 82 p1 38 p3 22 p4 9 p5 8 81 21 37 50 .673 .667 .684 .652 .682 .667 What happens to p1 as we lower s? .683 .686 ← s → .690

  7. .675 10 39 52 23 83 51 p2 82 p1 38 p3 22 p4 9 p5 8 81 21 37 50 .673 .667 .684 .652 .682 .667 Since we need 3 more seats, the first three that are bumped up get the seats .683 .686 ← s → .690

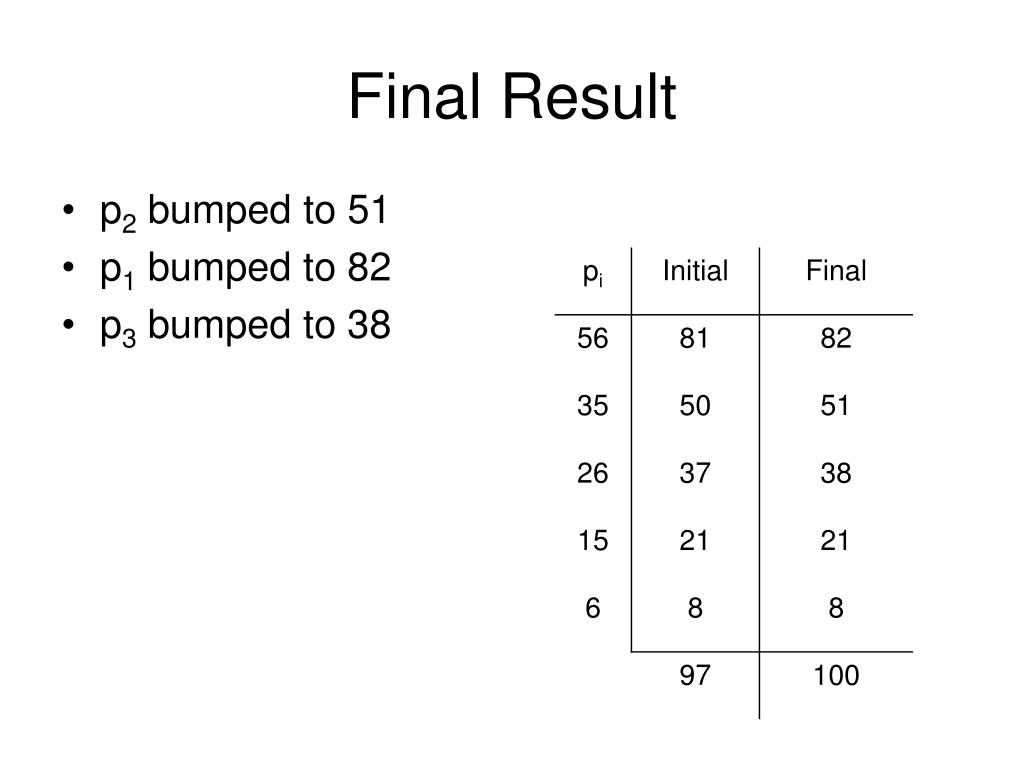

  8. Final Result • p2 bumped to 51 • p1 bumped to 82 • p3 bumped to 38

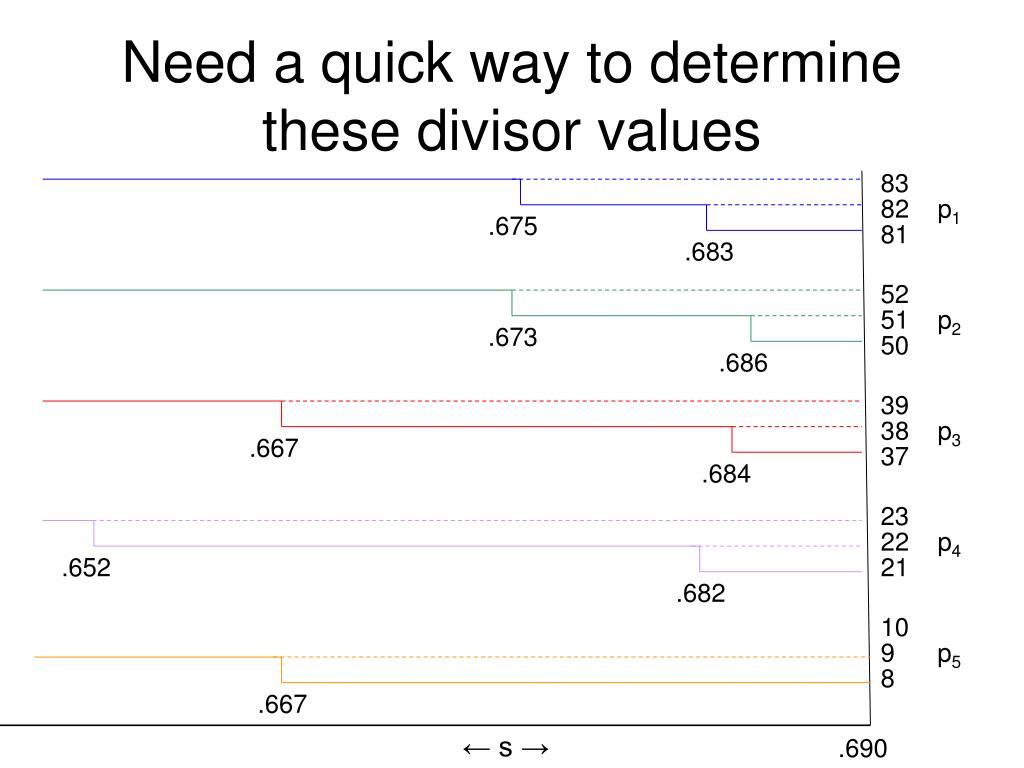

  9. .675 10 39 52 23 83 51 p2 82 p1 38 p3 22 p4 9 p5 8 81 21 37 50 .673 .667 .684 .652 .682 .667 Need a quick way to determine these divisor values .683 .686 ← s → .690

  10. .675 10 39 52 23 83 51 p2 82 p1 38 p3 22 p4 9 p5 8 81 21 37 50 .673 .667 .684 .652 .682 .667 p1, with population 56, gets a bump to 82 when s = 56/82 .683 .686 ← s → .690

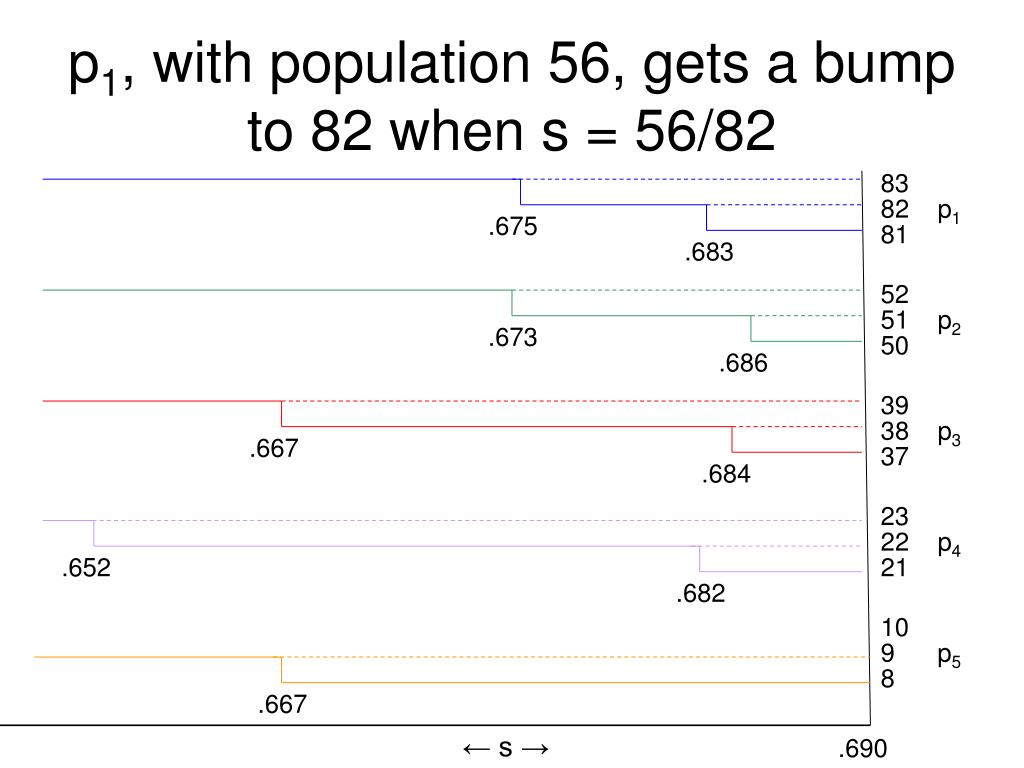

  11. .675 10 39 52 23 83 51 p2 82 p1 38 p3 22 p4 9 p5 8 81 21 37 50 .673 .667 .684 .652 .682 .667 p1, with population 56, gets a bump to 82 when s = 56/82 56/82 .686 ← s → .690

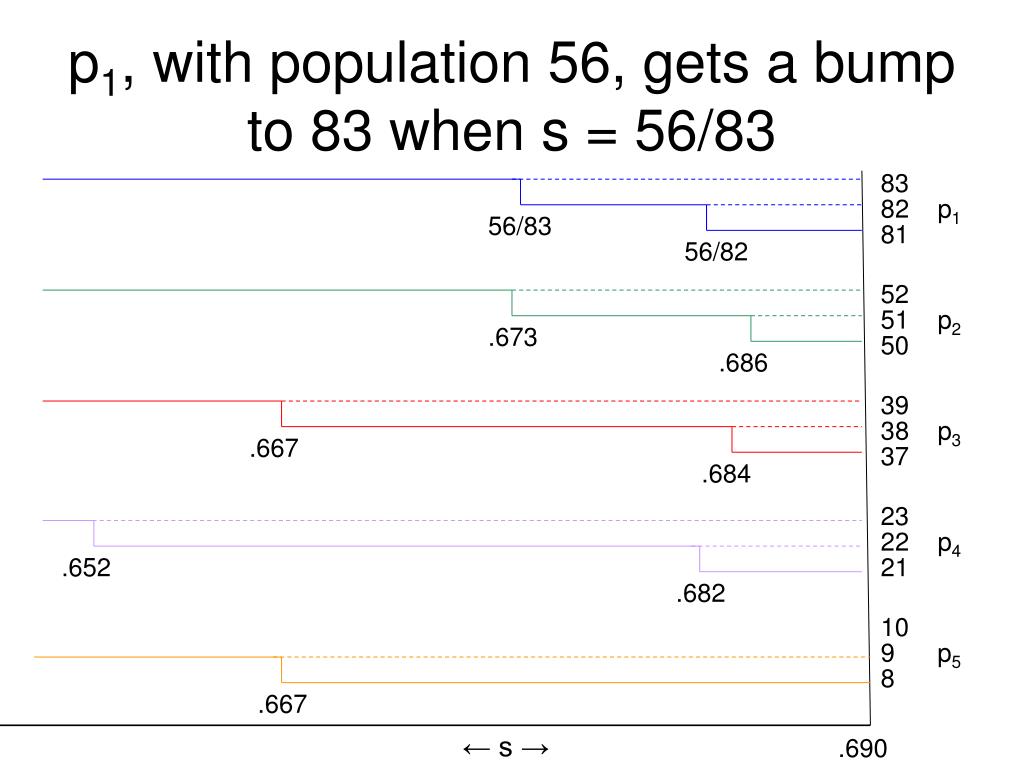

  12. 56/83 10 83 52 23 39 56/82 9 p5 22 p4 51 p2 82 p1 38 p3 81 8 50 37 21 .673 .667 .684 .652 .682 .667 p1, with population 56, gets a bump to 83 when s = 56/83 .686 ← s → .690

  13. 56/83 10 83 52 23 39 56/82 9 p5 22 p4 51 p2 82 p1 38 p3 81 8 50 37 21 .673 .667 .684 .652 .682 .667 p2, with population 35, gets a bump to 51 when s = 35/51 35/51 ← s → .690

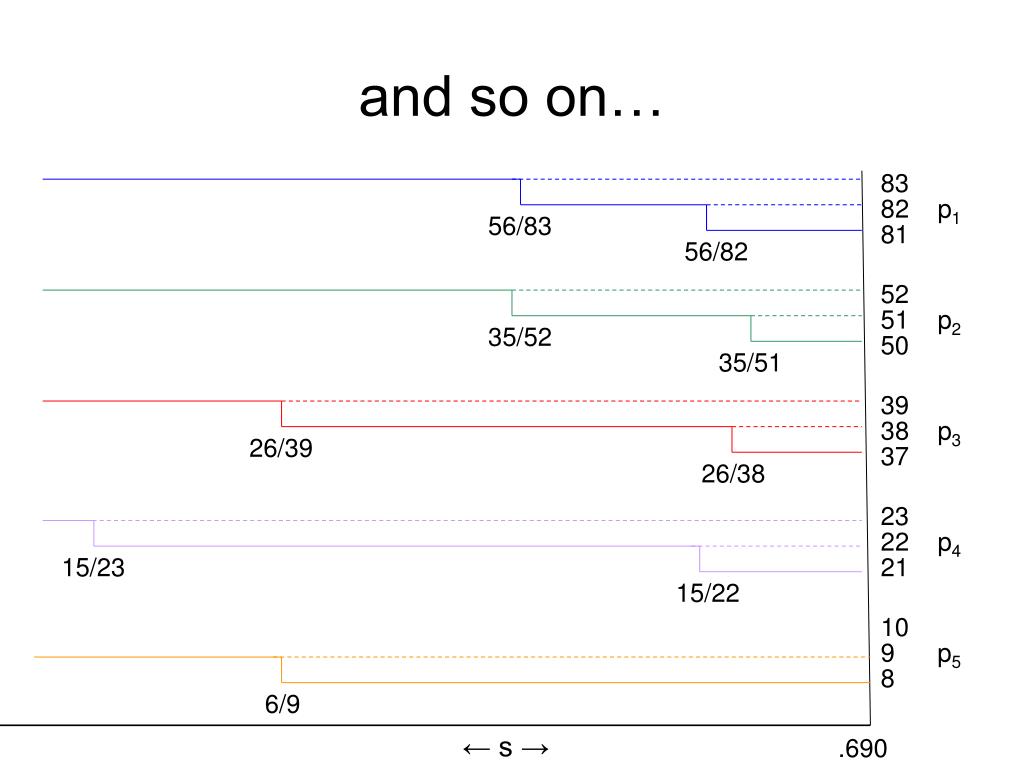

  14. 56/83 10 83 52 23 39 56/82 9 p5 22 p4 51 p2 82 p1 38 p3 81 8 50 37 21 35/52 35/51 26/39 26/38 15/23 15/22 and so on… 6/9 ← s → .690

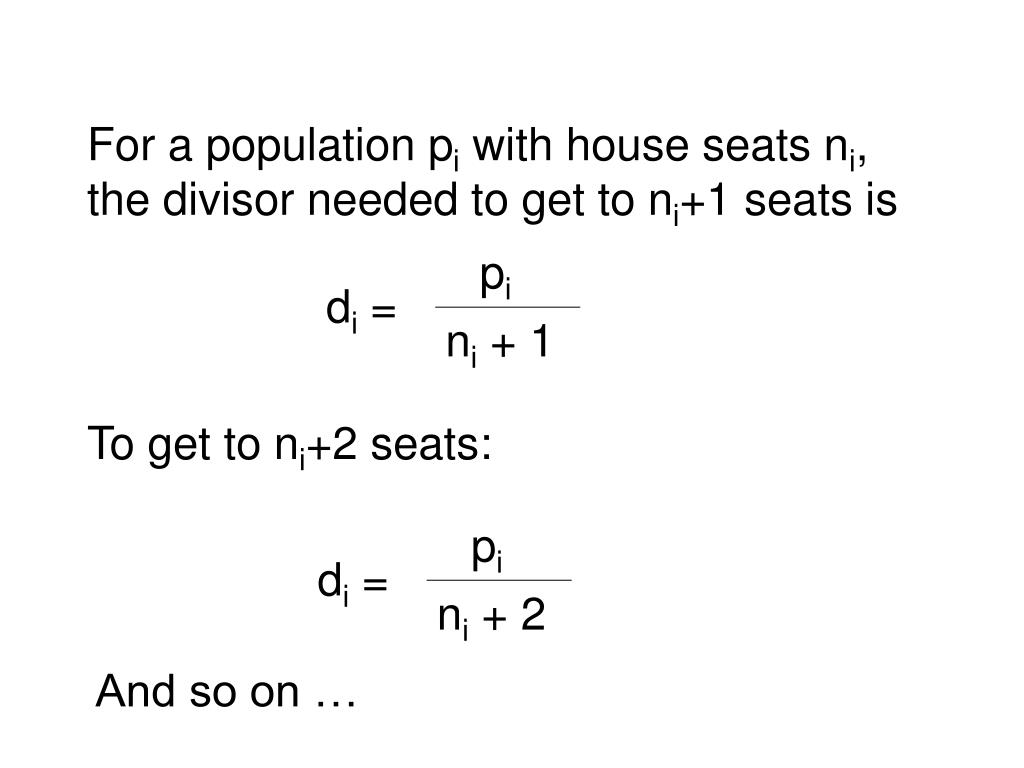

  15. pi pi di = di = ni + 1 ni + 2 For a population pi with house seats ni, the divisor needed to get to ni+1 seats is To get to ni+2 seats: And so on …

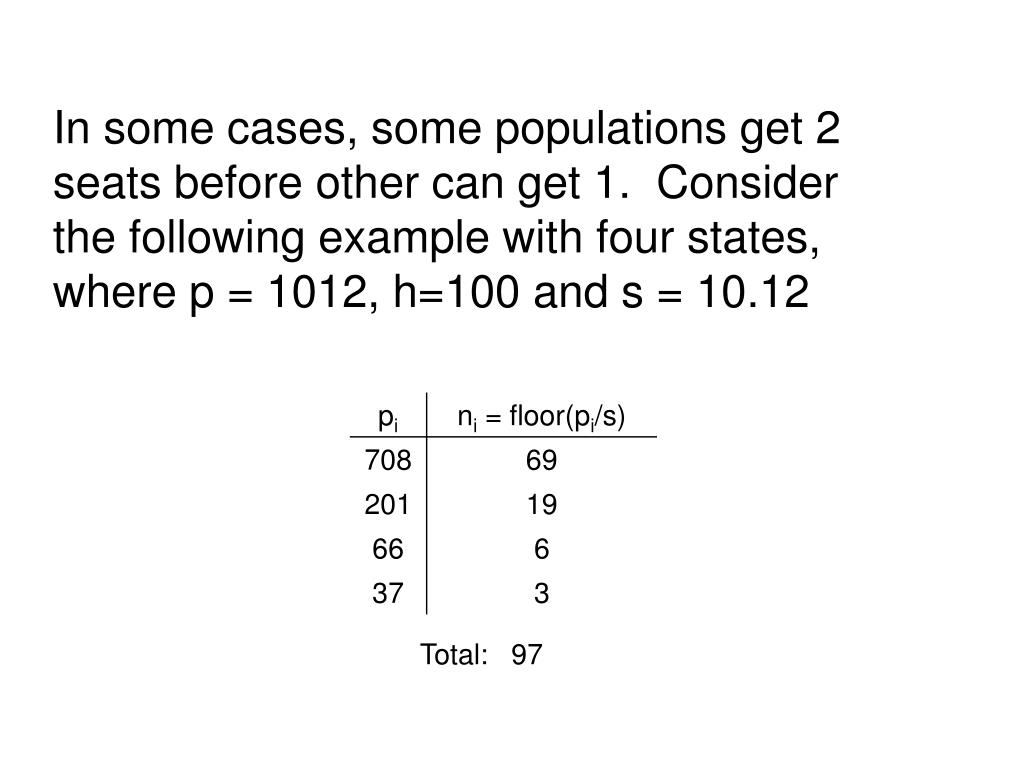

  16. In some cases, some populations get 2 seats before other can get 1. Consider the following example with four states, where p = 1012, h=100 and s = 10.12 Total: 97

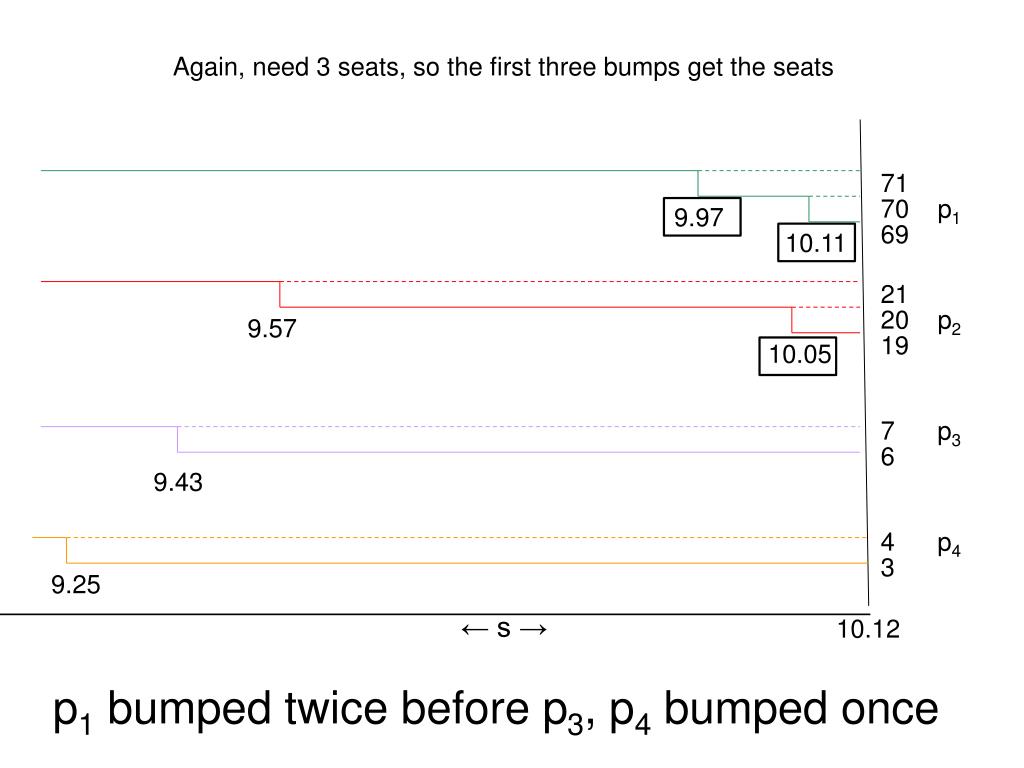

  17. 71 21 70 p1 4 p4 20 p2 7 p3 69 19 6 3 9.97 10.11 9.57 10.05 9.43 9.25 ← s → 10.12 Again, need 3 seats, so the first three bumps get the seats p1 bumped twice before p3, p4 bumped once

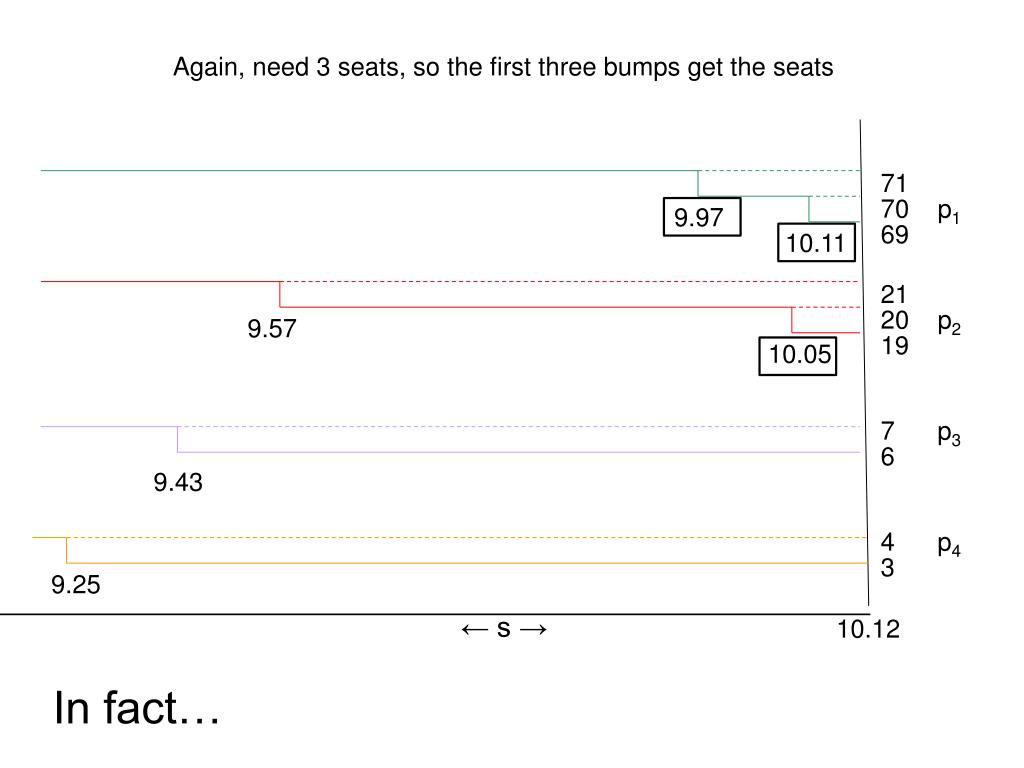

  18. 71 21 70 p1 4 p4 20 p2 7 p3 69 19 6 3 9.97 10.11 9.57 10.05 9.43 9.25 ← s → 10.12 Again, need 3 seats, so the first three bumps get the seats In fact…

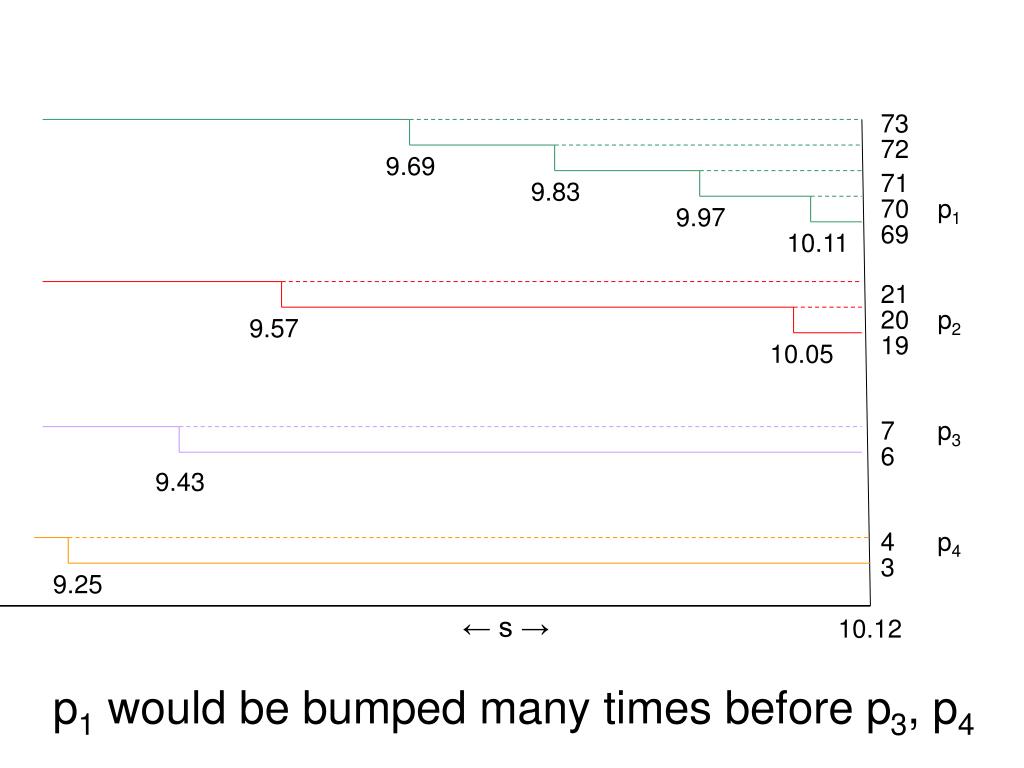

  19. 73 72 9.69 9.83 9.97 10.11 21 71 20 p2 70 p1 7 p3 4 p4 19 6 3 69 9.57 10.05 9.43 9.25 ← s → 10.12 p1 would be bumped many times before p3, p4

  20. Final Result • p1 bumped twice to 71 • p2 bumped to 20

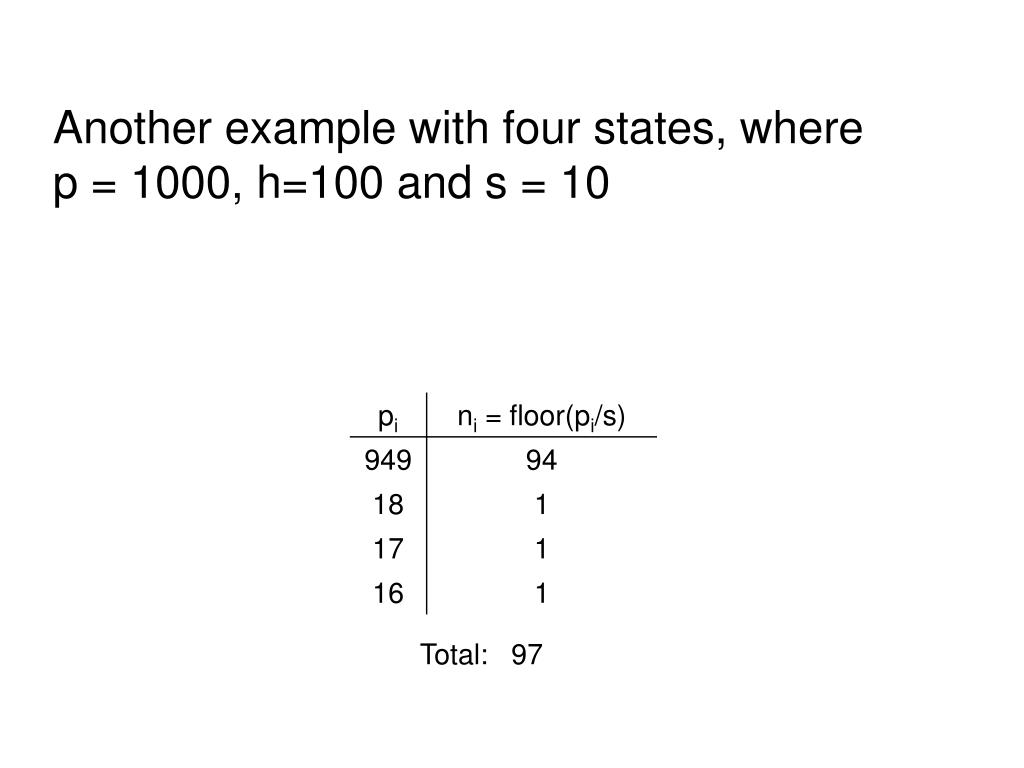

  21. Another example with four states, where p = 1000, h=100 and s = 10 Total: 97

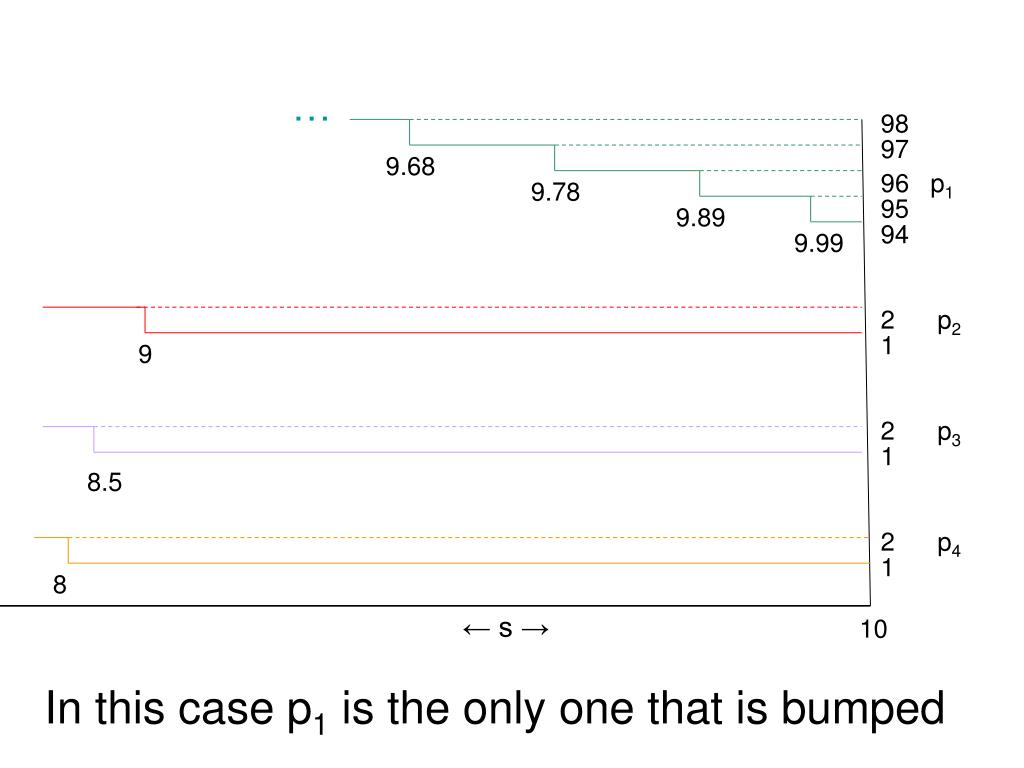

  22. 96 p1 95 2 p2 2 p3 2 p4 94 1 1 1 … 98 97 9.68 9.78 9.89 9.99 9 8.5 8 ← s → 10 In this case p1 is the only one that is bumped

  23. Final Result • p1 bumped three times to 97
