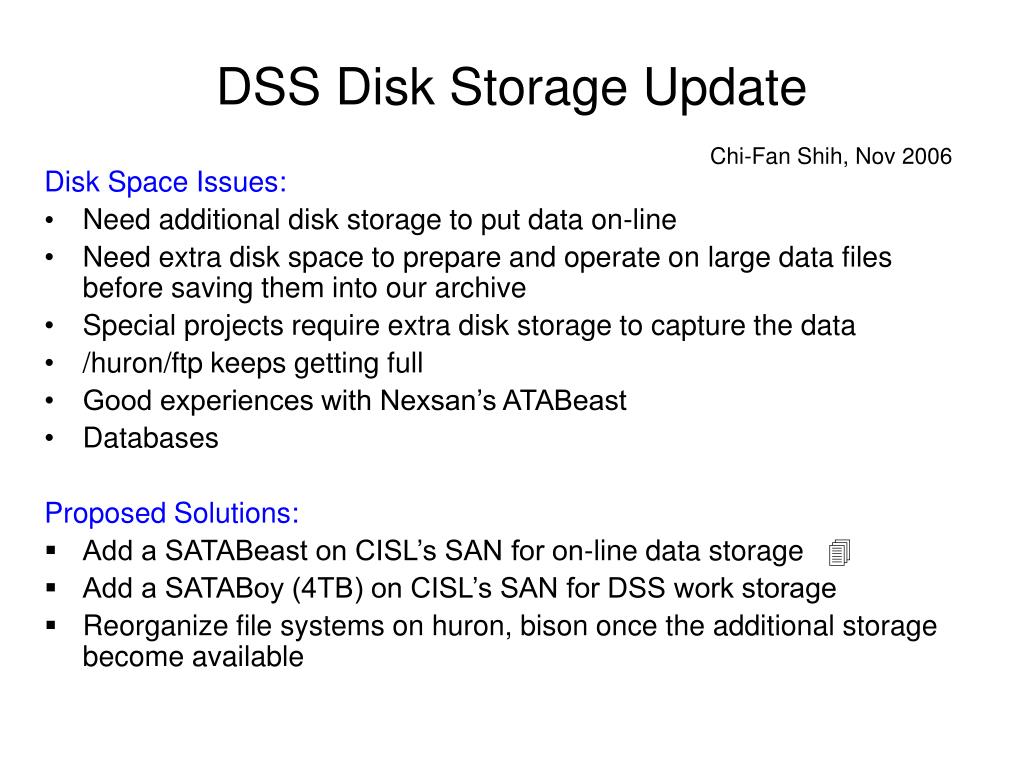

  1. DSS Disk Storage Update Chi-Fan Shih, Nov 2006 Disk Space Issues: • Need additional disk storage to put data on-line • Need extra disk space to prepare and operate on large data files before saving them into our archive • Special projects require extra disk storage to capture the data • /huron/ftp keeps getting full • Good experiences with Nexsan’s ATABeast • Databases Proposed Solutions: • Add a SATABeast on CISL’s SAN for on-line data storage  • Add a SATABoy (4TB) on CISL’s SAN for DSS work storage • Reorganize file systems on huron, bison once the additional storage become available

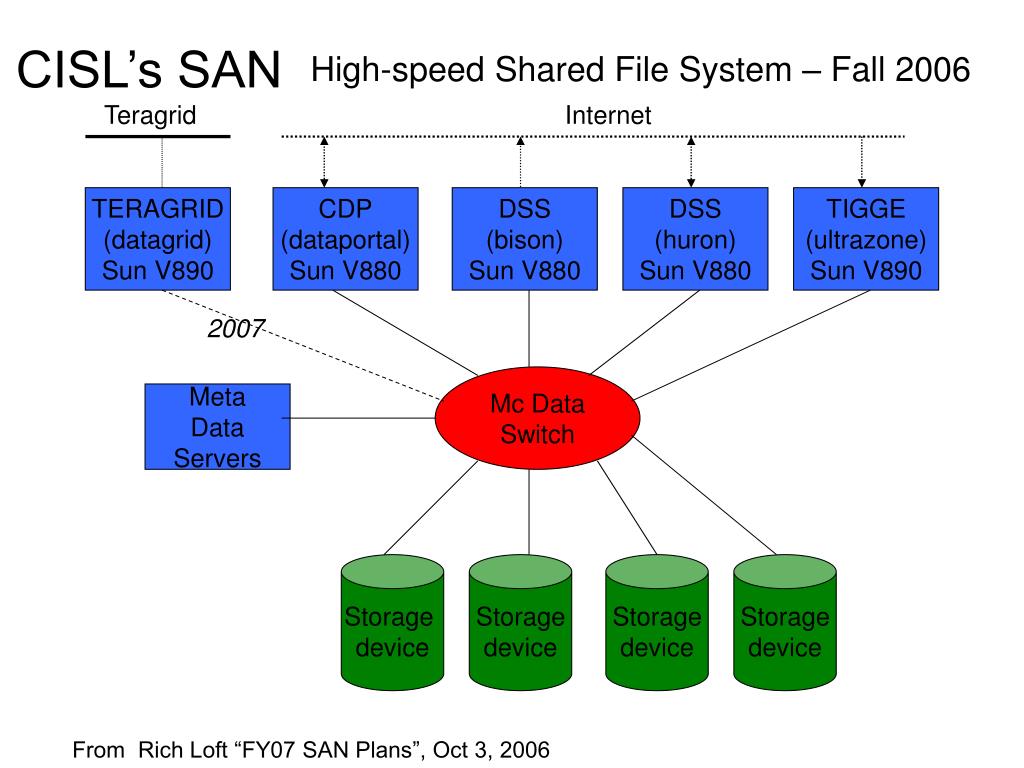

  2. High-speed Shared File System – Fall 2006 Teragrid Internet CISL’s SAN TERAGRID (datagrid) Sun V890 CDP (dataportal) Sun V880 DSS (bison) Sun V880 DSS (huron) Sun V880 TIGGE (ultrazone) Sun V890 2007 Mc DataSwitch MetaDataServers Storage device Storage device Storage device Storage device From Rich Loft “FY07 SAN Plans”, Oct 3, 2006

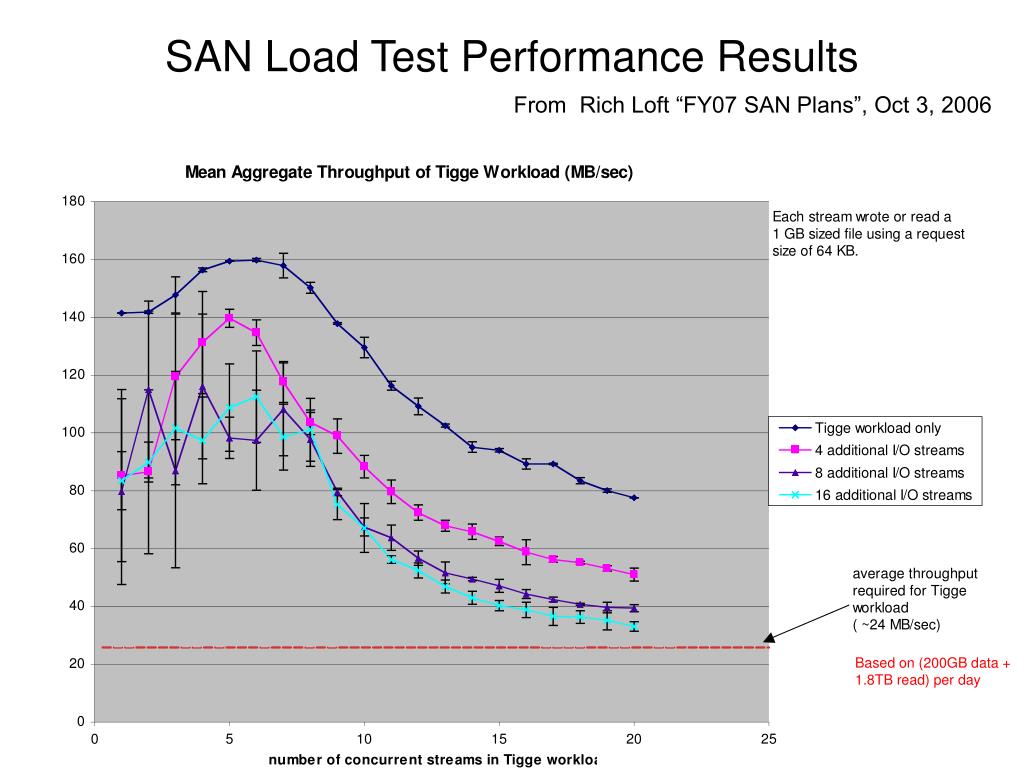

  3. SAN Load Test Performance Results From Rich Loft “FY07 SAN Plans”, Oct 3, 2006 Based on (200GB data + 1.8TB read) per day

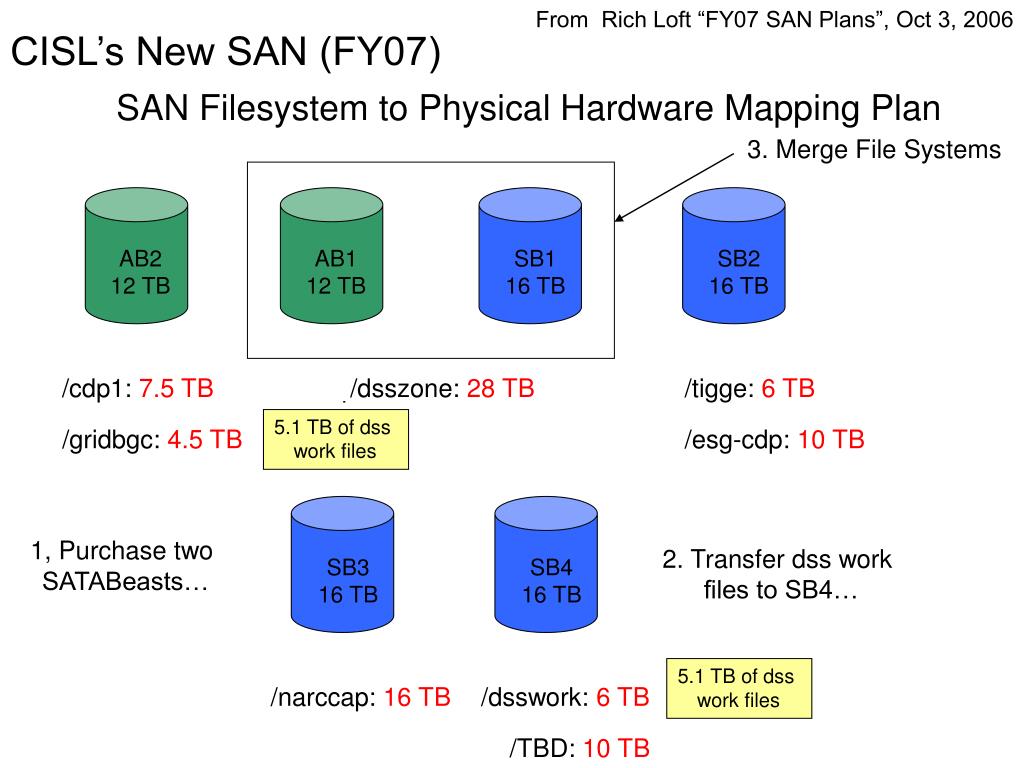

  4. From Rich Loft “FY07 SAN Plans”, Oct 3, 2006 CISL’s New SAN (FY07) SAN Filesystem to Physical Hardware Mapping Plan 3. Merge File Systems AB2 12 TB AB1 12 TB SB1 16 TB SB2 16 TB /cdp1: 7.5 TB /dsstmp:12 TB /dsszone: 28 TB /tigge: 6 TB 5.1 TB of dss work files /gridbgc: 4.5 TB /esg-cdp: 10 TB 1, Purchase two SATABeasts… 2. Transfer dss work files to SB4… SB3 16 TB SB4 16 TB 5.1 TB of dss work files /narccap: 16 TB /dsswork: 6 TB /TBD: 10 TB

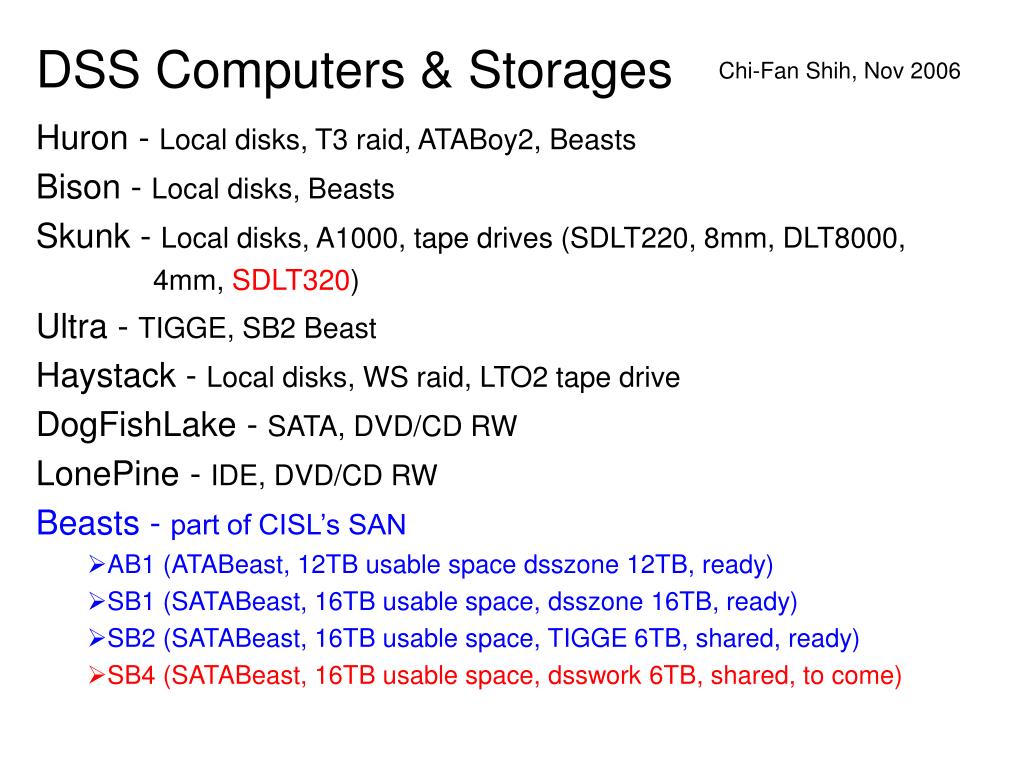

  5. Chi-Fan Shih, Nov 2006 DSS Computers & Storages Huron - Local disks, T3 raid, ATABoy2, Beasts Bison - Local disks, Beasts Skunk - Local disks, A1000, tape drives (SDLT220, 8mm, DLT8000, 4mm, SDLT320) Ultra - TIGGE, SB2 Beast Haystack - Local disks, WS raid, LTO2 tape drive DogFishLake - SATA, DVD/CD RW LonePine - IDE, DVD/CD RW Beasts - part of CISL’s SAN AB1 (ATABeast, 12TB usable space dsszone 12TB, ready) SB1 (SATABeast, 16TB usable space, dsszone 16TB, ready) SB2 (SATABeast, 16TB usable space, TIGGE 6TB, shared, ready) SB4 (SATABeast, 16TB usable space, dsswork 6TB, shared, to come)

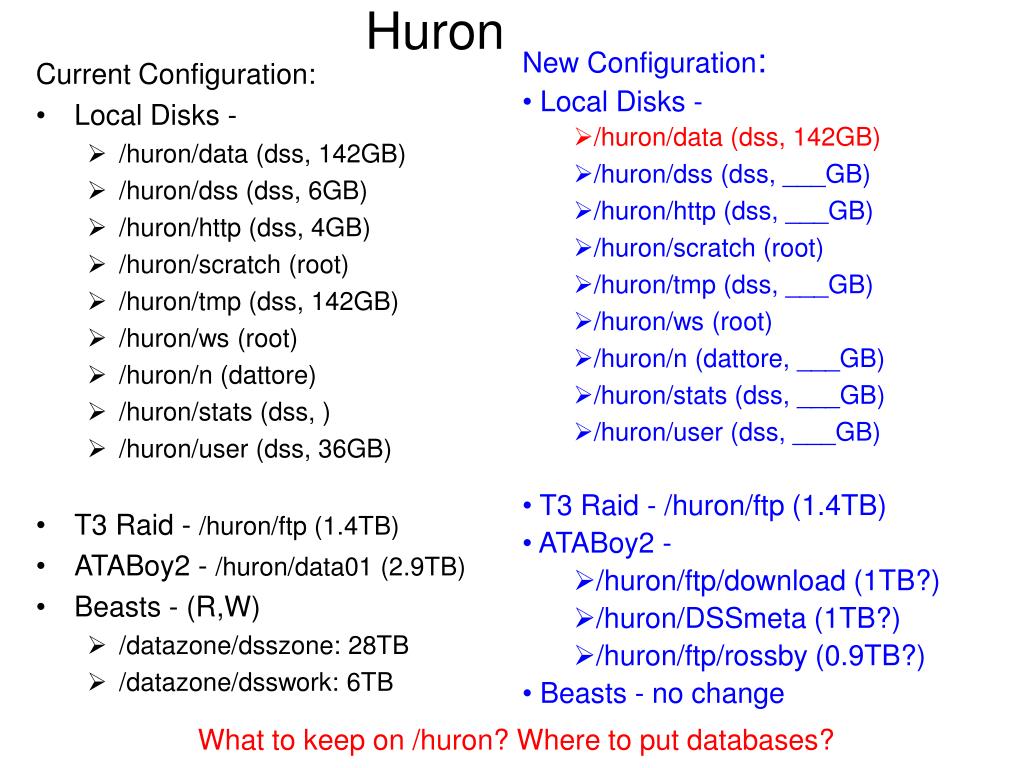

  6. New Configuration: • Local Disks - • /huron/data (dss, 142GB) • /huron/dss (dss, ___GB) • /huron/http (dss, ___GB) • /huron/scratch (root) • /huron/tmp (dss, ___GB) • /huron/ws (root) • /huron/n (dattore, ___GB) • /huron/stats (dss, ___GB) • /huron/user (dss, ___GB) • T3 Raid - /huron/ftp (1.4TB) • ATABoy2 - • /huron/ftp/download (1TB?) • /huron/DSSmeta (1TB?) • /huron/ftp/rossby (0.9TB?) • Beasts - no change Huron Current Configuration: • Local Disks - • /huron/data (dss, 142GB) • /huron/dss (dss, 6GB) • /huron/http (dss, 4GB) • /huron/scratch (root) • /huron/tmp (dss, 142GB) • /huron/ws (root) • /huron/n (dattore) • /huron/stats (dss, ) • /huron/user (dss, 36GB) • T3 Raid - /huron/ftp (1.4TB) • ATABoy2 - /huron/data01 (2.9TB) • Beasts - (R,W) • /datazone/dsszone: 28TB • /datazone/dsswork: 6TB What to keep on /huron? Where to put databases?

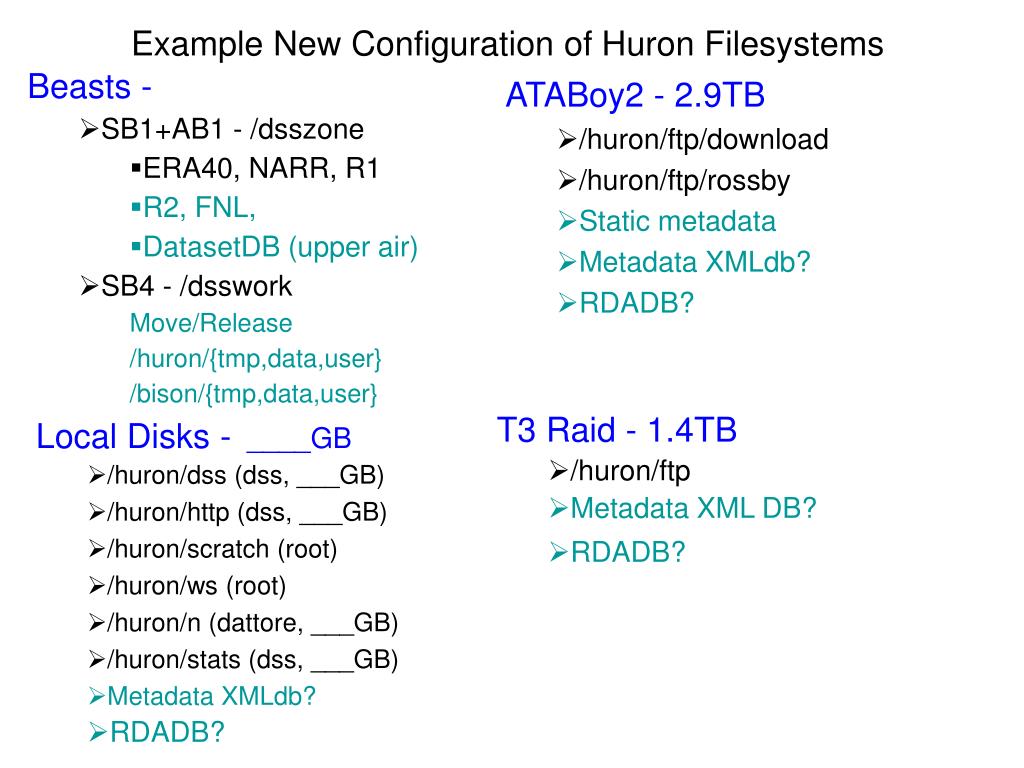

  7. Beasts - • SB1+AB1 - /dsszone • ERA40, NARR, R1 • R2, FNL, • DatasetDB (upper air) • SB4 - /dsswork • Move/Release • /huron/{tmp,data,user} • /bison/{tmp,data,user} Example New Configuration of Huron Filesystems • ATABoy2 - 2.9TB • /huron/ftp/download • /huron/ftp/rossby • Static metadata • Metadata XMLdb? • RDADB? • Local Disks - ____GB • /huron/dss (dss, ___GB) • /huron/http (dss, ___GB) • /huron/scratch (root) • /huron/ws (root) • /huron/n (dattore, ___GB) • /huron/stats (dss, ___GB) • Metadata XMLdb? • RDADB? • T3 Raid - 1.4TB • /huron/ftp • Metadata XML DB? • RDADB?

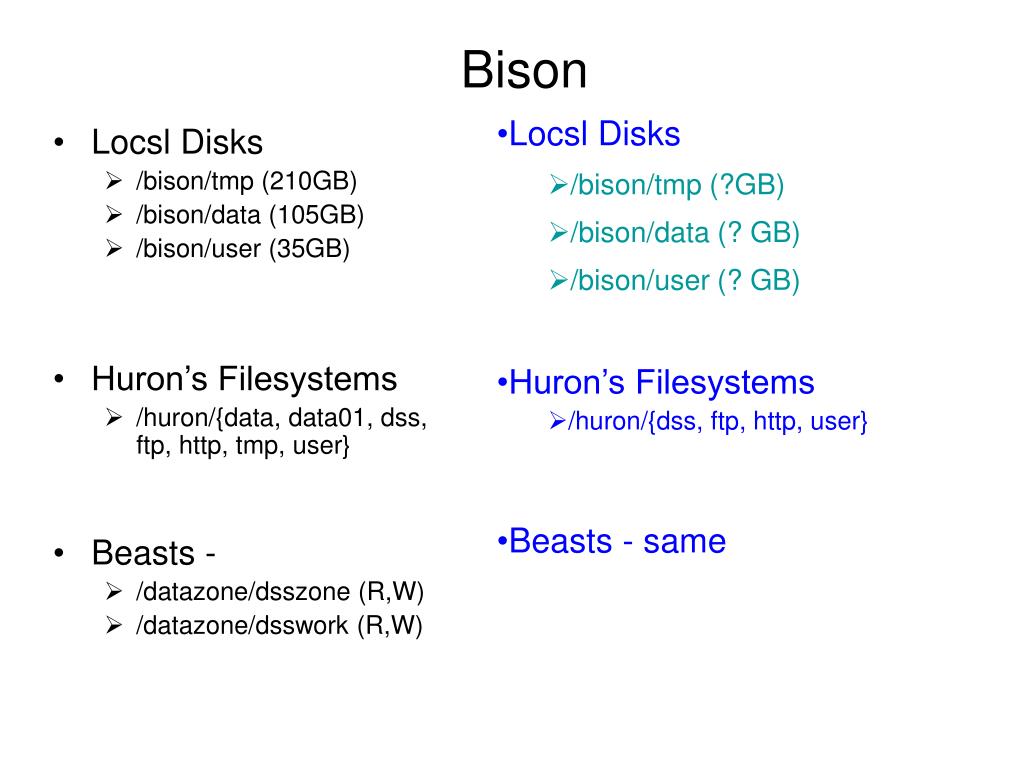

  8. Bison • Locsl Disks • /bison/tmp (?GB) • /bison/data (? GB) • /bison/user (? GB) • Huron’s Filesystems • /huron/{dss, ftp, http, user} • Beasts - same • Locsl Disks • /bison/tmp (210GB) • /bison/data (105GB) • /bison/user (35GB) • Huron’s Filesystems • /huron/{data, data01, dss, ftp, http, tmp, user} • Beasts - • /datazone/dsszone (R,W) • /datazone/dsswork (R,W)

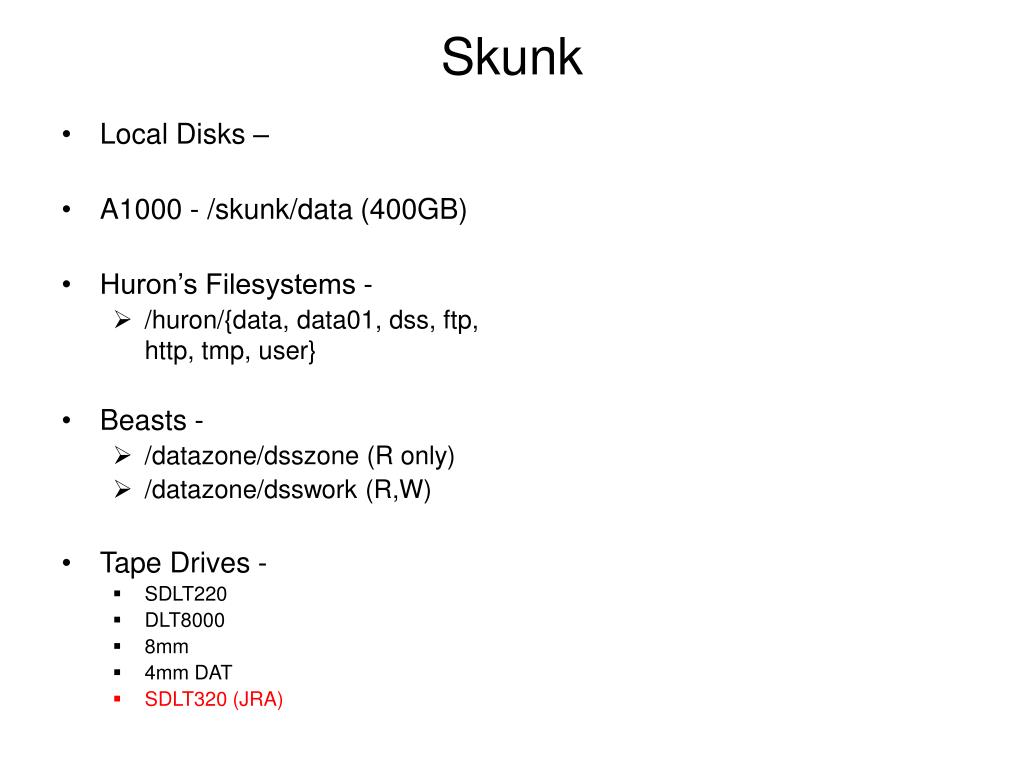

  9. Skunk • Local Disks – • A1000 - /skunk/data (400GB) • Huron’s Filesystems - • /huron/{data, data01, dss, ftp, http, tmp, user} • Beasts - • /datazone/dsszone (R only) • /datazone/dsswork (R,W) • Tape Drives - • SDLT220 • DLT8000 • 8mm • 4mm DAT • SDLT320 (JRA)

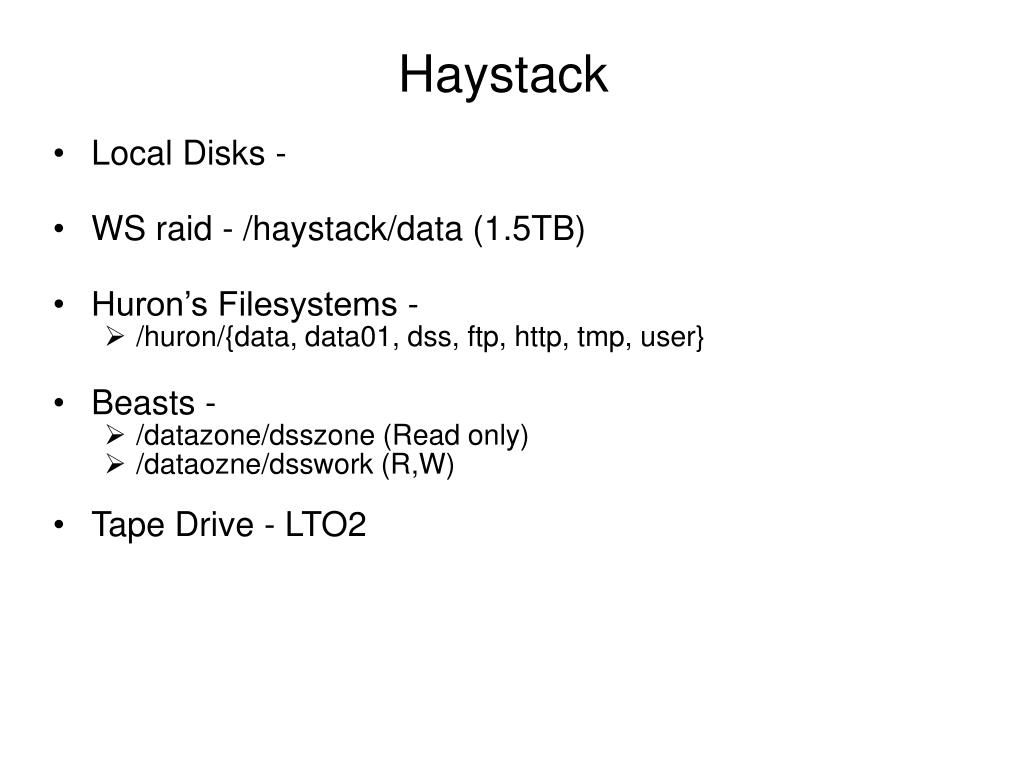

  10. Haystack • Local Disks - • WS raid - /haystack/data (1.5TB) • Huron’s Filesystems - • /huron/{data, data01, dss, ftp, http, tmp, user} • Beasts - • /datazone/dsszone (Read only) • /dataozne/dsswork (R,W) • Tape Drive - LTO2

  11. DSS SAN Data Storage & Future Projects SB2 Beast - /datazone/tigge, 6TB SB1+AB1 Beasts - /datazone/dsszone, 28TB e4moda.an.sfc.t85.t2m.1957-2002.nc ERA40 davestep dss feedback icoads restricted tigge ua ds090.0 ds366.0 ds367.0 ds476.0 ds607.0 ds608.0 ds609.2 FNL, ADP obs, R2, Eta/NAM molts & forecasts, profiler, …… Upper Air - ERA40 -subset, feedback, netCDF NARR - molts, feedback, forecasts NASAReanalysis - • JRA - (restricted) • DSSDatabases - • Metadata XML DB • RDADB (internal) • DatasetDB (internal, external) SB4 Beast - /datazone/dsswork, 6TB

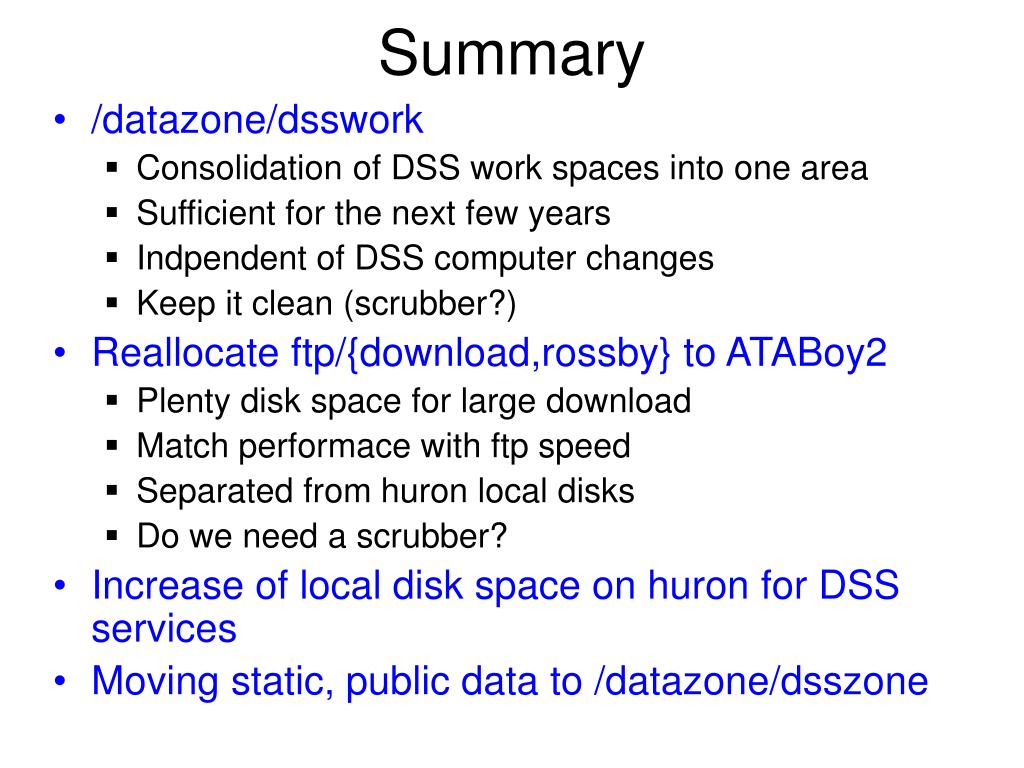

  12. Summary • /datazone/dsswork • Consolidation of DSS work spaces into one area • Sufficient for the next few years • Indpendent of DSS computer changes • Keep it clean (scrubber?) • Reallocate ftp/{download,rossby} to ATABoy2 • Plenty disk space for large download • Match performace with ftp speed • Separated from huron local disks • Do we need a scrubber? • Increase of local disk space on huron for DSS services • Moving static, public data to /datazone/dsszone

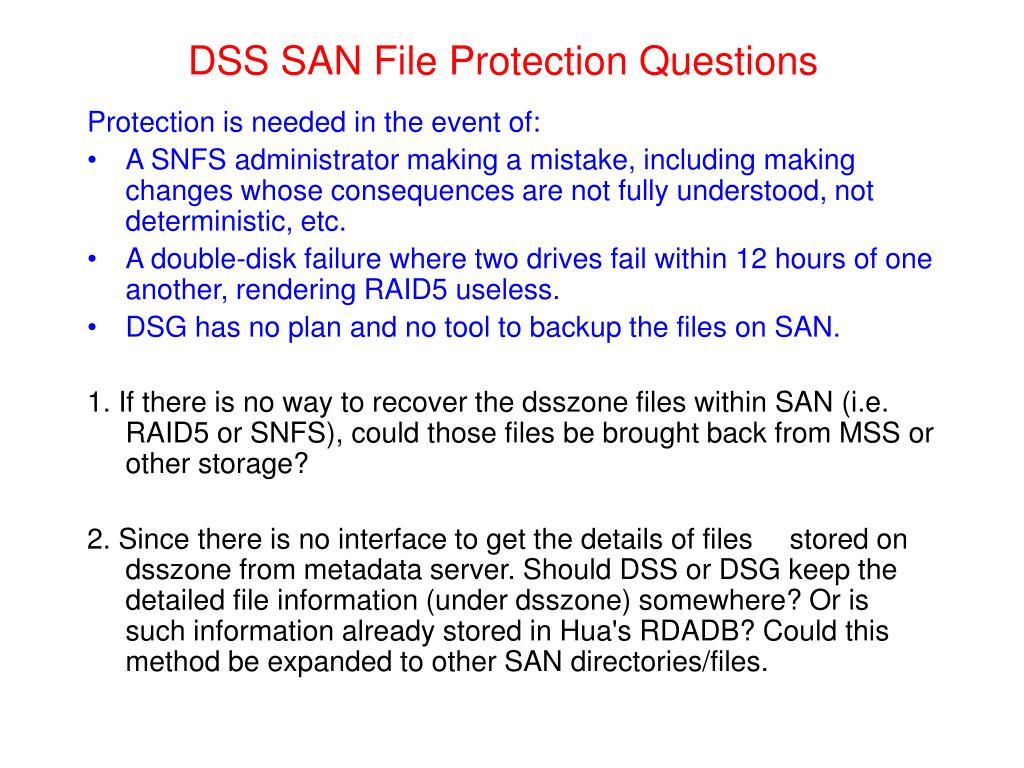

  13. DSS SAN File Protection Questions Protection is needed in the event of: • A SNFS administrator making a mistake, including making changes whose consequences are not fully understood, not deterministic, etc. • A double-disk failure where two drives fail within 12 hours of one another, rendering RAID5 useless. • DSG has no plan and no tool to backup the files on SAN. 1. If there is no way to recover the dsszone files within SAN (i.e. RAID5 or SNFS), could those files be brought back from MSS or other storage? 2. Since there is no interface to get the details of files stored on dsszone from metadata server. Should DSS or DSG keep the detailed file information (under dsszone) somewhere? Or is such information already stored in Hua's RDADB? Could this method be expanded to other SAN directories/files.

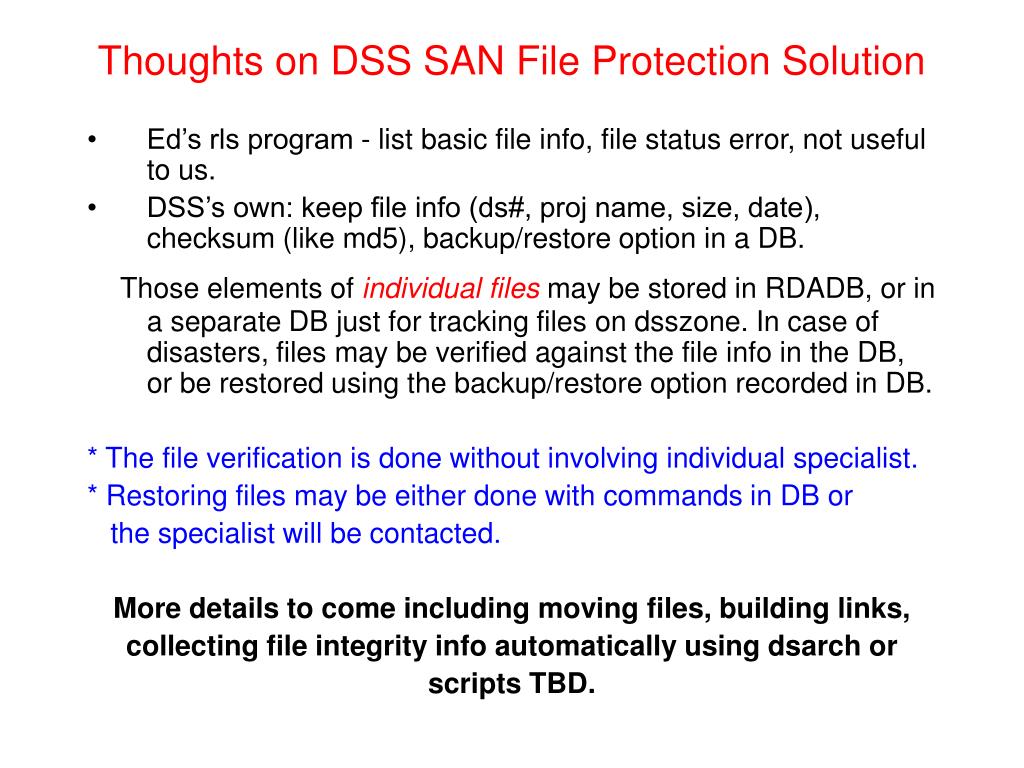

  14. Thoughts on DSS SAN File Protection Solution • Ed’s rls program - list basic file info, file status error, not useful to us. • DSS’s own: keep file info (ds#, proj name, size, date), checksum (like md5), backup/restore option in a DB. Those elements of individual files may be stored in RDADB, or in a separate DB just for tracking files on dsszone. In case of disasters, files may be verified against the file info in the DB, or be restored using the backup/restore option recorded in DB. * The file verification is done without involving individual specialist. * Restoring files may be either done with commands in DB or the specialist will be contacted. More details to come including moving files, building links, collecting file integrity info automatically using dsarch or scripts TBD.
