  1. Conjugated systems (continued) Dr. Sheppard CHEM 4201

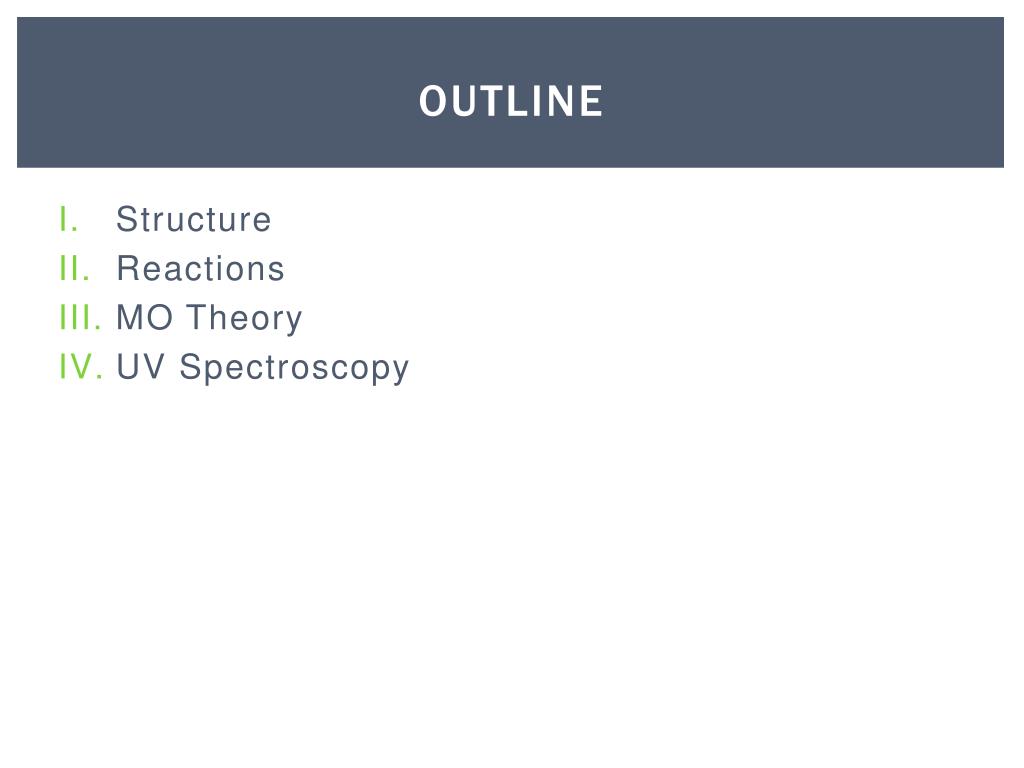

  2. Outline • Structure • Reactions • MO Theory • UV Spectroscopy

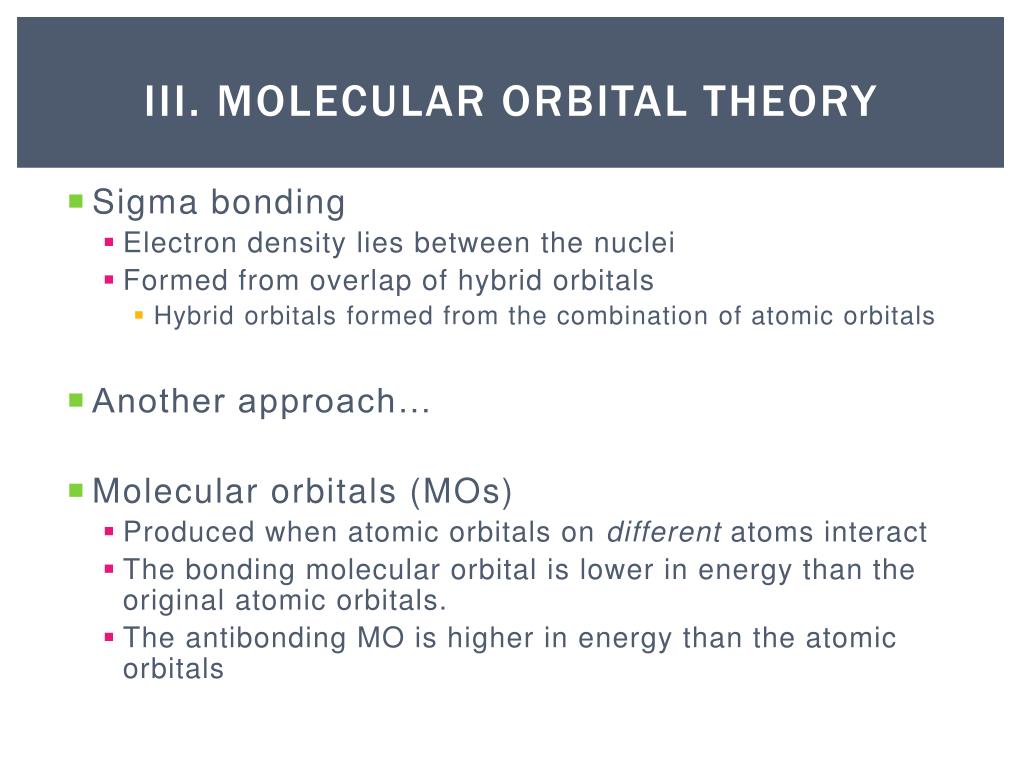

  3. III. Molecular orbital theory • Sigma bonding • Electron density lies between the nuclei • Formed from overlap of hybrid orbitals • Hybrid orbitals formed from the combination of atomic orbitals • Another approach… • Molecular orbitals (MOs) • Produced when atomic orbitals on different atoms interact • The bonding molecular orbital is lower in energy than the original atomic orbitals. • The antibonding MO is higher in energy than the atomic orbitals

  4. s Bonding MO • Formation of a sbonding MO • When the 1s orbitals of two hydrogen atoms overlap in phase with each other, they interact constructively to form a bonding MO • The result is a cylindrically symmetrical bond (s bond)

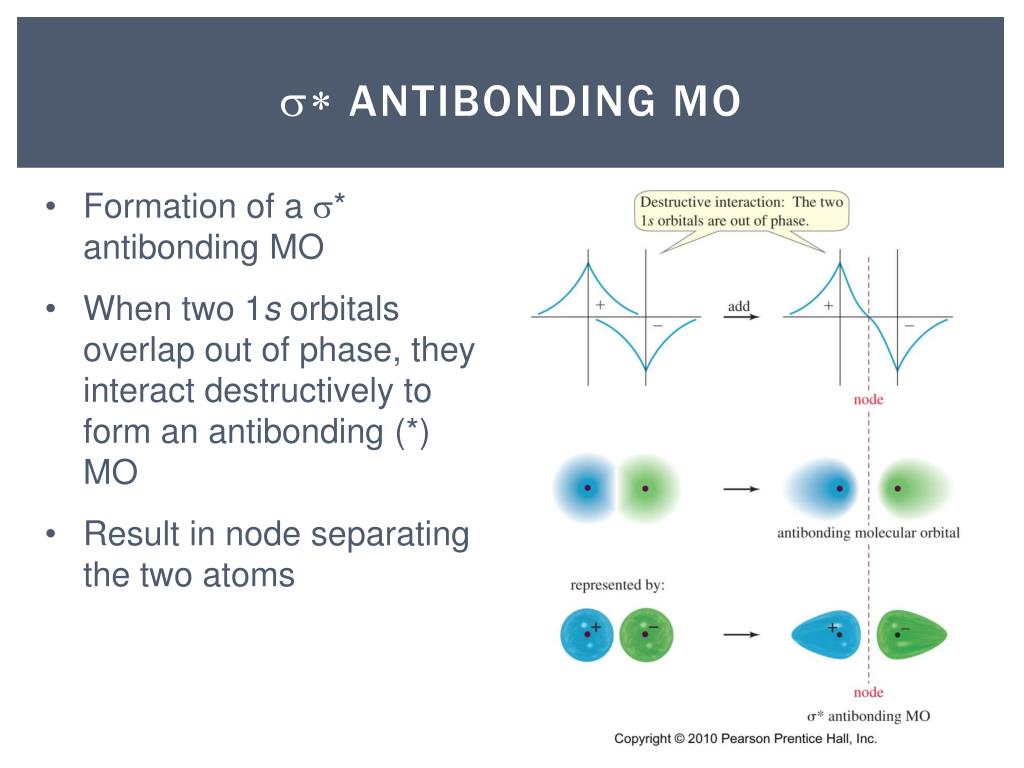

  5. s*Antibonding MO • Formation of a s* antibonding MO • When two 1s orbitals overlap out of phase, they interact destructively to form an antibonding (*) MO • Result in node separating the two atoms

  6. H2: s—s Overlap • Bonding MOs are lower in energy than the atomic orbitals • Antibonding MOs are higher in energy than the atomic orbitals • In stable molecules, bonding orbitals are usually filled and antibonding orbitals are usually empty

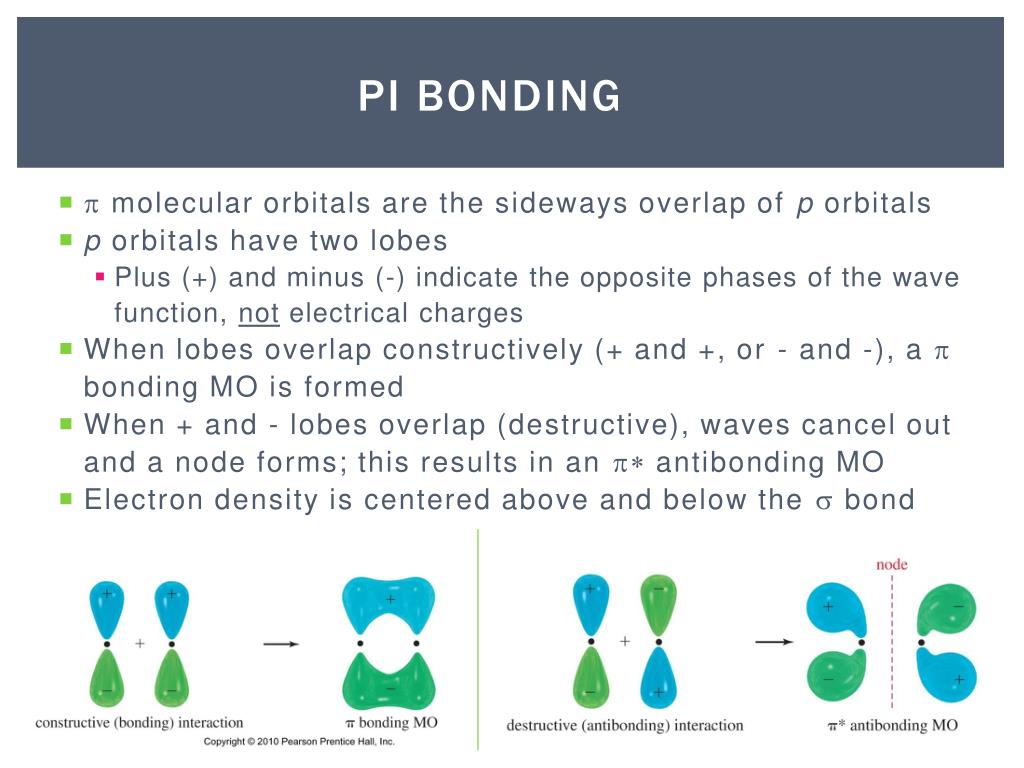

  7. Pi Bonding • p molecular orbitals are the sideways overlap of p orbitals • p orbitals have two lobes • Plus (+) and minus (-) indicate the opposite phases of the wave function, not electrical charges • When lobes overlap constructively (+ and +, or - and -), a p bonding MO is formed • When + and - lobes overlap (destructive), waves cancel out and a node forms; this results in an p* antibonding MO • Electron density is centered above and below the s bond

  8. Ethylene Pi MOs • The combination of two p orbitals gives two molecular orbitals • Constructive overlap is a bonding MO • Destructive overlap is an antibonding MO

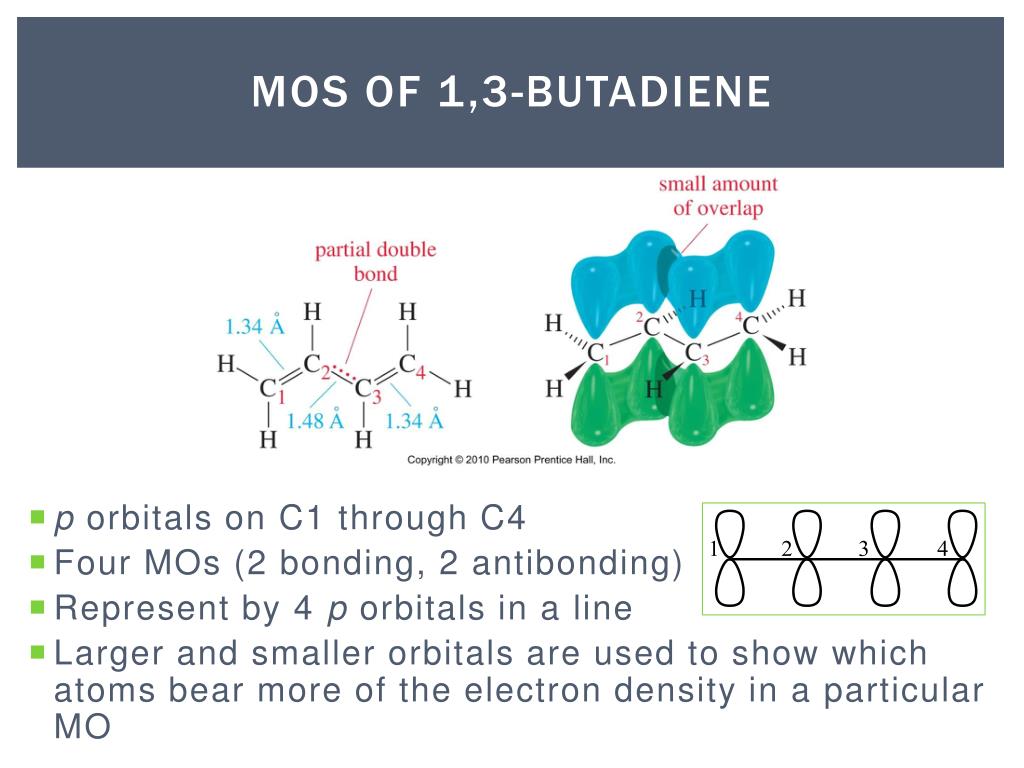

  9. MOs of 1,3-butadiene • p orbitals on C1 through C4 • Four MOs (2 bonding, 2 antibonding) • Represent by 4 p orbitals in a line • Larger and smaller orbitals are used to show which atoms bear more of the electron density in a particular MO

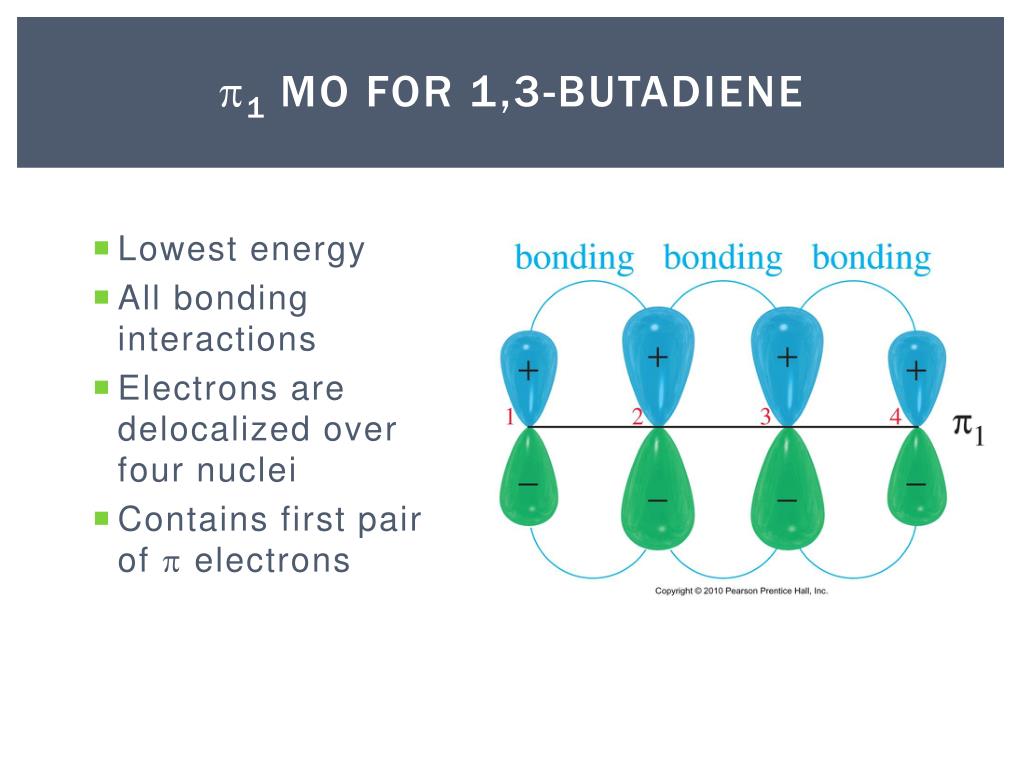

  10. 1 MO for 1,3-Butadiene • Lowest energy • All bonding interactions • Electrons are delocalized over four nuclei • Contains first pair of p electrons

  11. 2 MO for 1,3-Butadiene • Two bonding interactions • One antibonding interaction • One node • A bonding MO • Higher energy than1 MO and not as strongly bonding • Contains second pair of p electrons

  12. 3* MO for 1,3-Butadiene • Antibonding MO • Two nodes • Unoccupied in the ground state

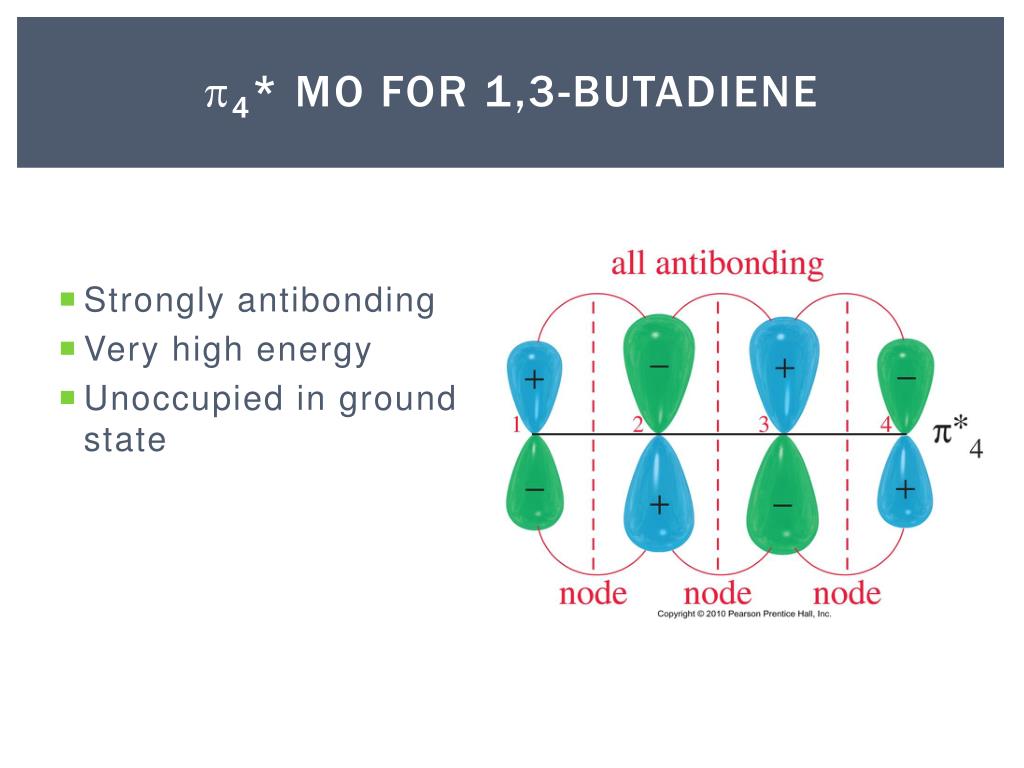

  13. 4* MO for 1,3-Butadiene • Strongly antibonding • Very high energy • Unoccupied in ground state

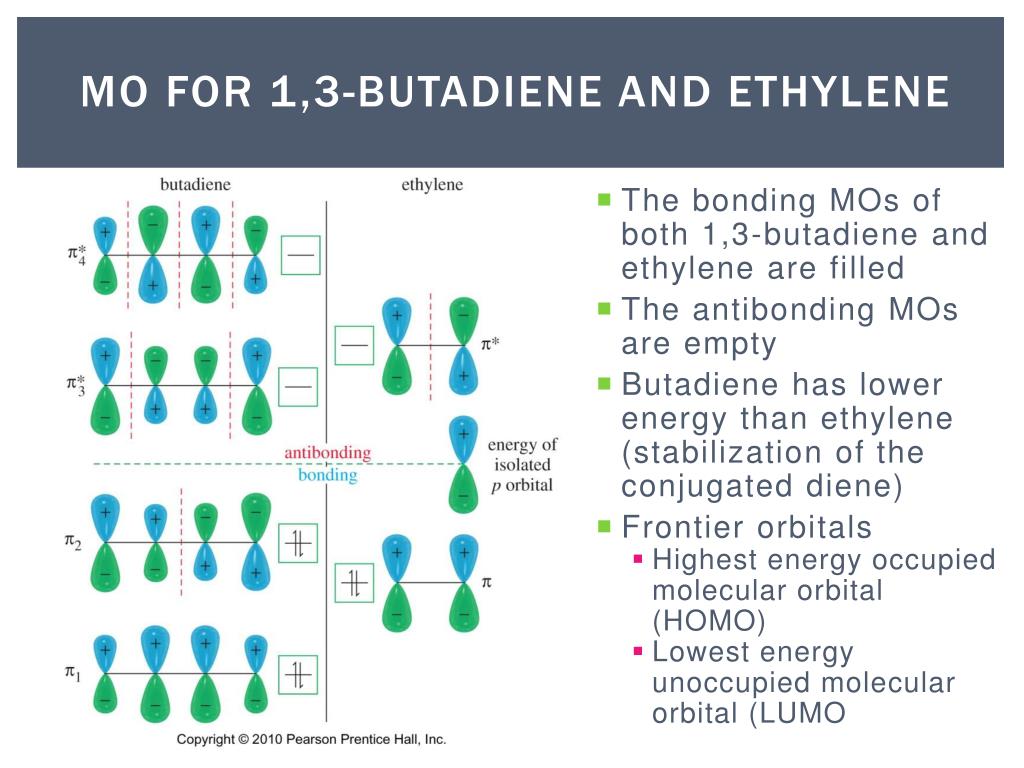

  14. MO for 1,3-Butadiene and Ethylene • The bonding MOs of both 1,3-butadiene and ethylene are filled • The antibonding MOs are empty • Butadiene has lower energy than ethylene (stabilization of the conjugated diene) • Frontier orbitals • Highest energy occupied molecular orbital (HOMO) • Lowest energy unoccupied molecular orbital (LUMO

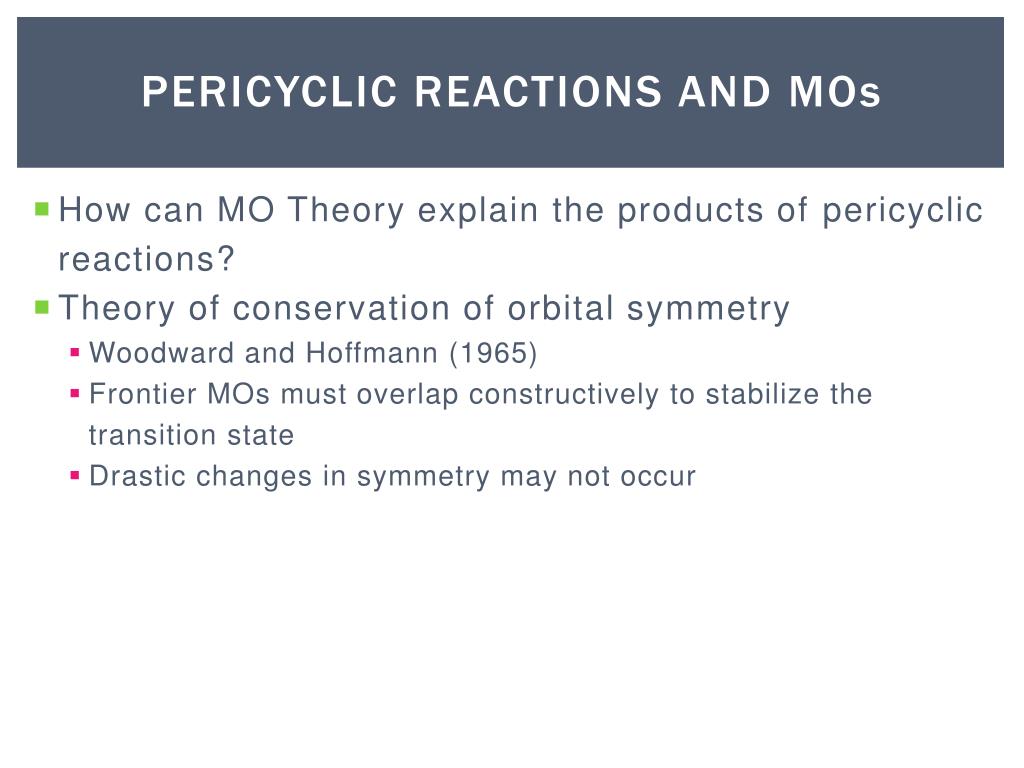

  15. Pericyclic Reactions and MOs • How can MO Theory explain the products of pericyclic reactions? • Theory of conservation of orbital symmetry • Woodward and Hoffmann (1965) • Frontier MOs must overlap constructively to stabilize the transition state • Drastic changes in symmetry may not occur

  16. Electrocyclic reactions • Conrotatory vs. disrotatory • Thermal vs. photochemical

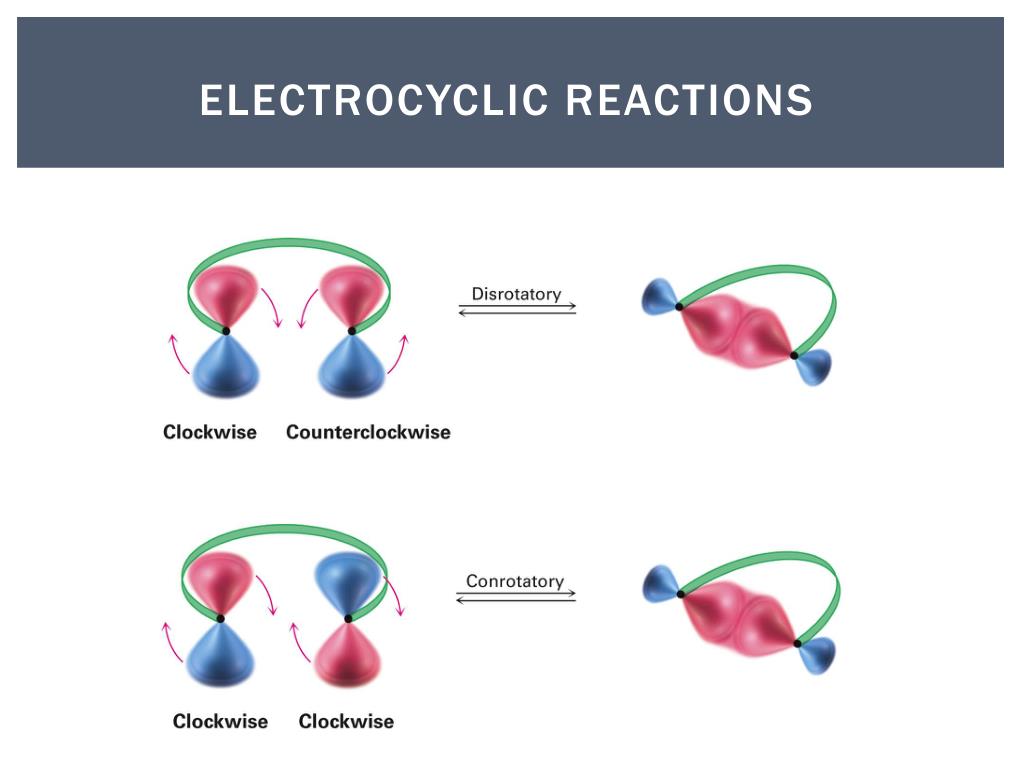

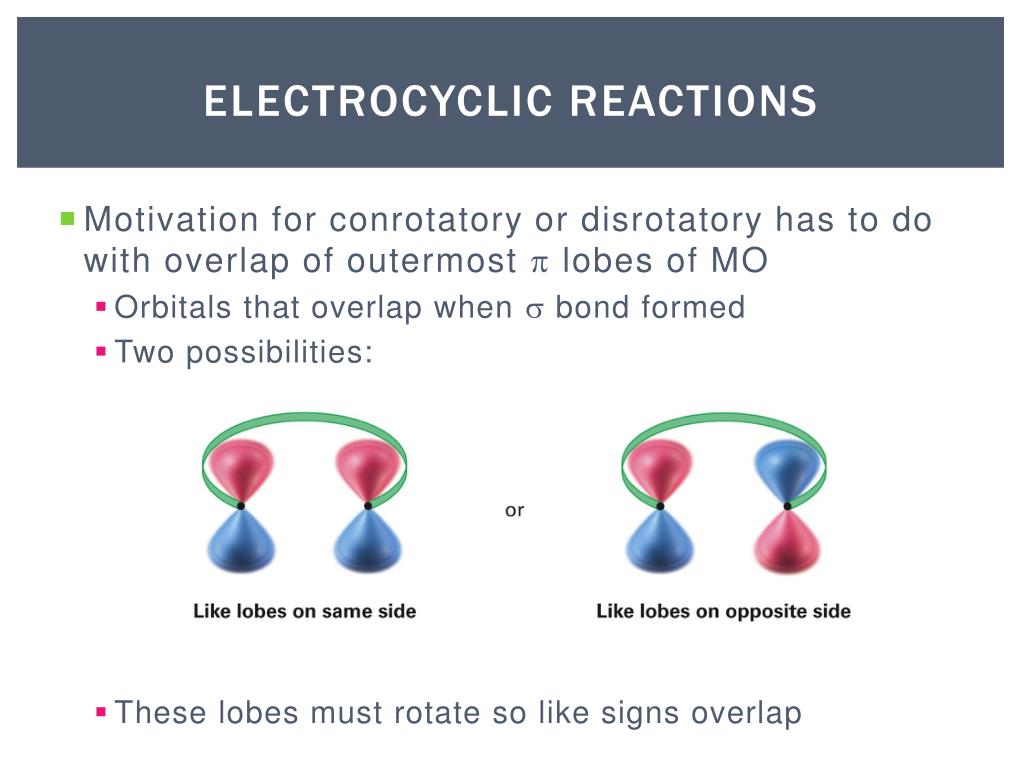

  17. Electrocyclic reactions • Motivation for conrotatory or disrotatory has to do with overlap of outermost p lobes of MO • Orbitals that overlap when s bond formed • Two possibilities: • These lobes must rotate so like signs overlap

  18. Electrocyclic reactions

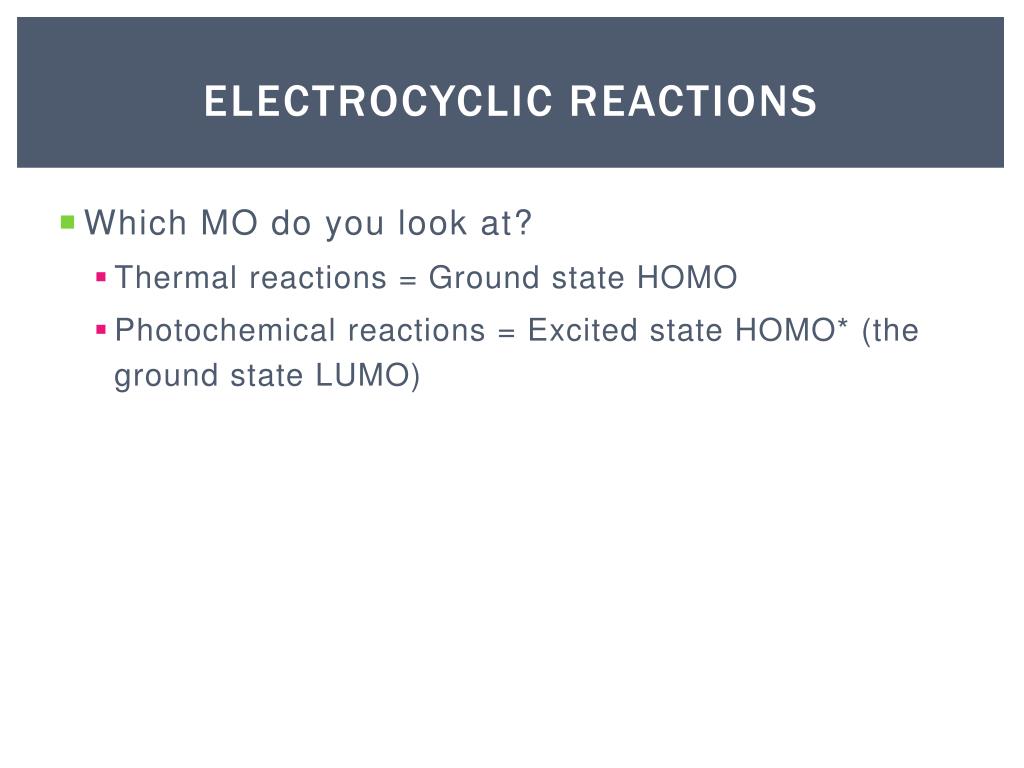

  19. Electrocyclic reactions • Which MO do you look at? • Thermal reactions = Ground state HOMO • Photochemical reactions = Excited state HOMO* (the ground state LUMO)

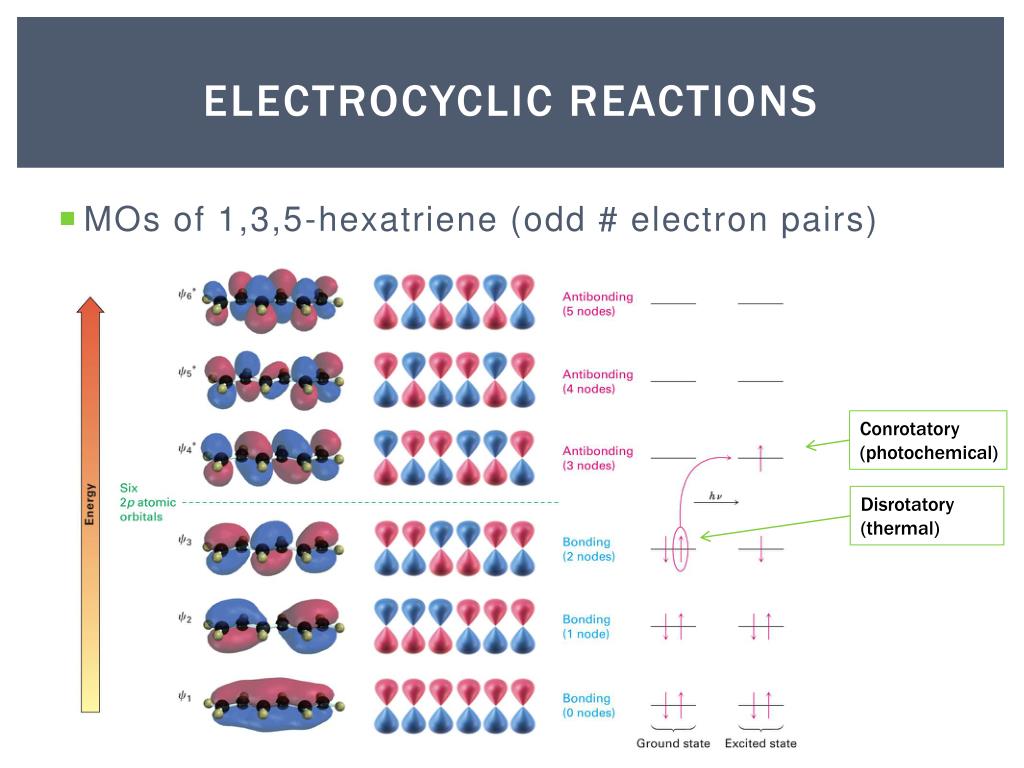

  20. Electrocyclic reactions • MOs of 1,3,5-hexatriene (odd # electron pairs) Disrotatory (thermal) Conrotatory (photochemical)

  21. Electrocyclic reactions

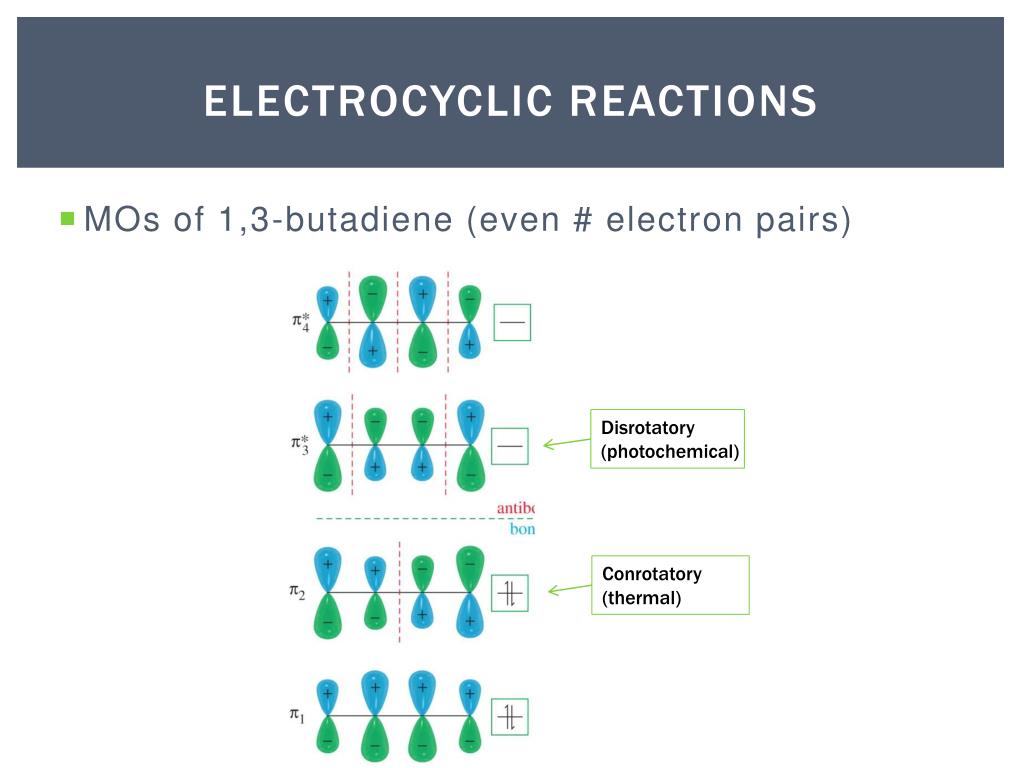

  22. Electrocyclic reactions • MOs of 1,3-butadiene (even # electron pairs) Disrotatory (photochemical) Conrotatory (thermal)

  23. Electrocyclic reactions

  24. Diels-alder reaction • Reactions are favored thermally or photochemically • Even # electron pairs (e.g. [2+2]) = photochemical • Odd # electron pairs (e.g. [4+2]) = photochemical • Reactions are either symmetry allowed or forbidden • Again, based on MOs of interacting lobes • Look at MOs of both reactants • Suprafacial vs. Antarafacial

  25. Suprafacial and antarafacial

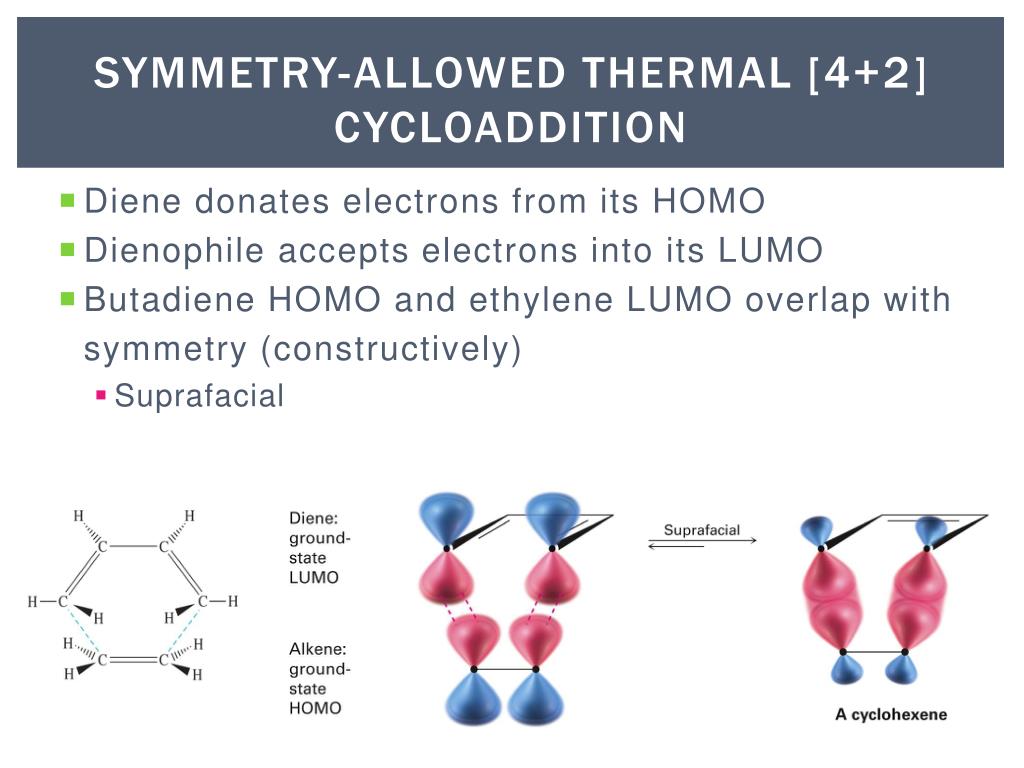

  26. Symmetry-Allowed thermal [4+2] cycloaddition • Diene donates electrons from its HOMO • Dienophile accepts electrons into its LUMO • Butadiene HOMO and ethylene LUMO overlap with symmetry (constructively) • Suprafacial

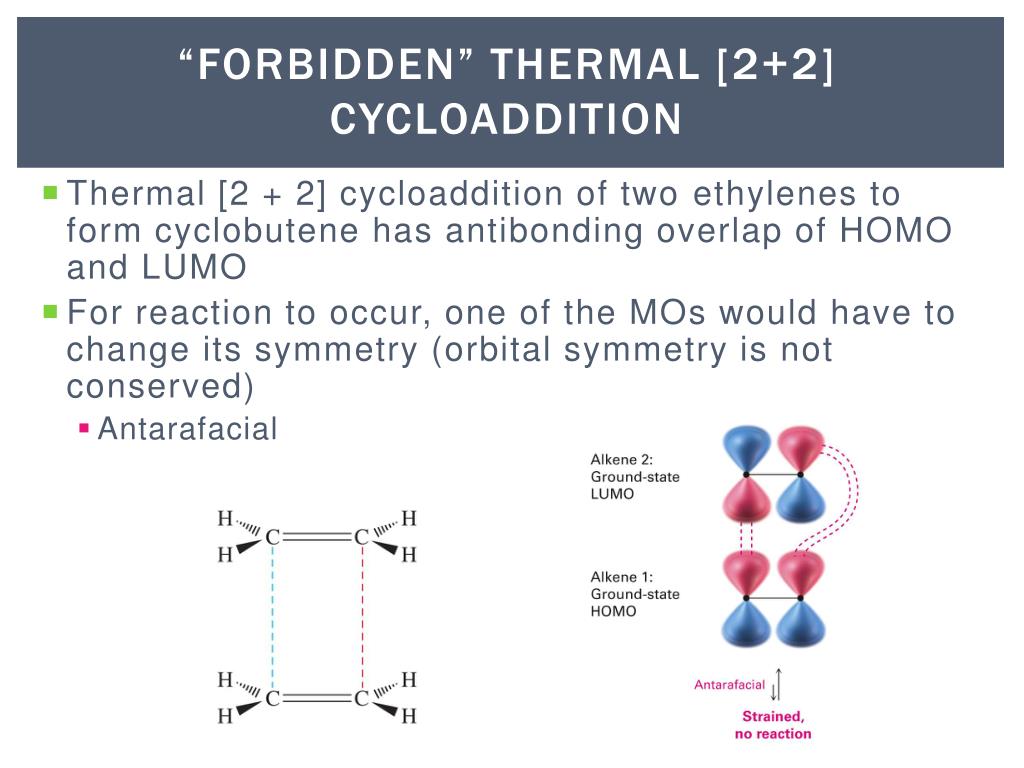

  27. “Forbidden” Thermal [2+2] Cycloaddition • Thermal [2 + 2] cycloaddition of two ethylenes to form cyclobutene has antibonding overlap of HOMO and LUMO • For reaction to occur, one of the MOs would have to change its symmetry (orbital symmetry is not conserved) • Antarafacial

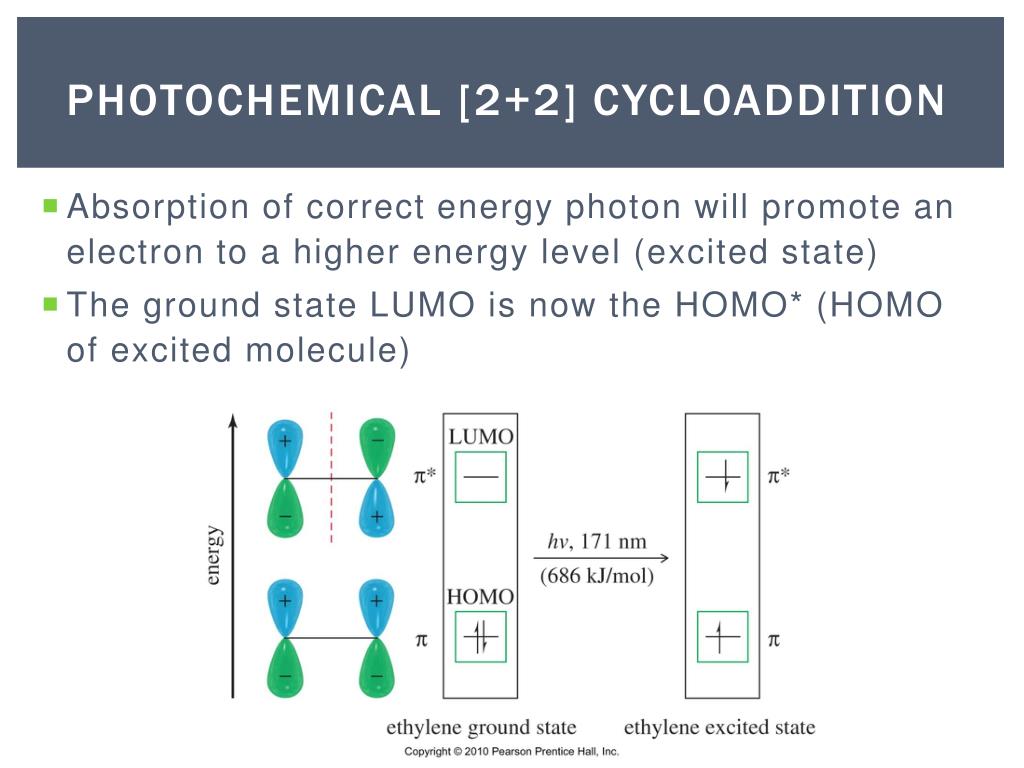

  28. Photochemical [2+2] Cycloaddition • Absorption of correct energy photon will promote an electron to a higher energy level (excited state) • The ground state LUMO is now the HOMO* (HOMO of excited molecule)

  29. Photochemical [2+2] Cycloaddition • LUMO of ground state ethylene and HOMO* of excited ethylene have same symmetry • Suprafacial • The [2+2] cycloaddition can now occur • The [2+2] cycloaddition is photochemically allowed, but thermally forbidden

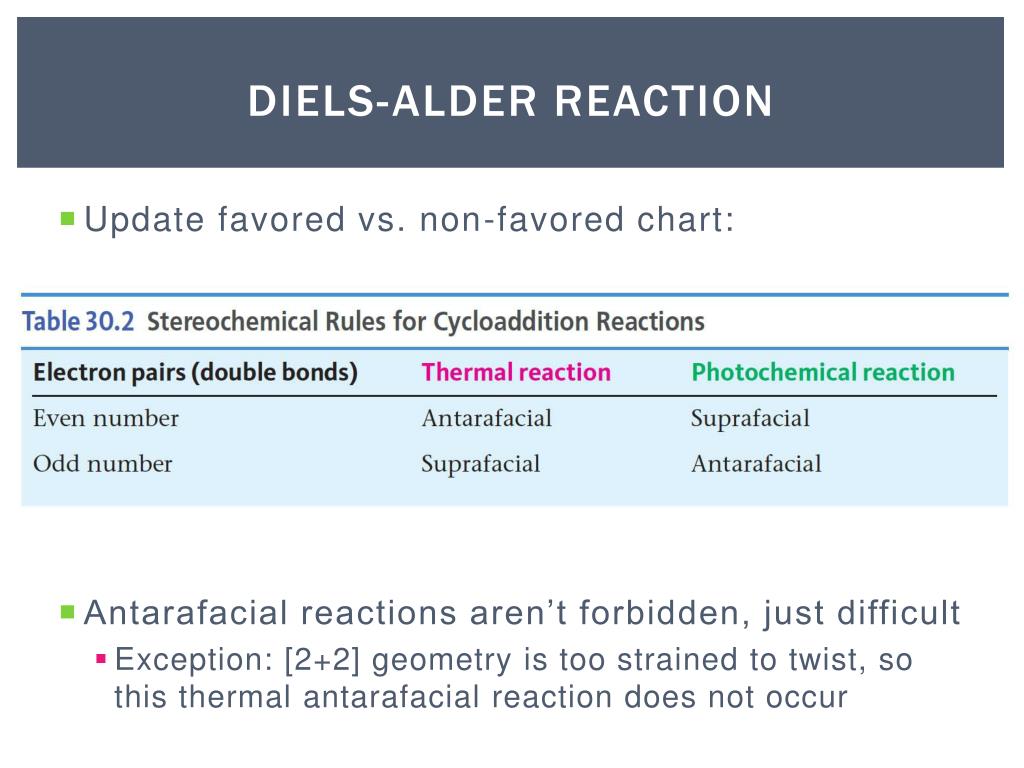

  30. Diels-alder reaction • Update favored vs. non-favored chart: • Antarafacial reactions aren’t forbidden, just difficult • Exception: [2+2] geometry is too strained to twist, so this thermal antarafacial reaction does not occur

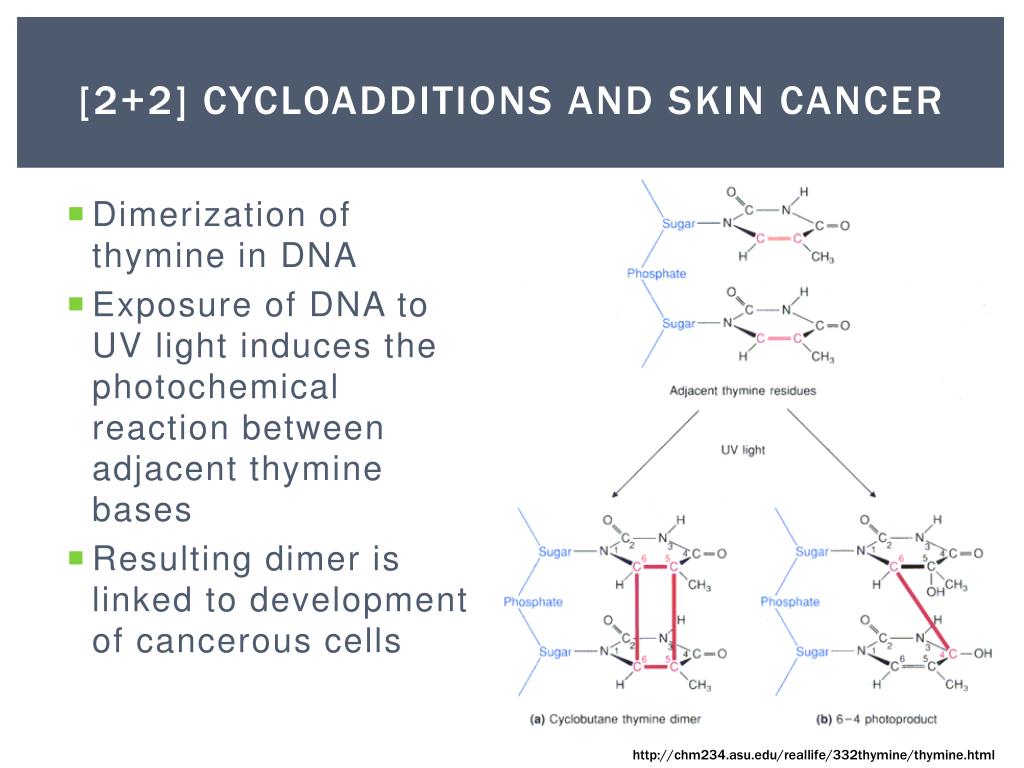

  31. [2+2] Cycloadditions and Skin Cancer • Dimerization of thymine in DNA • Exposure of DNA to UV light induces the photochemical reaction between adjacent thymine bases • Resulting dimer is linked to development of cancerous cells http://chm234.asu.edu/reallife/332thymine/thymine.html

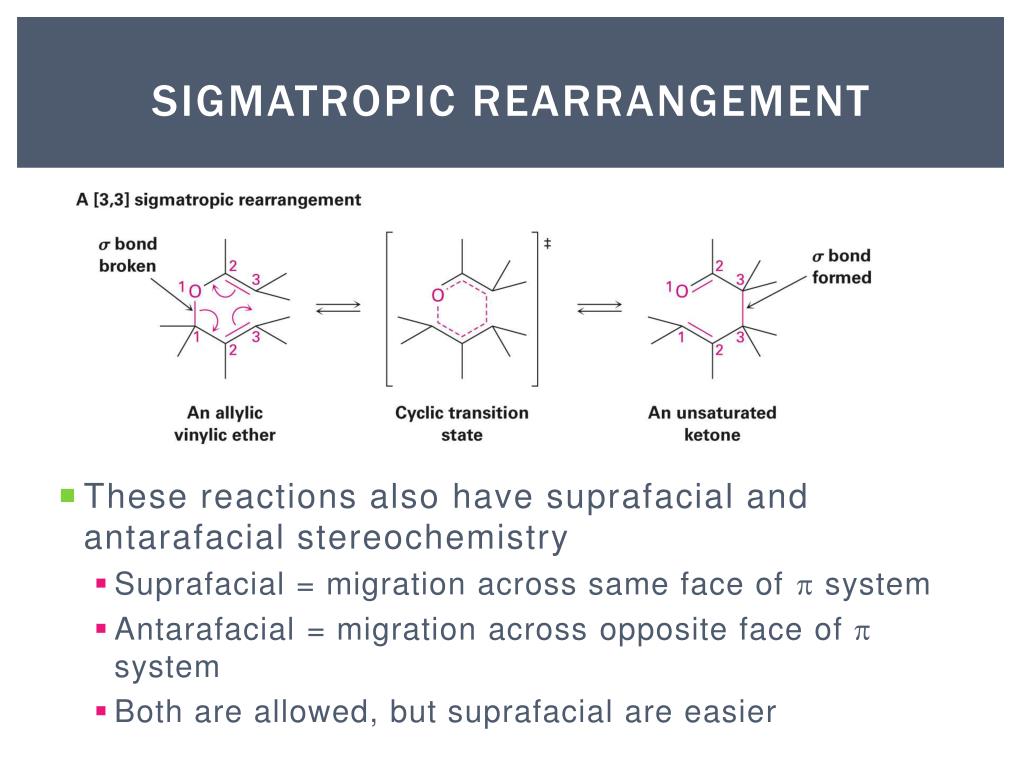

  32. Sigmatropic rearrangement • These reactions also have suprafacial and antarafacial stereochemistry • Suprafacial = migration across same face of p system • Antarafacial = migration across opposite face of psystem • Both are allowed, but suprafacial are easier

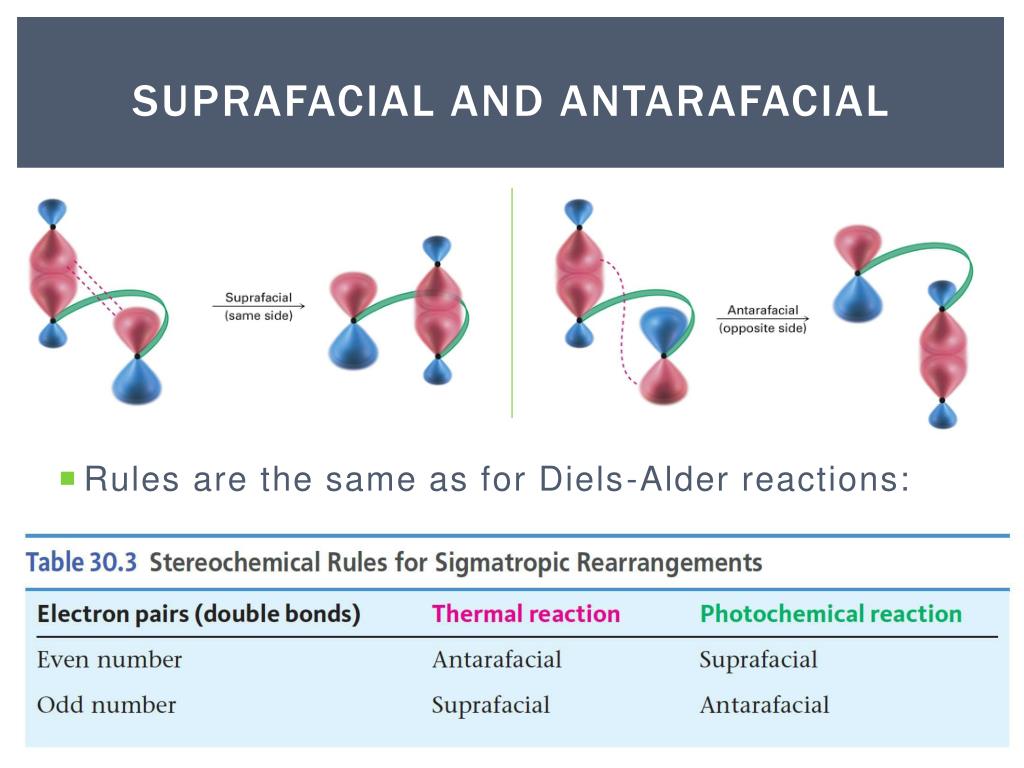

  33. Suprafacial and antarafacial • Rules are the same as for Diels-Alder reactions:

  34. Summary of Pericyclic Reactions and MOs • The electrons circle around • Thermal reactions with an • Even number of electron pairs are • Conrotatory or • Antarafacial
