  1. Area-Efficient True One-Period Delay Jitter Measurement Presenter： Pin-Chong Chan VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

  2. Outline • Introduction • Previous Work • Proposed Concept And Scheme • Experimental Results • Conclusions VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

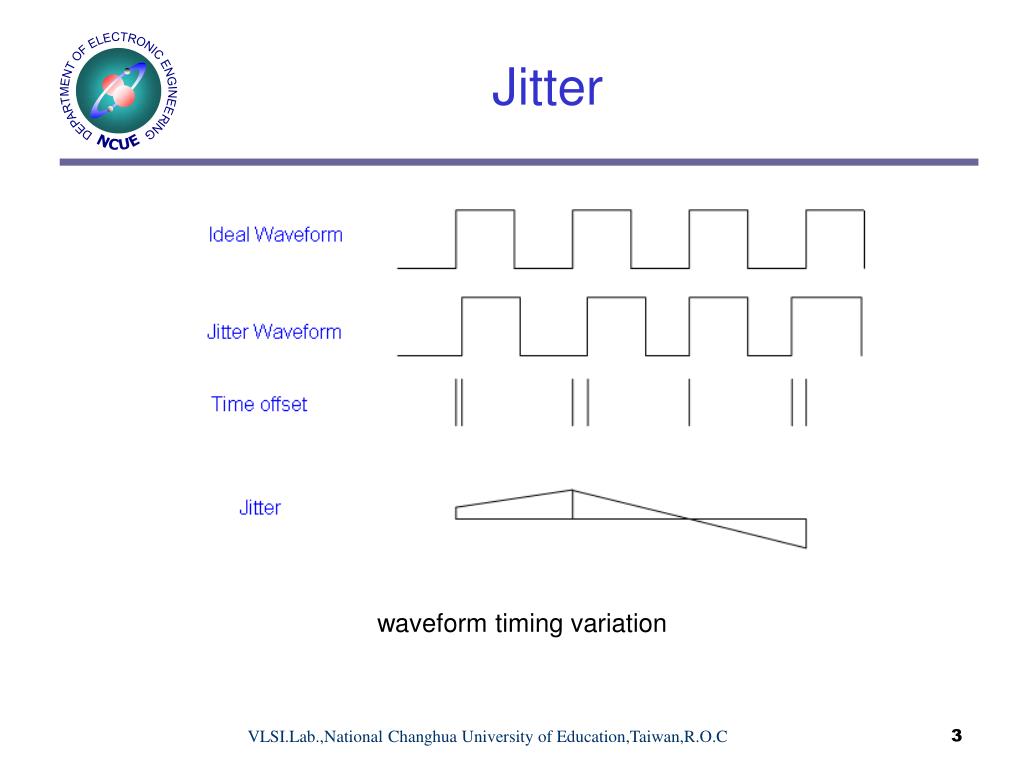

  3. Jitter waveform timing variation VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

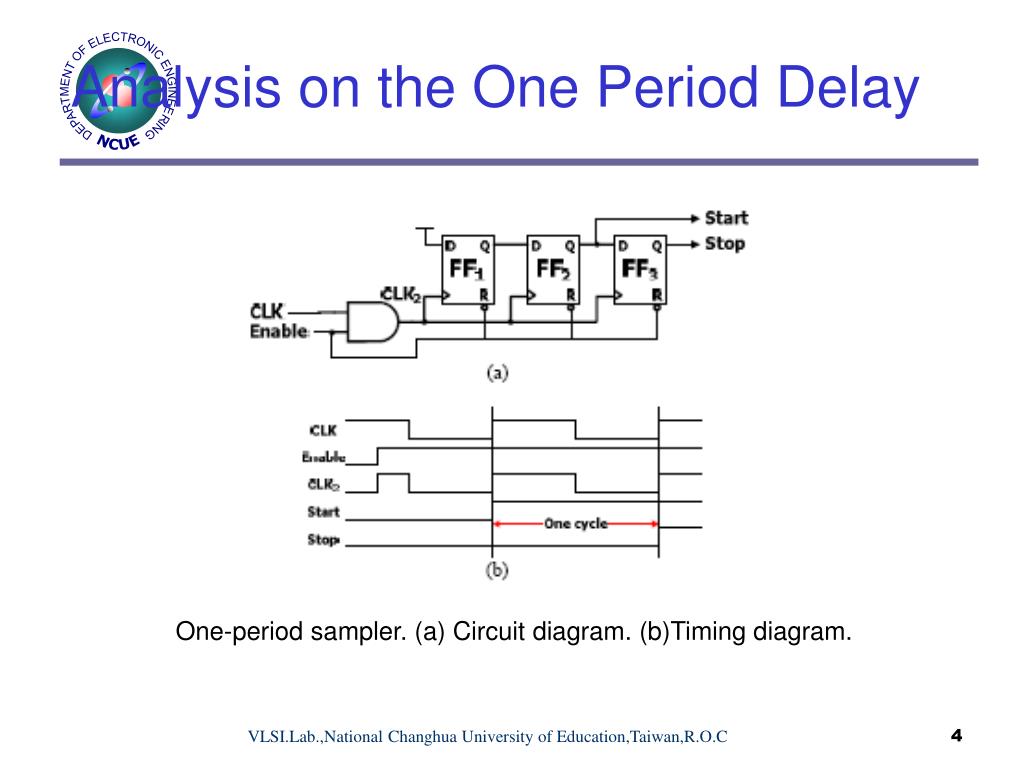

  4. Analysis on the One Period Delay One-period sampler. (a) Circuit diagram. (b)Timing diagram. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

  5. Analysis on the One-Period Delay One-period delay circuit. Proposed self-sampled VDL structure VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

  6. Analysis on the One Period Delay One period is truly delayed for every period. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

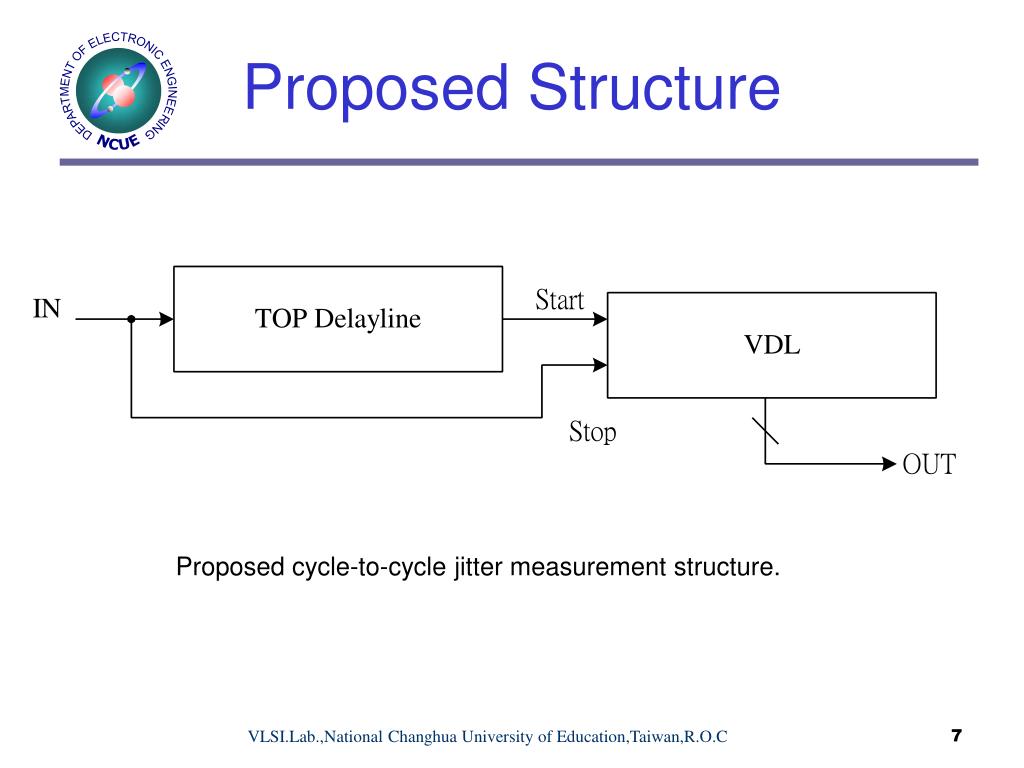

  7. Proposed Structure Proposed cycle-to-cycle jitter measurement structure. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

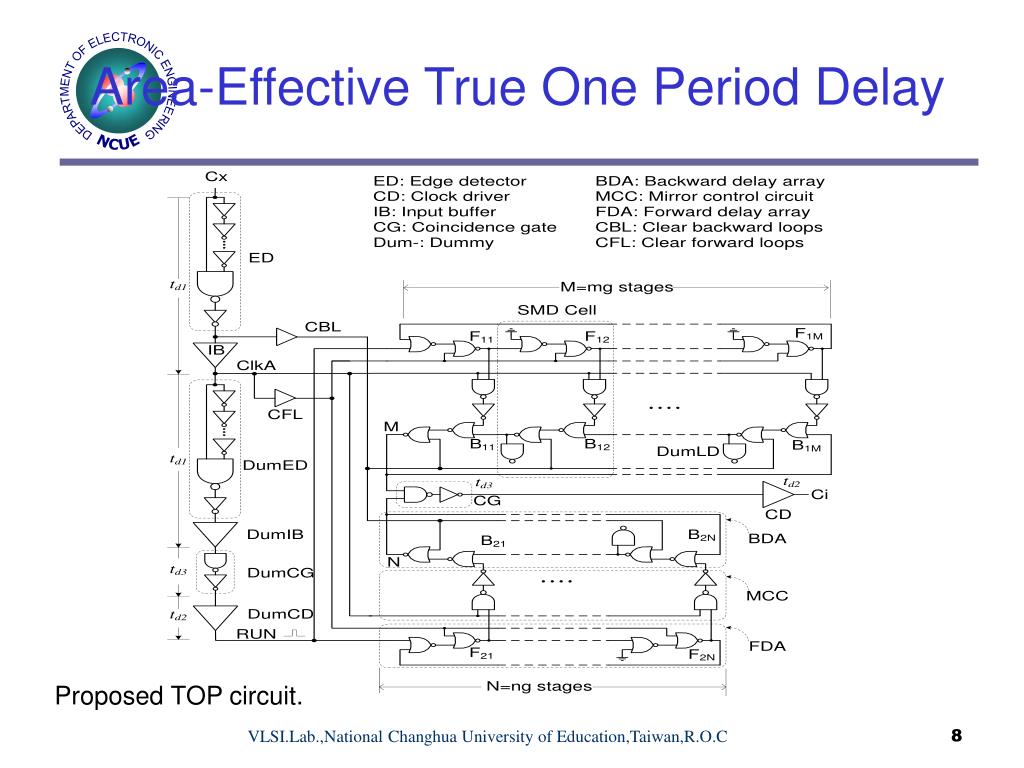

  8. Area-Effective True One Period Delay Proposed TOP circuit. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

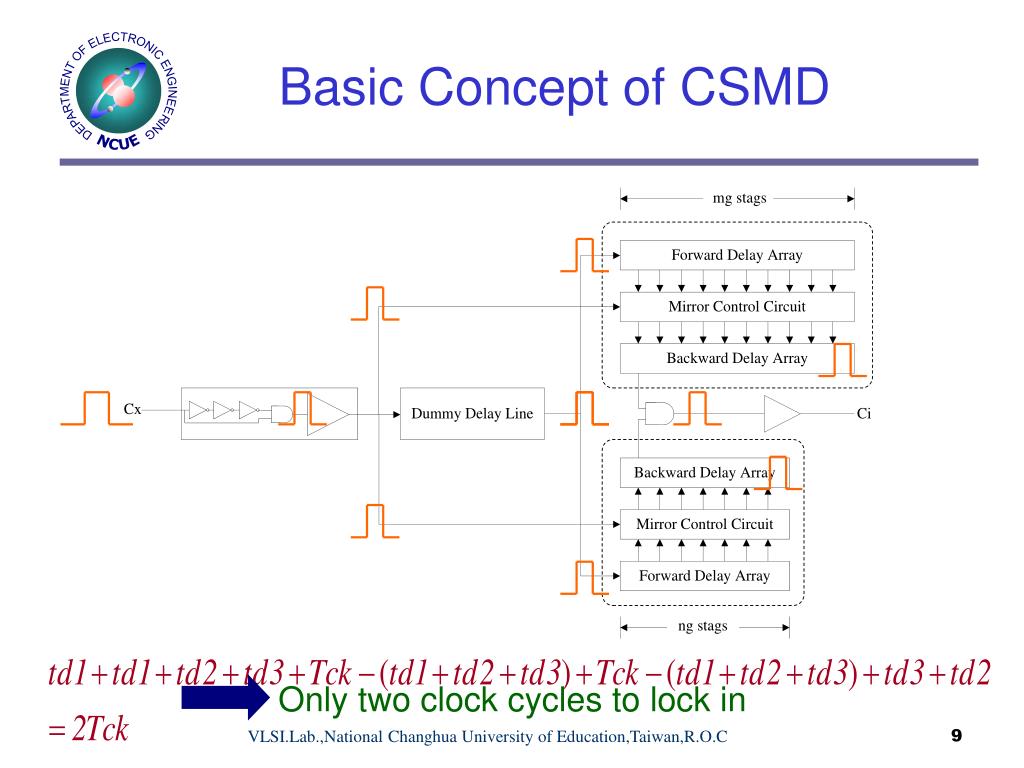

  9. Only two clock cycles to lock in Basic Concept of CSMD VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

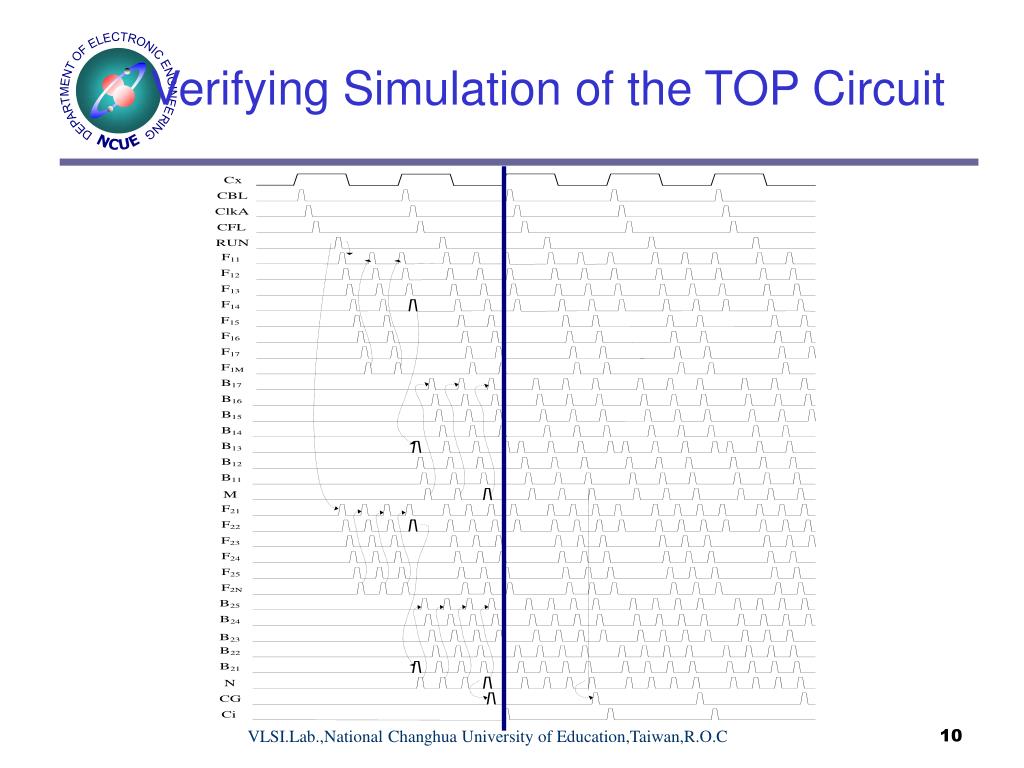

  10. Verifying Simulation of the TOP Circuit VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

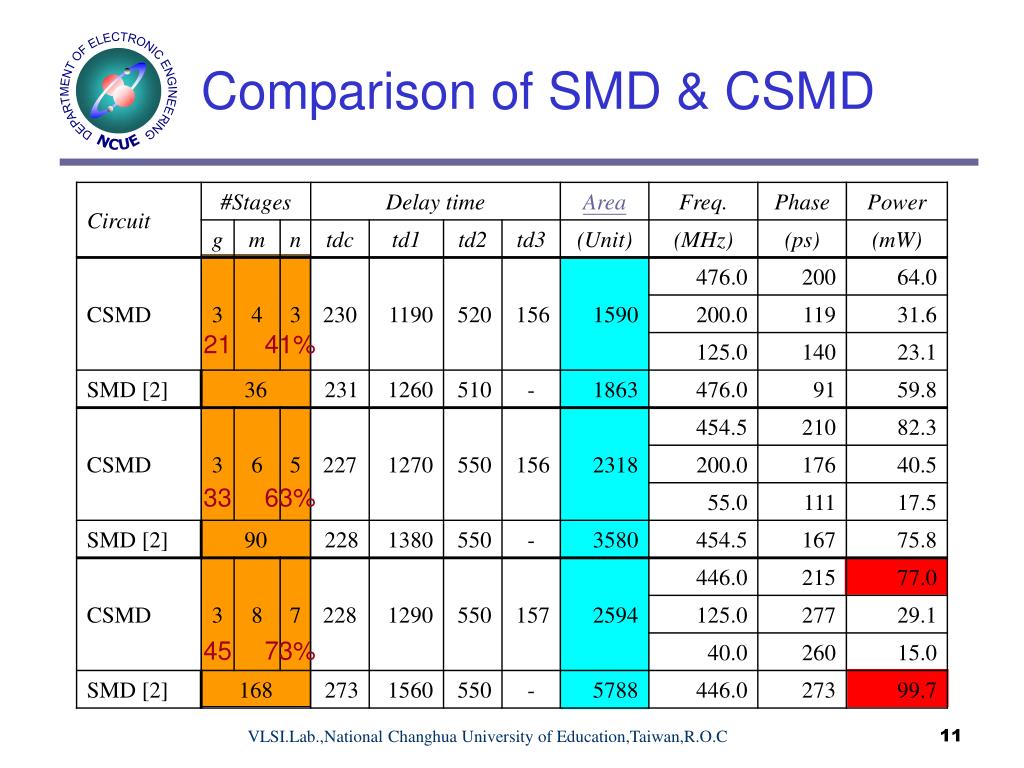

  11. Comparison of SMD & CSMD 21 41% 33 63% 45 73% VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

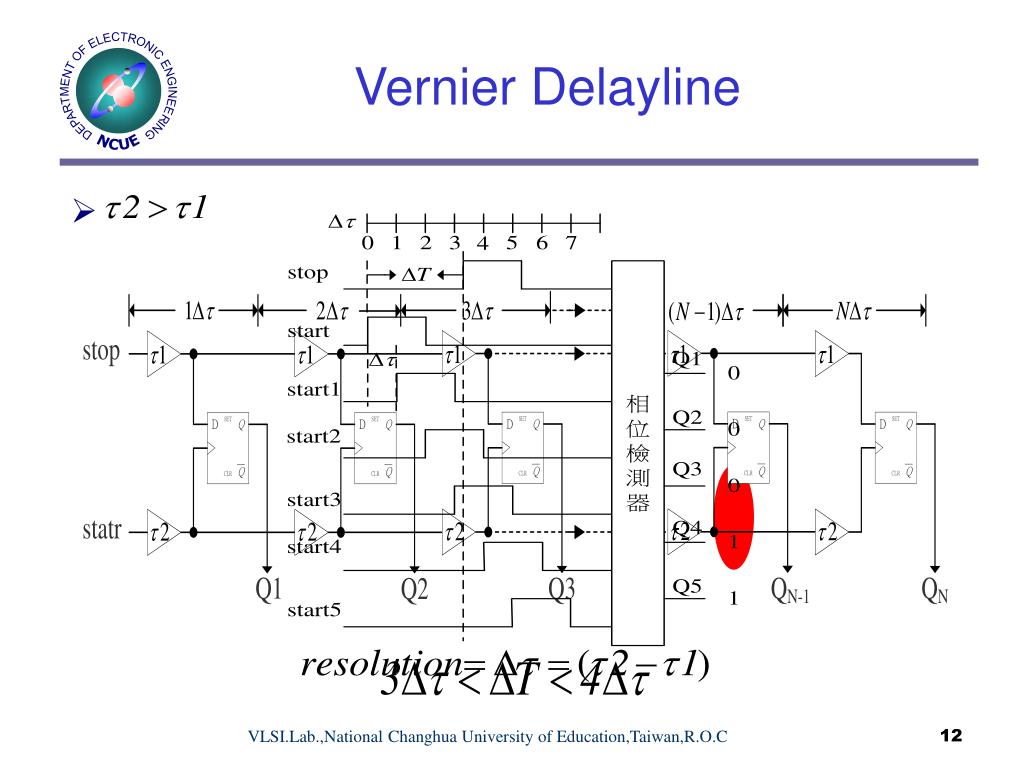

  12. Vernier Delayline VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

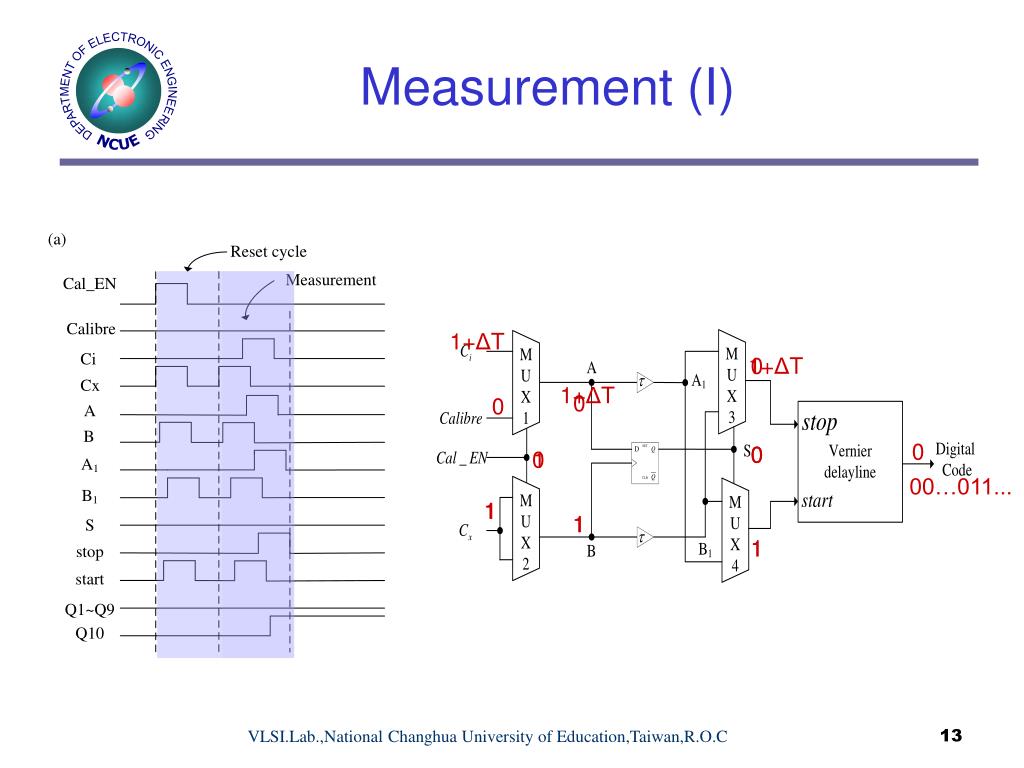

  13. 0 0 0 1 0 1 1 1 Measurement (I) 1+ΔT 1+ΔT 1+ΔT 0 0 0 00…011... 1 1 1 VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

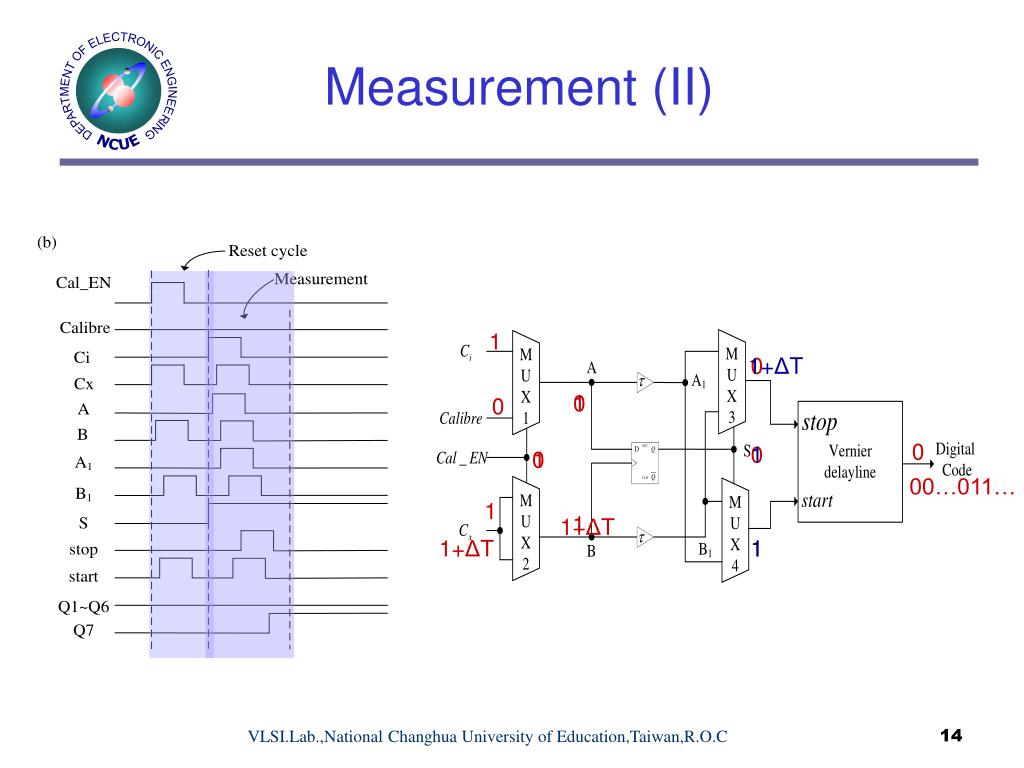

  14. 0 0 0 1 0 1 1 1 Measurement (II) 1 1+ΔT 1 0 1 0 00…011… 1+ΔT 1+ΔT 1 VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

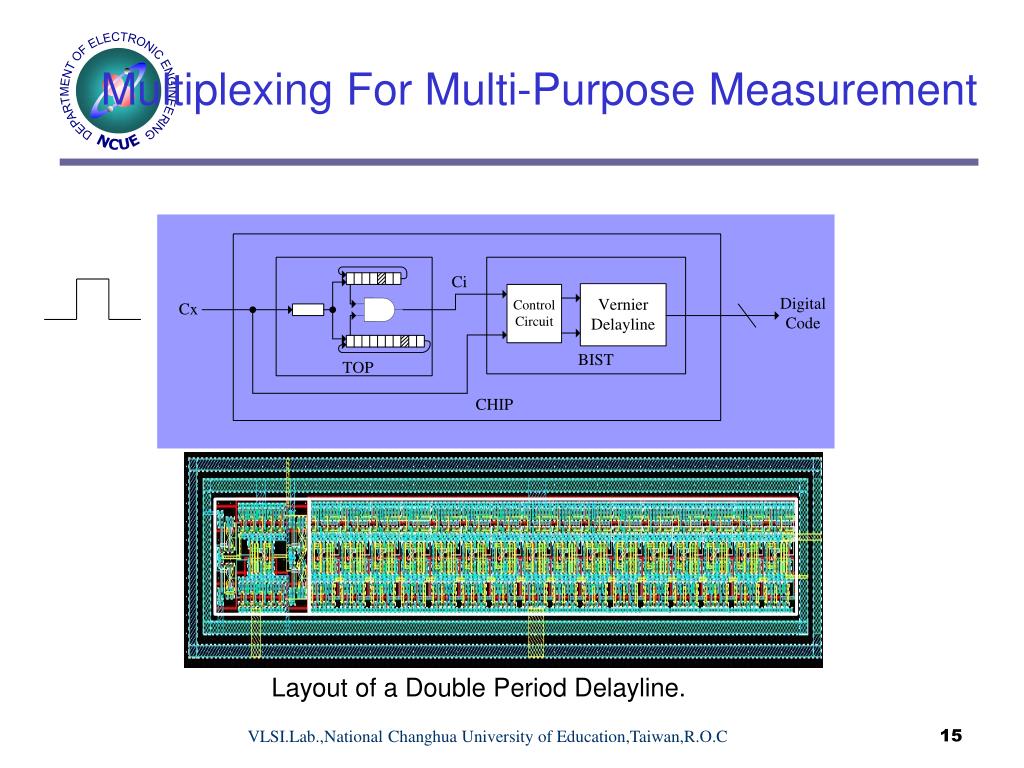

  15. Multiplexing For Multi-Purpose Measurement Layout of a Double Period Delayline. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

  16. TOP TOP VDL TOPJM Experimental Results Chip Implementation of a TOPJ. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

  17. Experimental Results measured result of the TOP circuit VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

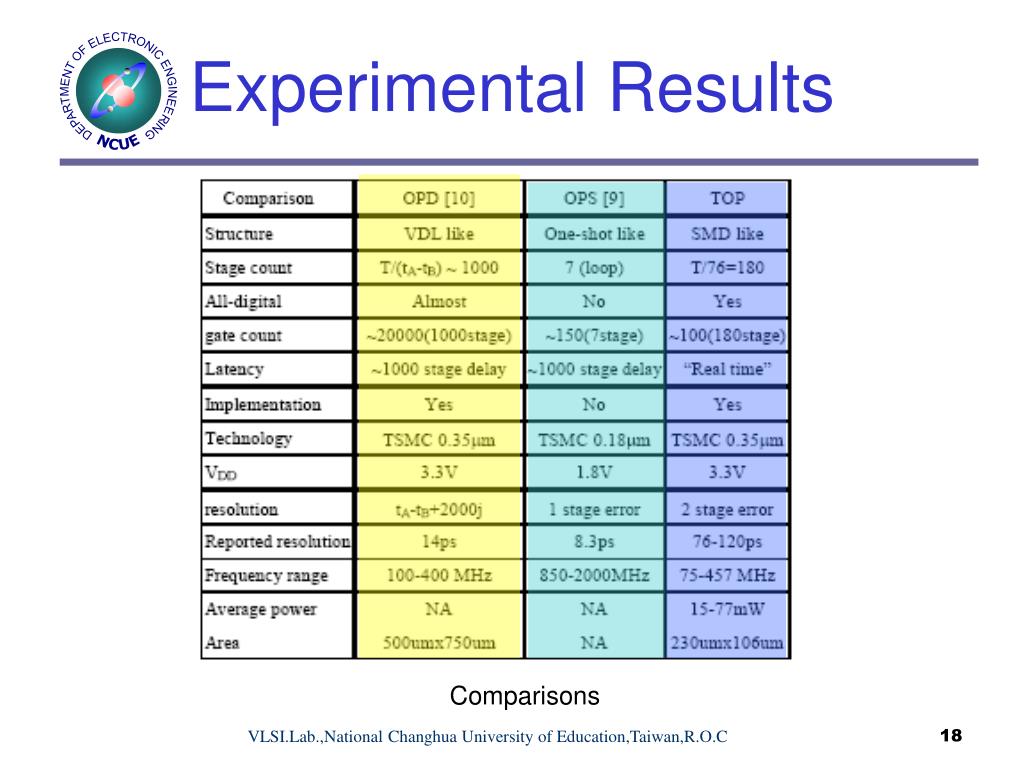

  18. Experimental Results Comparisons VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

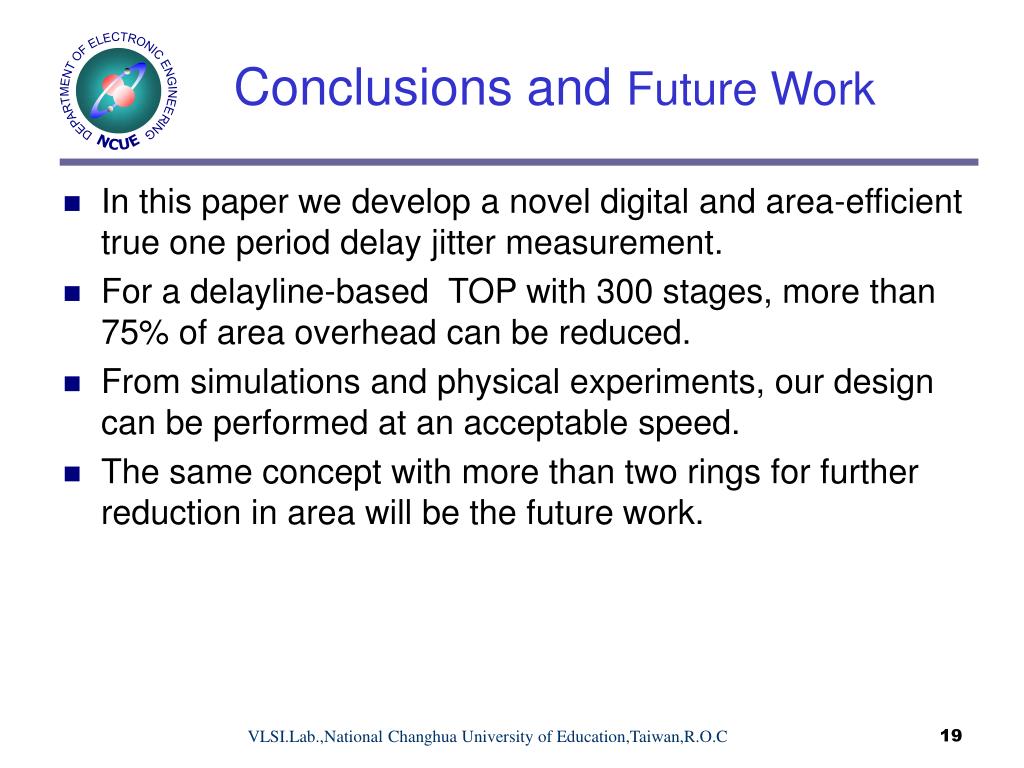

  19. Conclusions and Future Work • In this paper we develop a novel digital and area-efficient true one period delay jitter measurement. • For a delayline-based TOP with 300 stages, more than 75% of area overhead can be reduced. • From simulations and physical experiments, our design can be performed at an acceptable speed. • The same concept with more than two rings for further reduction in area will be the future work. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C

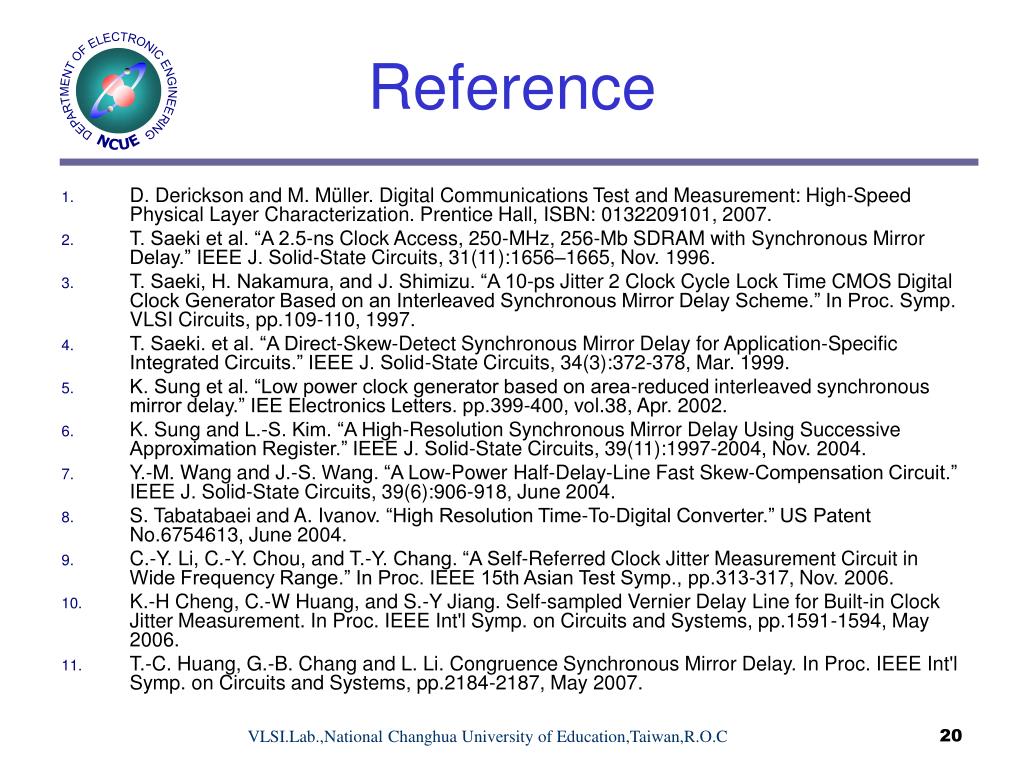

  20. Reference • D. Derickson and M. Müller. Digital Communications Test and Measurement: High-Speed Physical Layer Characterization. Prentice Hall, ISBN: 0132209101, 2007. • T. Saeki et al. “A 2.5-ns Clock Access, 250-MHz, 256-Mb SDRAM with Synchronous Mirror Delay.” IEEE J. Solid-State Circuits, 31(11):1656–1665, Nov. 1996. • T. Saeki, H. Nakamura, and J. Shimizu. “A 10-ps Jitter 2 Clock Cycle Lock Time CMOS Digital Clock Generator Based on an Interleaved Synchronous Mirror Delay Scheme.” In Proc. Symp. VLSI Circuits, pp.109-110, 1997. • T. Saeki. et al. “A Direct-Skew-Detect Synchronous Mirror Delay for Application-Specific Integrated Circuits.” IEEE J. Solid-State Circuits, 34(3):372-378, Mar. 1999. • K. Sung et al. “Low power clock generator based on area-reduced interleaved synchronous mirror delay.” IEE Electronics Letters. pp.399-400, vol.38, Apr. 2002. • K. Sung and L.-S. Kim. “A High-Resolution Synchronous Mirror Delay Using Successive Approximation Register.” IEEE J. Solid-State Circuits, 39(11):1997-2004, Nov. 2004. • Y.-M. Wang and J.-S. Wang. “A Low-Power Half-Delay-Line Fast Skew-Compensation Circuit.” IEEE J. Solid-State Circuits, 39(6):906-918, June 2004. • S. Tabatabaei and A. Ivanov. “High Resolution Time-To-Digital Converter.” US Patent No.6754613, June 2004. • C.-Y. Li, C.-Y. Chou, and T.-Y. Chang. “A Self-Referred Clock Jitter Measurement Circuit in Wide Frequency Range.” In Proc. IEEE 15th Asian Test Symp., pp.313-317, Nov. 2006. • K.-H Cheng, C.-W Huang, and S.-Y Jiang. Self-sampled Vernier Delay Line for Built-in Clock Jitter Measurement. In Proc. IEEE Int'l Symp. on Circuits and Systems, pp.1591-1594, May 2006. • T.-C. Huang, G.-B. Chang and L. Li. Congruence Synchronous Mirror Delay. In Proc. IEEE Int'l Symp. on Circuits and Systems, pp.2184-2187, May 2007. VLSI.Lab.,National Changhua University of Education,Taiwan,R.O.C
