  1. What’s New in Condor

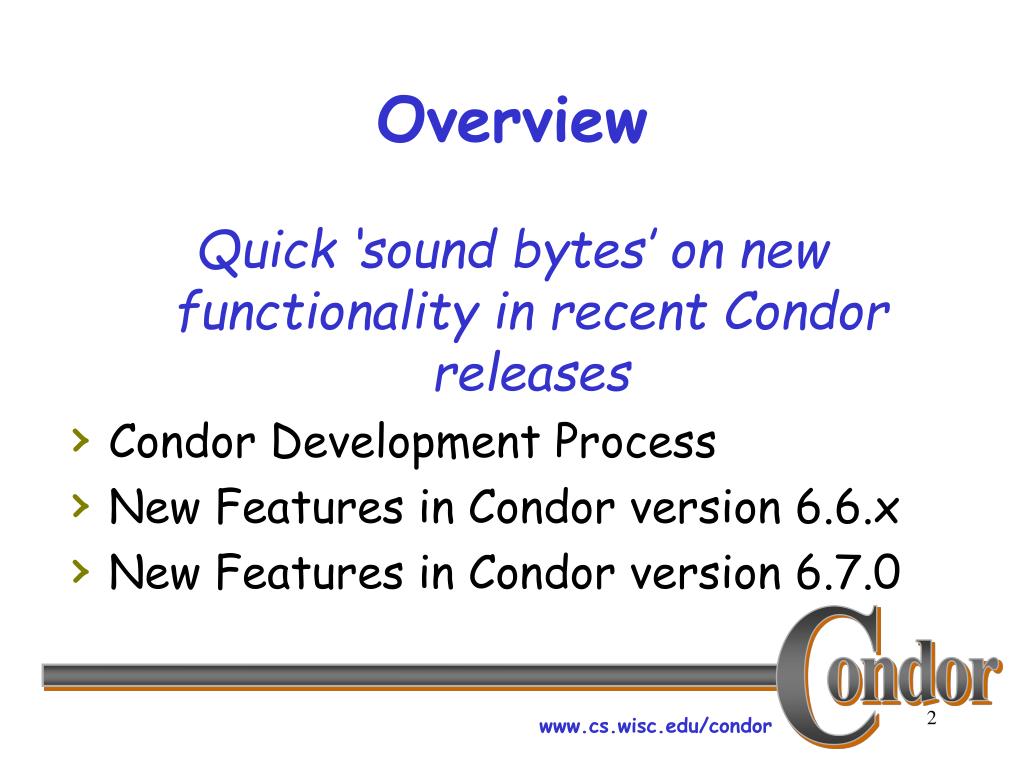

  2. Overview Quick ‘sound bytes’ on new functionality in recent Condor releases • Condor Development Process • New Features in Condor version 6.6.x • New Features in Condor version 6.7.0

  3. Condor Development Process • We maintain two different releases at all times • Stable Series • Second digit is even: e.g. 6.2.2, 6.4.7, 6.6.3 • Development Series • Second digit is odd: e.g. 6.5.1, 6.7.2

  4. Stable Series • Heavily tested • Runs on our department production pool of nearly 1,000 CPUs (for min of 3 weeks) • No new features, only bugfixes and ports. • A given stable release is alwayscompatible with other releases fromthe same series • 6.6.X is compatible with 6.6.Y • Recommended for production pools

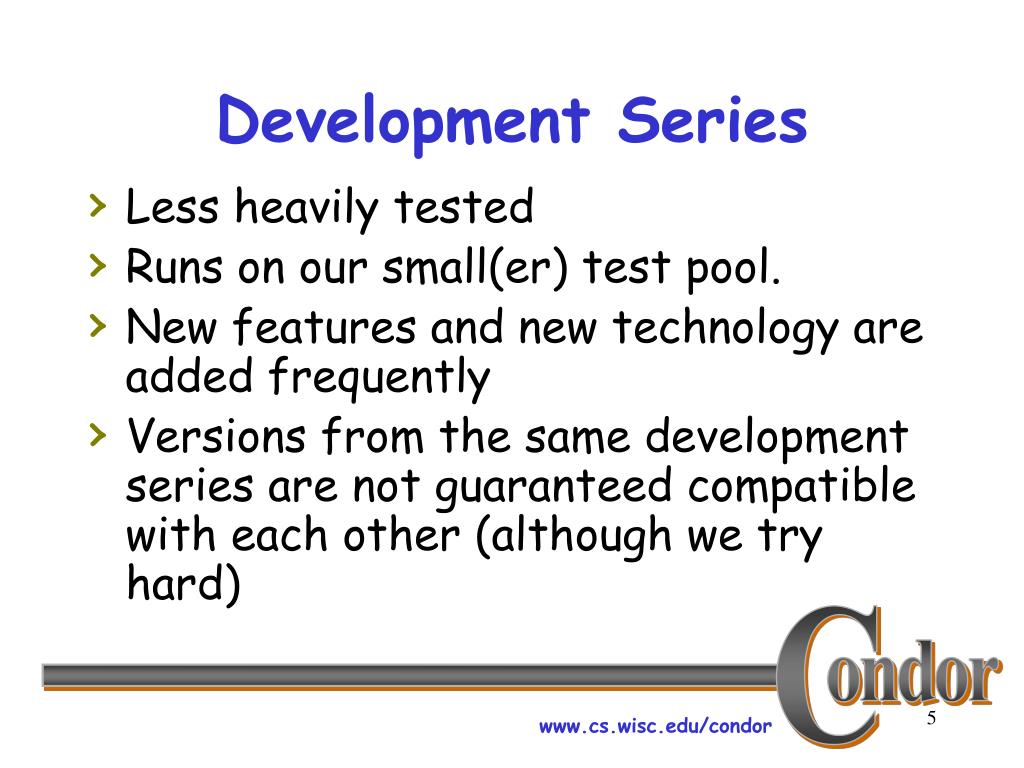

  5. Development Series • Less heavily tested • Runs on our small(er) test pool. • New features and new technology areadded frequently • Versions from the same developmentseries are not guaranteed compatible with each other (although we try hard)

  6. New in version 6.6.x • Version 6.6.0 released in November 03. • Current release: version 6.6.3, released in April 04.

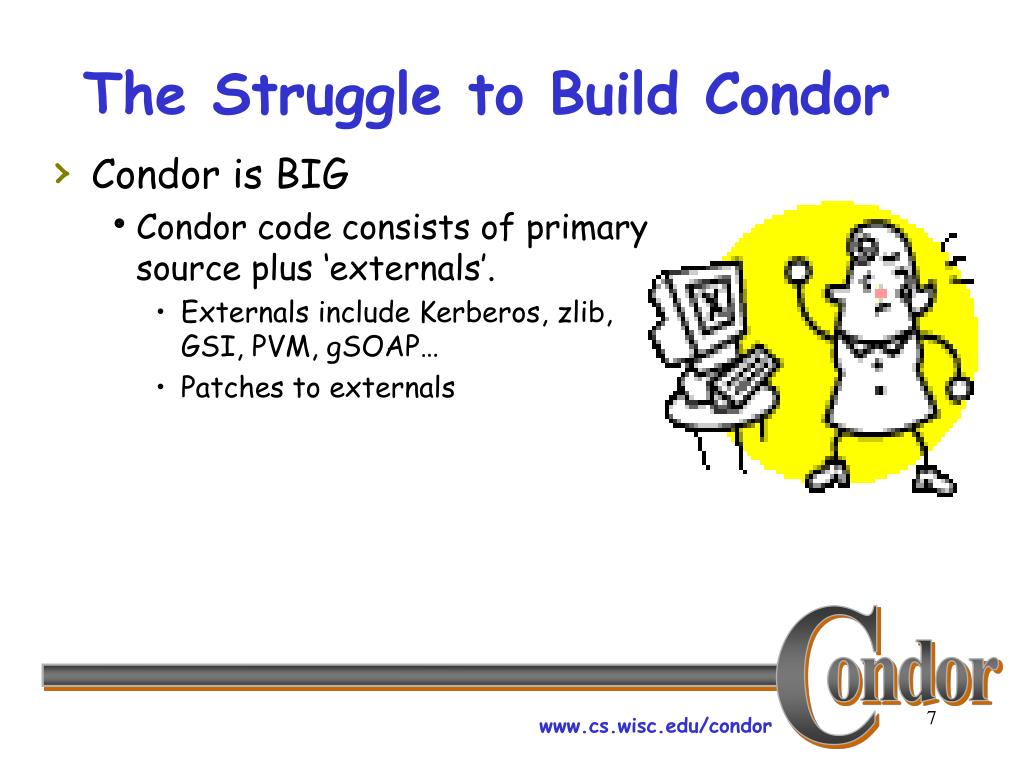

  7. The Struggle to Build Condor • Condor is BIG • Condor code consists of primary source plus ‘externals’. • Externals include Kerberos, zlib, GSI, PVM, gSOAP… • Patches to externals

  8. The Struggle to Build Condor • Condor is BIG • Condor code consists of primary source plus ‘externals’. • Externals include Kerberos, zlib, GSI, PVM, gSOAP… • Patches to externals • Current shipped source + externals: ~415MB of source, or ~9 million lines! • Building Condor outside of UW-Madison used to be very difficult. • “LIST OF SHAME”: Build pointed to packages on UW-Madison fileservers.

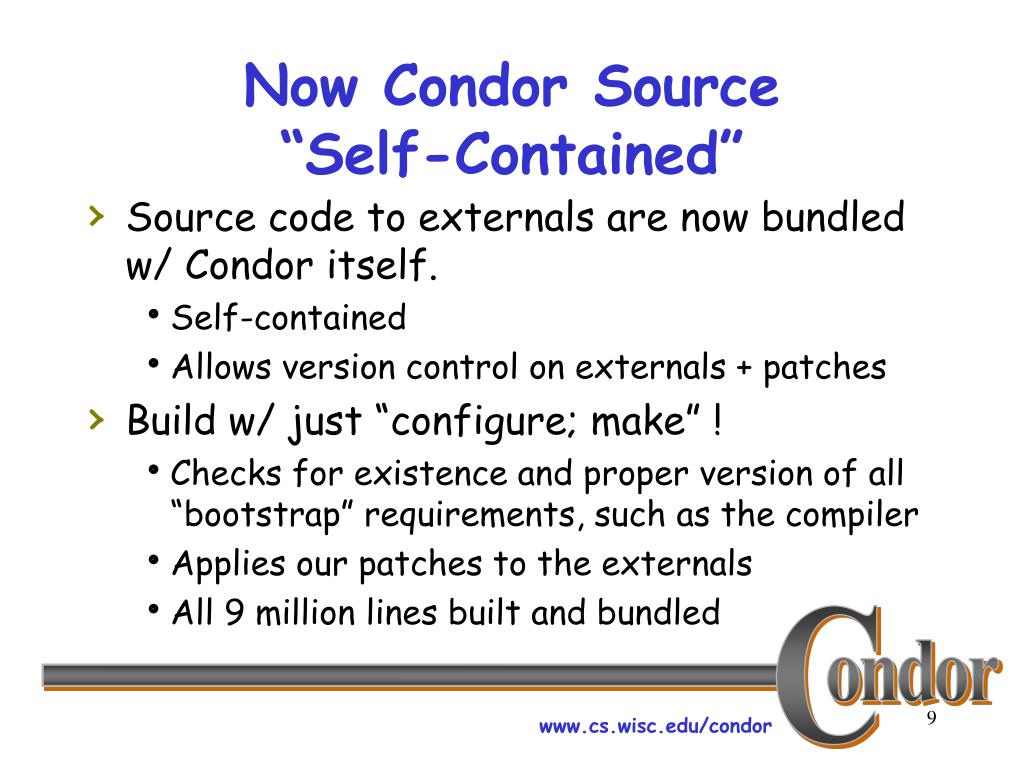

  9. Now Condor Source “Self-Contained” • Source code to externals are now bundled w/ Condor itself. • Self-contained • Allows version control on externals + patches • Build w/ just “configure; make” ! • Checks for existence and proper version of all “bootstrap” requirements, such as the compiler • Applies our patches to the externals • All 9 million lines built and bundled

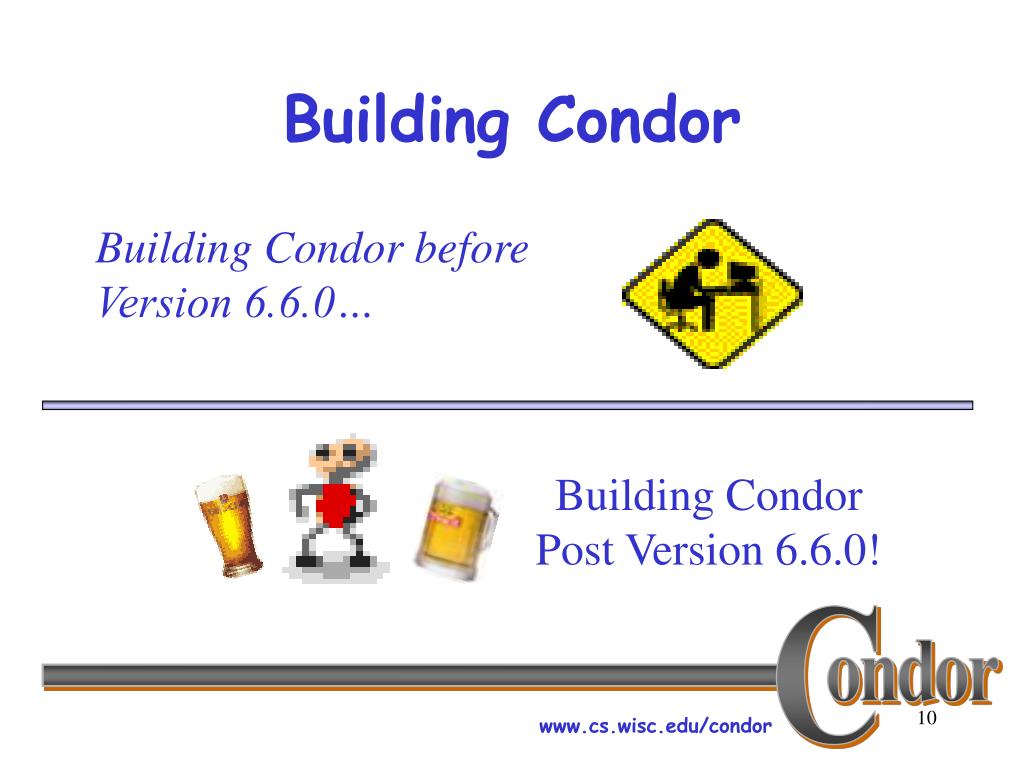

  10. Building Condor Building Condor before Version 6.6.0… Building Condor Post Version 6.6.0!

  11. Condor + NMI • NMI = NSF Middleware Initiative • Automated build and test infrastructure built on top of Condor • Pool of 37 machines of many architectures • Scalable • Runs every night, builds several Condor source branches, then runs 114 test programs. • All results stored in RDBMS, reported on the web. • Yes, Condor builds Condor!

  12. Ports • New Ports w/ v6.6.x –vs- v6.4.x : • Solaris 9 • RedHat Linux 8.x, 9.x for x86 (+RPMs) • RedHat Linux 7.x and SUSE 8.0 for IA64 (clipped) • Tru64 5.1 (clipped) • AIX 5.2 (clipped) • Mac OS X (clipped)

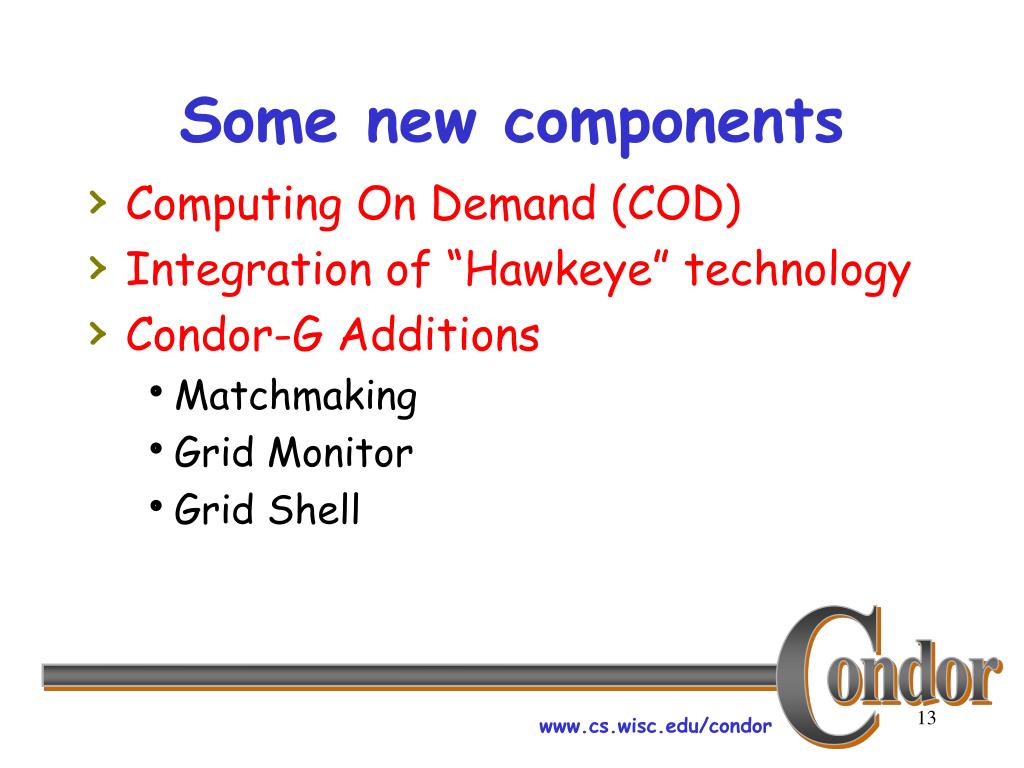

  13. Some new components • Computing On Demand (COD) • Integration of “Hawkeye” technology • Condor-G Additions • Matchmaking • Grid Monitor • Grid Shell

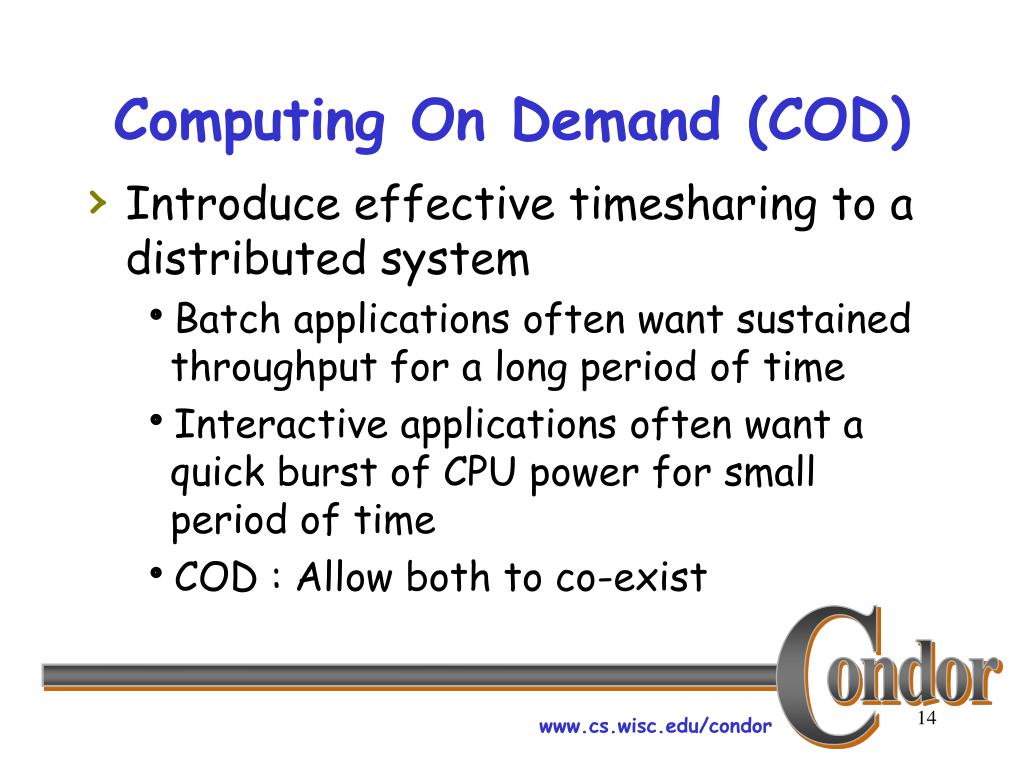

  14. Computing On Demand (COD) • Introduce effective timesharing to a distributed system • Batch applications often want sustained throughput for a long period of time • Interactive applications often want a quick burst of CPU power for small period of time • COD : Allow both to co-exist

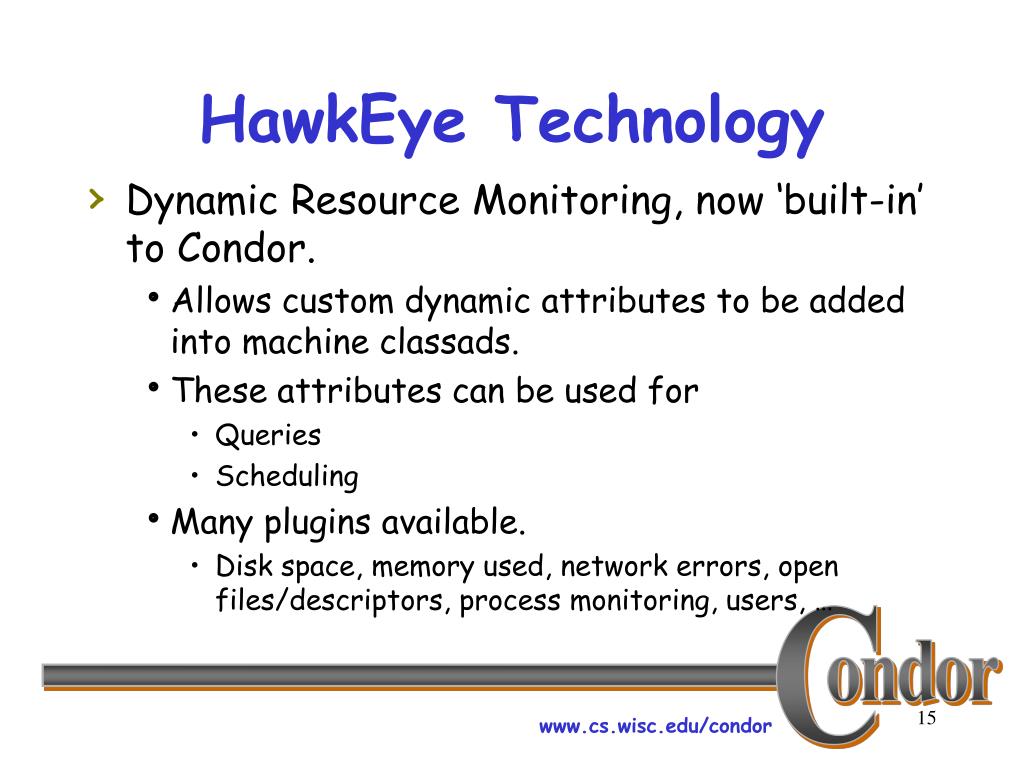

  15. HawkEye Technology • Dynamic Resource Monitoring, now ‘built-in’ to Condor. • Allows custom dynamic attributes to be added into machine classads. • These attributes can be used for • Queries • Scheduling • Many plugins available. • Disk space, memory used, network errors, open files/descriptors, process monitoring, users, …

  16. Condor-G • Condor-G Matchmaking • Condor-G can determine which grid site to utilize via ClassAd matchmaking (grid planning, meta scheduling, …) • Condor-G Grid Monitor • Reduces the load on a GT2-based gatekeeper, greatly increasing the amount of jobs that can be submitted • Condor-G GridShell • A wrapper for the job • Reports exit status, cpu utilization, more

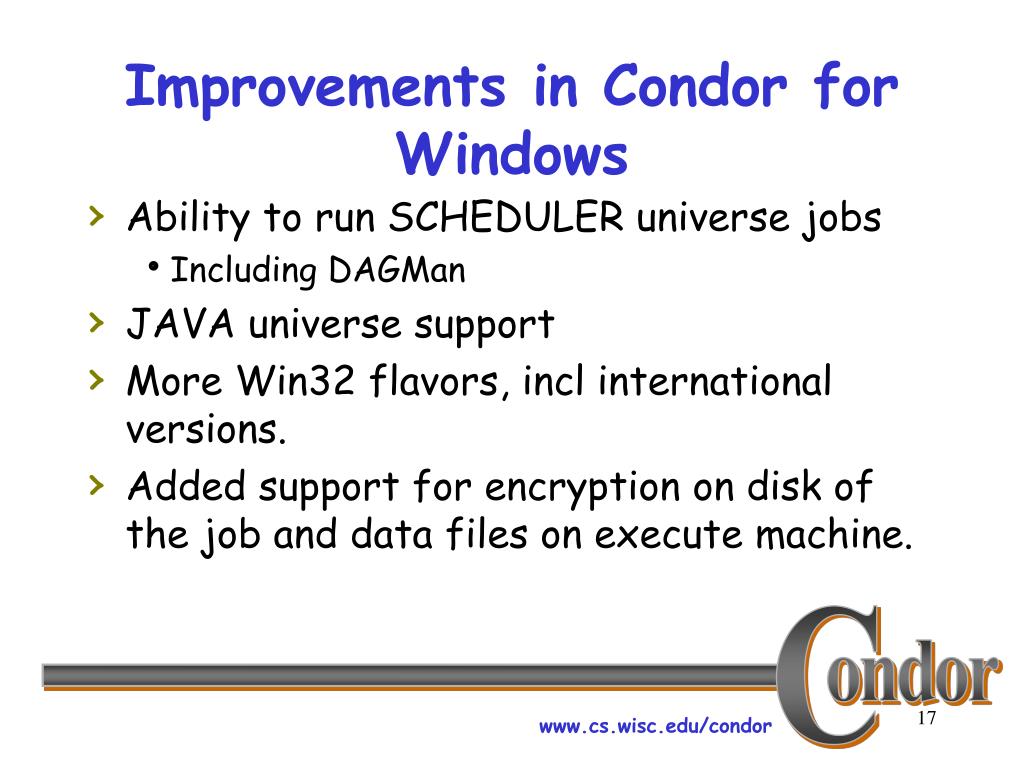

  17. Improvements in Condor for Windows • Ability to run SCHEDULER universe jobs • Including DAGMan • JAVA universe support • More Win32 flavors, incl international versions. • Added support for encryption on disk of the job and data files on execute machine.

  18. New Features in DAGMan • DAGMan previously required that all jobs in a DAG share one log file • Each job can now have it’s own log file • Understands XML formatted logs • Can draw a graphical representation of your DAG • Uses GraphViz, http://www.graphviz.org/

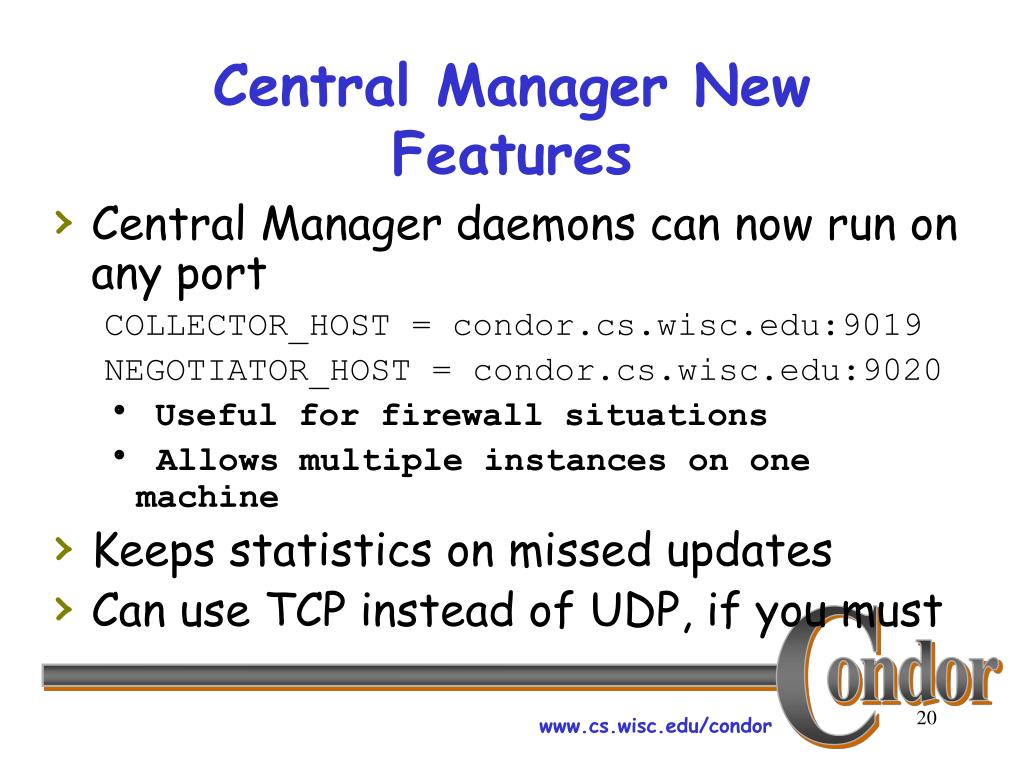

  19. Central Manager New Features • Central Manager daemons can now run on any port COLLECTOR_HOST = condor.cs.wisc.edu:9019 NEGOTIATOR_HOST = condor.cs.wisc.edu:9020 • Useful for firewall situations • Allows multiple instances on one machine • Keeps statistics on missed updates • Can use TCP instead of UDP, if you must

  20. Command-line Tools • ‘condor_update_stats’ tool to display information on any dropped central manager updates • ‘condor_q –hold’ gives you a list of held jobs and the reason they were put on hold • ‘condor_config_val –v’ tells you where (file and line number) an attribute is defined • ‘condor_fetch_log’ will grab a log file from a remote machine: • condor_fetch_log c2-15.cs.wisc.edu STARTD • ‘condor_configure’ will install Condor via simple command-line switches, no questions asked • ‘condor_vacate_job’ to release a resource by job id, and can be invoked by the job owner. • `condor_wait’ blocks until a job or set of jobs completes

  21. New 6.7.x Development Series • Release of v6.7.0 in April 04. • Can you take the suspense?!?

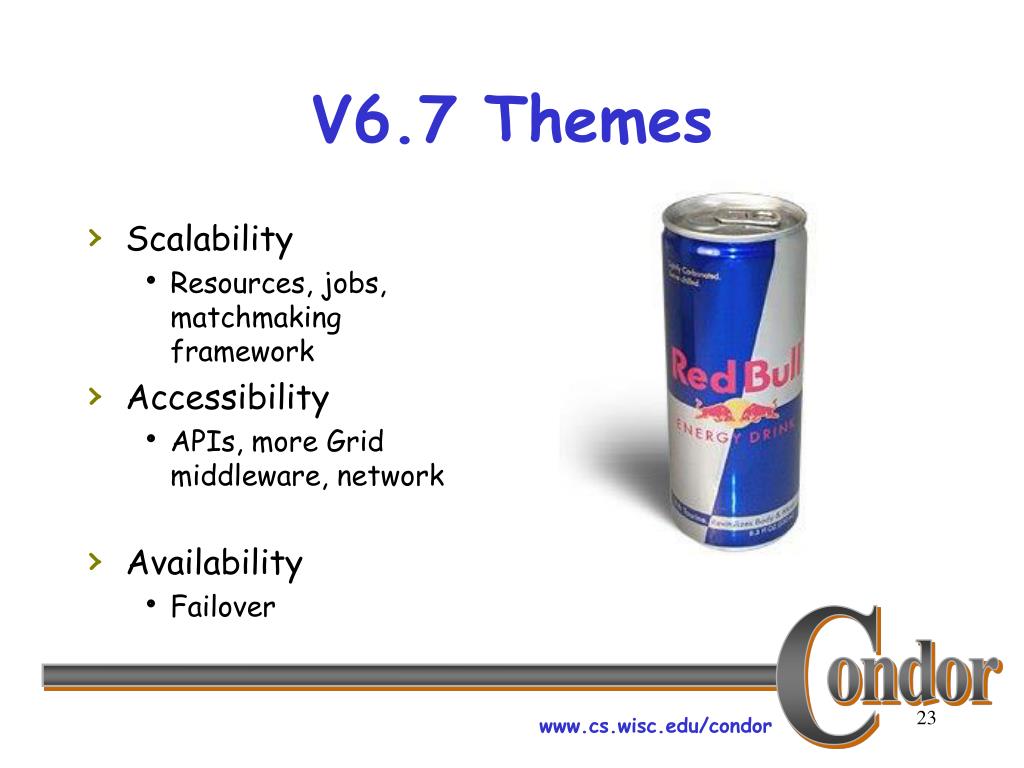

  22. V6.7 Themes • Scalability • Resources, jobs, matchmaking framework • Accessibility • APIs, more Grid middleware, network • Availability • Failover

  23. Thank You! • Later this afternoon is the roadmap for future work. • Questions?
