Presentation Transcript

  1. Quantitative Analysis of Humulene in Beer Joseph Frederick CHEM 4101, Fall 2010 December 10, 2010

  2. What is Humulene? • Humulene is an essential oil found in hops used for brewing. • Has an “elegant” flavor. • Higher levels found in aroma hops.

  3. Hypothesis • There is a certain concentration of humulene that the majority of people will prefer in beer. Importance of solving hypothesis • If this concentration was to be determined then the beer that would appeal to the largest amount of people could be produced.

  4. Background • Normal levels in Japanese beers (usually have lower levels of essential oils than Western beers): 0.23 – 0.73 ppb • These low levels are suitable for this method implying that it would be acceptable for American and European beers which will have higher concentrations of humulene.

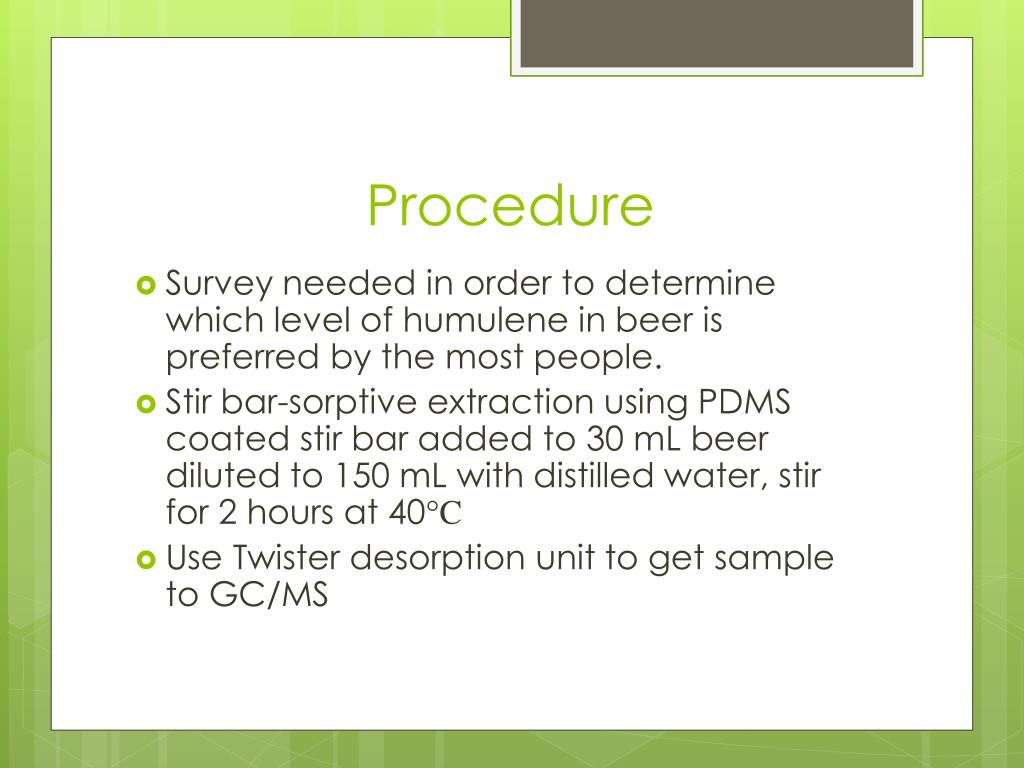

  5. Procedure • Survey needed in order to determine which level of humulene in beer is preferred by the most people. • Stir bar-sorptive extraction using PDMS coated stir bar added to 30 mL beer diluted to 150 mL with distilled water, stir for 2 hours at 40°C • Use Twister desorption unit to get sample to GC/MS

  6. Stir Bar-Sorptive Extraction • Stir Bar-Sorptive Extraction preferable to liquid extraction methods. • No solvent used. • Lower loss of product due to analysis. • Far more efficient extraction of humulene. • Need to use Twister desorption unit to desorb compounds from PDMS.

  7. Method of Choice: GC/MS • Allows for separation and then identification simultaneously • Good limit of detection: 0.035 ppb

  8. Agilent 6890 • Gas Chromatograph • Carrier Gas: Helium • DB-WAX GC Column with polyethylene glycol as the stationary phase (60 m length X 0.25mm i.d,; film thickness = 0.25μm)

  9. MSD5973N • Mass spectrometer • Quadrupole • Electron Impact Mode at 70 eV • Resolution: 0.1 amu • Sensitivity: 1 pg

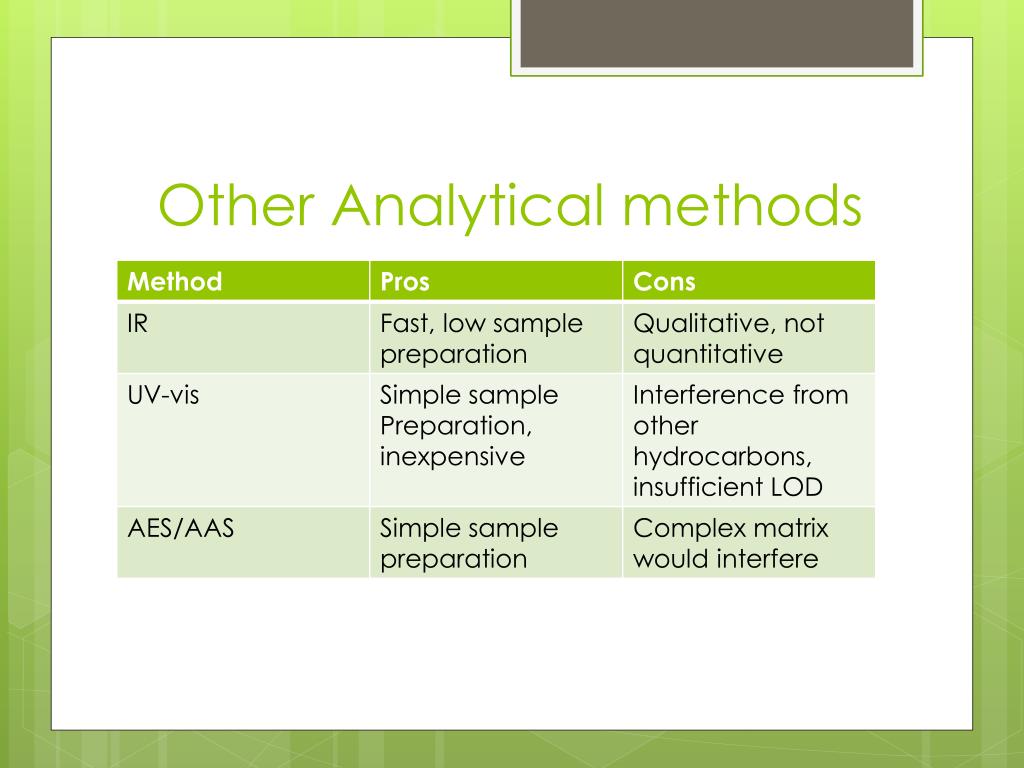

  10. Other Analytical methods

  11. Conclusion • Humulene levels at a certain level will make beer more appealing to the most people. • Stir bar-sorptive extraction and GC/MS allows for relatively cheap determination of humulene levels. • Since low amounts of beer are required for this method (30 mL) and no solvent is used, constant monitoring of humulene (and other essential oils) may be implemented.

  12. References • 1. Kishimoto, Toru, et al., "Analysis of Hop-Derived Terpenoids in Beer and Evaluation of their Behavior Using the Stir Bar-Sorptive Extraction Method with GC-MS". Journal of Agricultural and Food Chemistry, 2005, 53, 4701-4707. • 2. Fix, George. Principles of Brewing Science. Boulder, Colorado: Brewers Publications, 1989 • 3. Dev, S. “Studies in Sesquiterpenes-XVIII: The Proton Magnetic Resonance Spectra of Some Sesquiterpenes and the Structure of Humulene”. Tetrahedron. 1960, 9, 1-9 • 4. Musenga, A., et al, "analysis of aromatic and terpenic constituents of pepper extracts by capillary electrochromatography". J. Sep. Sci., 2007, 30, 612-619
