  1. Citrix Delivery Center‘XenServer George’ 5.5 Mai 2008 Frank ‚XenGelist‘ Kohler Server Virtualization Where virtualization, networking& app delivery meet

  2. Driving virtualization into the core Key Themes • Keynote: Wes Wasson: Xen strategic platform for Citrix products • ~17% enterprise server market share (Yankee, Aug 08) • World's largest virtualization deployments are Xen based • Used in Severs, Desktops, Laptops, Storage Appliances, Network Appliances, PDAs and Smart Phones • Openness • XenServer 5.5 + Essentials: Porsche of hypervisors • Citrix StorageLink • Citrix Ready Open Storage Program • Open Kernel Labs partnership XenServer XenApp XenDesktop XenClient „XenScaler“/Netscaler VPX „XenCloud“/ C3

  3. Citrix Delivery CenterTM “Transforming Datacenters into Delivery Centers” Workflow Studio XenDesktop XenApp XenServer NetScaler IT delivery systems for applications, desktops, and servers that improve performance, lower costs and enable agility

  4. Key Topics / Announcements • Introducing Citrix XenServer 5.5 + Essentials for XenServer / Hyper-V • Introducing the Citrix Ready Open Storage Program June 09

  5. But First, a Bit of Shorthand… • In this session, when we say…we usually mean…and if we don't, we'll tell you XenServer XenServer** and Citrix Essentials for XenServer

  6. Similar functionality in other products $5k+ per server Citrix XenServer free …Now enhanced A free hypervisor alone is not a solution Bare Metal Hypervisor Multi-Server Management XenMotion And Much More….

  7. Platinum Edition Enterprise Edition Free Edition Citrix XenServer & Essentials Family Lab Management Provisioning Services Essentials Provisioning Services virtualonly StorageLinkTM(NetApp / Dell) High Availability Performance Monitoring Workflow Studio Orchestration Live Migration (XenMotion) 64bit, Windows, Linux Workloads XenServer XenCenter Management Shared Storage (iSCSI, FC, NFS) No socket restriction

  8. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the features you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  9. XenServer and Essentials for XenServer Orlando (v 5.0) Midnight Ride Miami (v 4.1) George (v 5.5) • Enhanced Snapshots • Backup Enablement • AD Integration • Workload Balancing • StorageLink • Lab Manager • Stage Manager • High Availability • DR Enablement • EqualLogic Integration • Enhanced XenCenter • Monitoring & Alerting • XenConvert • Optimized for XenApp • NetApp Integration • Networking Improvements • Provisioning Services • Updates Manager • Broader HCL Important Notice: This forward-looking indication of plans for products is preliminary, and is subject to change. Any future release of the product or planned modifications to product capability or functionality are subject to ongoing evaluation by Citrix, and may or may not be implemented.

  10. Device Drivers Device Drivers Device Drivers XenTool Stack XenTool Stack XenTool Stack Xen Hypervisor Xen Hypervisor Xen Hypervisor Centralized, Multi-node Management with XenCenter Bare Metal Hardware Bare Metal Hardware Bare Metal Hardware • Runs on any PC • No single point of failure • Real time replication • Performance monitoring • VM searching/tagging • Installs in minutes

  11. Zero Downtime with XenMotion Live Migration Device Drivers Device Drivers Device Drivers XenTool Stack XenTool Stack XenTool Stack Xen Hypervisor Xen Hypervisor Xen Hypervisor Bare Metal Hardware Bare Metal Hardware Bare Metal Hardware Remote VM guest storage

  12. High Availability Device Drivers Device Drivers Device Drivers XenTool Stack XenTool Stack XenTool Stack Xen Hypervisor Xen Hypervisor Xen Hypervisor Bare Metal Hardware Bare Metal Hardware Bare Metal Hardware Remote VM guest storage

  13. Citrix Lab Management Solution Rapidly provision complex workload configurations Employ consistent and repeatable virtual environments Automate software installations, test execution and results gathering Collaborate on common configurations for testing, debugging, training or demo purposes Easily reclaim hardware to ensure efficient recycling of resources and reduce sprawl Introduced in XenServer 5 Platinum Edition

  14. Citrix Lab Management Capabilities Provides a self-service portal to authorized workload templates Frees IT, test and development admins from time consuming provisioning tasks Reduces virtual machine sprawl through automated lease-based cleanup • Optimizes the utilization of existing hardware, software and storage resources • Reduces the capital and operating costs of managing non-production virtual environments

  15. Lab Management

  16. Active Directory Authentication • Give selected AD users XenServer management priviliges without providing root credentials • Configurable via XenCenter and CLI • Set once per Resource Pool • Local super-user account will remain • No AD schema extensions

  17. Workload Balancing – Placement Strategies • Maximize Performance • Default setting • Spread workload evenly across all physical hosts in a resource pool • The goal is to minimize CPU, memory, and network pressure for all hosts • Maximize Density • Fit as many virtual machines as possible onto a physical host • The goal is to minimize the number of physical hosts that must be online

  18. Workload Balancing – Critical Thresholds • Components included in WLB evaluation: • CPU • Memory • Network Read • Network Write • Disc Read • Disk Write • Optimization recommendation is being triggered if a threshold is reached

  19. Workload Reports • Pool Health • Shows aggregated resource usage for a pool • Pool / Host Health History • Displays resource usage for a pool or host over time

  20. Workload Reports • Optimization Performance History • Shows resource usage before and after executing optimization recommendations

  21. Workflow Automation and Orchestration • Problems faced • Manual tasks introduce delay and errors • Scripting requires time & expertise • Increasing IT demands • Benefits • Automate repetitive tasks • Create services using Microsoft Powershell™ • Automatically provision new servers • Part of Essentials for XenServer

  22. Dynamic Provisioning Services • Problems faced • Exploding storage costs • Lack of image management tools • Lack of business charge back mechanisms • Unable to leverage existing storage infrastructure • Benefits • Fast response to server workload demands • Consolidated image catalog reduces storage needs • Supports streaming to XenServer and Hyper-V • Can stream Hyper-V to a bare metal machine

  23. B C A Dynamic Server Provisioning Silo One Provisioning Server (streaming service) Silo Two Networkstorage Silo Three

  24. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the power you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  25. Updated Xen Hypervisor Delivers Performance • Optimizations for Intel Nehalem and AMD Shanghai processor architectures • Intel Extended Page Table (EPT) and AMD Rapid Virtualization Indexing (RVI) for improved memory management • New "shadow3" page table management • Xen 3.4 5-27% more power

  26. XenServer – The Performance Leader

  27. XenApp on XenServer: 41% better scalabilty

  28. XenServer – IBM reference Trost: double performance

  29. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the power you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  30. Snapshots: All Storage Repository Types • LVHD technology enhances LVM SRs • VHD layout directly on LVM volumes • Best of both worlds • Features of VHD • Performance of LVM • Adds advanced storage features • Fast cloning • Snapshots • Fast and simple upgrade • Backward compatible

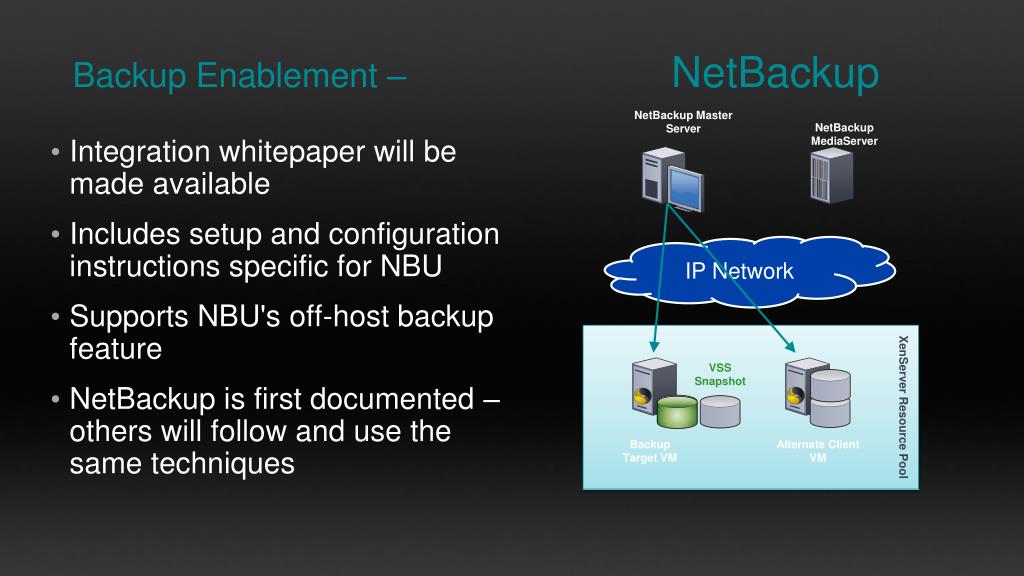

  31. Backup Enablement – NetBackup NetBackup Master Server NetBackupMediaServer • Integration whitepaper will be made available • Includes setup and configuration instructions specific for NBU • Supports NBU's off-host backup feature • NetBackup is first documented – others will follow and use the same techniques IP Network XenServer Resource Pool VSS Snapshot Backup Target VM Alternate Client VM

  32. Storage Adapter forCitrix StorageLink Manager

  33. Advanced Storage Integration with StorageLink™ • Problems faced • Dozens of steps to configure storage for VMs • Requires coordination between server and storage groups • Can’t use intelligent storage services • Benefits • Reduced storage use; fast VM deployment • One-click direct access to native storage services • Use any storage (NAS, DAS, SAN) • Works with Windows storage products • Single set of control points for storage access StorageLink™ Full & Thin Provisioning Deduplicate Snap Clone

  34. StorageLink Gateway Overview SMI-S is the preferred method of integration as it requires no custom development work XenServer Dell Vendor-specific VSM Storage Adapters run in separate processes

  35. StorageLinkTMIntegration with XenServer & XenCenter The available storage systems and the storage pools for the selected storage system are all collected by the wizard as XML. The wizard then customizes the screen to reflect the capabilities and protocol support of the storage system.

  36. StorageLinkTM MMC Snap-in

  37. Leveraging the best of virtualization and storage

  38. Citrix Ready Open Storage Program

  39. DataCore Storage Adapter shows up in the list of Storage Adapters

  40. XenServer 5.5 StorageLink Integration • A new XenServer SR that provides • Support for iSCSI and Fibre Channel arrays • Snapshot and thin provisioning capabilities of storage hardware • Automatic storage management with end-to-end fabric/initiator config • Optional use of storage pre-configured by storage admins • Live migration of VMs • Within pools • Across storage protocols • Cold migration of VMs • Across pools/standalone hosts • Across hypervisor types

  41. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the power you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  42. Run VMs on XenServer or Hyper-V without modification for customers who: Utilize XenServer for bare-metal performance, Linux or mixed environments Utilize Hyper-V for general Windows virtualization Maintain storage mappings when moving across platforms Leverage Citrix Essentials as common set of advanced management tools Multi-Hypervisor Interoperability & Management Utilize Advanced Management Capabilities in XenServer and Hyper-V environments Citrix Essentials for XenServer and Hyper-V Virtual Machine XenCenter SCVMM Virtual Machine Virtual Machine XenServer Hyper-V Storage Mapping

  43. XenConvert 2.0 for broadest portability

  44. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the power you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  45. Not All Infrastructures are Alike… $100,000 $110,000 Servers (x86, 2 CPU) $100,000 $100,000 Operating Systems $30,000 $0 Virtualization Management $60,000 $15,000 Virtualization Infrastructure and Advanced Management $100,000 $50,000 Storage Networking $100,000 $60,000 Maintenance, Support, Services $490,000 $335,000

  46. Essentials for XenServer Produktlinie (Release 7.April) 50% off Achtung:Promotion Preis * $ 2.500,- SRP • Essentials for XenServer Platinum * • Provisioning Server • Lab Mgmt. • HA • Storage Link (tm) • Long Term Performance Monitoring • E-mail Alerting • vPVS • XenMotion** • Res. Pool** • XenCenter Multi-node Mgmt.** • w/Optional Support** $ 5.000,- SRP • Essentials for XenServer Enterprise • HA • Storage Link (tm) • Long Term Performance Monitoring • E-mail Alerting • vPVS • XenMotion** • Res. Pools** • XenCenter Multi-node Mgmt.** • w/Optional Support** $ 2.500,- SRP • XenServer ( free ) • XenMotion** • Res. Pools** • XenCenter Multi-node Mgmt.** • w/Optional Support** * Perpetual License, per Server, inklusive 12 Monate Subscription Advantage - bedeutet: kostenlose Versionsupgrades für den Zeitraum von 12 Monaten in jeweiliger Edition **XenServer Citrix Essentials for XenServerPlatinum Promotion

  47. When You Need Advanced Virtualization Management • Server farms • Terminal services/XenApp • VDI/XenDesktop • Web servers • Enterprise storage architectures • FC SANs • iSCSI • Lab environments • Test servers • Development servers • Stage/Pre-production • Datacenter automation • Remote disaster recovery • Server provisioning Automated lab management Dynamic provisioning services Advanced storage integration (StorageLink) Workflow orchestration & StorageLink

  48. What the Other Guys Don't Want You to Know… XenServer 5 raised the game with enterprise-ready virtualization simplicity XenServer 5.5 delivers more of the power you’ve been looking for The smartest virtualization/storage integration just got a lot smarter XenServer offers the highest level of portability for your virtual machines XenServer offers the best TCO – no tricks, no smoke, no mirrors Real businesses are running (and building practices) on XenServer

  49. SAP Success Story Storage XenServer iqn.2008-08.com.xen:dewdfmXXX.wdf wtswc01 / wtswc02 Provisioning VS Storage VS Management VS PVS dewdfm899 Provisioning … XenServer iqn.1991-05.com.microsoft:dewdfm913.wdf. Provisioning Storage VS Storage VS Management VS PVS Provisioning dewdfm912 iqn.1991-05.com.microsoft:dewdfm914.wdf. wtswc00 DHCP Office Management Console DHCP Management DHCP Provisioning TFTP Boot License Server vs0062 vs0064 vs0065 vs0066 vs0060 vs0063 vs0061

  50. TCO/ROI • 6 Images in SAN Storage • 20.000 Concurrent Citrix User • 600 streamed VMs with PVS • DataCenter space -74,9% • Power -74,9% (-582.018 t CO²) • Cooling -64% (-33.056t CO²) • Total savings -35% • Savings in Euro 2.331.723€
