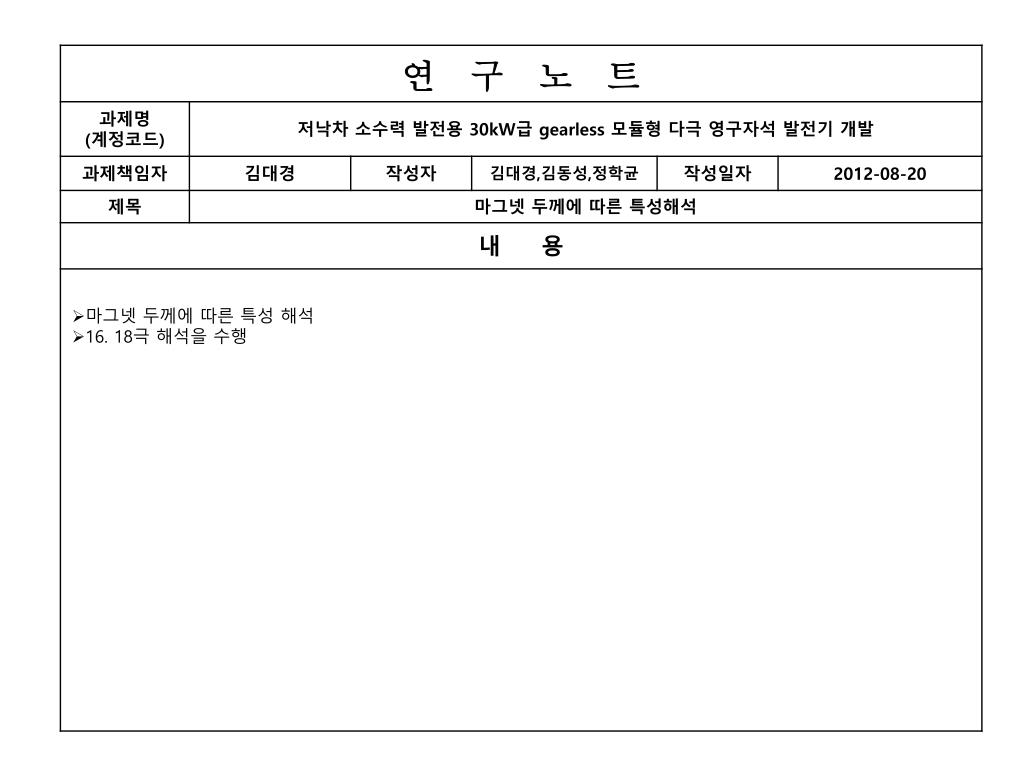

소수력 발전기

소수력 발전기. 극 두께 : 12[mm] 효율 : 94.80[%] 역률 : 0.7531 출력 전력 : 9974.93[w] 입력 전력 : 10521.6[w] 적층 : 240[mm] 공극 : 1[mm]. 18 극 30 슬롯 권선 두께 1.5[mm] 7 가닥 30 턴 고정자 외경 : 280[mm] 내경 : 192[mm] 회전자 외경 : 190[mm] 내경 : 50[mm]. 18 극 단층 ( 적층 : 240, 턴수 :30 턴 , 공극 : 1, 마그넷 두께 : 12).

cheng
Télécharger la présentation

소수력 발전기

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 소수력 발전기 극 두께 : 12[mm] 효율 : 94.80[%] 역률 : 0.7531 출력 전력 :9974.93[w] 입력 전력 : 10521.6[w] 적층: 240[mm] 공극: 1[mm] • 18극 30슬롯 • 권선 두께 1.5[mm] 7가닥 30턴 • 고정자 • 외경 : 280[mm] • 내경: 192[mm] • 회전자 • 외경 : 190[mm] • 내경: 50[mm]

  2. 18극단층 (적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 12) ANSOFT 37.50 Winding currents under Load Winding Voltages under Load Curve Info Phase Current ia 25.00 Phase Current ib 12.50 Phase Current ic (Amperes) 0.00 -12.50 -25.00 -37.50 0.00 125.00 250.00 375.00 Electric Degree ANSOFT 500.00 Curve Info Phase Voltage va Line Voltage vab 250.00 (Volts) 0.00 -250.00 -500.00 0.00 125.00 250.00 375.00 Electric Degree

  3. 소수력 발전기 극 두께 : 15[mm] 효율 : 94.91[%] 역률 : 0.7531 출력 전력 :10639.9[w] 입력 전력 : 11209.7[w] 적층: 240[mm] 공극: 1[mm] • 18극 30슬롯 • 권선 두께 1.5[mm] 7가닥 30턴 • 고정자 • 외경 : 280[mm] • 내경: 192[mm] • 회전자 • 외경 : 190[mm] • 내경: 50[mm]

  4. ANSOFT 40.00 Curve Info Phase Current ia Phase Current ib 20.00 Phase Current ic (Amperes) 0.00 -20.00 -40.00 0.00 125.00 250.00 375.00 Electric Degree ANSOFT 500.00 Curve Info Phase Voltage va Line Voltage vab 250.00 (Volts) 0.00 -250.00 -500.00 0.00 125.00 250.00 375.00 Electric Degree 18극단층 (적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 15) Winding currents under Load Winding Voltages under Load

  5. 소수력 발전기 극 두께 : 1.2[mm] 효율 : 97.22[%] 역률 : 0.7532 출력 전력 :11227.3[w] 입력 전력 : 11547.8 [w] 적층: 240[mm] • 16극 30슬롯 • 권선 직경 2.5[mm] 7가닥 30턴 • 고정자 • 외경 : 280[mm] • 내경: 192[mm] • 회전자 • 외경 : 190[mm] • 내경: 50[mm]

  6. ANSOFT 40.00 Curve Info Phase Current ia Phase Current ib 20.00 Phase Current ic (Amperes) 0.00 -20.00 -40.00 0.00 125.00 250.00 375.00 Electric Degree ANSOFT 500.00 Curve Info Phase Voltage va Line Voltage vab 250.00 (Volts) 0.00 -250.00 -500.00 0.00 125.00 250.00 375.00 Electric Degree 16극단층(적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 12) Winding currents under Load Winding Voltages under Load
