Broadband Matching. Matching with l /4 transmission line. G in. z in. G 1. G 2. G 3. G 4. z out. Matching with p /2 cells. v gg. Z OUT. v g1. v g2. Z IN. v g3. v g4. v g4. Z=V 2 /P v g =P/w. s=E 2 /w s/v g =E 2 /P ohms/m 2. Z=(1/v g )V 2 /w. p /2 cells. vgg1.smx.

chessa
Télécharger la présentation

G 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

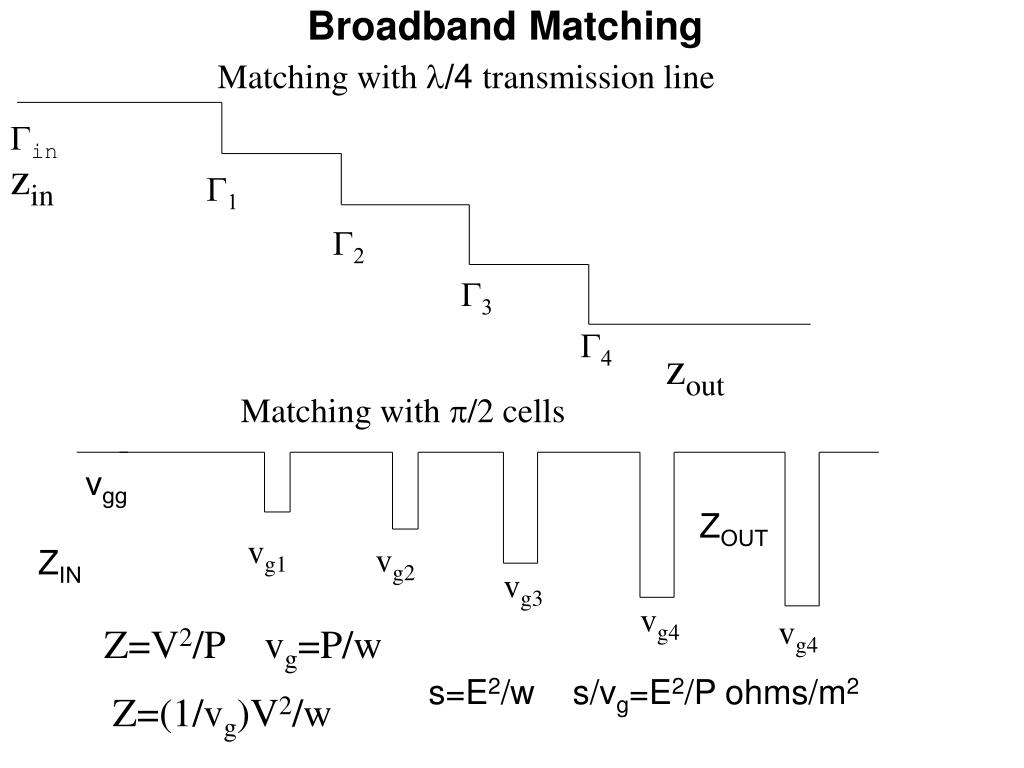

  1. Broadband Matching Matching with l/4 transmission line Gin zin G1 G2 G3 G4 zout Matching with p/2 cells vgg ZOUT vg1 vg2 ZIN vg3 vg4 vg4 Z=V2/P vg=P/w s=E2/w s/vg=E2/P ohms/m2 Z=(1/vg)V2/w

  2. p/2 cells vgg1.smx 1.125” smatr 11424 MHz 0.375” Inner conductor p/2 Outer conductor ra and pz as a function of Inner conductor group velocity

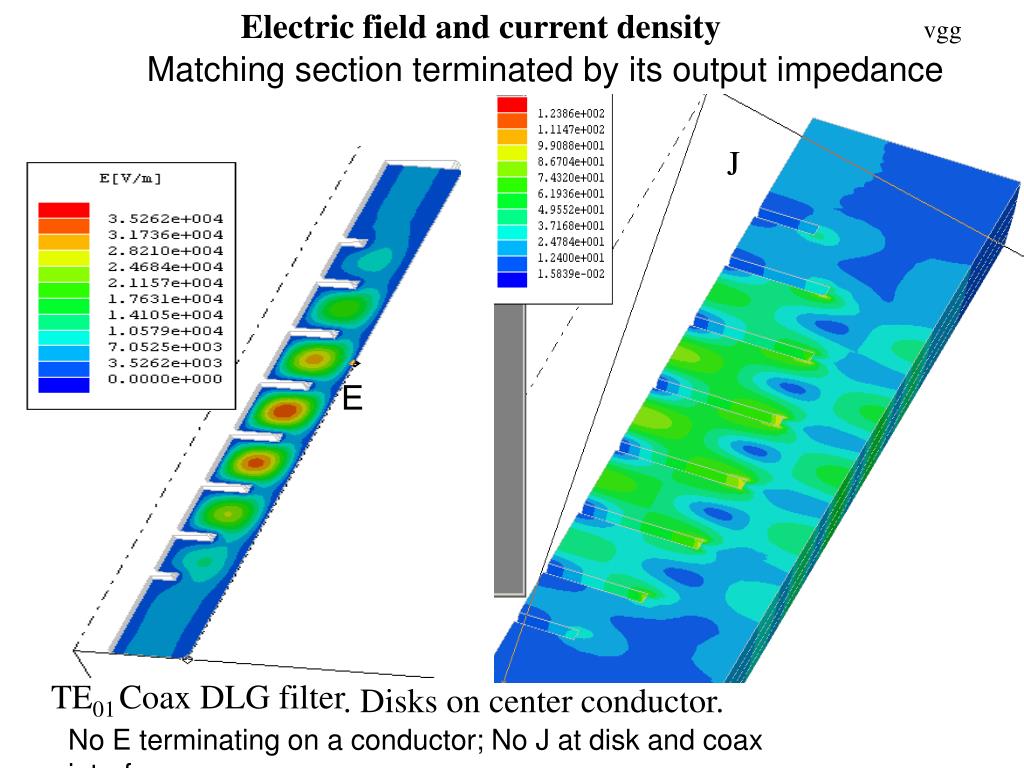

  3. Electric field and current density vgg Matching section terminated by its output impedance J E TE01 Coax DLG filter . Disks on center conductor. No E terminating on a conductor; No J at disk and coax interface

  4. Reflection and transmission vgg2 No attenuation cells s=5.8x106 Coax DLG filter m=10

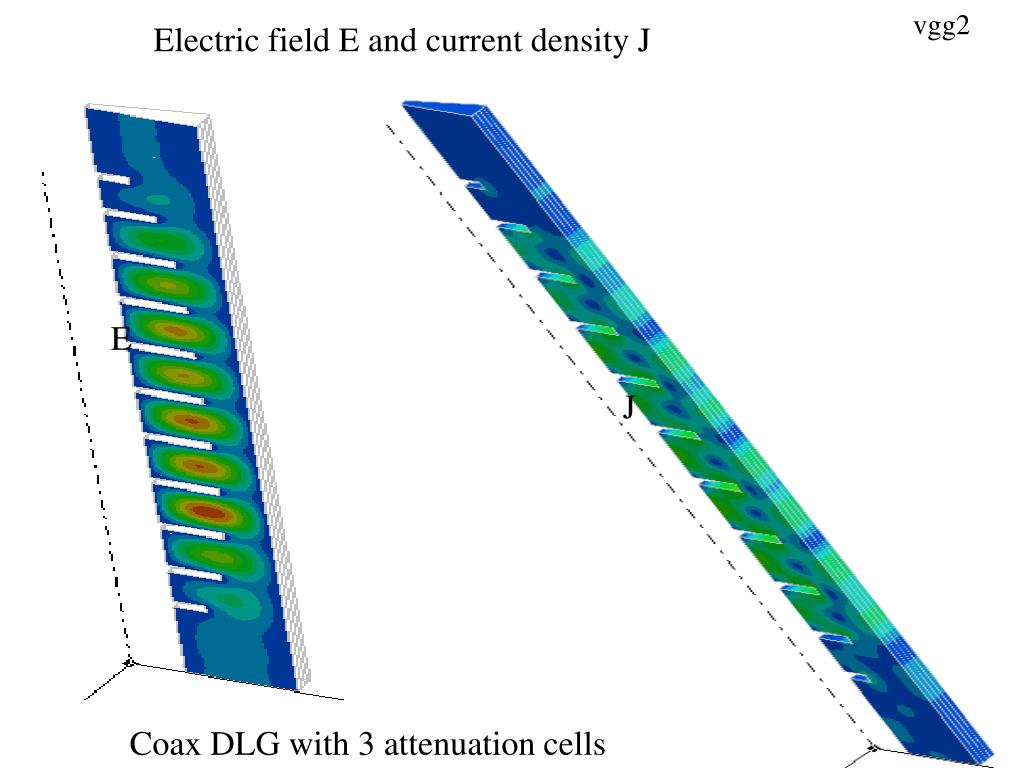

  5. vgg2 Electric field E and current density J E J Coax DLG with 3 attenuation cells

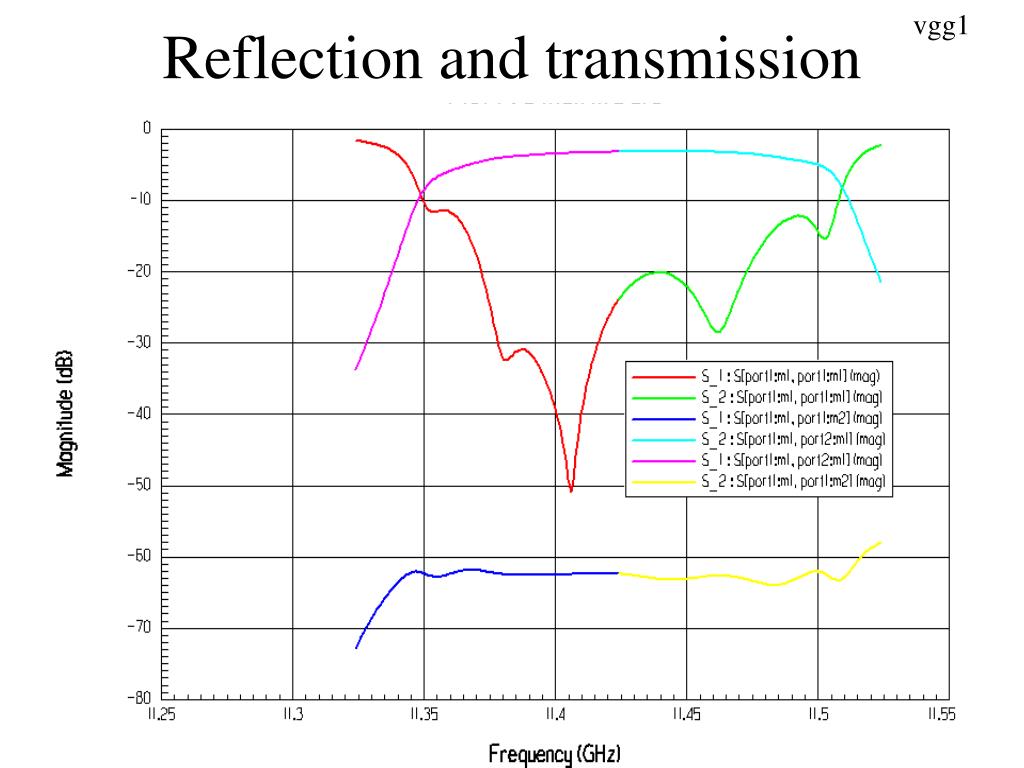

  6. vgg1 Reflection and transmission

  7. Outer conductor reflection Disk thickness=3mm Vgmax[%c] 3.95 5.48 6.62 Inner conductor smatr transmission f_im=8MHz Vgmax[%c] 3.95 5.48 6.62 Bandwidth as a function of group velocity

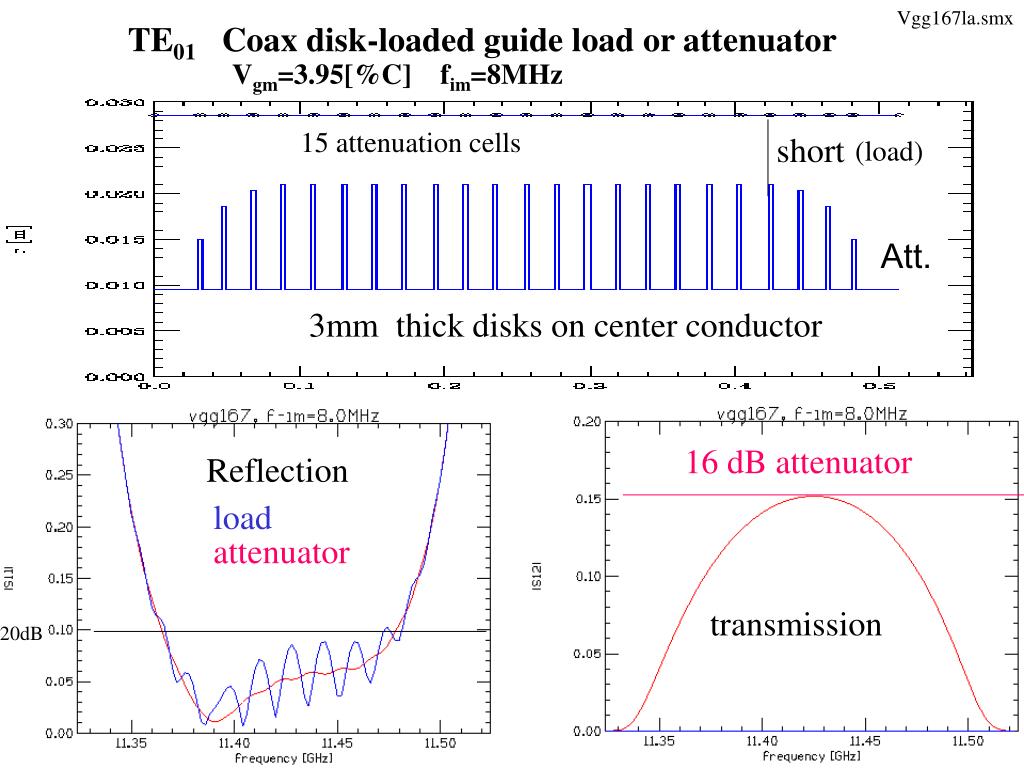

  8. Vgg167la.smx TE01 Coax disk-loaded guide load or attenuator Vgm=3.95[%C] fim=8MHz 15 attenuation cells short (load) Att. 3mm thick disks on center conductor 16 dB attenuator Reflection 15 dB load attenuator attenuator transmission 20dB

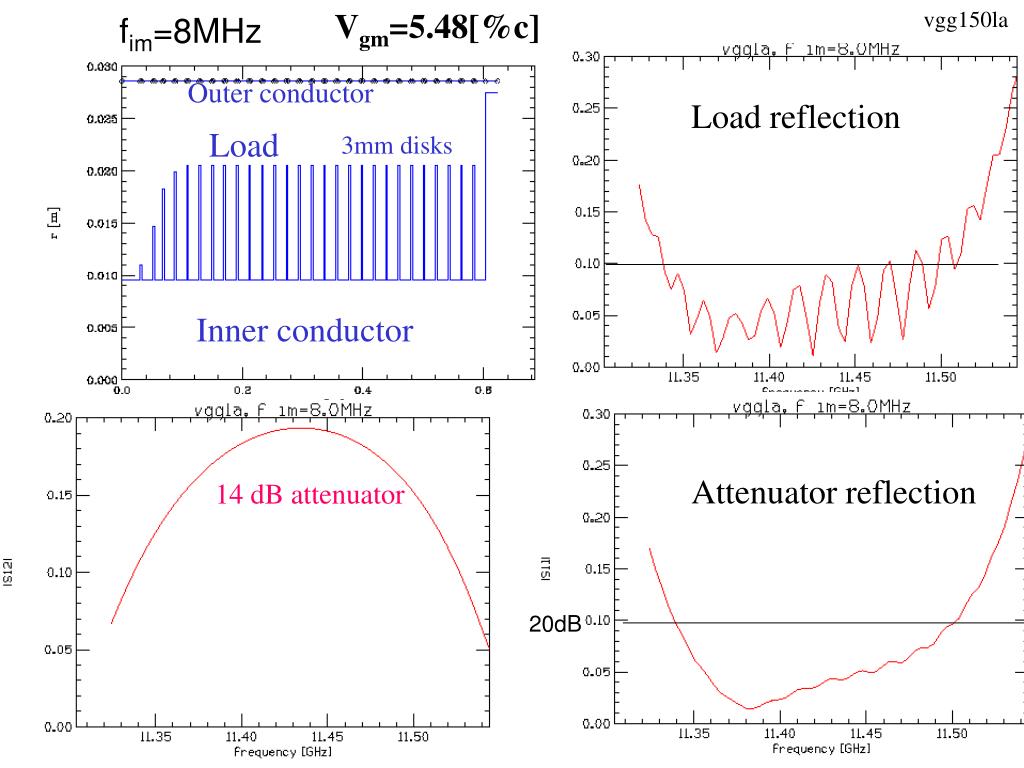

  9. Vgm=5.48[%c] vgg150la fim=8MHz Outer conductor Load reflection Load 3mm disks Inner conductor Attenuator reflection 14 dB attenuator 20dB

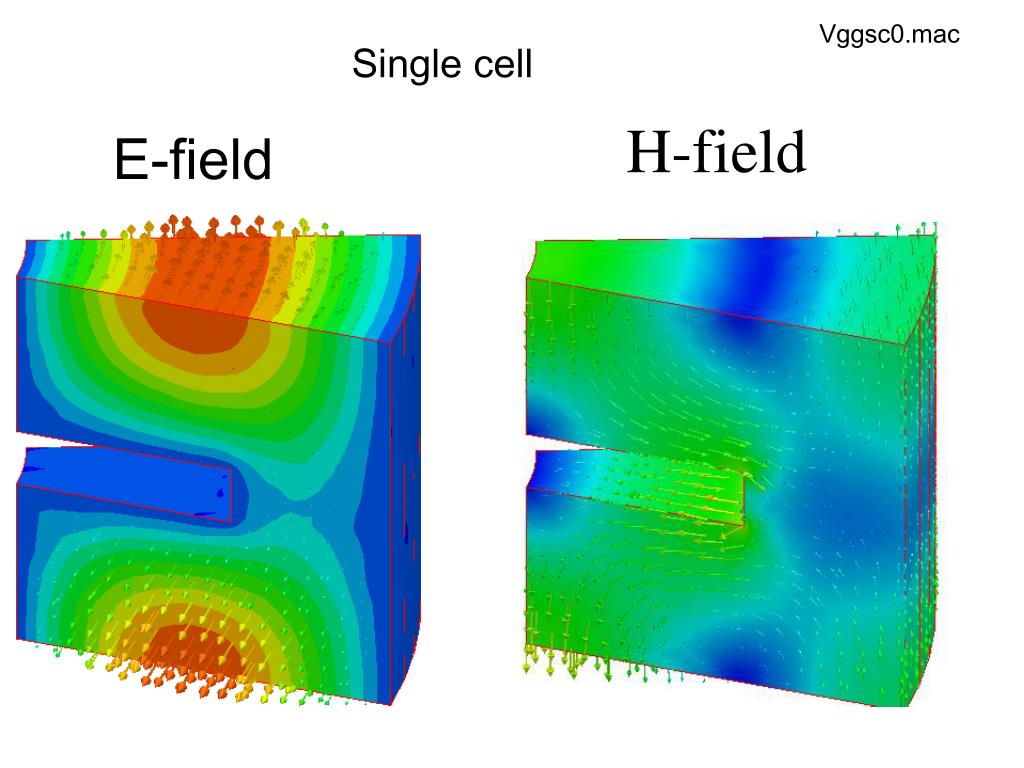

  10. Vggsc0.mac Single cell H-field E-field

  11. Single cell H2 H-field

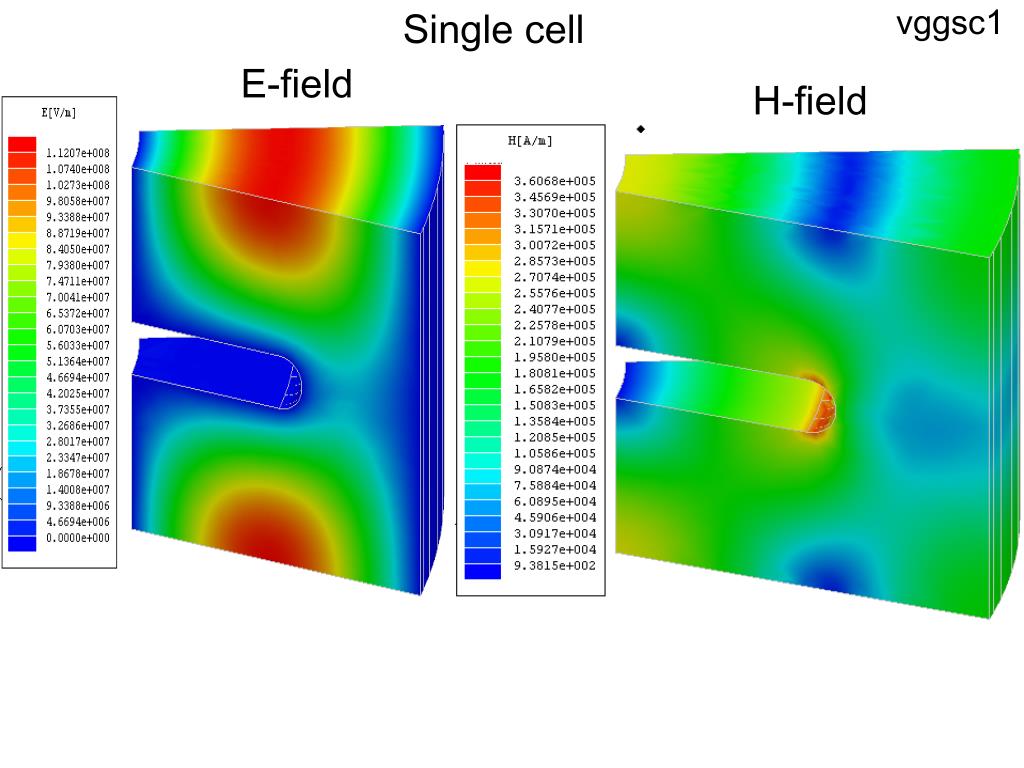

  12. vggsc1 Single cell E-field H-field
