Creating Arrays

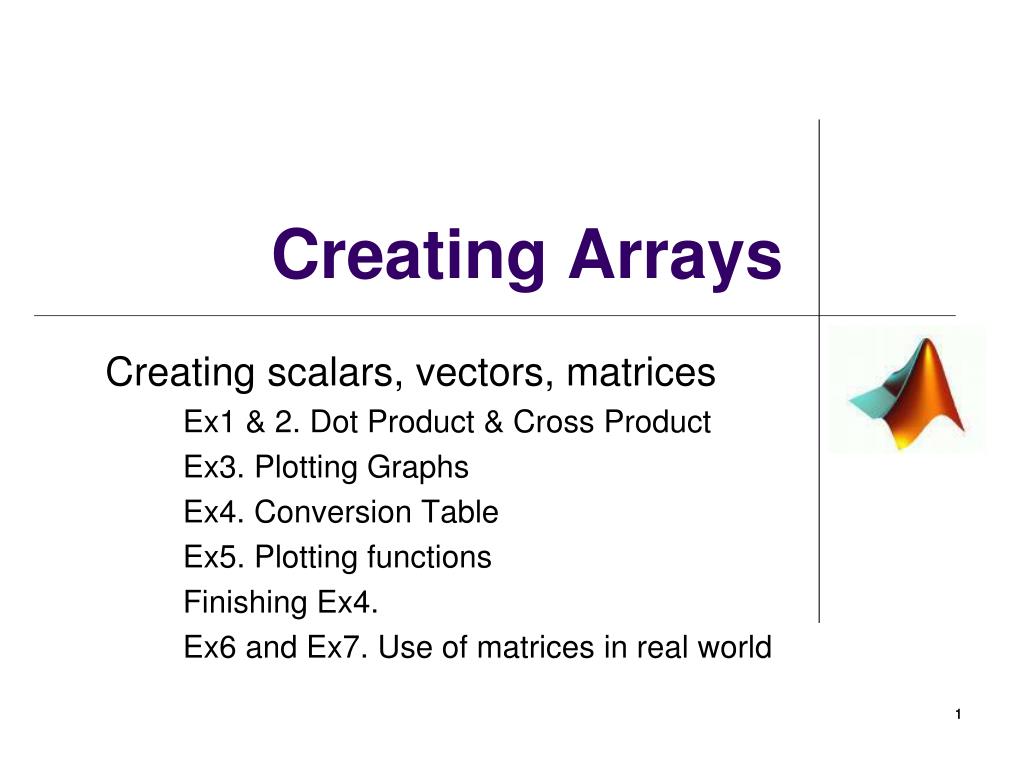

Creating Arrays. Creating scalars, vectors, matrices Ex1 & 2. Dot Product & Cross Product Ex3. Plotting Graphs Ex4. Conversion Table Ex5. Plotting functions Finishing Ex4. Ex6 and Ex7. Use of matrices in real world. 1. 1. Creating scalars. Assign a value to a variable (i.e. Hardcode)

cheung
Télécharger la présentation

Creating Arrays

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Creating Arrays Creating scalars, vectors, matrices Ex1 & 2. Dot Product & Cross Product Ex3. Plotting Graphs Ex4. Conversion Table Ex5. Plotting functions Finishing Ex4. Ex6 and Ex7. Use of matrices in real world 1

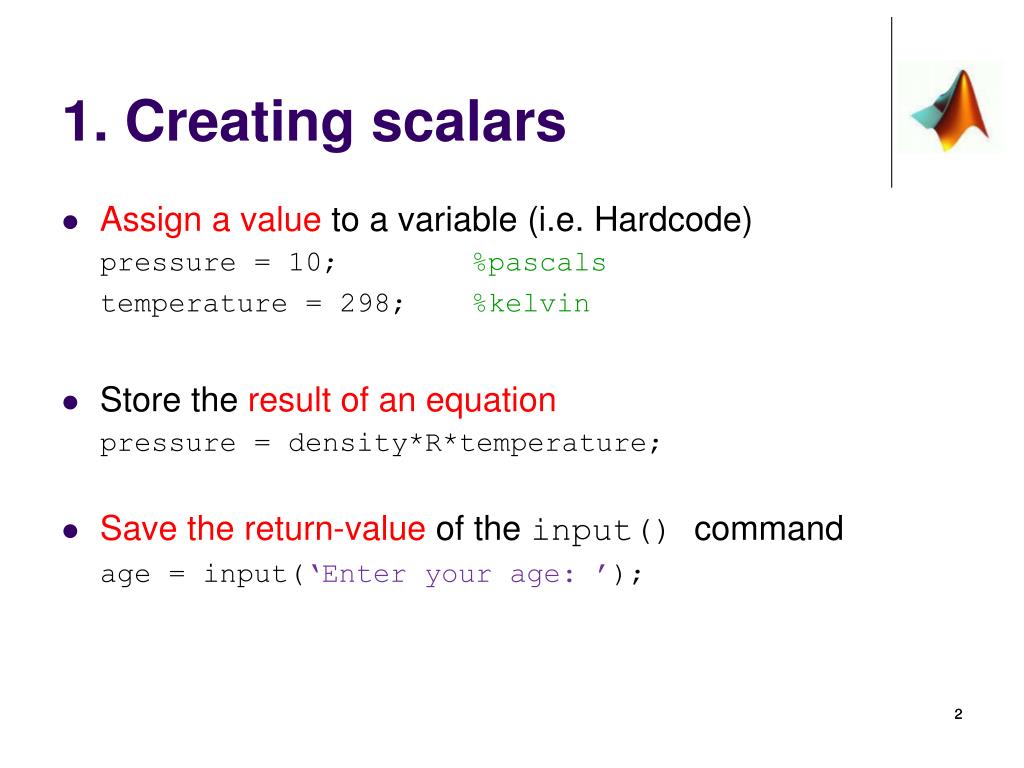

  2. 1. Creating scalars • Assigna value to a variable (i.e. Hardcode) pressure = 10; %pascals temperature = 298; %kelvin • Store the result of an equation pressure = density*R*temperature; • Save the return-value of the input() command age = input(‘Enter your age: ’); 2

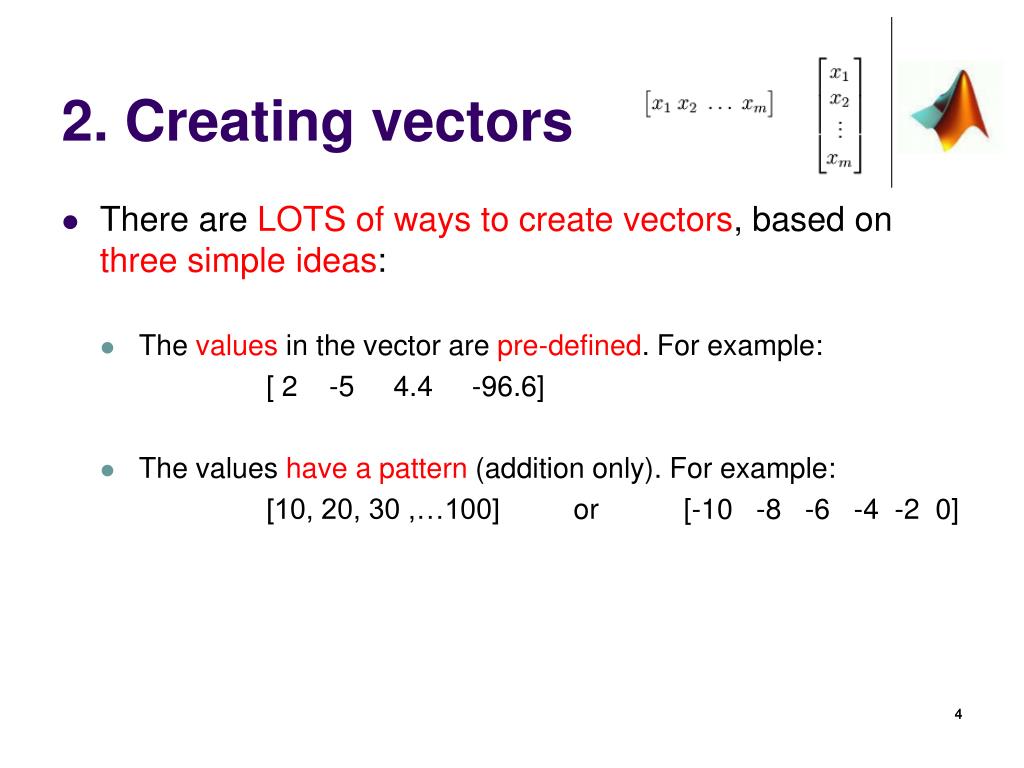

  3. 2. Creating vectors • There are LOTS of ways to create vectors, based on three simple ideas: • The values in the vector are pre-defined. For example: [ 2 -5 4.4 -96.6] 3

  4. 2. Creating vectors • There are LOTS of ways to create vectors, based on three simple ideas: • The values in the vector are pre-defined. For example: [ 2 -5 4.4 -96.6] • The values have a pattern (addition only). For example: [10, 20, 30 ,…100] or [-10 -8 -6 -4 -2 0] 4

  5. 2. Creating vectors • There are LOTS of ways to create vectors, based on three simple ideas: • The values in the vector are pre-defined. For example: [ 2 -5 4.4 -96.6] • The values have a pattern (addition only). For example: [10, 20, 30 ,…100] or [-10 -8 -6 -4 -2 0] • Finally, the total amount of values is known. For example: 25 points evenly spaced from 0 to 100. 5

  6. 2.1. Pre-defined values 6

  7. 2.1. Pre-defined values, cont. 7

  8. 2.1. Pre-defined values, cont. 8

  9. 2.1. Pre-defined values, cont. What else are semi-colons used for? 9

  10. 2.1. Pre-defined values, cont. They create rows AND suppress output! What else are semi-colons used for? 10

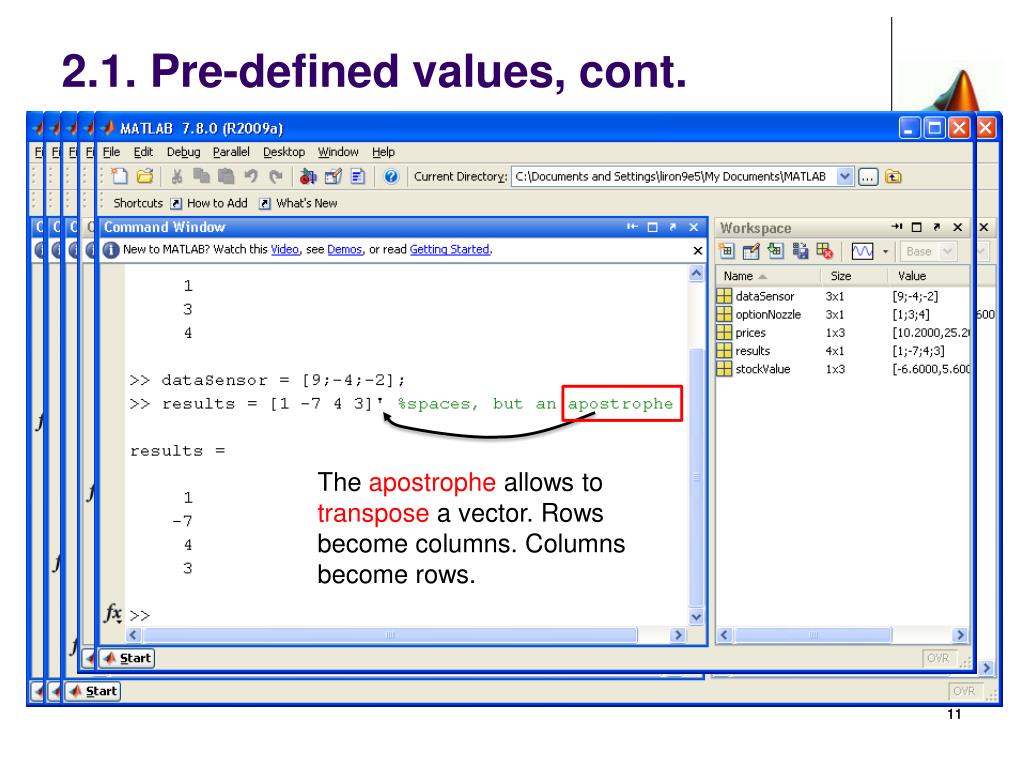

  11. 2.1. Pre-defined values, cont. The apostrophe allows to transpose a vector. Rows become columns. Columns become rows. They create rows AND suppress output! What else are semi-colons used for? 11

  12. 2.1. Pre-defined values, cont. The apostrophe allows to transpose a vector. Rows become columns. Columns become rows. They create rows AND suppress output! What dimension will speeds have? _______________________________ What else are semi-colons used for? 12

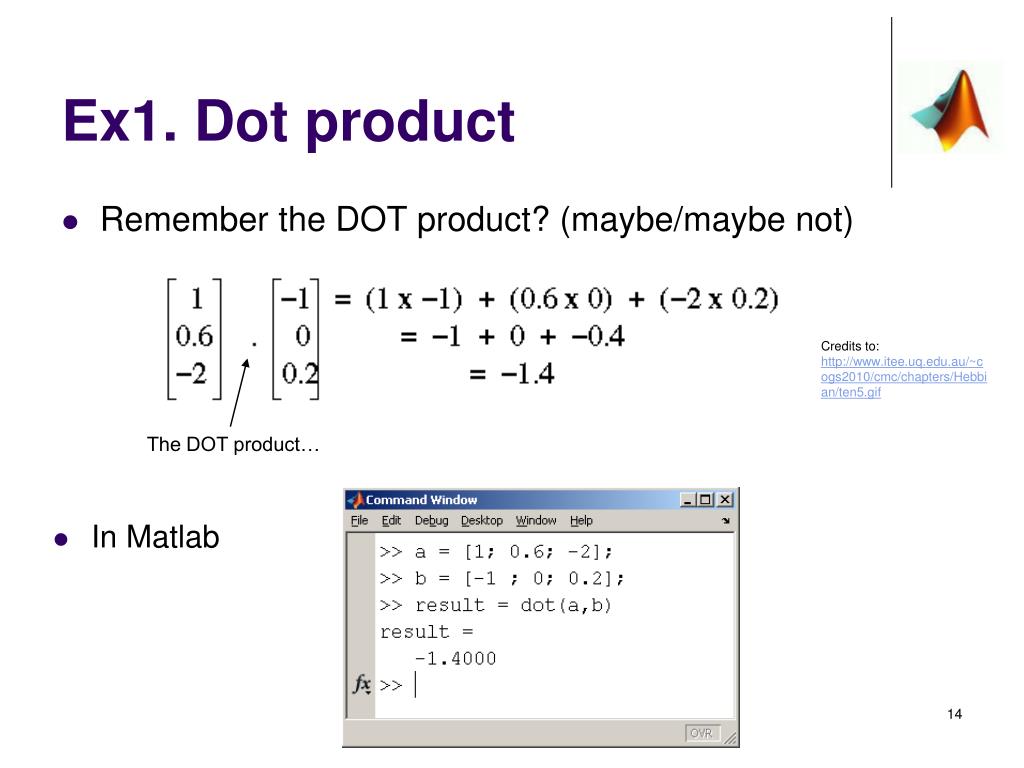

  13. Ex1. Dot product • Remember the DOT product? (maybe/maybe not) Credits to: http://www.itee.uq.edu.au/~cogs2010/cmc/chapters/Hebbian/ten5.gif The DOT product…

  14. Ex1. Dot product • Remember the DOT product? (maybe/maybe not) Credits to: http://www.itee.uq.edu.au/~cogs2010/cmc/chapters/Hebbian/ten5.gif The DOT product… • In Matlab

  15. * * * * * * Ex2. Cross product • How about the CROSS product? (maybe/maybe not) Source: Wikipedia The CROSS product… Source: http://www.math.umn.edu/~nykamp/m2374/readings/crossprodex/

  16. Cross product, cont. • In Matlab

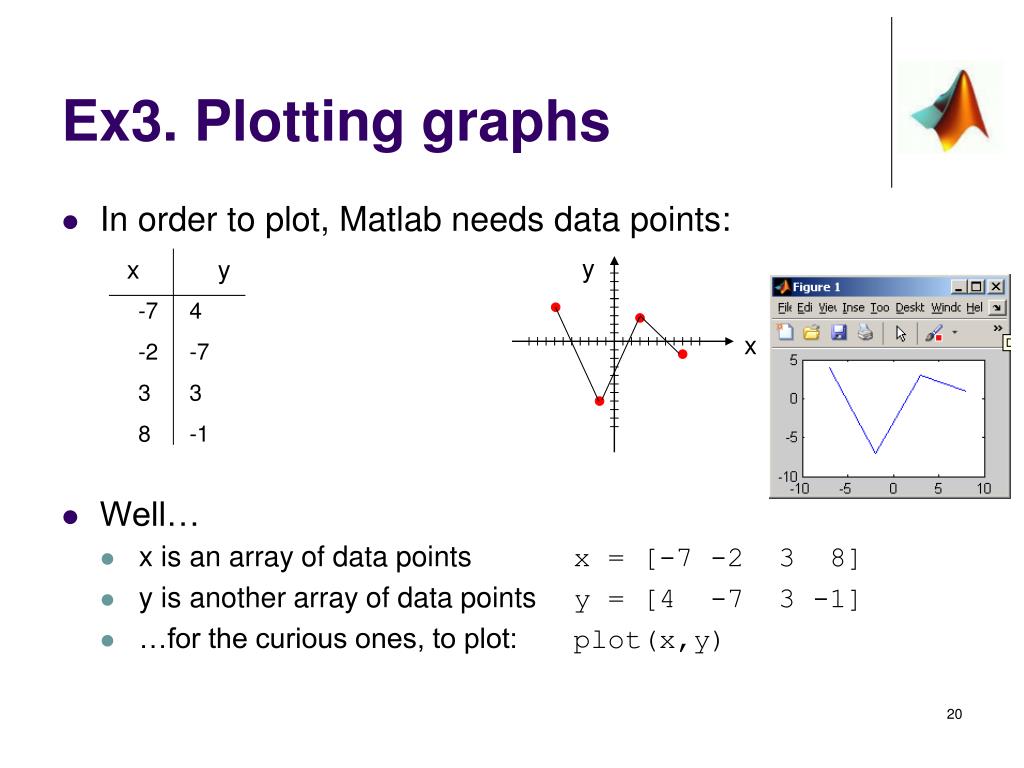

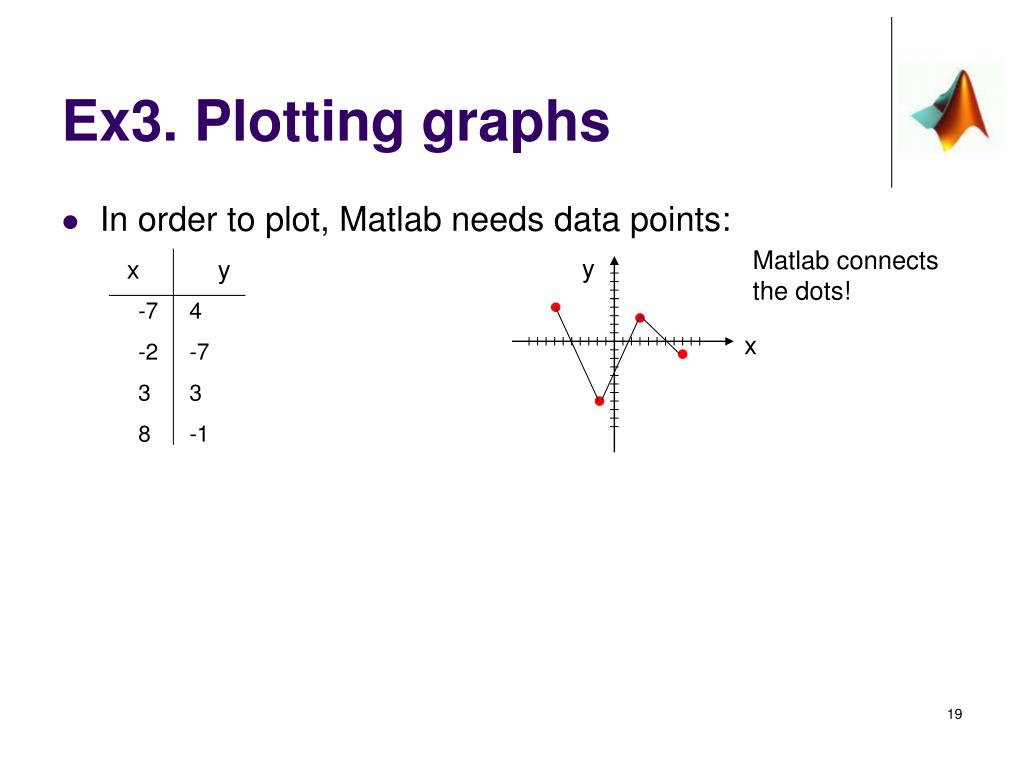

  17. y x y -7 -2 3 8 4 -7 3 -1 x Ex3. Plotting graphs • In order to plot, Matlab needs data points:

  18. y x y -7 -2 3 8 4 -7 3 -1 x Ex3. Plotting graphs • In order to plot, Matlab needs data points:

  19. y x y -7 -2 3 8 4 -7 3 -1 x Ex3. Plotting graphs • In order to plot, Matlab needs data points: Matlab connects the dots!

  20. y x y -7 -2 3 8 4 -7 3 -1 x Ex3. Plotting graphs • In order to plot, Matlab needs data points: • Well… • x is an array of data points x = [-7 -2 3 8] • y is another array of data points y = [4 -7 3 -1] • …for the curious ones, to plot: plot(x,y)

  21. 2.2. Patterns (addition only) The range operator Numbers are separated by +1 21

  22. 2.2. Patterns, cont. The range operator Numbers are separated by +1 An additional value in the middle specifies the increment. +3 +3 +3 +3 +3 +3 +3 +3 >32  22

  23. 2.2. Patterns, cont. The range operator Numbers are separated by +1 An additional value in the middle specifies the increment. Go reverse by using a negative increment! CAUTION: the beginning number must be > the end number. Here 10>3. (This also shows it works with decimals.) +3 +3 +3 +3 +3 +3 +3 +3 >32  -2.5 -2.5 -2.5 < 3  23

  24. 2.2. Patterns, cont. The range operator Numbers are separated by +1 An additional value in the middle specifies the increment. To use the apostrophe and create a column vector, absolutely place brackets first! … else…. +3 +3 +3 +3 +3 +3 +3 +3 >32  -2.5 -2.5 -2.5 < 3  24

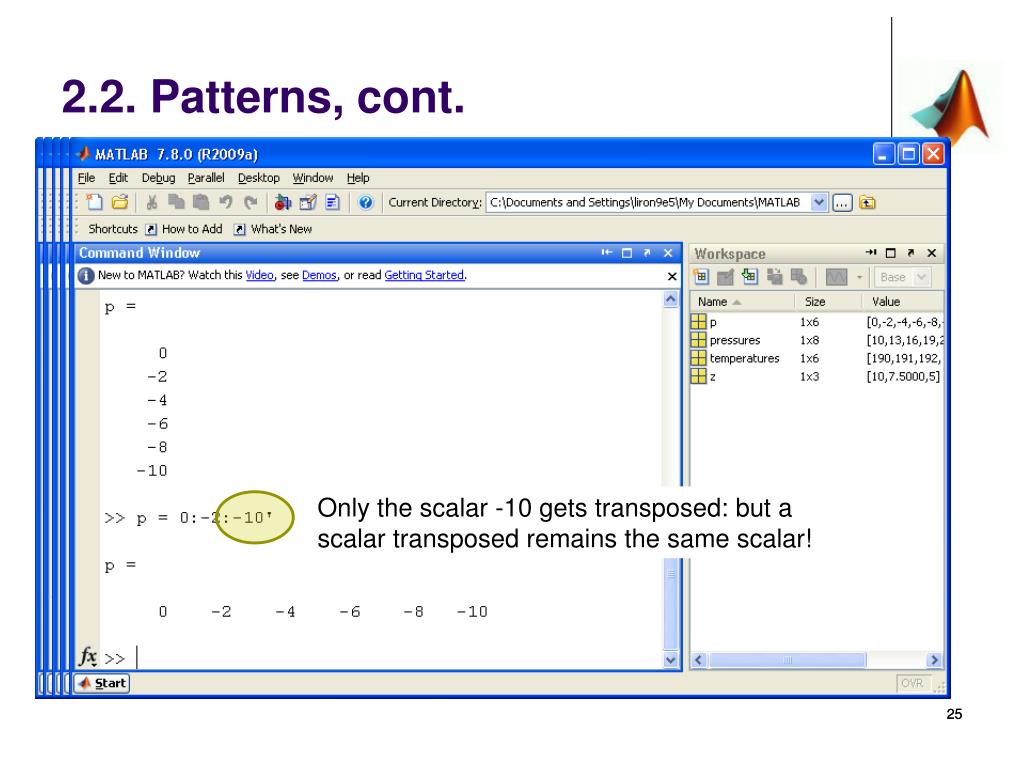

  25. 2.2. Patterns, cont. The range operator Numbers are separated by +1 An additional value in the middle specifies the increment. To use the apostrophe and create a column vector, absolutely place brackets first! … else…. Only the scalar -10 gets transposed: but a scalar transposed remains the same scalar! +3 +3 +3 +3 +3 +3 +3 +3 >32  -2.5 -2.5 -2.5 < 3  25

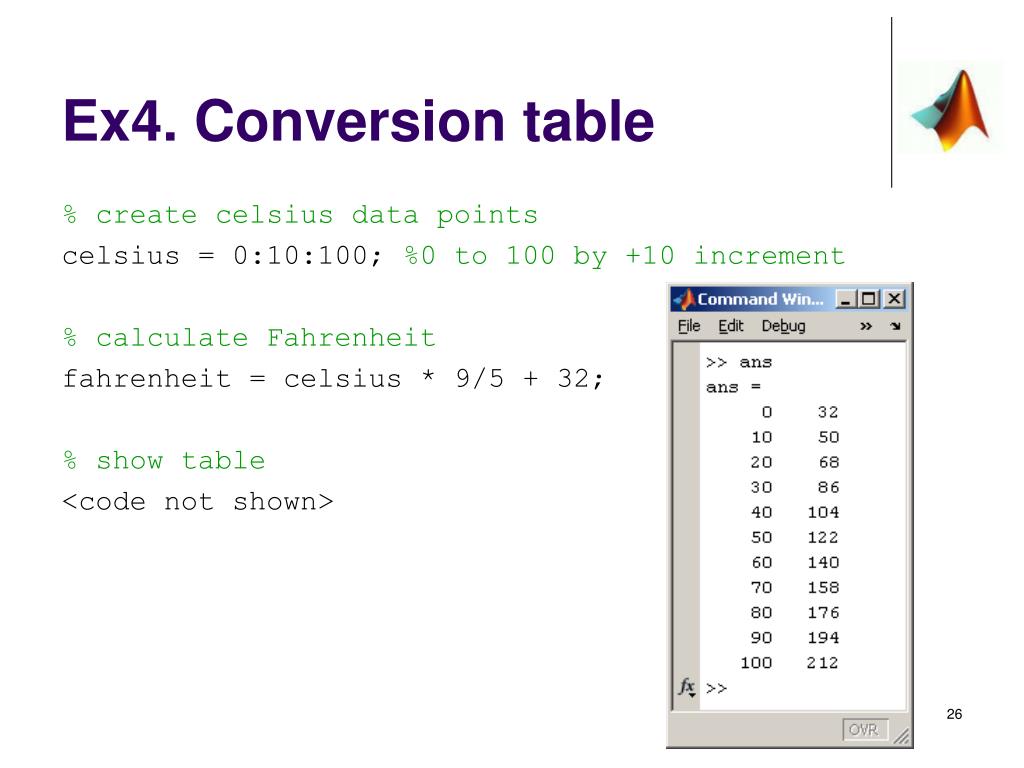

  26. Ex4. Conversion table % create celsius data points celsius = 0:10:100; %0 to 100 by +10 increment % calculate Fahrenheit fahrenheit = celsius * 9/5 + 32; % show table <code not shown>

  27. 2.3. Specific amount of data points • A built-in function called linspace() spaces elements linearly in an array. • What does this mean? • The distance between each consecutive data point is equal. • There are two ways to use it, as Matlab ‘hints’ when the command typed is unfinished: Either provide 2 arguments, or provide 3 arguments. 27

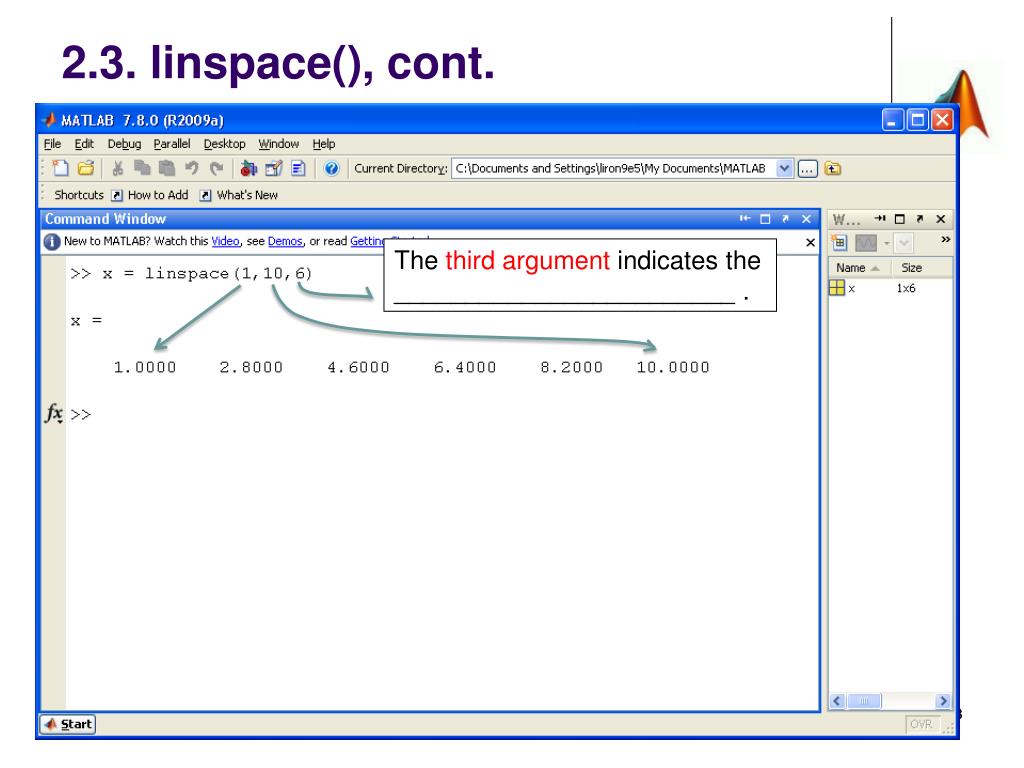

  28. 2.3. linspace(), cont. The third argument indicates the ________________________ . 28

  29. 2.3. linspace(), cont. The third argument indicates the ________________________ . When Matlab cannot display all the elements on one line, it simply indicates the column-number per line. 29

  30. 2.3. linspace(), cont. The third argument indicates the ________________________ . When Matlab cannot display all the elements on one line, it simply indicates the column-number per line. 30

  31. 2.3. linspace(), cont. ?????? %no third argument Omitthe third argument uses a default of _______ data points!

  32. Ex5. Plotting graphs • Suppose a function that relates each x to its y-coordinate is known: y = f(x) = x2.  Plot y vs. x.

  33. x y -10 -5 5 10 100 25 25 100 Ex5. Plotting graphs • Suppose a function that relates each x to its y-coordinate is known: y = f(x) = x2.  Plot y vs. x. • In this case, it is tedious work to hard-code each x and y array. Are 4 data-points sufficient, like in example 3? y x

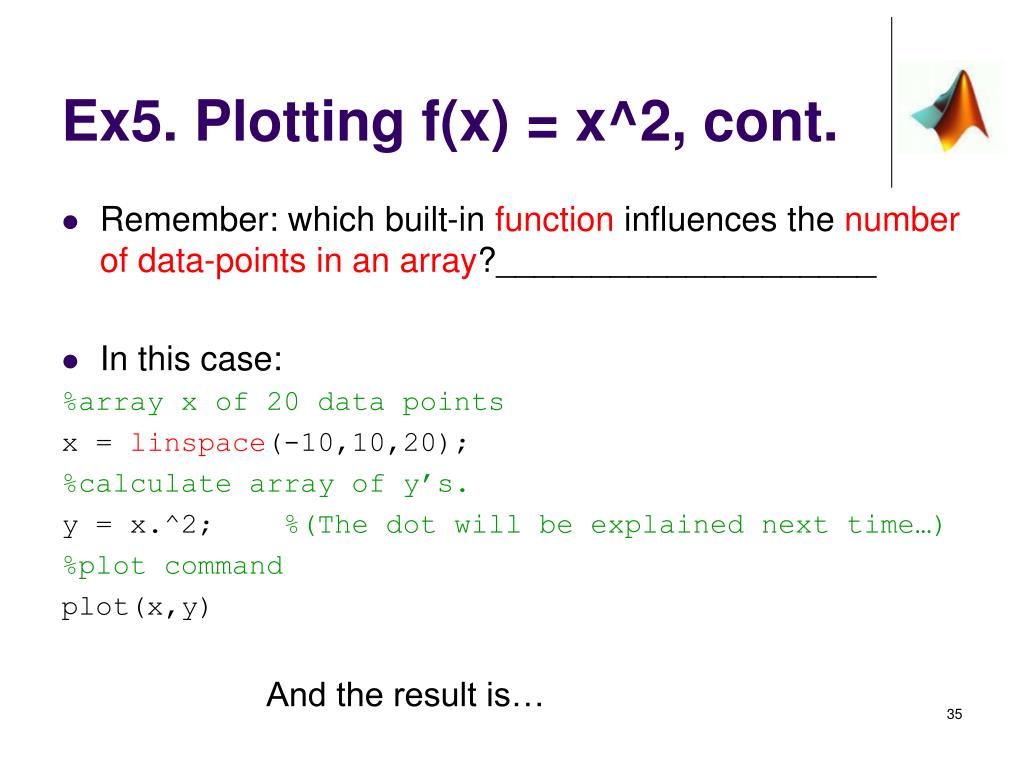

  34. Ex5. Plotting f(x) = x^2, cont. • Remember: which built-in function influences the number of data-points in an array?____________________ • In this case: %array x of 20 data points %calculate array of y’s. %plot command And the result is…

  35. Ex5. Plotting f(x) = x^2, cont. • Remember: which built-in function influences the number of data-points in an array?____________________ • In this case: %array x of 20 data points x = linspace(-10,10,20); %calculate array of y’s. y = x.^2; %(The dot will be explained next time…) %plot command plot(x,y) And the result is…

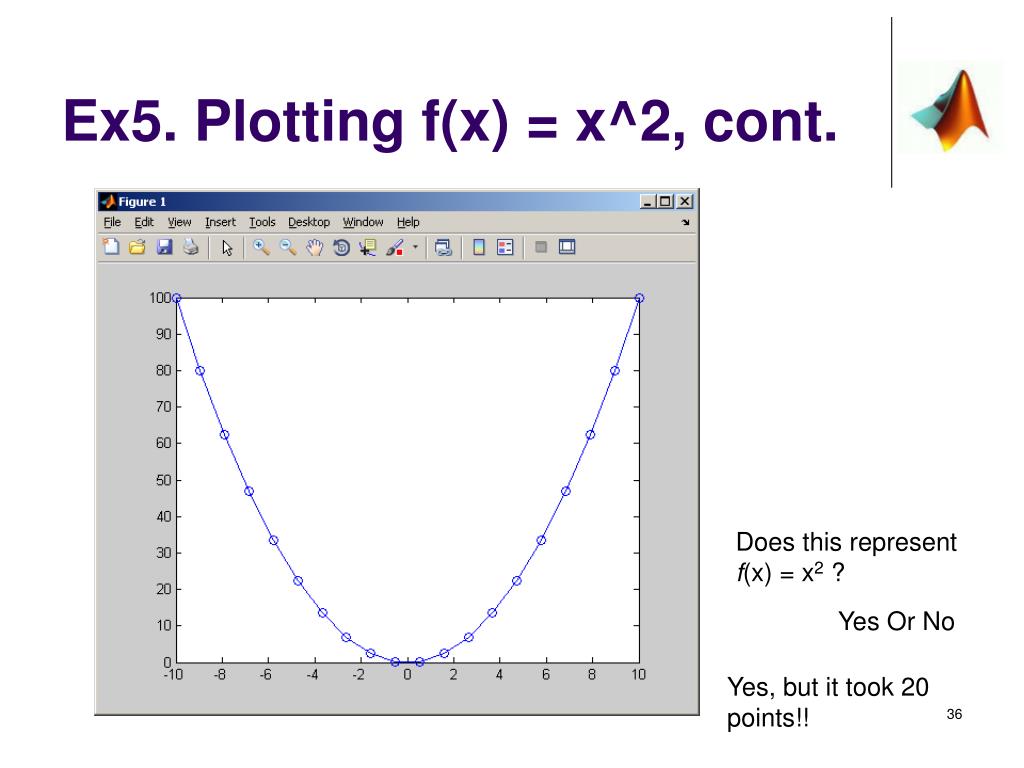

  36. Ex5. Plotting f(x) = x^2, cont. Does this represent f(x) = x2 ? Yes Or No Yes, but it took 20 points!!

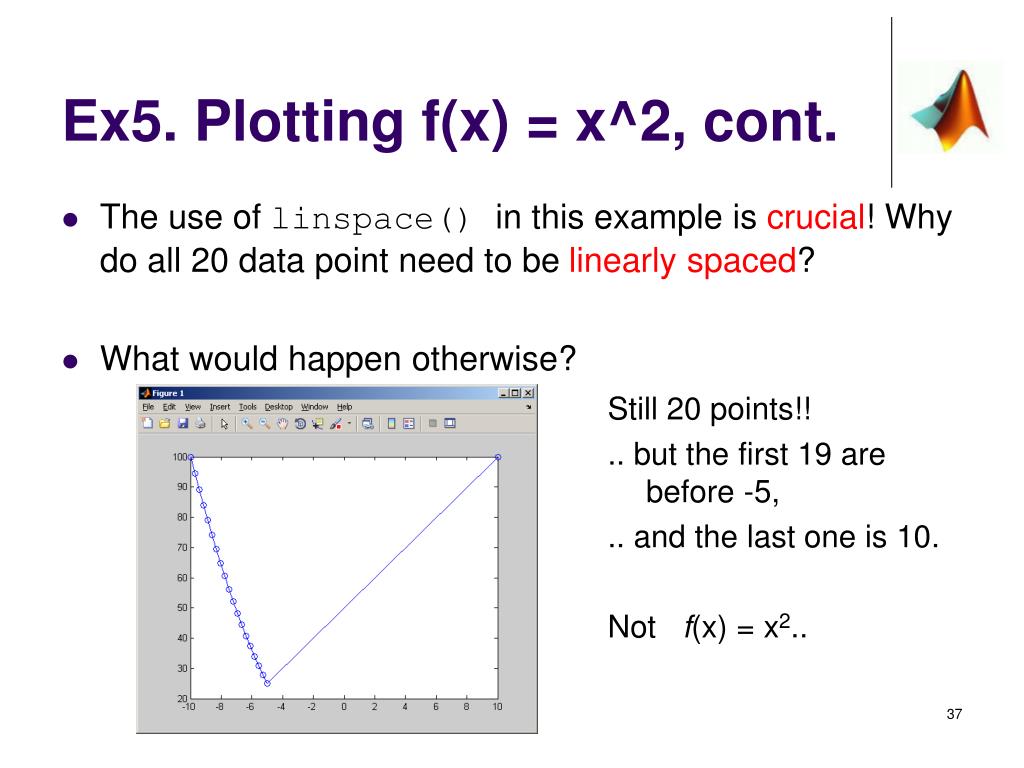

  37. Ex5. Plotting f(x) = x^2, cont. • The use of linspace() in this example is crucial! Why do all 20 data point need to be linearly spaced? • What would happen otherwise? Still 20 points!! .. but the first 19 are before -5, .. and the last one is 10. Not f(x) = x2..

  38. 3. Creating Matrices • Simply a combinationof all symbols introduced with vectors! • Square brackets [ ] • Spaces or commas , , • Semi-colons ; • Apostrophes ’ 38

  39. 3.1. Matrices: hard-coding • Use semi-colons to create new rows. • ONLY rectangular matrices: • The number of columns MUST match for each row, and vice-versa. 39

  40. 3.2. Reusing Previous matrices • Use semi-colons to create new rows. • ONLY rectangular matrices: • The number of columns MUST match for each row, and vice-versa. Use previousmatrices to actually create new matrices. This example transposes the matrix variable a. 40

  41. 3.3. Using Colons • Use semi-colons to create new rows. • ONLY rectangular matrices: • The number of columns MUST match for each row, and vice-versa. You can use previousmatrices to actually create new matrices. This example transposes the variable a. Combine any previous methods, AS LONG AS the matrix remains rectangular. 41

  42. 3.4. “Concatenating” • Use semi-colons to create new rows. • ONLY rectangular matrices: • The number of columns MUST match for each row, and vice-versa. Finally, create arrays by combining previous variables! This is called CONCATENATING. You can use previousmatrices to actually create new matrices. This example transposes the variable a. You can combine any previous methods, AS LONG AS the matrix remains rectangular. 42

  43. 3.5. Using the command window • Use semi-colons to create new rows. • ONLY rectangular matrices: • The number of columns MUST match for each row, and vice-versa. When the array becomes too big, the numbers no longer display. You can use previousmatrices to actually create new matrices. This example transposes the variable a. You can combine any previous methods, AS LONG AS the matrix remains rectangular. 43

  44. Ex4. Conversion table, end! % create celsius data points celsius = 0:10:100; %0 to 100 by +10 increment % calculate Fahrenheit fahrenheit = celsius * 9/5 + 32; % show table [celsius’ fahrenheit’]

  45. Ex6. Sling Thermometer A method to read relative-humidity.

  46. Ex7. Images Each row and column have a pixel value stored.

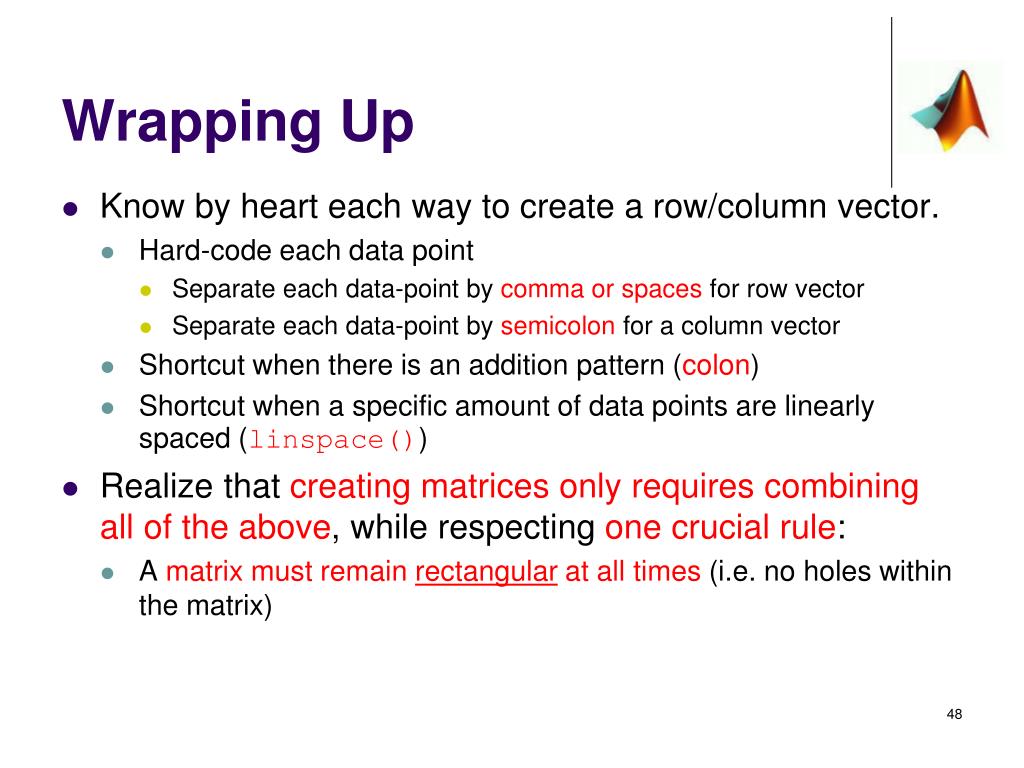

  47. Wrapping Up • Know by heart each way to create a row/column vector. • Hard-code each data point • Separate each data-point by comma or spaces for row vector • Separate each data-point by semicolon for a column vector • Shortcut when there is an addition pattern (colon) • Shortcut when a specific amount of data points are linearly spaced (linspace())

  48. Wrapping Up • Know by heart each way to create a row/column vector. • Hard-code each data point • Separate each data-point by comma or spaces for row vector • Separate each data-point by semicolon for a column vector • Shortcut when there is an addition pattern (colon) • Shortcut when a specific amount of data points are linearly spaced (linspace()) • Realize that creating matrices only requires combining all of the above, while respecting one crucial rule: • A matrix must remain rectangular at all times (i.e. no holes within the matrix)

  49. Wrapping Up • Know by heart each way to create a row/column vector. • Hard-code each data point • Separate each data-point by comma or spaces for row vector • Separate each data-point by semicolon for a column vector • Shortcut when there is an addition pattern (colon) • Shortcut when a specific amount of data points are linearly spaced (linspace()) • Realize that creating matrices only requires combining all of the above, while respecting one crucial rule: • A matrix must remain rectangular at all times (i.e. no holes within the matrix) • What does the apostrophe do?

  50. Wrapping Up • Know by heart each way to create a row/column vector. • Hard-code each data point • Separate each data-point by comma or spaces for row vector • Separate each data-point by semicolon for a column vector • Shortcut when there is an addition pattern (colon) • Shortcut when a specific amount of data points are linearly spaced (linspace()) • Realize that creating matrices only requires combining all of the above, while respecting one crucial rule: • A matrix must remain rectangular at all times (i.e. no holes within the matrix) • What does the apostrophe do? • Restate some examples of vector operations and matrix operations.
