  1. iTOP Electronics Effort Lynn Wood PACIFIC NORTHWEST NATIONAL LABORATORY JULY 17, 2013

  2. Topics • Belle II DAQ System • COPPER/FINESSE • iTOP DAQ System • FINESSE firmware • COPPER software • Next Steps • BASF2 • COPPER-III • FINESSE redesign

  3. Belle II DAQ System • Goal: unified architecture • Smooth transition from Belle I • Common readout hardware:“COPPER” • Common data link protocol:“Belle2Link” • Common readout software framework: “roobasf/basf2” • Goal: scalability • Luminosity at start of experiment will be several times lower than design luminosity, but trigger rate may be just as high • Nominal L1 trigger rate: 20 kHz, design average rate set as 30 kHz

  4. Brief Belle II DAQ History • Belle I had dead-time issues with original LeCroyFastBus-based DAQ system • Started in-house design in 2002 • COPPER-I demo successful, took latency from 29us down to 3us • Replaced all LeCroy systems in Belle I with COPPER-II (2005-08) • For Belle-II, expect to use a combination of COPPER-II and redesigned COPPER –III

  5. COPPER-II • COPPER = COmmon Pipelined Platform for Electronics Readout • 9U VME board • Four detector front-end slots • Remote boot (no local filesystem) • COPPER-III redesign for Belle II will replace obsolete components, add new CPU and Gigabit Ethernet, fix bugs

  6. COPPER-II CPU • CPU is Linux-based embedded PC • PCI Mezzanine Card = PMC • COPPER-II uses 800MHz Pentium-III • Issues: 512MB, lack of support • COPPER-III will use 1.6 GHz Intel Atom • “New” features: VGA, USB, GbE, etc. • Issues: power requirements

  7. COPPER-II FINESSE Interface • Interface to specific detectors handled by custom daughtercards • FINESSE = “Front-end INstrumentation Entity for Sub-detector Specific Electronics” • Standard interface to COPPER FIFOs for data and local bus for control/status • (NOTE: most detectors settled on common HSLB (High Speed Logic Board) FINESSE design for Belle II)

  8. COPPER-II Other features • Global clock and trigger comein on “TTRX” board • Signals from “FTSW” (FrontendTiming Switch) board • Distributes deskewed clock and trigger to multiple destinations • FIFO control/status on dedicated COPPER FPGA • VME, secondary Ethernet available, but not commonly used • Second PMC slot for expansion (not pictured)

  9. COPPER-II Data Flow • Data read into FINESSE • Processed then stored in 1MB FIFOs on local bus • DMA on COPPER CPU monitors FIFO status, reads out data when full/etc. • COPPER CPU sends datato host PC

  10. iTOP DAQ for Cosmic/Beam Tests • Previous testing (CERN, Fermilab, bench) used custom PCIe board from U. Hawaii for readout • DAQ goal for 2012-13 cosmic ray/beam tests: demonstrate COPPER-based readout • Requirements: • Base hardware: COPPER-II, custom 9U VME crate • iTOP-specific FINESSE (hardware, firmware) • COPPER-based readout software for iTOP FINESSE

  11. iTOP DAQ for Cosmic/Beam Tests COPPER CPU (PC1) FINESSE A SCROD • Trigger sequence: • TOF trigger via NIM logic • Trigger passed to SCRODs via FTSW • Data readout from SCROD by FINESSE/COPPER • Trigger data readout by USB daughtercard on COPPER • Trigger clear from FINESSE back to NIM bin SCROD CMD Tx/Rx iTOP bar Fiber Remote boot/ Data Readout FINESSE B SCROD SCROD Local bus Ethernet TTL COPPER server (PC2) FIFO FIFO FTSW Trigger Clear TOF Data Readout CAMAC crate TOF NIM USB USB

  12. FINESSE Support for Cosmic/Beam Tests • U. Hawaii has “DSP_FINESSE” design • Up to 4 fiber links to SCRODs • Spartan-6 FPGA • Two dual-core BlackFin DSPs • Only basic example firmware and code – no fiber readout, data handing, etc. • Minimal DMA example • No existing COPPER drivers, only examples from other FINESSE boards • COPPER runs old (2.4), customized version of Linux • Effort during 2011-12: • wrote COPPER drivers to communicate with FINESSE • Added COPPER DMA support for FIFO readout • Wrote FINESSE firmware to read data from SCRODs, send to COPPER FIFOs • Wrote demonstration code to loop data through DSP before writing to COPPER

  13. COPPER-II Software for Cosmic/Beam Tests • To provide data-taking capabilities for cosmic and beam tests, overall framework was developed in 2012-13 • Python-based scripts • Speed-critical portions (readout) in C libraries • “Experiment” directory structure records all configuration settings, log files, and data for each run • Scripts generated for pedestal, pulser, laser, and beam runs • Used to debug electronics at KEK in 2013 • Used for data-taking at KEK and LEPS • Scripts updated during electronics bring-up and during LEPS data-taking to eliminate bugs, better match expected behavior and utilization • Multiple staff present at KEK/LEPS almost continuously in Jan-Jun 2013

  14. Next Steps • Conversion to BASF2 readout • Belle II readout settling on BASF2 framework on COPPER CPU • Plan to use current DAQ software for next beam test(s), but will start porting on BASF2 readout • FINESSE redesign • Processing required for real-time analysis is not yet clear • Unclear that current configuration will work • Spartan-6 on SCROD “packed to the gills” • Data transfer rate between FPGA and DSP on FINESSE limited to 75MHz • Transition to COPPER-III • Currently developing with COPPER-II, but iTOP will use COPPER-III • COPPER-III boards in short supply (all at KEK) • Hardware should be largely “transparent”, but CPU will be running new version of Linux (2.6 kernel) – possible non-trivial driver changes

  15. Future Processing Requirements • Possible changes: • Replace FPGA on SCROD (likely to happen anyway) • If we replace Spartan-6 with Virtex-7 – enough to handle all processing? • Could then use “standard” FINESSE design (HSLB) • Replace DSP_FINESSE with new design • Some redesign already required (obsolete components) • We have started investigating FINESSE redesign • Researched different processing units: Vertex-7, Vertex-5 w. PowerPC, ZynqSoC (FPGA + dual-core ARM), quad-core ARM processor • Wrote draft design document based on Zynq • Kintex-7 FPGA (125-350K logic cells) • 0.7-1GHz dual-core ARM Cortex-A9 • 256KB on-chip memory, 8 DMA controllers • High-speed interconnect between CPU and FPGA • Starting on benchmarking effort with dev kit

  16. Data Handling • Combine FPGA-based and CPU-based processing • FPGA receives data andstores to memory via DMA, notifies CPU • CPU manages data,passes commands to FPGA for dedicated processing • FPGA writes data toCOPPER FIFO • CPU can make decisionsbased on data rates, quality metrics, etc.

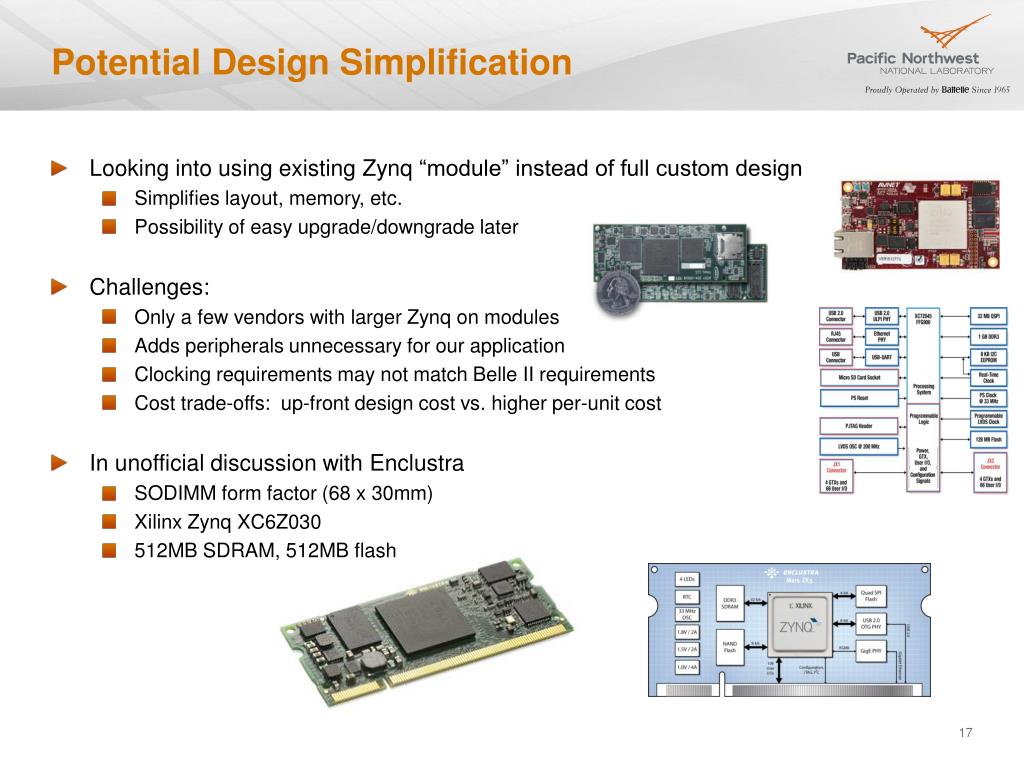

  17. Potential Design Simplification • Looking into using existing Zynq “module” instead of full custom design • Simplifies layout, memory, etc. • Possibility of easy upgrade/downgrade later • Challenges: • Only a few vendors with larger Zynq on modules • Adds peripherals unnecessary for our application • Clocking requirements may not match Belle II requirements • Cost trade-offs: up-front design cost vs. higher per-unit cost • In unofficial discussion with Enclustra • SODIMM form factor (68 x 30mm) • Xilinx Zynq XC6Z030 • 512MB SDRAM, 512MB flash
