  1. CS U540Computer Graphics Prof. Harriet Fell Spring 2009 Lecture 19 – February 12, 2009

  2. Vectors • A vector describes a length and a direction. a zero length vector a b 1 a unit vector a = b

  3. a -d d c Vector Difference a -a Vector Operations b b+a a c-d b Vector Sum

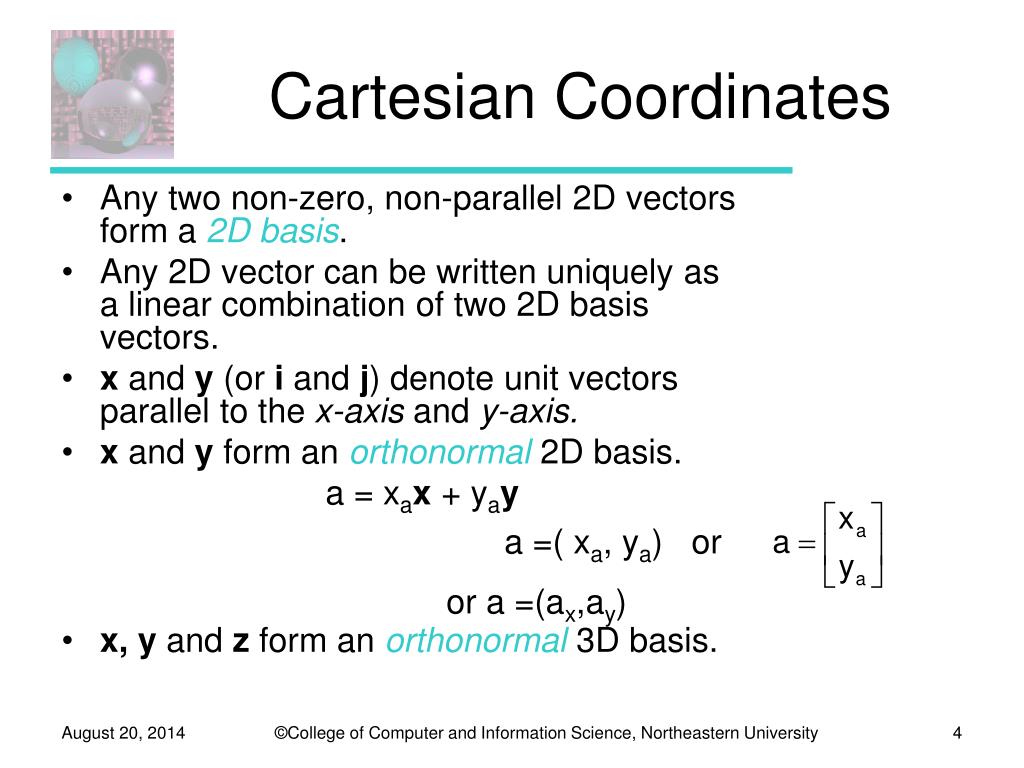

  4. Cartesian Coordinates • Any two non-zero, non-parallel 2D vectors form a 2D basis. • Any 2D vector can be written uniquely as a linear combination of two 2D basis vectors. • x and y (or i and j) denote unit vectors parallel to the x-axis and y-axis. • x and y form an orthonormal 2D basis. a = xax + yay a =( xa, ya) or • x, y and z form an orthonormal 3D basis. or a =(ax,ay)

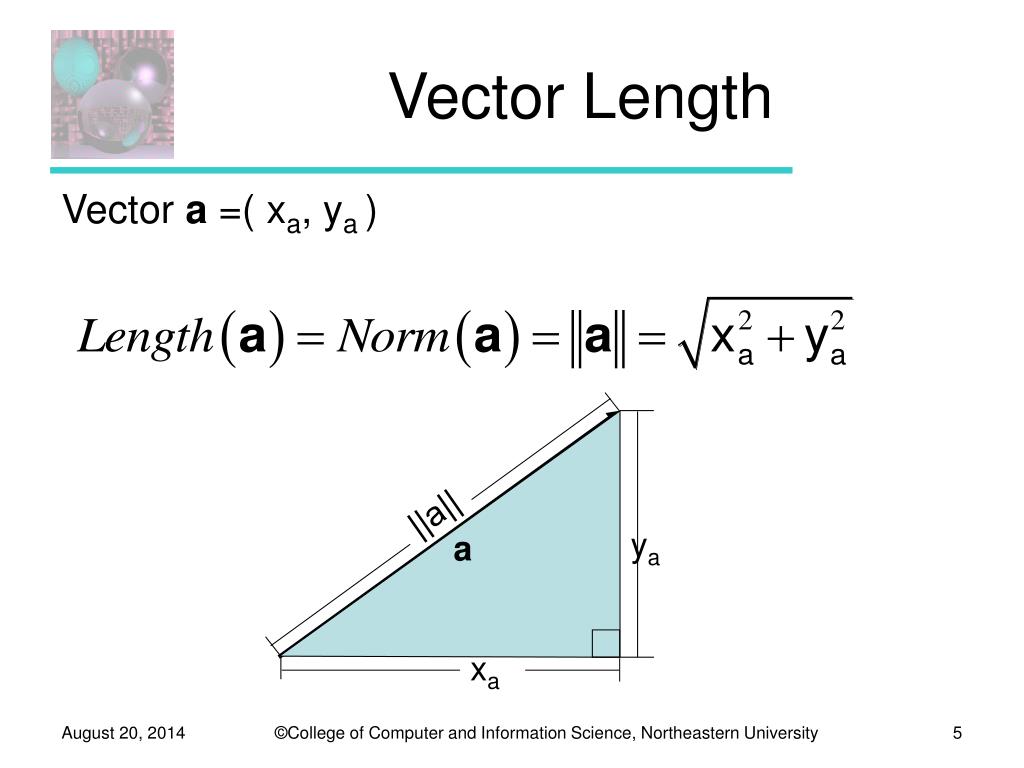

  5. Vector Length Vector a =( xa, ya ) ||a|| ya a xa

  6. a  b Dot Product Dot Product a =( xa, ya ) b =( xb, yb ) ab = xa xb + ya yb ab = abcos() xa= acos(+) xb= bcos() xa= asin(+) xb= bsin() 

  7. a  b ab Projection a =( xa, ya ) b =( xb, yb ) ab = abcos() The length of the projection of a onto b is given by

  8. 3D Vectors This all holds for 3D vectors too. a =( xa, ya, za ) b =( xb, yb, zb ) ab = xa xb + ya yb + za zb ab = abcos()

  9. Vector Cross Product axb axb is perpendicular to a and b. Use the right hand rule to determine the direction of axb. b  a Image from www.physics.udel.edu

  10. b  ||a|| a Cross Product and Area axb b  a ||a||x||b|| = area pf the parallelogram.

  11. Computing the Cross Product

  12. b (1-t)L tL L a Linear Interpolation • LERP: /lerp/, vi.,n. • Quasi-acronym for Linear Interpolation, used as a verb or noun for the operation. “Bresenham's algorithm lerps incrementally between the two endpoints of the line.” p = (1 – t) a + t b = a + t(b – a)

  13. t = 1 t = .75 t = .5 t = .25 t = 0 Lerp Demo p = (1 – t) a + t b = a + t(b – a) b L a

  14. Triangles a If (x, y) is on the edge ab, (x, y) = (1 – t) a + t b = a + t(b – a). Similar formulas hold for points on the other edges. If (x, y) is in the triangle: (x, y) =  a +  b +  c  +  +  = 1 ( ,  ,  ) are the Barycentriccoordinates of (x, y). (x,y) c b

  15. Triangles p = a + (b-a) + (c-a)  = 2  = 1  = 0  = -1  = 2 p = (1- - )a + b + c  = 1-  -  p = p(, ,) = a + b + c  = 1 c c-a  = 0 b b-a a Barycentric coordinates  = -1  = 0  = 1

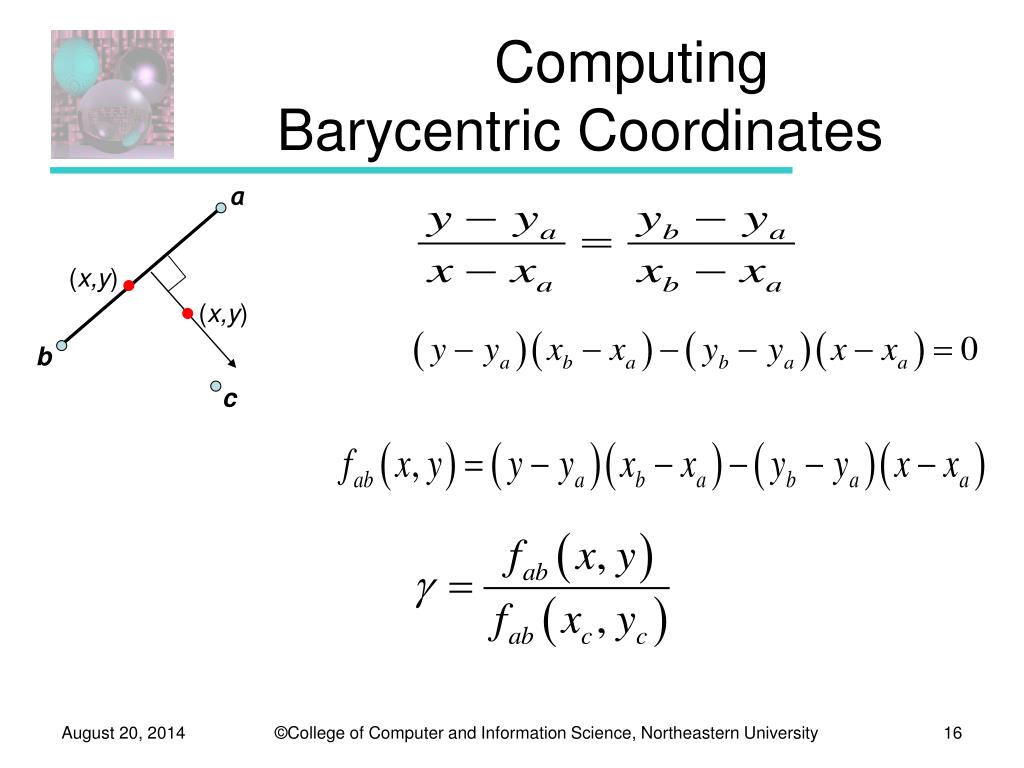

  16. (x,y) (x,y) ComputingBarycentric Coordinates a b c

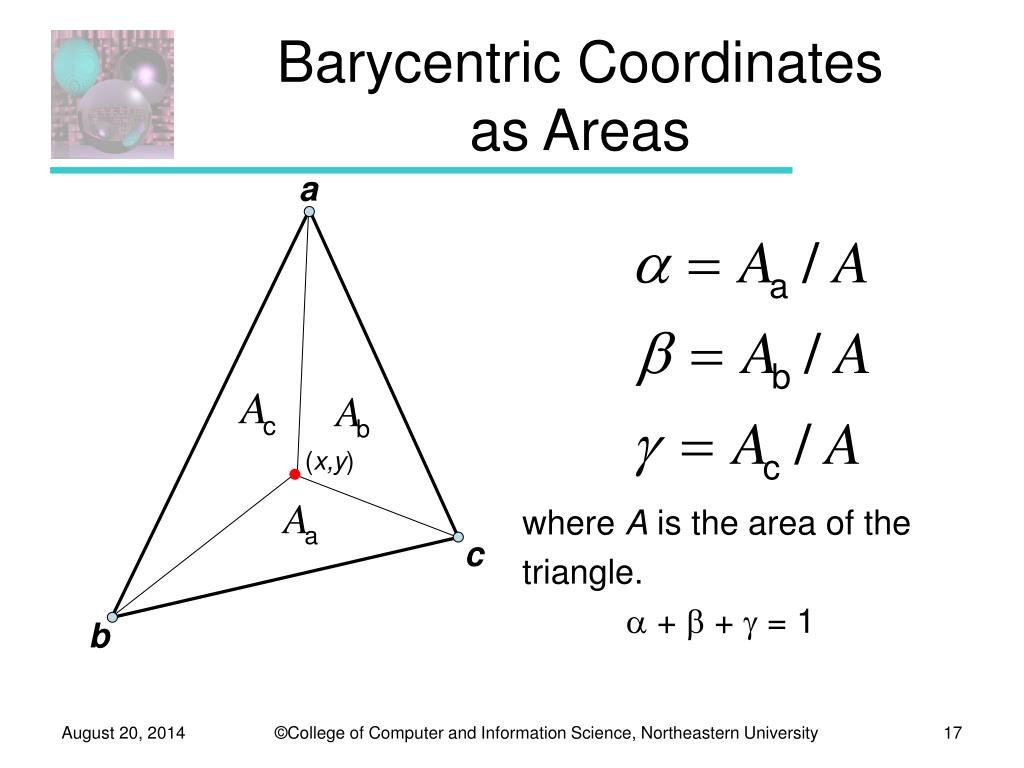

  17. Barycentric Coordinates as Areas a (x,y) where A is the area of the triangle.  +  +  = 1 c b

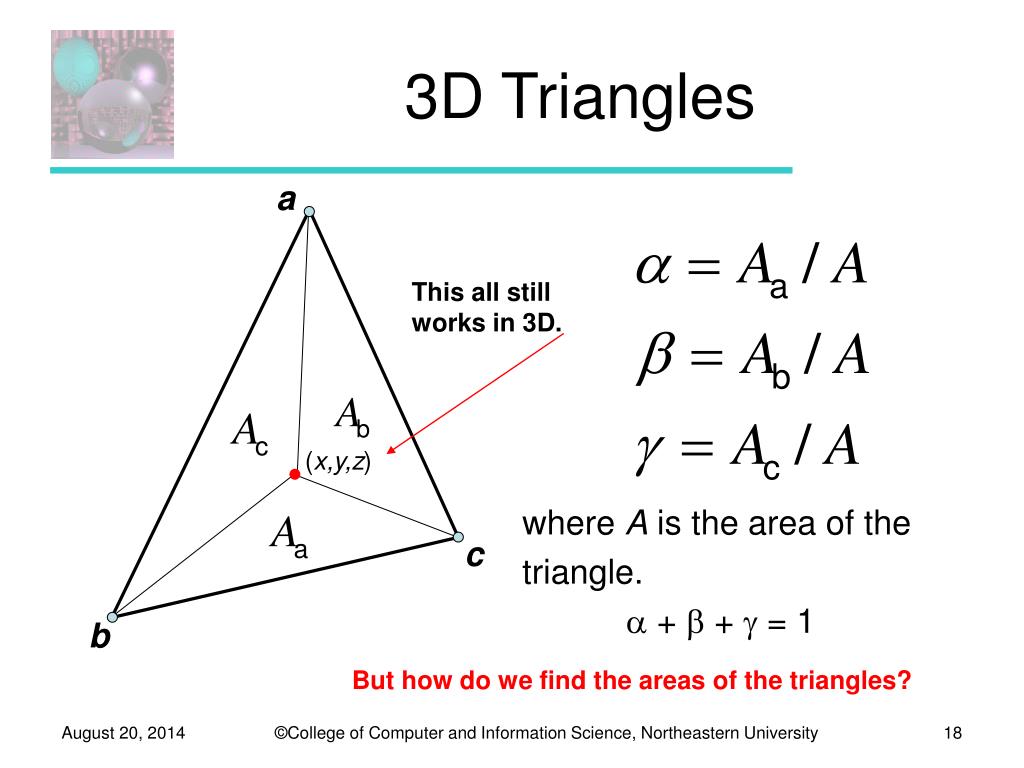

  18. 3D Triangles a This all still works in 3D. (x,y,z) where A is the area of the triangle.  +  +  = 1 c b But how do we find the areas of the triangles?

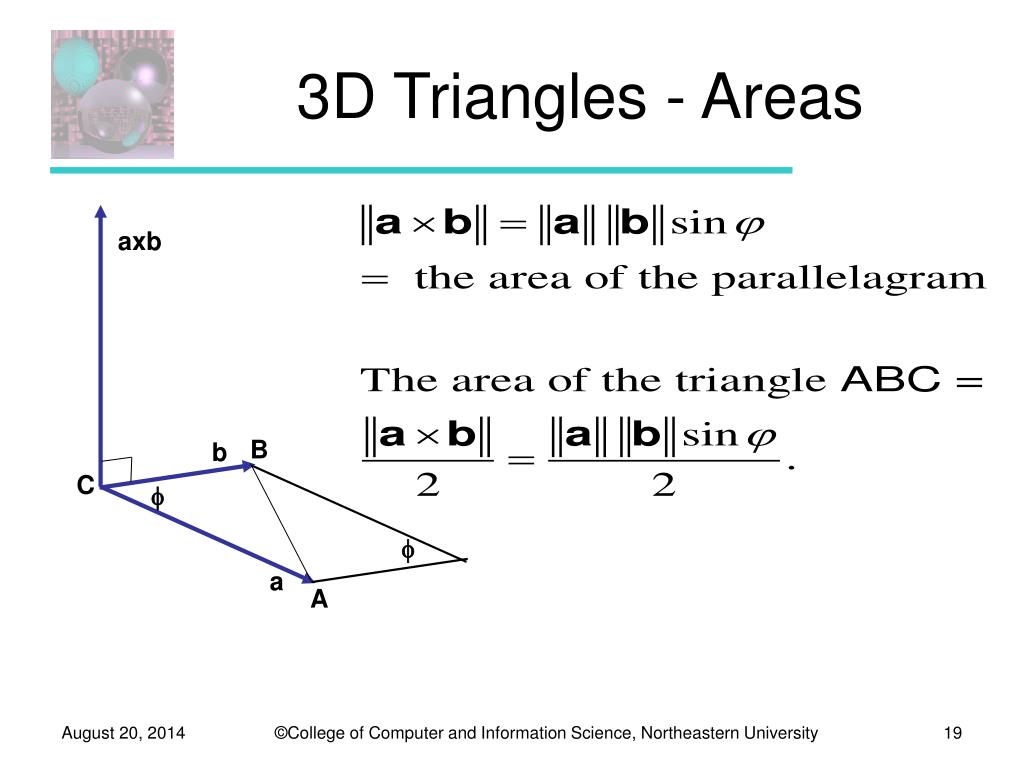

  19. 3D Triangles - Areas axb B b C   a A

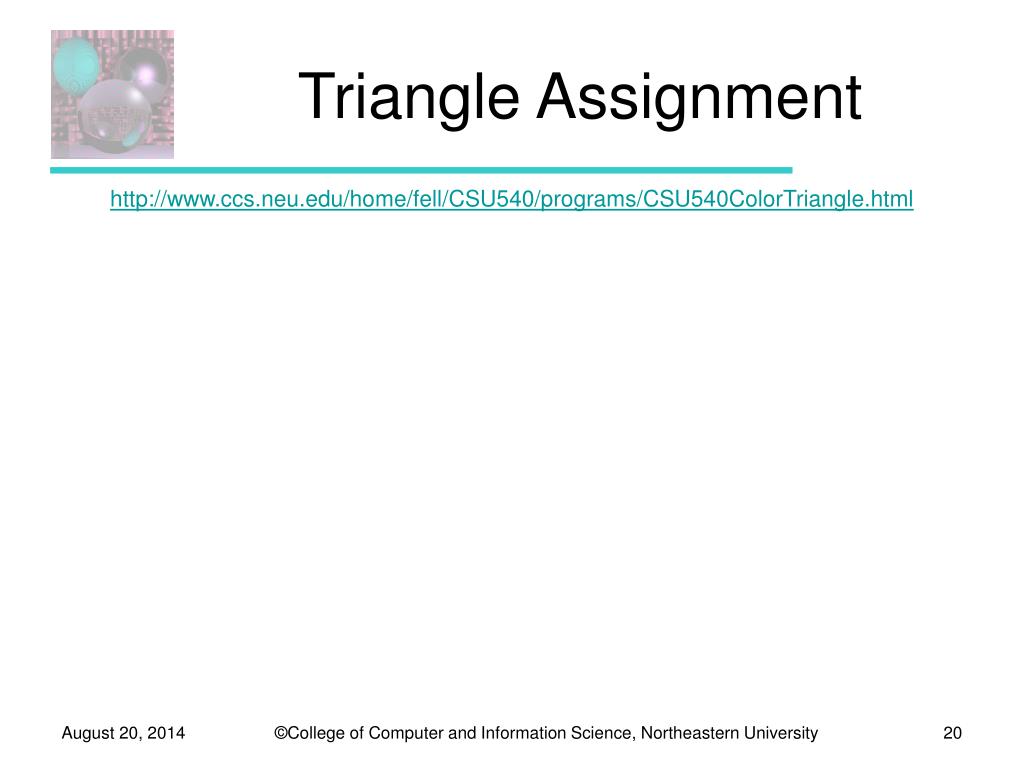

  20. Triangle Assignment http://www.ccs.neu.edu/home/fell/CSU540/programs/CSU540ColorTriangle.html

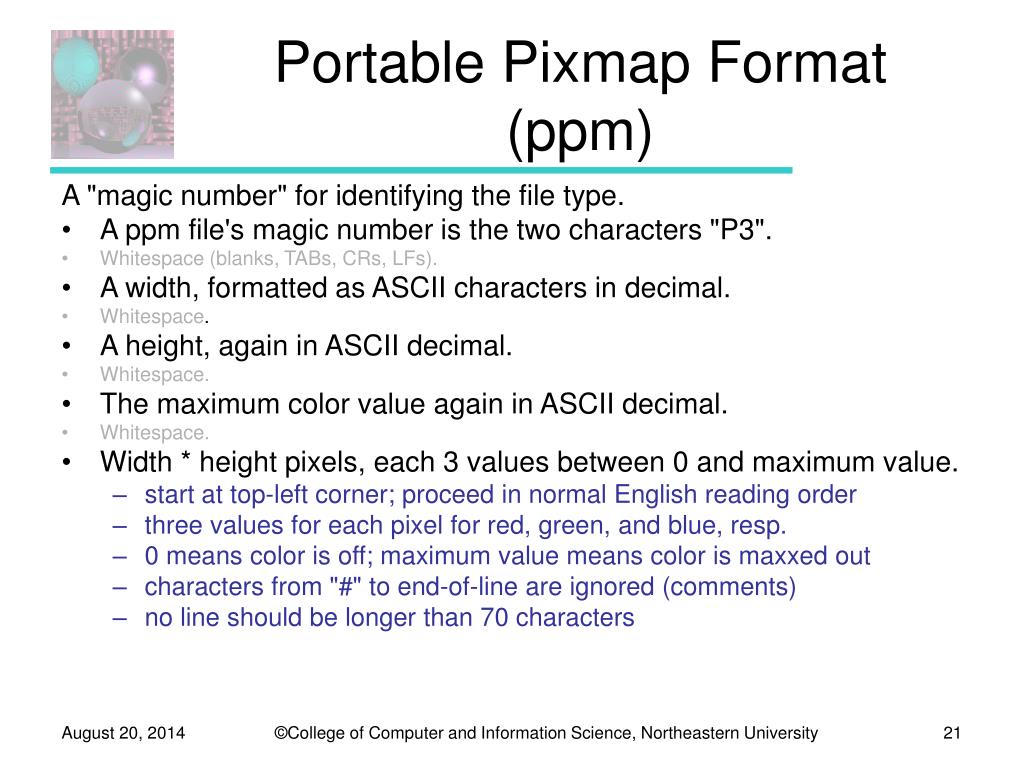

  21. Portable Pixmap Format (ppm) A "magic number" for identifying the file type. • A ppm file's magic number is the two characters "P3". • Whitespace (blanks, TABs, CRs, LFs). • A width, formatted as ASCII characters in decimal. • Whitespace. • A height, again in ASCII decimal. • Whitespace. • The maximum color value again in ASCII decimal. • Whitespace. • Width * height pixels, each 3 values between 0 and maximum value. • start at top-left corner; proceed in normal English reading order • three values for each pixel for red, green, and blue, resp. • 0 means color is off; maximum value means color is maxxed out • characters from "#" to end-of-line are ignored (comments) • no line should be longer than 70 characters

  22. ppm Example P3 # feep.ppm 4 4 15 0 0 0 0 0 0 0 0 0 15 0 15 0 0 0 0 15 7 0 0 0 0 0 0 0 0 0 0 0 0 0 15 7 0 0 0 15 0 15 0 0 0 0 0 0 0 0 0

  23. private void saveImage() { String outFileName = “my.ppm"; File outFile = new File(outFileName); int clrR, clrG, clrB; try { PrintWriter out = new PrintWriter(new BufferedWriter(new FileWriter(outFile))); out.println("P3"); out.print(Integer.toString(xmax-xmin+1)); System.out.println(xmax-xmin+1); out.print(" "); out.println(Integer.toString(ymax-ymin+1)); System.out.println(ymax-ymin+1); out.println("255"); for (int y = ymin; y <= ymax; y++){ for (int x = xmin; x <= xmax; x++) { // compute clrR, clrG, clrB out.print(" "); out.print(clrR); out.print(" "); out.print(clrG); out.print(" "); out.println(clrB); } } out.close(); } catch (IOException e) { System.out.println(e.toString()); } }
