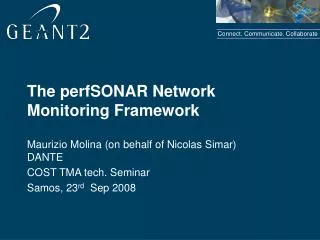

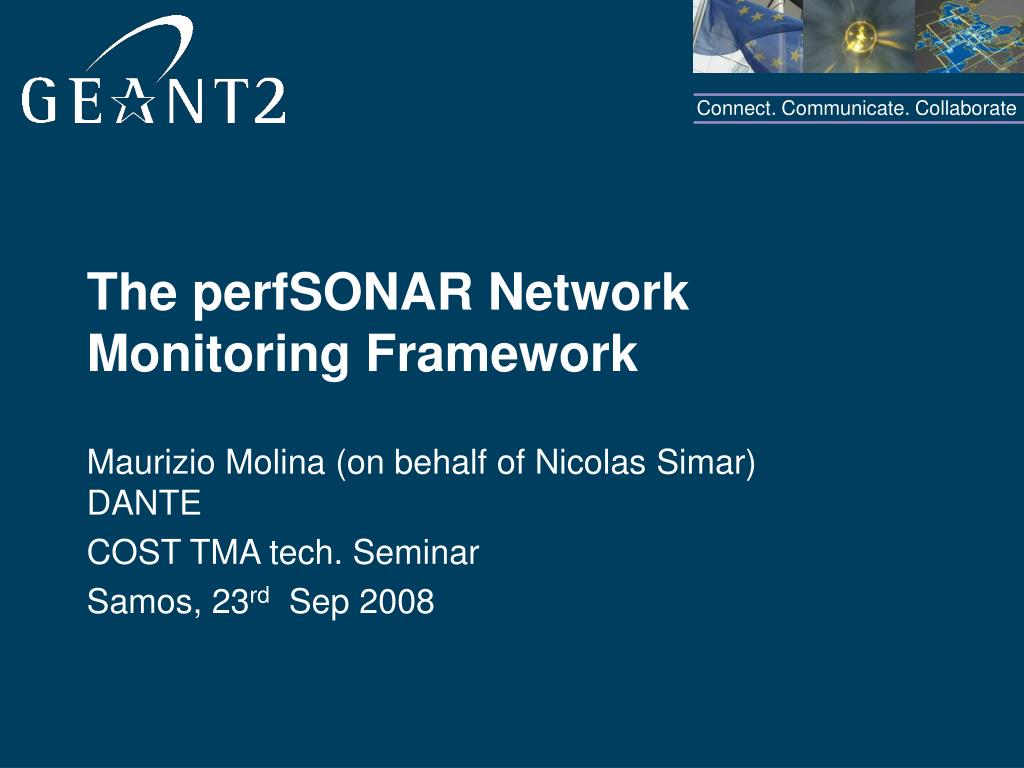

  1. The perfSONAR Network Monitoring Framework Maurizio Molina (on behalf of Nicolas Simar) DANTE COST TMA tech. Seminar Samos, 23rd Sep 2008

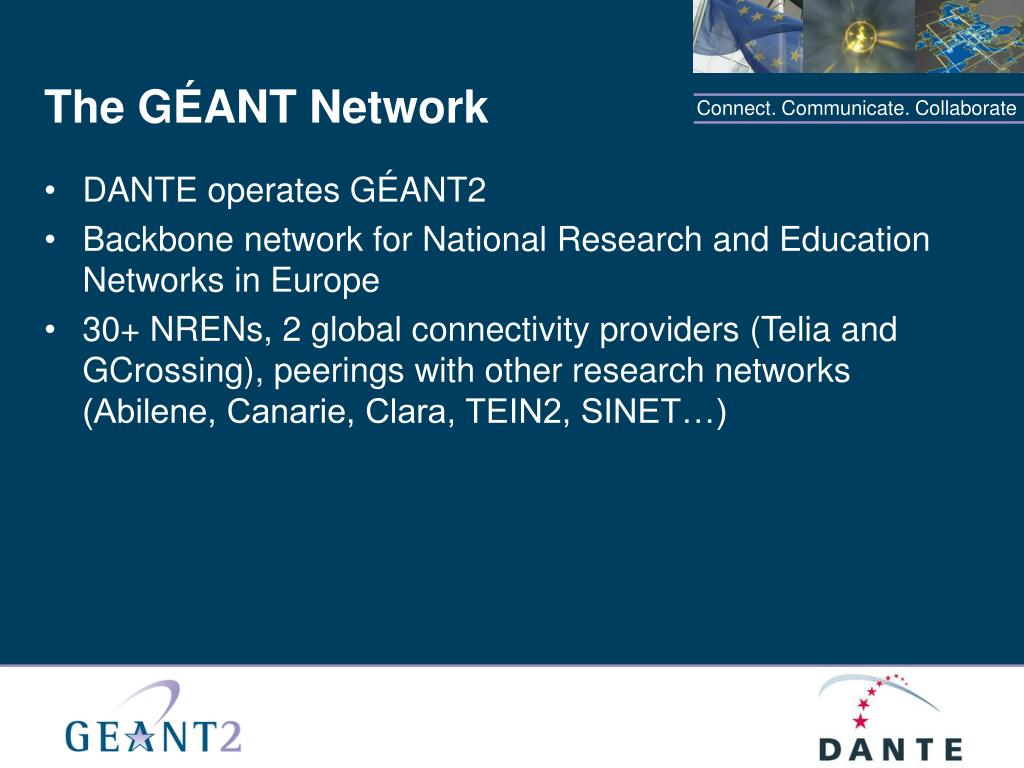

  2. The GÉANT Network • DANTE operates GÉANT2 • Backbone network for National Research and Education Networks in Europe • 30+ NRENs, 2 global connectivity providers (Telia and GCrossing), peerings with other research networks (Abilene, Canarie, Clara, TEIN2, SINET…)

  3. The GÉANT Network (IP layer) • 20 Juniper routers • tenths of GBit/s of aggregated traffic • Main accesses and the backbone 10Gbit/s Pls see www.dante.net

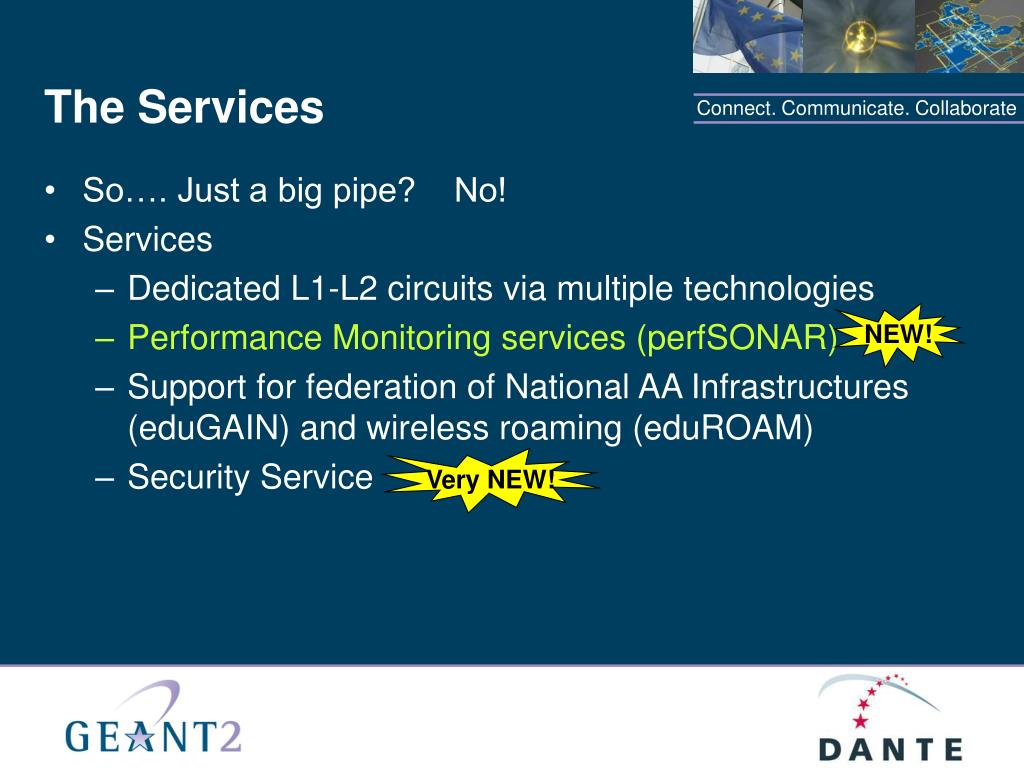

  4. The Services • So…. Just a big pipe? No! • Services • Dedicated L1-L2 circuits via multiple technologies • Performance Monitoring services (perfSONAR) • Support for federation of National AA Infrastructures (eduGAIN) and wireless roaming (eduROAM) • Security Service NEW! Very NEW!

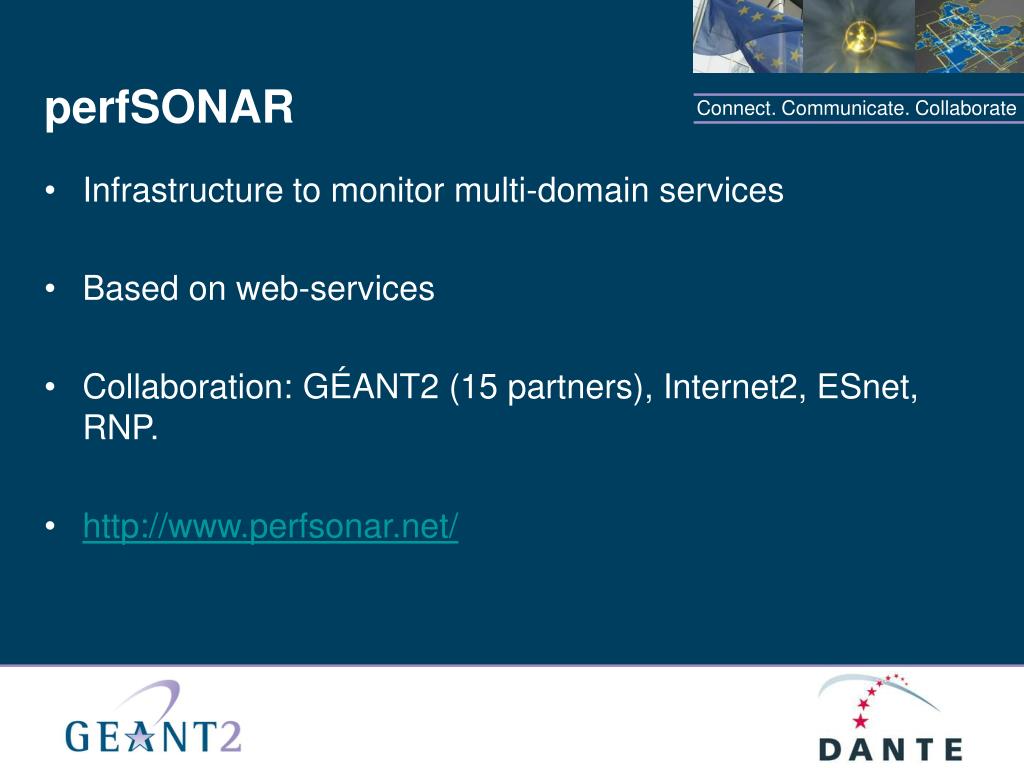

  5. perfSONAR • Infrastructure to monitor multi-domain services • Based on web-services • Collaboration: GÉANT2 (15 partners), Internet2, ESnet, RNP. • http://www.perfsonar.net/

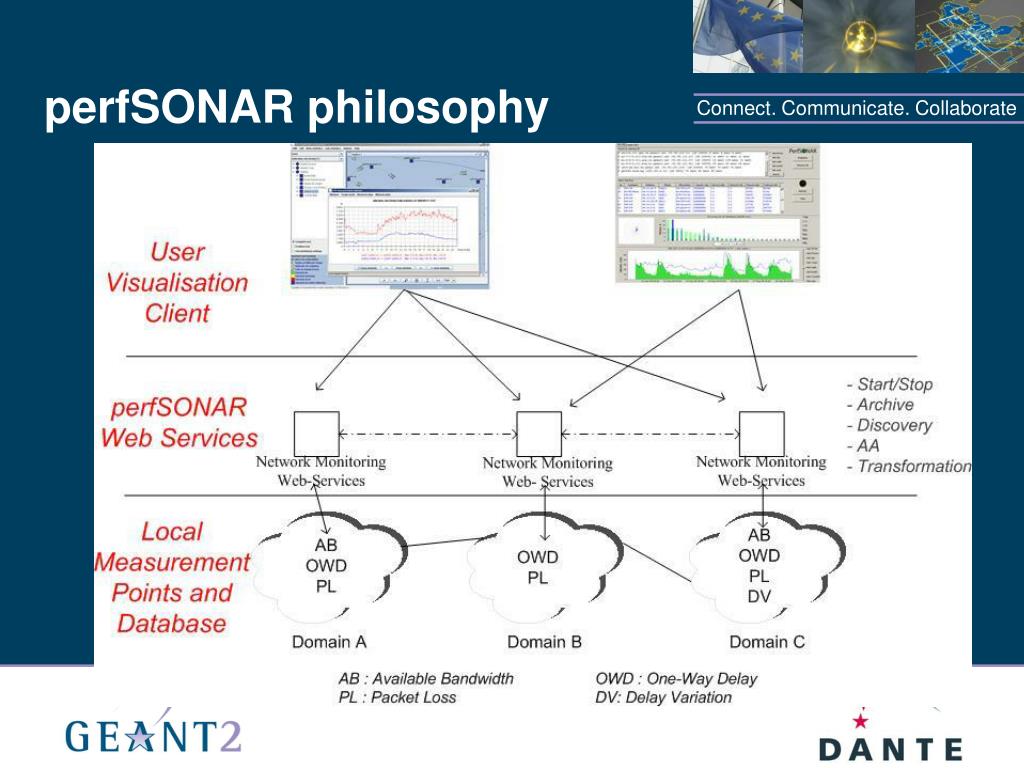

  6. perfSONAR philosophy

  7. Open access instances • OWD, OWPL, traceroute and throughput (TCP) servers • over 40 servers across Europe • IP circuit utilisation (optionally: input errors, output drops) • Deployed in more than 10 networks • Demo GUIs • http://monstera.man.poznan.pl/jra1-wiki/index.php/PerfSONAR_Tools • perfsonarUI self-paced Tutorial • http://cbt.geant2.net/repository/perfsonar_ui/perfsonar_online_training_0.2/player.html

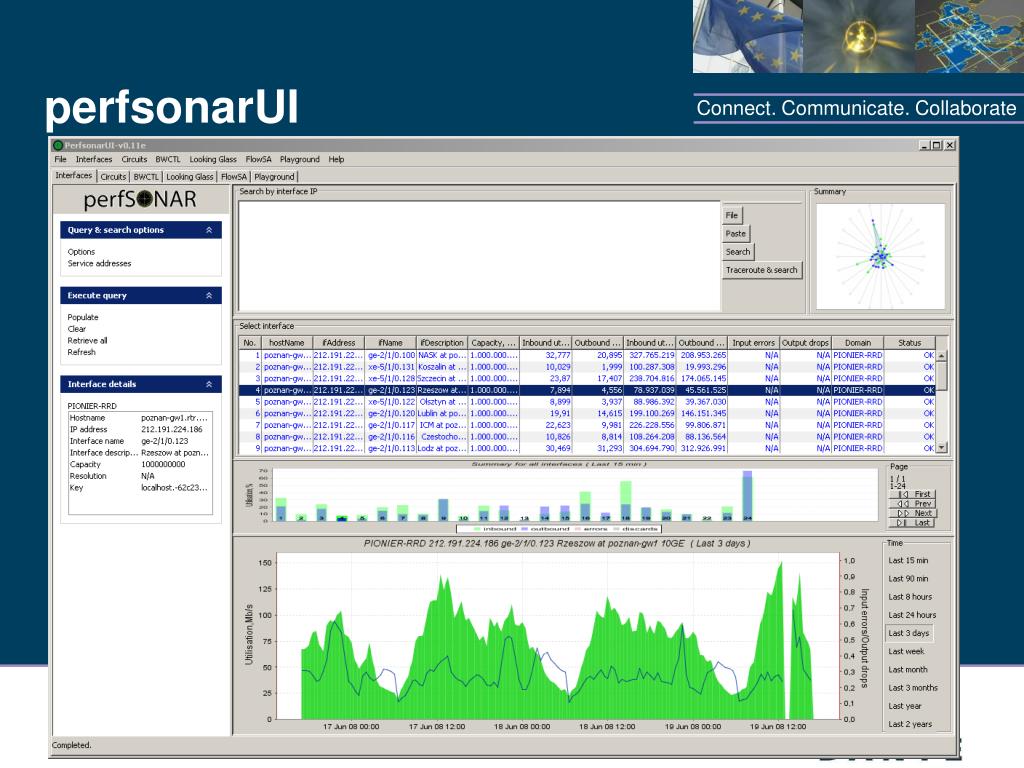

  8. perfsonarUI

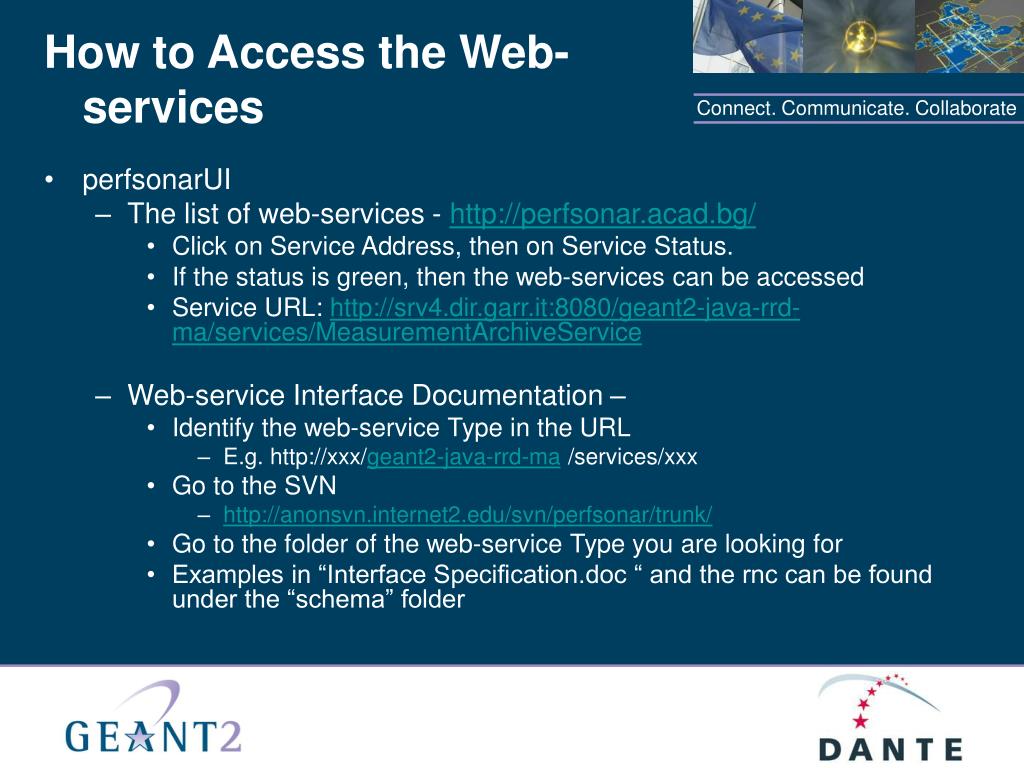

  9. How to Access the Web-services • perfsonarUI • The list of web-services - http://perfsonar.acad.bg/ • Click on Service Address, then on Service Status. • If the status is green, then the web-services can be accessed • Service URL: http://srv4.dir.garr.it:8080/geant2-java-rrd-ma/services/MeasurementArchiveService • Web-service Interface Documentation – • Identify the web-service Type in the URL • E.g. http://xxx/geant2-java-rrd-ma /services/xxx • Go to the SVN • http://anonsvn.internet2.edu/svn/perfsonar/trunk/ • Go to the folder of the web-service Type you are looking for • Examples in “Interface Specification.doc “ and the rnc can be found under the “schema” folder

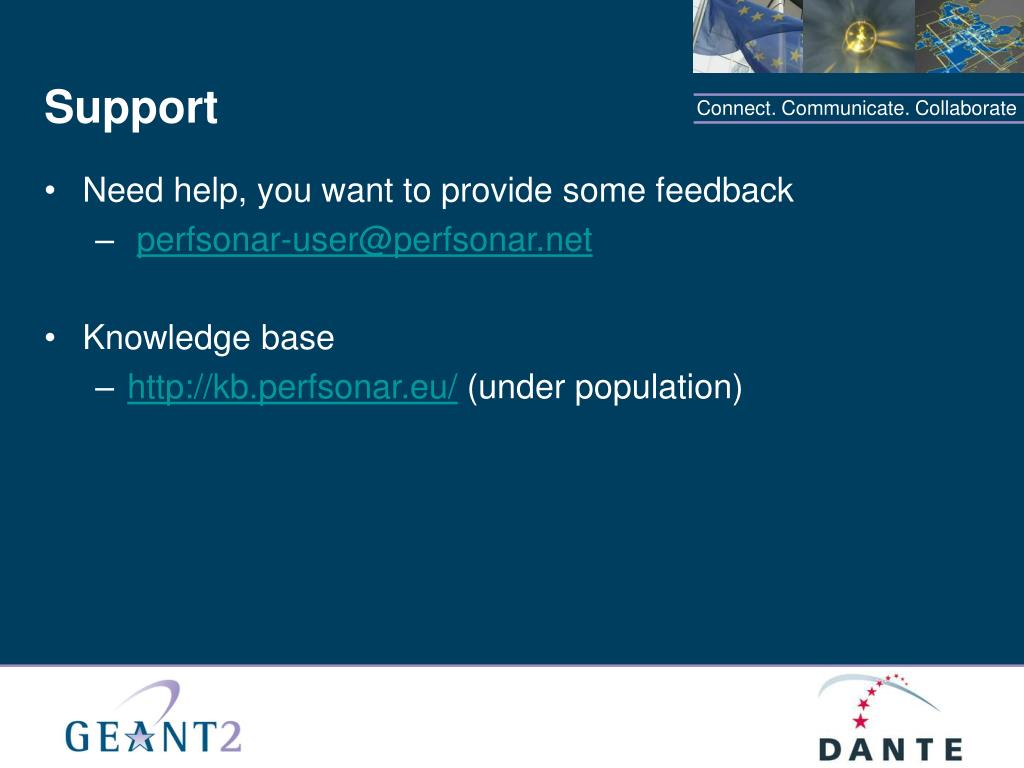

  10. Support • Need help, you want to provide some feedback • perfsonar-user@perfsonar.net • Knowledge base • http://kb.perfsonar.eu/ (under population)

  11. Next Steps • Simple Authorization • Organisation and role based. • Using EduGAIN attributes • Creation of a Multi-Domain Monitoring service across Europe (MDM Service in Pilot phase) • Current target NOCs and PERTs

  12. Of Interest • But not deployed • Flow Aggregation MA • http://wiki.perfsonar.net/jra1-wiki/index.php/Flow_Selection_and_Aggregation_MA • Flow Subscription MP • http://wiki.perfsonar.net/jra1-wiki/index.php/Flow_Subscription_MP

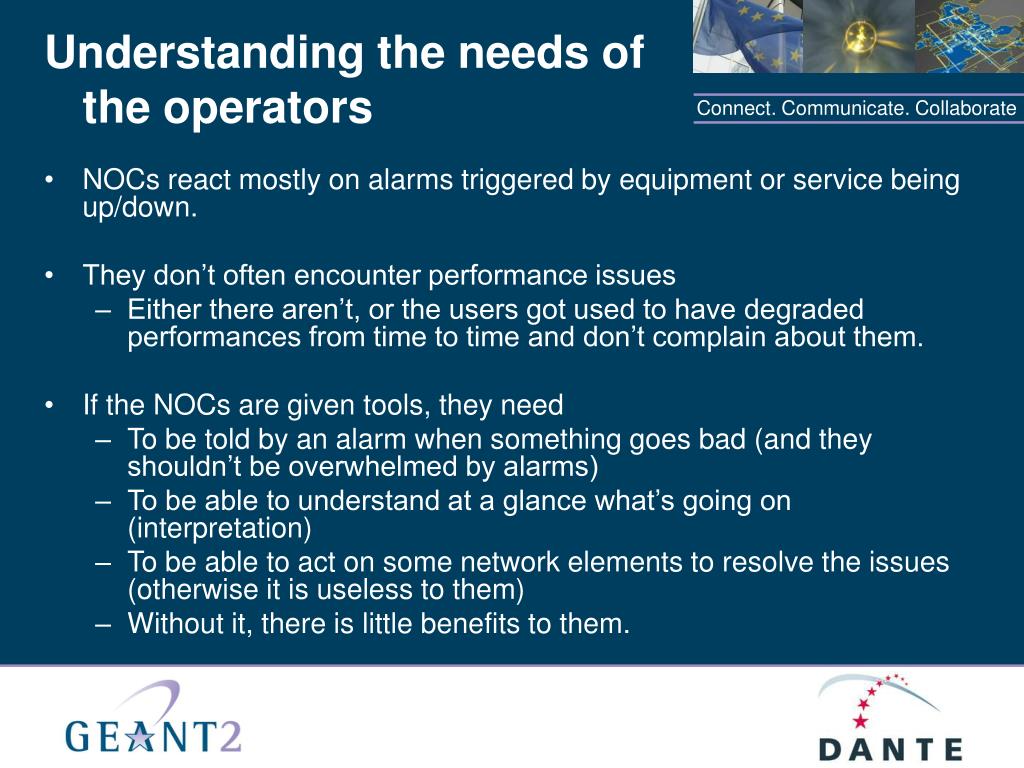

  13. Understanding the needs of the operators • NOCs react mostly on alarms triggered by equipment or service being up/down. • They don’t often encounter performance issues • Either there aren’t, or the users got used to have degraded performances from time to time and don’t complain about them. • If the NOCs are given tools, they need • To be told by an alarm when something goes bad (and they shouldn’t be overwhelmed by alarms) • To be able to understand at a glance what’s going on (interpretation) • To be able to act on some network elements to resolve the issues (otherwise it is useless to them) • Without it, there is little benefits to them.

  14. Understanding the needs of the operators • There is also the need for planning tools reasonably simple to use. • There are three gaps that need to be filled between the operators and the users • “geographical gap”: • network boundaries vs end-to-end • “TCP/IP model gap”: • network operators are up to the IP layer (unless offering additional services running), the users are at the application layer. • “time gap”: • the network operators have 5 minutes average statistics, the packet lifetime is few ms, an application inter-action is around few seconds/minutes.
