  1. Fibrillation and Defibrillator Engr. Hinesh Kumar

  2. History • Defibrillation was invented in 1899by PrevostandBatelli, two Italian physiologists. • They discovered that electric shocks could convert ventricular fibrillation to sinus rhythm in dogs. • The first case of a human life saved by defibrillation was reported by Beck in 1947 .

  3. Fibrillation • Fibrillation is the rapid, irregular, and unsynchronized contraction of muscle fibers. • There are two major classes of cardiac fibrillation: Atrial Fibrillation and Ventricular Fibrillation. • Atrial fibrillationis an irregular and uncoordinated contraction of the cardiac muscle of atria. • Ventricular Fibrillationis an irregular and uncoordinated contraction of the cardiac muscle of ventricles.

  4. Fibrillation • Figure: • Normal waveform. • Ventricular fibrillation. • Ventricular tachycardia.

  5. Defibrillation • Defibrillation is a process in which an electronic device sends an electric shock to the heart to stop an extremely rapid, irregular heartbeat, and restore the normal heart rhythm. • Defibrillation should be performed with in the first 8 minutes after cardiac arrest. Ideally, the sooner, the better.

  6. Defibrillator • Defibrillator is the device used to deliver the electrical shock and it can be manual or automatic.

  7. Types of Defibrillator • Internal Defibrillator • Electrodes directly placed to the heart • e.g., ICD (Internal Cardioversion Defibrillator) • External Defibrillator • Electrodes placed directly on the chest. • e.g., AED (Automatic External Defibrillator)

  8. Internal External

  9. Internal Defibrillator • An implantable cardioverter-defibrillator (often called an ICD) is a device that briefly passes an electric current through the heart. • It is "implanted," or put in your body surgically. • It includes a pulse generator and one or more leads. • The pulse generator constantly watches your heartbeat.

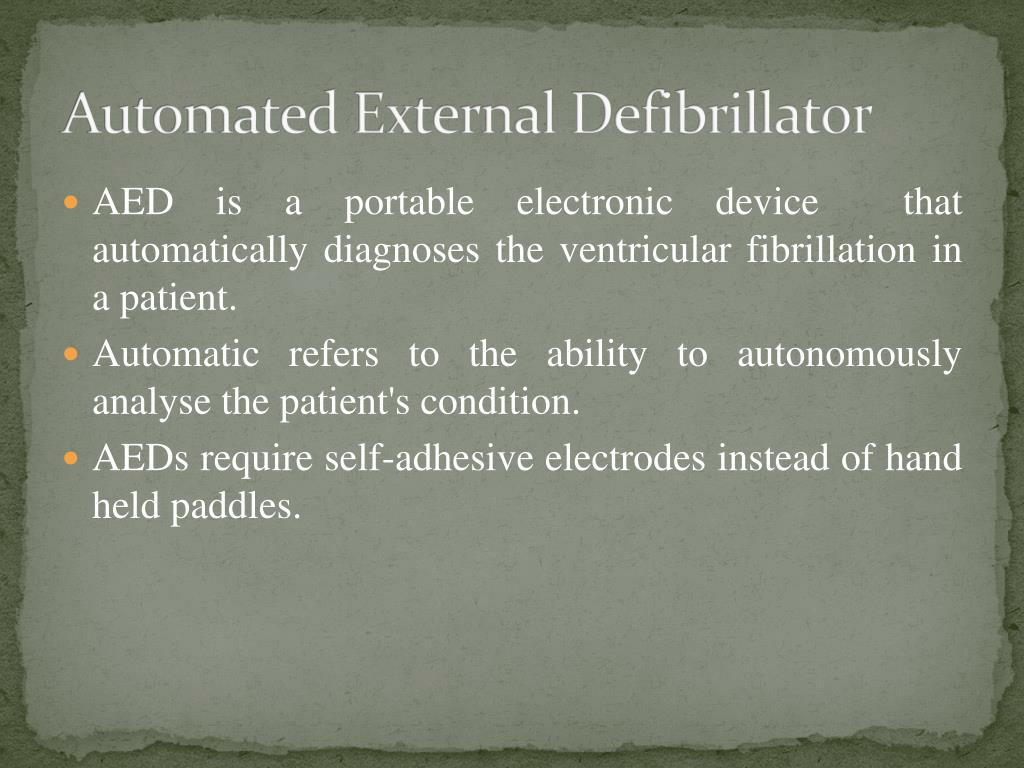

  10. Automated External Defibrillator • AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in a patient. • Automatic refers to the ability to autonomously analyse the patient's condition. • AEDs require self-adhesive electrodes instead of hand held paddles.

  11. Circiut Diagram

  12. Cardoiversion after defibrillation

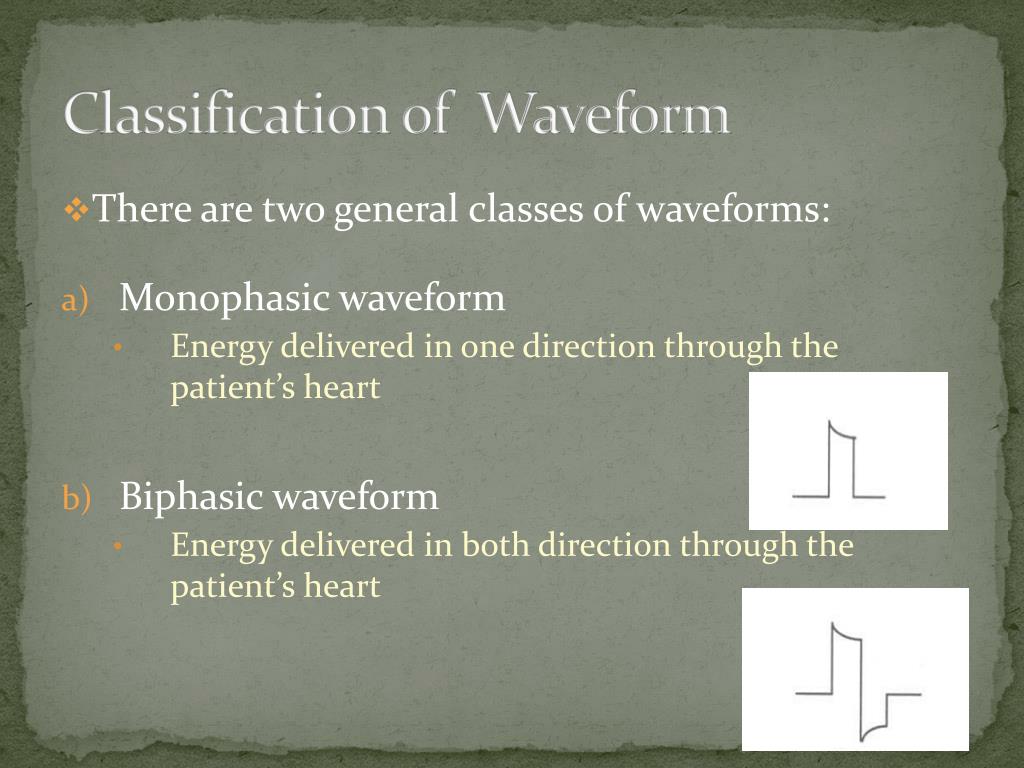

  13. Classification of Waveform • There are two general classes of waveforms: • Monophasic waveform • Energy delivered in one direction through the patient’s heart • Biphasic waveform • Energy delivered in both direction through the patient’s heart

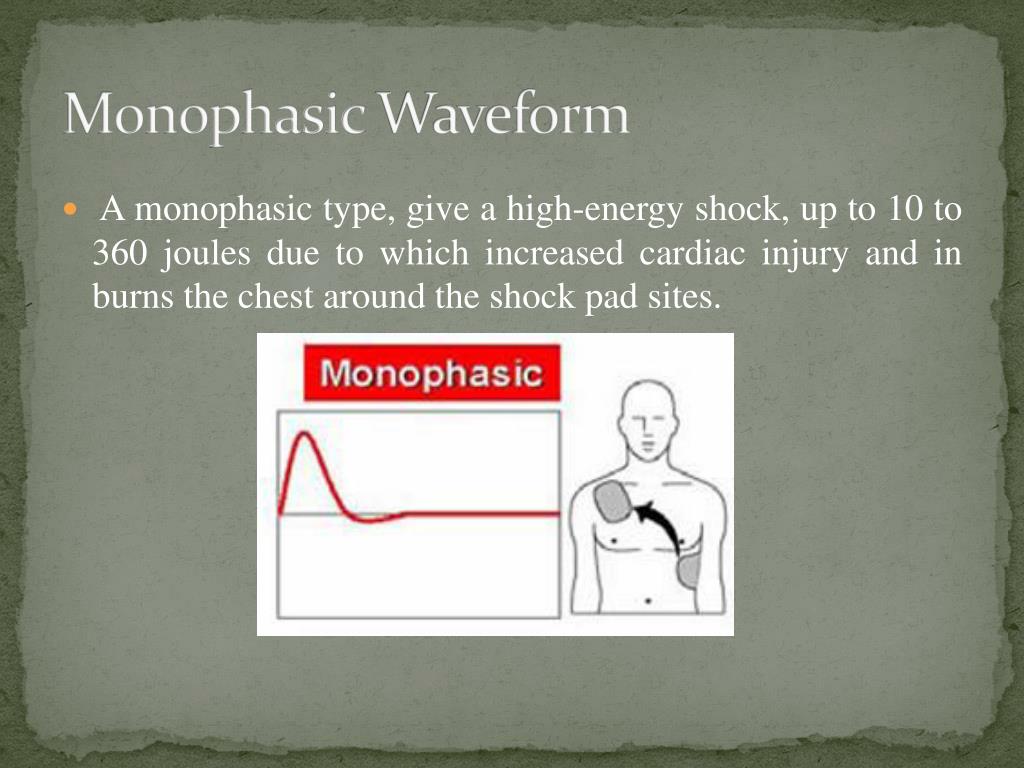

  14. Monophasic Waveform • A monophasic type, give a high-energy shock, up to 10 to 360 joules due to which increased cardiac injury and in burns the chest around the shock pad sites.

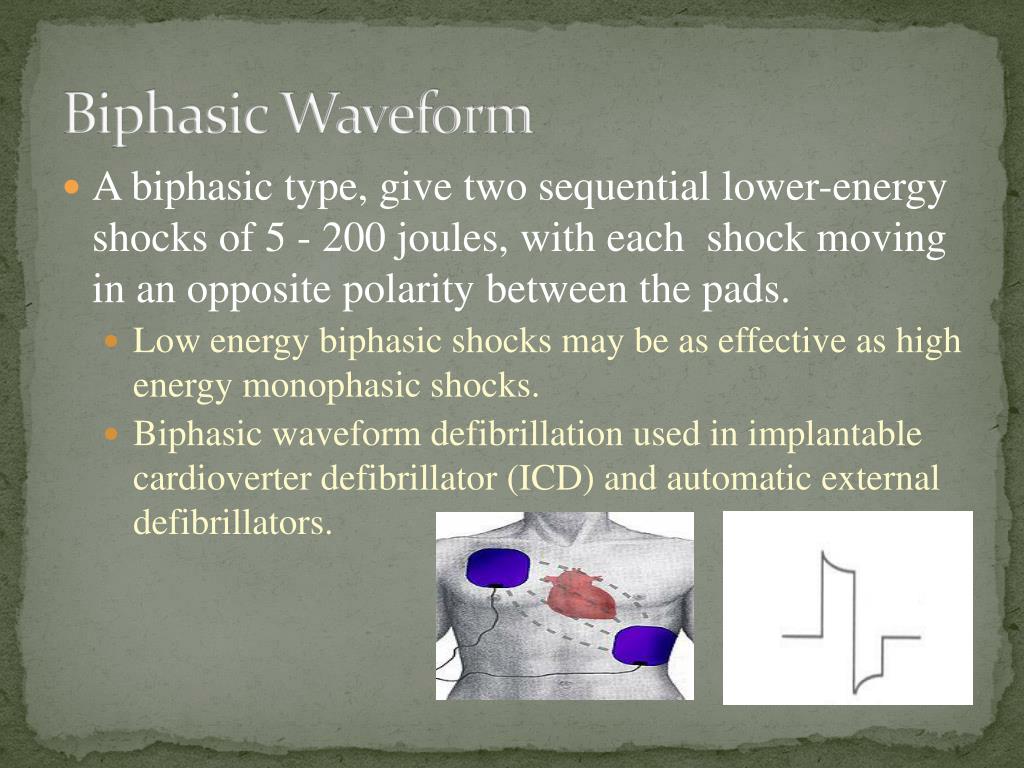

  15. Biphasic Waveform • A biphasic type, give two sequential lower-energy shocks of 5 - 200 joules, with each shock moving in an opposite polarity between the pads. • Low energy biphasic shocks may be as effective as high energy monophasic shocks. • Biphasic waveform defibrillation used in implantable cardioverter defibrillator (ICD) and automatic external defibrillators.

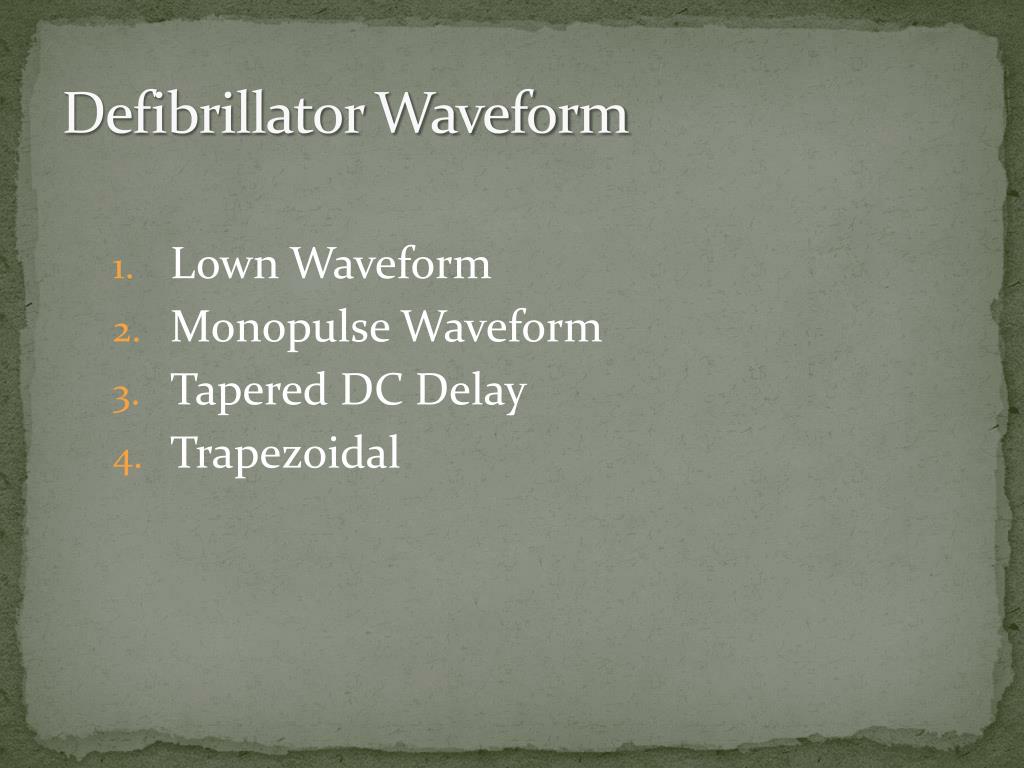

  16. Defibrillator Waveform • Lown Waveform • Monopulse Waveform • Tapered DC Delay • Trapezoidal

  17. Lown Waveform • In 1962, Dr Bernard Lown of Harward University introduced the waveform that bears his name. • The voltage and current applied to the patient's chest plotted against time. • The current will rise very rapidly to about 20 A under the influence of slightly less than 3 KV. • The waveform then decays back to zero within 5 ms, and then produces a smaller negative pulse also of about 5 msec. • The charge delivered to the patient is stored in a capacitor and is produced by a high-voltage dc power supply.

  18. Figure… Lown Defibrillator Waveform

  19. Cont… • The operator can set the charge level using the set energy knob on the front panel. • The knob controls the dc voltage produced by the high-voltage power supply and so can set the maximum charge on the capacitor • The energy stored in the capacitor is given by: • where, • U is the energy in joules (J) • C is the capacitance of C1, in farads (F) • V is the voltage across C1, (V)

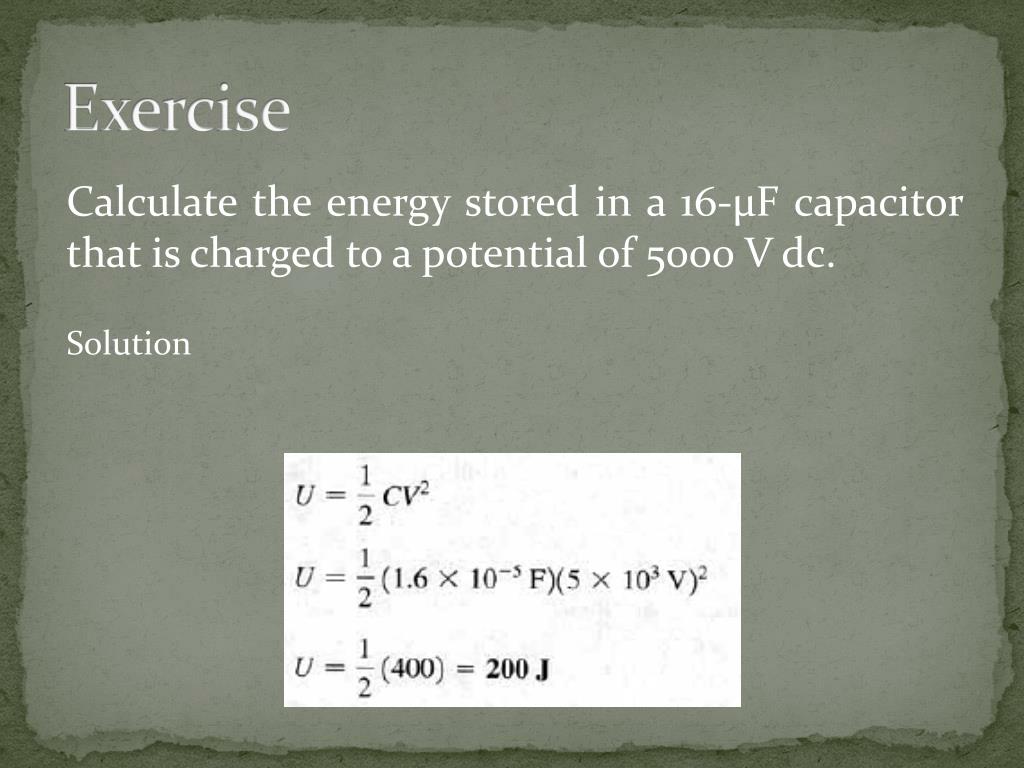

  20. Exercise Calculate the energy stored in a 16-µF capacitor that is charged to a potential of 5000 V dc. Solution

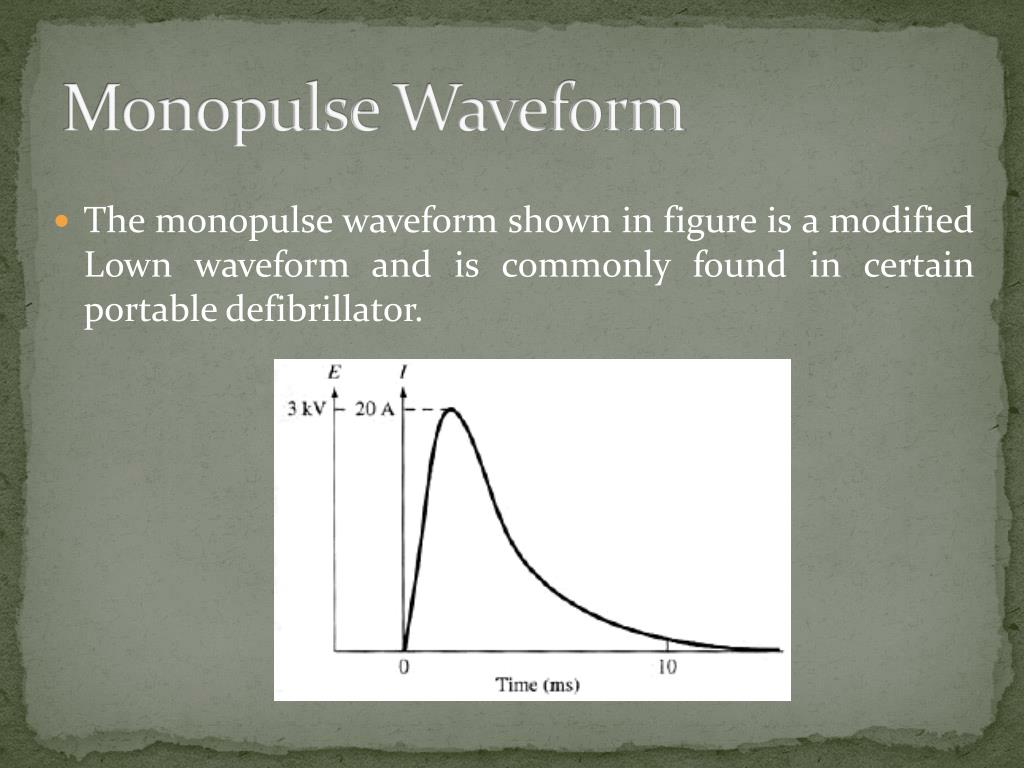

  21. Monopulse Waveform • The monopulse waveform shown in figure is a modified Lownwaveform and is commonly found in certain portable defibrillator.

  22. Tapered DC Delay • This waveform differs from the others in that it uses a lower amplitude and longer duration to achieve the energy level. • The energy transferred is proportional to the area under the square of the curve, so we may attain the same energy as in other waveforms.

  23. Trapezoidal • The trapezoidal waveform shown in figure is another low-voltage, long duration shape. • The initial output potential is about 800 V, which drops continuously for about 20 ms until it reaches 500 V, where it is terminated .

  24. Defibrillator Electrodes • Types of defibrillator electrodes:- • Spoon Shaped Electrode • Applied directly to the heart. • Paddle type electrode • Applied against the chest wall • Pad Type Electrode • Applied directly on chest wall

  25. fig: Electrodes used in defibrillator (a) a spoon shaped internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.

  26. Fig.- Pad electrode

  27. Placement • White is negative, anterior chest wall.Red is Positive , left anterior axillary line. • “Red on Ribs! White on right!”

  28. Precautions • The paddles used in the procedure should not be placed:- • on a woman's breasts • over an internal pacemaker patients. • Before the paddle is used, a electrochemical gel must be applied to the patient's skin to avoid the skin burns.

  29. RISKS • Skin burns from the defibrillator paddles are the most common complication of defibrillation. • Other risks include injury to the heart muscle, abnormal heart rhythms, and blood clots.

  30. Troubleshooting • Attach the external and internal paddles if the monitor reads, "No paddles”. • Check to ensure that the leads are securely attached if the monitor reads, "No leads.“ • Connect the unit to AC power if the message reads, "Low battery.“ • Verify that the Energy Select control settings are correct if the defibrillator does not charge.

  31. Cont… • Change the electrodes and make sure that the electrodes adapter cable is properly connected. • Close the recorder door and the paper roll if the monitor message reads, "Check recorder”.

  32. Thankyou
