  1. NUMBER OF ATOMS PER UNIT CELL IN A CUBIC LATTICE • Simple cubic cell: 1atom/unit cell of sc e.g. Polonium • Body-centered cell: 2 atoms/unit cell of bcc e.g. CsCl, CsBr • Face-centered cell: 4 atoms/unit cell of fcc e.g. NaCl, NaF, KBr, MgO • End face-centered cell: 2 atoms/unit cell

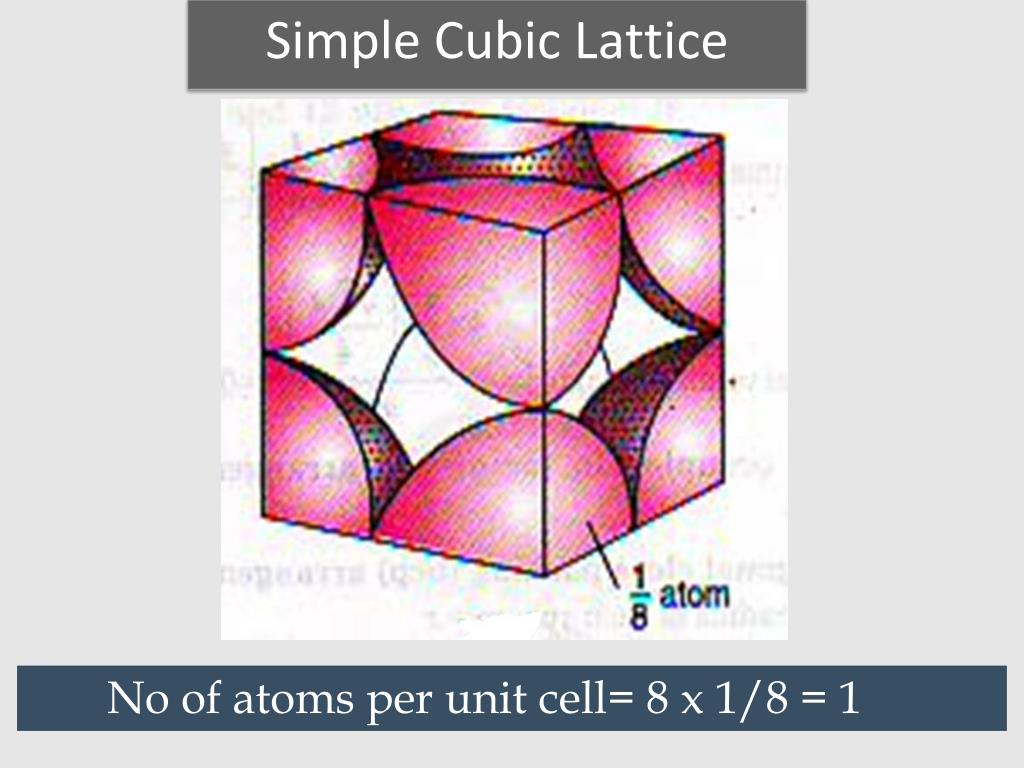

  2. Simple Cubic Lattice No of atoms per unit cell= 8 x 1/8 = 1

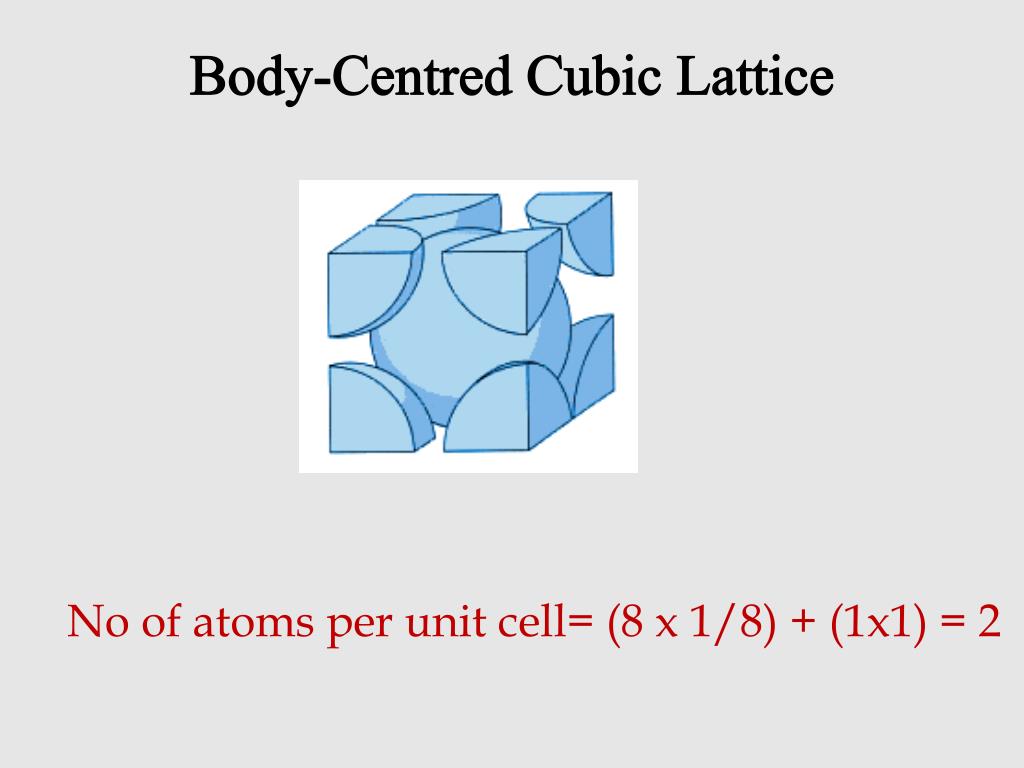

  3. Body-Centred Cubic Lattice No of atoms per unit cell= (8 x 1/8) + (1x1) = 2

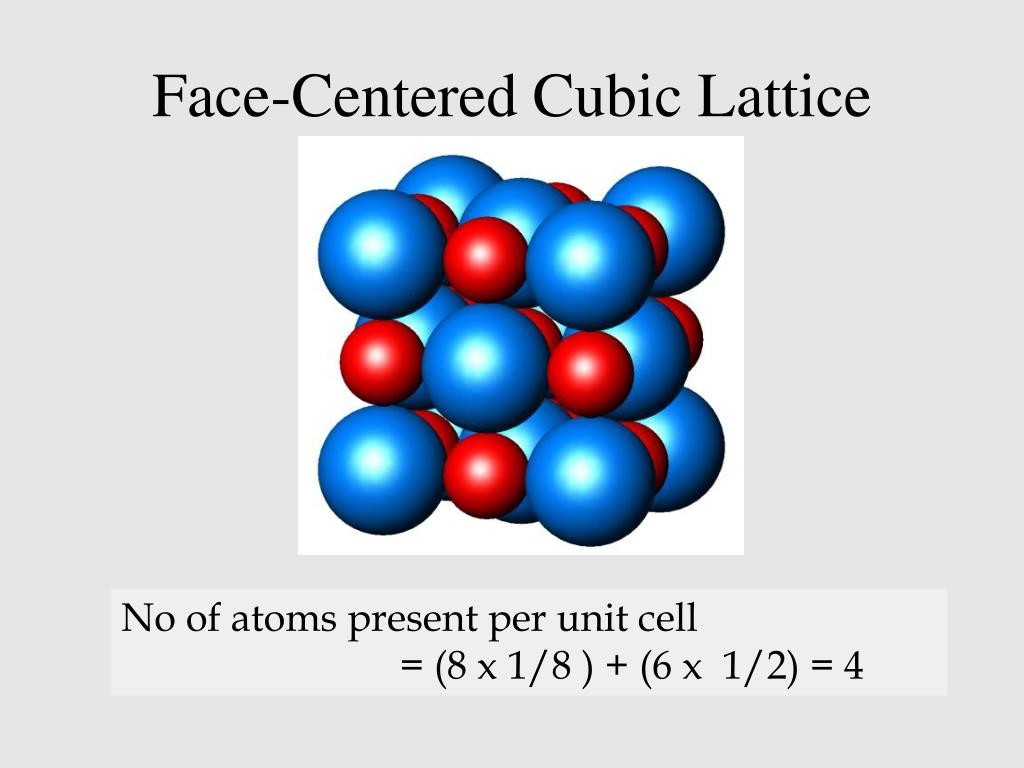

  4. Face-Centered Cubic Lattice No of atoms present per unit cell = (8 x 1/8 ) + (6 x 1/2) = 4

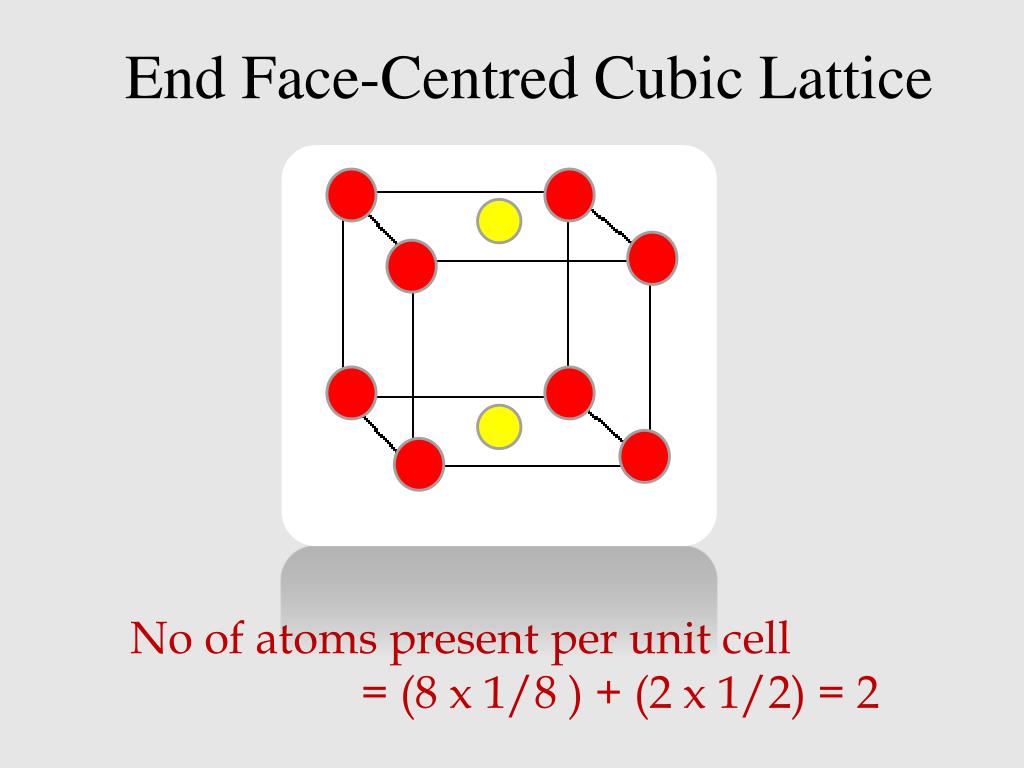

  5. End Face-Centred Cubic Lattice No of atoms present per unit cell = (8 x 1/8 ) + (2 x 1/2) = 2
