  1. 8th Grade Exploring Tech. Transportation Technology Engine Types

  2. Engine Types • The Four Stroke Engine • 4 processes • Very commonly found in the automobile, lawn mower, and motorcycle • Lets Explore • Four Cycle Engine: www.oldengineshed.com/forcycthry.html • Four cycle car engines: http://auto.howstuffworks.com/engine2.htm

  3. Engine Types • The Two Cycle Engine • 2 processes • Found in chainsaws, weed whackers, and some ATV’s • Lets Explore • Two Cycle Engine: www.oldengineshed.com/twocycthry.html

  4. Engine Types • The Rotary Engine • Found in Mazda Rx7/8 today • Lets Explore • Rotary Engine: http://auto.howstuffworks.com/rotary-engine4.htm

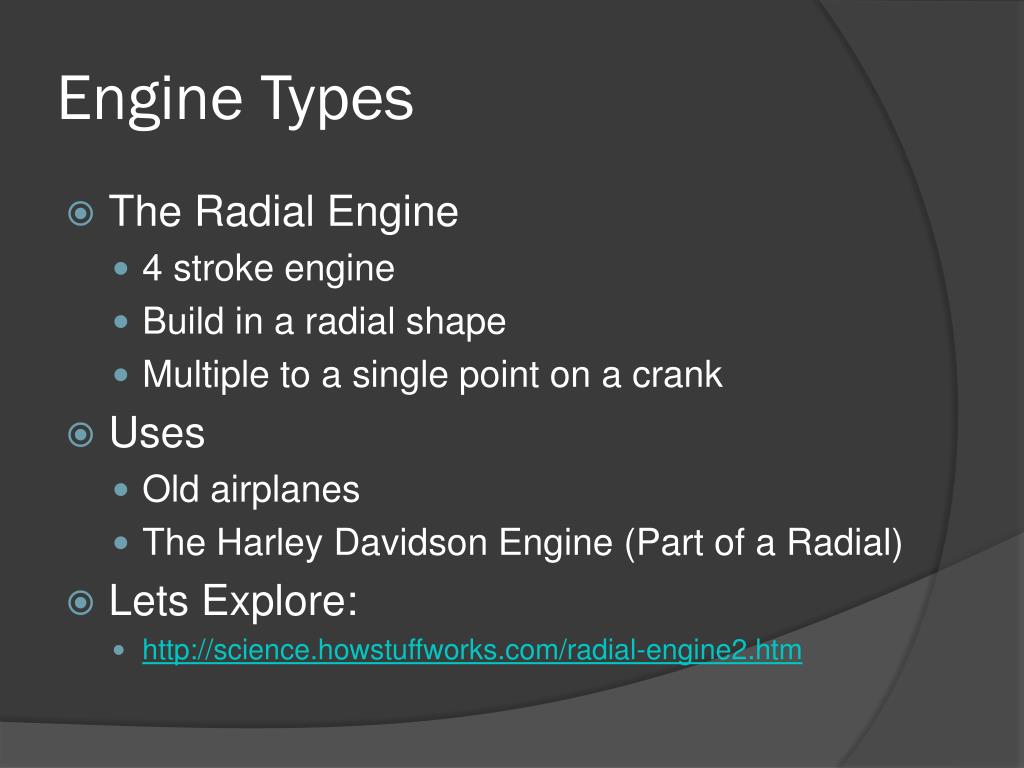

  5. Engine Types • The Radial Engine • 4 stroke engine • Build in a radial shape • Multiple to a single point on a crank • Uses • Old airplanes • The Harley Davidson Engine (Part of a Radial) • Lets Explore: • http://science.howstuffworks.com/radial-engine2.htm

  6. Engine Types • The Diesel Engine • 4 stroke engine, but no spark is needed • Intake stroke • Compression stroke • Combustion stroke • Exhaust stroke • Combustion is a result of compressed air acting with the Diesel fuel • Lets Explore • http://www.howstuffworks.com/diesel1.htm

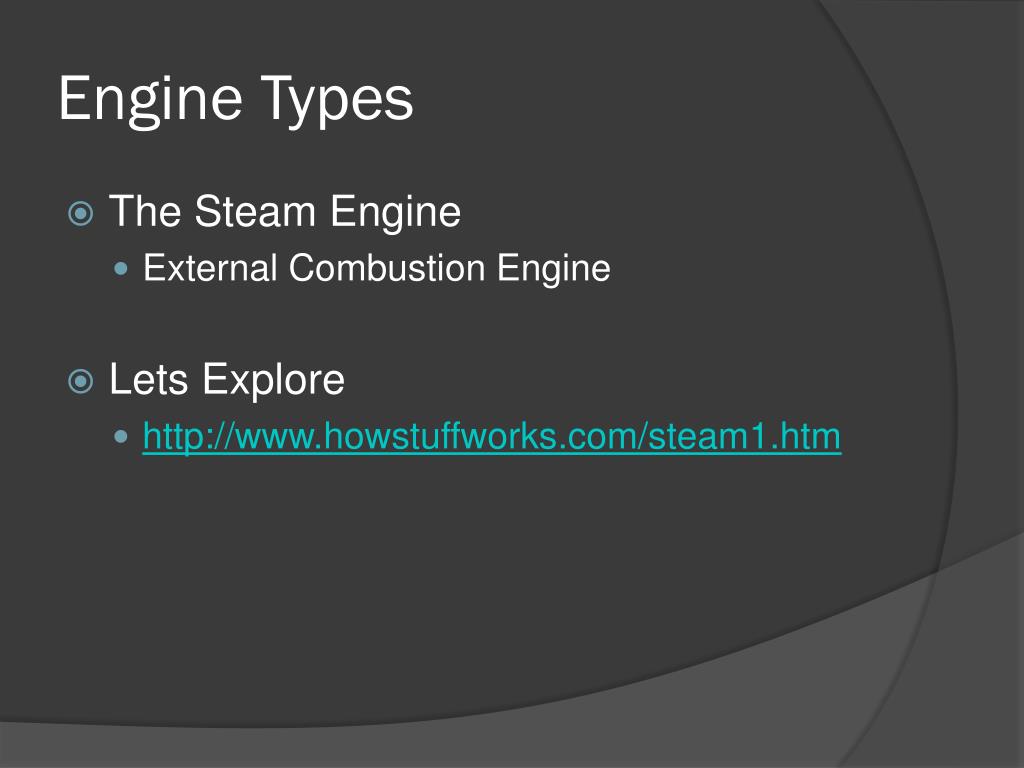

  7. Engine Types • The Steam Engine • External Combustion Engine • Lets Explore • http://www.howstuffworks.com/steam1.htm

  8. Engine Types • Turbine Engine or Jet Engine • Lets Explore: • http://www.howstuffworks.com/turbine3.htm
