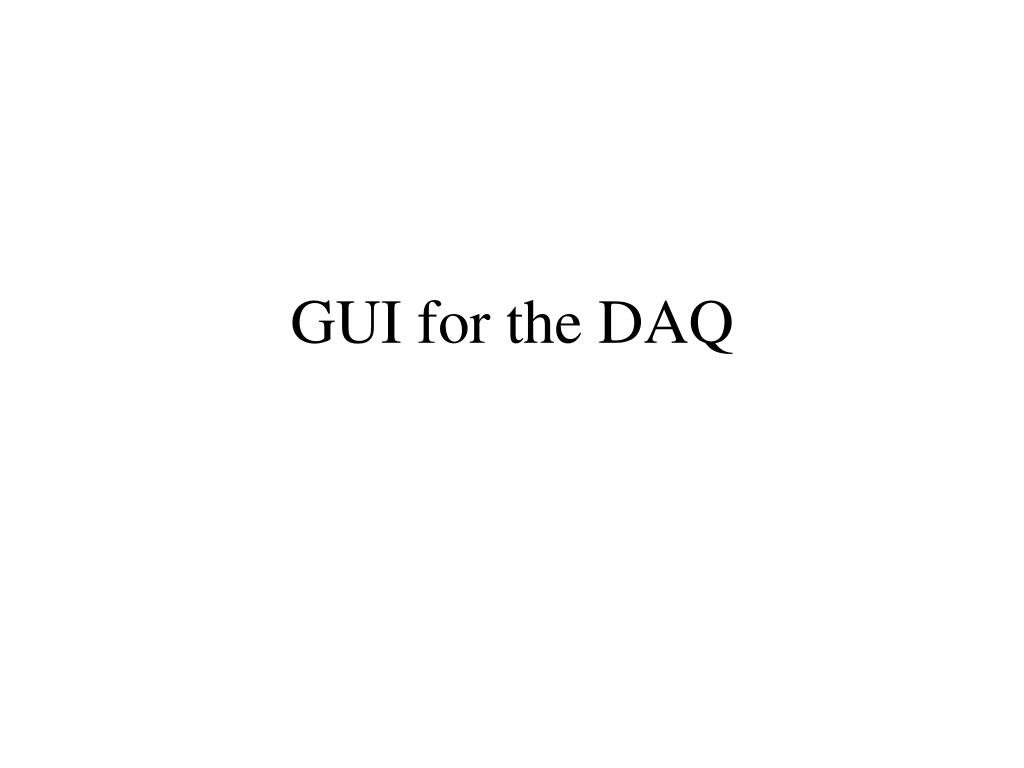

  1. GUI for the DAQ

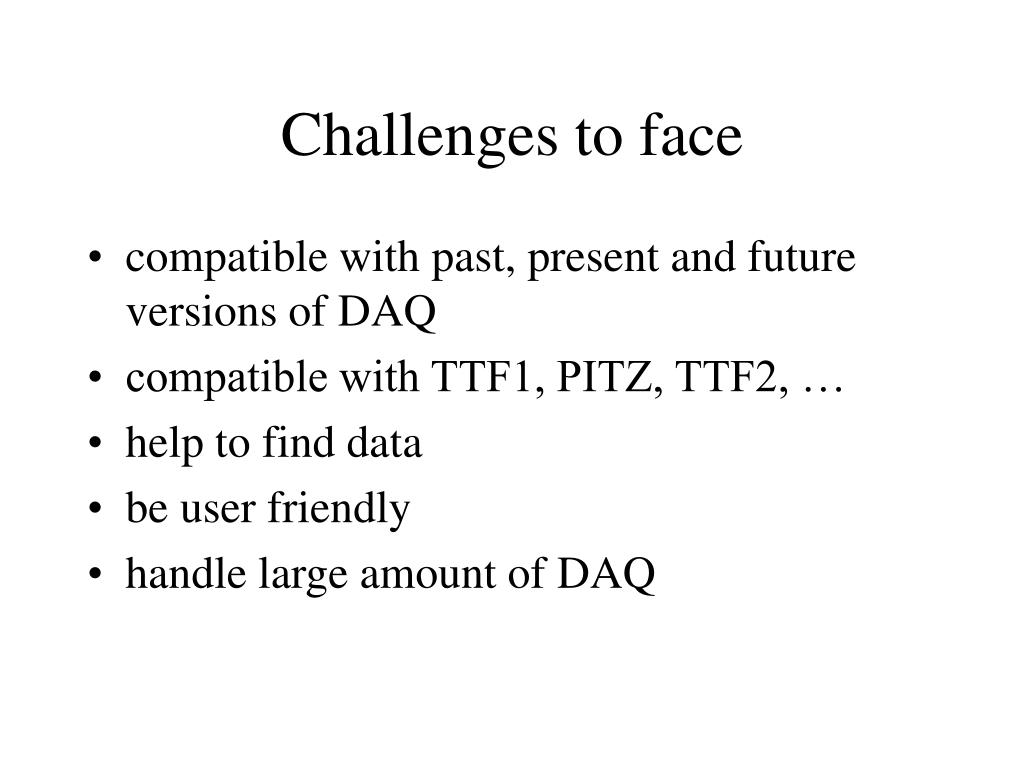

  2. Challenges to face • compatible with past, present and future versions of DAQ • compatible with TTF1, PITZ, TTF2, … • help to find data • be user friendly • handle large amount of DAQ

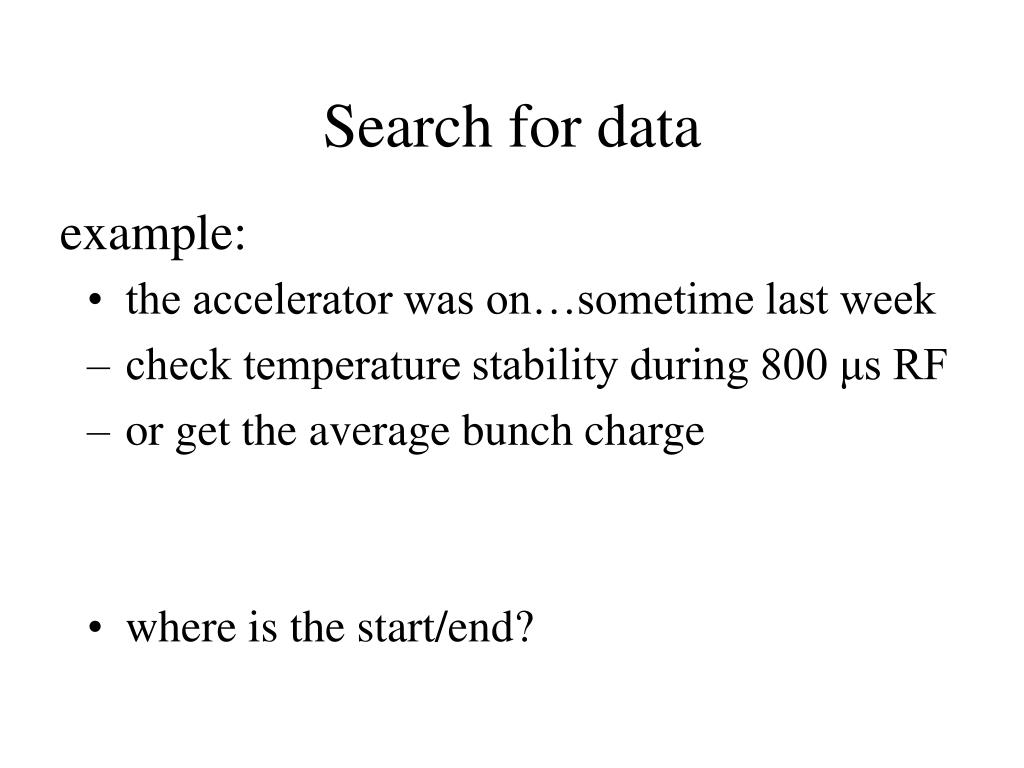

  3. Search for data example: • the accelerator was on…sometime last week • check temperature stability during 800 μs RF • or get the average bunch charge • where is the start/end?

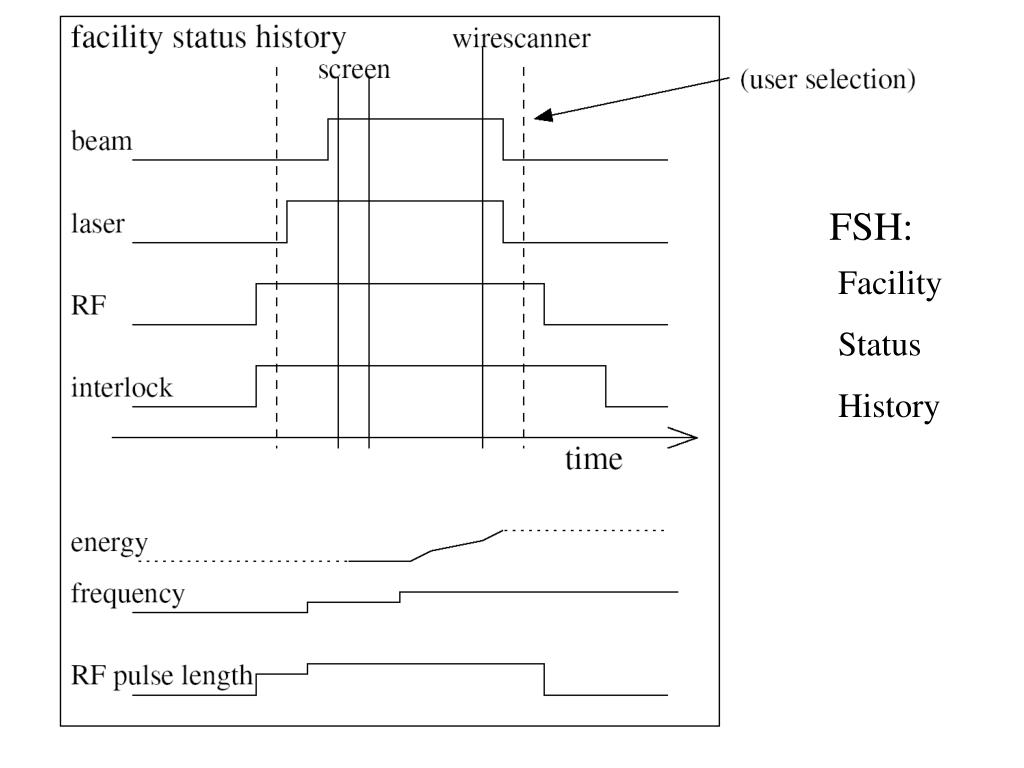

  4. FSH: Facility Status History

  5. Logfile for FSH • not on tape! fast access required • specific to each accelerator • DAQ should create it • we have to create it “manually” for old data • advantage: solves compatibility problem

  6. Archive filter G.Asova, K.Abrahamyan • access data stored • compare with a threshold value (filter) • save data onto a file • use GUI for selecting the filter

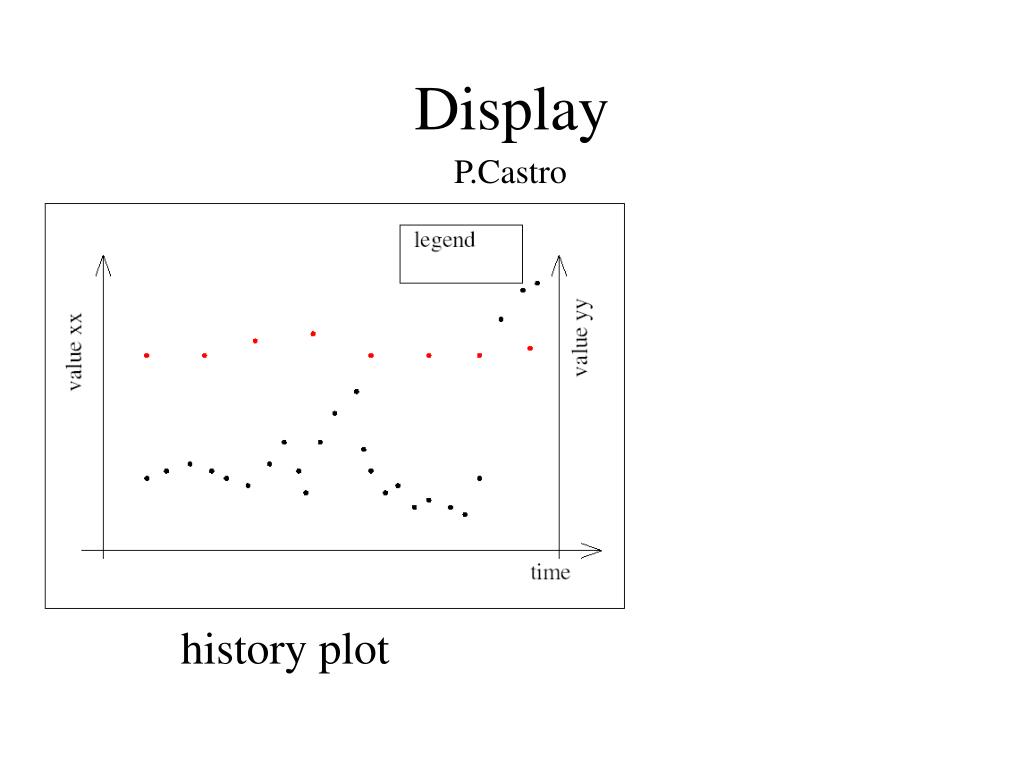

  7. Display P.Castro history plot

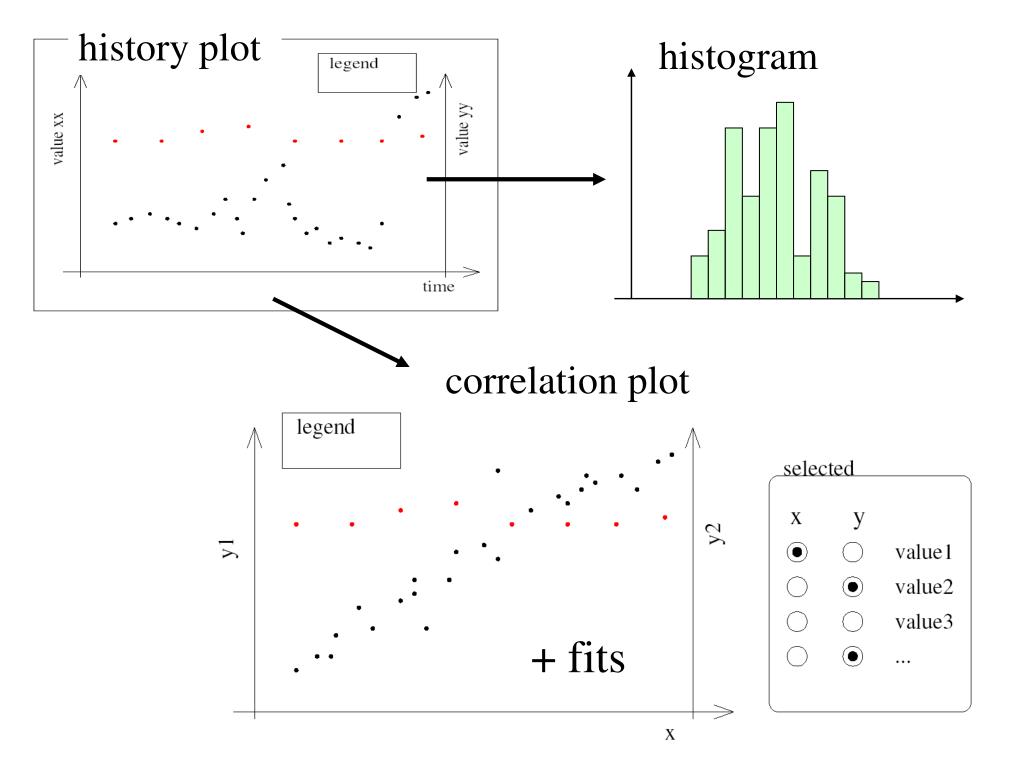

  8. history plot histogram correlation plot + fits

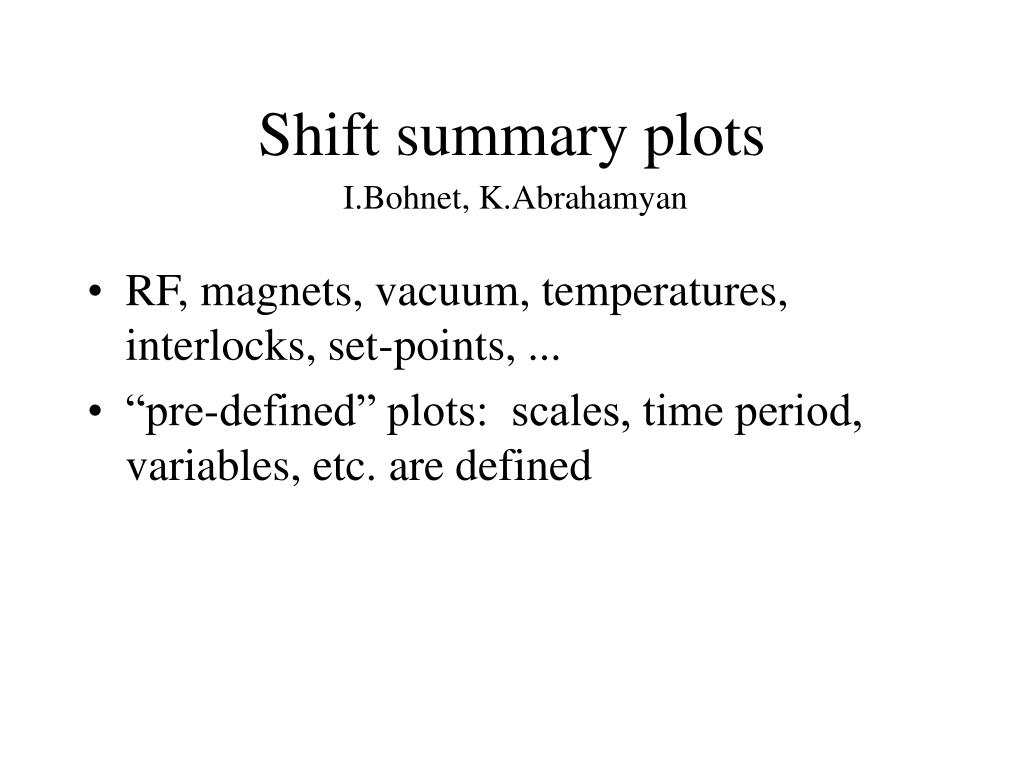

  9. Shift summary plots I.Bohnet, K.Abrahamyan • RF, magnets, vacuum, temperatures, interlocks, set-points, ... • “pre-defined” plots: scales, time period, variables, etc. are defined
