Nervous System

Nervous System. FUNCTION: Senses, processes, interprets, and determines the response to stimuli from the environment Central Nervous System (CNS) - made of the brain and spinal chord Peripheral Nervous System (PNS) - all nerve cells outside of the CNS .

ciro
Télécharger la présentation

Nervous System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

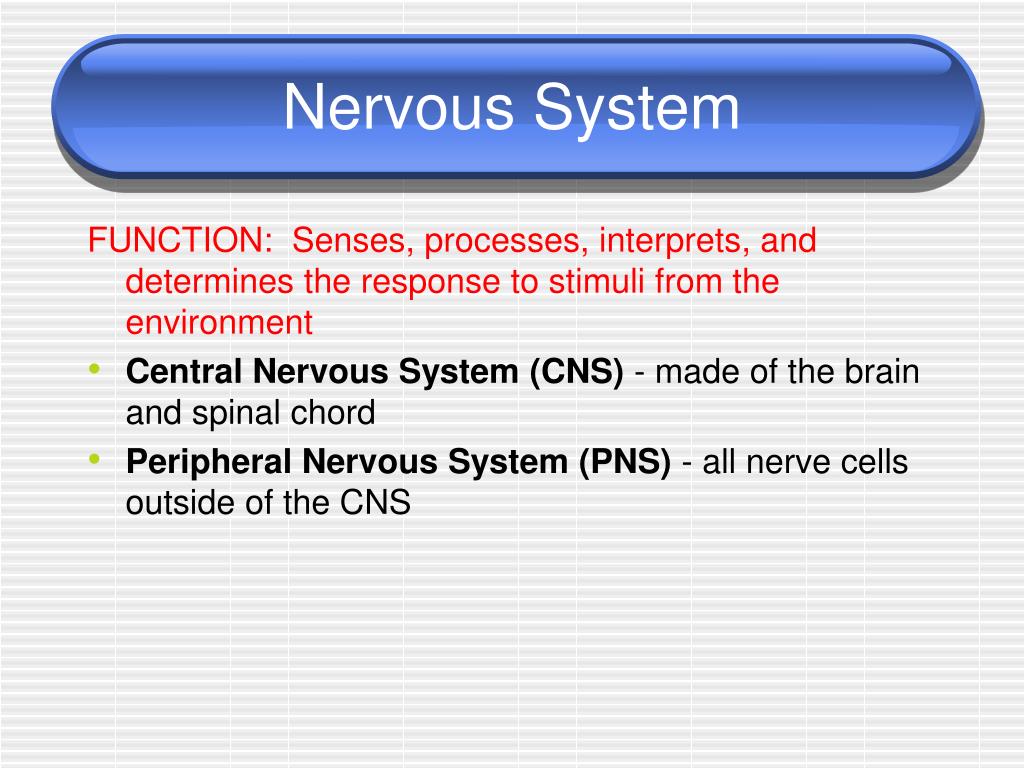

  1. Nervous System FUNCTION: Senses, processes, interprets, and determines the response to stimuli from the environment • Central Nervous System (CNS) - made of the brain and spinal chord • Peripheral Nervous System (PNS) - all nerve cells outside of the CNS

  2. Divisions of the Nervous System (see pages 388-89 for more detail on each) Sensory division - receives Information (senses) Motor division - relays information to organs/glands voluntary involuntary “Fight or flight” “rest & digest”

  3. Cells of the Nervous System • Neurons - cells that conduct nerve impulses (action potentials) to communicate with organs and glands • Neuroglia (glial cells) - support, protect and nourish neurons (do not send nerve impulses

  4. Structure of a Neuron • Axon - transmits nerve impulses to communicate with other cells and organs • Dendrites - receive signals from other neurons • Myelin sheath - fatty coating on axon that speeds up action potential • Nodes of Ranvier - gaps in the myelin sheath where the axon is exposed • Cell body - part of neuron from which dendrites arise (also contains nucleus of cell) • Axon terminals - end of axon/part that releases neurotransmitters to communicate with other neurons

  5. Functional Regions of the Neuron • Receptive zone • Receives • input from other • neurons • Conducting zone • generates action potential • (nerve impulse) • Secretory zone • Releases • neurotransmitters

  6. Functional Classification of Neurons Sensory (afferent) neurons • Receive information from the environment (senses) Motor (efferent) neurons • Send signals to muscles/glands/organs to carry out response Interneurons • Relay signals between sensory and motor neurons

  7. Nerves vs. Neurons Nerves are bundles of neurons

  8. Synapse - area where two or more neurons communicate with each other

  9. Action Potentials • A brief reversal in charge across a membrane • Happens in the axon membrane at Nodes of Ranvier (Saltatory conduction) • Voltage gated ion channels for Na+ and K+ open and close in response to changes in membrane potential (charge) Action potential is initiated by the axon hillock

  10. Stages of an Action Potential • More Na+ outside cell/more K+ inside • Na+ enters the axon (charge becomes more positive - depolarization) • K+ leaves axon (charge becomes more negative) • Too much K+ has left (hyperpolarization - more negative than resting) • Na/K pump restores original conditions View action potential stages in action

  11. Neurotransmitters • Chemical messengers that cross the synapse allowing one neuron to communicate with another • Can be excitatory (cause post-synaptic neuron to depolarize (become more positive)) • Can be inhibitory (cause post synaptic membrane to hyperpolarize (become more negative))

  12. Neurotransmitters (cont.) • Stored in vesicles in axon terminals • Ca2+ rushes into the terminal in response to arriving action potentials • Ca2+ causes vesicles to release neurotransmitters into synaptic cleft (example) • Neurotransmitters bind to their receptors on the post-synaptic membrane • Neurotransmitters are broken down by enzymes in the synaptic cleft or are taken back up by the pre-synaptic neuron via transporter proteins

  13. Neurotransmitters (cont) Examples: • GABA (inhibitory) • Glutamate (excitatory) • Dopamine, serotonin, norepinephrine (excitatory or inhibitory depending on the nature of the synapse) • Over 50 identified

  14. IPSP vs. EPSP • Inhibitory post-synaptic potentials (IPSP) decrease the likelihood of the post-synaptic neuron sending an action potential (hyperpolarizes post-synaptic neuron: lets Cl- in or lets K+ out) • Excitatory post-synaptic potentials (EPSP) increase the likelihood of the post-synaptic neuron sending an action potential (depolarizes post-synaptic neuron: lets Na+ in)

  15. Summation • Additive effect of the inputs of all pre-synaptic neurons • If there are more excitatory than inhibitory signals, then depolarization may occur and an action potential may be sent by the post-synaptic neuron

  16. Long-term Potentiation (LTP) • LTP is the long-lasting strengthening of synapses between two neurons • Post-synaptic neurons become more sensitive to neurotransmitters coming from the pre-synaptic neuron(s) by: 1) making more receptors 2) increased sensitivity of existing receptors • Involved in learning and memory formation

  17. BEFORE: Glutamate (excitatory neurotransmitter) stimulates NMDA receptors (in green) at a high frequency AFTER: Because of the frequency of stimulation, there is an increase in the number and sensitivity of receptors on the post-synaptic neuron (increasing the strength of the synapse) What causes this to happen?
