Elevation Angle 3 °

Limit Line of Building Height. Limit Line of Building Height. Elevation Angle 3 °. Elevation Angle 3 °. Horizontal Plane. Horizontal Plane. H. A. Ground. Ground. D. A < H + D tan 3 ° A = Height of the building H = Height of the antenna pedestal bottom above the ground

cissy
Télécharger la présentation

Elevation Angle 3 °

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

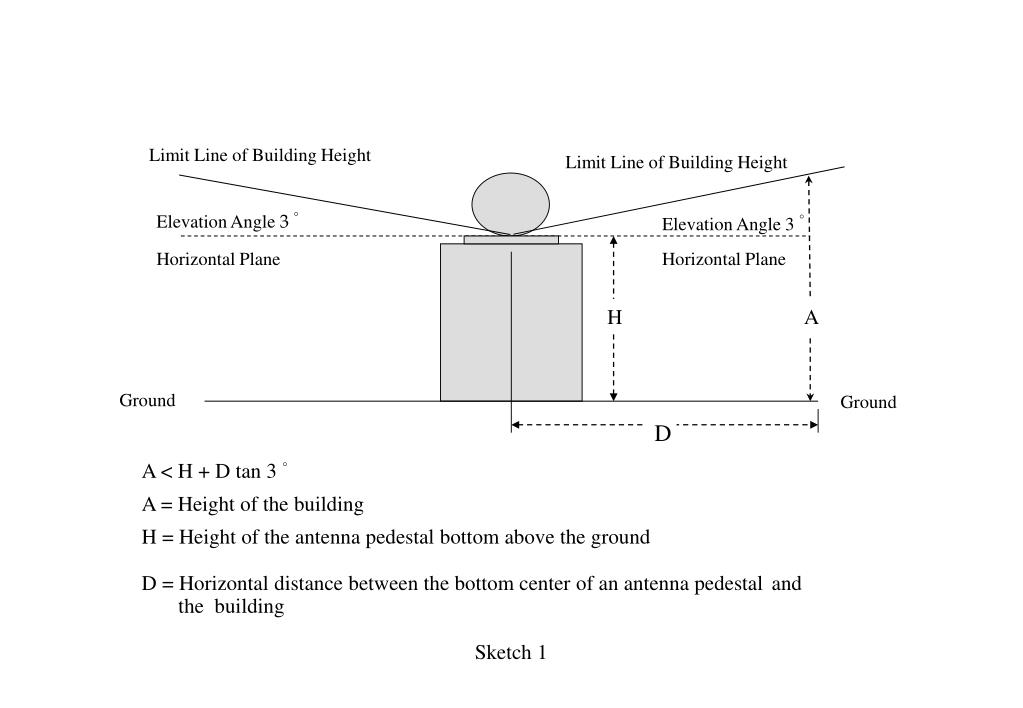

  1. Limit Line of Building Height Limit Line of Building Height Elevation Angle 3 ° Elevation Angle 3 ° Horizontal Plane Horizontal Plane H A Ground Ground D A < H + D tan 3 ° A = Height of the building H = Height of the antenna pedestal bottom above the ground D = Horizontal distance between the bottom center of an antenna pedestaland the building Sketch 1

  2. 0.5° Building Height Limit Height of Antenna Tower (30m) 186 m 186 m ~498 m The radius of clearance zone surrounding a weather radar antenna is described as follows： For the zone 0 - 186 m, the height limit of surrounding buildings is 30meters. Zone of the minimal discernible signal：(Pulse width) ×(Wave speed)÷2＋(Distance between the plane of antenna disk and central axis of pedestal) As for the CWB’s Doppler weather radar : (3.3 × 10-6)× (3 × 108)÷2＋3 ＝ 498 m Sketch 2

  3. Limit Line of Building Height Limit Line of Building Height Elevation Angle 3 ° Elevation Angle 3 ° Horizontal Plane Horizontal Plane A H Ground Ground A < H + D tan 3 ° A = Height of a building H = Height of the bottom center of the antenna pedestal above the ground D = Horizontal distance between the bottom center of the antenna pedestaland the surrounding building Sketch 3
