Game Clock Instructions When to turn time off and on (use hand held device):

Game Clock Instructions When to turn time off and on (use hand held device): • Turn time on when puck hits the ice (from referee dropping) • Turn time off when referee whistle blows. Setting the clock:. ⇒ press SET ⇒ press TIME  Enter digits: 12:00:0 ⇒ press Yes

clive
Télécharger la présentation

Game Clock Instructions When to turn time off and on (use hand held device):

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

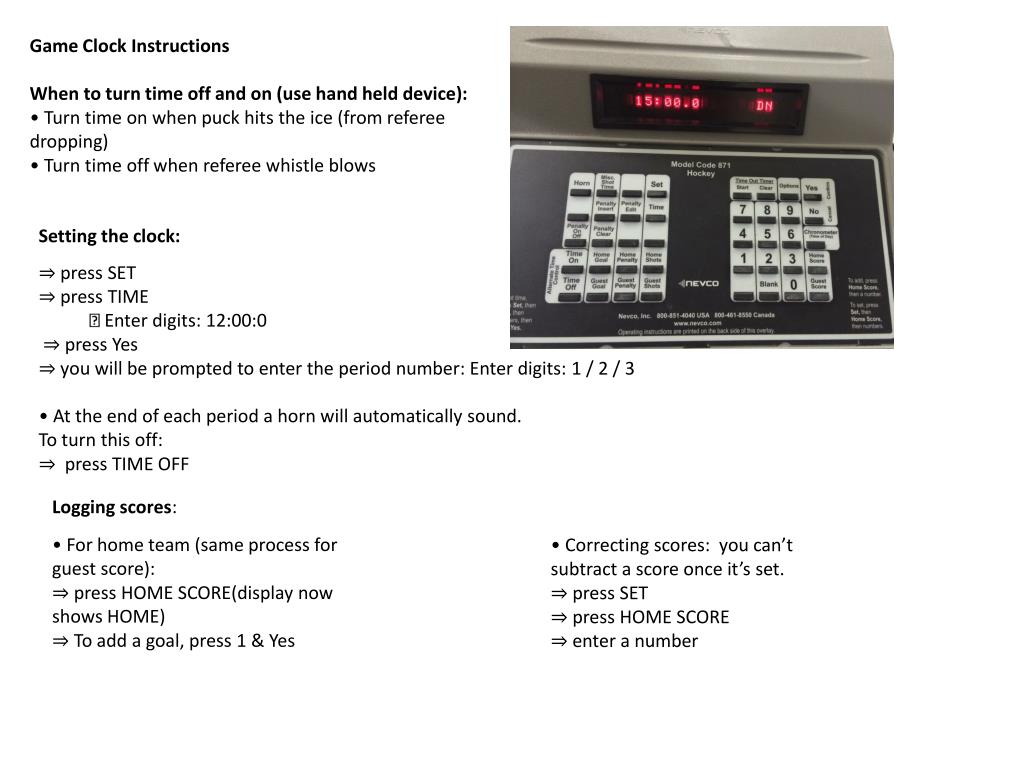

  1. Game Clock Instructions When to turn time off and on (use hand held device): • Turn time on when puck hits the ice (from referee dropping) • Turn time off when referee whistle blows Setting the clock: ⇒ press SET ⇒ press TIME  Enter digits: 12:00:0 ⇒ press Yes ⇒ you will be prompted to enter the period number: Enter digits: 1 / 2 / 3 • At the end of each period a horn will automatically sound. To turn this off: ⇒ press TIME OFF Loggingscores: • For home team (same process for guest score): ⇒ press HOME SCORE(display now shows HOME) ⇒ To add a goal, press 1 & Yes • Correcting scores: you can’t subtract a score once it’s set. ⇒ press SET ⇒ press HOME SCORE ⇒ enter a number

  2. Penalties: • The system can handle up to 5 penalties. When a penalty timer runs out, it will automatically be removed from the scoreboard. The penalties run off in the order they are entered. ⇒ press SET ⇒ press HOME PENALTY ⇒ enter the penalty time, provided by the ref (typically 0200) ⇒ press YES ⇒ you will be prompted to enter the two-digit player number: press the number of the player (ie 03) • Editing a penalty: ⇒ press HOME PENALTY (if more than one penalty, keep pressing the key until the player’s number is shown on the control) ⇒ press PENALTY EDIT ⇒ display shows EDIT (Y-N) ⇒ press YES ⇒ enter the time you need ⇒ press YES • Clearing a penalty: to remove a penalty from the system ⇒ press HOME PENALTY (if more than one penalty, keep pressing the key until the player’s number is shown on the control) ⇒ press PENALTY CLEAR ⇒ display shows CLEAR (Y-N) ⇒ press YES
