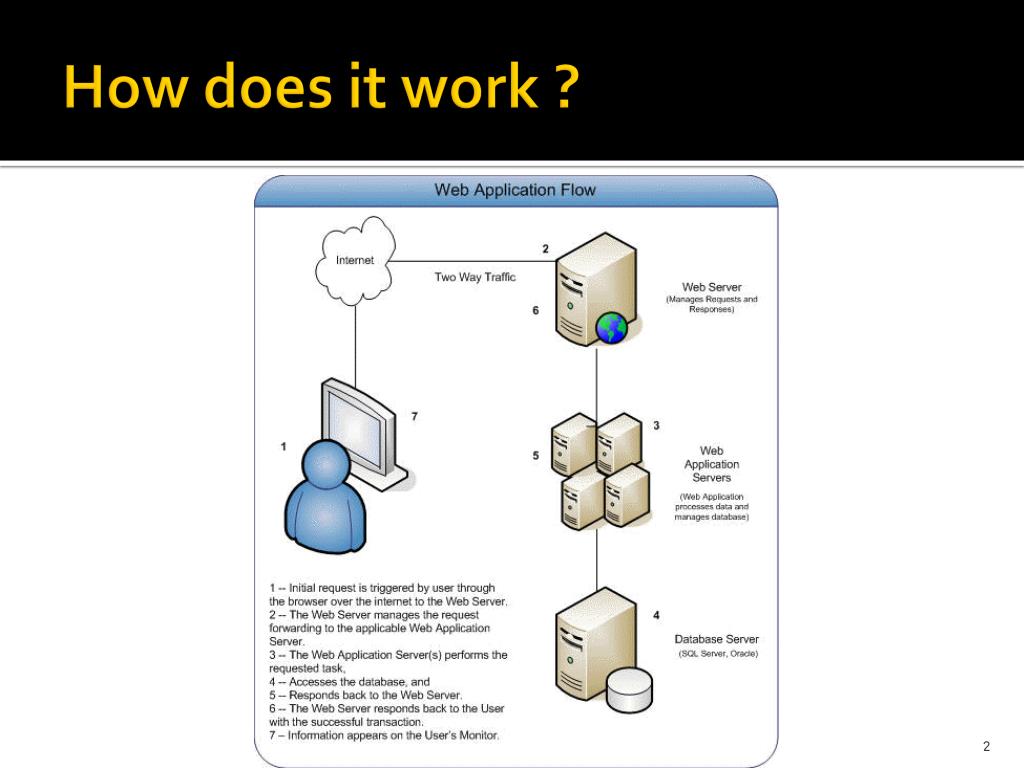

  1. How does it work ?

  2. Hypertext Transfer Protocol (HTTP) • A communication protocol • It is used to communicate between a client and a web server • It is the network protocol of the web • Let us take a look on a typical scenario

  3. 1) Typing a URL • The browser/client parses the URL • The URL pattern is: • protocol://server:port/requestURI?arg1=val1&…&argN=valN • Protocol: in our case HTTP • Server : Server location (e.g. www.NBA.com) • Port: port that the web server listens to (default:80) • Request-URI: web server resource (e.g. index.html) • Arg: argument ( e.g. username) • Val: values for the argument (e.g.JohnnyCash)

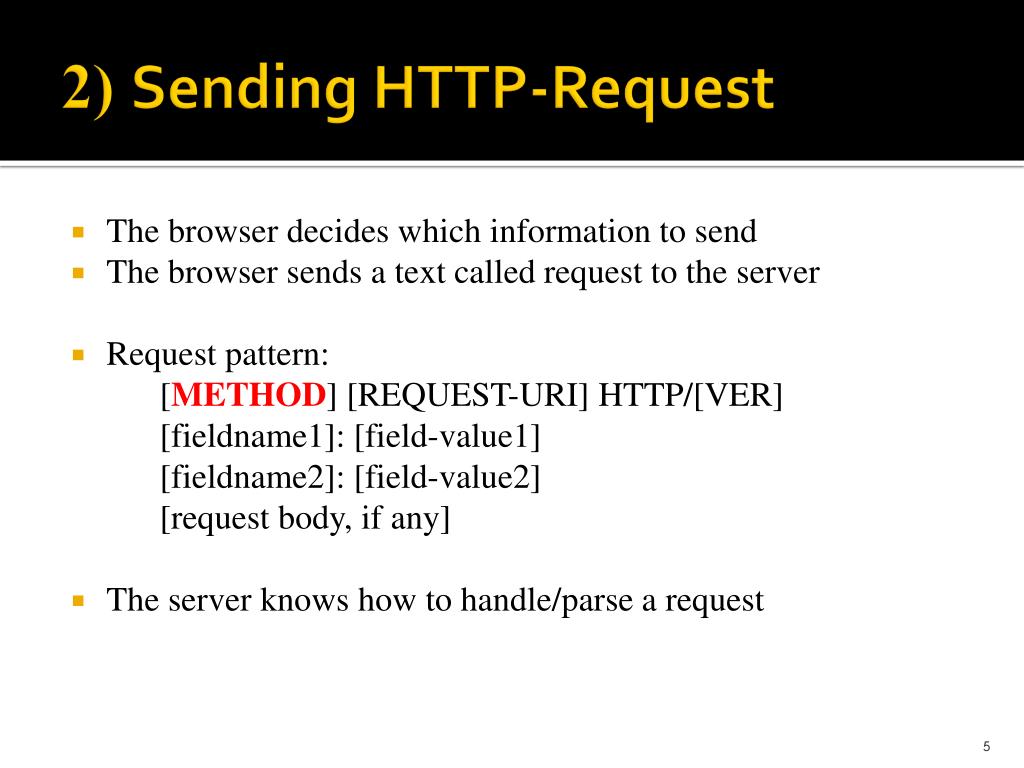

  4. 2) Sending HTTP-Request • The browser decides which information to send • The browser sends a text called request to the server • Request pattern: [METHOD] [REQUEST-URI] HTTP/[VER] [fieldname1]: [field-value1] [fieldname2]: [field-value2] [request body, if any] • The server knows how to handle/parse a request

  5. Request methods • Get Method • Data is visible in the URL • GET requests can be cached • GET requests remain in the browser history • GET requests should never be used when dealing with sensitive data • GET requests have length restrictions • GET requests should be used only to retrieve data • Post Method • Data is not displayed in the URL • POST requests are never cached • POST requests do not remain in the browser history • POST requests cannot be bookmarked • POST requests have no restrictions on data length • and more: HEAD, DELETE ..

  6. Request example GET /players/mJordan/info.html HTTP/1.1 Host: www.nba.com User-Agent: Mozilla/5.0 (Windows;) Gecko Firefox/3.0.4 Accept: text/html,application/xhtml+xml,application/xml; Accept-Language: en-us,en;q=0.5 X-cept-Encoding: gzip,deflate Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.7 Keep-Alive: 300 Connection: keep-alive [no body]

  7. Conditions in request • It’s possible to add conditions in the HTTP request • Syntax: If-Match, If-None-Match, If-Range, If-Unmodified-Since, If-Modified-Since • Servers along the way can change the request • how do we call these servers? • Why would we use it?

  8. 3) Server Processing • The web-server listens to specific ports (usually 80) • It receives the request and parse it • Typical web-server (Get method) has a mapping between resource-URI to the local hard-drive

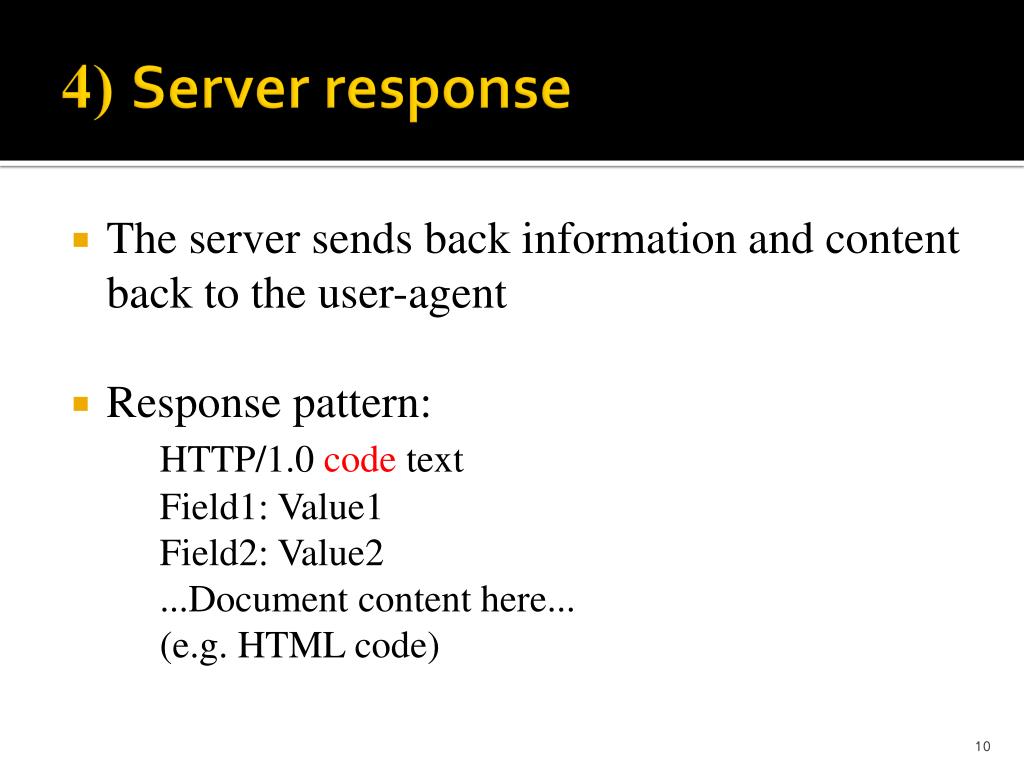

  9. 4) Server response • The server sends back information and content back to the user-agent • Response pattern: HTTP/1.0 code text Field1: Value1 Field2: Value2 ...Document content here... (e.g. HTML code)

  10. Status codes • The status code is a three-digit integer, and the first digit identifies the general category of the response: • 1xx indicates an informational message (mostly for experimental purposes only) • 2xx indicates success of some kind (e.g. 200 OK) • 3xx redirects the client to another URL • 301 Moved permanently • 302 Moved temporarily • 4xx indicates an error on the client's part • 400: Bad request ( bad syntax mostly) • 401: Unauthorized (e.g. wrong user/pass) • 403: Forbidden ( e.g. not allowed client) • 404: Not found • 5xx indicates an error on the server's part • 500: Internal server error

  11. Response example HTTP/1.0 200 OK Date: Fri, 31 Dec 1999 23:59:59 GMT Content-Type: text/html Content-Length: 1354 <html> <body> <h1>Hello World</h1> </body> </html>

  12. Persistence (HTTP) • When the browser receives and renders HTML, it sends new request to get any resource the HTML points to (e.g. images) • Basically the connection is closed after a single request/response pair • Each request creates new TCP connection • Creating TCP connection is super-slow

  13. Persistence – (cont’d) • HTTP 1.1 (1999) • keep-alive-mechanism: The browser creates one TCP connection and sends many request through it

  14. Stateless • The HTTP protocol doesn’t save any information in a request that can be used in a different request later on • Advantage? • If a client dies in mid-transaction, no part of the system needs to be responsible for cleaning the present state of the server • Disadvantage? • User responsibility

  15. Caching • Browser Caching • Browser caches most resources in a temporary folder • Browser sends a request to check if it has the most updated resource • Proxy Caching • Some servers along the way hold cache of resources

  16. “Talking” with the server • The user communicate with the web server through HTML forms • The user fills in the form and hits the submit button, upon which the data is submitted to the server • The <FORM> tag has a method attribute • E.g. <form method=“post”>

  17. Submitting forms • GET: form data are encoded into the URL • Disadvantages ? • POST: the HTTP request will include a body that contains the parameters • Rule of thumb: Primarily, POST should be used when the request causes a permanent change • See Example: form_get.html

  18. Static Web Pages • Stored as files in the file system • Delivered to the user exactly as stored • Same information for all users, from all contexts via HTTP • Large numbers of static pages as files can be impractical

  19. Cascading Style Sheets (CSS) CSS is a style sheet language used to describe the presentation of a document written in HTML Styles define how to display HTML elements External Style Sheets can save you a lot of work External Style Sheets are stored in CSS files HTML code become cleaner and less messy HTML pages become richer and user-friendlysee example: Zen Garden

  20. Dynamic web pages • Aweb page with web content that varies based on parameters provided by a user or a computer program • Client-side scripting • generally event driven, using the DOM elements • Server-side scripting • servers response affected by HTML forms, browser type, etc’ • Combination • using Ajax

  21. Dynamic web pages – (cont.) • Client-side scripting (JavaScript, Flash, etc.) • client-side content is generated on the user's local computer system • event-driven • can appear in events on HTML or separately • Pros: nice and dynamic • Cons: slow, browsers behave differently

  22. Dynamic web pages – (cont.) • Server–side scripting (PHP, Perl, Ruby, etc.) • Server processes script on request • Server provides client-designated HTML • Statefulbehavior on stateless protocol See example: WebGT

  23. Combination - Basic Ajax Not a cleaning spray

  24. Combination - Basic Ajax Not a soccer team

  25. Combination - Basic Ajax • Asynchrony JavaScript And XML • Sending requests to the server without refreshing the page • Using Javascript code • Client side uses callback functions to manipulate server responses • Do you remember such behavior from Facebook? See example: WebGT

  26. Pros and Cons • Pros • Better layout • Efficiency – Instead of getting an entire page we retrieve the needed data only • Reduce the number of connections (css/images/js) • Cons • the browser can’t register an Ajax action as a different page – No back button
