  1. Intelsteer Power Saver PBI Series IntelSteer Power Saver PBI Series Device – Standard Internal Parameters

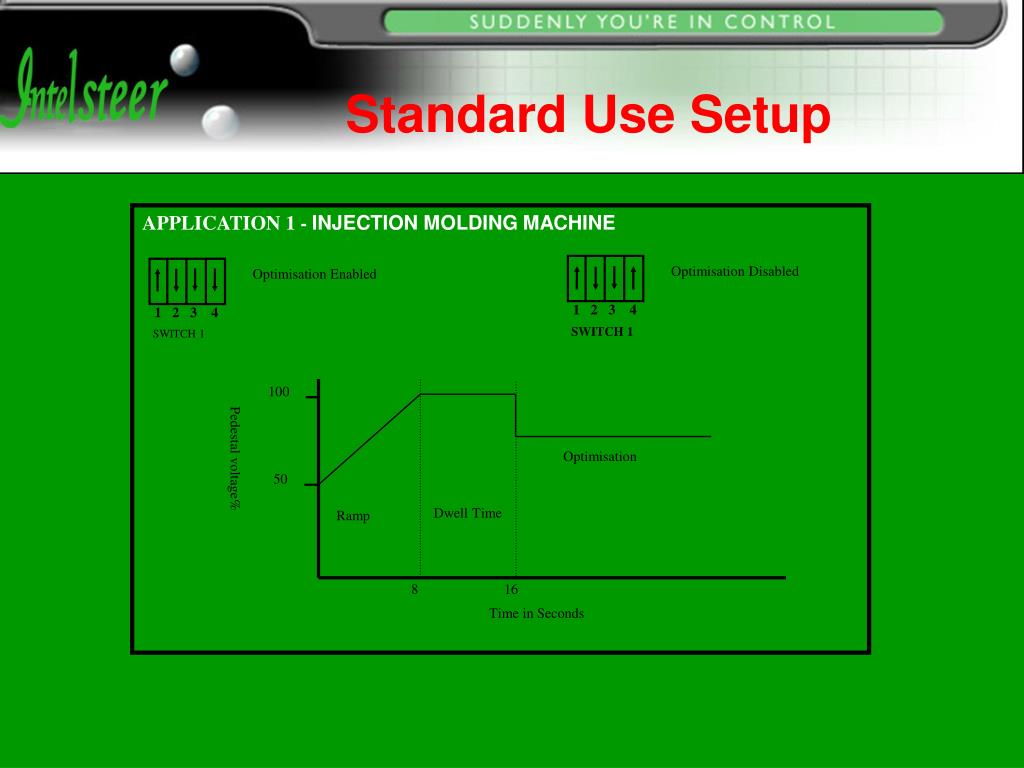

  2. APPLICATION 1 - INJECTION MOLDING MACHINE Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage% Optimisation 50 Dwell Time Ramp Optimisation Enabled 8 16 Time in Seconds 1 2 3 4 SWITCH 1 Standard Use Setup

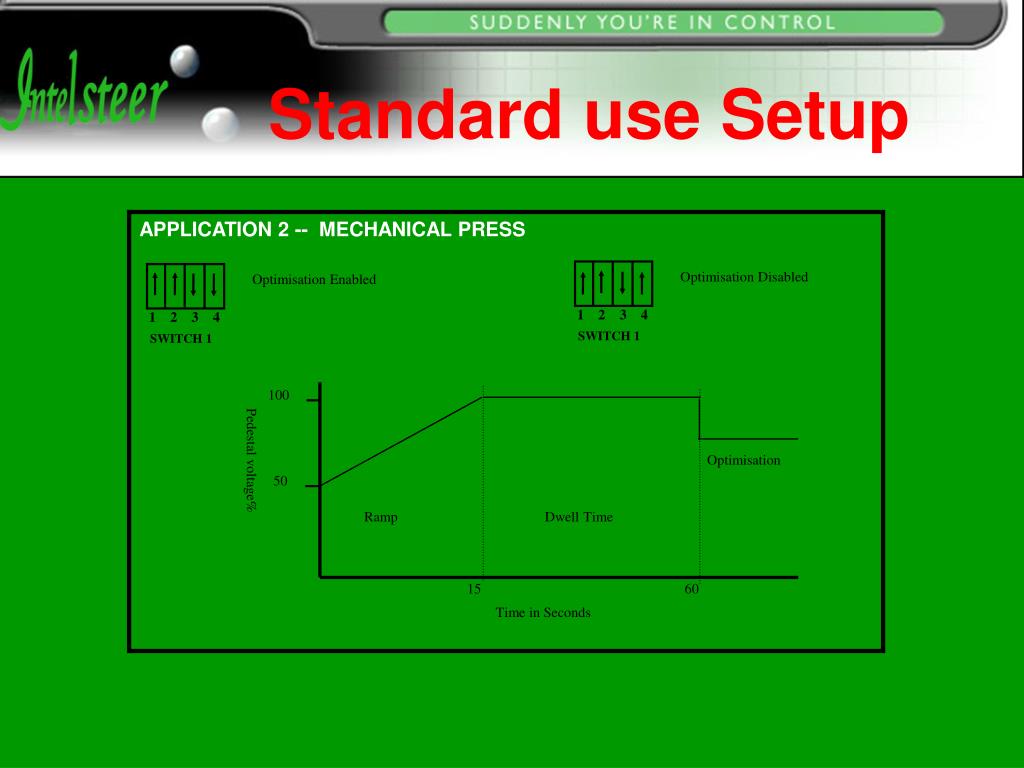

  3. APPLICATION 2 -- MECHANICAL PRESS Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage% Optimisation 50 Ramp Dwell Time 15 60 Time in Seconds Optimisation Enabled 1 2 3 4 SWITCH 1 Standard use Setup

  4. Optimisation Enabled 1 2 3 4 SWITCH 1 Standard use Setup APPLICATION 3 - CONVEYOR / ESCALATOR Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage % Optimisation Dwell Time 40 Ramp 20 28 Time in Seconds

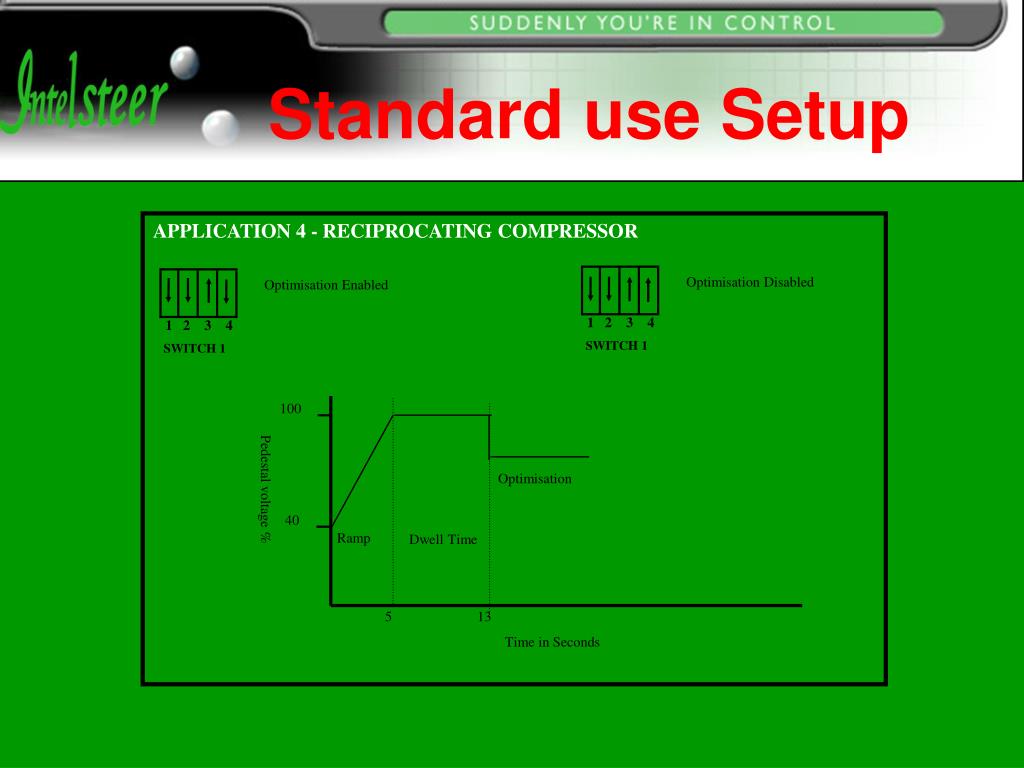

  5. APPLICATION 4 - RECIPROCATING COMPRESSOR Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage % Optimisation 40 Ramp Dwell Time 5 13 Time in Seconds Optimisation Enabled 1 2 3 4 SWITCH 1 Standard use Setup

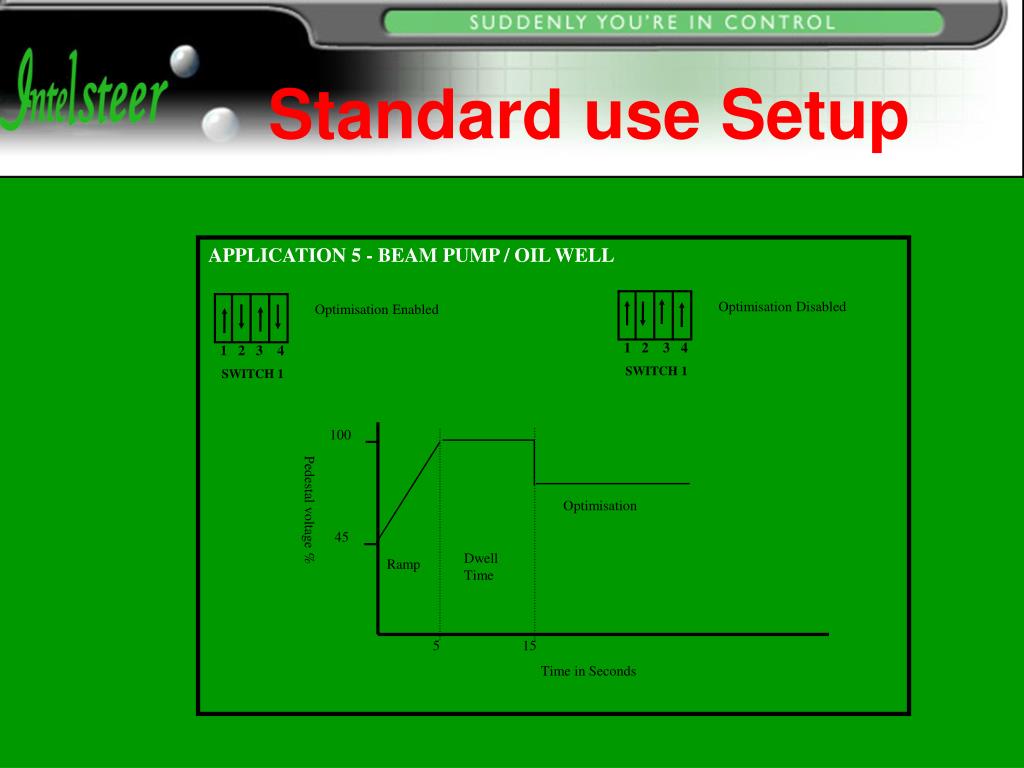

  6. APPLICATION 5 - BEAM PUMP / OIL WELL Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage % Optimisation 45 Dwell Time Ramp 5 15 Time in Seconds Optimisation Enabled 1 2 3 4 SWITCH 1 Standard use Setup

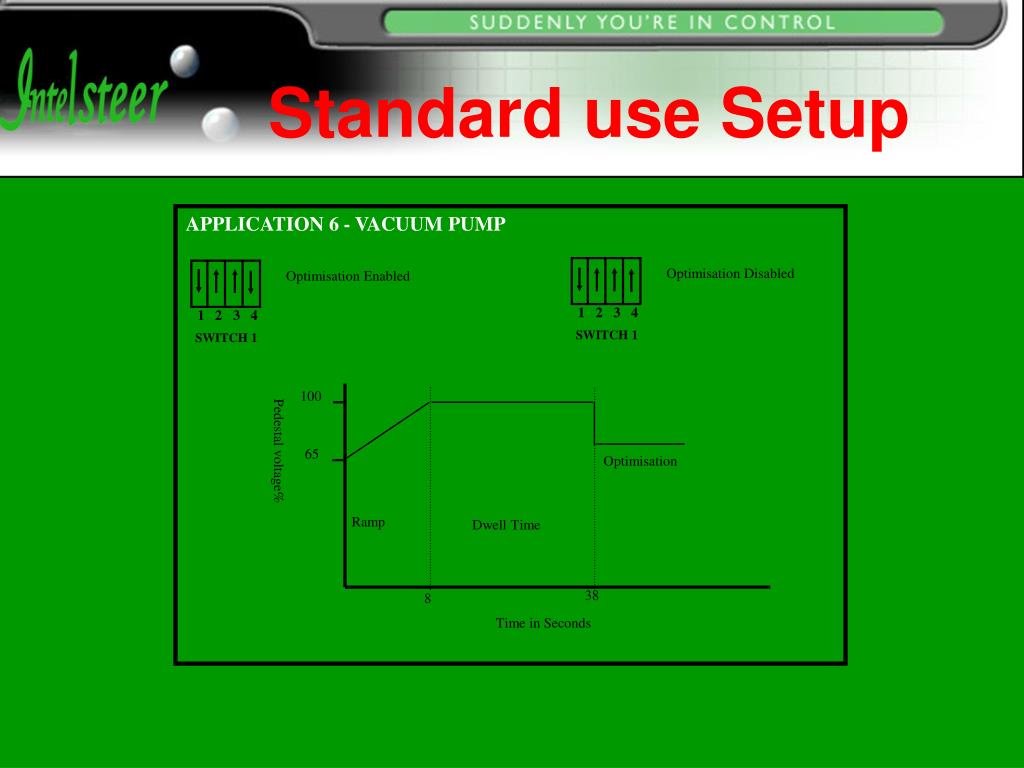

  7. APPLICATION 6 - VACUUM PUMP Optimisation Disabled 1 2 3 4 SWITCH 1 100 Pedestal voltage% 65 Optimisation Ramp Dwell Time 38 8 Time in Seconds Optimisation Enabled 1 2 3 4 SWITCH 1 Standard use Setup

  8. APPLICATION 7 - CENTRIFUGAL PUMP Optimisation Disabled 1 2 3 4 SWITCH 1 100 Step Down & Ramp Down Pedestal voltage% 65 Optimisation Running Time Dwell Time Ramp 30 Optimisation Enabled 30 38 0 15 1 2 3 4 Time in Seconds SWITCH 1 Standard use Setup
