Voltage

Voltage. The electric potential is related to the potential energy. Compare to test charge The unit of electric potential is the volt (V). 1 V = 1 J/C. q. q. Volt. D V. d. E. F. The electric field is most commonly measured in V/m. Show that this is consistent with a measurement in N/C.

conan-fitzgerald
Télécharger la présentation

Voltage

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Voltage

  2. The electric potential is related to the potential energy. Compare to test charge The unit of electric potential is the volt (V). 1 V = 1 J/C q q Volt DV d E F

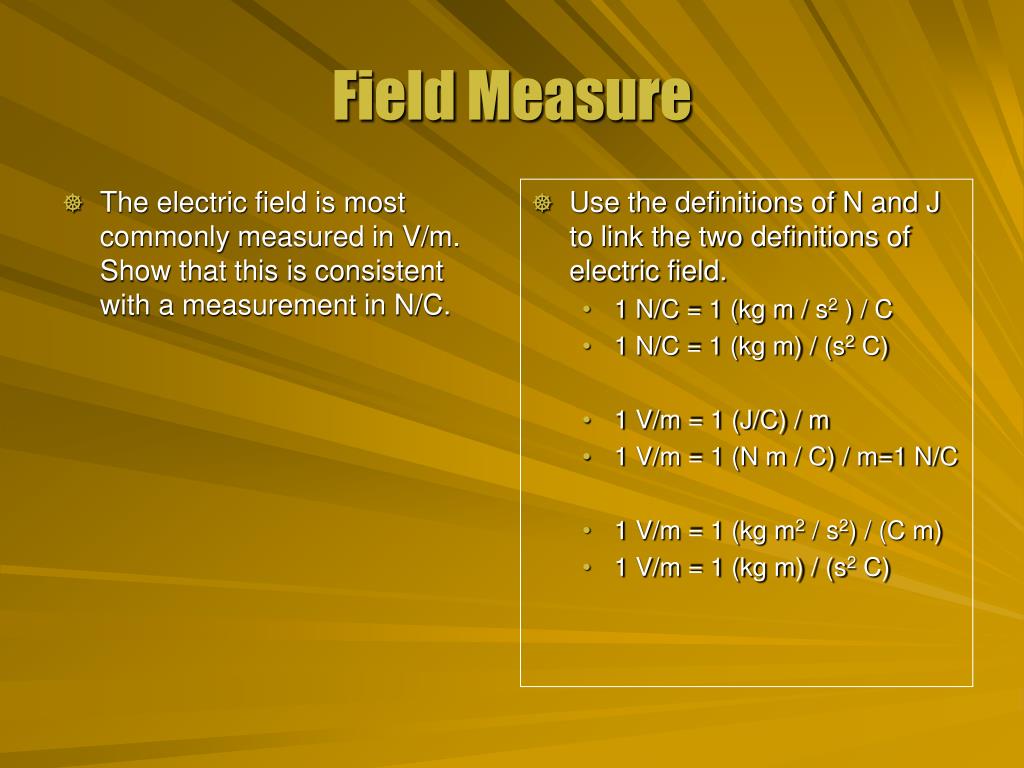

  3. The electric field is most commonly measured in V/m. Show that this is consistent with a measurement in N/C. Use the definitions of N and J to link the two definitions of electric field. 1 N/C = 1 (kg m / s2 ) / C 1 N/C = 1 (kg m) / (s2 C) 1 V/m = 1 (J/C) / m 1 V/m = 1 (N m / C) / m=1 N/C 1 V/m = 1 (kg m2 / s2) / (C m) 1 V/m = 1 (kg m) / (s2 C) Field Measure

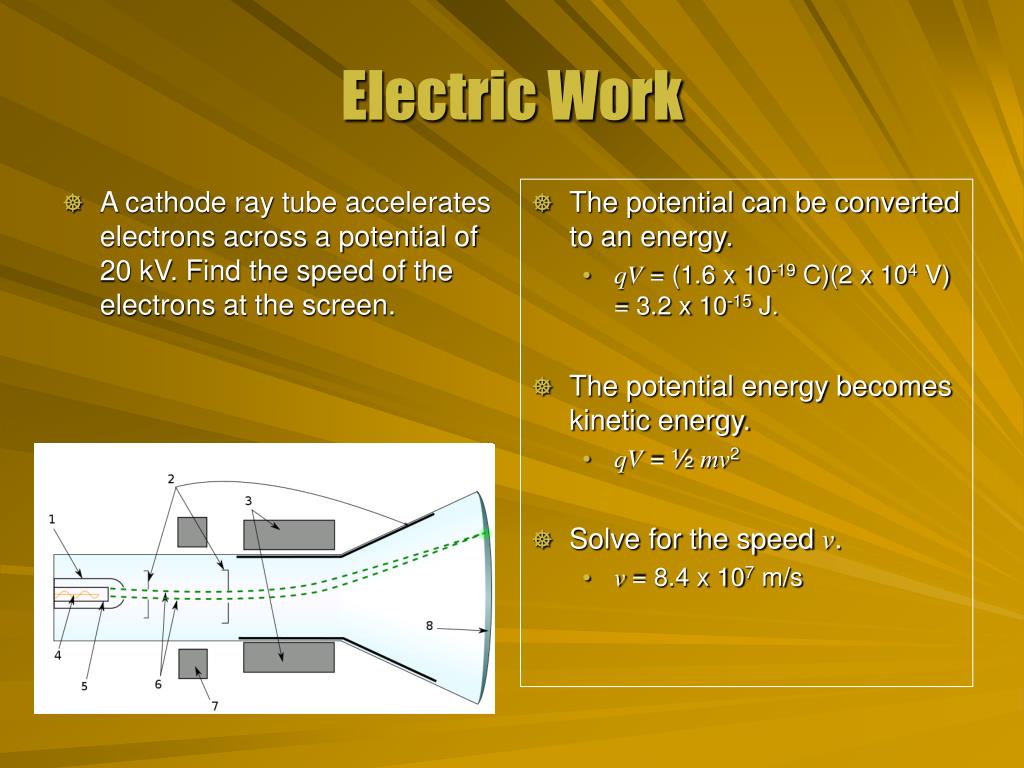

  4. A cathode ray tube accelerates electrons across a potential of 20 kV. Find the speed of the electrons at the screen. The potential can be converted to an energy. qV = (1.6 x 10-19 C)(2 x 104 V) = 3.2 x 10-15 J. The potential energy becomes kinetic energy. qV = ½ mv2 Solve for the speed v. v = 8.4 x 107 m/s Electric Work

  5. A uniform electrical field has the same magnitude and direction at all points. A charge moving parallel to the field lines changes potential by V = Ed. A charge moving perpendicular to the field lines has no change in potential. q q Uniform Field DU d E F

  6. There is no field within a conductor. External field neutralized by polarization A test charge at one end moved to the other end would not change potential. All points on a conductor are at the same potential. q q Conductor Potential

  7. A voltage source is called a battery. A battery attached to a conducting plate places the same potential across the plates. A uniform electric field exists between the plates. Voltage Source + -

  8. A 12-V source is connected to parallel plates 2.0 mm apart. Find the magnitude of the field between the plates. The relationship between the field and voltage is V = Ed. Solve for E = V/d The field is E = (12 V) / (0.002 m) = 6.0 kV/m. Internal Field + - next
