Панел II Проектиране на широколентовия достъп, добри практики

1. КОНФЕРЕНЦИЯ АСТЕЛ 2010ДОСТЪП БЕЗ БАРИЕРИ Панел II Проектиране на широколентовия достъп, добри практики Игнат Станев Колеж по телекомуникации и пощи

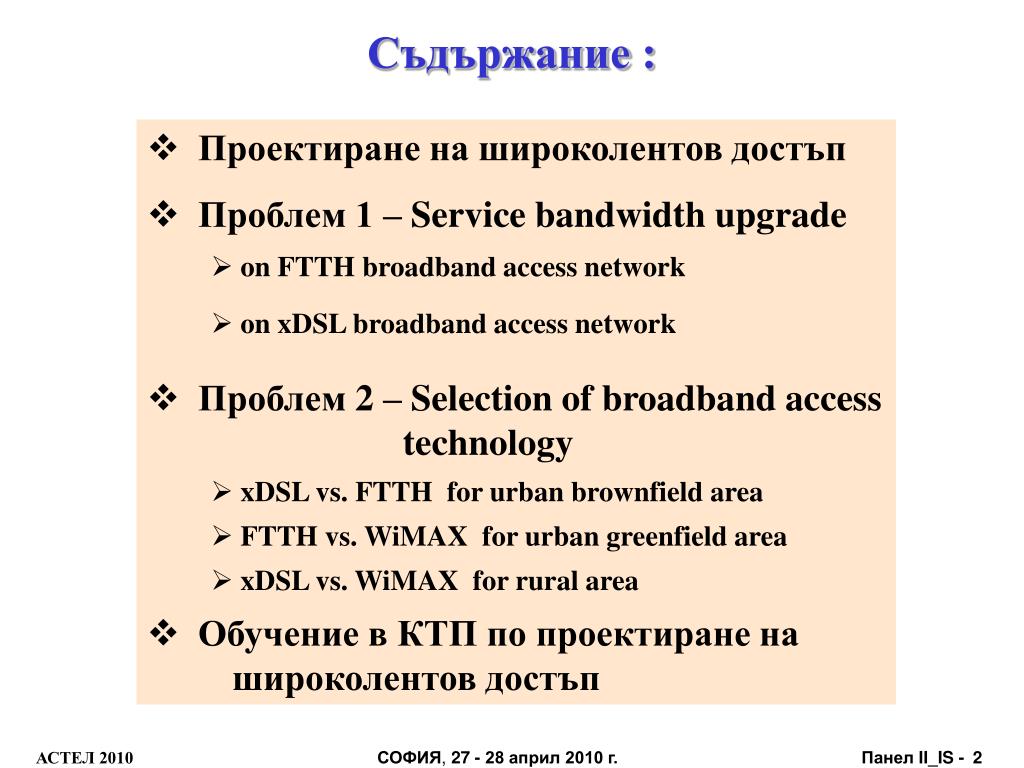

2. Съдържание : • Проектиране на широколентов достъп • Проблем 1 – Service bandwidth upgrade • on FTTHbroadband access network • on xDSL broadband access network • Проблем 2 –Selection of broadband access technology • xDSL vs. FTTH for urban brownfield area • FTTH vs. WiMAX for urban greenfield area • xDSL vs. WiMAX for rural area • Обучение в КТП по проектиране на широколентов достъп

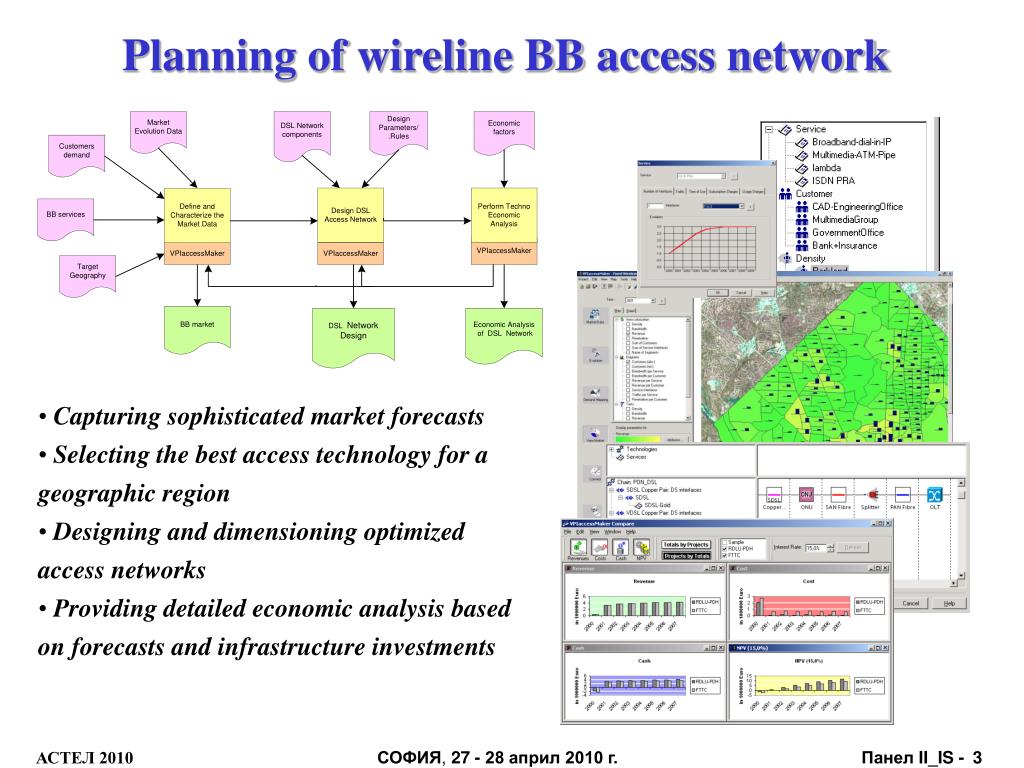

3. Planning of wireline BB access network • Capturing sophisticated market forecasts • Selecting the best access technology for a geographic region • Designing and dimensioning optimized access networks • Providing detailed economic analysis based on forecasts and infrastructure investments

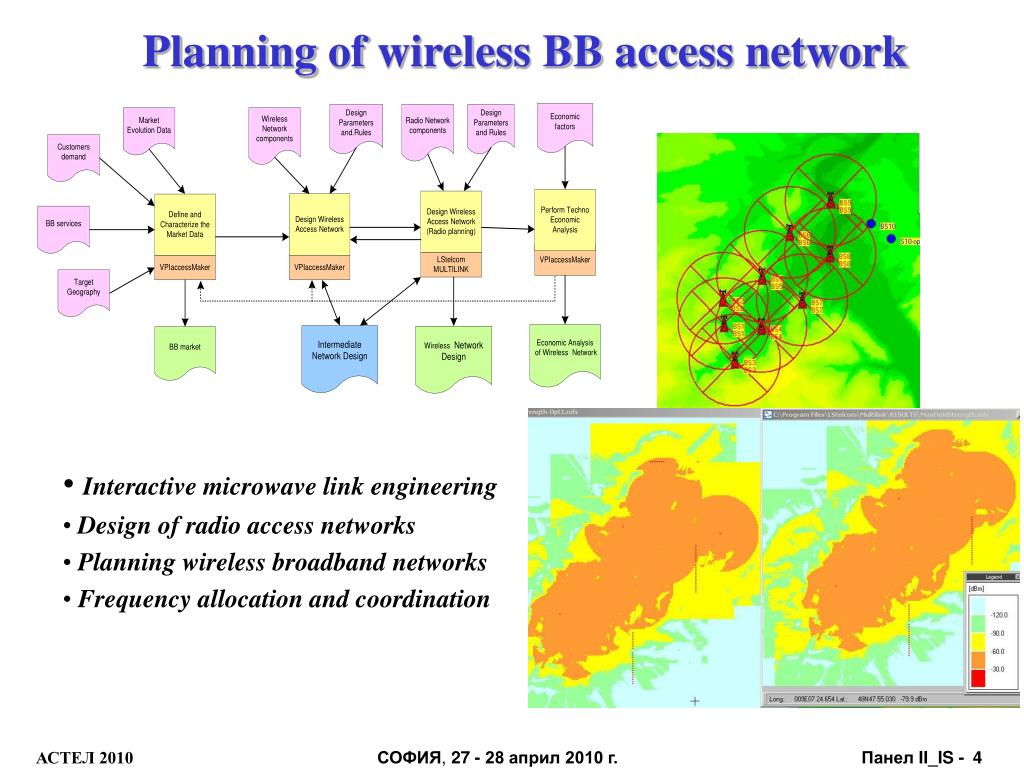

4. Planning of wireless BB access network • Interactive microwave link engineering • Design of radio access networks • Planning wireless broadband networks • Frequency allocation and coordination

5. Problem 1 – Service bandwidthupgrade There is a need to model the impact of upgrading the service bandwidth bandwidth, the service take rate and the service mix on the access network. For a given market, the access network planners want to perform Bandwidth Upgrade Scenarios, Uptake Growth Scenarios, and Service Mix Scenarios The access network plannershave to dimension the required capacity of the access nodes, to optimize the access network and to calculate related coststo upgradeit.

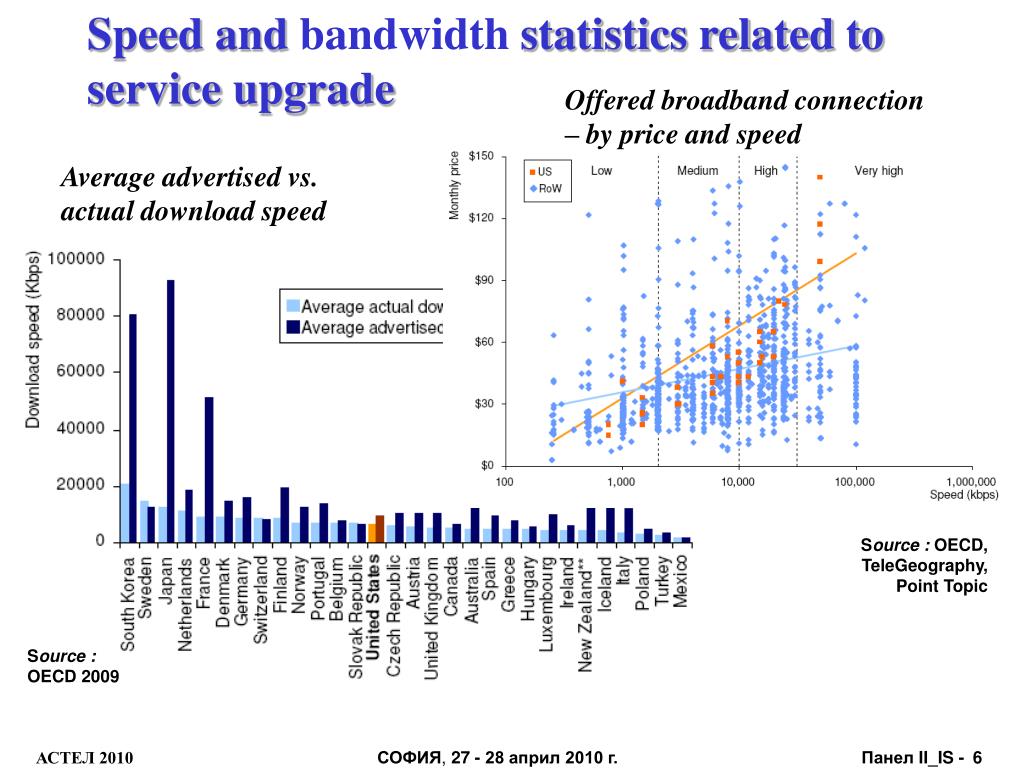

6. Speed and bandwidth statistics related to service upgrade Offeredbroadband connection – by price and speed Average advertised vs. actual download speed Source : OECD, TeleGeography, Point Topic Source : OECD 2009

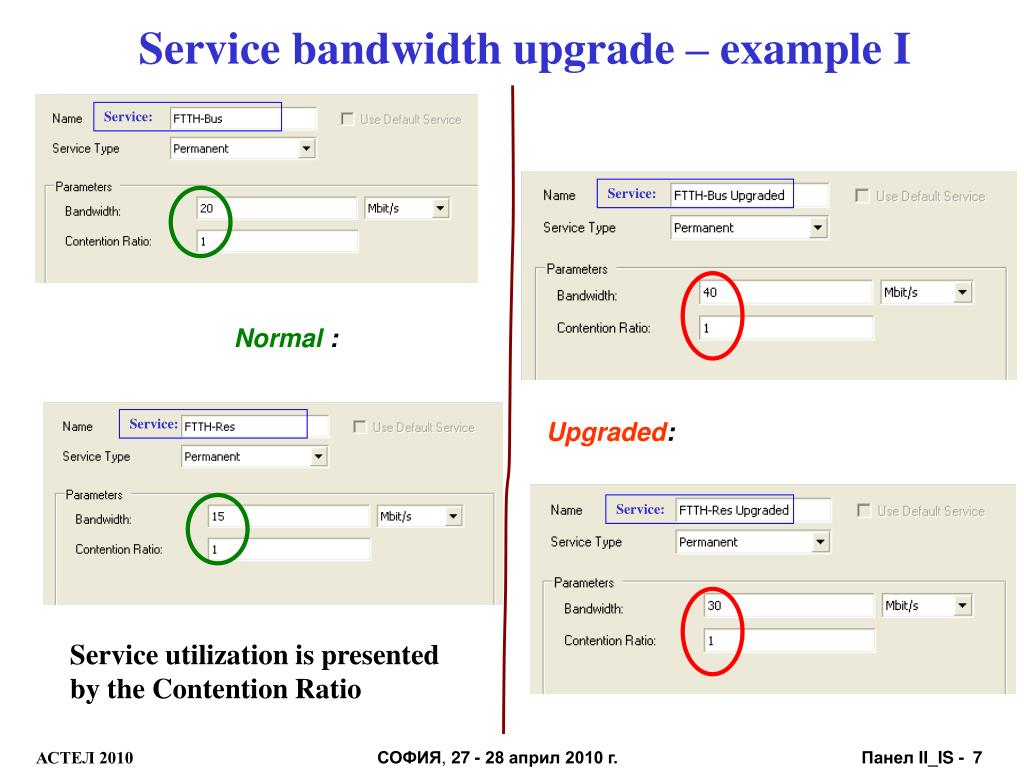

7. Service bandwidthupgrade – example I Service: Service: Normal : Upgraded: Service: Service: Service utilization is presented by the Contention Ratio

8. Service bandwidthupgrade – example I <- Normal FTTH – Home locations Upgraded:

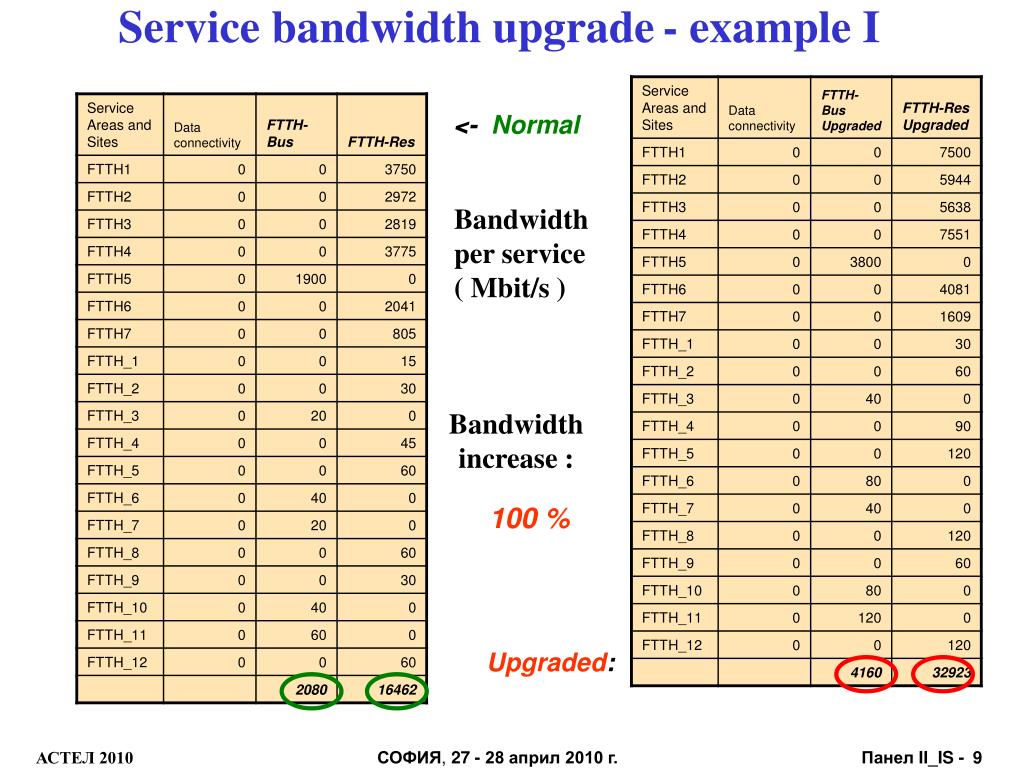

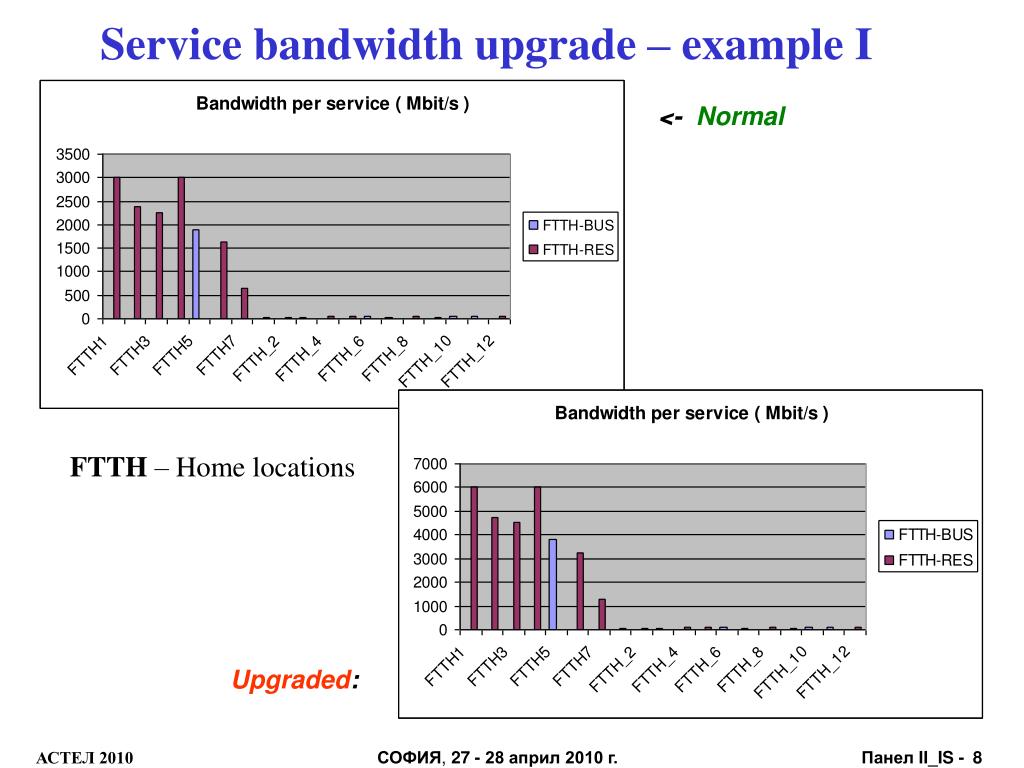

9. Service bandwidthupgrade- exampleI <- Normal Bandwidth per service ( Mbit/s ) Bandwidth increase: Upgraded:

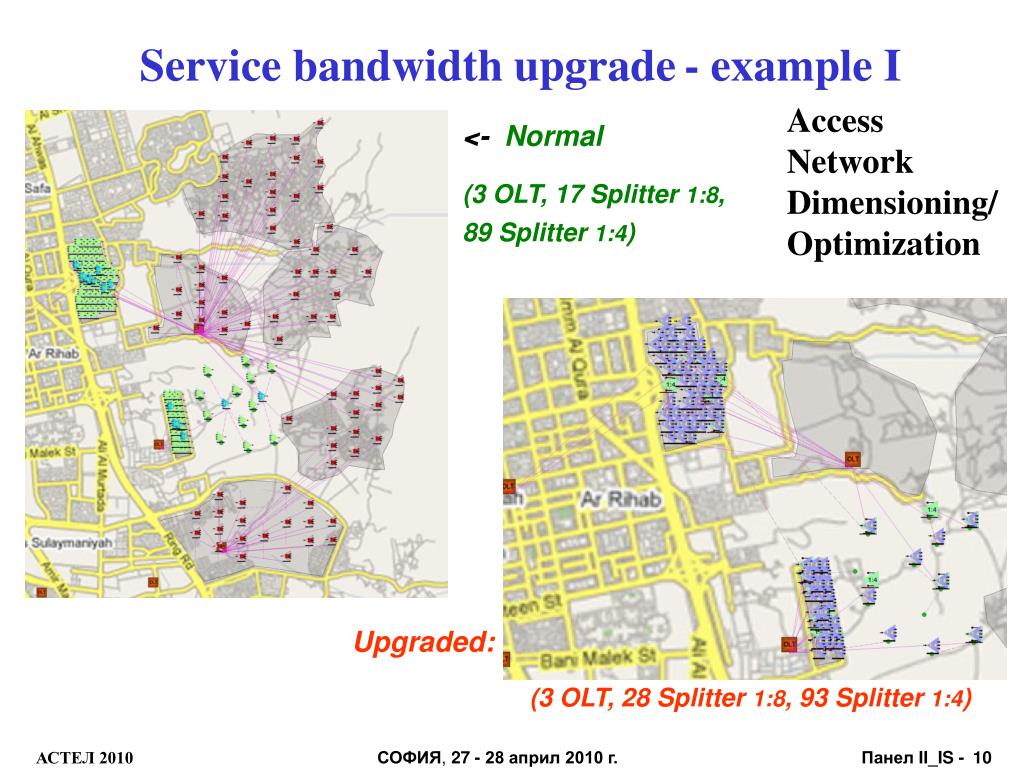

10. Service bandwidthupgrade- exampleI Access Network Dimensioning/ Optimization <- Normal (3 OLT, 17 Splitter 1:8, 89 Splitter 1:4) Upgraded: (3 OLT, 28 Splitter 1:8, 93 Splitter 1:4)

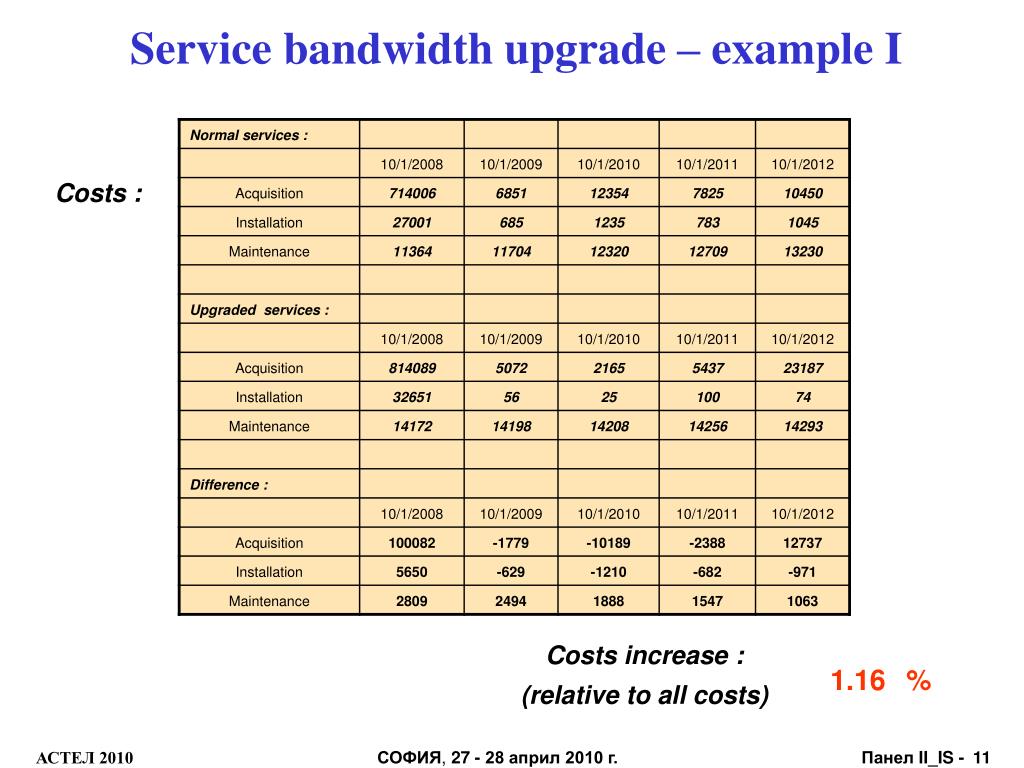

11. Service bandwidthupgrade – example I Costs : Costs increase : (relative to all costs)

12. Service bandwidthupgrade– example I Costs :

13. Service bandwidthupgrade – example II BUS Service: Service: Normal Upgraded Upgraded: Service: RES Service:

14. Service bandwidthupgrade– example II <- Normal CC – Copper Cabinets Upgraded:

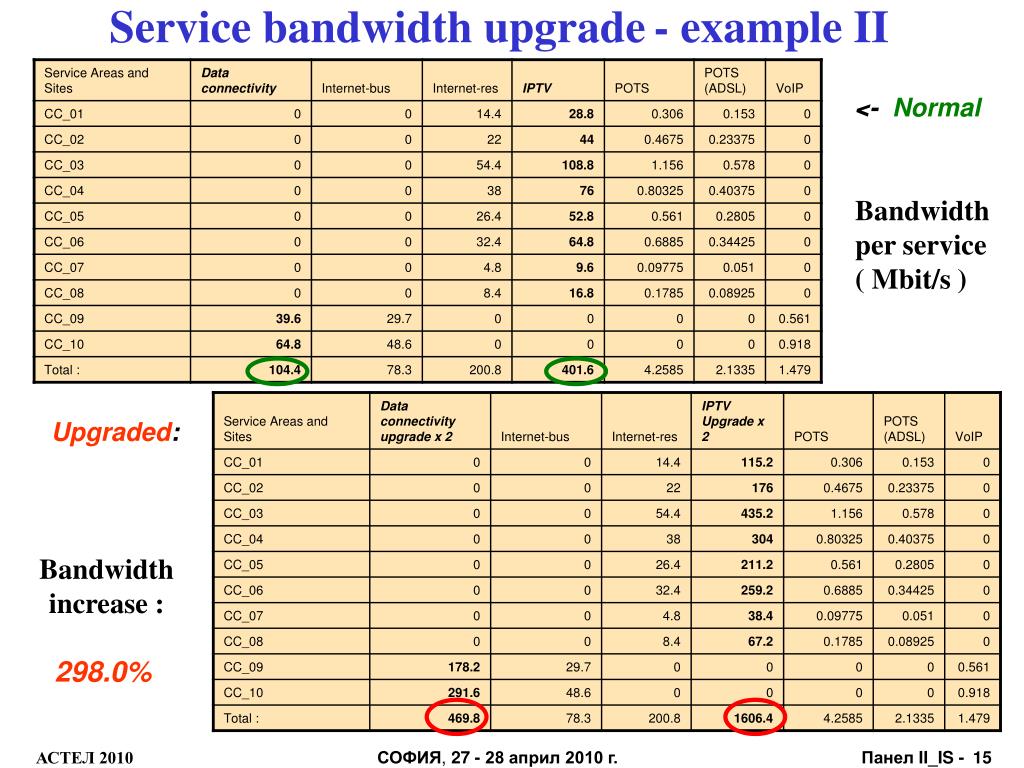

15. Service bandwidthupgrade- exampleII <- Normal Bandwidth per service ( Mbit/s ) Upgraded: Bandwidth increase:

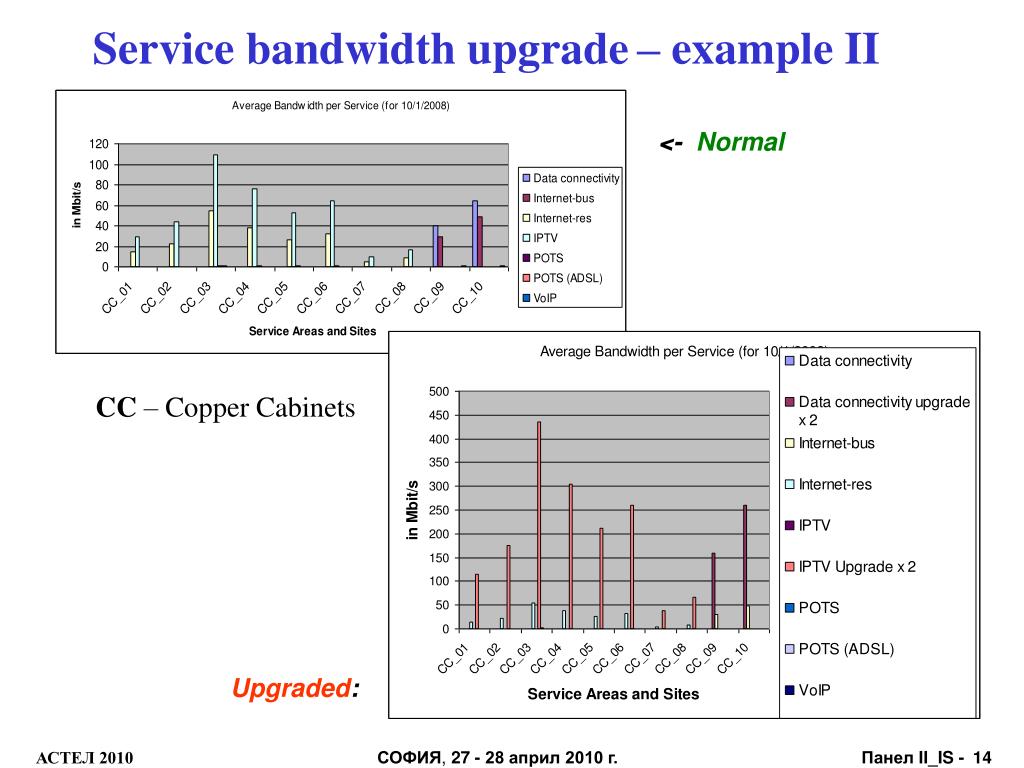

16. Service bandwidthupgrade- exampleII <- Normal (3 MSAN) Access Network Dimensioning/ Optimization Upgraded: (5 MSAN)

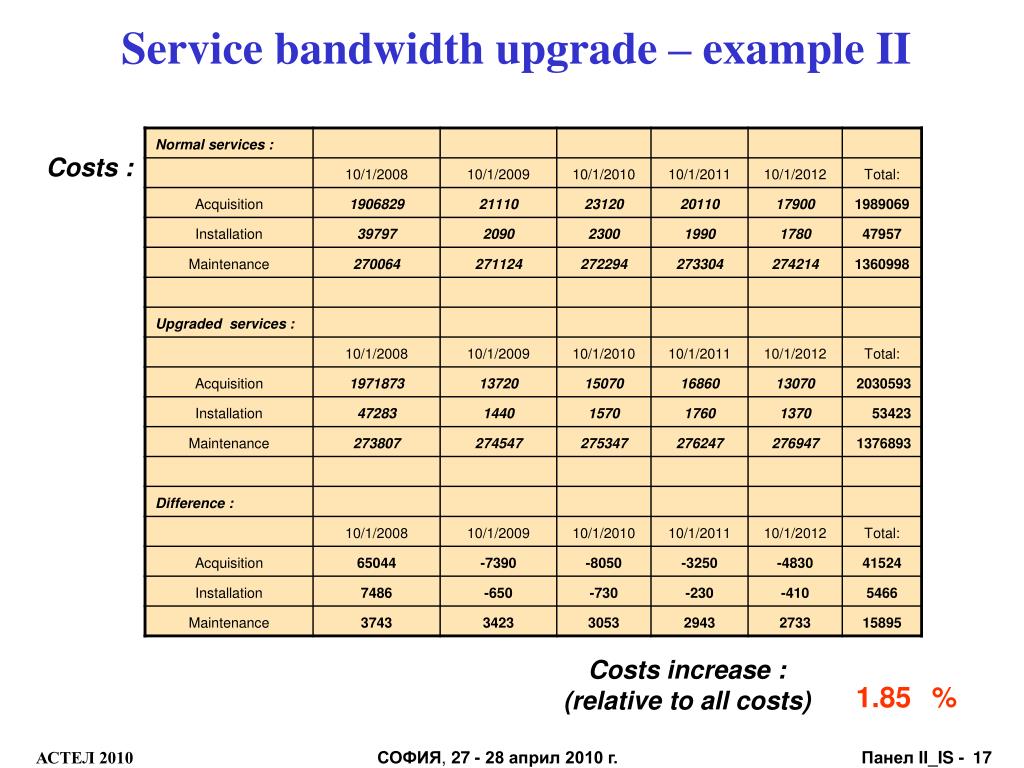

17. Service bandwidthupgrade – example II Costs : Costs increase : (relative to all costs)

18. Service bandwidthupgrade – example II Costs :

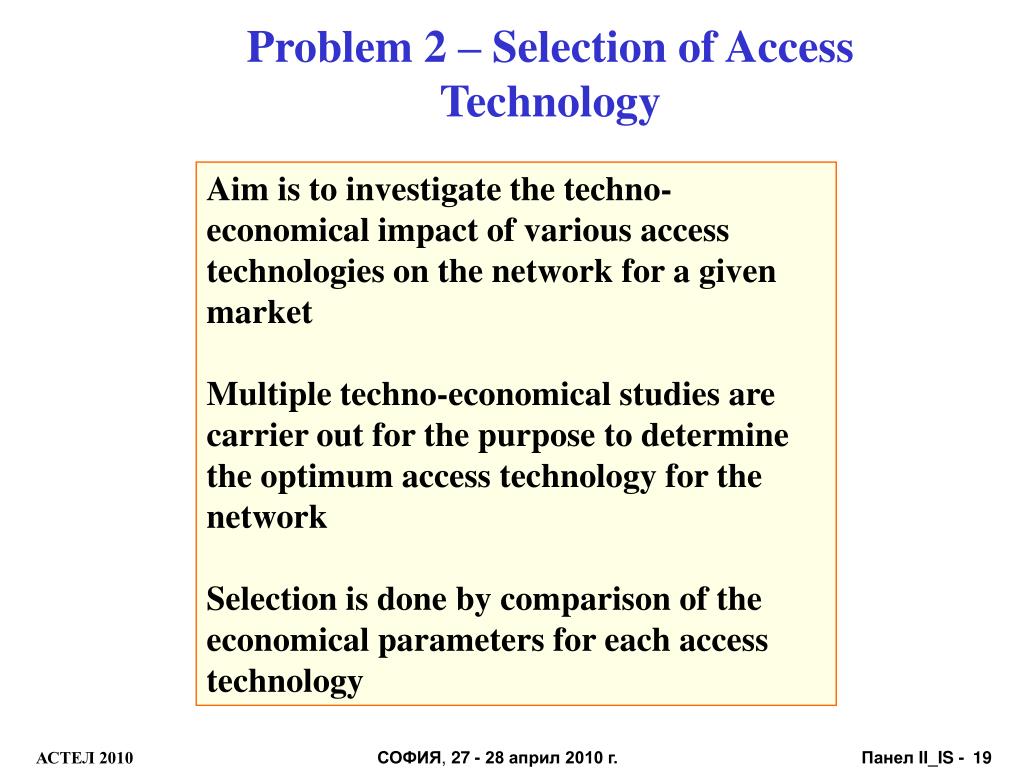

19. Problem2 – Selection of Access Technology Aim is to investigate the techno-economical impact of various access technologies on the network for a given market Multiple techno-economical studies are carrier out for the purpose to determine the optimum access technology for the network Selection is done by comparison of the economical parameters for each access technology

20. Broadband access technologies Application of different broadband technologies IP Source : OESD 2008

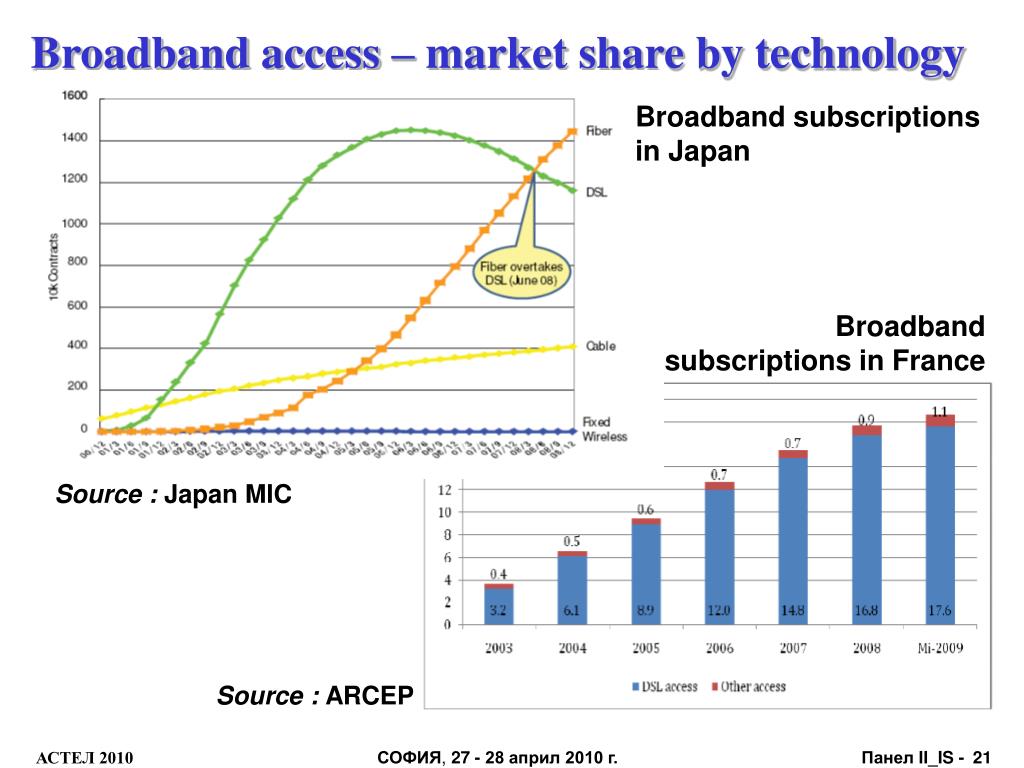

21. Broadband access – market share by technology Broadband subscriptions inJapan Broadband subscriptions in France Source : Japan MIC Source : ARCEP

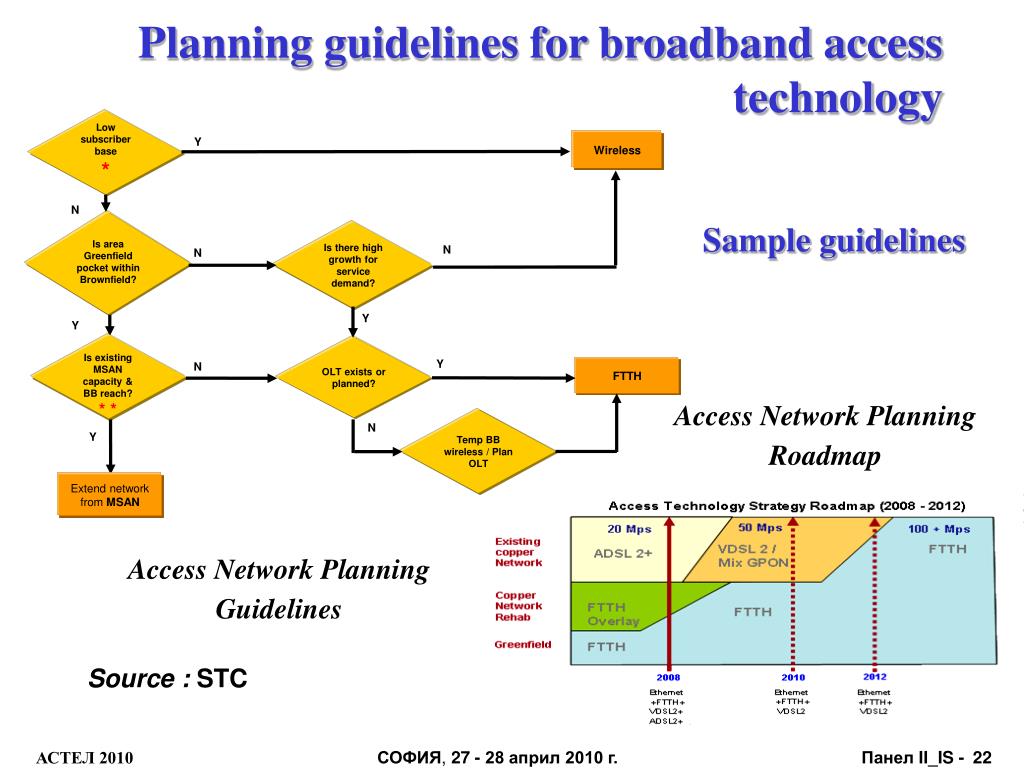

22. Low subscriber base * Y Wireless N Is area Greenfield pocket within Brownfield? Is there high growth for service demand? N N Y Y OLT exists or planned? Is existing MSAN capacity & BB reach? * * Y N FTTH Temp BB wireless / Plan OLT N Y Extend network from MSAN Planning guidelines for broadband access technology Sample guidelines Access Network Planning Roadmap Access Network Planning Guidelines Source : STC

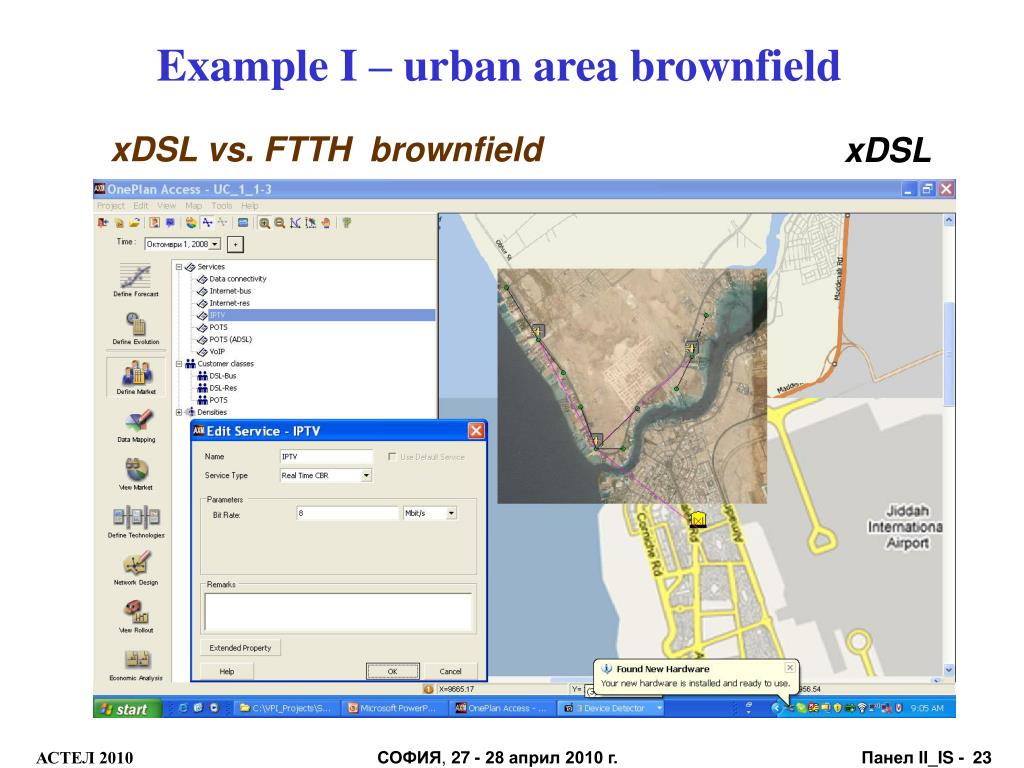

23. Example I – urban area brownfield xDSL xDSL vs. FTTH brownfield

24. Example I – urban areabrownfield List of material : FTTH

25. Example I – urban areabrownfield xDSL vs. FTTH brownfield FTTH xDSL

26. Example II – urban areagreenfield FTTH vs. WiMAX greenfield FTTH

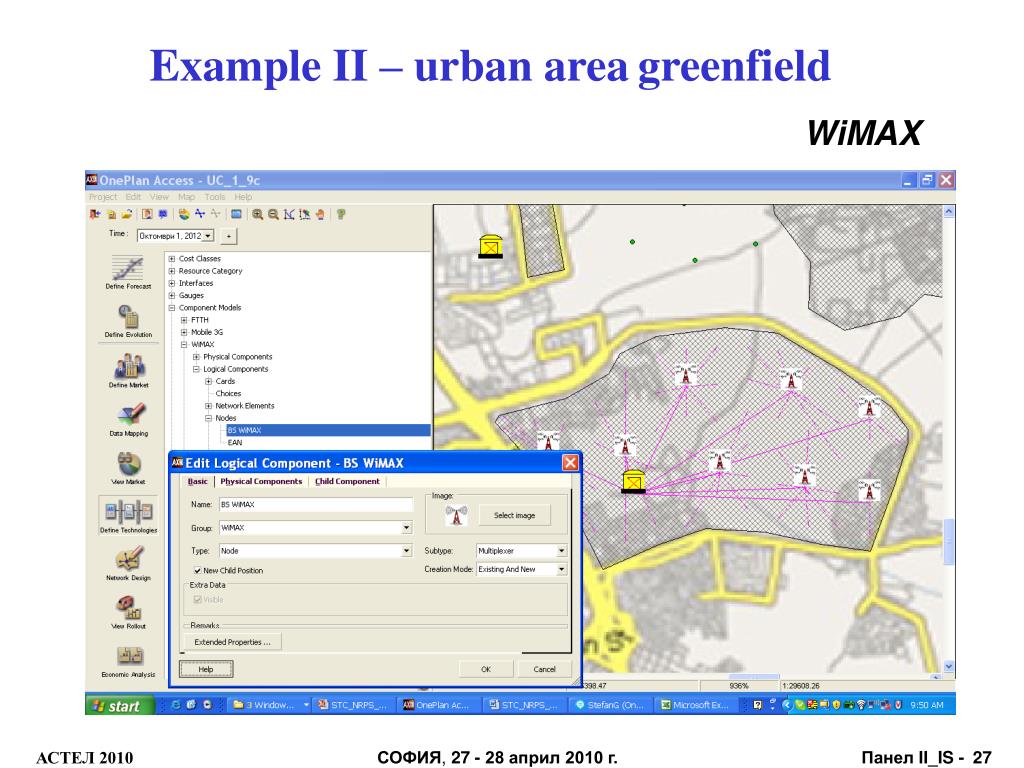

27. Example II – urban areagreenfield WiMAX

28. Example II – urban areagreenfield FTTH vs. WiMAX greenfield WiMAX FTTH

29. Example III (a) – rural area xDSL vs. WiMAX rural area xDSL

30. Example III (a) – rural area WiMAX

31. Example III (a)– rural area xDSL vs. WiMAX rural area

32. Example III (b)– rural area xDSL vs. WiMAX rural area xDSL

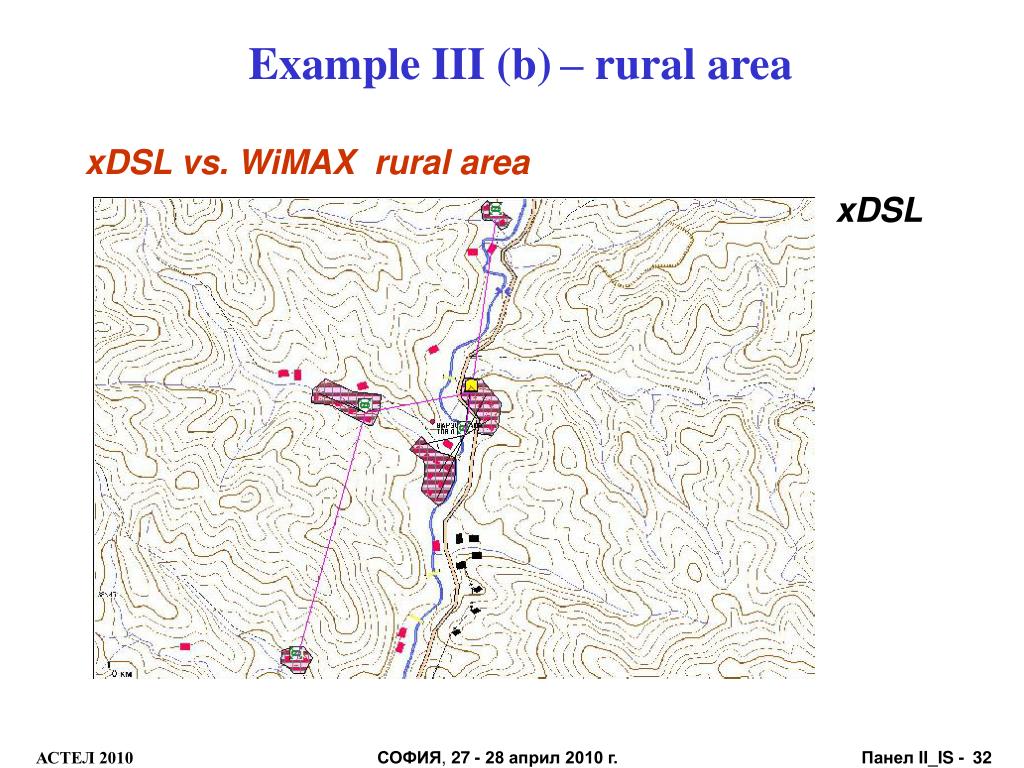

33. Example III (b)– rural area WiMAX

34. Example III (b)– rural area xDSL vs. WiMAX rural area

35. Обучение в КТП по проектиране на широколентов достъп • Учебни дисциплини (лекции) – ТКМ с раздели “NGN архитектура и услуги”,“Моделиране на мрежи” и “Планиране на мрежи” • Учебни дисциплини (сем. упражнения и практики)– ТКМ и Спец. Софтуер, където се демонстрират и прилагат инструменти за планиране на широколентов достъп • Лаборатория “ТКМ” с 4 мощниработни станции с големи ектани, с инстталиран лицензиран софтуер “VPIaccessMaker” за планиране на широколентов достъп • Дипломни работи в областта на NGN и планиране на широколентов достъп– 5(2009); 6(2010)
