  1. New Version of the RIPE Database Andrei Robachevsky RIPE NCC <andrei@ripe.net>

  2. Outline • Current status of the RIPE Database • New database software • Migration timeline • More information

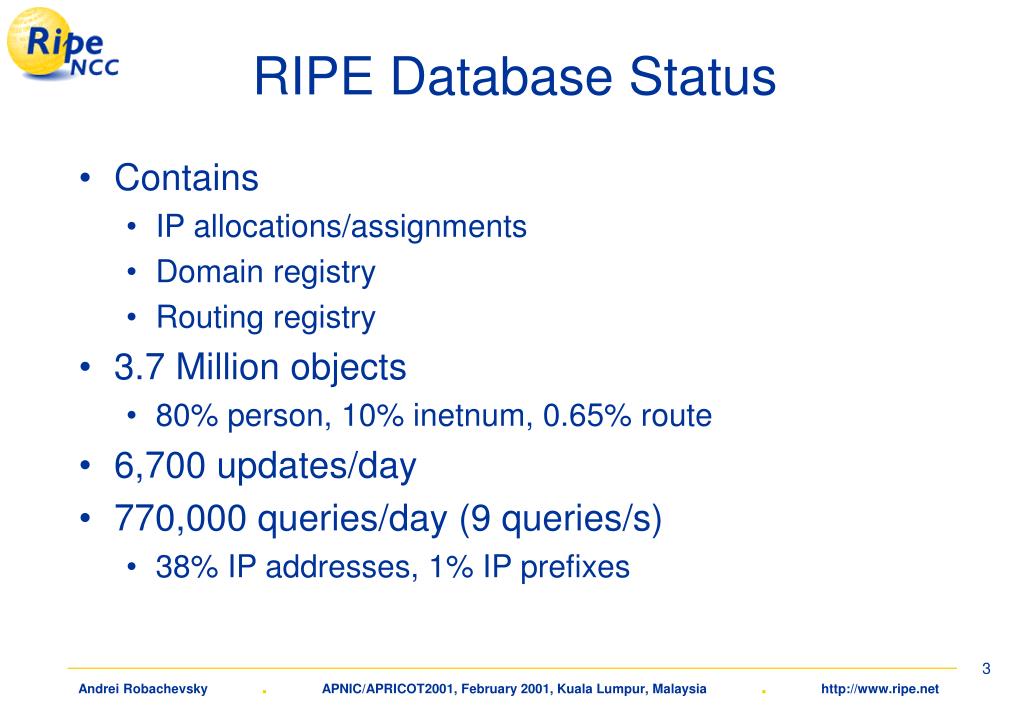

  3. RIPE Database Status • Contains • IP allocations/assignments • Domain registry • Routing registry • 3.7 Million objects • 80% person, 10% inetnum, 0.65% route • 6,700 updates/day • 770,000 queries/day (9 queries/s) • 38% IP addresses, 1% IP prefixes

  4. Distribution by object type(February 2001)

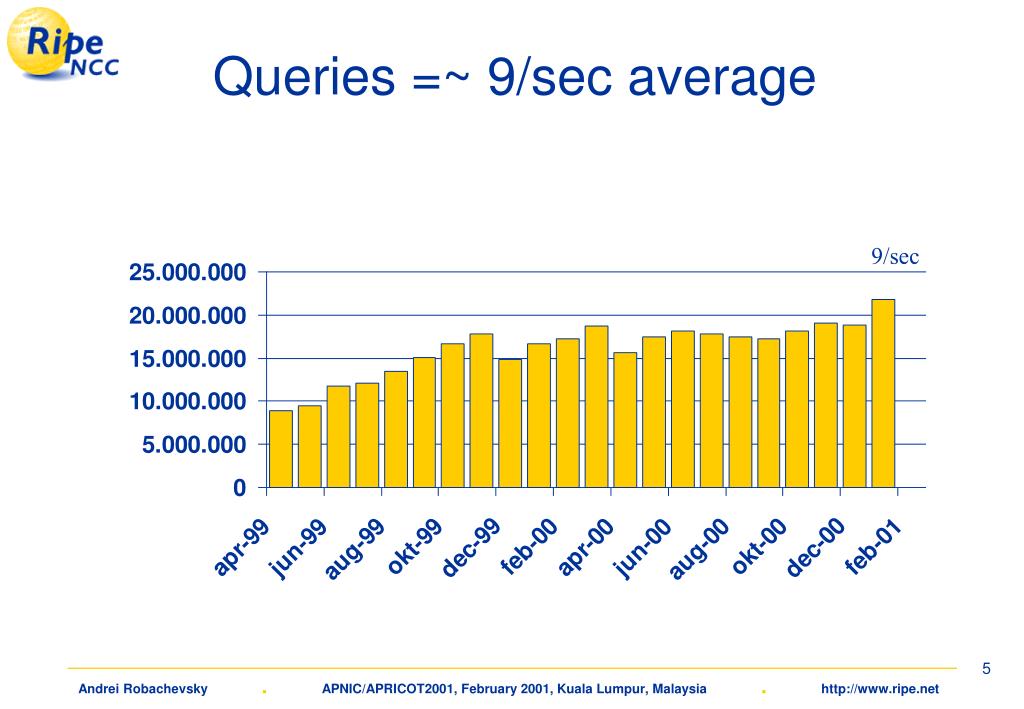

  5. Queries =~ 9/sec average 9/sec

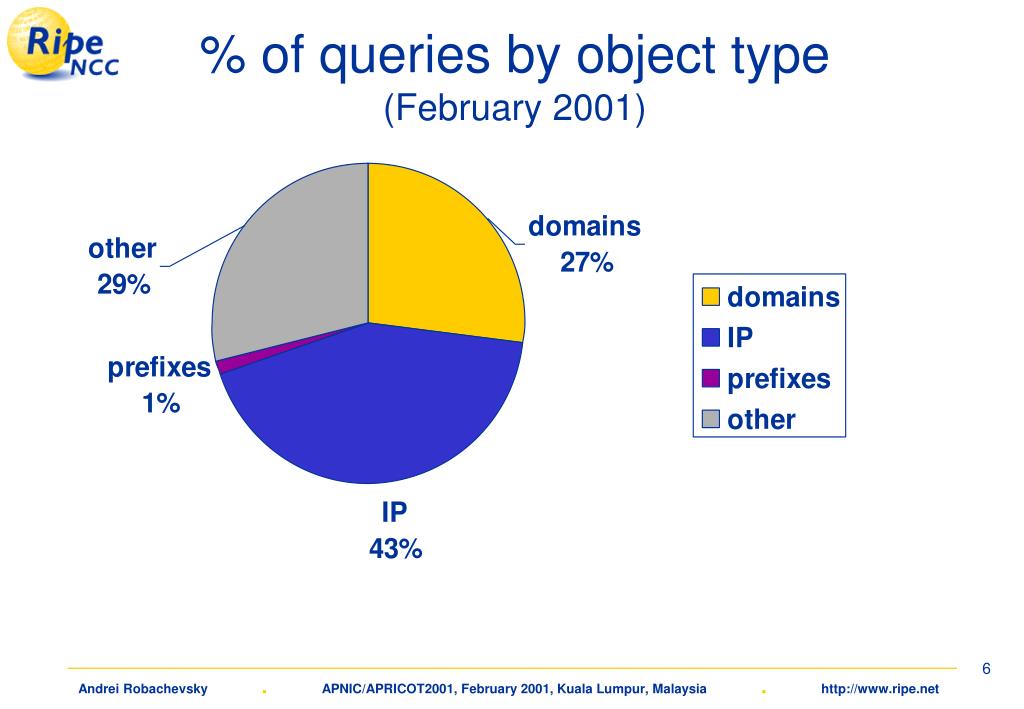

  6. % of queries by object type(February 2001)

  7. Updates 21/min -> 5/min

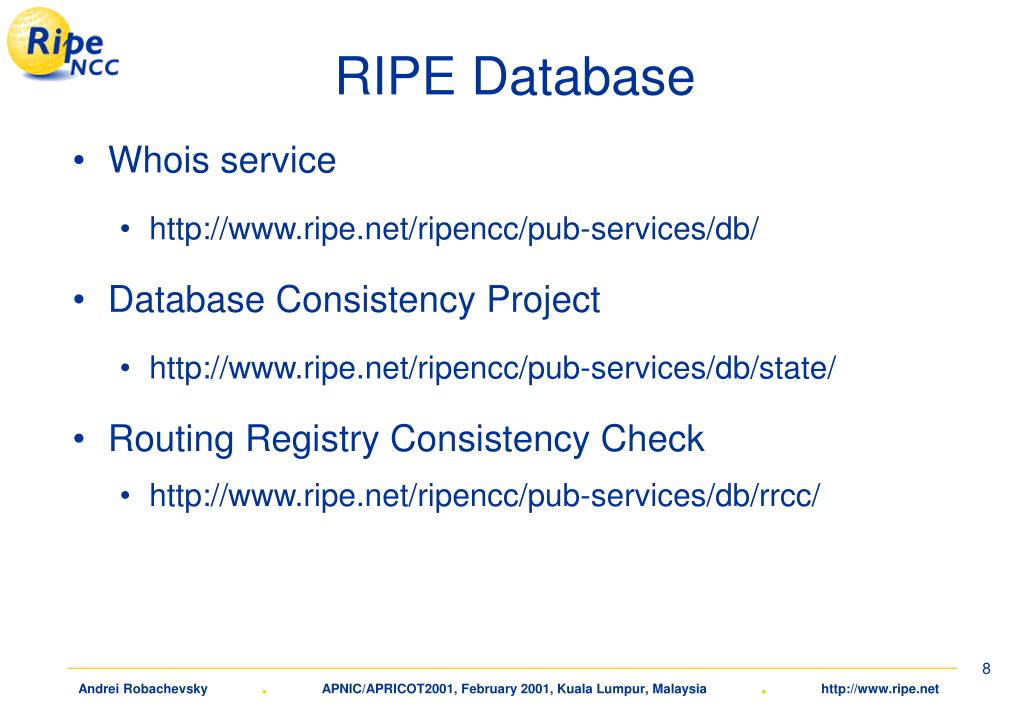

  8. RIPE Database • Whois service • http://www.ripe.net/ripencc/pub-services/db/ • Database Consistency Project • http://www.ripe.net/ripencc/pub-services/db/state/ • Routing Registry Consistency Check • http://www.ripe.net/ripencc/pub-services/db/rrcc/

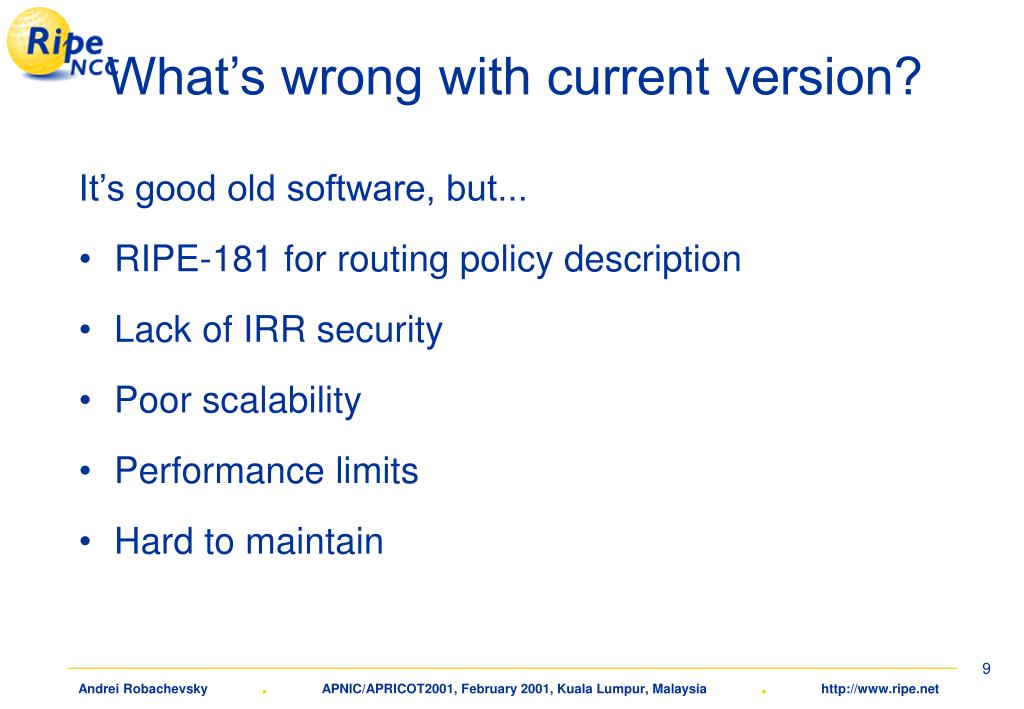

  9. What’s wrong with current version? It’s good old software, but... • RIPE-181 for routing policy description • Lack of IRR security • Poor scalability • Performance limits • Hard to maintain

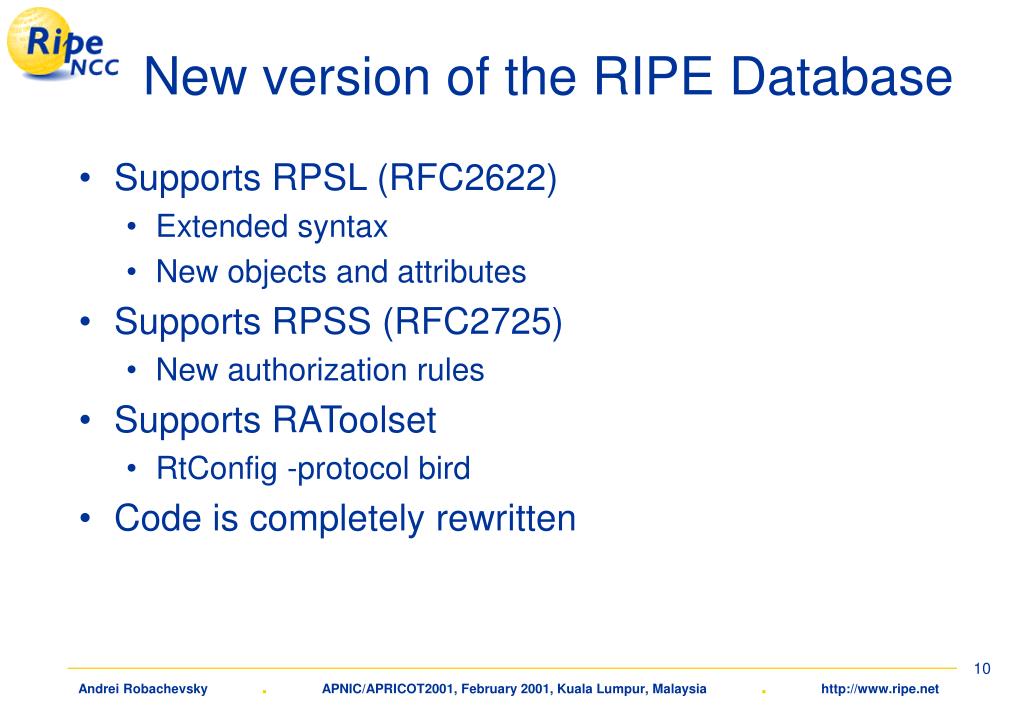

  10. New version of the RIPE Database • Supports RPSL (RFC2622) • Extended syntax • New objects and attributes • Supports RPSS (RFC2725) • New authorization rules • Supports RAToolset • RtConfig -protocol bird • Code is completely rewritten

  11. person: Test Person Object source: TEST nic-hdl: TP-TEST # nic handle address: Nobody knows where he lives… + remarks: be prepared to parse one RPSL Support • Extended syntax rules apply to all object types • end of line comments • line continuation • order of attributes • New objects • as-set (as-macro), route-set (community) • peering-set, filter-set, rtr-set • New attributes • member-of • mbrs-by-ref

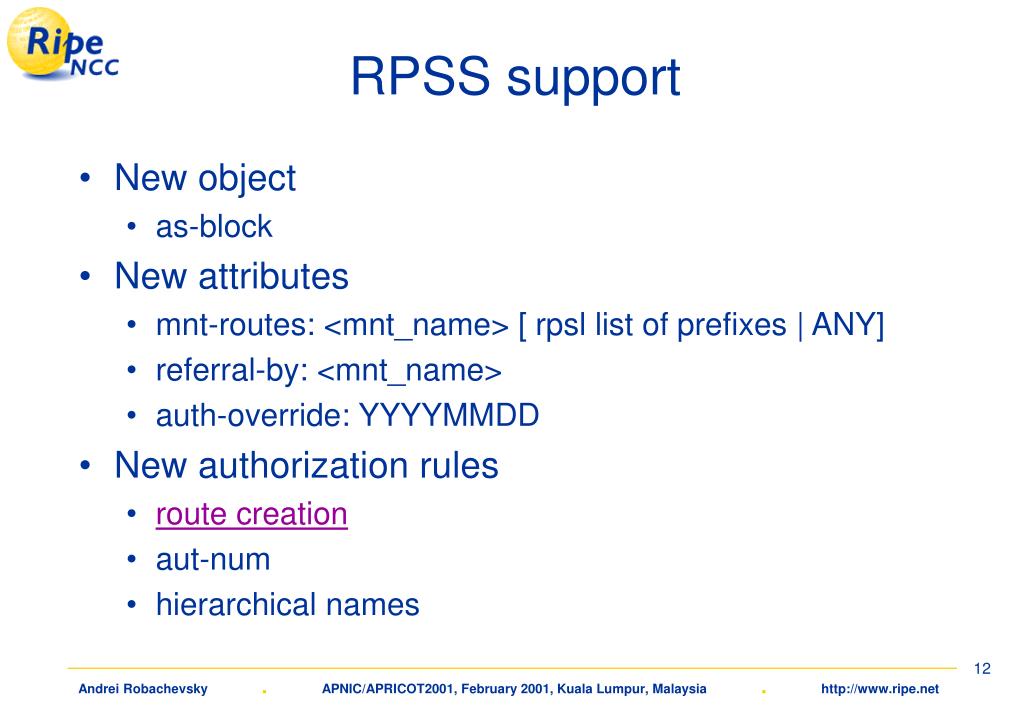

  12. RPSS support • New object • as-block • New attributes • mnt-routes: <mnt_name> [ rpsl list of prefixes | ANY] • referral-by: <mnt_name> • auth-override: YYYYMMDD • New authorization rules • route creation • aut-num • hierarchical names

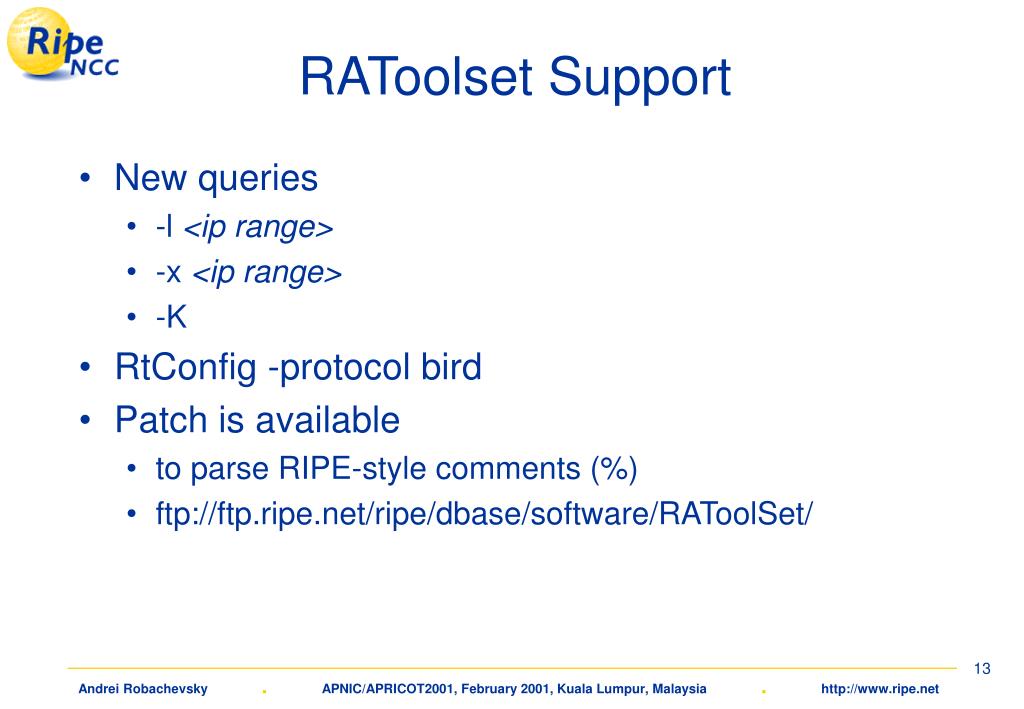

  13. RAToolset Support • New queries • -l <ip range> • -x <ip range> • -K • RtConfig -protocol bird • Patch is available • to parse RIPE-style comments (%) • ftp://ftp.ripe.net/ripe/dbase/software/RAToolSet/

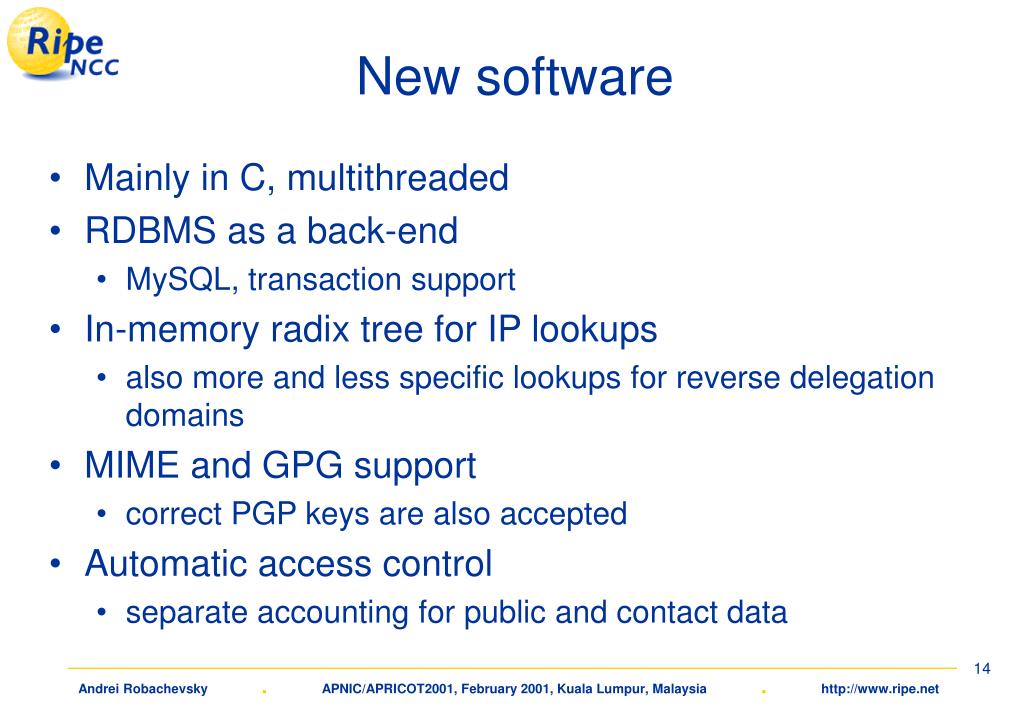

  14. New software • Mainly in C, multithreaded • RDBMS as a back-end • MySQL, transaction support • In-memory radix tree for IP lookups • also more and less specific lookups for reverse delegation domains • MIME and GPG support • correct PGP keys are also accepted • Automatic access control • separate accounting for public and contact data

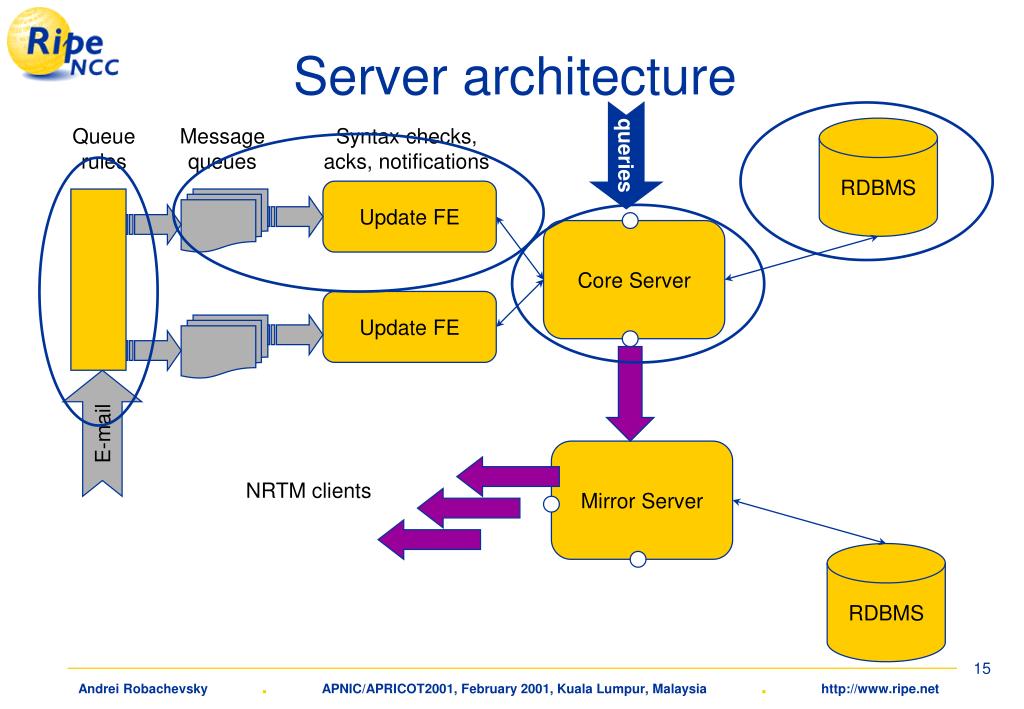

  15. RDBMS Update FE Core Server Update FE Mirror Server NRTM clients RDBMS Server architecture Queue rules Message queues Syntax checks, acks, notifications queries E-mail

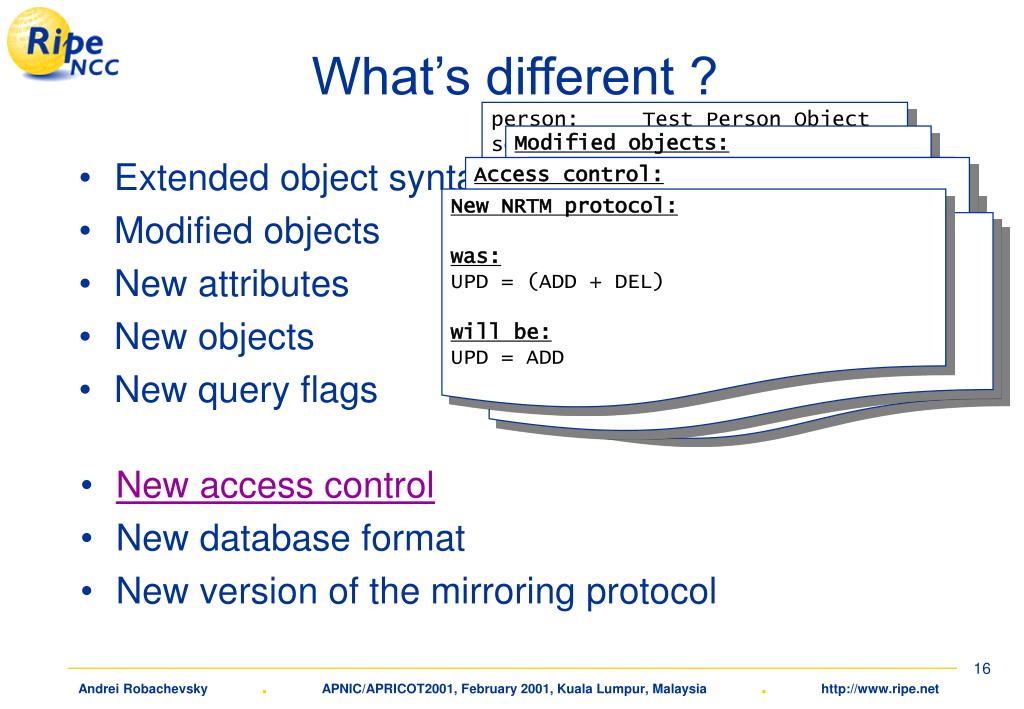

  16. Extended object syntax Modified objects New attributes New objects New query flags person: Test Person Object source: TEST nic-hdl: TP-TEST # nic handle address: Nobody knows where he lives… + remarks: be prepared to parse one Modified objects: mntner route aut-num as-set (was: as-macro) route-set (was: community) inet-rtr inetnum New objects: as-block rtr-set peering-set filter-set New attributes: member-of mbrs-by-ref mnt-routes referral-by auth-override New query flags: -l <ip range> -x <ip range> -K -d -q sources [<source>] -q version Access control: %ERROR:202: access control limit reached % You have reached the limit of returned contact information objects. % This connection will be terminated now. % Continued attempts to return excessive amounts of contact % information will result in permanent denial of service. RDBMS (MySQL): CREATE TABLE mntner ( thread_id int(11) DEFAULT '0' NOT NULL, object_id int(10) unsigned DEFAULT '0' NOT NULL, mntner varchar(80) DEFAULT '' NOT NULL, dummy tinyint(4) DEFAULT '0' NOT NULL, PRIMARY KEY (object_id) ); New NRTM protocol: was: UPD = (ADD + DEL) will be: UPD = ADD What’s different ? • New access control • New database format • New version of the mirroring protocol

  17. Who will be affected ? • Query users • new query flags • Update users • new syntax rules • new authorization rules • Scripts • new object format and syntax • new/modified objects and attributes • access control • NRTM clients • new software • new version of the mirroring protocol

  18. Production Prototype/Compatibility Transition timeline - Updates Updates in RIPE-181 to <auto-dbm@ripe.net> Updates in RIPE-181 to <auto-dbm@ripe.net> Updates in RPE-181 to <auto-181@ripe.net> RIPE181 Updates in RPSL to <auto-rpsl@ripe.net> Updates in RPSL to <auto-dbm@ripe.net> RPSL Updates in RPSL to <auto-rip@ripe.net> Updates in RPSL to <test-dbm@ripe.net> TEST Proposed dates: X=23 April Y=14 May Z=15 October

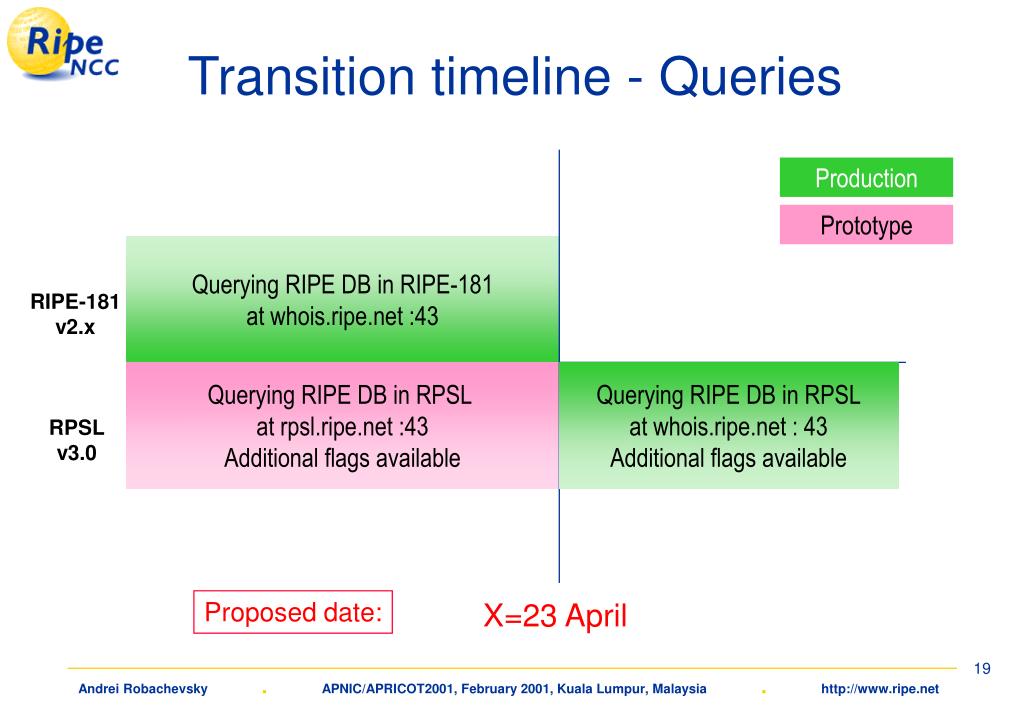

  19. Production Prototype Transition timeline - Queries Querying RIPE DB in RIPE-181 at whois.ripe.net :43 RIPE-181 v2.x Querying RIPE DB in RPSL at rpsl.ripe.net :43 Additional flags available Querying RIPE DB in RPSL at whois.ripe.net : 43 Additional flags available RPSL v3.0 Proposed date: X=23 April

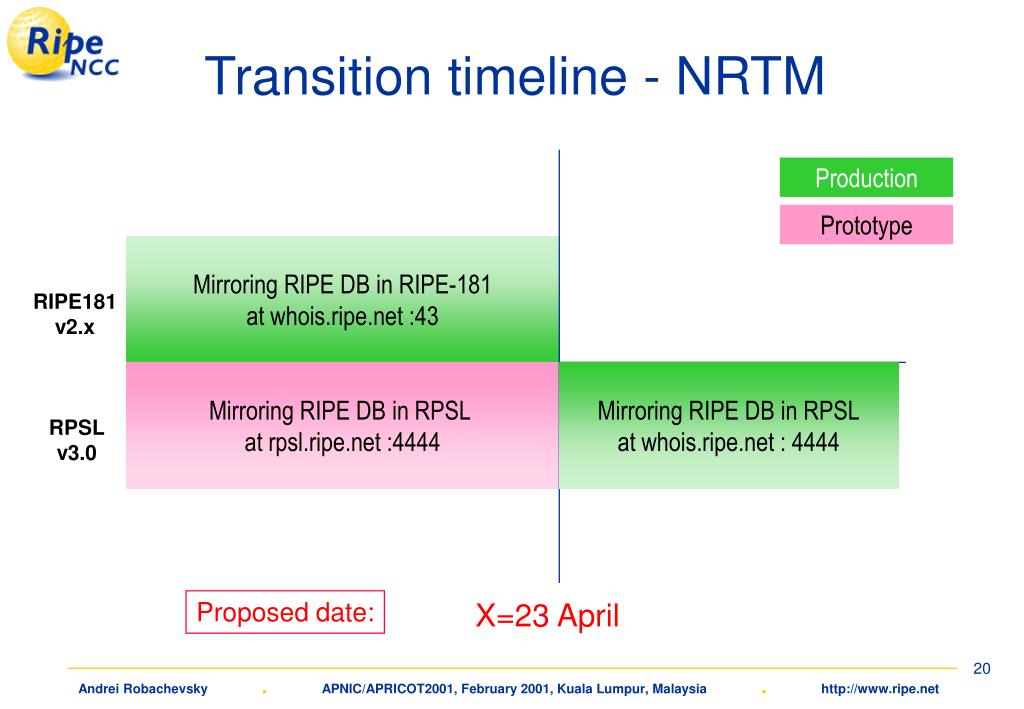

  20. Production Prototype Transition timeline - NRTM Mirroring RIPE DB in RIPE-181 at whois.ripe.net :43 RIPE181 v2.x Mirroring RIPE DB in RPSL at rpsl.ripe.net :4444 Mirroring RIPE DB in RPSL at whois.ripe.net : 4444 RPSL v3.0 Proposed date: X=23 April

  21. Project Status • Version 3.0ß2 has been released • Core server functionality is complete • Infrastructure is under development • Testing is in progress • Portability issues are on our list • Solaris, Linux, FreeBSD, UnixWare(?), ... • Thanks to everyone who helps make it more portable • Special thanks to George Michaelson!

  22. Prototype servers • Near real-time mirror of the RIPE Database • whois -h rpsl.ripe.net • contains live RIPE Database in RPSL format • Test server for submissions • mail <auto-rip@ripe.net> • whois -h rpsl.ripe.net -p 4343 • NRTM • rpsl.ripe.net, port 4444 • please contact <ripe-dbm@ripe.net>

  23. More Information • RIPE-181 to RPSL Migration page • http://www.ripe.net/rpsl • Documentation • Transition to the RIPE DB v3.0 • Whois Queries in the RIPE DB v3.0 • Updates in the RIPE DB v3.0 • Error codes in the RIPE DB v3.0 • Software • New whois client ftp://ftp.ripe.net/ripe/dbase/reimp/whoisRIP-1.0.tar.gz • Server software v3.0http://www.ripe.net/ripencc/pub-services/db/reimp/latestbeta.html

  24. Questions?

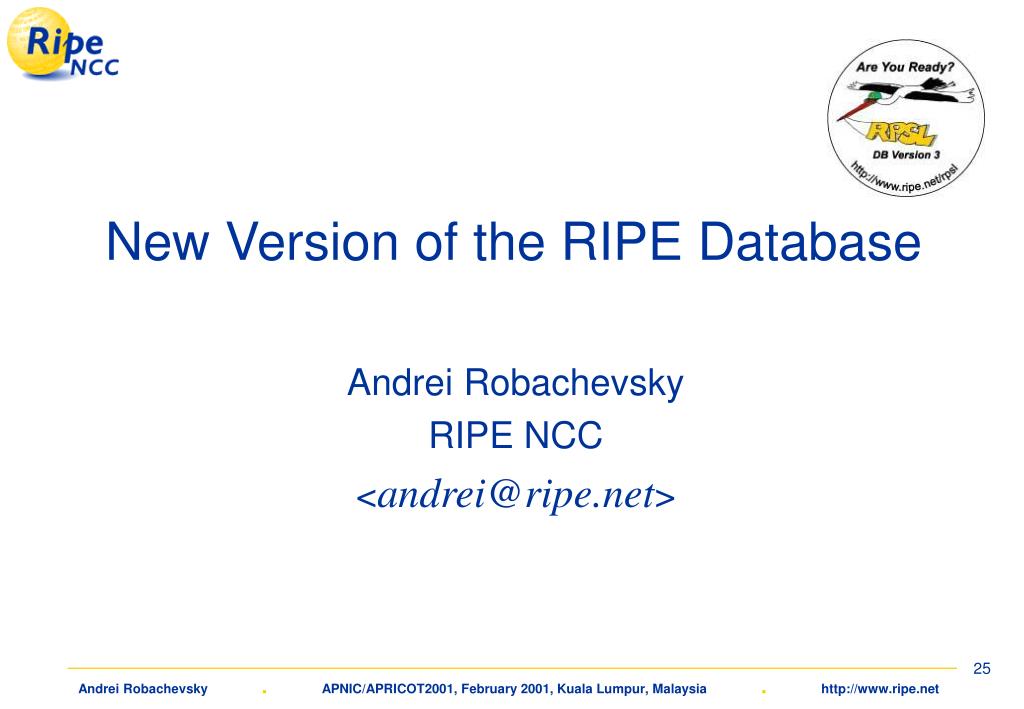

  25. New Version of the RIPE Database Andrei Robachevsky RIPE NCC <andrei@ripe.net>

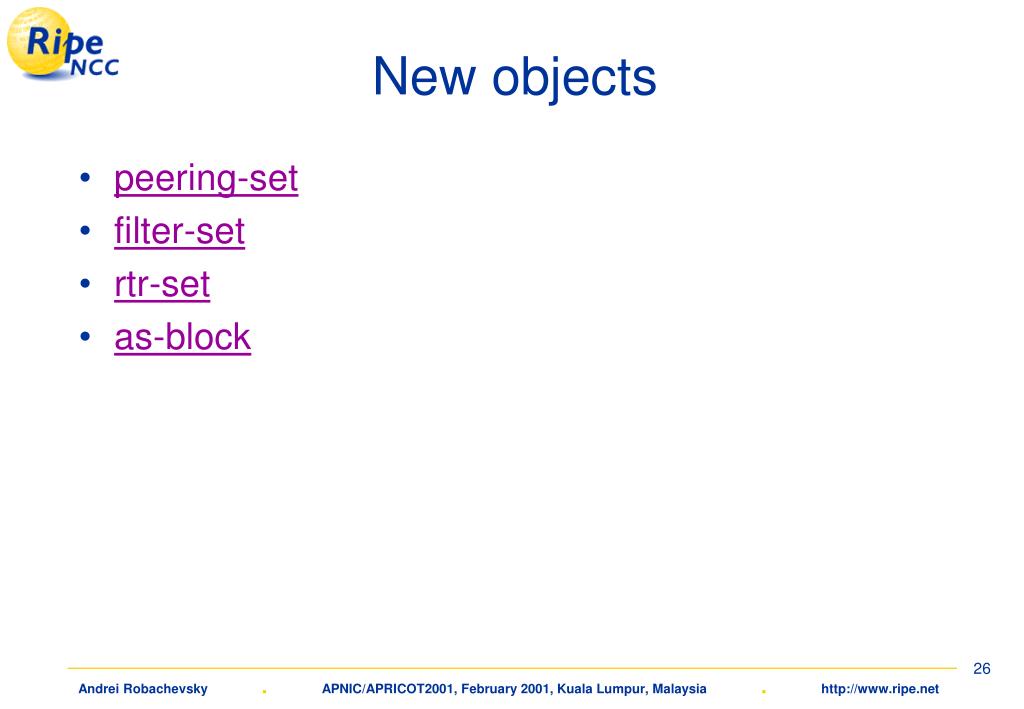

  26. New objects • peering-set • filter-set • rtr-set • as-block

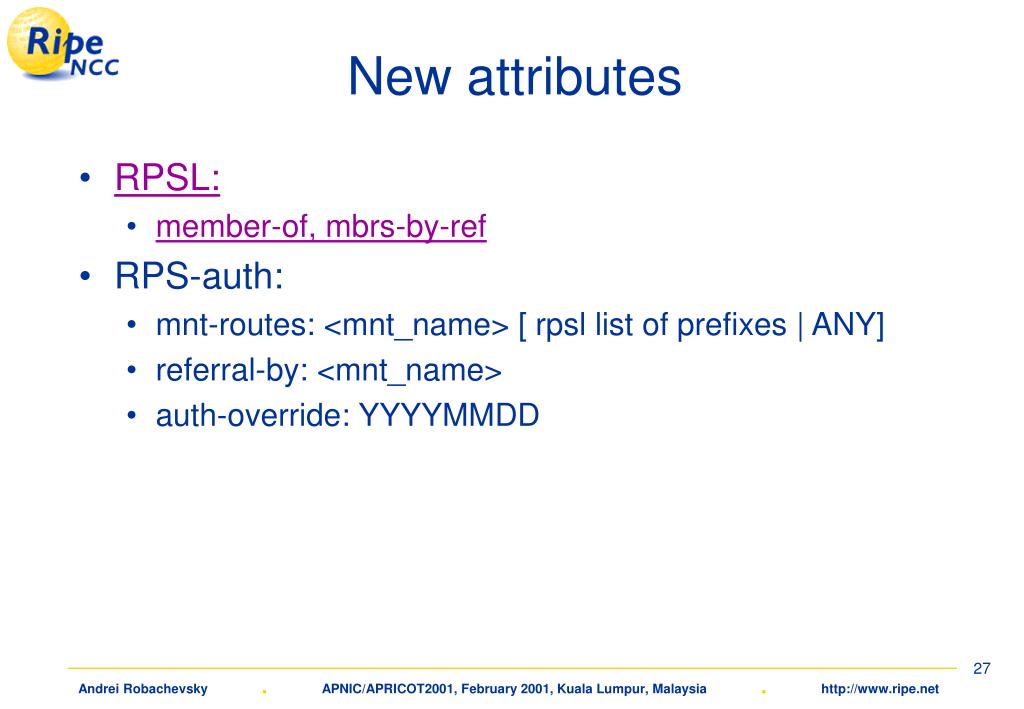

  27. New attributes • RPSL: • member-of, mbrs-by-ref • RPS-auth: • mnt-routes: <mnt_name> [ rpsl list of prefixes | ANY] • referral-by: <mnt_name> • auth-override: YYYYMMDD

  28. Modifications to all objects • Line continuation • Attribute order is relevant • Support for end of line comments • Handling of empty attributes • Legend: holes: [optional] [multiple] automatically translated member-of: [optional] [multiple] new cross-nfy: [optional] [multiple] preserved community: [optional] [multiple] deprecated

  29. Modified objects • mntner object mntner: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] [ ] admin-c: [mandatory] [multiple] [inverse key] tech-c: [optional] [multiple] [inverse key] upd-to: [mandatory] [multiple] [inverse key] mnt-nfy: [optional] [multiple] [inverse key] auth: [mandatory] [multiple] [ ] remarks: [optional] [multiple] [ ] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] auth-override: [optional] [single] [ ] *** RPS auth *** referral-by: [mandatory] [single] [inverse key] *** RPS auth *** changed: [mandatory] [multiple] [ ] source: [mandatory] [single] [ ]

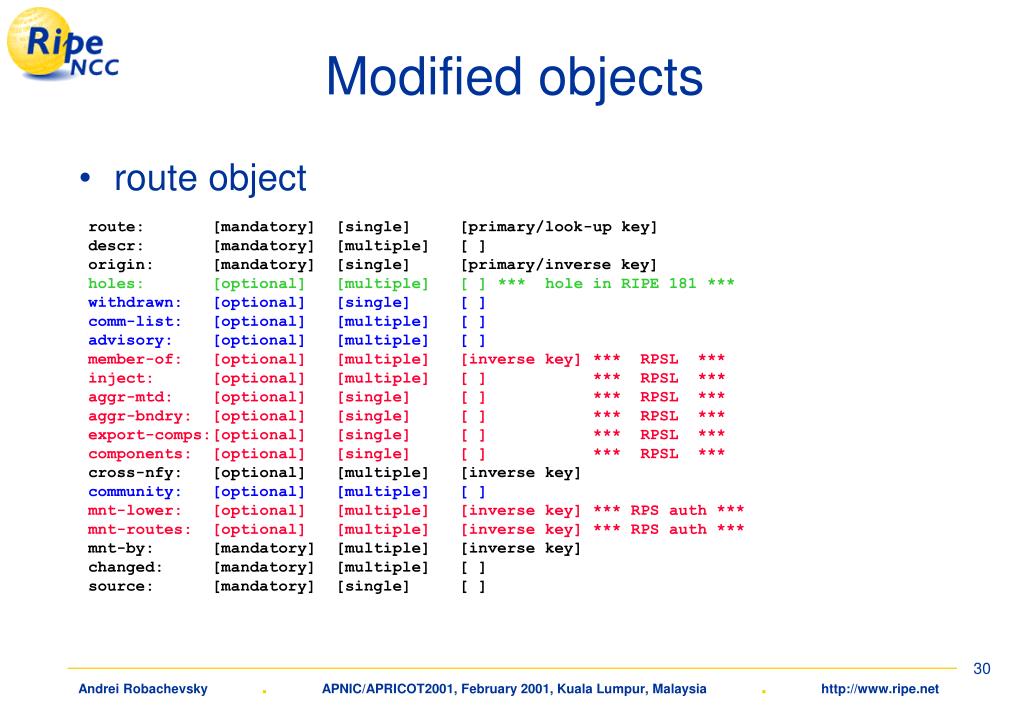

  30. Modified objects • route object route: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] [ ] origin: [mandatory] [single] [primary/inverse key] holes: [optional] [multiple] [ ] *** hole in RIPE 181 *** withdrawn: [optional] [single] [ ] comm-list: [optional] [multiple] [ ] advisory: [optional] [multiple] [ ] member-of: [optional] [multiple] [inverse key] *** RPSL *** inject: [optional] [multiple] [ ] *** RPSL *** aggr-mtd: [optional] [single] [ ] *** RPSL *** aggr-bndry: [optional] [single] [ ] *** RPSL *** export-comps:[optional] [single] [ ] *** RPSL *** components: [optional] [single] [ ] *** RPSL *** cross-nfy: [optional] [multiple] [inverse key] community: [optional] [multiple] [ ] mnt-lower: [optional] [multiple] [inverse key] *** RPS auth *** mnt-routes: [optional] [multiple] [inverse key] *** RPS auth *** mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] [ ] source: [mandatory] [single] [ ]

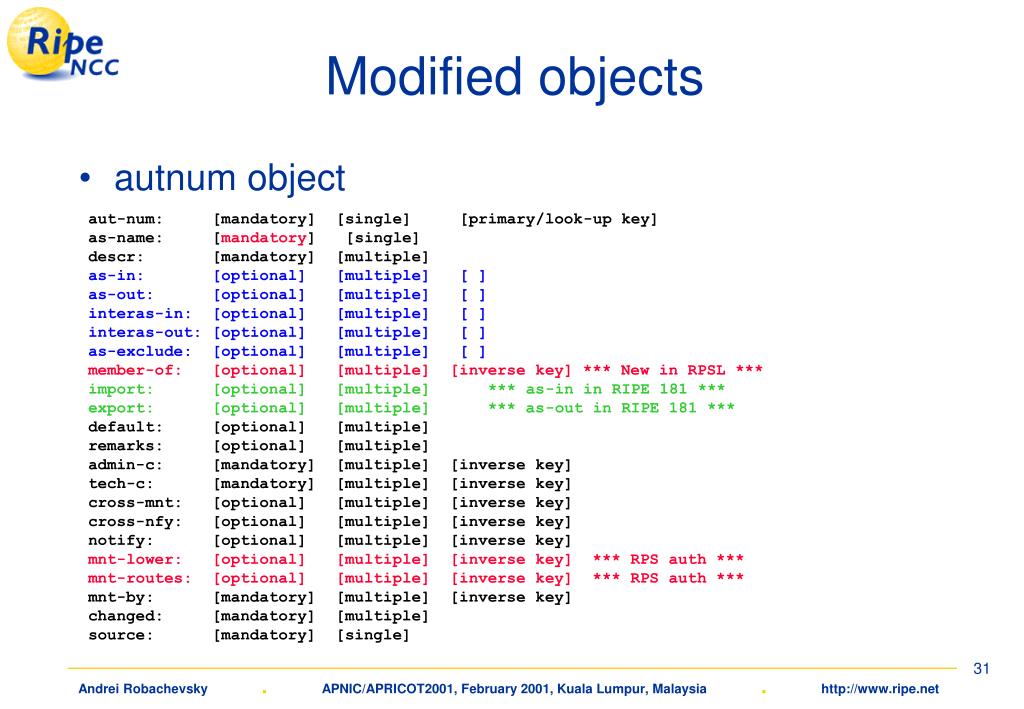

  31. Modified objects • autnum object aut-num: [mandatory] [single] [primary/look-up key] as-name: [mandatory] [single] descr: [mandatory] [multiple] as-in: [optional] [multiple] [ ] as-out: [optional] [multiple] [ ] interas-in: [optional] [multiple] [ ] interas-out: [optional] [multiple] [ ] as-exclude: [optional] [multiple] [ ] member-of: [optional] [multiple] [inverse key] *** New in RPSL *** import: [optional] [multiple] *** as-in in RIPE 181 *** export: [optional] [multiple] *** as-out in RIPE 181 *** default: [optional] [multiple] remarks: [optional] [multiple] admin-c: [mandatory] [multiple] [inverse key] tech-c: [mandatory] [multiple] [inverse key] cross-mnt: [optional] [multiple] [inverse key] cross-nfy: [optional] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-lower: [optional] [multiple] [inverse key] *** RPS auth *** mnt-routes: [optional] [multiple] [inverse key] *** RPS auth *** mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single]

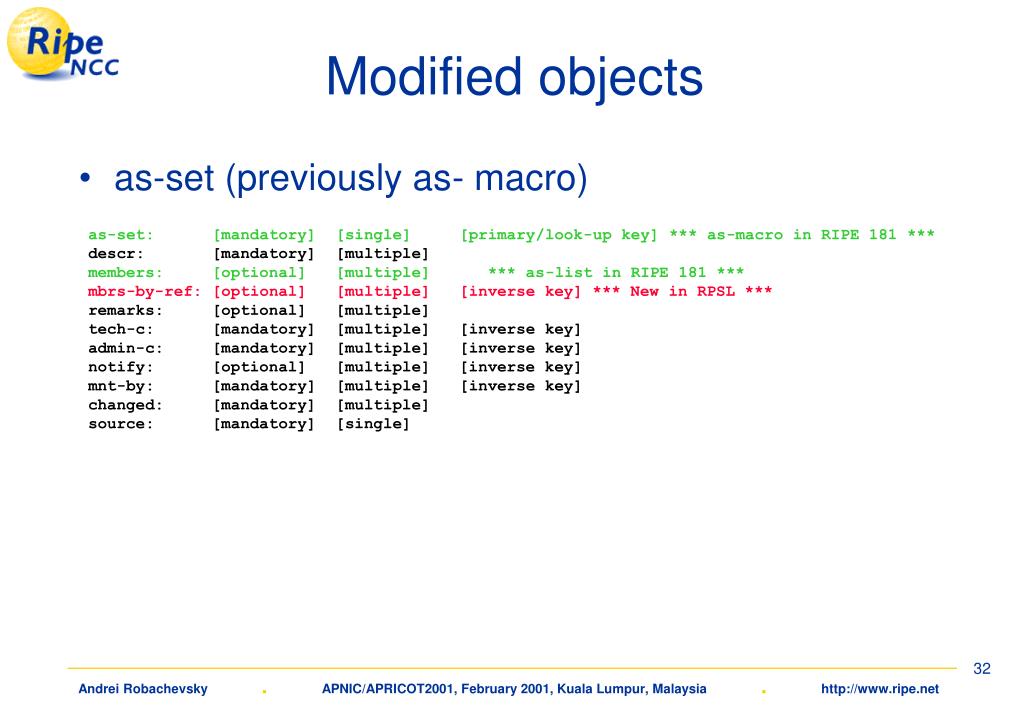

  32. Modified objects • as-set (previously as- macro) as-set: [mandatory] [single] [primary/look-up key] *** as-macro in RIPE 181 *** descr: [mandatory] [multiple] members: [optional] [multiple] *** as-list in RIPE 181 *** mbrs-by-ref: [optional] [multiple] [inverse key] *** New in RPSL *** remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single]

  33. Modified objects • route-set (previously community) route-set: [mandatory] [single] [primary/look-up key] *** community in RIPE 181 *** descr: [mandatory] [multiple] members: [optional] [multiple] *** New in RPSL *** mbrs-by-ref: [optional] [multiple] [inverse key] *** New in RPSL *** remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single]

  34. Modified objects • inet-rtr inet-rtr: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] alias: [optional] [multiple] *** New in RPSL *** local-as: [mandatory] [single] [inverse key] *** localas in RIPE 181 *** ifaddr: [mandatory] [multiple] [look-up key] peer: [optional] [multiple] member-of: [optional] [multiple] [inverse key] *** New in RPSL *** remarks: [optional] [multiple] admin-c: [mandatory] [multiple] [inverse key] tech-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single]

  35. Modified objects • inetnum inetnum: [mandatory] [single] [primary/look-up key] netname: [mandatory] [single] [lookup key] descr: [mandatory] [multiple] [ ] country: [mandatory] [multiple] [ ] admin-c: [mandatory] [multiple] [inverse key] tech-c: [mandatory] [multiple] [inverse key] rev-srv: [optional] [multiple] [inverse key] status: [generated] [single] [ ] remarks: [optional] [multiple] [ ] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] mnt-lower: [optional] [multiple] [inverse key] mnt-routes: [optional] [single] [inverse key] *** RPS auth *** changed: [mandatory] [multiple] [ ] source: [mandatory] [single] [ ]

  36. New object: peering-set • Peering-set peering-set: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] peering: [mandatory] [multiple] remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single] <=

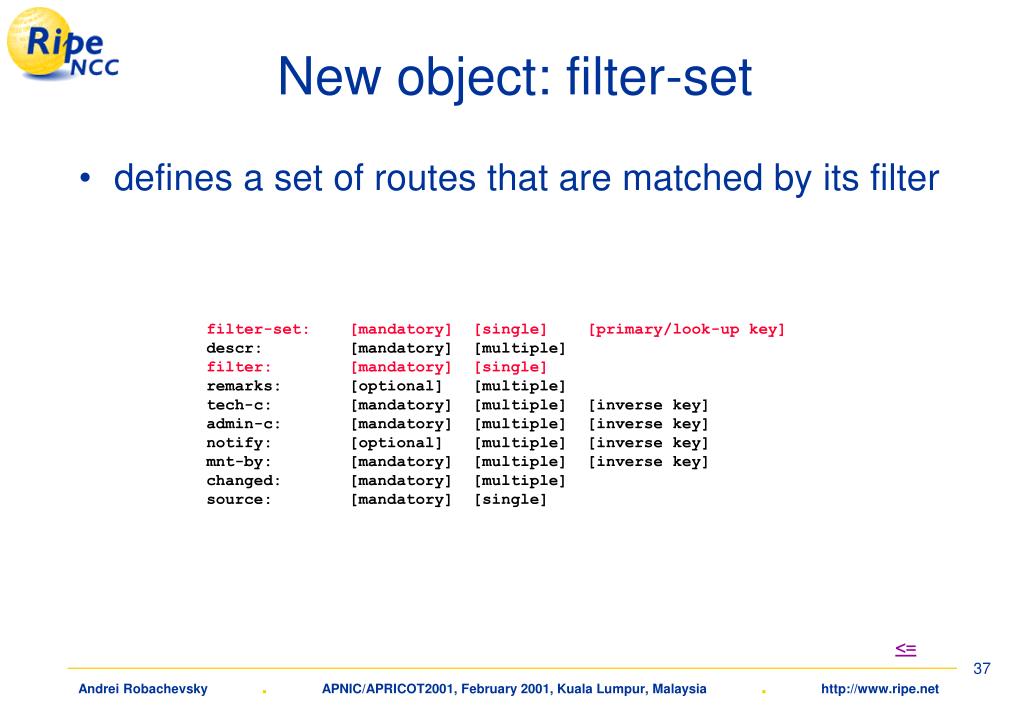

  37. New object: filter-set • defines a set of routes that are matched by its filter filter-set: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] filter: [mandatory] [single] remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single] <=

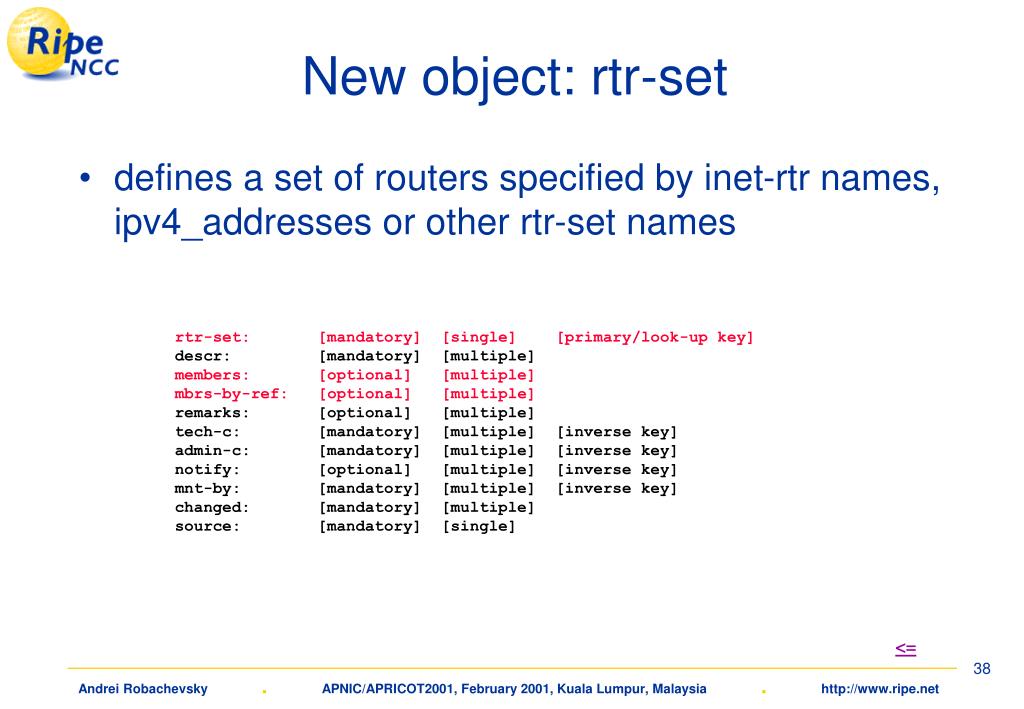

  38. New object: rtr-set • defines a set of routers specified by inet-rtr names, ipv4_addresses or other rtr-set names rtr-set: [mandatory] [single] [primary/look-up key] descr: [mandatory] [multiple] members: [optional] [multiple] mbrs-by-ref: [optional] [multiple] remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single] <=

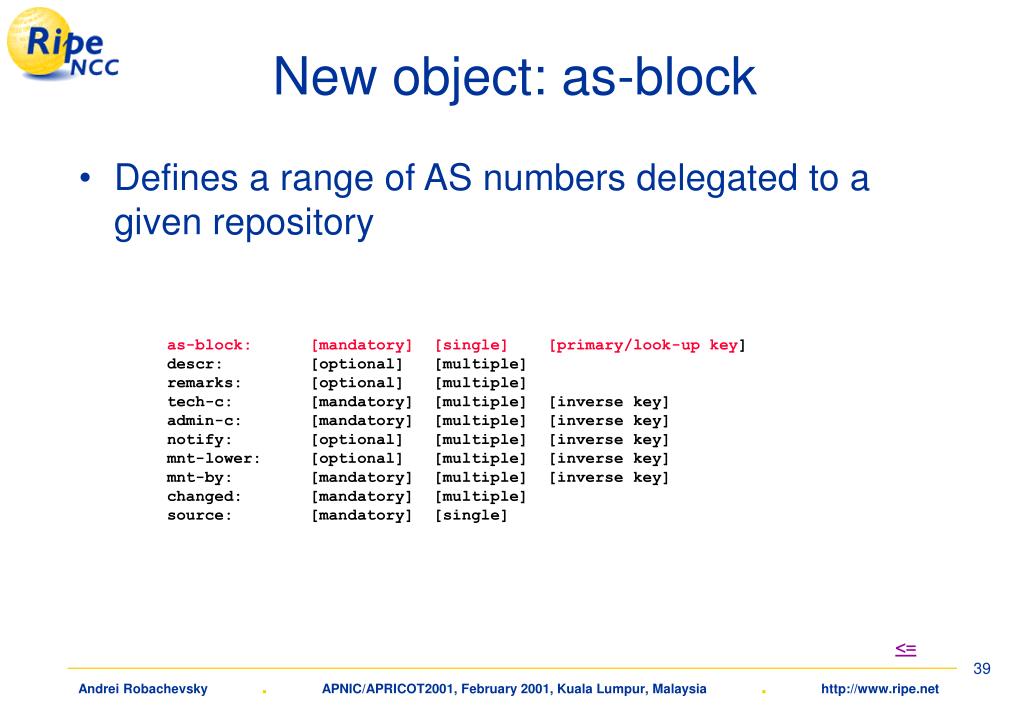

  39. New object: as-block • Defines a range of AS numbers delegated to a given repository as-block: [mandatory] [single] [primary/look-up key] descr: [optional] [multiple] remarks: [optional] [multiple] tech-c: [mandatory] [multiple] [inverse key] admin-c: [mandatory] [multiple] [inverse key] notify: [optional] [multiple] [inverse key] mnt-lower: [optional] [multiple] [inverse key] mnt-by: [mandatory] [multiple] [inverse key] changed: [mandatory] [multiple] source: [mandatory] [single] <=

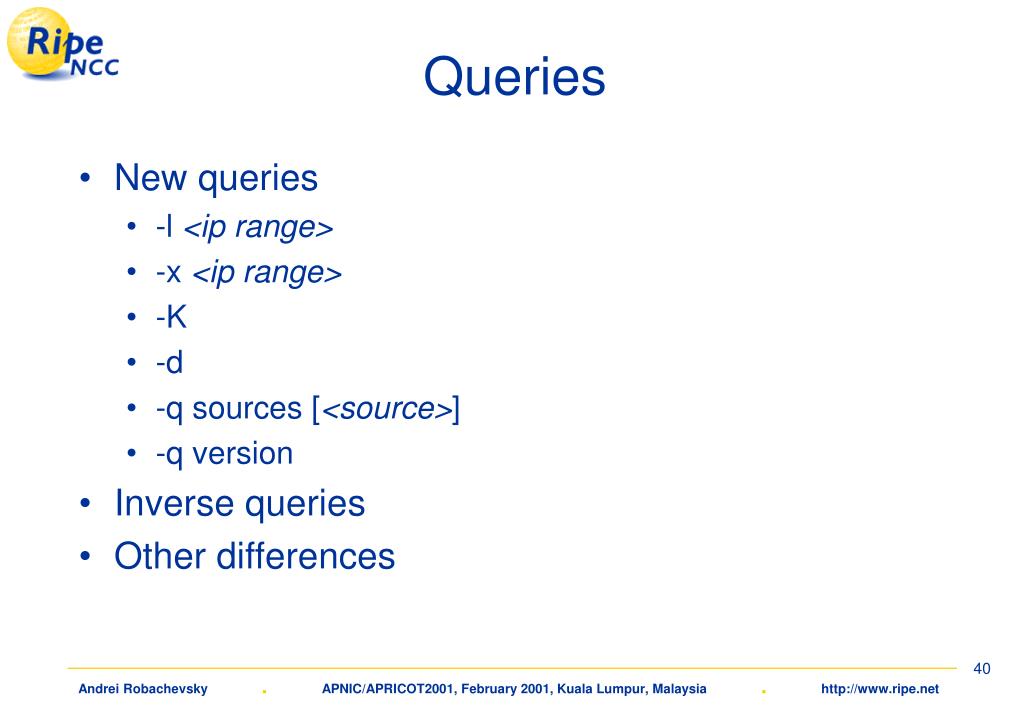

  40. Queries • New queries • -l <ip range> • -x <ip range> • -K • -d • -q sources [<source>] • -q version • Inverse queries • Other differences

  41. -l <ip range> • One level less specific • Does not return the exact match • Returns the smallest IP range that is bigger than the supplied range and that fully contains it • whois -r -Tin 193.0.0.0/23 • whois -r -Tin -l 193.0.0.0/23 • whois -r -Tin -L 193.0.0.0/23

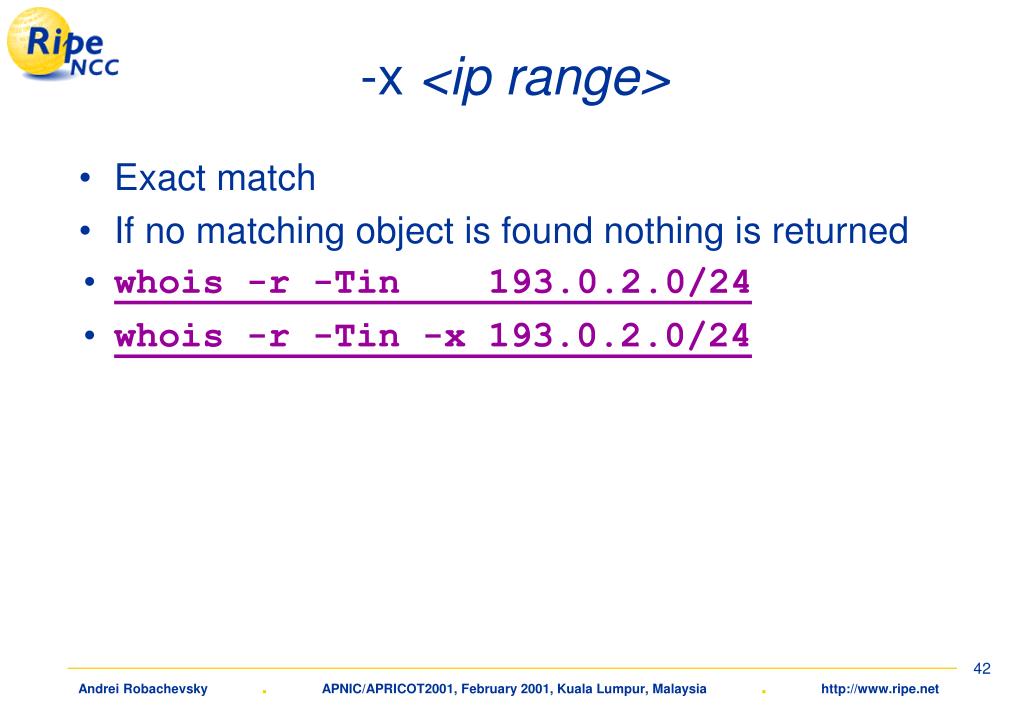

  42. -x <ip range> • Exact match • If no matching object is found nothing is returned • whois -r -Tin 193.0.2.0/24 • whois -r -Tin -x 193.0.2.0/24

  43. -K • Only primary keys are returned • Exception is a set object, where the members attribute is also returned • Does not apply to person and role objects • whois -Trt -K -M 193.0.0.0/16 • whois -K -imo RS-HEPNET • whois -K AS-WORLD

  44. -d (proposed) • Triggers inclusion of in-addr.arpa and ip6.int domain objects in the result of IP lookup • More/less specific lookups are possible • whois -r -d 193.0.2.0 • whois -d -Tdn -K -M 193.0.0.0/20

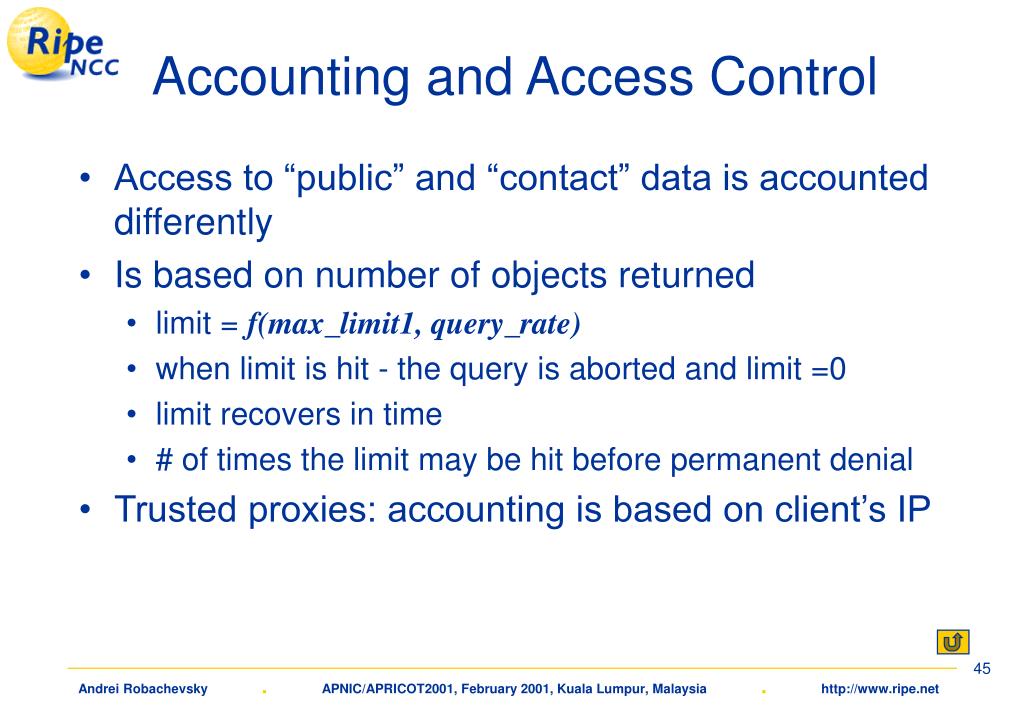

  45. Accounting and Access Control • Access to “public” and “contact” data is accounted differently • Is based on number of objects returned • limit = f(max_limit1, query_rate) • when limit is hit - the query is aborted and limit =0 • limit recovers in time • # of times the limit may be hit before permanent denial • Trusted proxies: accounting is based on client’s IP

  46. Authorization of route creation inetnum: 10.1.0.0 - 10.1.255.255 mnt-by: M1-MNT ... route: 10.1.0.0/16 mnt-by: M2-MNT ... aut-num: AS65000 mnt-by: M3-MNT ... mntner: M1-MNT auth: ... mntner: M3-MNT auth: ... mntner: M4-MNT auth: ... mntner: M2-MNT auth: ... route: 10.1.1.0/24 origin: AS65000 mnt-by: M4-MNT ...

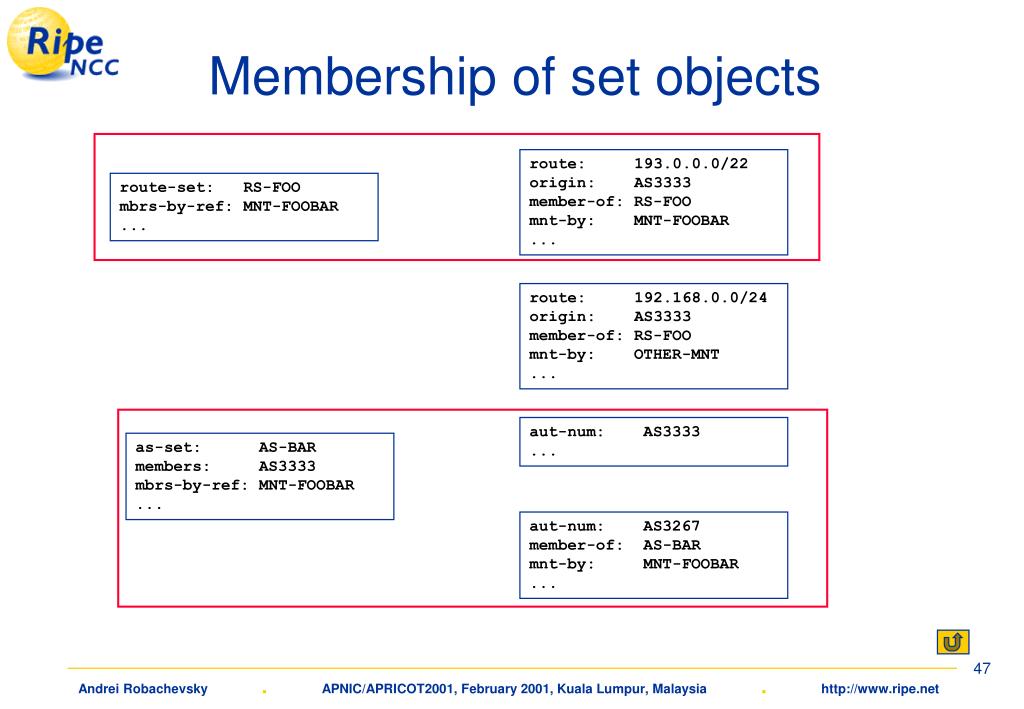

  47. Membership of set objects route: 193.0.0.0/22 origin: AS3333 member-of: RS-FOO mnt-by: MNT-FOOBAR ... route-set: RS-FOO mbrs-by-ref: MNT-FOOBAR ... route: 192.168.0.0/24 origin: AS3333 member-of: RS-FOO mnt-by: OTHER-MNT ... aut-num: AS3333 ... as-set: AS-BAR members: AS3333 mbrs-by-ref: MNT-FOOBAR ... aut-num: AS3267 member-of: AS-BAR mnt-by: MNT-FOOBAR ...
