Network Management

Network Management. Distributed Automated Resource Management using Software Agents. Connection oriented networks with reservation mechanisms (MPLS, GMPLS, ATM, …). A. A Logical Path (LP) represents a reservation of resources through the network nodes and links and carries the user traffic.

conner
Télécharger la présentation

Network Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

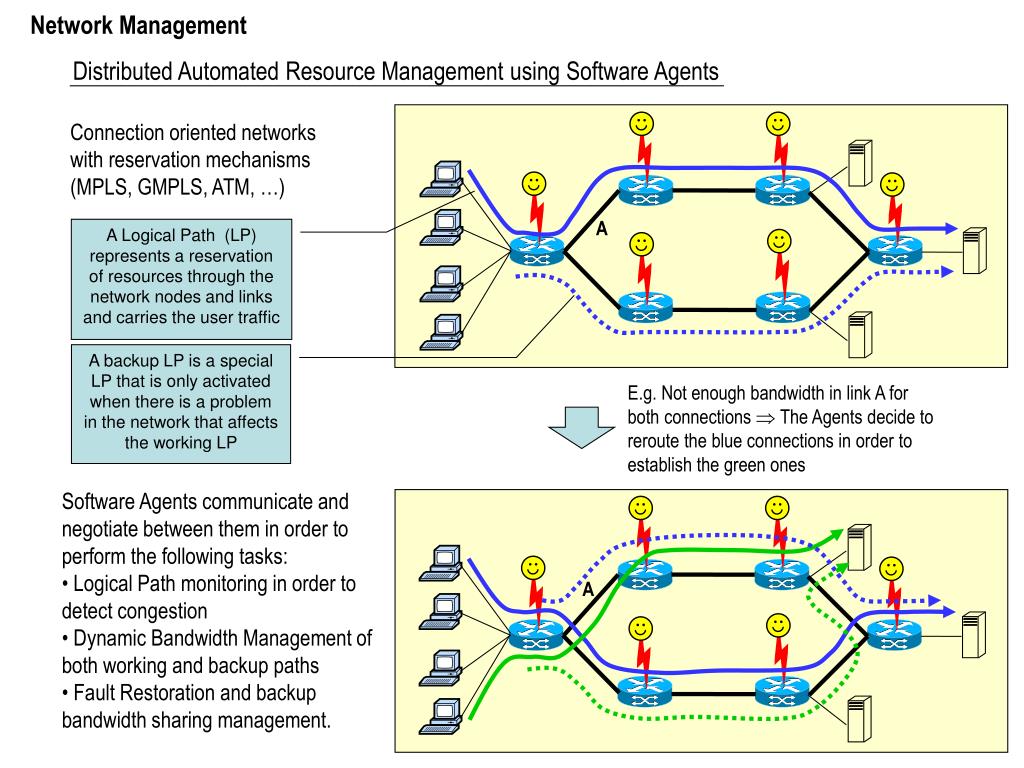

  1. Network Management Distributed Automated Resource Management using Software Agents Connection oriented networks with reservation mechanisms (MPLS, GMPLS, ATM, …) A A Logical Path (LP) represents a reservation of resources through the network nodes and links and carries the user traffic A backup LP is a special LP that is only activated when there is a problem in the network that affects the working LP E.g. Not enough bandwidth in link A for both connections  The Agents decide to reroute the blue connections in order to establish the green ones • Software Agents communicate and negotiate between them in order to perform the following tasks: • Logical Path monitoring in order to detect congestion • Dynamic Bandwidth Management of both working and backup paths • Fault Restoration and backup bandwidth sharing management. A

  2. AS 2 and AS 4 may not know that these two LPs should go through different physical links due to one is the backup of the other AS 2 AS 1 AS 4 AS 3 may not know that the working LP 1 go through AS 2 and routes the backup connection through AS 2 Suitable backup LP AS 3 Not useful backup LP Inter-domain Protection Management Inter-domain Characteristics • Network domains belong to different network providers (usually different companies) called Autonomous Systems (AS) • There are agreements between ASs in order to interconnect their networks. These agreements usually include specific details of the service each AS offer to their peers, e.g. the link capacity (Mbits/s). This is called Service Level Agreement (SLA). • There are two types of agreements (not exclusive): Access to other AS users, and Transit through other AS network Inter-domain Problems • The AS do not want to share confidential network information to their competitors, only basic routing information. • It is not possible to perform an inter-domain optimisation of the working and backup LPs. • The main problem is the establishment of the backup LPs. A specific AS has not any kind of control over other ASs networks. Proposed Management Mechanisms • Use of a single Software Agent representing every AS. No central authority. • Automated Negotiation based on a common ontology and standard Agent Communication Languages • Every agent internals can be different and use different AI mechanisms in order to make its decisions
