  1. Multi-dimensional SLA-based Resource Allocation for Multi-tier Cloud Computing Systems HadiGoudarzi and MassoudPedram University of Southern California, Los Angeles in IEEE Cloud 2011(The 4th International Conference on Cloud Computing)

  2. Agenda • Introduction • System model • Problem formulation • An upper-bound on the total profit • Profit maximization solution • Simulation results • Conclusion

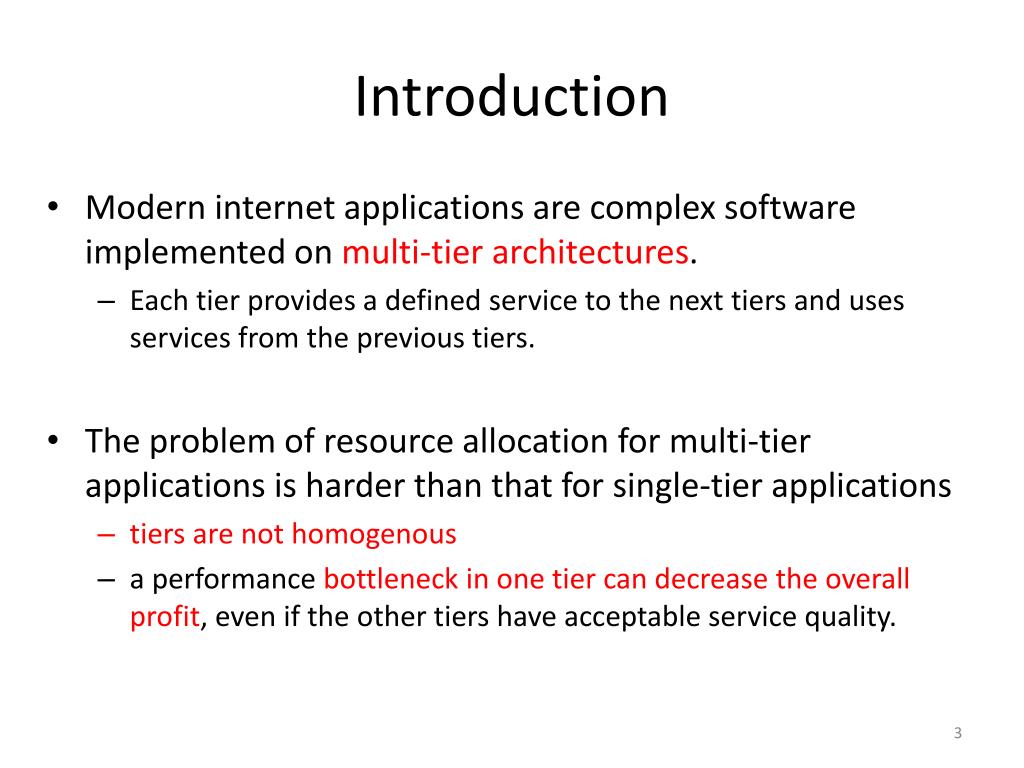

  3. Introduction • Modern internet applications are complex software implemented on multi-tier architectures. • Each tier provides a defined service to the next tiers and uses services from the previous tiers. • The problem of resource allocation for multi-tier applications is harder than that for single-tier applications • tiers are not homogenous • a performance bottleneck in one tier can decrease the overall profit, even if the other tiers have acceptable service quality.

  4. Introduction (cont’d) • The IT infrastructure provided by the datacenter owners/operators must meet various SLAs established with the clients. • The problem of optimal resource provisioning is challenging due to the diversity present in the client applications being hosted and the SLAs. • reduce the cost incurred on the datacenter operators • meet the clients’ SLAs.

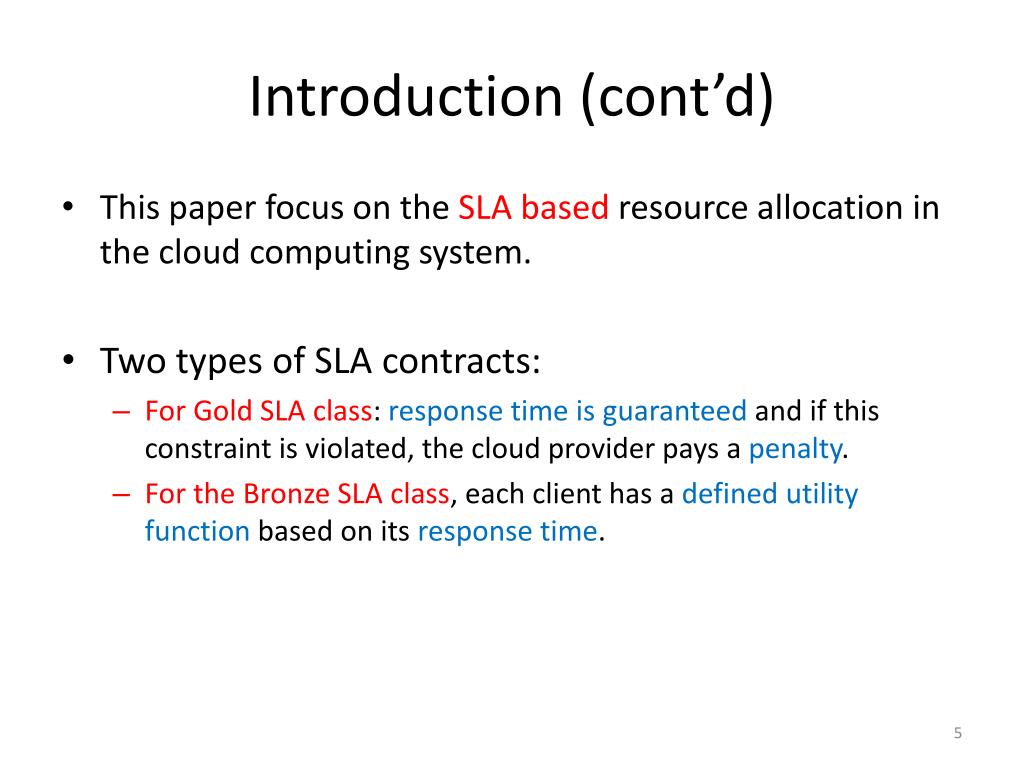

  5. Introduction (cont’d) • This paper focus on the SLA based resource allocation in the cloud computing system. • Two types of SLA contracts: • For Gold SLA class: response time is guaranteed and if this constraint is violated, the cloud provider pays a penalty. • For the Bronze SLA class, each client has a defined utility function based on its response time.

  6. Introduction (cont’d) • In this paper, we assume that servers are characterized by their maximum capacity in three dimensions: • processing power • memory usage • communication bandwidth • Objective • An SLA-based multi-dimensional resource allocation scheme for the multi-tier services in a cloud computing system to optimize the total expected profit.

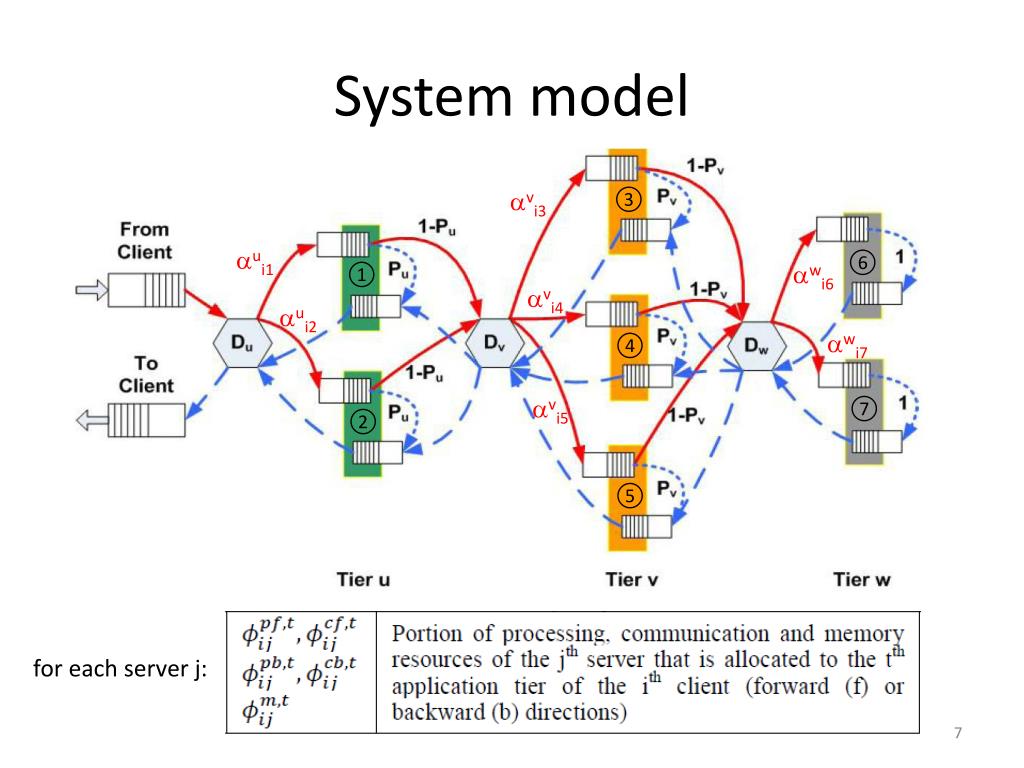

  7. System model vi3 3 ui1 6 wi6 1 vi4 ui2 wi7 4 vi5 7 2 5 for each server j:

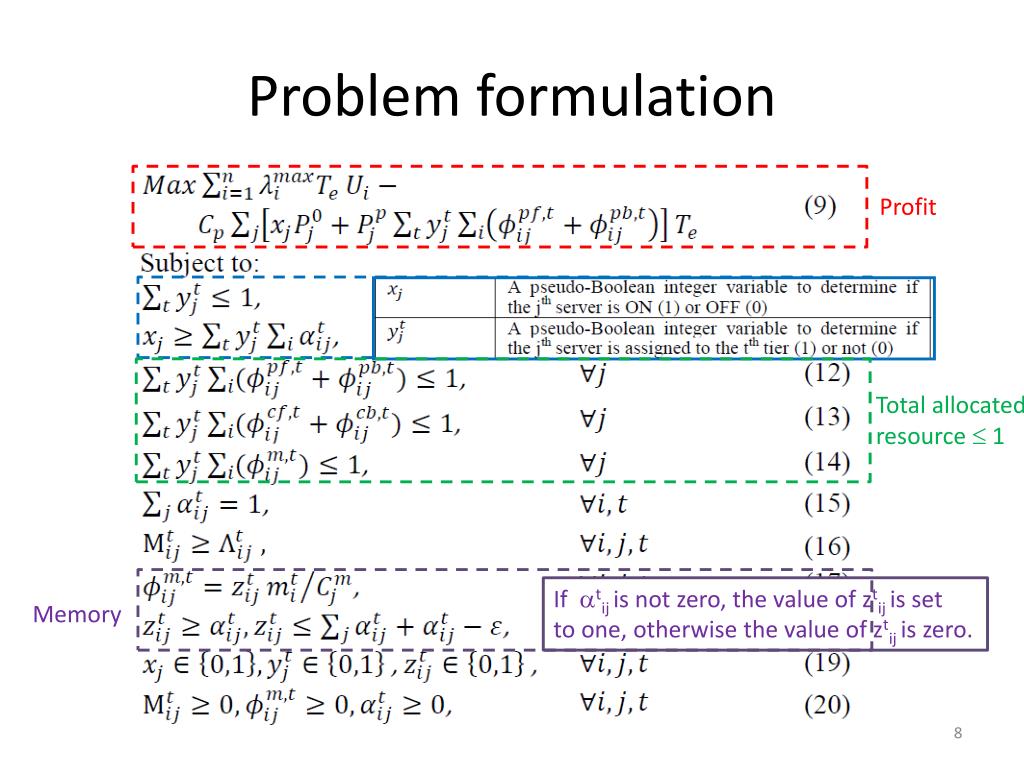

  8. Problem formulation Profit Total allocated resource  1 If tijis not zero, the value of ztijis set to one, otherwise the value of ztijis zero. Memory

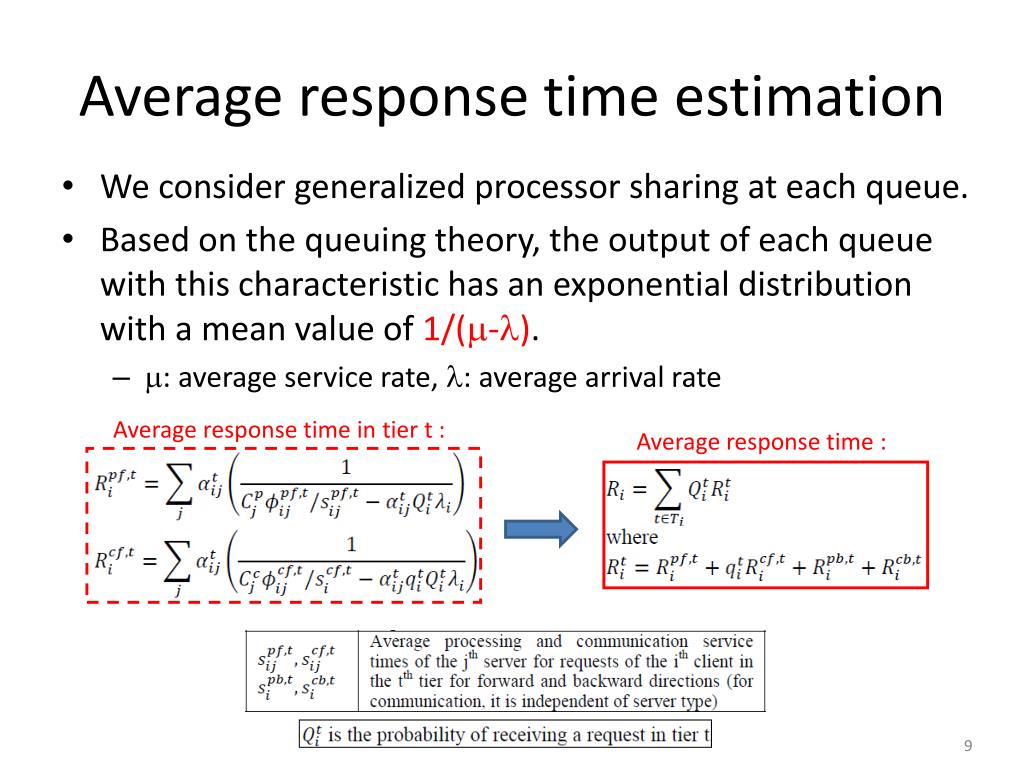

  9. Average response time estimation • We consider generalized processor sharing at each queue. • Based on the queuing theory, the output of each queue with this characteristic has an exponential distribution with a mean value of 1/(-). • : average service rate, : average arrival rate Average response time in tier t : Average response time :

  10. Profit • Utility function • Gold SLA: • Bronze SLA: Ubi(Ri) is a nonincreasing function of the average response time. • Cost (power consumption) • Profit in a duration Te:

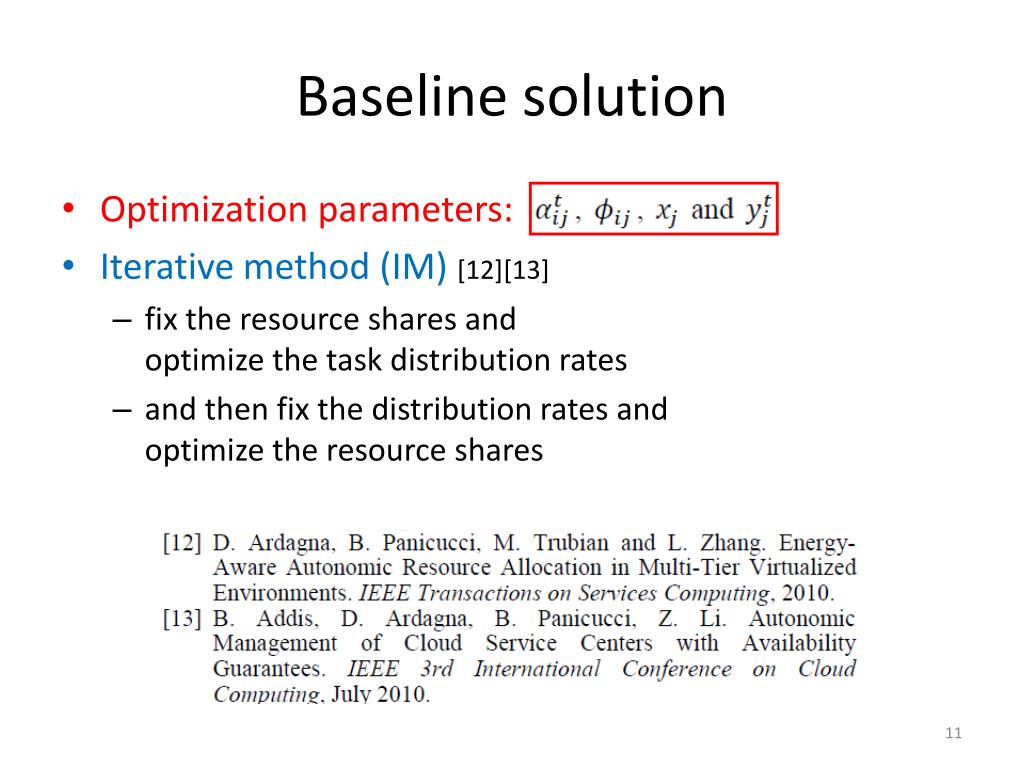

  11. Baseline solution • Optimization parameters: • Iterative method (IM) [12][13] • fix the resource shares and optimize the task distribution rates • and then fix the distribution rates and optimize the resource shares

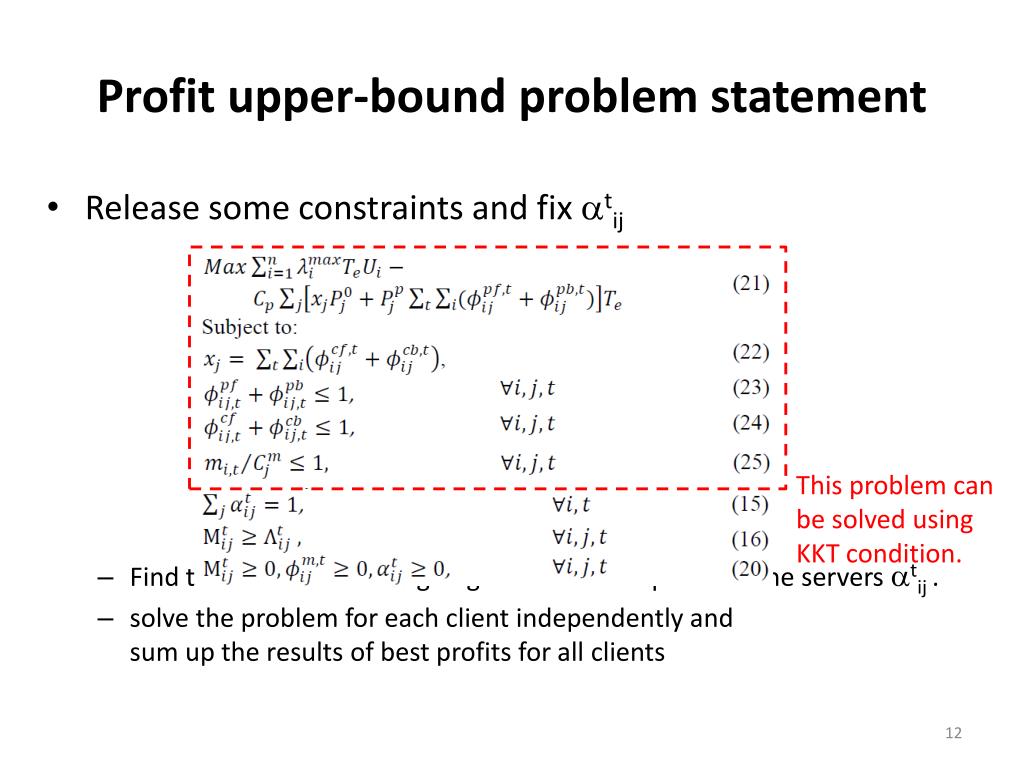

  12. Profit upper-bound problem statement • Release some constraints and fix tij • Find the best case of assigning the client’s requests to the servers tij. • solve the problem for each client independently and sum up the results of best profits for all clients • This problem can be solved using KKT condition.

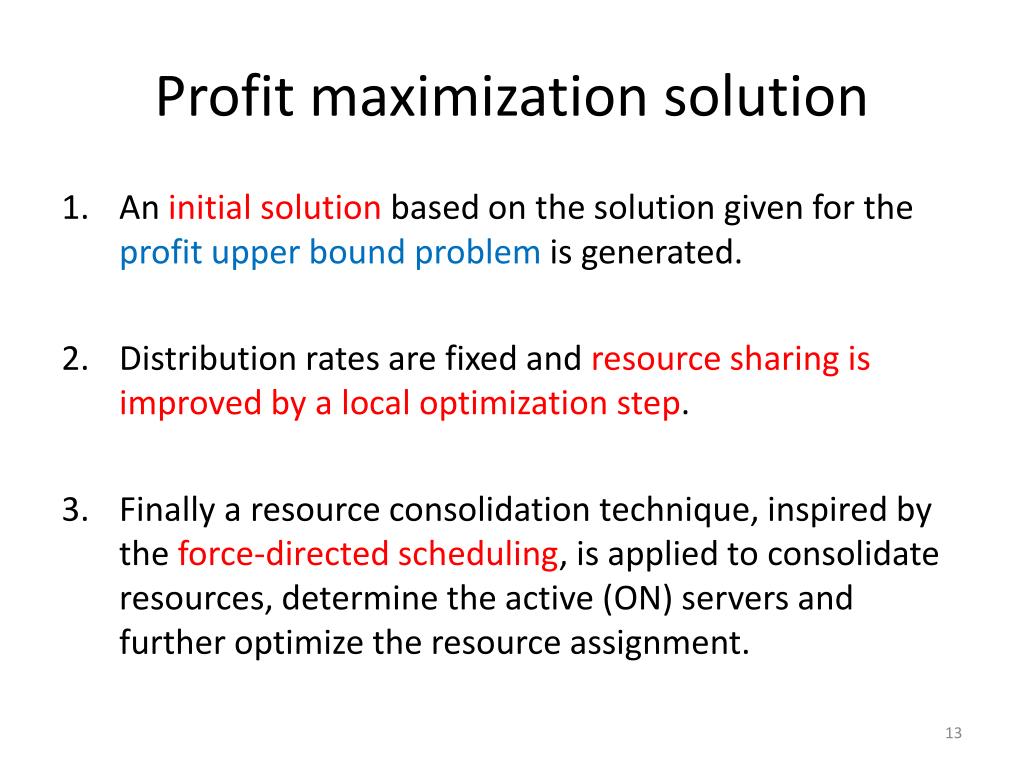

  13. Profit maximization solution • An initial solution based on the solution given for the profit upper bound problem is generated. • Distribution rates are fixed and resource sharing is improved by a local optimization step. • Finally a resource consolidation technique, inspired by the force-directed scheduling, is applied to consolidate resources, determine the active (ON) servers and further optimize the resource assignment.

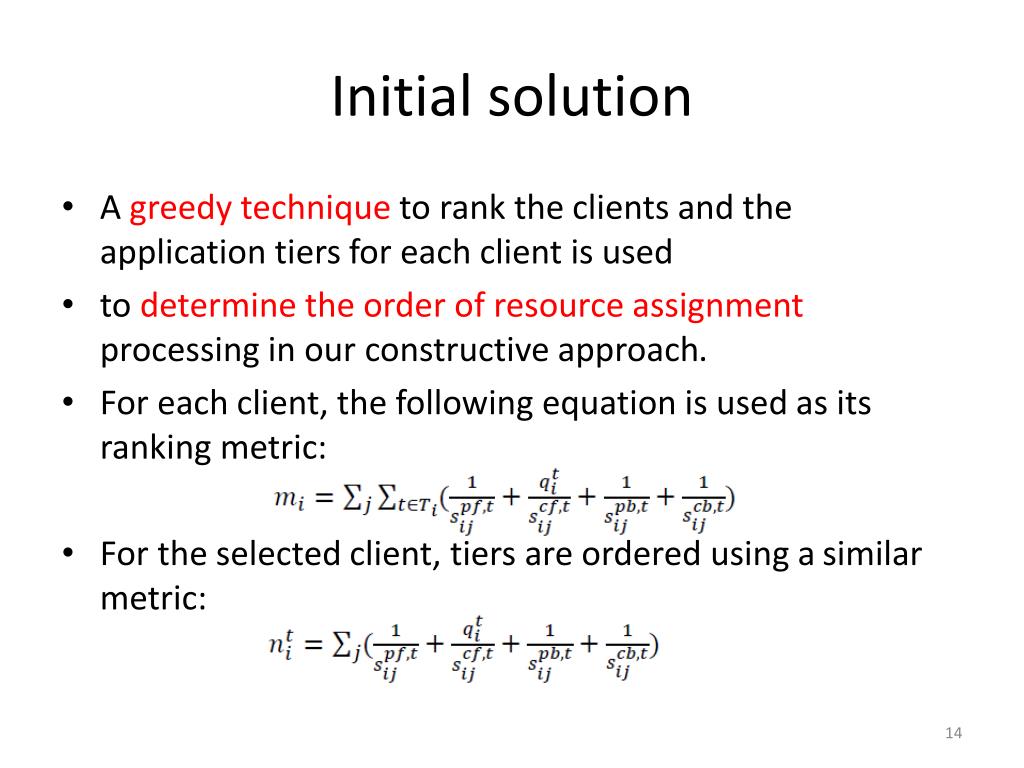

  14. Initial solution • A greedy technique to rank the clients and the application tiers for each client is used • to determine the order of resource assignment processing in our constructive approach. • For each client, the following equation is used as its ranking metric: • For the selected client, tiers are ordered using a similar metric:

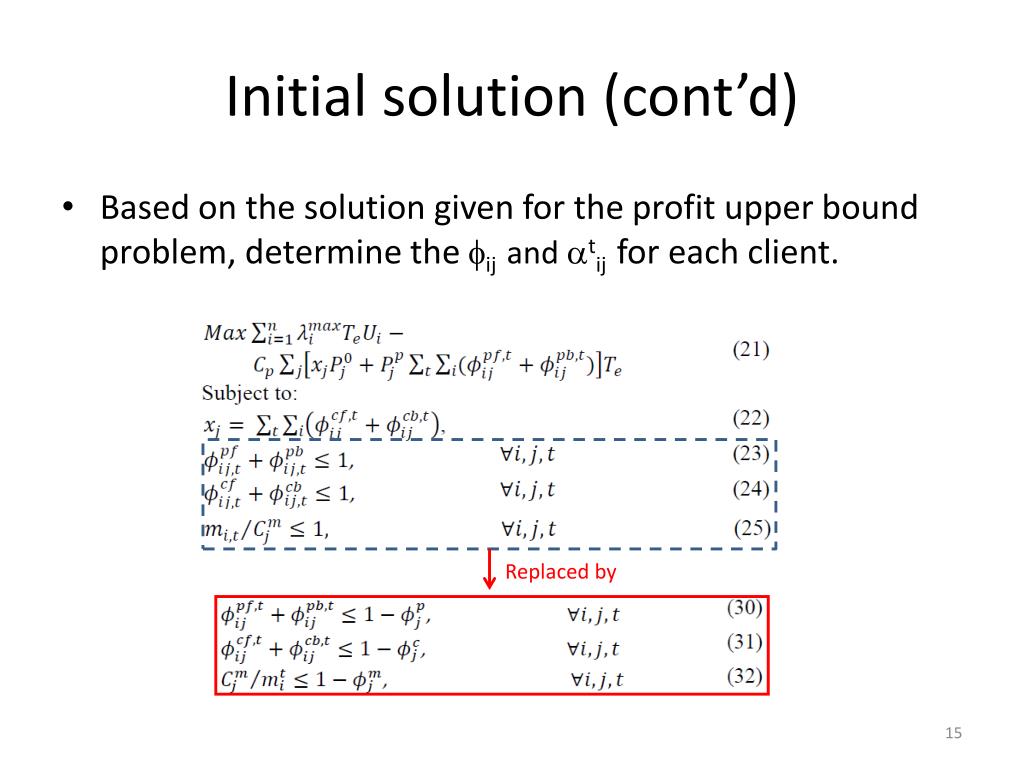

  15. Initial solution (cont’d) • Based on the solution given for the profit upper bound problem, determine the ijand tijfor each client. Replaced by

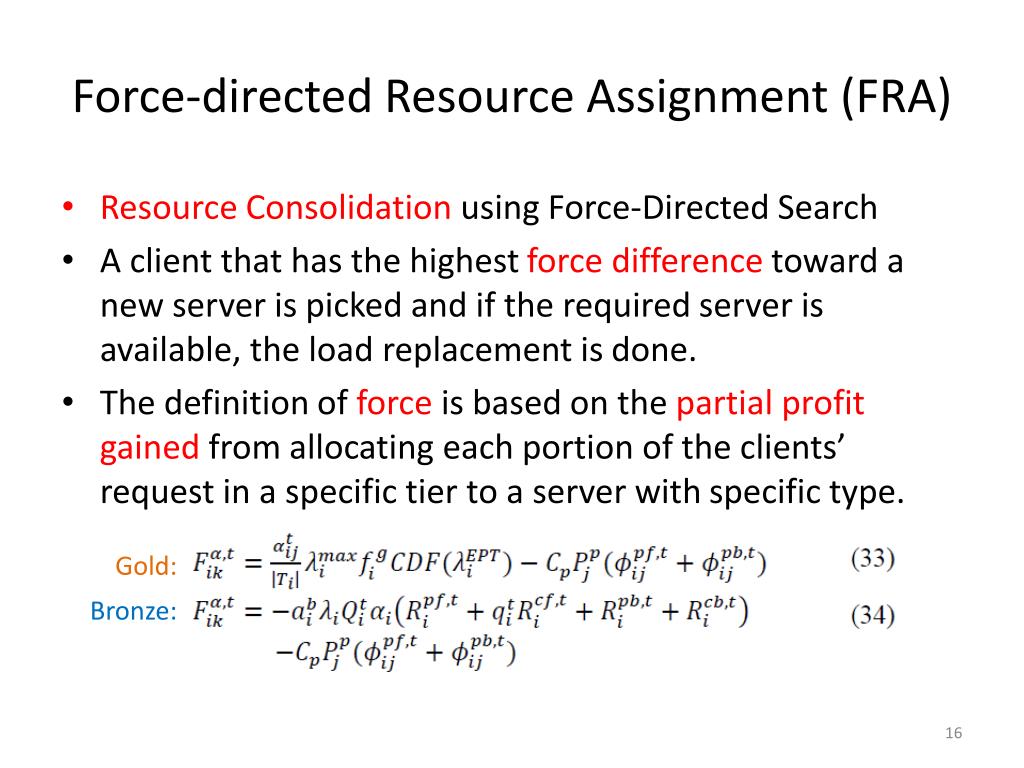

  16. Force-directed Resource Assignment (FRA) • Resource Consolidation using Force-Directed Search • A client that has the highest force difference toward a new server is picked and if the required server is available, the load replacement is done. • The definition of forceis based on the partial profit gained from allocating each portion of the clients’ request in a specific tier to a server with specific type. Gold: Bronze:

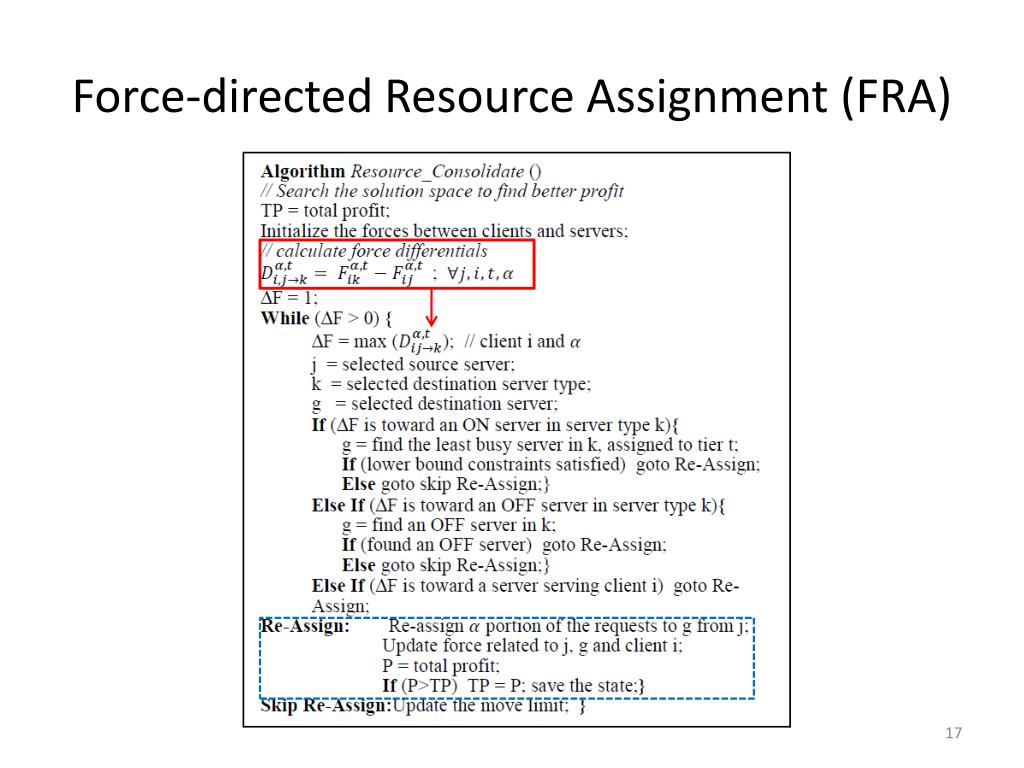

  17. Force-directed Resource Assignment (FRA)

  18. Force-directed Resource Assignment (FRA) • After this replacement, forces are updated and the new maximum force differential client-to-server assignment is made. • This algorithm continues until there are no positive force differentials for any clients. • Limit the number of tries in the algorithm and avoid loops and lockouts

  19. Simulations • Consider 10 to 100 clients • For each client the processing power and memory capacity requirements are set with random variables. • Ten different application tiers are considered. • The number of application tiers for each client is selected randomly to be between 3 and 5. • The probabilities of going forward or backward • average of 80% going forward and 20% backwardfor each tier. • Service times for clients with different application tiers are also modeled with random variables. • Gold or Bronze SLA class with probability of 50%

  20. Simulations (cont’d) • The first scenario (low server to client ratio) • The average number of servers is 5n where n denotes the number of clients. • The second scenario (high server to client ratio) • The average number of servers is set to 10n.

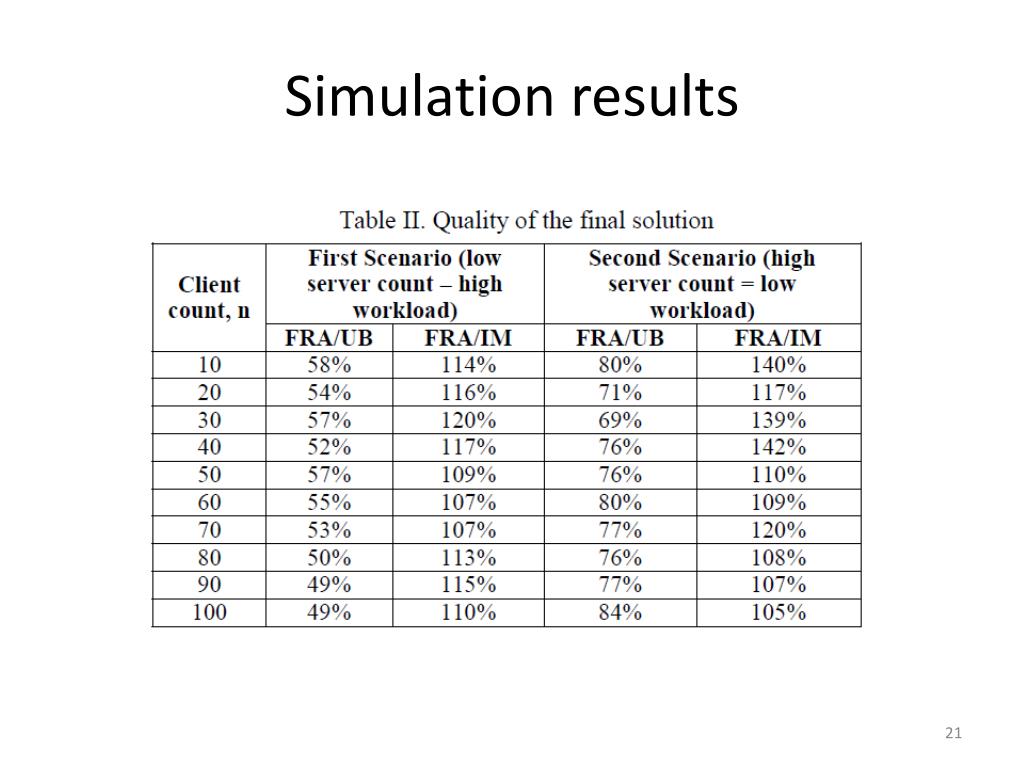

  21. Simulation results

  22. Simulation results (cont’d) • An example of Resource Consolidation Improvement in case of a bad initial solution.

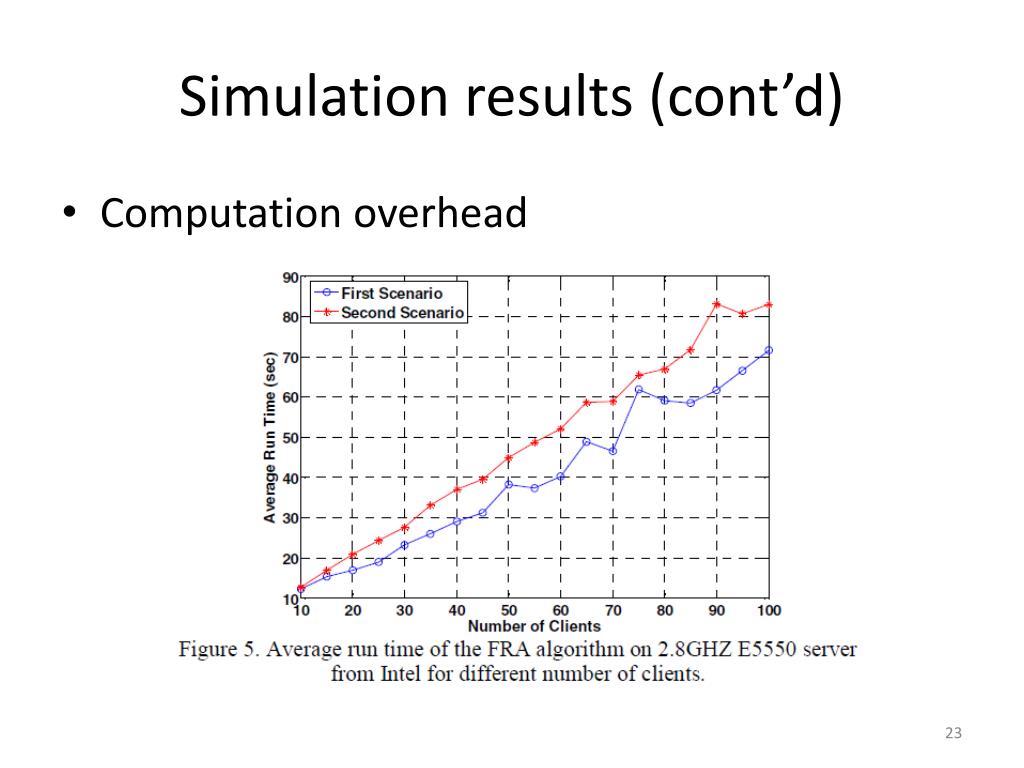

  23. Simulation results (cont’d) • Computation overhead

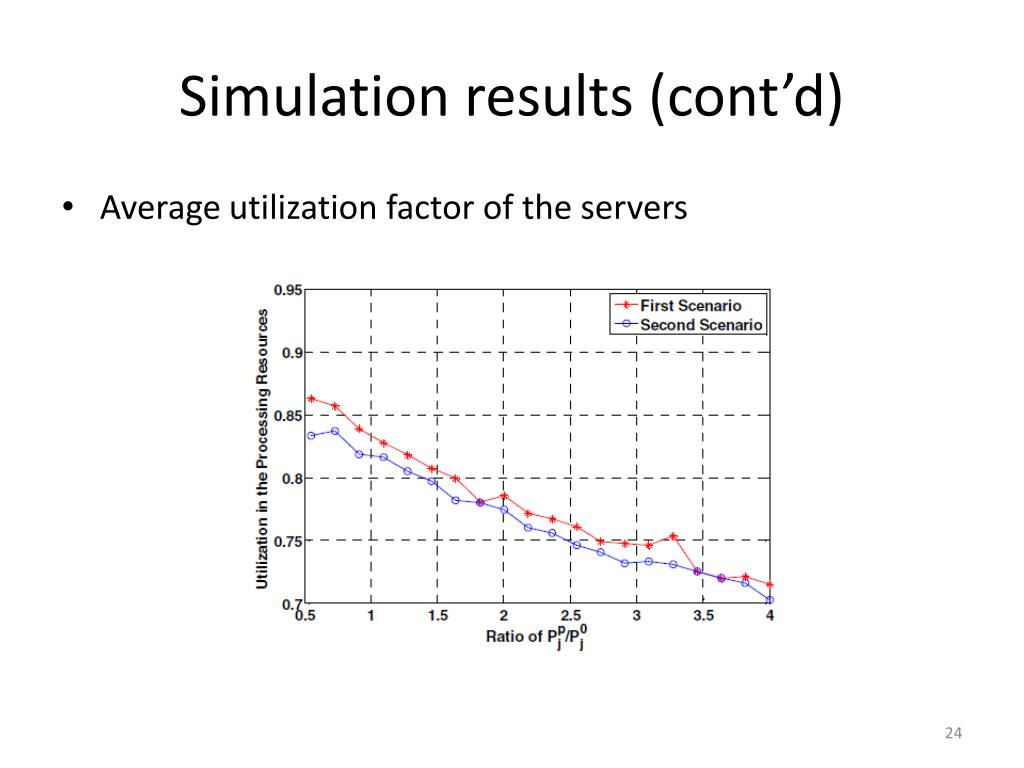

  24. Simulation results (cont’d) • Average utilization factor of the servers

  25. Conclusion • A closed-form formula for calculating the average response time of a client’s request for multi-tier applications. • A unified framework for handling both strong (Gold class) and weak (Bronze class) SLAs. • A provable upper bound on the total profit in the system for given clients, resources and SLAs. • A multi-dimensional resource allocation scheme to consider communication resources for multi-tier applications that incur large inter-server communications.

  26. Comments • A well problem formulation. • The upper bound is too loose. • Computation overhead is high • static dispatcher in this paper • We can consider the effect of virtualization • A host server has multiple application. • Another issue • How to design a dynamic dispatcher according to request arrival and server condition ?
