  1. Hidden Markov Models for Software Piracy Detection • ShabanaKazi • Mark Stamp HMMs for Piracy Detection

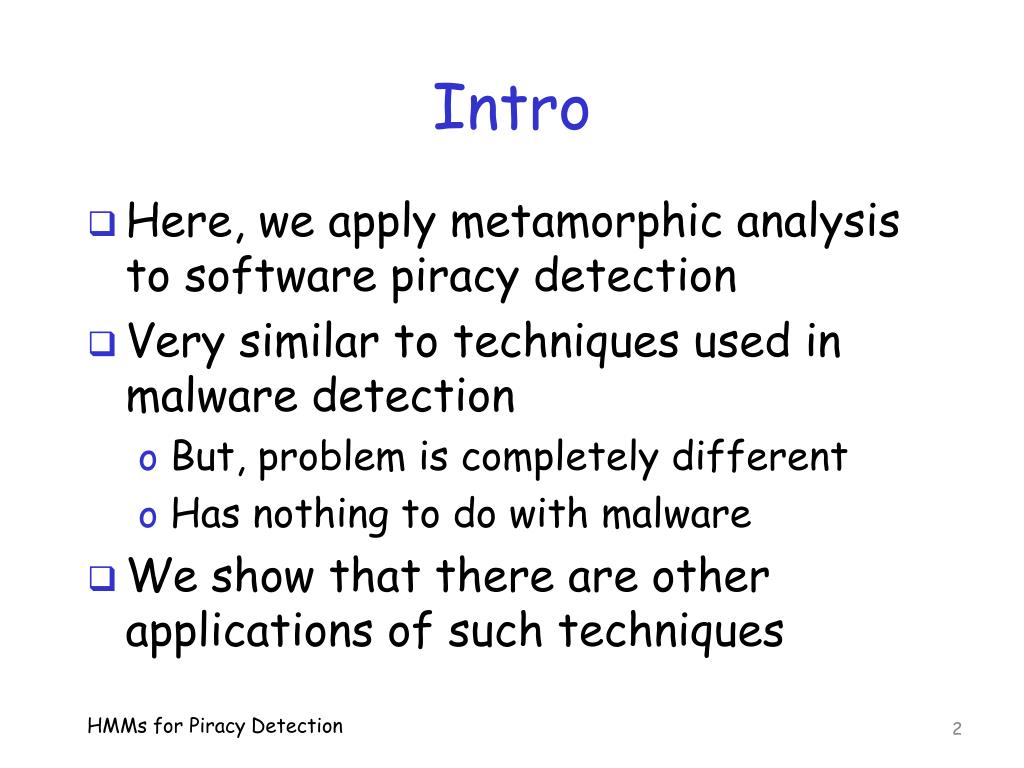

  2. Intro HMMs for Piracy Detection • Here, we apply metamorphic analysis to software piracy detection • Very similar to techniques used in malware detection • But, problem is completely different • Has nothing to do with malware • We show that there are other applications ofsuch techniques

  3. Software Piracy HMMs for Piracy Detection • Software piracy is major problem • By 2009 estimate, $3 to $4 lost to piracy for every $1 in software sales • Usually, piracy consists of taking software without modification • In some cases, software is modified • Commercial theft of intellectual property • Thief reallydoesn’t want to get caught…

  4. Software Piracy HMMs for Piracy Detection • We assume software is stolen • Andmodified,making it hard to detect • If completely rewritten from scratch, we won’t detect it by our approach • Want to make life hard for bad guys • Ideally,majormodifications required • How much modification is need before we cannot reliably detect?

  5. Goals HMMs for Piracy Detection • Technique applicable to any software • No special effort by developer • Nothing extra inserted into code • We only require access to exe file • Not a watermarking scheme • More like software “birthmark” analysis • Also not plagiarism detection • Here,want a“deeper” analysis

  6. Use Case HMMs for Piracy Detection • You work for Alice’s Software Company • And you develop fancy software for ASC • Trudy’s Software Company (TSC) develops suspiciously similar product • You suspect TSC of stealing your code • Not identical, but seems similar • What can you do? • We’ve got some ideas that might help…

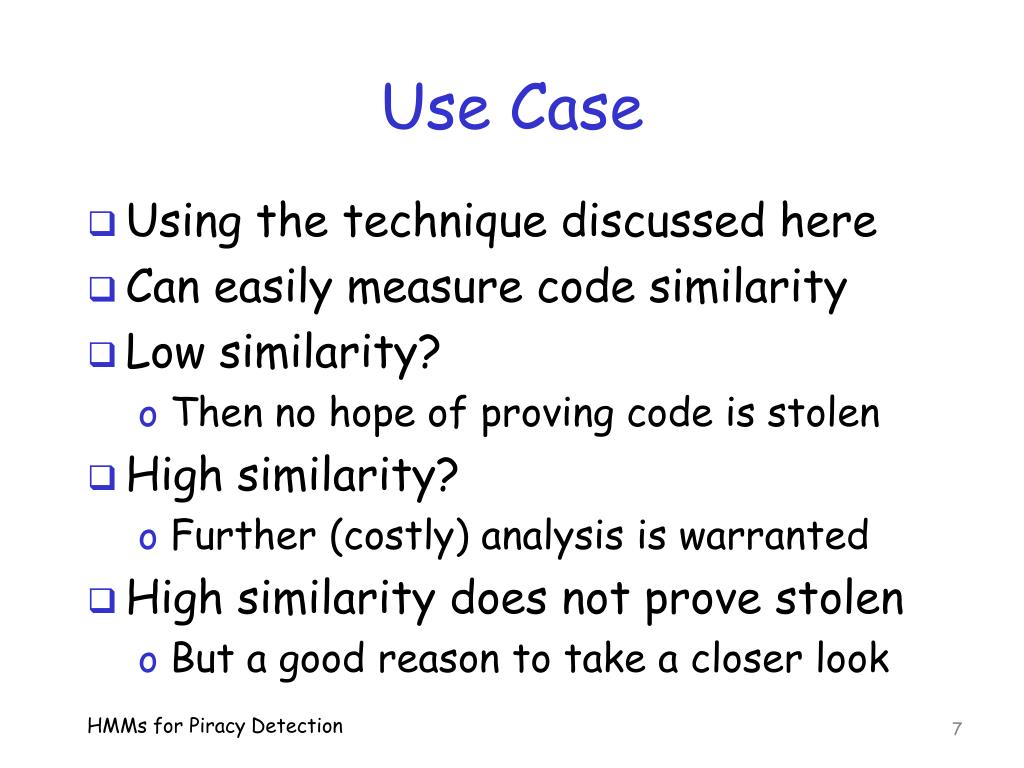

  7. Use Case HMMs for Piracy Detection • Using the technique discussed here • Can easily measure code similarity • Low similarity? • Thennohopeof proving code is stolen • High similarity? • Further (costly) analysis is warranted • High similarity does not prove stolen • But a good reason to take a closer look

  8. Background HMMs for Piracy Detection • Metamorphic software • Metamorphic techniques (dead code, permutation, substitution) • HMM • Basic ideas and notation • The 3 problems and their solutions (discussed at a high level) • We’ve seen all of this before

  9. Overview HMMs for Piracy Detection • Training and scoring • Train HMM on slightly morphed copies of given “base” software • Slight morphing to avoid overfitting • Score morphed copies and other files • Here, morphing serves to simulate modifications by attacker • Want to know how much morphing required before detection fails

  10. Metamorphic Generator HMMs for Piracy Detection • Built our own metamorphic generator • Morph based on extracted opcodes • Morphing consists of dead code insertion • Specify a dead code percentage and number of blocks to insert • Do not require morphed code works • Makesdetectionmore difficult, not easier • A worst-case scenario, detection-wise

  11. Training HMMs for Piracy Detection • Given a base executable file… • Extract its opcode sequence • Generate 100 slightly morphed copies • Each morphed 10%, using dead code extracted from random “normal” file • Train HMM on morphed copies • Using 5-fold cross validation • Note: We train one model for each “fold”

  12. Training HMMs for Piracy Detection • Illustration of training process • Slightly morphed copies of base program

  13. Determine Threshold HMMs for Piracy Detection • For each of 5-folds • Train HMM • Score 20 morphed files (match set) and 15 normal (nomatch set) • Determine threshold based on scores • Threshold is highest scoreofnormal file • Implies FPR = 0; equivalently, TNR = 1 (for the given “fold”)

  14. Setting a Threshold HMMs for Piracy Detection Process used to set threshold

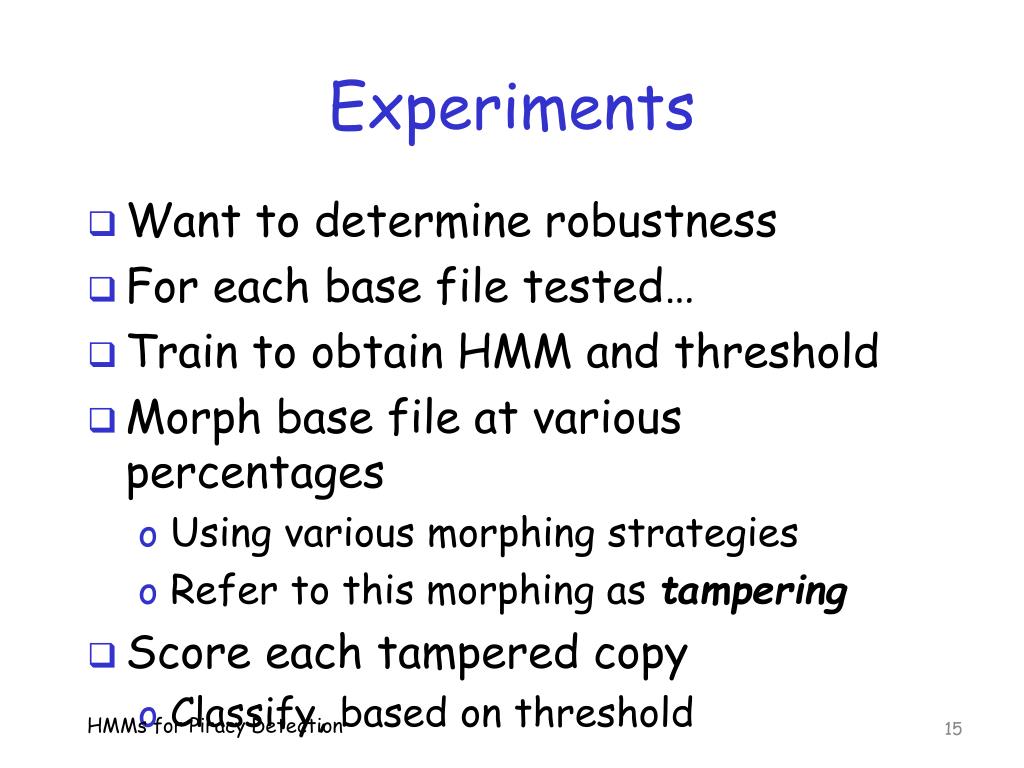

  15. Experiments HMMs for Piracy Detection • Want to determine robustness • For each base file tested… • Train to obtain HMM and threshold • Morph base file at various percentages • Using various morphing strategies • Refer to this morphing as tampering • Score eachtamperedcopy • Classify, based on threshold

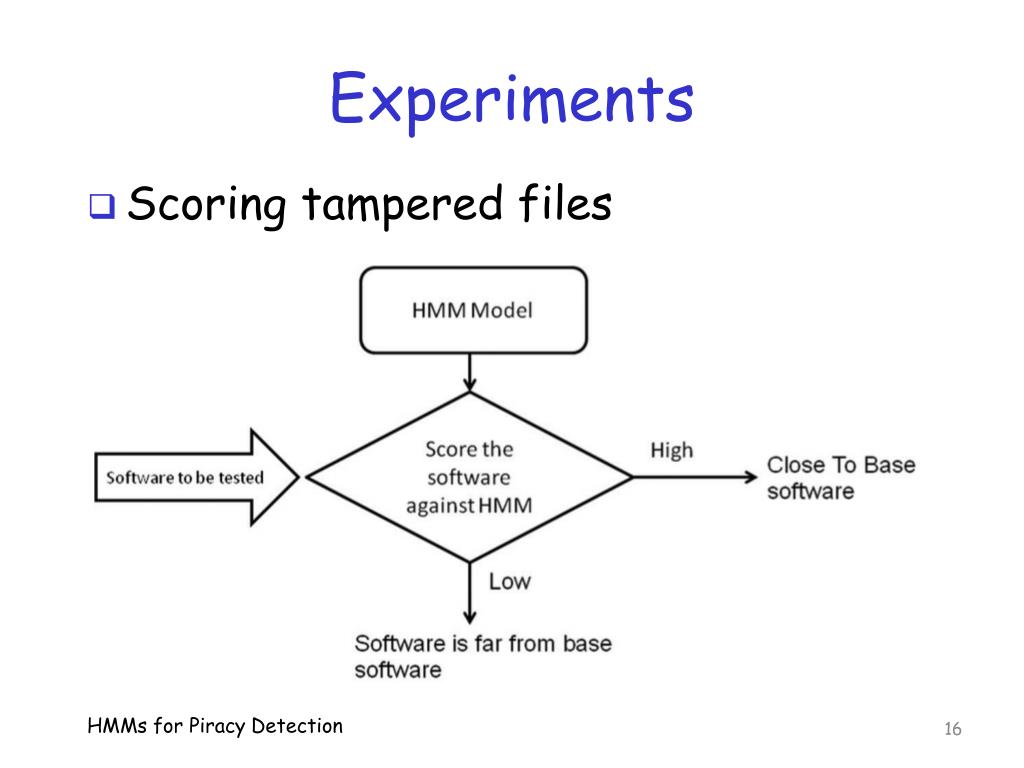

  16. Experiments HMMs for Piracy Detection Scoring tampered files

  17. Experiment Details HMMs for Piracy Detection • For each base file • 6 models • 10 tamper percent for each • 100 files each • So, 6000 scores!

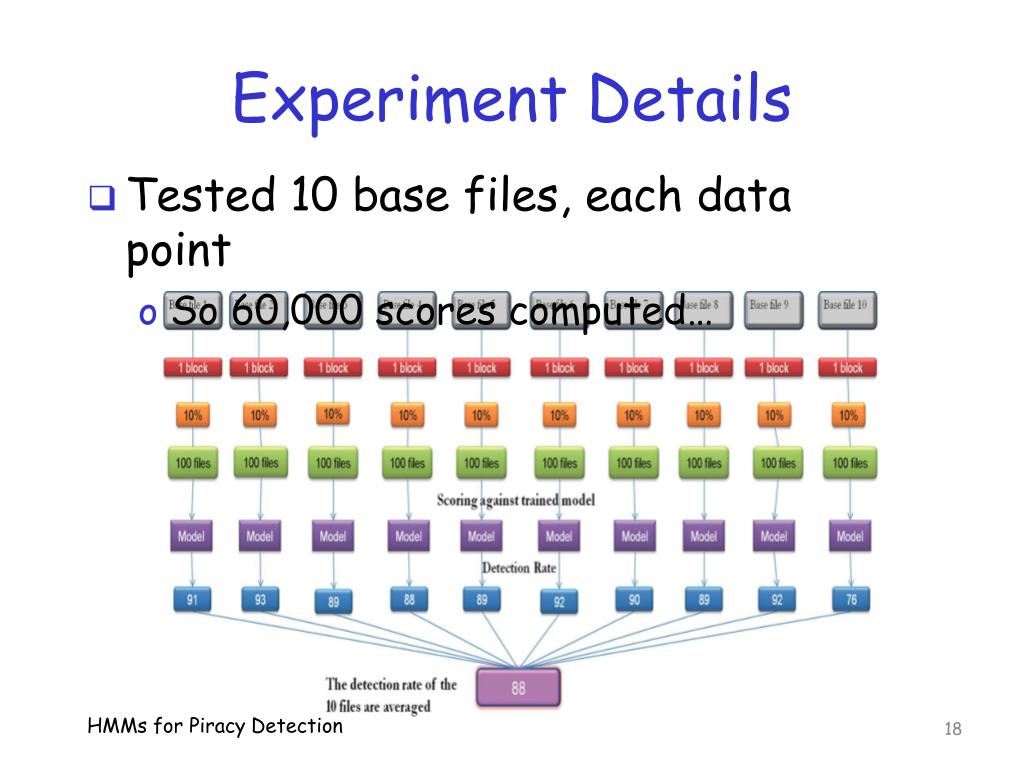

  18. Experiment Details HMMs for Piracy Detection • Tested 10 base files,each data point • So 60,000 scores computed…

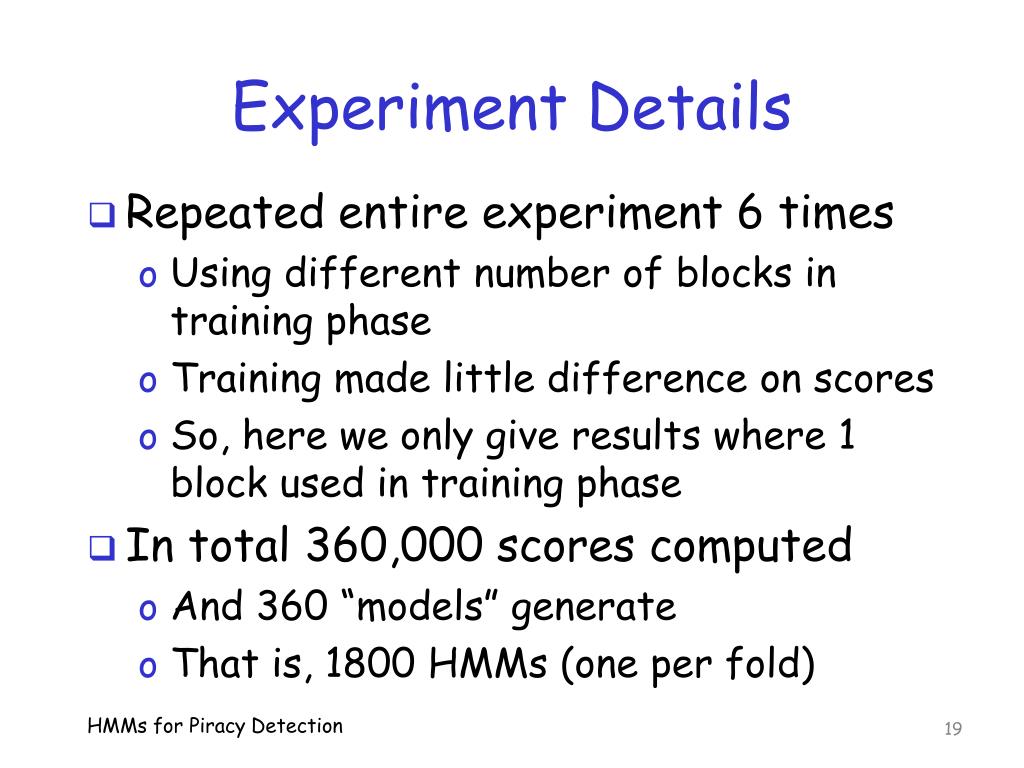

  19. Experiment Details HMMs for Piracy Detection • Repeated entire experiment 6 times • Using different number of blocks in training phase • Training made little difference on scores • So, here we only give results where 1 block used in training phase • In total 360,000 scores computed • And360 “models” generate • That is, 1800HMMs(one per fold)

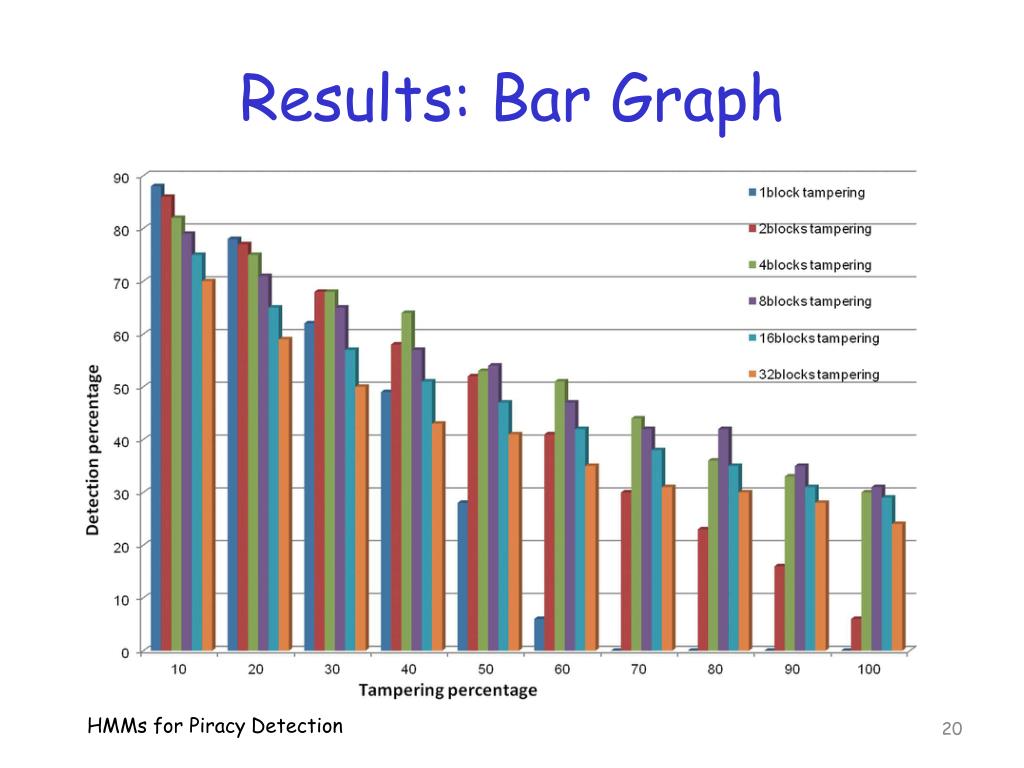

  20. Results: Bar Graph HMMs for Piracy Detection

  21. Results: 3-d Plot HMMs for Piracy Detection

  22. Conclusions HMMs for Piracy Detection • Results look very promising • Robust  high degree of morphing required before base file undetected • Practical  only requires exe, no special effort when developing • Applies to any exe, at any time • Overall, strong software “birthmark” strategy with practical implications

  23. Future Work HMMs for Piracy Detection • Statistical analysis somewhat weak • Resultsmay bestronger thanit appears • Many other scores/combinations of scores can be tested • Results can only get better • Consider other morphing techniques • And other file types (e.g., bytecode) • And mitigations for 1-block morphing …

  24. References HMMs for Piracy Detection S. Kazi and M. Stamp, Hidden Markov models for software piracy detection, Information Security Journal: A Global Perspective, 22:140-149, 2013
