  1. On the experimental modelling of delaminations in composite materials C. Devivier, F. Pierron and M. R. Wisnom

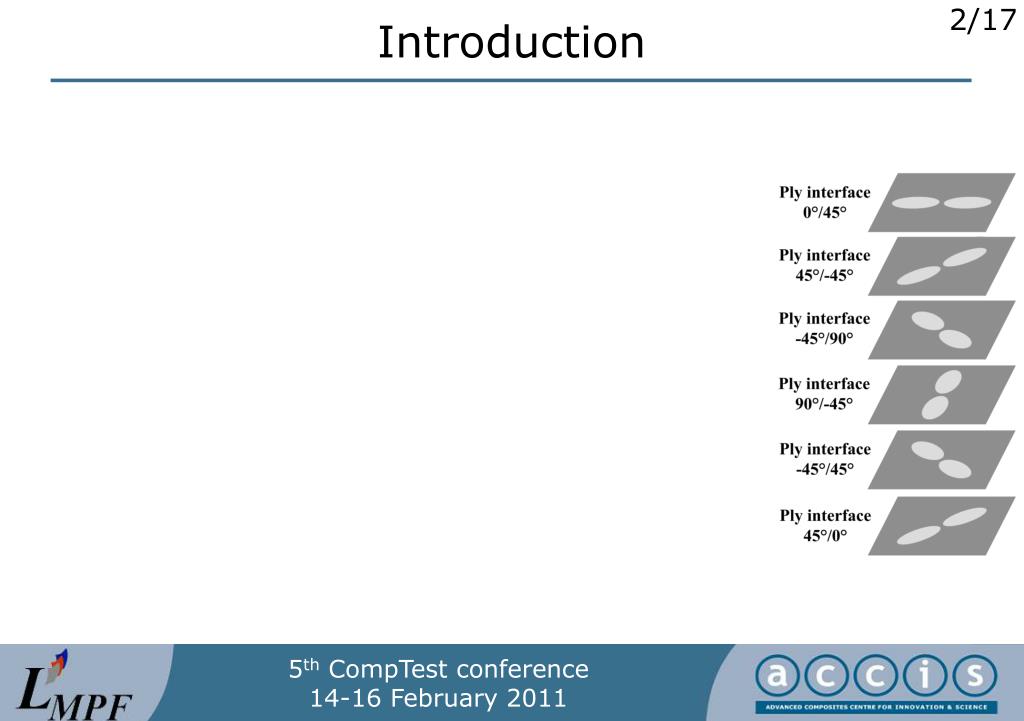

  2. Introduction • Dramatic effects from very small impacts • Barely visible impact damage (BVID)caused by tool drops • BVID involves delaminations • Resulting damage pattern is complex

  3. Introduction • More simple model  samples with single delaminations • Test in cantilever bending using grid method by deflectometry • Issues with artificial delaminations • in literature  PTFE film works for mode I • in this paper  mode II studied • Objective: Create a non-destructive evaluation for delaminations

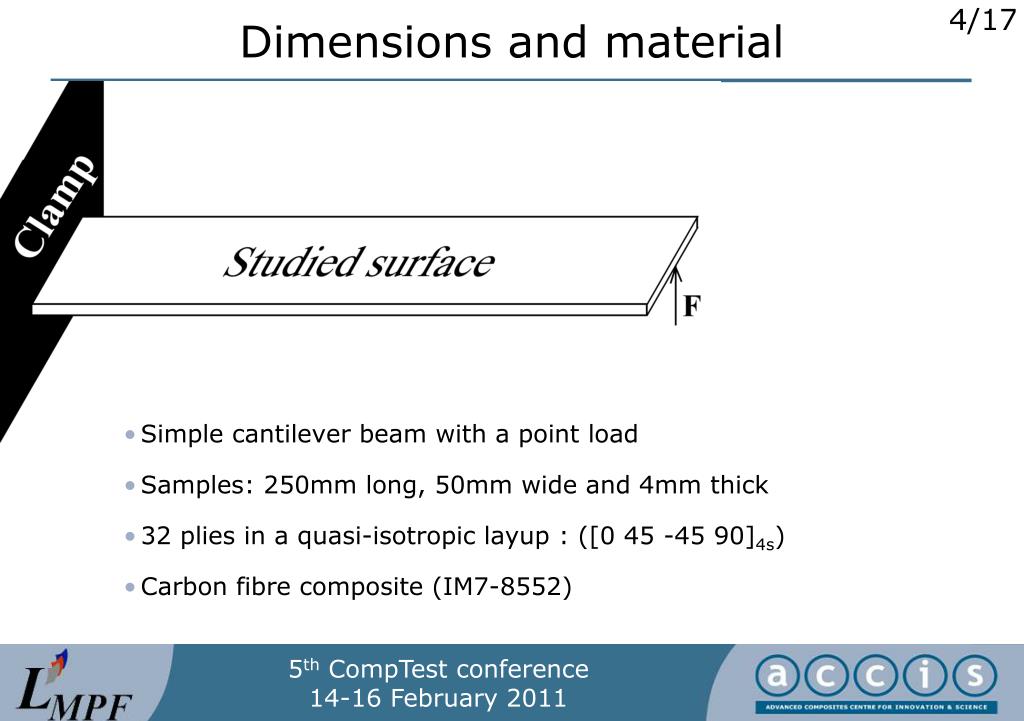

  4. Dimensions and material • Simple cantilever beam with a point load • Samples: 250mm long, 50mm wide and 4mm thick • 32 plies in a quasi-isotropic layup : ([0 45 -45 90]4s) • Carbon fibre composite (IM7-8552)

  5. Samples Undamaged 50mm delamination Single layer of PTFE (~25µm thick)

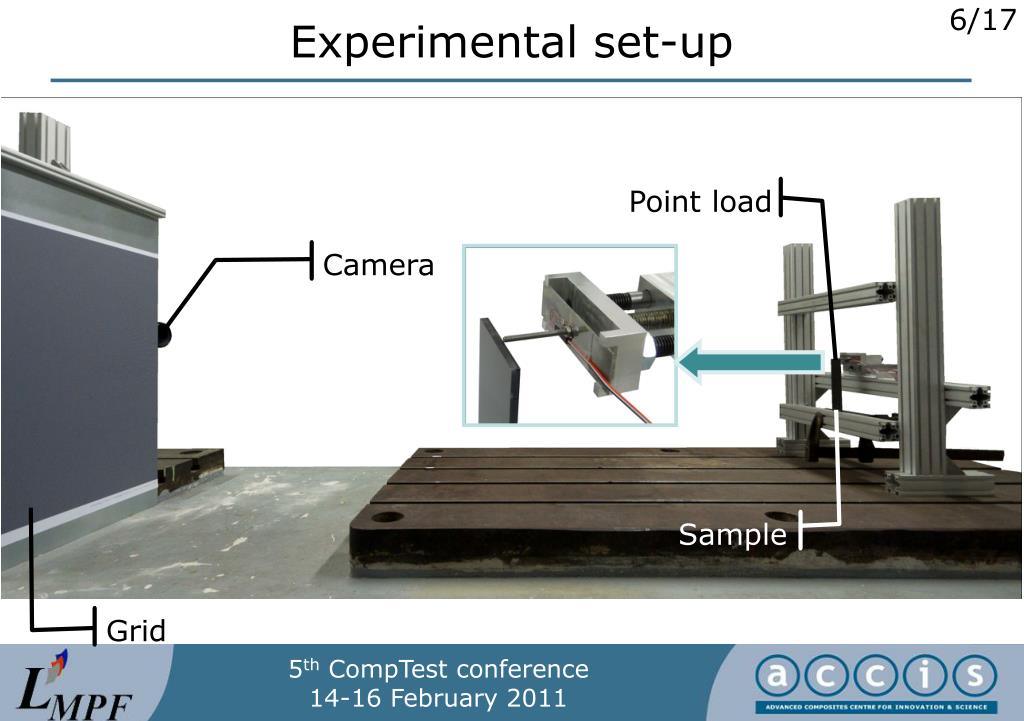

  6. Experimental set-up • Distance grid-sample=1.66 m • Load=5 N • Grid pitch = 1.5 mm • 7 pixels per grid pitch • 5 Mpix camera with a 28-200mm nikon zoom • Coated with an opaque resin Point load Camera Sample Top view Grid

  7. Strain extraction Spatial phase shifting (windowed discrete Fourier transform) Unloaded state » 1 picture unloaded state subtracted to loaded state Loaded state » 1 picture -Unloaded state: » Longitudinal » Transverse -Loaded state: » Longitudinal » Transverse

  8. Strain extraction Unwrapping with custom made algorithm. point-to-point differentiation “Equivalent strains” {e}=t/2{k} p: grid pitch h: distance grid-sample

  9. Resolutions and noise level Out of plane: In plane: Resolution in strains: =2µm/m =6800 µm/m x10-3 h: distance grid-sample (1600 mm) sf: phase standard deviation (0.01 rad) dx: pixel size (1.5 mm inplane 0.7 mm out of plane) t: specimen thickness (4 mm) p: grid pitch (1.5 mm)

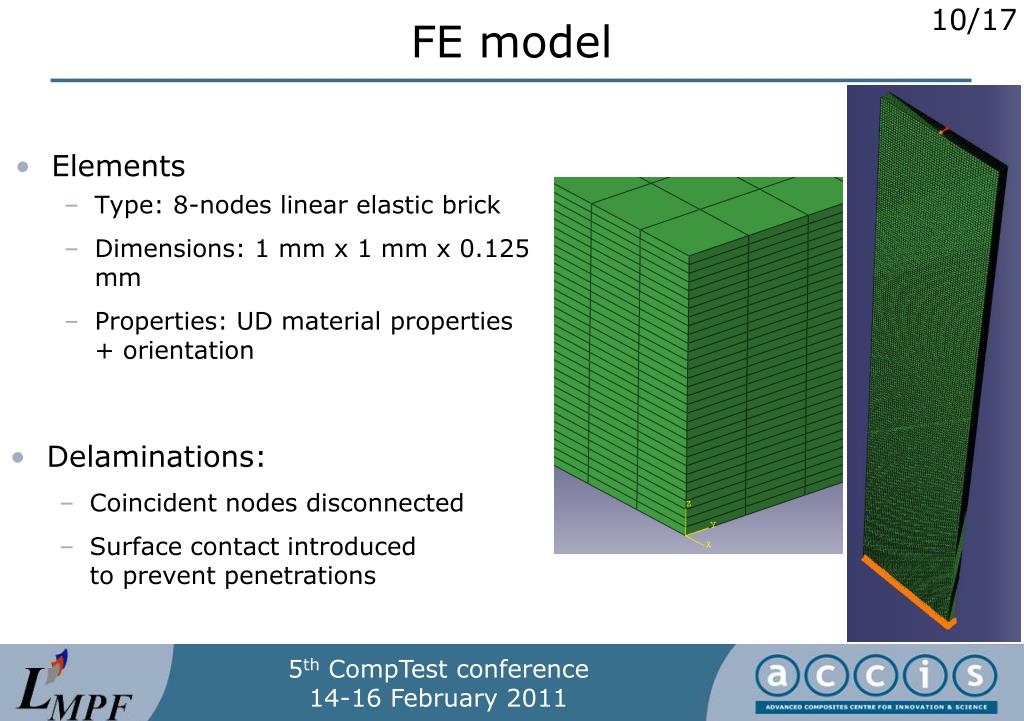

  10. FE model • Elements • Type: 8-nodes linear elastic brick • Dimensions: 1 mm x 1 mm x 0.125 mm • Properties: UD material properties + orientation • Delaminations: • Coincident nodes disconnected • Surface contact introducedto prevent penetrations

  11. Results (1/4) • To compare correctly experiments and FE » Same processing Out-of-plane displacement Slopes differentiation Curvatures differentiation Equivalent strains Scaling: Thin plate theory

  12. Equivalent strain maps (in mm/m)for the undamaged sample (2/4) Transverse strains Longitudinal strains Twist strains

  13. Equivalent strain maps (in mm/m) for the sample witha single, full width, 50mm-long delamination in the midplane (3/4) Transverse strains Longitudinal strains Twist strains

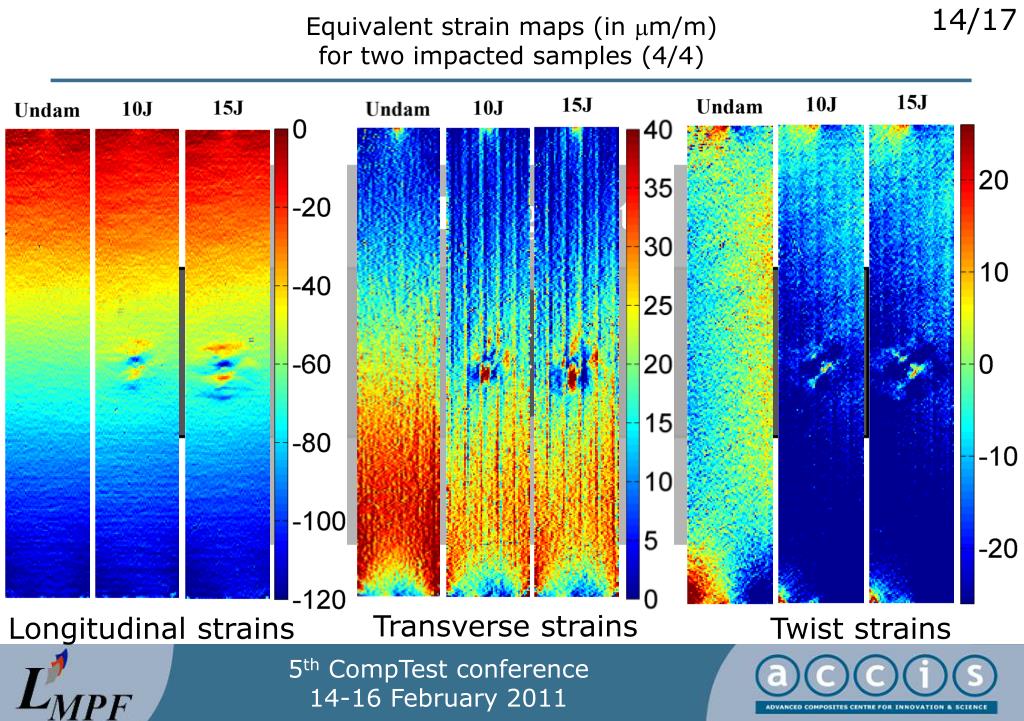

  14. Equivalent strain maps (in mm/m)for two impacted samples (4/4) Transverse strains Longitudinal strains Twist strains

  15. Conclusion • Behaviour of artificial delaminations characterized by experimental method. • Created delamination: • Good agreement with FE for longitudinal strains, • Not so good for twist strains, • Inconclusive for transverse strains because of loading. • Real impact: • Indication on damage severity by measurement system

  16. Future work • Test on samples with different types of inserts: • Double layer, • Different insert material, • Release agent. • Find a way to avoid the issue of deforming in plasticity the outer edges. • Link delamination behaviour with porosity. • Compare artificially introduced and real impacts in plates.

  17. Thank you for your attention Do you have any questions?? devivier@ensam.fr fabrice.pierron@chalons.ensam.frm.wisnom@bristol.ac.uk
